Revelation

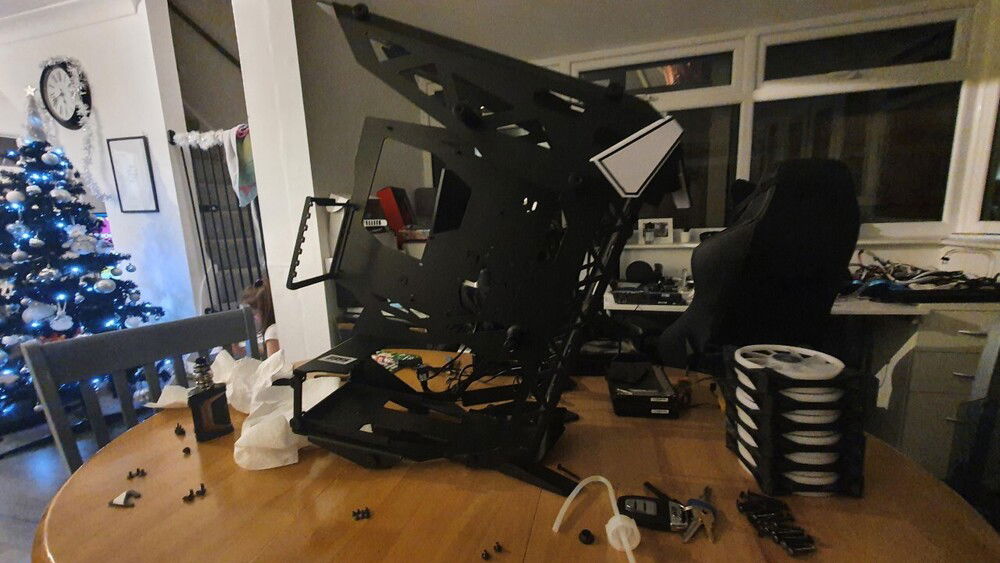

The time came to upgrade quite a few bits in the build so decided to tear the old stuff out and start from scratch. This was spurred on as been wanting to upgrade motherboard for a while and when i finally pulled the trigger on a ROG Crosshair VIII Formula X570, typically a few other bits caught my eye and it kind of spiralled from there.

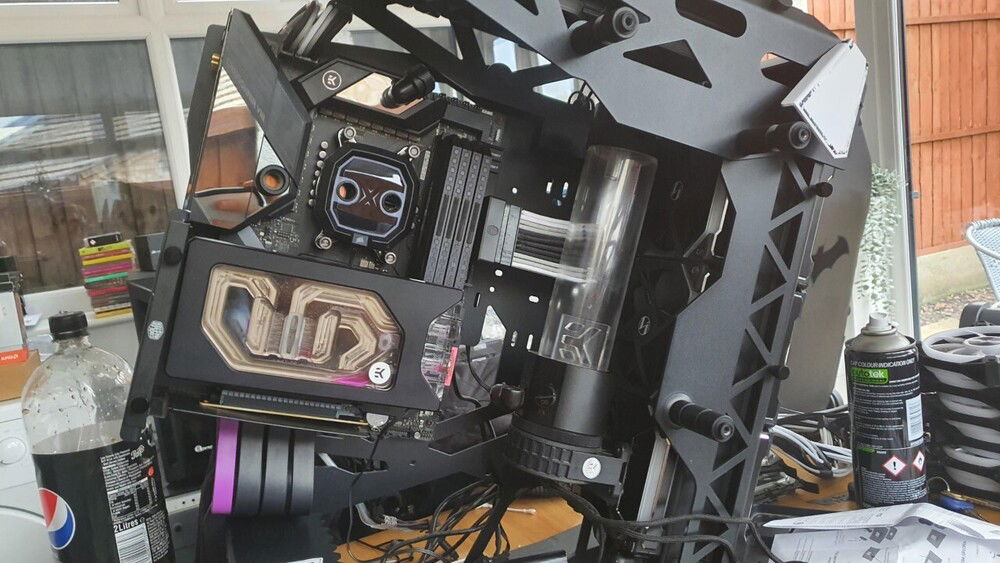

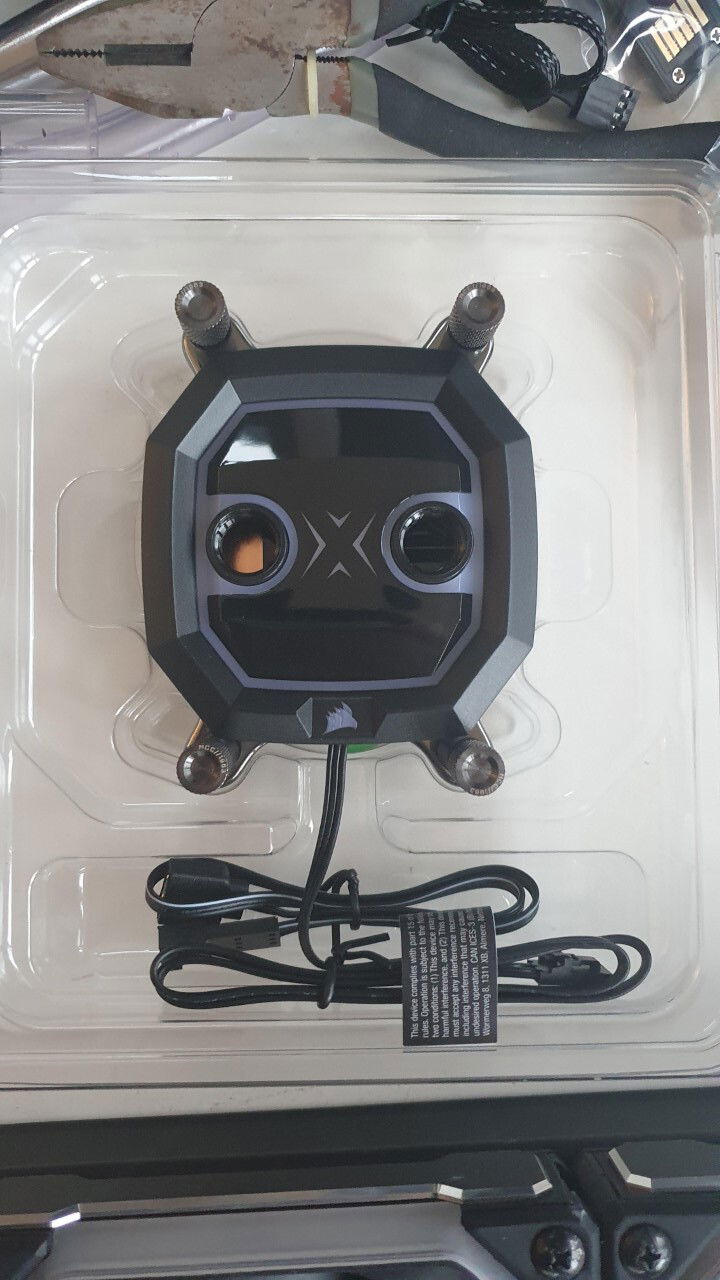

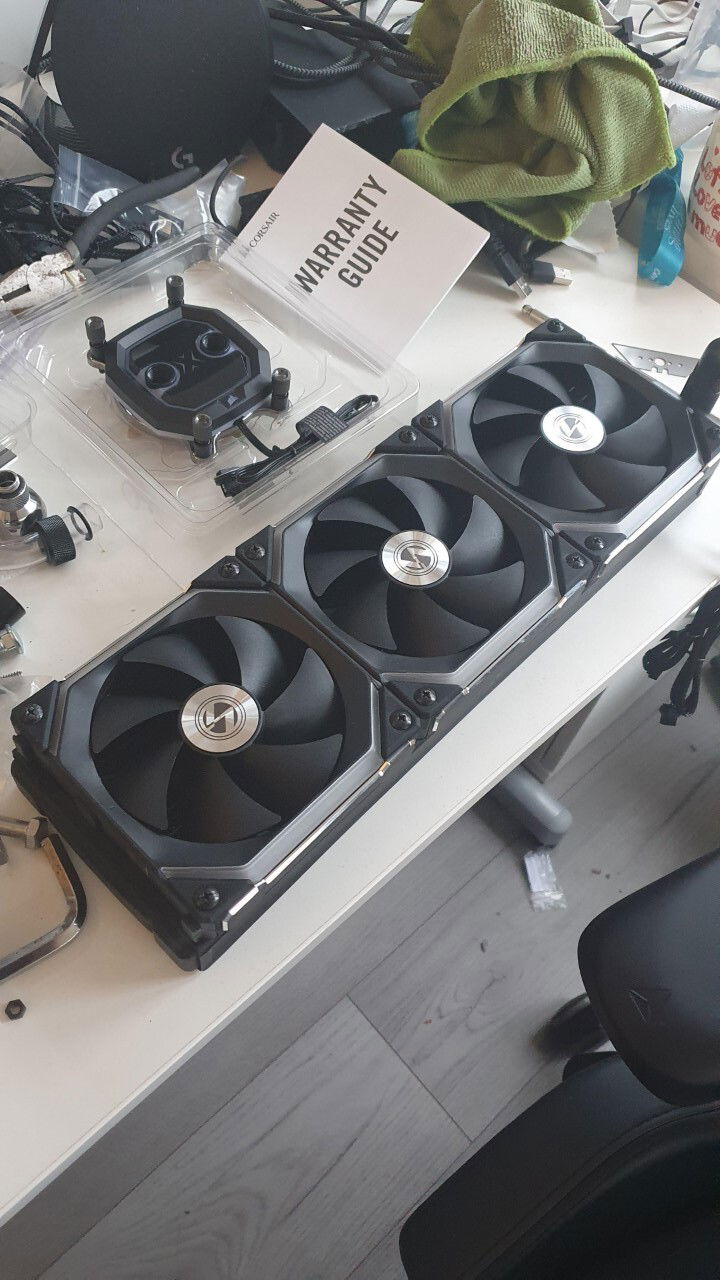

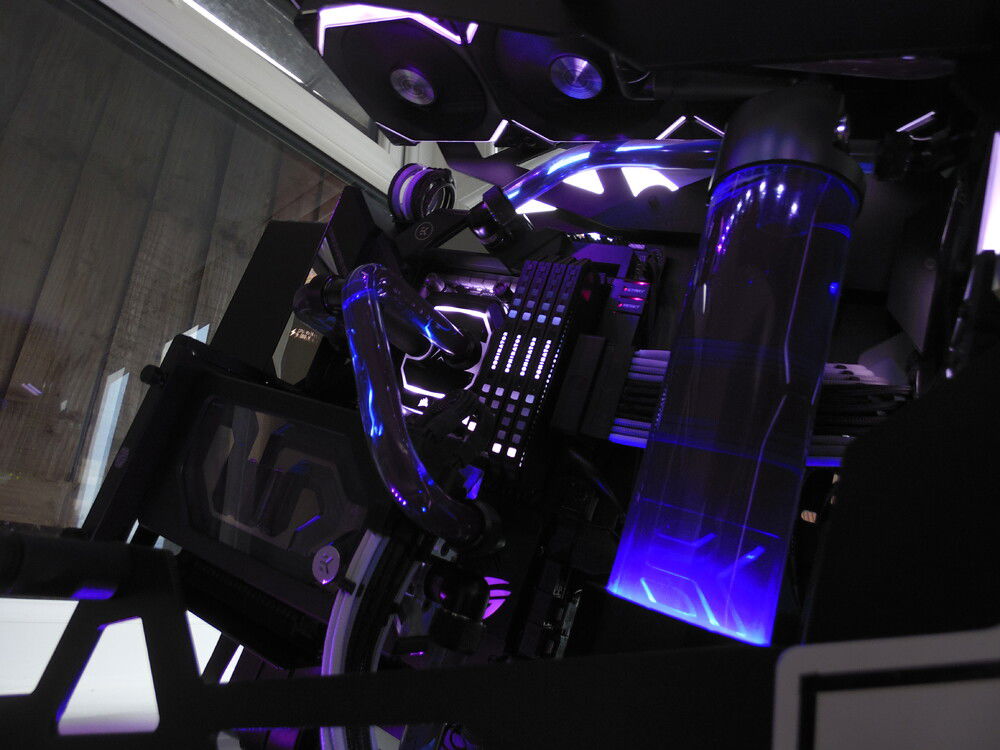

Upgrades were: ROG Crosshair VIII Formula x570, 32gb Corsair Dominator 3600mhz (CL14), Corsair XC5 cpu block, x9 lian li static pressure fans (push/pull front and 3 up top), Coolermaster 4.0 riser cable, custom sleeved psu cables, extended EK res with multiport top and mixed up custom coolant colour (turns purple, blue, pink depending on light hitting it).
From past experience i knew one thing i had to add was dual drain ports as always suffered with the front rad getting half the system empty then stopping unless tips it around ALOT for a quite a while.

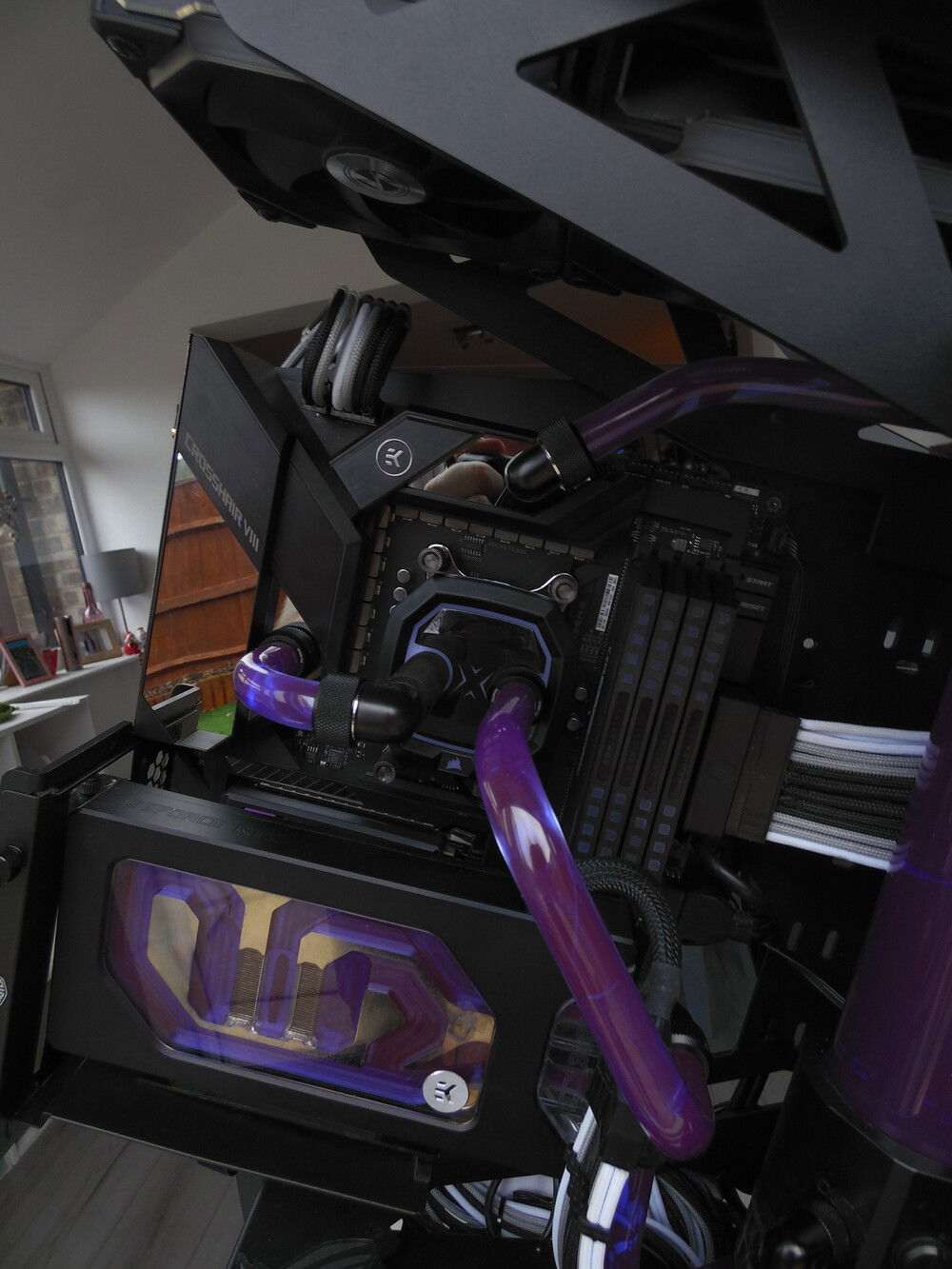

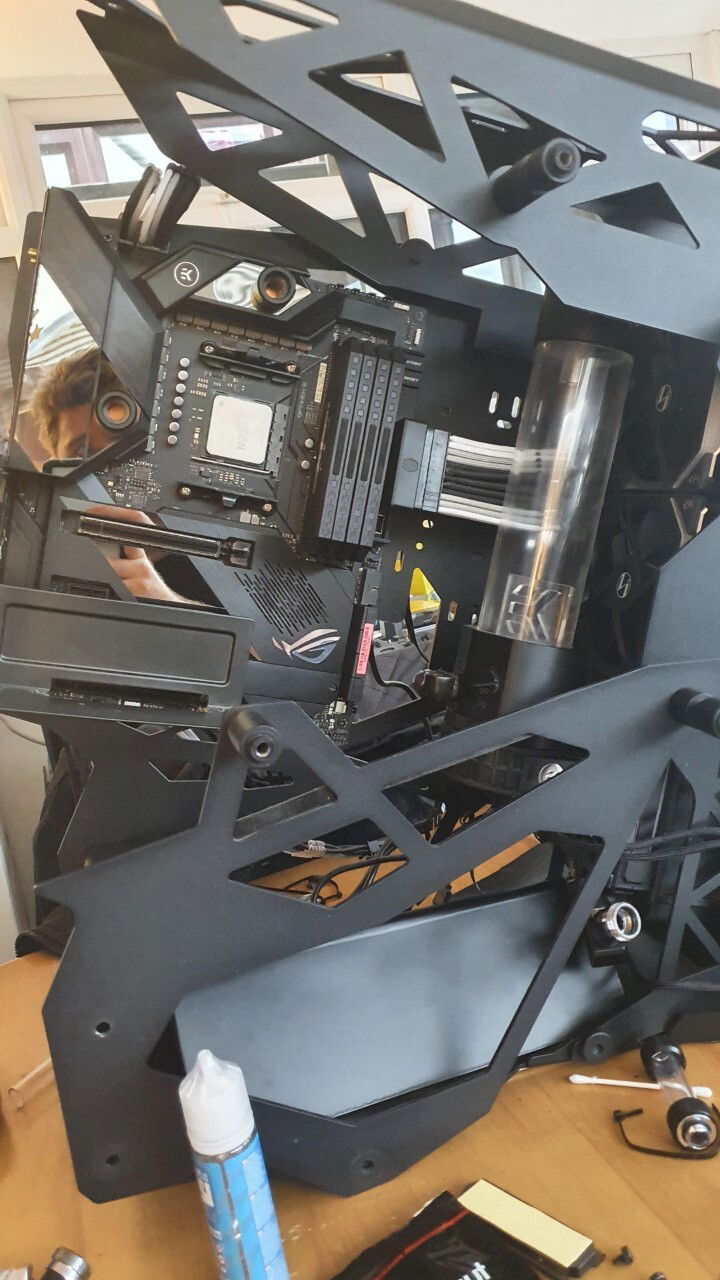

Having the front rad (Corsair XR7 54mm) mounted with exits at the bottom now allowed me to put a drain on each exit as these are both the lowest points. First drains the res, front rad and most of the top rad but always left with alot of fluid in the GPU/CPU sections as cannot pass up and down the rad. The 2nd drains the GPU/CPU section and almost fully empties the entire loop now with very little effort. Hid both under custom shroud made up for this case so nice have options there without being an eyesore.
I have always taken pride in builds done but this one was special and really took my time making sure happy with everything and no rushing to get it done, wanted it right, not quick.
Very proud of this and happy to share it with you all at last Emoji
Color(s): Black Blue Pink Purple White
RGB Lighting? Yes
Theme: none
Cooling: Custom Liquid Cooling
Size: ATX
Type: General Build

Contests

This build participated in 1 contest.

Hardware

CPU
$ 375.00
AMD - Ryzen 9 (3900X)
Socket: AM4
Cores: 12
Motherboard
$ 650.00
ASUS - ROG Crosshair VIII Formula
Chipset: X570
CPU Socket: AM4
Size: ATX
Memory
$ 160.73
Graphics
$ 1,453.00
NVIDIA - GeForce Founders
Chip Manufacturer: NVIDIA
Chip: RTX 3080 Ti
Interface: PCIe x16
Storage
$ 397.36
Seagate - Barracuda Pro (ST2000DM009) (2x)
Form Factor: 3.5 Inch
Interface: SATA 6 Gb/s
Capacity: 2 TB
Storage
$ 39.99
Western Digital - WD Black
Form Factor: M.2
Interface: M.2 (M)
Capacity: 250 GB
Storage
$ 178.68
Western Digital - WD Black
Form Factor: M.2
Interface: M.2 (M)
Capacity: 1 TB
PSU
$ 185.00
Corsair - RM850x
Wattage: 850
Form Factor: ATX
Efficiency: 80+ Gold
Case
$ 521.36
Antec - Torque
Type: Mid-Tower
Side Panel: Tempered Glass
Case Fan
$ 854.91
Lian Li - Uni Fan SL120 (9x)
Size: 120 mm
Cooling
$ 114.99
Corsair - Hydro X XR7
Type: Radiator
Size (WxHxD): 360 mm (3 x 120 mm)
Cooling
$ 348.60
Corsair - Hydro XC7 (Black/RGB)
Type: CPU Waterblock
Cooling
$ 50.00
EKWB - CoolStream SE
Type: Custom Loop
Size (WxHxD): 360 mm (3 x 120 mm)
Cooling
$ 148.36
EKWB - EK-AF Angled 45° G1/4 Black (4x)
Type: Fittings
Cooling
$ 23.98
Cooling
$ 29.98
Cooling
$ 34.18
Cooling
$ 58.40
EKWB - EK-HD PETG Tube 12/16mm
Type: Tubing
Cooling
$ 41.56
Cooling
$ 380.42
Cooling
$ 144.00
EKWB - EK-Torque Angled 90° (Black) (16x)
Type: Fittings
Cooling
$ 96.00
EKWB - EK-Torque HTC-16 (Black) (12x)
Type: Fittings
Cooling
$ 219.00
CableMod
$ 264.00
Accessories
$ 64.99
Accessories
$ 40.00
Corsair - RBG Lighting Kit (discontinued)
Monitor
$ 296.96
ASUS - VG278Q
Size: 27 Inch
Panel: TN
Refresh Rate: 144 Hz
Monitor
$ 65.99
GEEEK - Hi-Res Display for Raspberry Pi
Size: 4 Inch
Panel: IPS
Refresh Rate: 60 Hz
Monitor
$ 1,399.99
Samsung - Odyssey G9
Size: 49 Inch
Panel: VA
Refresh Rate: 240 Hz
Keyboard
$ 200.00
ASUS - ROG GK2000 Horus
Interface: Wired
Key Switch Type: Cherry MX Red
Type: Full Size
Keyboard
$ 140.00
ASUS - ROG Scope
Interface: Wired
Key Switch Type: Cherry MX Red
Type: Full Size
Mouse
$ 133.88
ASUS - ROG Spatha
Interface: Wired/Wireless
Mouse
$ 97.99
Corsair - M65 Elite RGB
Interface: Wired
Chair
$ 495.00
Secretlab - Titan (Stealth)
Material: PU Leather
Color: Black
Estimated total value of this build:
$ 6,401.92
