project voron-01 3D printed case

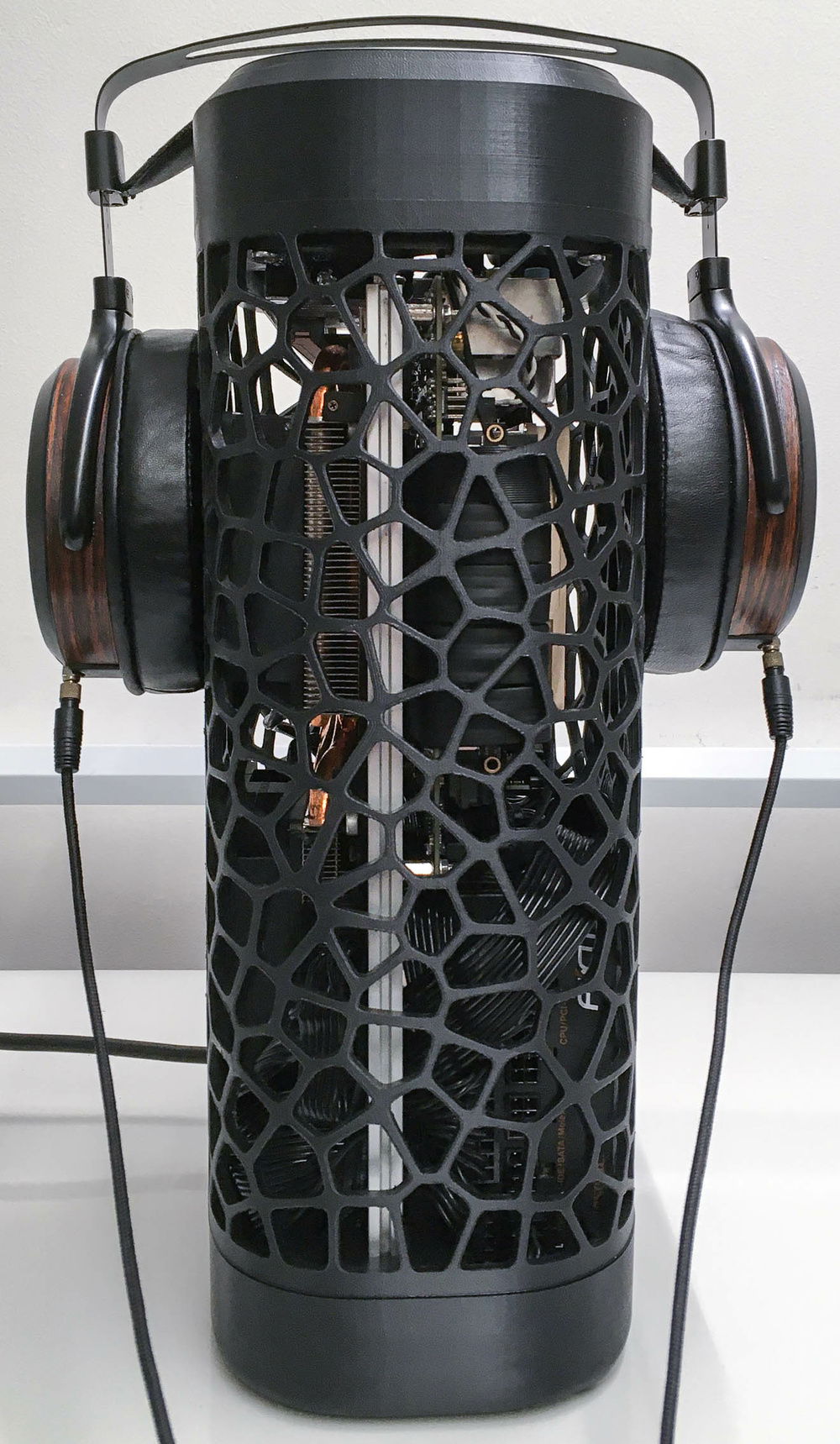

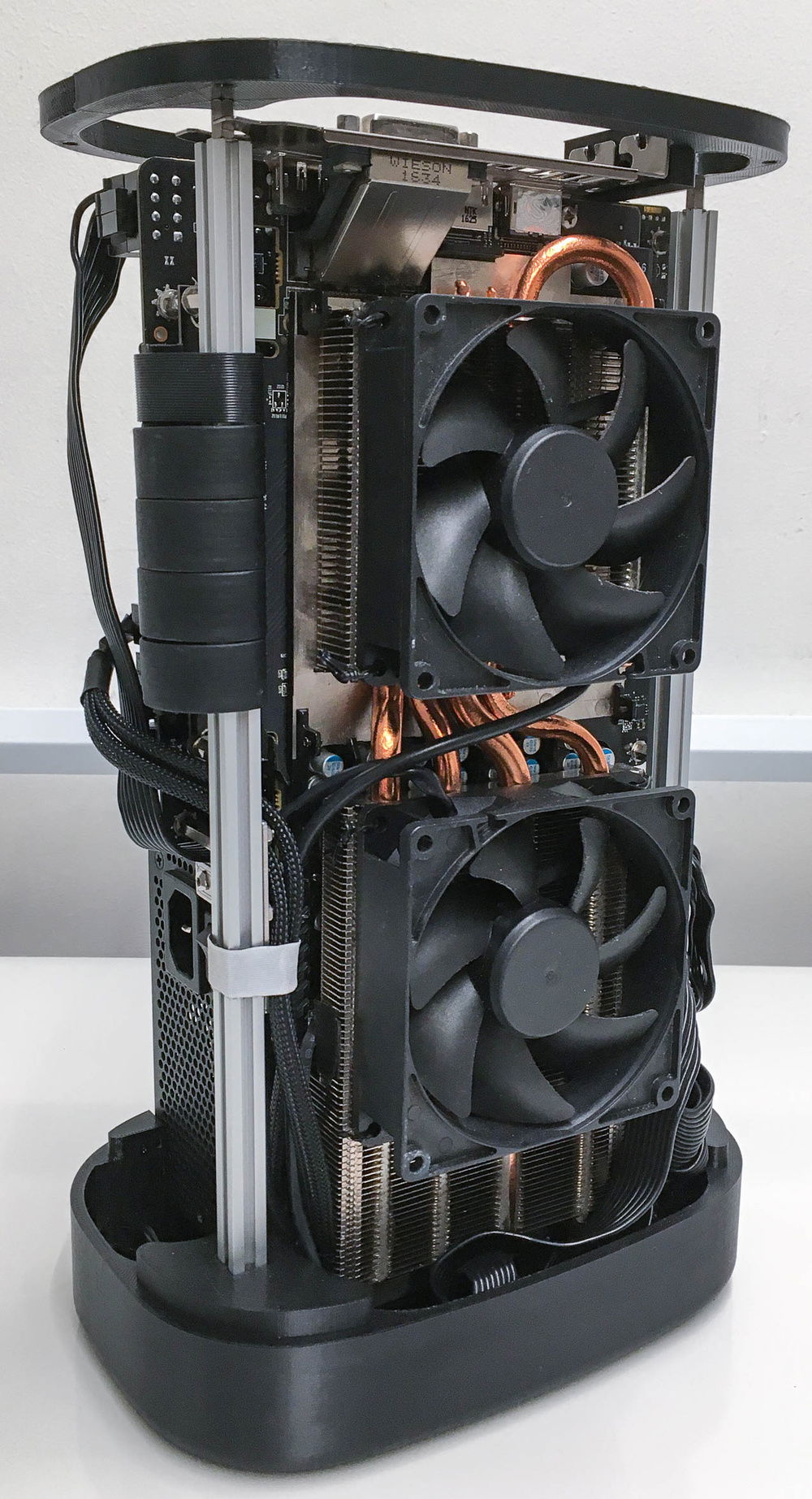

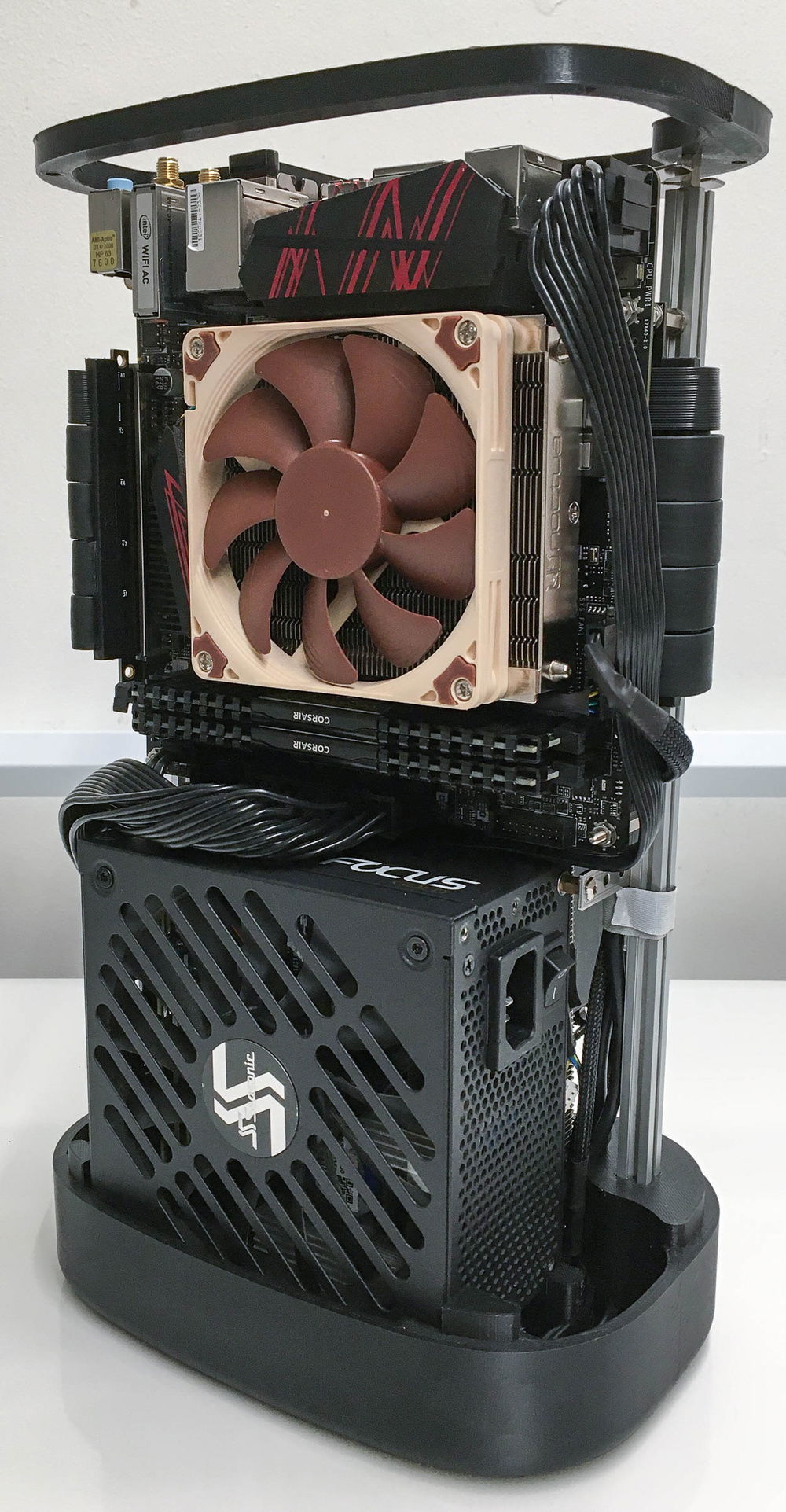

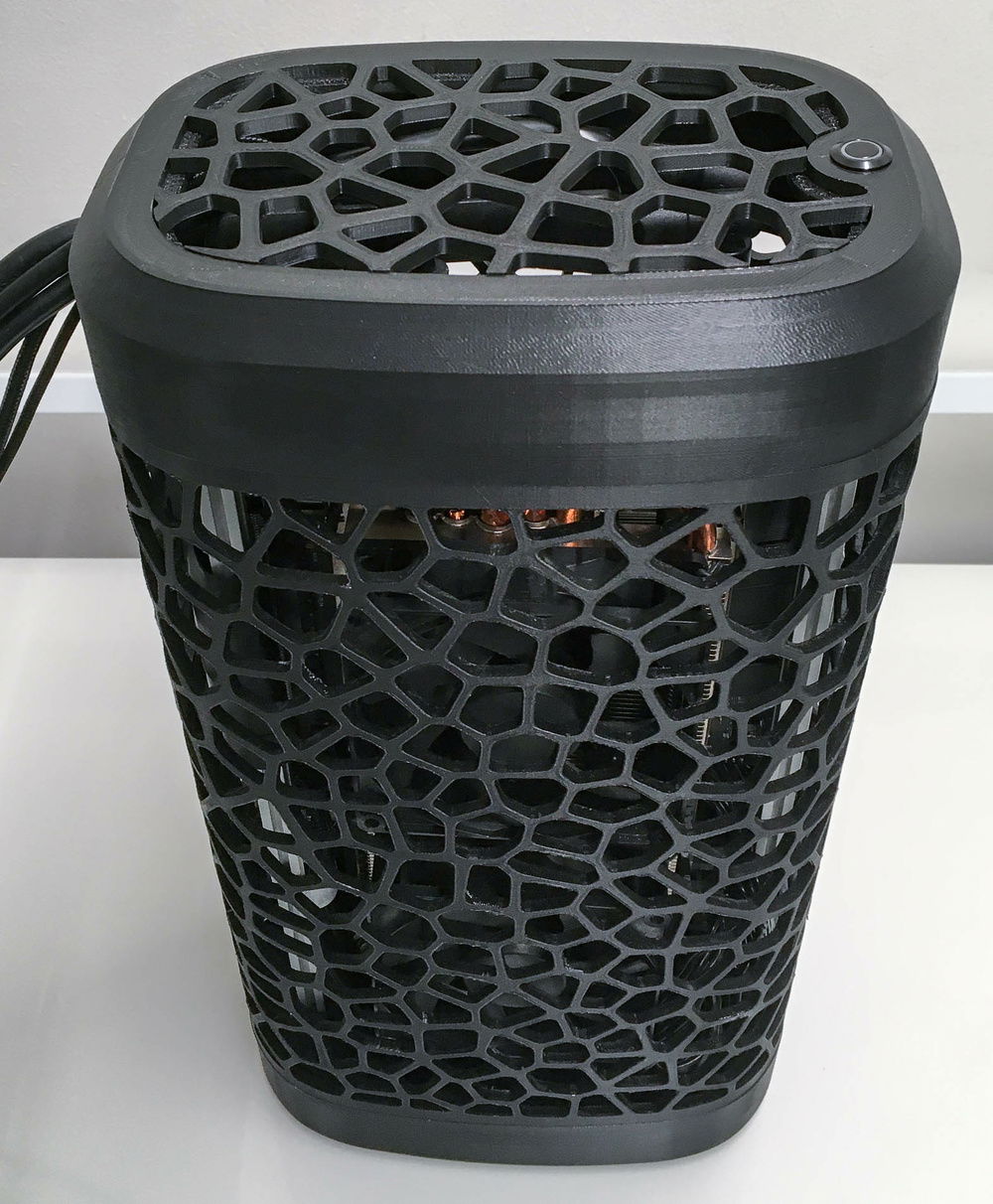

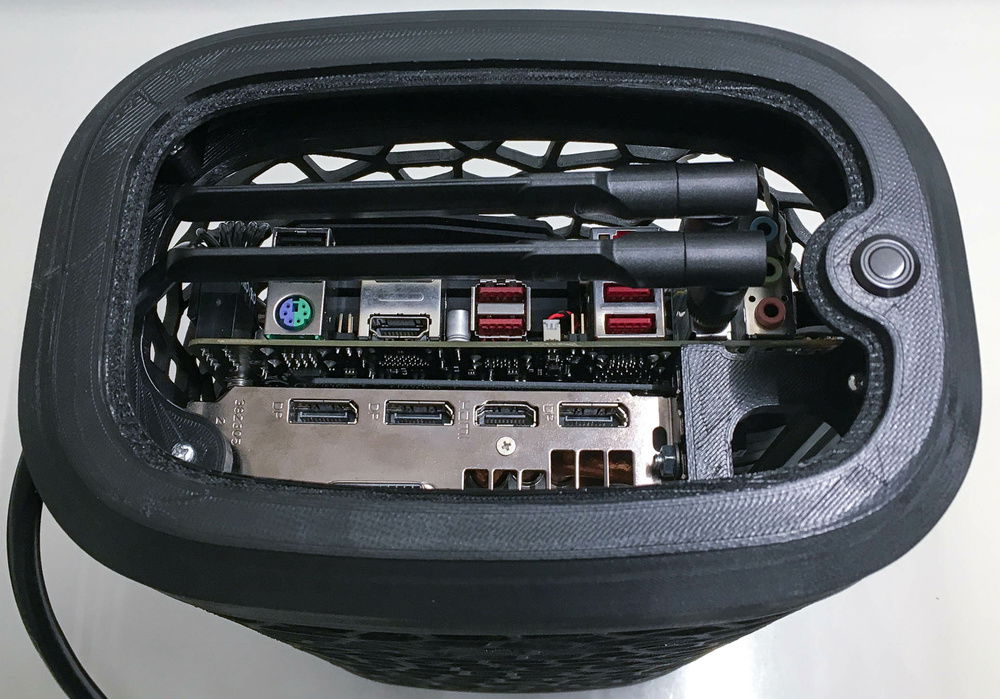

First try at a 3D printed organic shaped SFFPC. The idea came from the round build plate of a delta 3D printer and the minimal filament use of the voronoi pattern. Layout is vertical sandwich using a 30cm PCI-e riser cable and two aluminum extrusions that hold all components.

This is an open source project and anyone can download and print this case:
thinghieverse
google drive
imgur gallery
reddit
Color(s): Black
RGB Lighting? No
Theme: Sci-Fi
Cooling: Air Cooling
Size: SFF
Type: General Build

Contests

This build participated in 1 contest.

Hardware

CPU
$ 89.99
AMD - Ryzen 5 (3600)
Socket: AM4
Cores: 6
Motherboard
$ 199.00
MSI - Gaming Plus AC (B450I)
Chipset: B450
CPU Socket: AM4
Size: Mini-ITX
Memory
$ 41.99
Corsair - Vengeance LPX (3600Mhz) (Black)
Type: DDR4
Capacity: 16 GB
Graphics
$ 350.00
Sapphire - Nitro R9 Fury
Chip Manufacturer: AMD
Chip: R9 Fury
Interface: PCIe x16
Storage
$ 173.00
Corsair - Force MP510
Form Factor: M.2
Interface: PCIe x4
Capacity: 480 GB
Storage
$ 51.99
Crucial - MX500
Form Factor: 2.5 Inch
Interface: SATA 6 Gb/s
Capacity: 1 TB
PSU
$ 80.00
Seasonic - SSR-450SGX (discontinued)
Wattage: 450
Form Factor: SFX
Efficiency: 80+ Gold
Case
Sliger - SV540
Type: Mini-ITX
Side Panel: Solid
Cooling
$ 44.95
Noctua - NH-L9a-AM4
Type: Air Cooler
