Phanteks Shift X Custom Loop

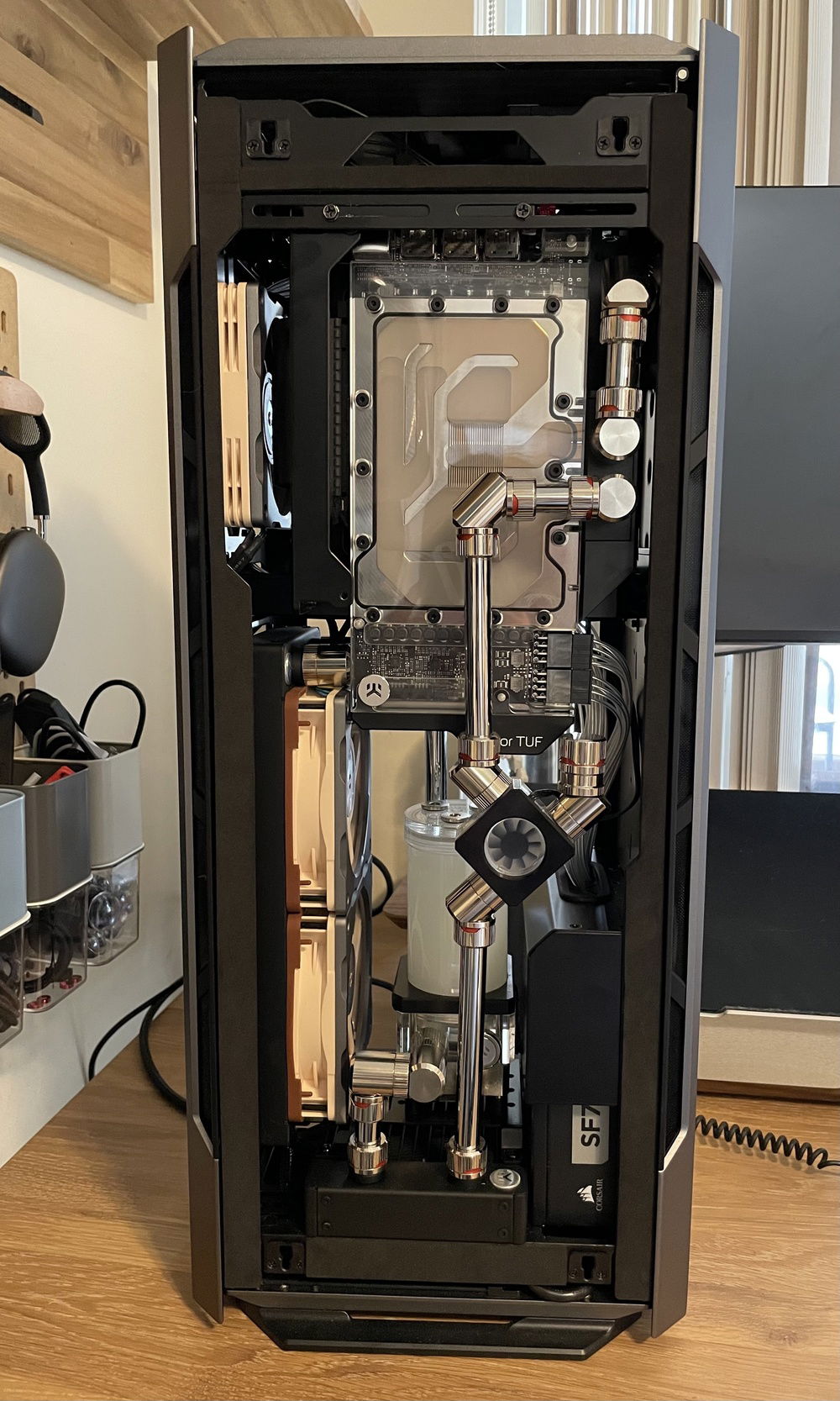

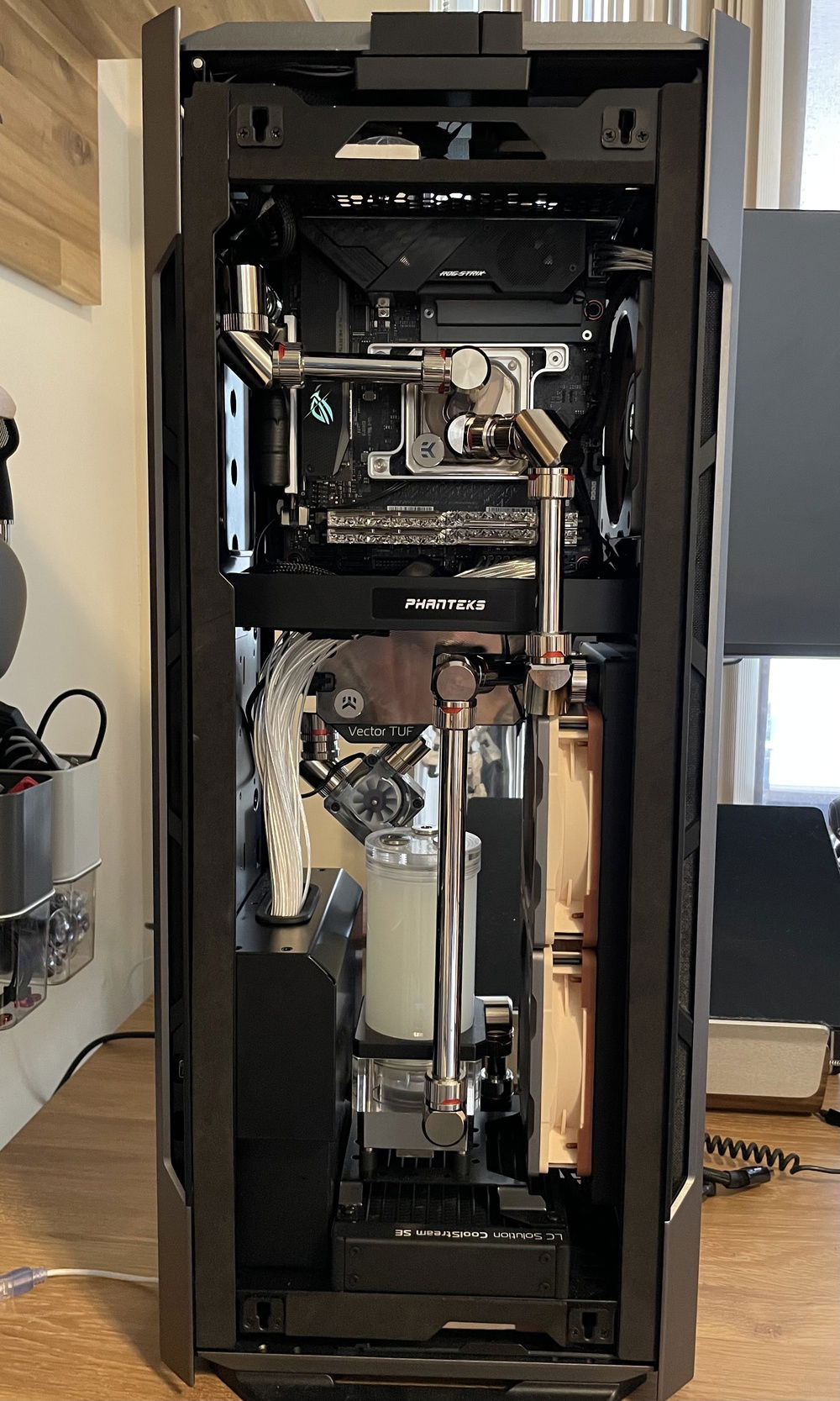

This is my first custom loop build, I really like the look of the case, despite the fact that it's not well ventilated at all.

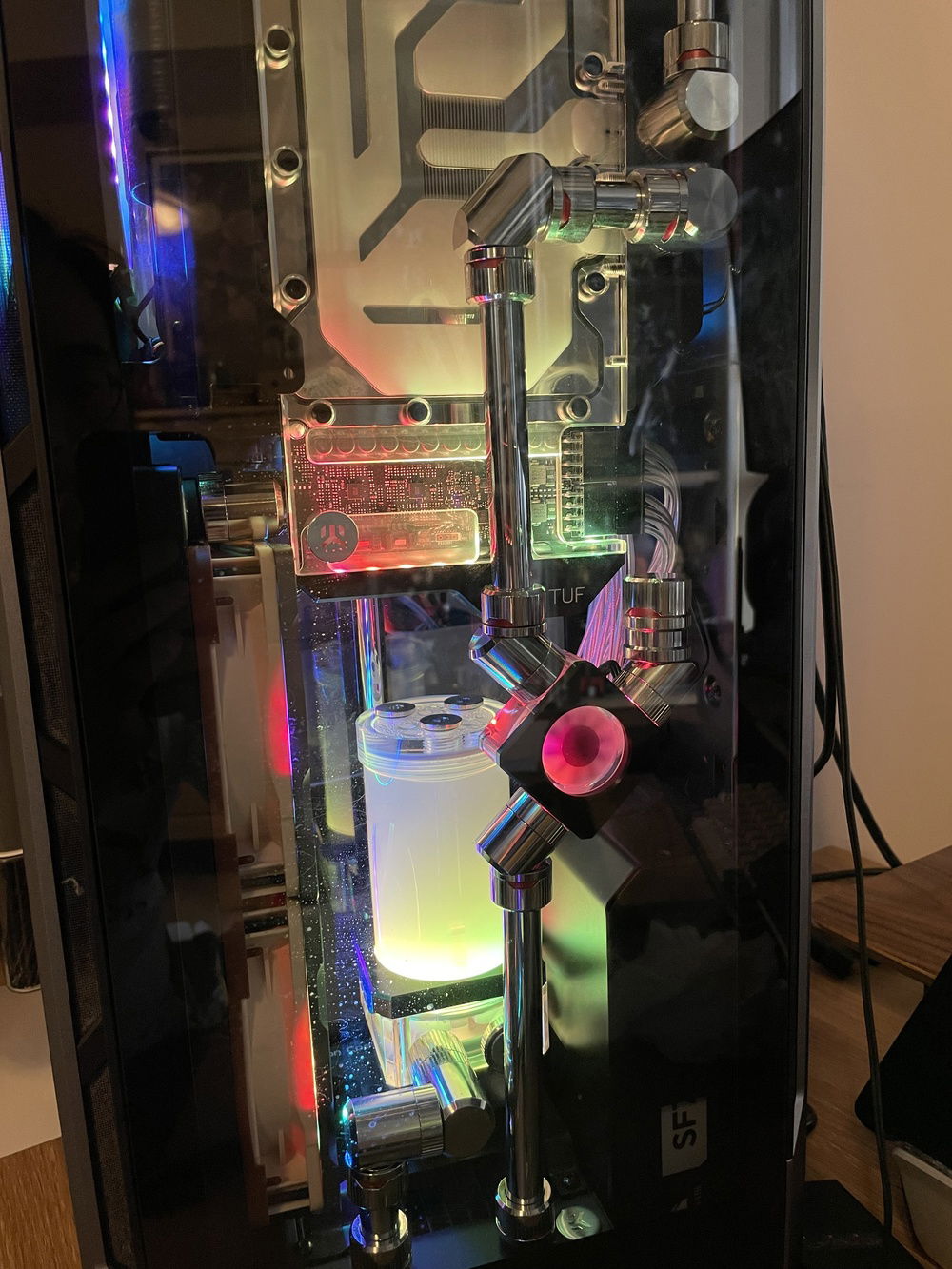

I was really worrying about the temperature might be too high and damage PETG tubes, so I chose to use brass tubes, it significantly increased the amount of fittings I need, since each turn needs 2 fittings and 1 angled adapter. (All the pre-bent ones were out of stock) It really cost me a of extra money, but the end result really looks amazing.

The CryoFuel Mystic Fog coolant looks really good with rainbow RGB setting IMO, although my roommate said it looks like lit-up semen lol.

The temperature is also not bad, when its under load, the GPU is stable at around 60°C, CPU is a bit hotter at 70 - 75°C. I did undervolt both CPU and GPU.

PC Components:
Ryzen 7 5800X
Asus RTX 3080 TUF Gaming OC
G.SKILL Trident Z Royal Series 32GB (2 x 16GB) DDR4 3600 (PC4 28800)
WD SN850 M.2 NVME 1TB
WD SN550 M.2 SATA 2TB
Corsair SF750
Phanteks Shift X

Watercooling parts:
EK-Quantum Magnitude D-RGB - AM4 Nickel + Plexi
EK-Quantum Vector TUF RTX 3080/3090 D-RGB - Nickel + Plexi
EK-Quantum Vector TUF RTX 3080/3090 Backplate - Nickel
EK-Quantum Kinetic TBE 160 DDC PWM D-RGB - Plexi
EK-CoolStream SE 240 (Slim Dual)
EK-CoolStream SE 120 (Slim Single)
EK-CryoFuel Mystic Fog (Premix 1000mL)
EK-Quantum Torque HDC 14 - Nickel
EK-Quantum Torque Rotary 90° - Nickel
EK-Quantum Torque Static FF 90° - Nickel
EK-Quantum Torque Drain Valve - Nickel
EK-Quantum Torque 6-Pack HDC 14 - Nickel
EK-Quantum Torque Extender Static MF 14 - Nickel
Bykski Metal Rigid Tubing - Electroplated Brass - 14mm OD - 250mm
Color(s): Aluminum Silver
RGB Lighting? Yes
Theme: Technology
Cooling: Custom Liquid Cooling
Size: SFF
Type: General Build

Contests

This build participated in 1 contest.

Hardware

CPU
$ 164.99
AMD - Ryzen 7 (5800X)
Socket: AM4
Cores: 8
Motherboard
$ 200.00
ASUS - ROG Strix Gaming (B550-I)
Chipset: B550
CPU Socket: AM4
Size: Mini-ITX
Memory
$ 509.88
G.Skill - Trident Z Royal (3600MHz) (Silver) (2x)
Type: DDR4
Capacity: 16 GB
Graphics
$ 1,004.00
ASUS - GeForce TUF Gaming
Chip Manufacturer: NVIDIA
Chip: RTX 3080
Interface: PCIe x16
Storage
$ 126.95
Western Digital - WD Black SN850
Form Factor: M.2
Interface: PCIe x4
Capacity: 1 TB
Storage
$ 199.99
Western Digital - WD Blue SN550 (WDS200T2B0C)
Form Factor: M.2
Interface: M.2 (M)
Capacity: 2 TB
PSU
$ 285.00
Corsair - SF750
Wattage: 750
Form Factor: SFX
Efficiency: 80+ Platinum
Case
$ 160.00
Phanteks - Evolv Shift X (Black)
Type: Mini-Tower
Side Panel: Tempered Glass
Case Fan
$ 29.95
Noctua - NF-A12x15 PWM (Brown)
Size: 120 mm
Case Fan
$ 98.85
Noctua - NF-A12x25 PWM (3x)
Size: 120 mm
Case Fan
$ 43.90
Cooling
$ 85.80
EKWB - CoolStream SE
Type: Custom Loop
Size (WxHxD): 120 mm
Cooling
$ 114.00
EKWB - CoolStream SE
Type: Custom Loop
Size (WxHxD): 240 mm (2 x 120 mm)
Cooling
$ 77.99
Cooling
$ 35.99
Cooling
$ 231.46
Cooling
$ 229.99
Cooling
$ 69.99
Cooling
$ 51.96
Cooling
$ 34.92
Cooling
$ 285.00
EKWB - EK-Quantum Torque HDC 14 - Black (20x)
Type: Fittings
Cooling
$ 44.95
Cooling
$ 71.92
Cooling
$ 59.05
Primochill - Tubing
Type: Custom Loop
CableMod
$ 91.60
Accessories
$ 135.15
Accessories
$ 127.08
Monitor
$ 727.98
Alienware - AW3418DW
Size: 34 Inch
Panel: IPS
Refresh Rate: 120 Hz
Mouse
$ 223.99
Logitech - G604
Interface: Wired/Wireless
Estimated total value of this build:
$ 4,534.79
