Orange Darkness

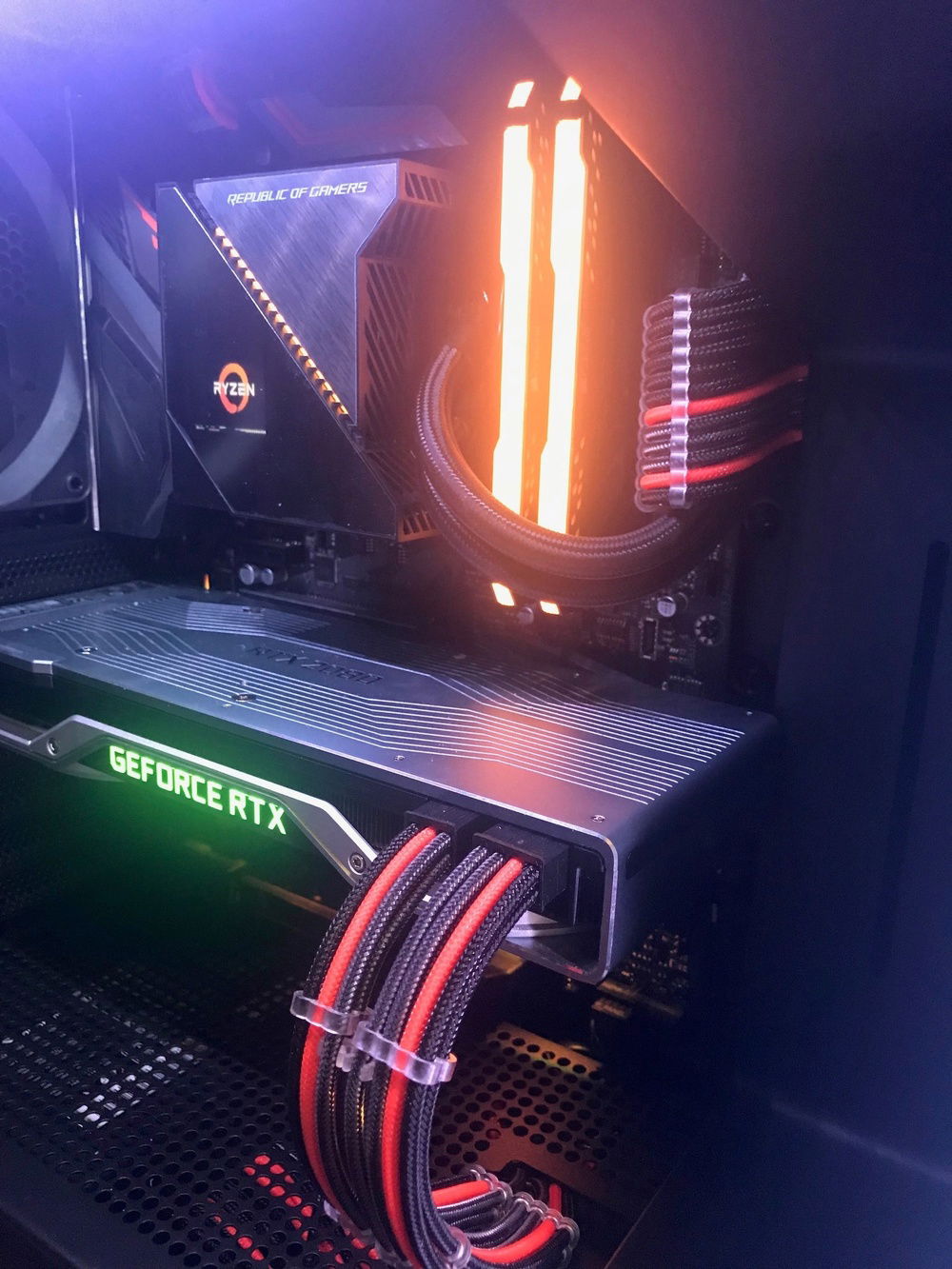

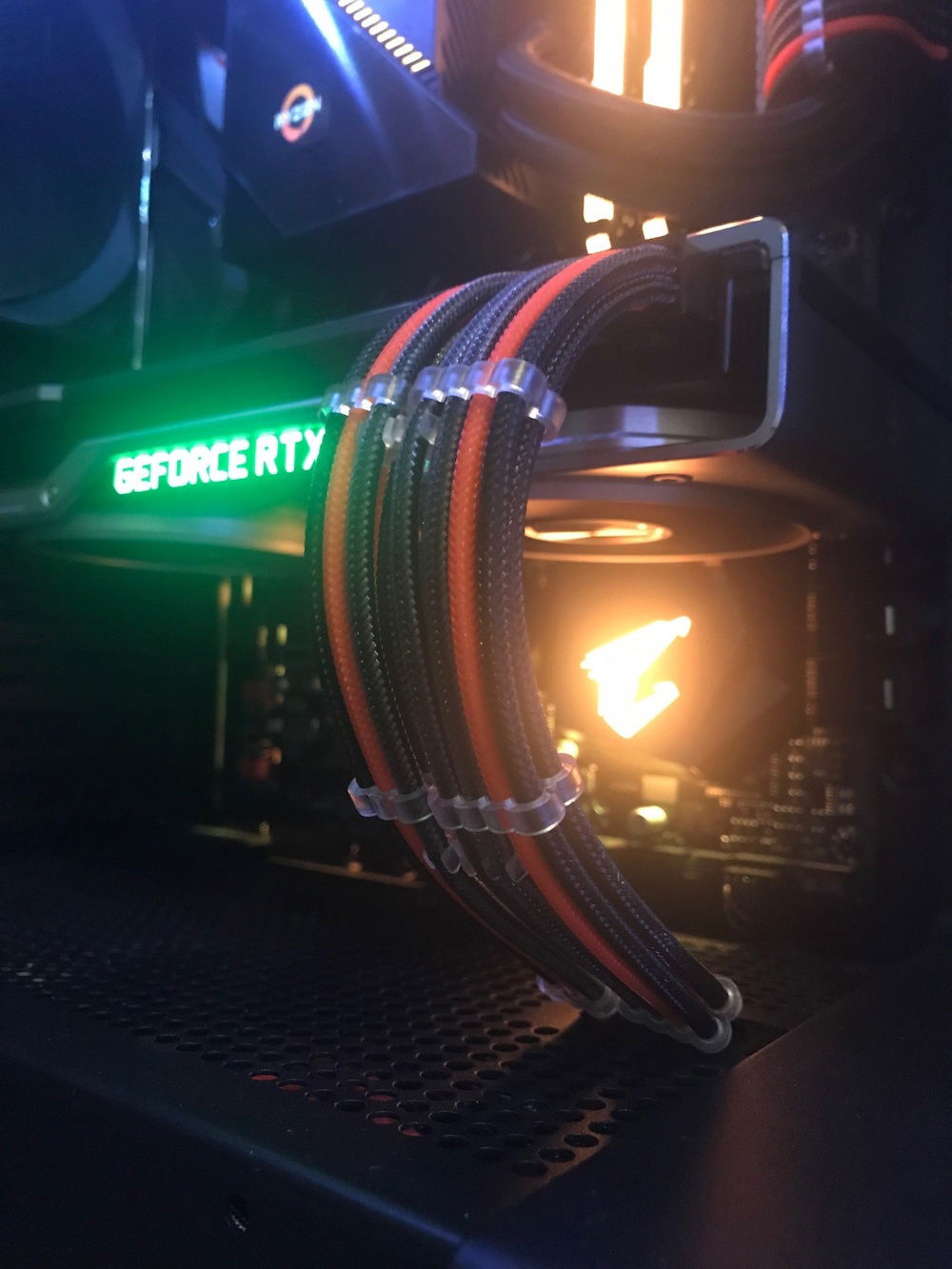

I started with this build a few months ago and a few parts that still had to be replaced .GT-710 replaced by a RTX-2080FE. Wraith prism Cooler replaced by a ROG Ryujin 360. standard Seasonic cables replaced with Cablemod pro cables.

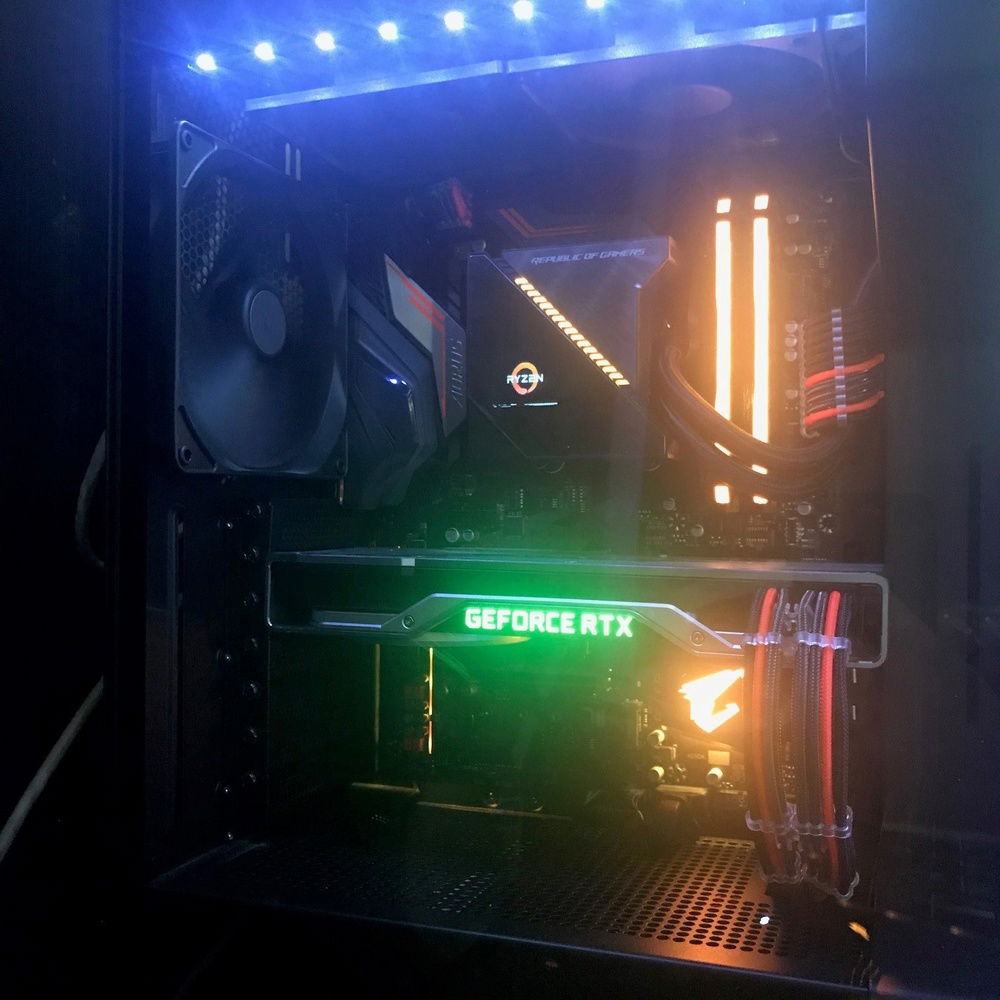

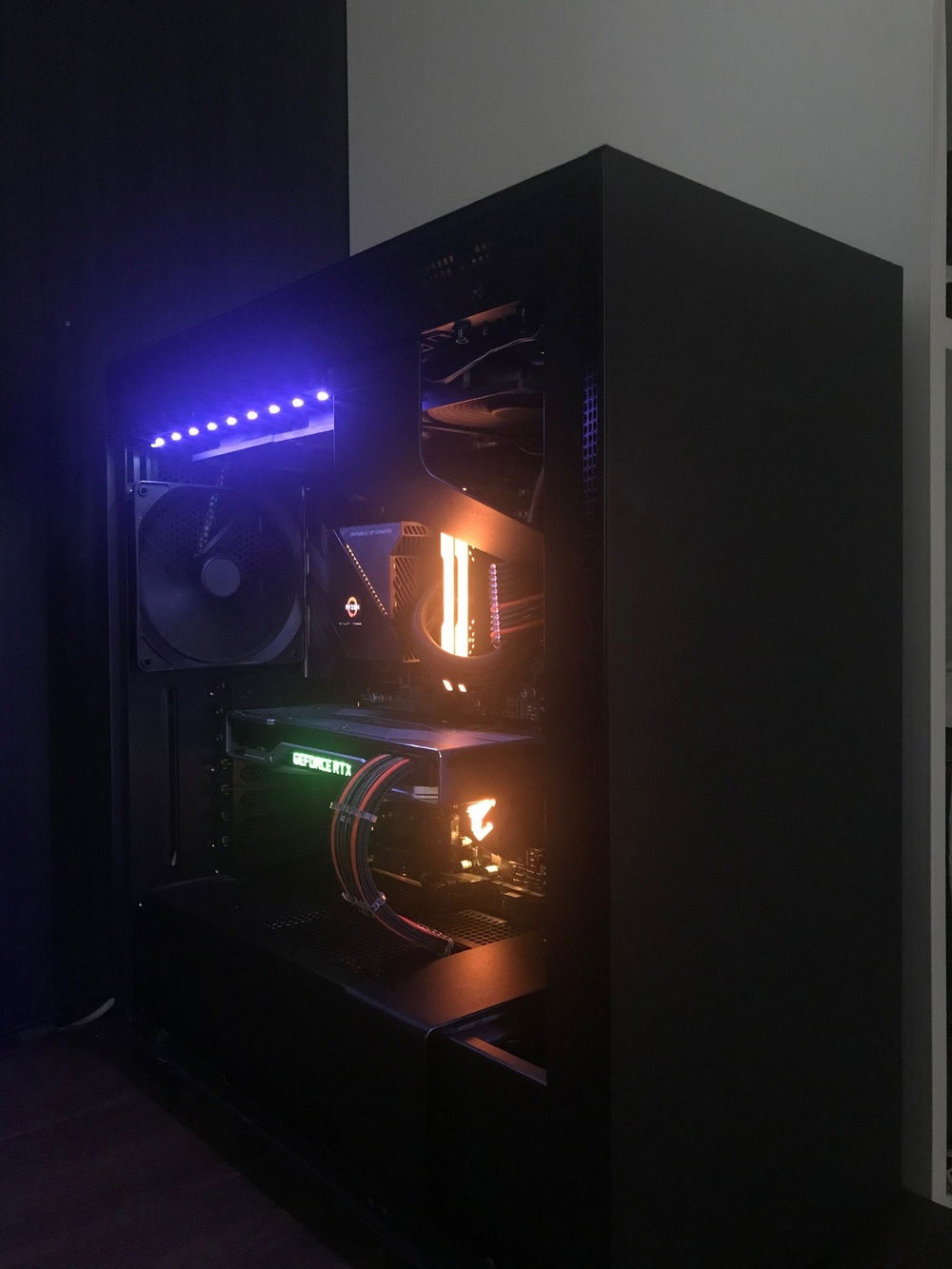

The NZXT H700i case is a lovely case for new Builders. it has good cable managment however i think NZXT could have done a better job with how the cabling of the coolers and fan/led controller was inserted in the case.Redoing al the cables is a massive improvement on something nobody is ever gonna see. still thinking to vinyl wrap this case.

the RTX 2080 is a lovely card but i know the performance per dollar sucks. I chose this card because i really like the design over al the AIB cards currently on the market. had a a lot of crashes but they dissapeared after a motherboard bios update.

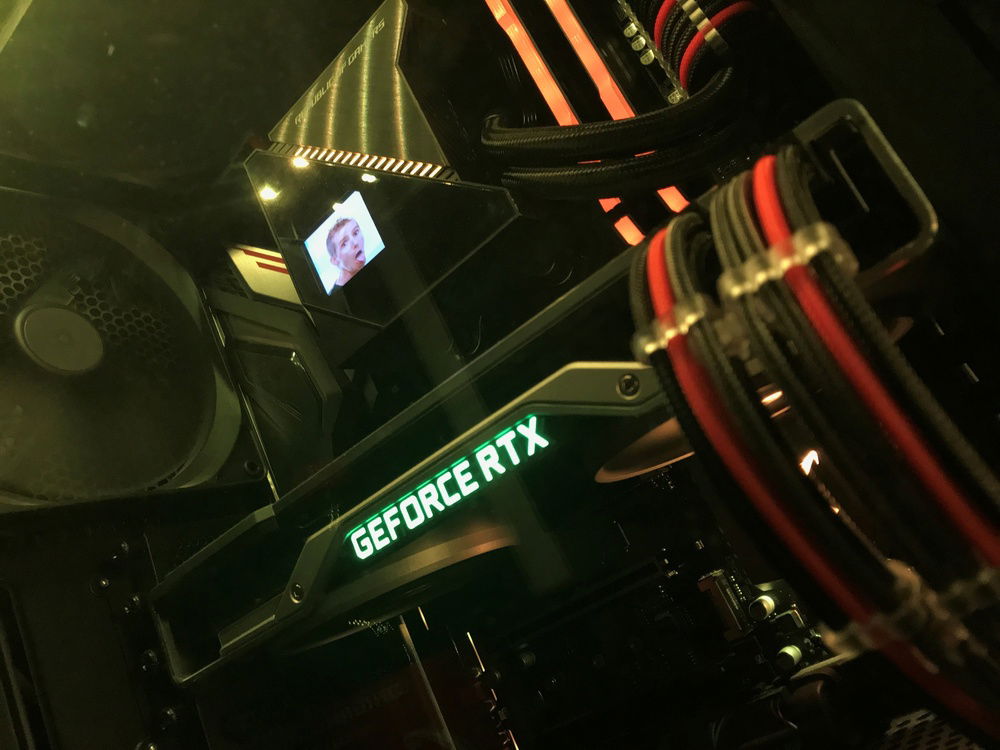

ROG Ryujin 360 AIO cooler is a real disapointment because most features don't work without an Asus Motherboard. the price of this AIO is high and i expected all features to work. the Oled display is buggy and has artifacts with uploaded images. gif images don't display at all. without an Asus MB you won't be able to display the system status nor set the fan curves of the fans incl. VRM cooler.

Cooling performance is the only thing positive and is mainly because of the Noctua fans. they currently managed by the fancontroller of the H700I.

idle temps are 3 degrees C. above ambiant. aida64 load test Creator-mode load temps are 31,3 degrees C. above ambiant. aida64 load test OC 4.2 GHZ all cores: 36,2 degrees C. above ambiant.

All the load test temps are 30 min average with a ambiant temp of 23 degrees C.
Color(s): Black Carbon Orange
RGB Lighting? Yes
Theme: none
Cooling: AIO Cooling
Size: E-ATX
Type: General Build

Contests

This build participated in 1 contest.

Hardware

CPU
$ 210.00
AMD - Ryzen 7 (2700X)
Socket: AM4
Cores: 8
Motherboard
$ 238.00
Gigabyte - AORUS Gaming 7 (Wi-Fi)
Chipset: X470
CPU Socket: AM4
Size: ATX
Memory
$ 54.99
Corsair - Vengeance Pro (3200MHz) (Black/RGB)
Type: DDR4
Capacity: 8 GB
Graphics
$ 436.00
NVIDIA - Founders Edition
Chip Manufacturer: NVIDIA
Chip: RTX 2080
Storage
$ 115.97
Crucial - P1
Form Factor: M.2
Interface: M.2 (M)
Capacity: 1 TB
Storage
$ 36.83
Kingston - SSDNow V300
Form Factor: 2.5 Inch
Interface: SATA 6 Gb/s
Capacity: 120 GB
Case
$ 188.20
NZXT - H700i, Black
Type: Mid-Tower
Side Panel: Tempered Glass
Cooling
$ 295.00
ASUS - ROG RYUJIN 360
Type: AIO
Size (WxHxD): 394 mm
CableMod
CableMod - Sleeved Cables
Mode: Stock
Sleeve: PRO ModMesh
Color: Carbon
Monitor

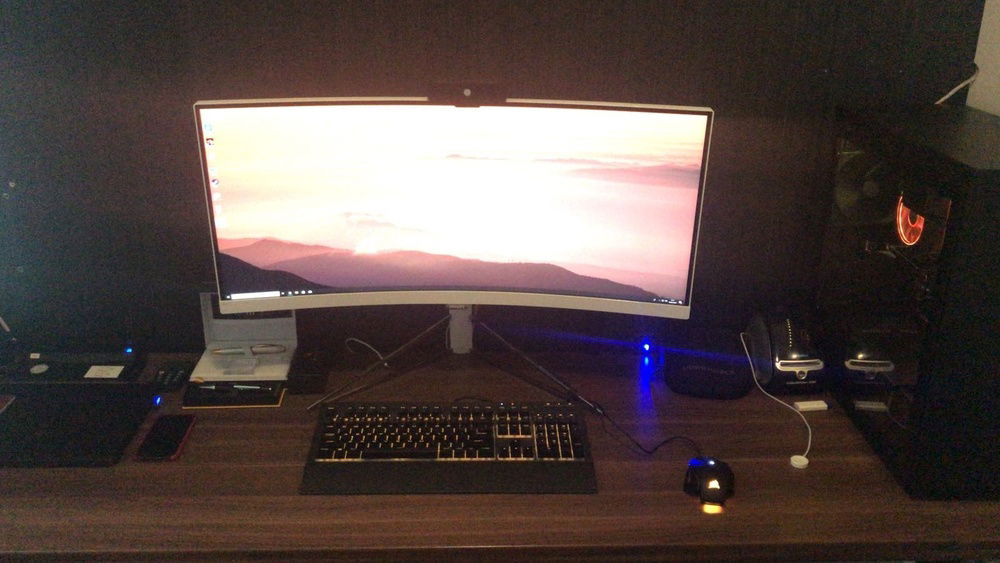

Philips - 349X7FJEW
Size: 34 Inch
Panel: VA
Refresh Rate: 60 Hz
Keyboard
$ 169.00
Corsair - K68 RGB
Interface: Wired
Key Switch Type: Cherry MX Red
Type: Full Size
Mouse
$ 64.99
Corsair - M65 Pro RGB FPS
Interface: Wired
