NR200P WATERCOOLED (dual-rad)

That was a hard one !

First, this build came after winning a NR200P. I really wanted to buidl something in it but i also wanted to watercooled it and with no compromise. i've decided to 3D print a top hat for a second radiator with a 30mm thikness.

With this top hat, i've managed to had my 2 radiator (1 XSPC TX 240 on bottom and 1 classic 240 mm on top). Both in push configuration for the aesthetic.

Without supply, i've used my "old" 2080 MSI gaming X trio who is doing fine in 1440P in ultra settings. paired to a new Ryzen 5 5600X, this configuration is able to do everything pretty well (work, games, ...).

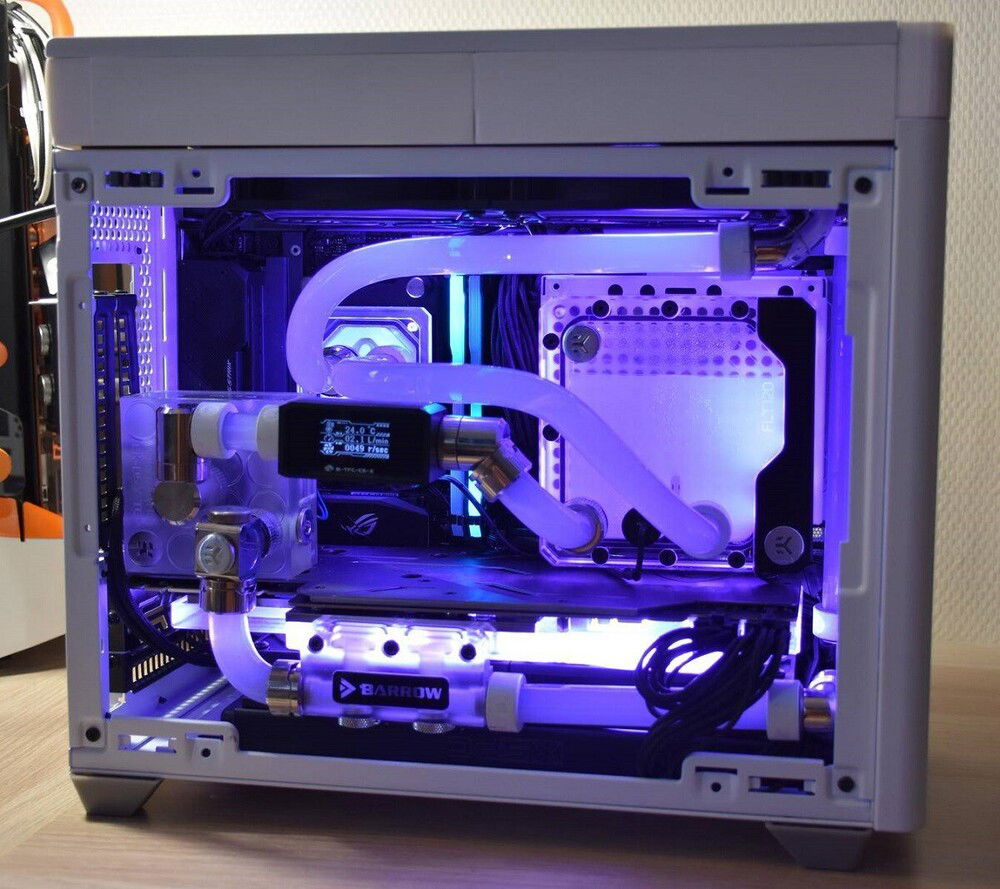

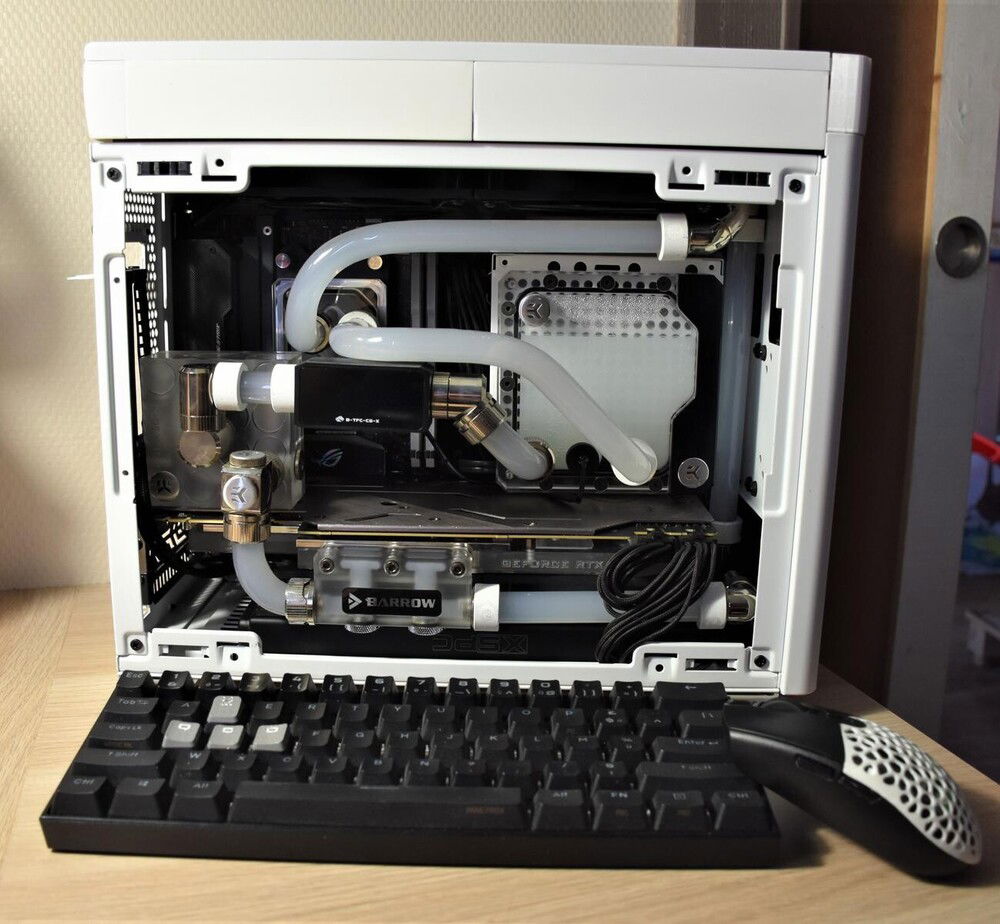

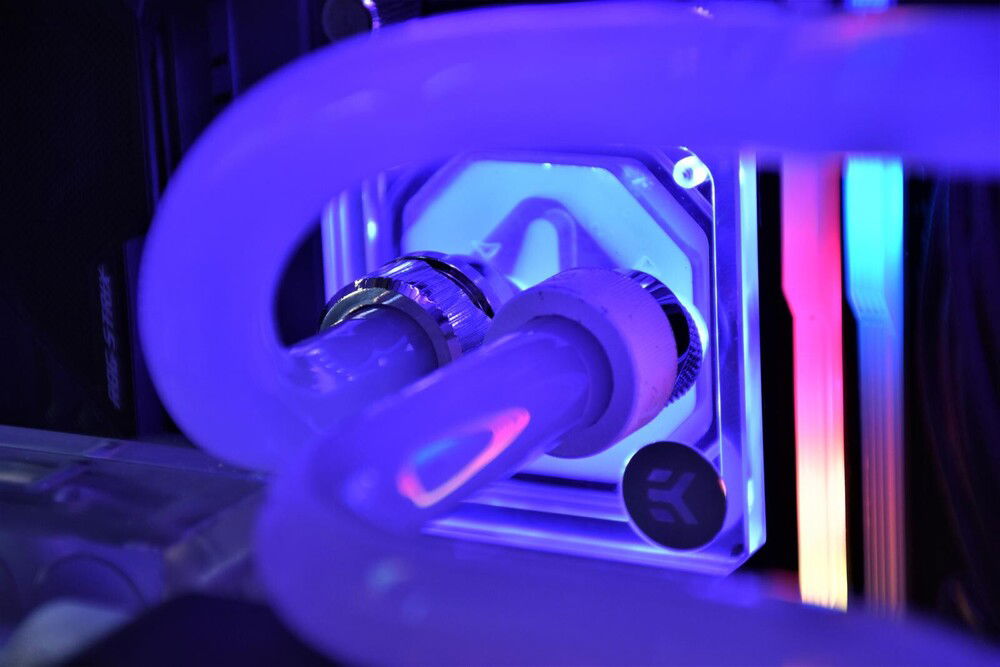

The loop was quite a challenge, and the space in the NR200P (even with the top hat) need to be optimized. i've decided to go for a flat res and the FLT 120 is perfect and go well with the rest of the build. could'nt go for a pump res combo, so i've put a D5 pump in my old top from EK and i'm pretty satisfied with the result. the hardest bend was the tube between the CPU block and the reservoir.

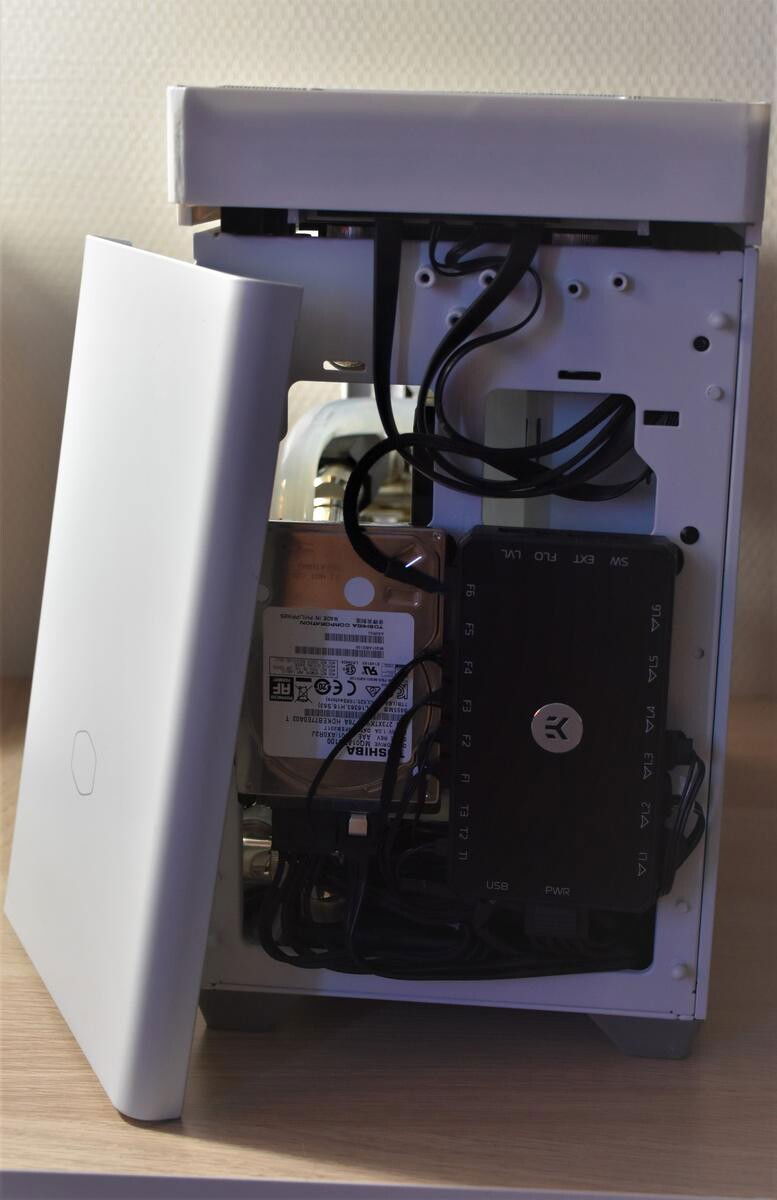

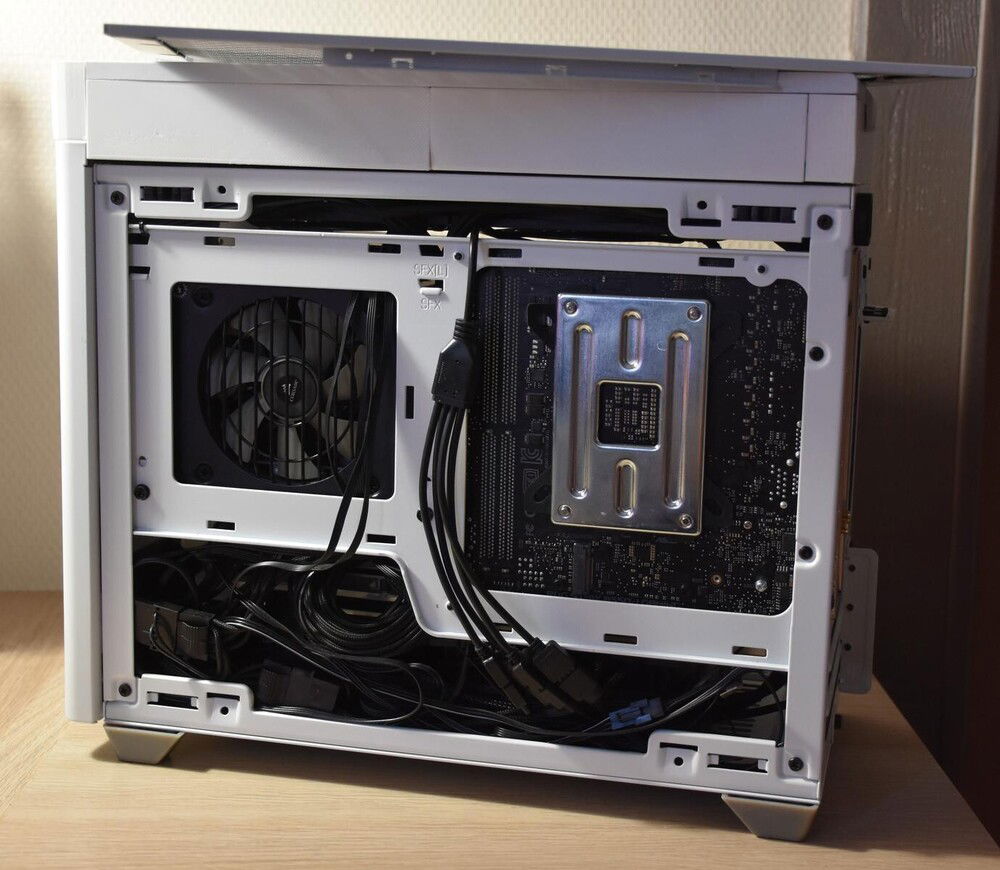

i'm pretty satisfied with the final result. no cable all around, a nice looking case with a nice looking 16mm hard tubbing loop in it.

hope you also enjoy the work made here!
Color(s): White
RGB Lighting? No
Cooling: Custom Liquid Cooling
Theme: Case Mod
Size: Mini-ITX
Type: General Build

Contests

This build participated in 2 contests.

Hardware

CPU
$ 299.00
AMD - Ryzen 5 (5600X)
Socket: AM4
Cores: 6
Motherboard
ASUS - ROG Strix Gaming (B550-I)
Chipset: B550
CPU Socket: AM4
Size: Mini-ITX
Memory
$ 169.98
Corsair - Vengeance Pro (3200MHz) (Black/RGB) (2x)
Type: DDR4
Capacity: 8 GB
Graphics
$ 1,278.99
MSI - GeForce Gaming X Trio
Chip Manufacturer: NVIDIA
Chip: RTX 2080 SUPER
Storage
$ 229.00
Samsung - 970 EVO
Form Factor: M.2
Interface: M.2 (M)
Capacity: 1 TB
Storage
$ 259.99
Toshiba - Q300
Form Factor: 2.5 Inch
Interface: SATA 6 Gb/s
Capacity: 480 GB
PSU
$ 285.00
Corsair - SF750
Wattage: 750
Form Factor: SFX
Efficiency: 80+ Platinum
Case
$ 83.51
Cooler Master - NR200P
Type: Mini-ITX
Side Panel: Mesh
Case Fan
Cooling
Bykski - Digital Display Flow Meter (B-TFC-CS-X)
Type: Temperature Sensor
Size (WxHxD): 100 mm
Cooling
$ 98.99
EKWB - EK-D5 PWM G2 Motor
Type: Pump
Cooling
Cooling
$ 56.96
EKWB - EK-HD PETG Tube 12/16mm
Type: Tubing
Cooling
Cooling
$ 171.00
EKWB - EK-Quantum Volume FLT 120 D-RGB - Plexi
Type: Reservoir
Size (WxHxD): 120 mm
Unable to dertermine total build value (missing part value)
