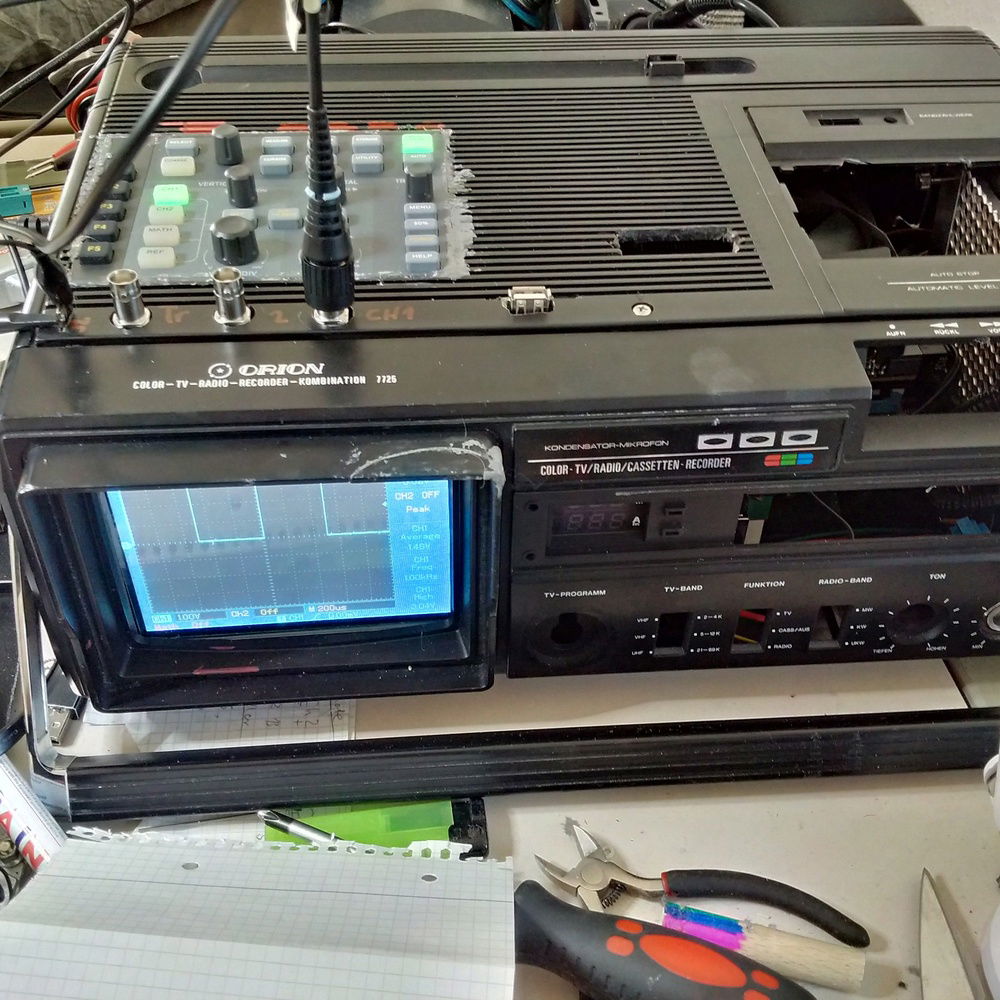

My computer self identifies as an oscilloscope...

... and a component tester
... and a lab power supply
... and a logic analyzer
... and a multimeter

WORK In PROGRESS

This casemod is meant not to win any beauty contest, but simply meant to be practical.
The integration of all that electronics equipment will make working on projects easier, as more desk space will be freed up by not having to have so many separate tools laying about.

The case as originally a TV / Radio / Cassette combo unit with an old CRT color TV. This case is compact compared to regular computer cases, but actually would offer up enough space to fit a full ATX motherboard and assorted components, if a PC was all that's supposed to go in there.
Color(s): Black
RGB Lighting? No
Cooling: AIO Cooling
Theme: Technology
Size: Mini-ITX
Type: General Build

Build Updates

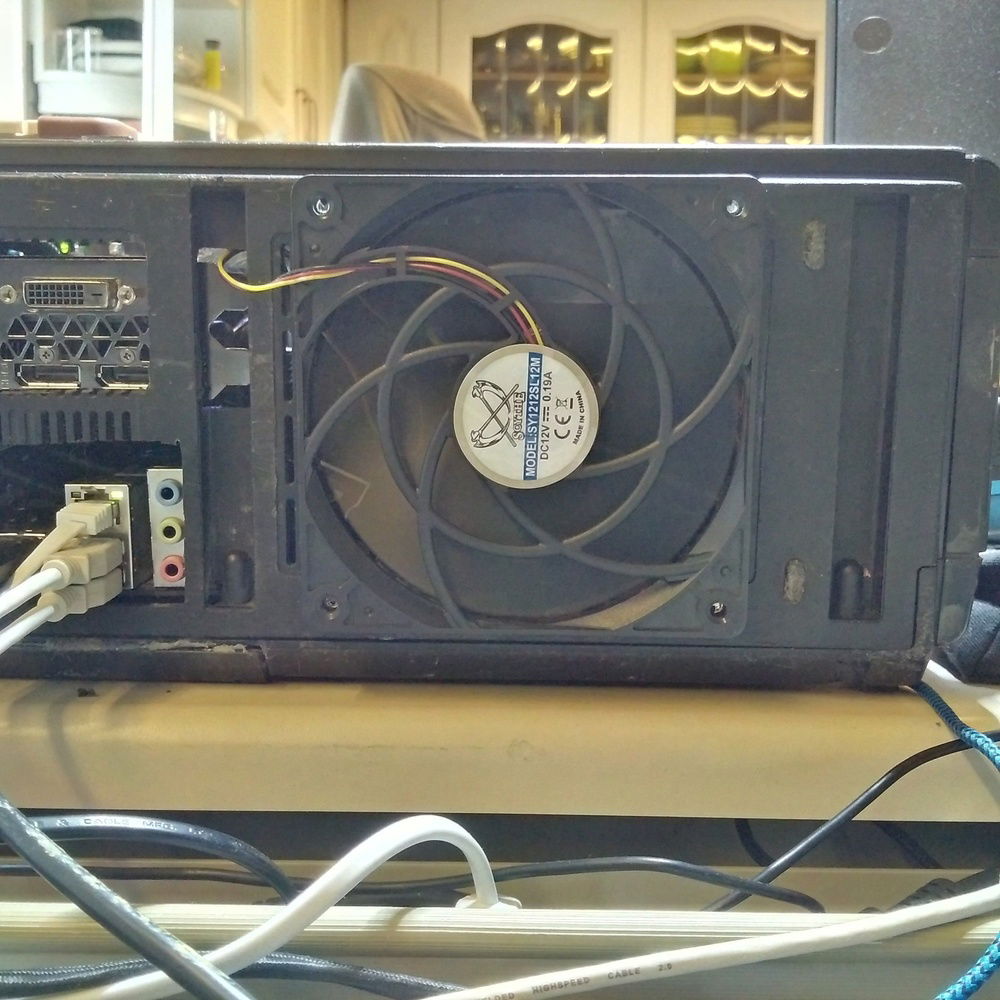

Some more fans added

Clock

Basic transformation of the case to hold the PC and the Oscilloscope

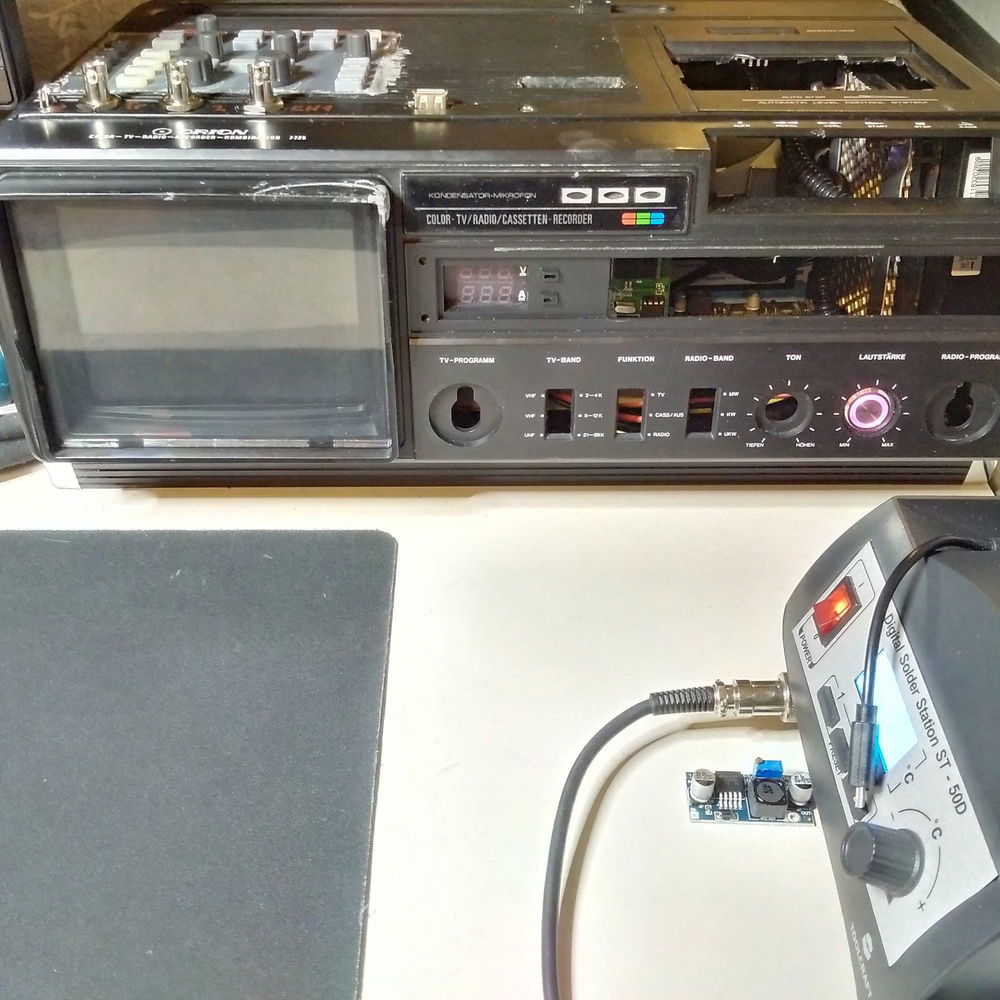

Added lab power supply, logic analyzer and component tester

Hardware

CPU
Intel - Core i7 3770
Cores: 4
Socket: LGA 1155
Motherboard
ASUS - P8H61-I
Chipset: H61
Memory Support: DDR3
Size: Mini-ITX
Memory
Corsair - XMS3
Capacity: 16 GB
Type: DDR3
Storage
Samsung - 840 EVO mSATA
Capacity: 1 TB
Form Factor: mSATA
Type: SSD
Graphics
ZOTAC - GeForce Mini
Chip: GTX 1080 Ti
Chip Manufacturer: NVIDIA
PSU
Enermax - Revolution
Efficiency: 80+ Gold
Form Factor: SFX
Modularity: Fully-Modular
Case
Custom - Custom (custom)
Case Fans
Noctua - NF-A12x15 PWM
Size: 120 mm
Case Fans
Noctua - NF-A14 PWM
Size: 140 mm
Case Fans

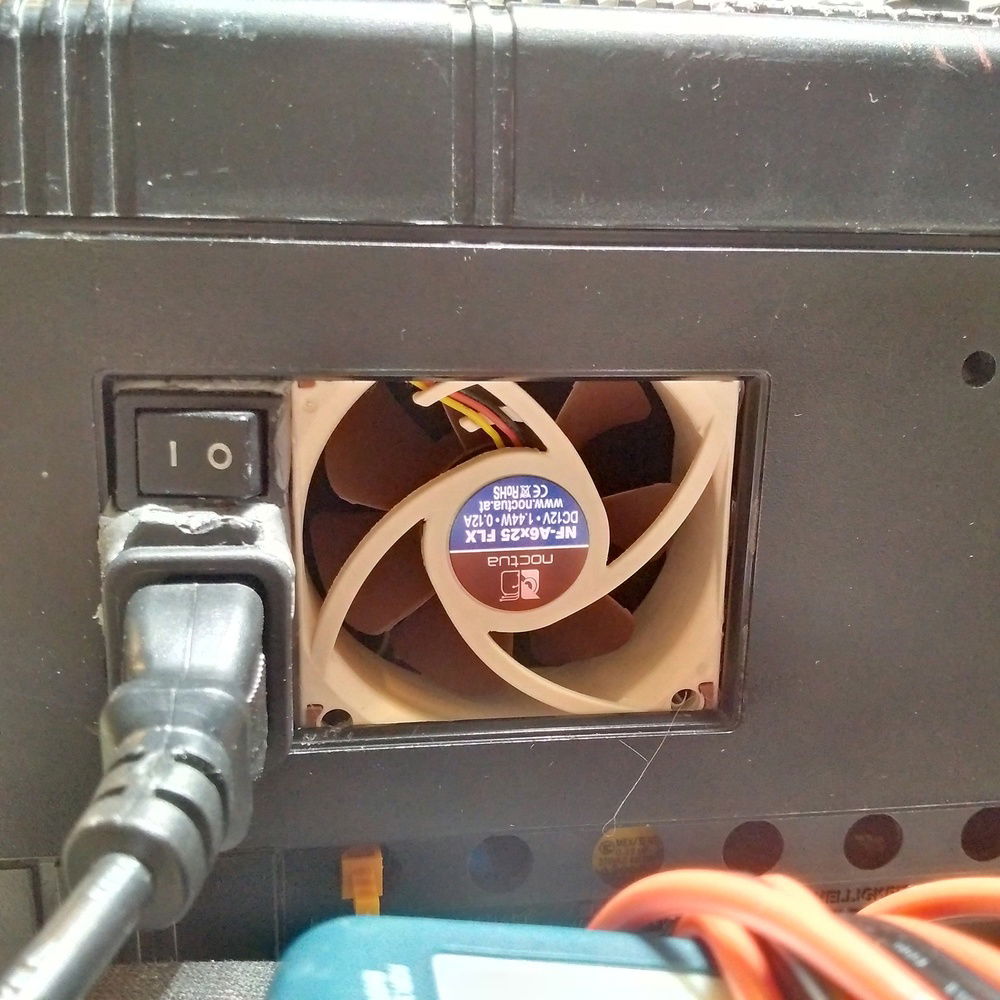

Noctua - NF-A6x25 FLX
Size: 60 mm
Case Fans
Scythe - Slip Stream
Size: 120 mm
Cooling
Cooler Master - MasterLiquid 120 (discontinued)
Compatibilty: AM2, AM2+, AM3, AM3+, FM1, FM2, FM2+, LGA 1150, LGA 1151, LGA 1155, LGA 1156, LGA 1366, LGA 2011, LGA 2011-3
Size (WxHxD): 157 mm
Type: AIO
Keyboard
Wooting - One
Interface: Wired
Type: Tenkeyless
Mouse
SteelSeries - Sensei
Interface: Wired
