LH02 - Project Invert

This build features photos with color schemes. If you look closely, the tubing runs change with the color schemes. This was done because I had lost the initial video footage for my YouTube channel, and so I had to rebuild the entire rig to make sure I had footage to make into a video.

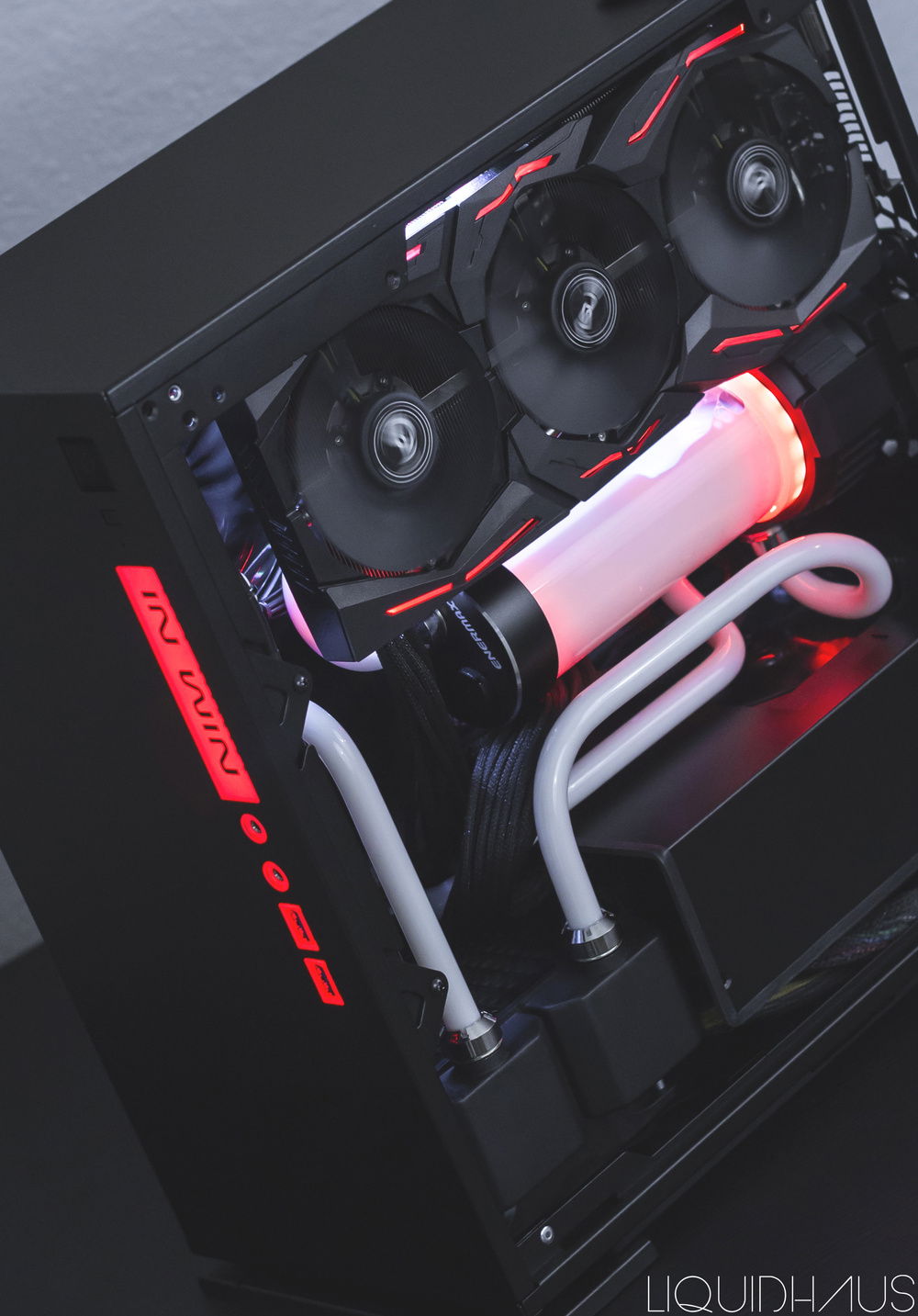

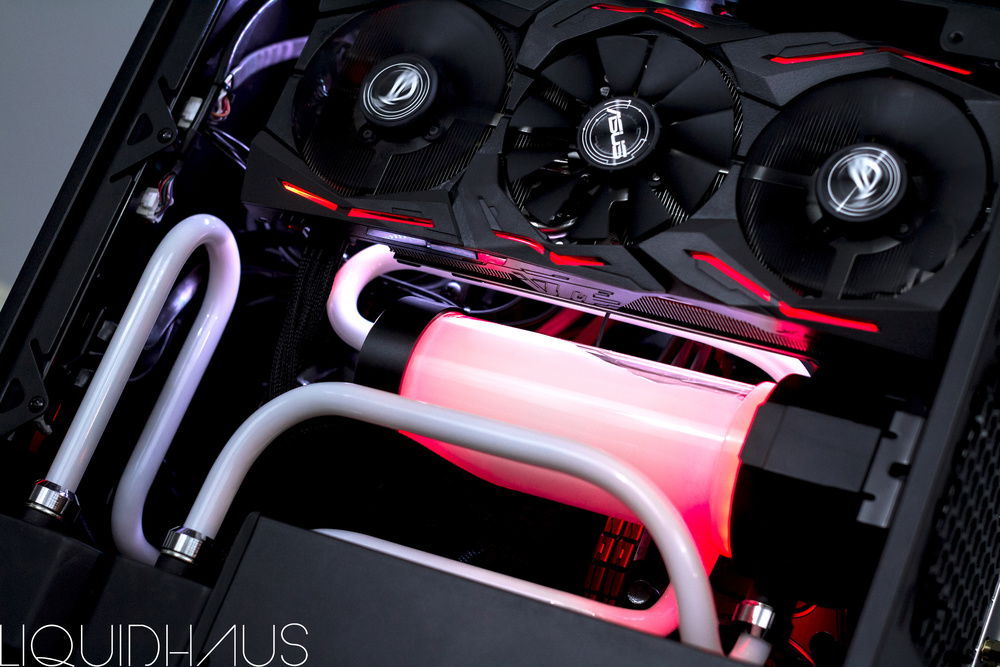

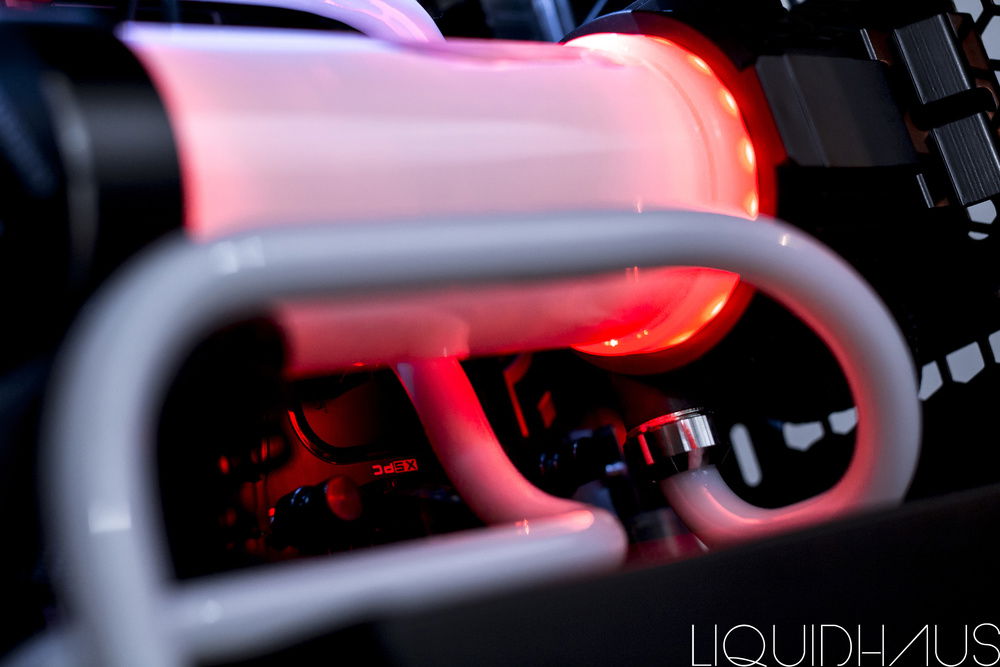

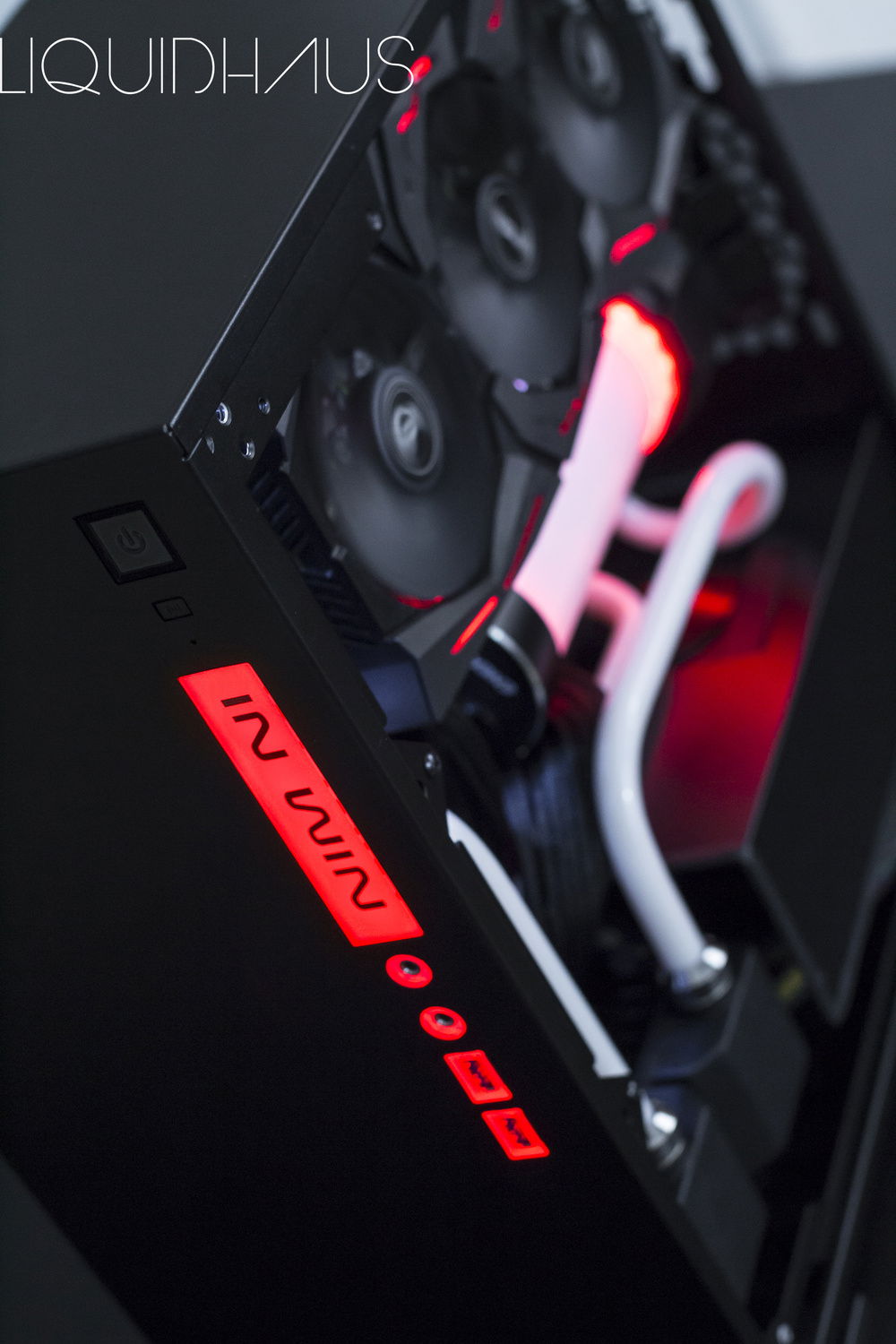

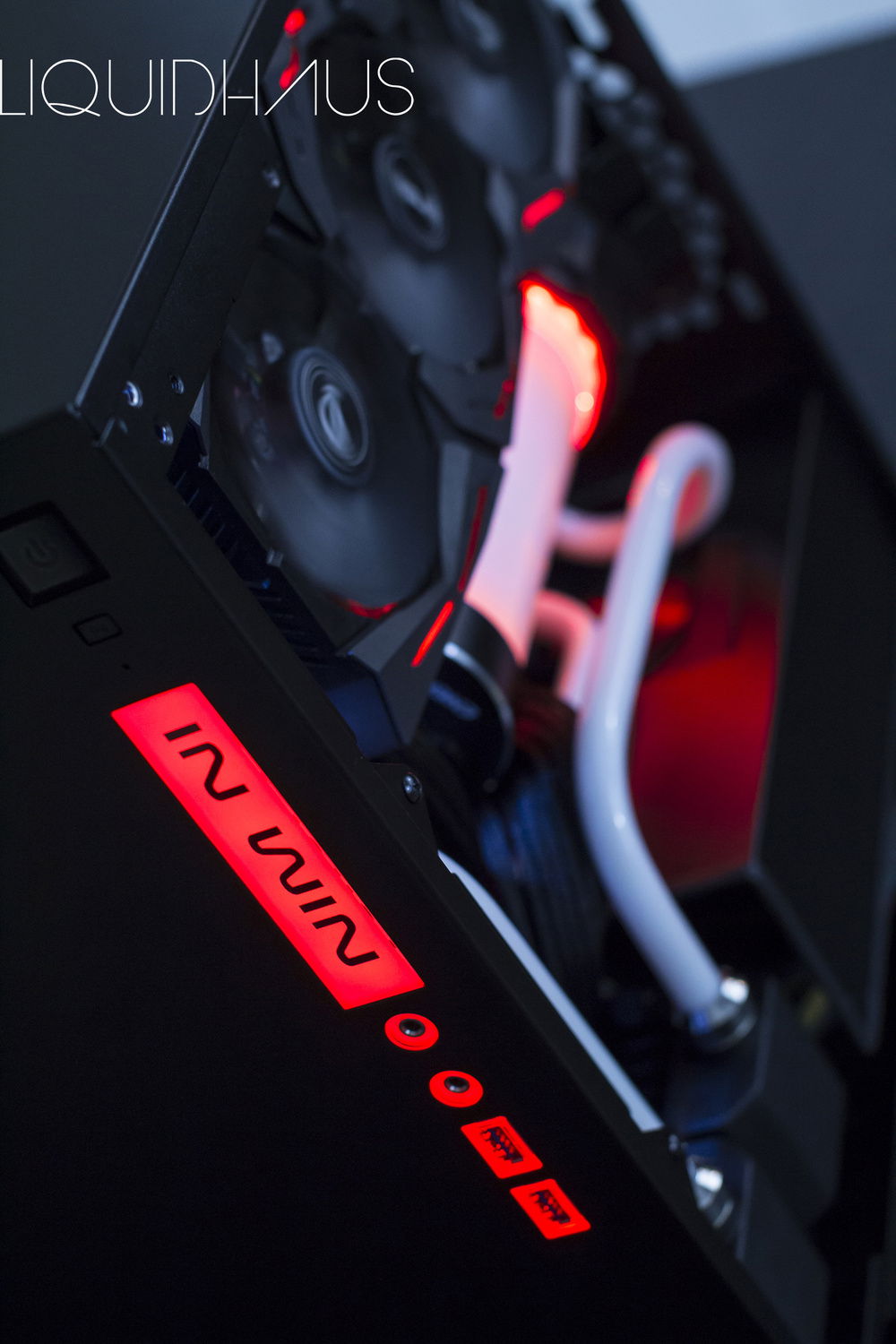

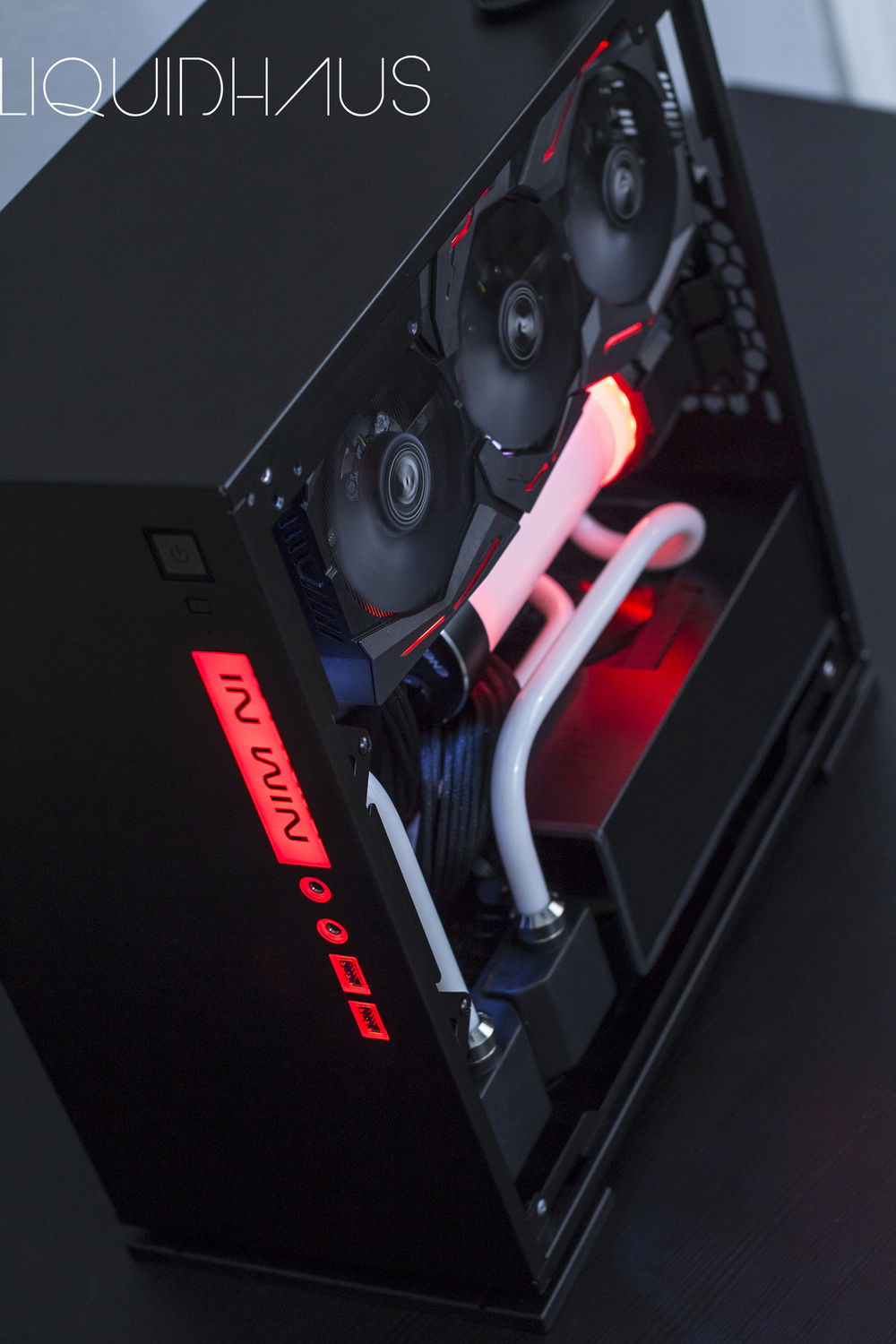

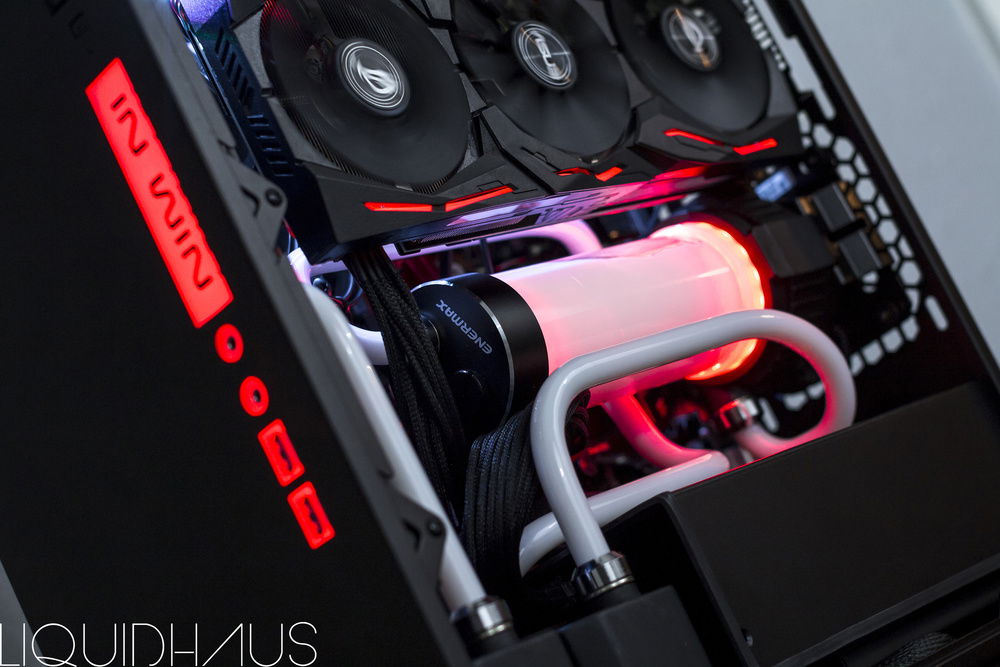

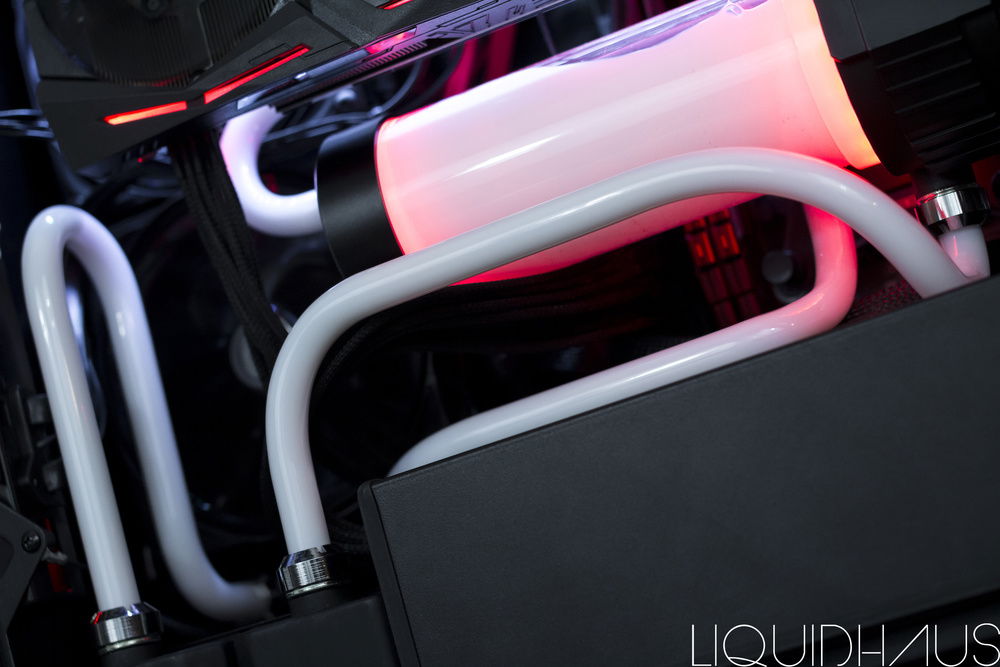

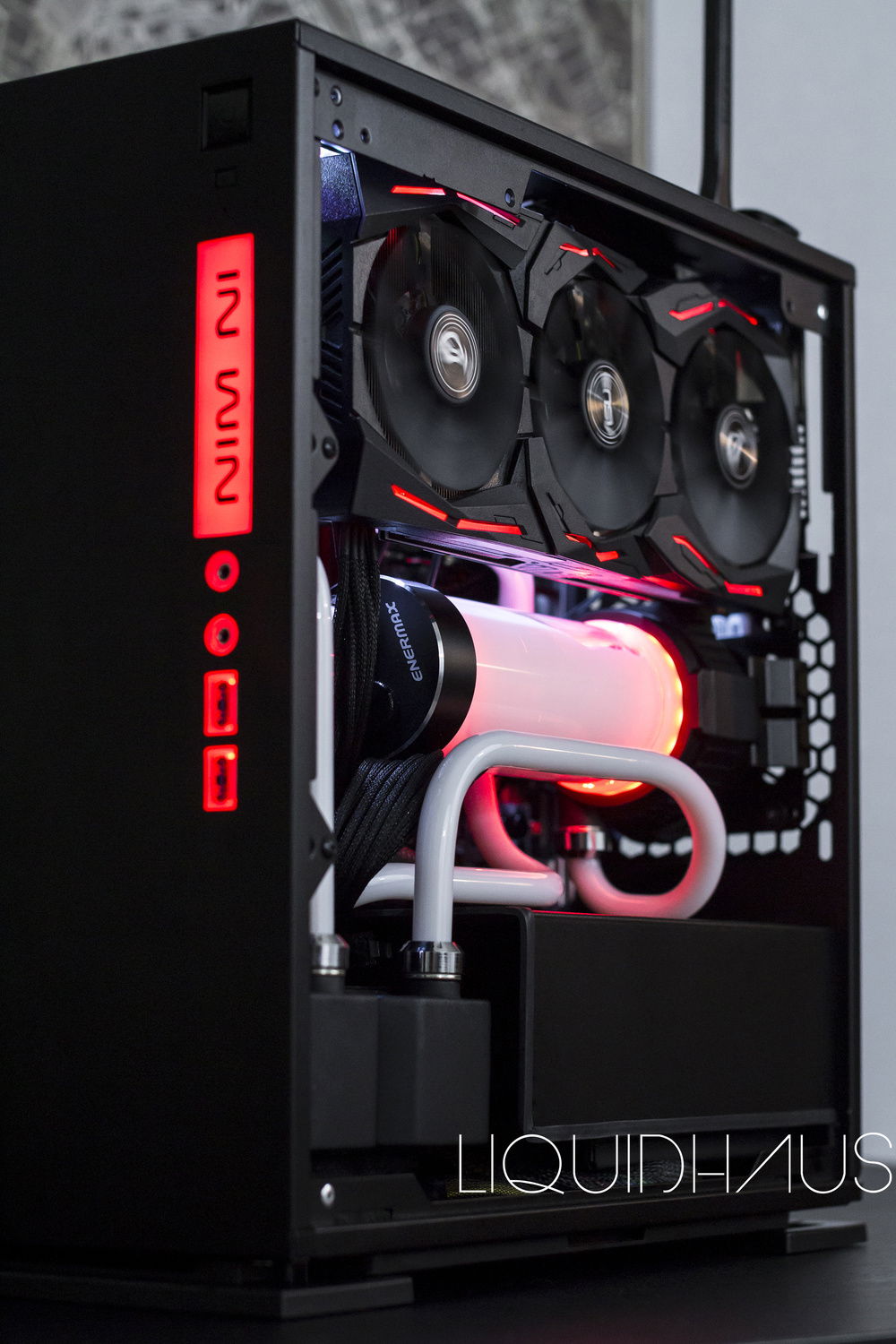

The red and black scheme is the first iteration, dubbed LH02.

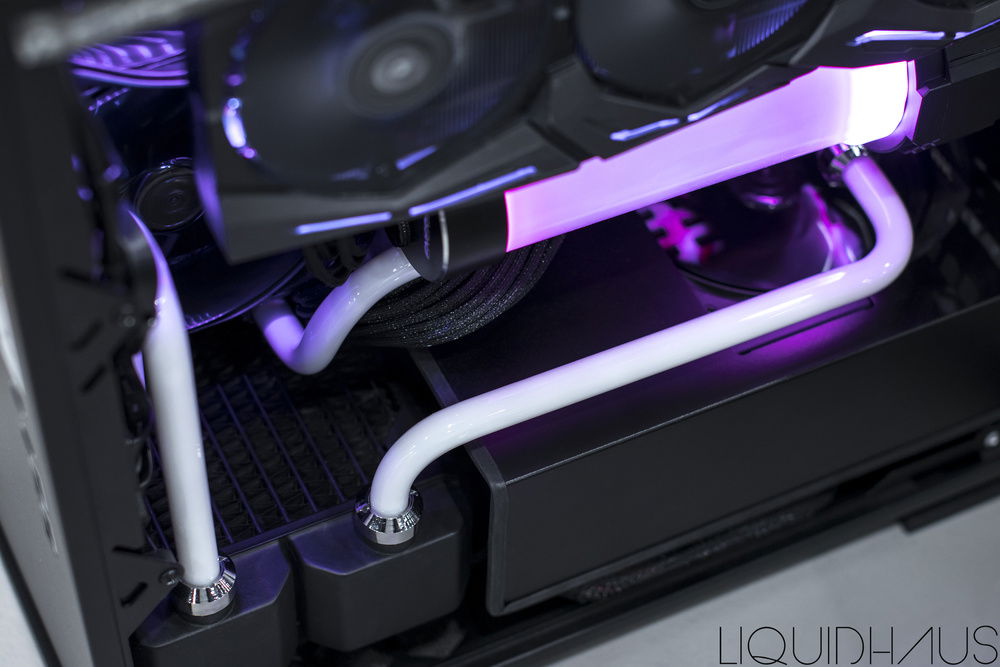

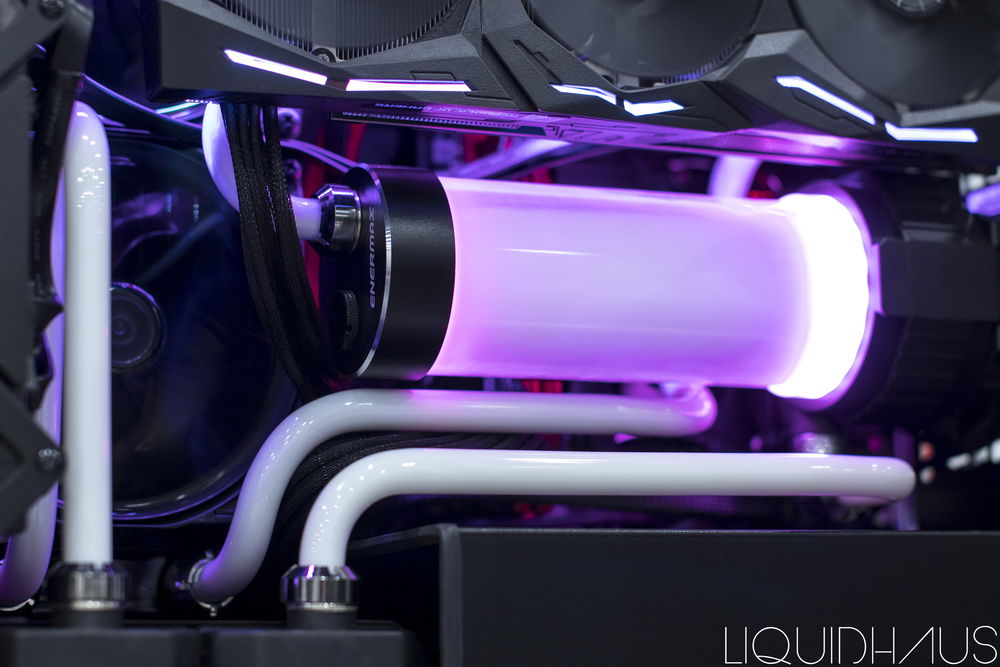

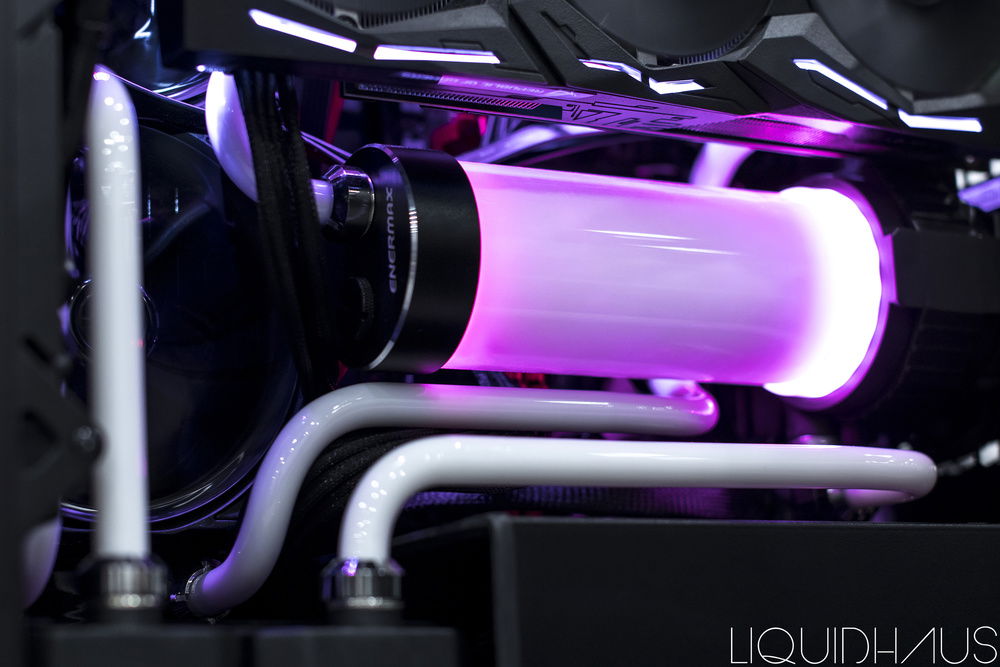

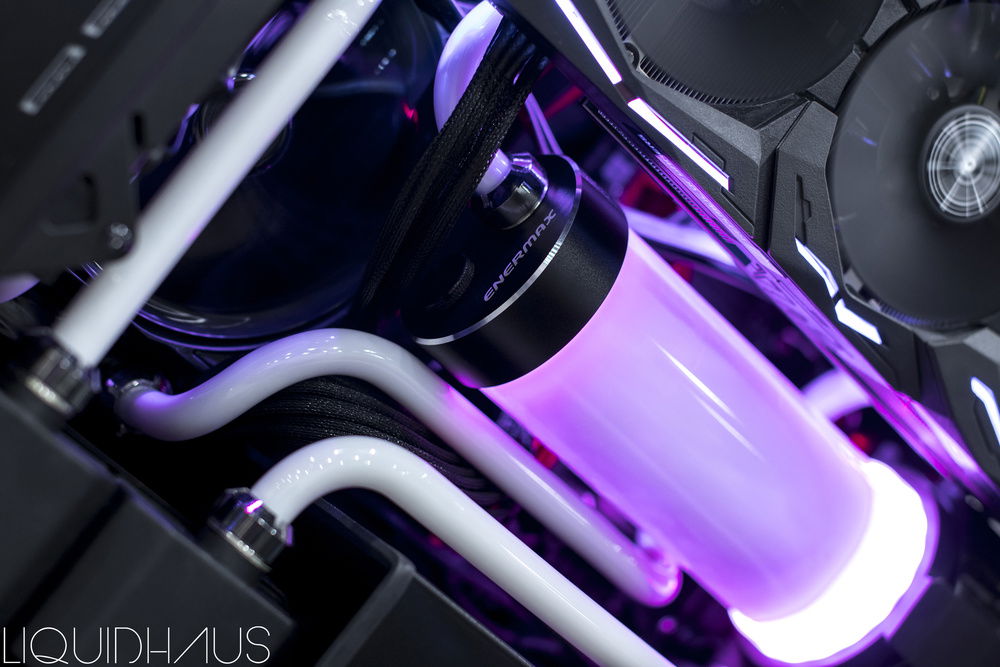

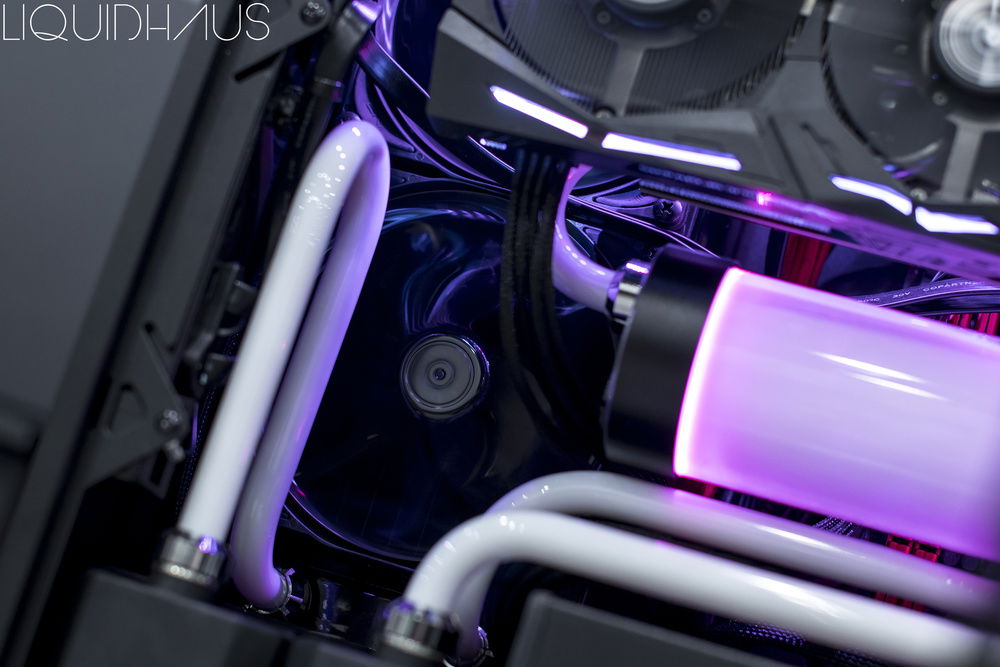

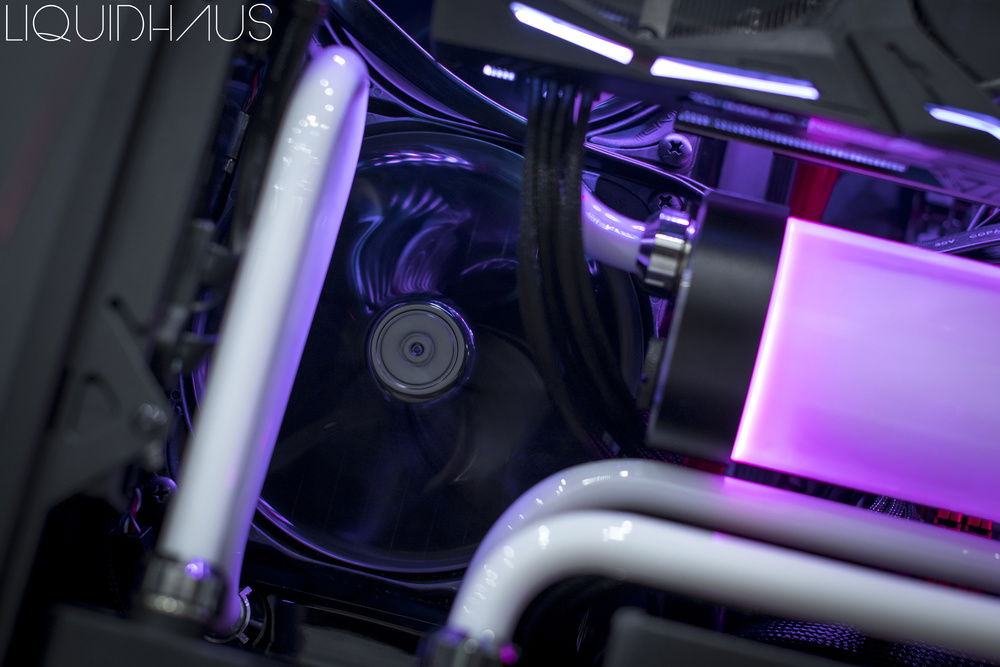

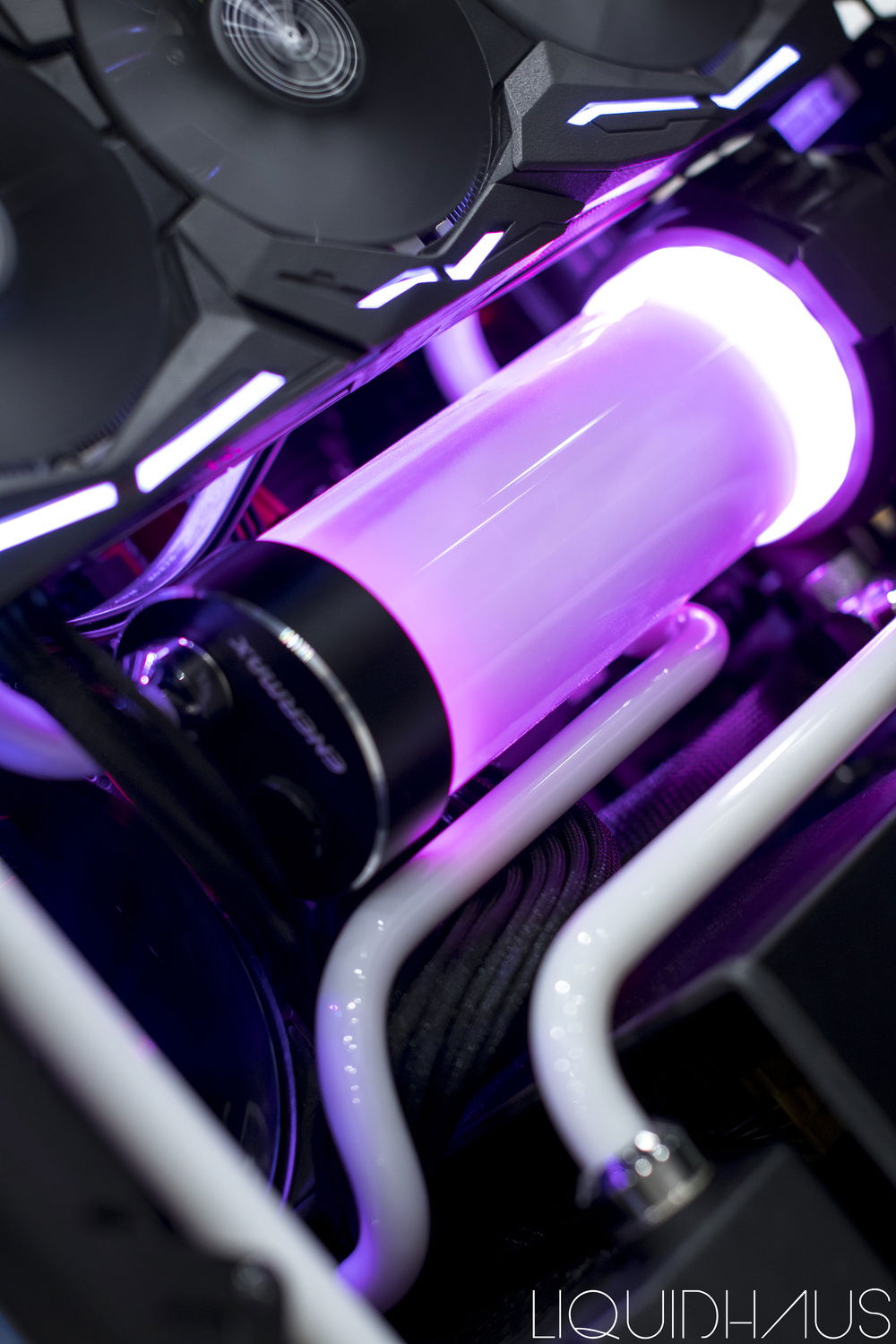

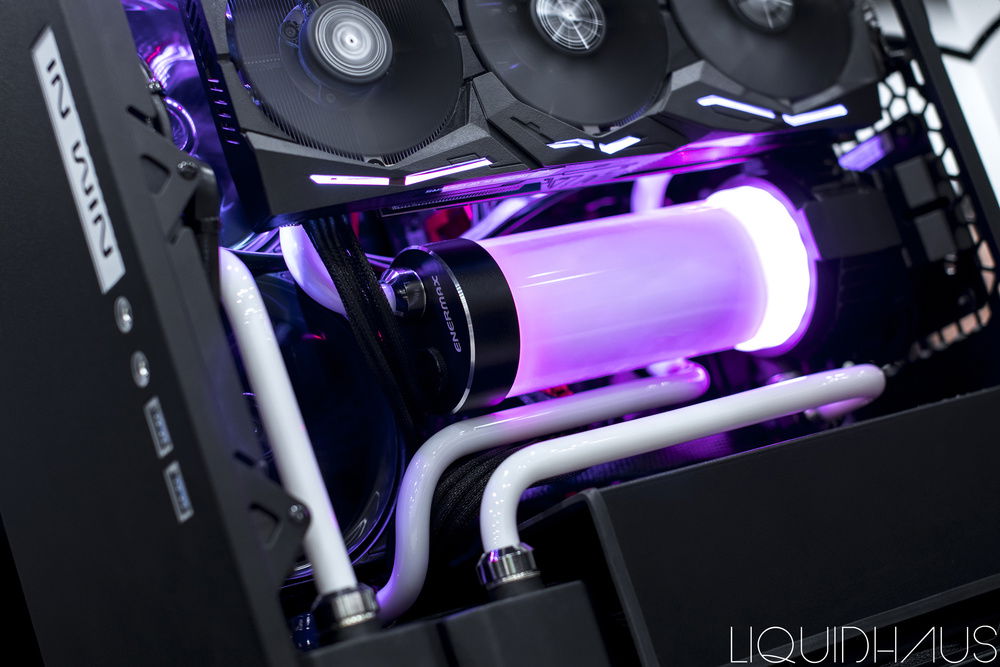

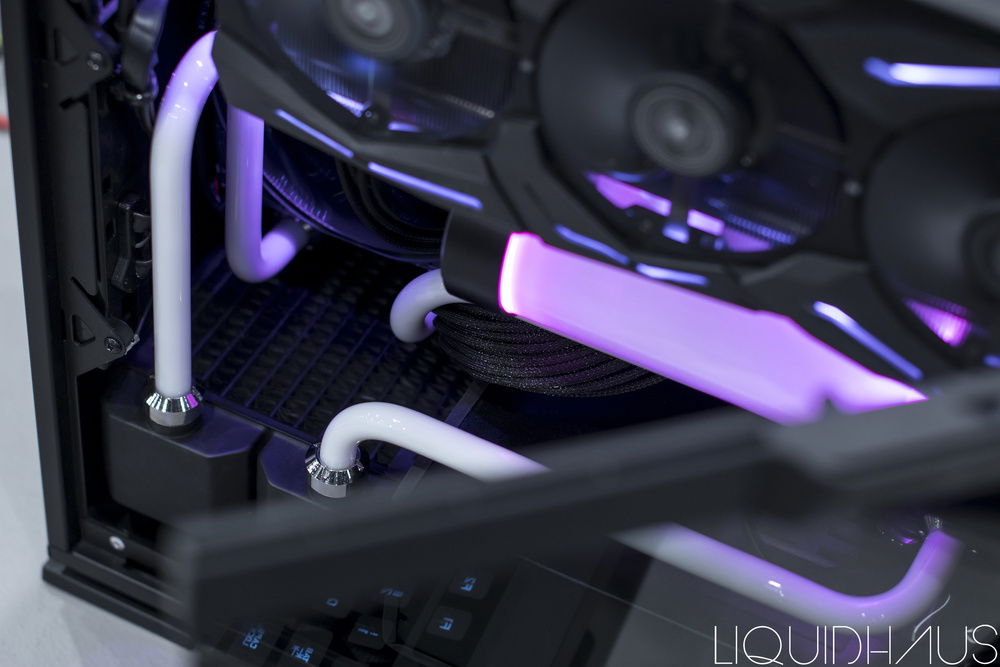

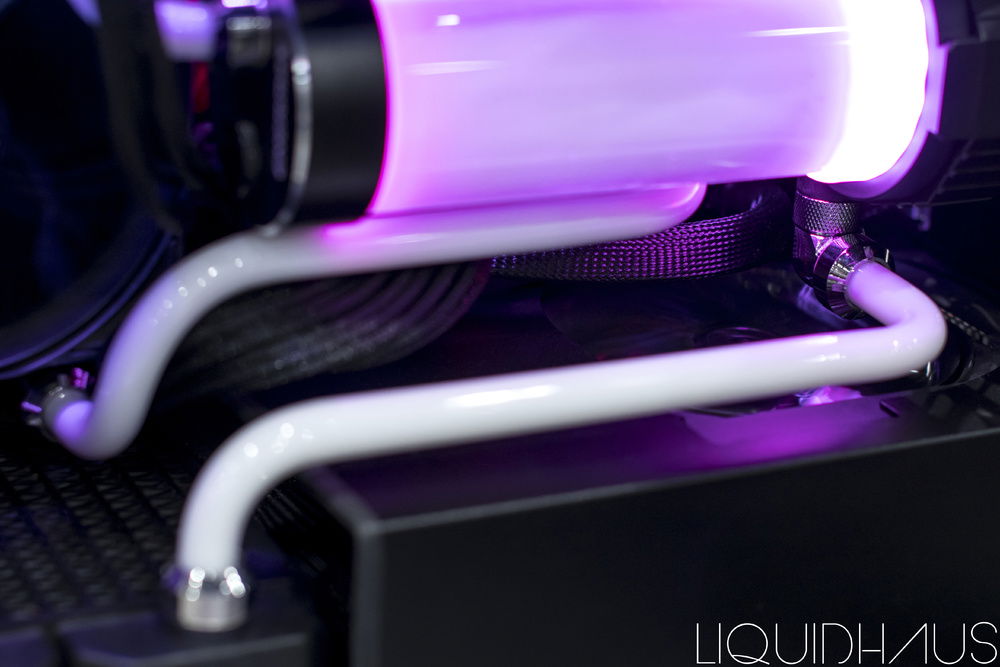

The purple and black scheme is the second iteration, dubbed LH02-2.

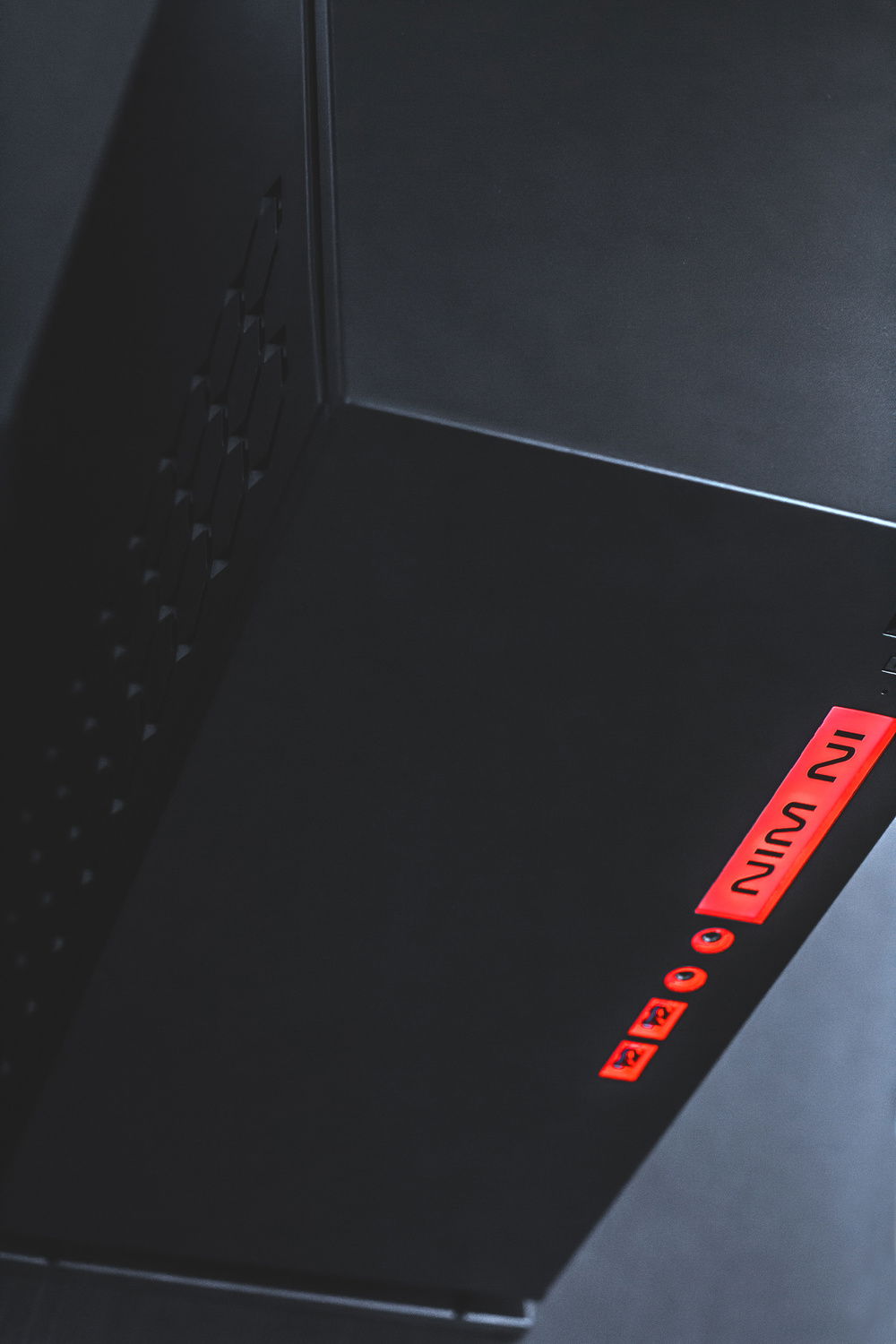

This is also the only Inverted InWin 301 chassis in existence, which is a pretty cool thing I think. The InWin 301 is an awesome case, but I wanted to pack as much cooling space as possible, with very little actual computer hardware shown. I wanted people to not know what it was when they first looked at it, at least people who aren't part of the computer community.

The link to this build video is located here: https://www.youtube.com/watch?v=TQ1QPX1X0aI&t=25s

Thanks for checking this build out!
Color(s): Black
RGB Lighting? Yes
Cooling: Custom Liquid Cooling
Theme: Art
Size: Mini-ITX
Type: General Build

Hardware

CPU
$ 293.99
Intel - Core i7-6700K
Cores: 4
Socket: LGA 1151
Motherboard
$ 304.40
Gigabyte - GA-Z170N-Gaming-5
Chipset: Z170
CPU Socket: LGA 1151
Interfaces Available: M.2 (M), mSATA, PCIe x1, PCIe x4, PCIe x8
Memory
$ 76.99
G.Skill - Ripjaws V (2666MhZ)
Capacity: 16 GB
Type: DDR4
Graphics
$ 199.95
ASUS - GTX 1060 6GB Strix
Chip: GTX 1060
Chip Manufacturer: NVIDIA
Storage
$ 94.99
PNY - CS1211
Capacity: 240 GB
Form Factor: 2.5 Inch
Interface: SATA 6 Gb/s
Storage
$ 84.99
Samsung - 850 EVO
Capacity: 500 GB
Form Factor: 2.5 Inch
Interface: SATA 6 Gb/s
PSU
Cooler Master - Silent Pro Gold 800W
Efficiency: 80+ Gold
Form Factor: ATX
Modularity: Semi-Modular
Case
$ 69.99
IN-WIN - 301, Black
Motherboard Support: Micro-ATX, Mini-ITX
Side Panel: Tempered Glass
Type: Mid-Tower
Case Fans
$ 119.96
Cooling
Enermax - NEOChanger 200ml
Height in mm: 197
Size (WxHxD): 200 mm
Type: Pump/Reservoir Combo
Cooling
Hardware Labs - Black Ice SR1
Size (WxHxD): 120 mm
Type: Custom Loop
Cooling
Hardware Labs - Black Ice Xtreme II
Size (WxHxD): 240 mm (2 x 120 mm)
Type: Custom Loop
Cooling
$ 251.76
Monsoon - Hardline Economy (8x)
Type: Fittings
Unable to dertermine total build value (missing part value)
