Lavender

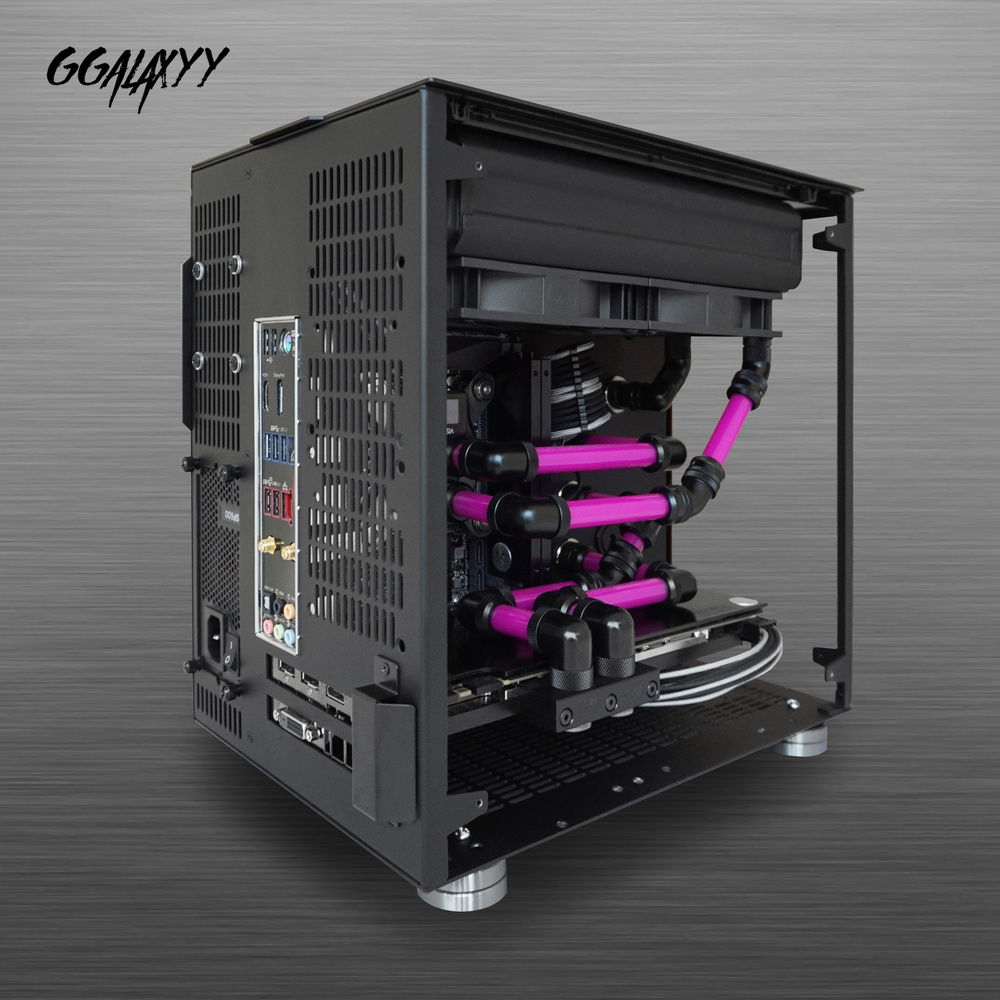

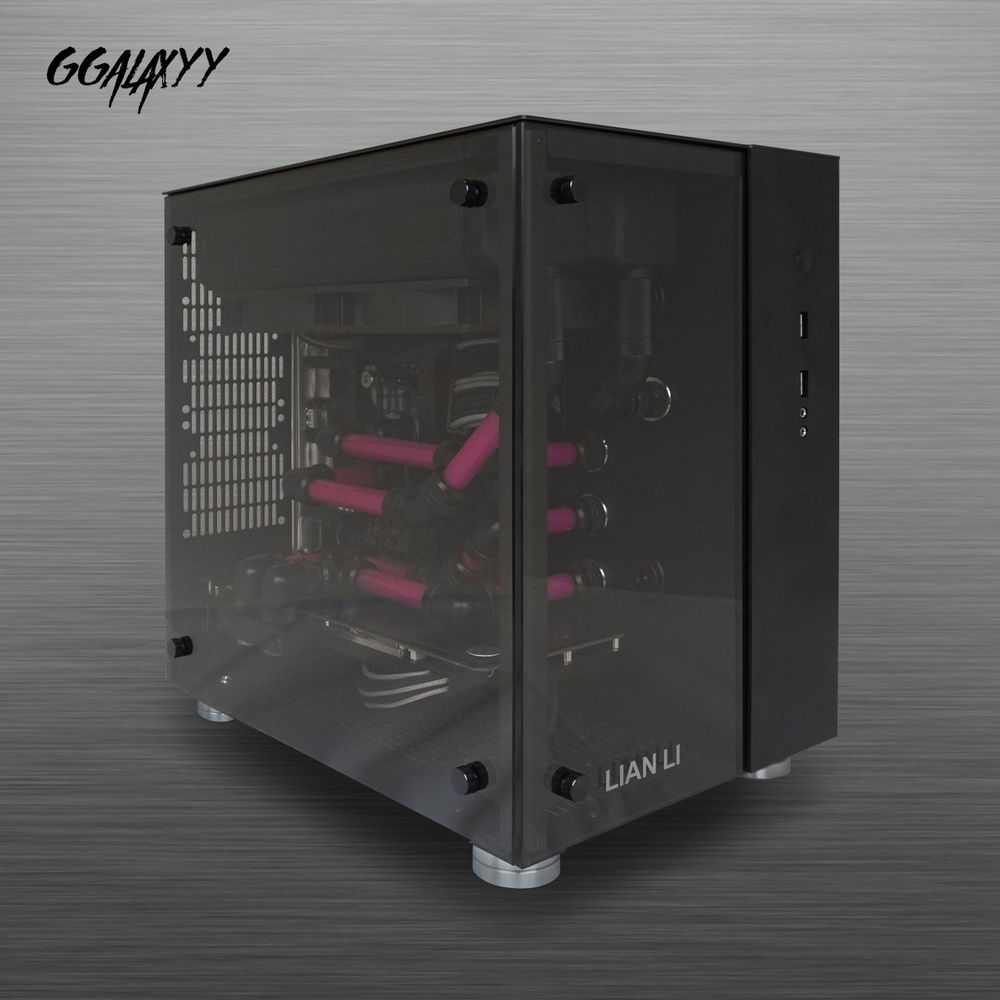

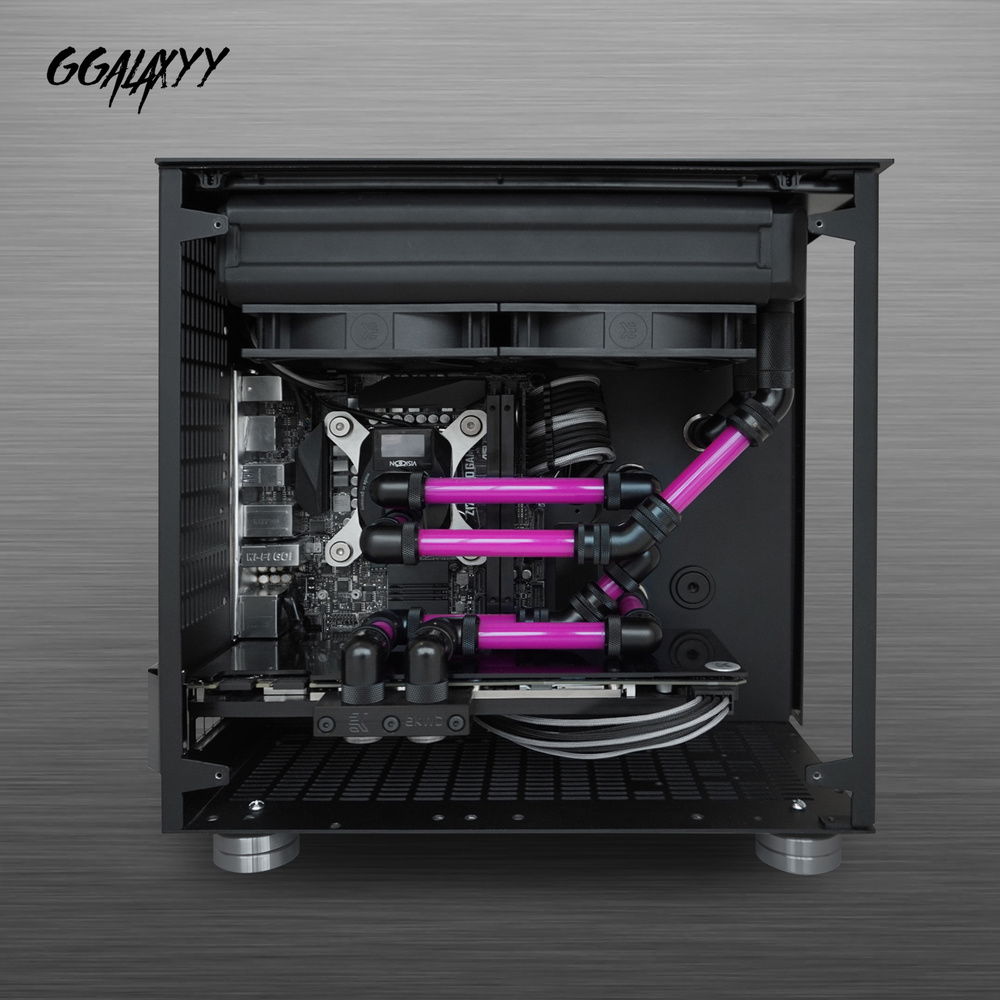

Lavender is a side project I've been working on for a few months. I knew I had to do a build in this case as soon as I laid my eyes on it. The build features a large thick radiator, a OLED panel CPU block from AquaComputer and a hidden pump and reservoar.

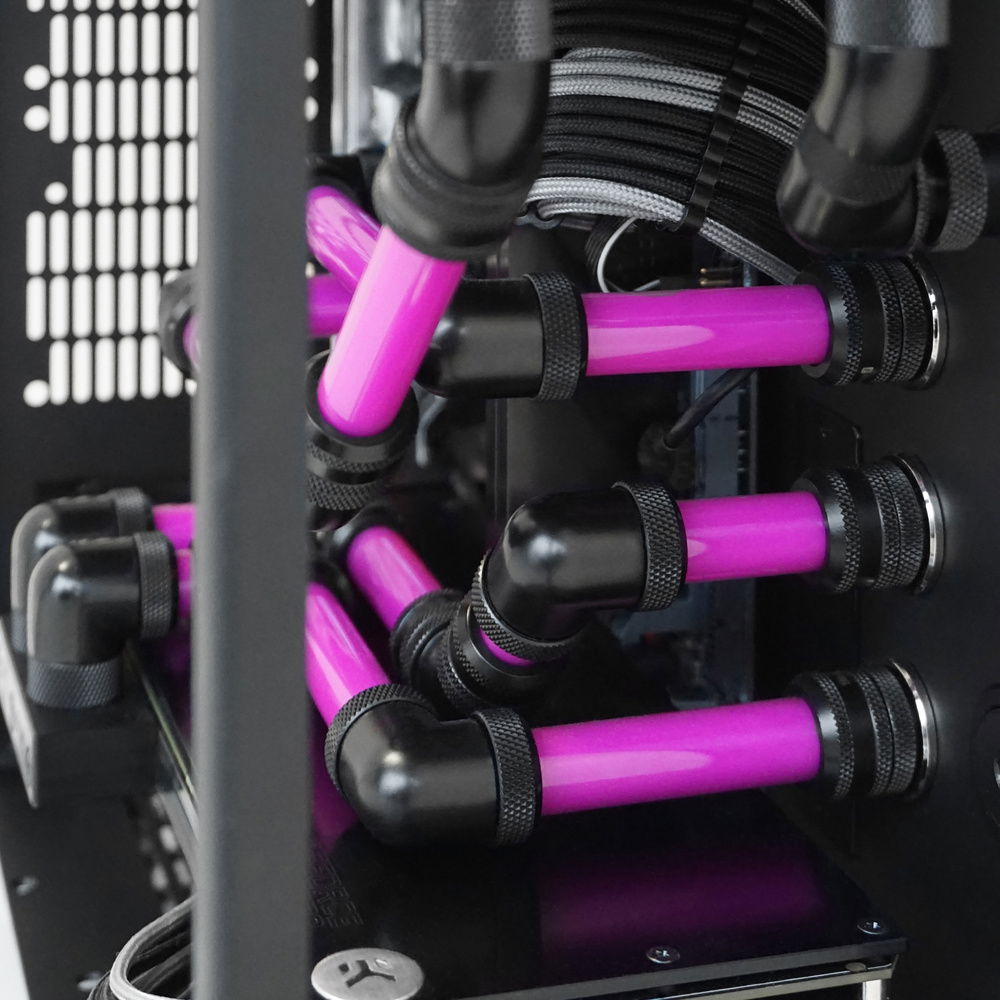

The case is slightly modded with custom feet. I had to remove the whole bottom part which makes the case even more square than original. I also made a few pass-through holes in the panels where I've routed the 14mm piping. This case was both fun and a challenge to build in due to it's size and radiator capacity. My first idea was to have two radiators but I ended up using only one very thick one in the roof spot.

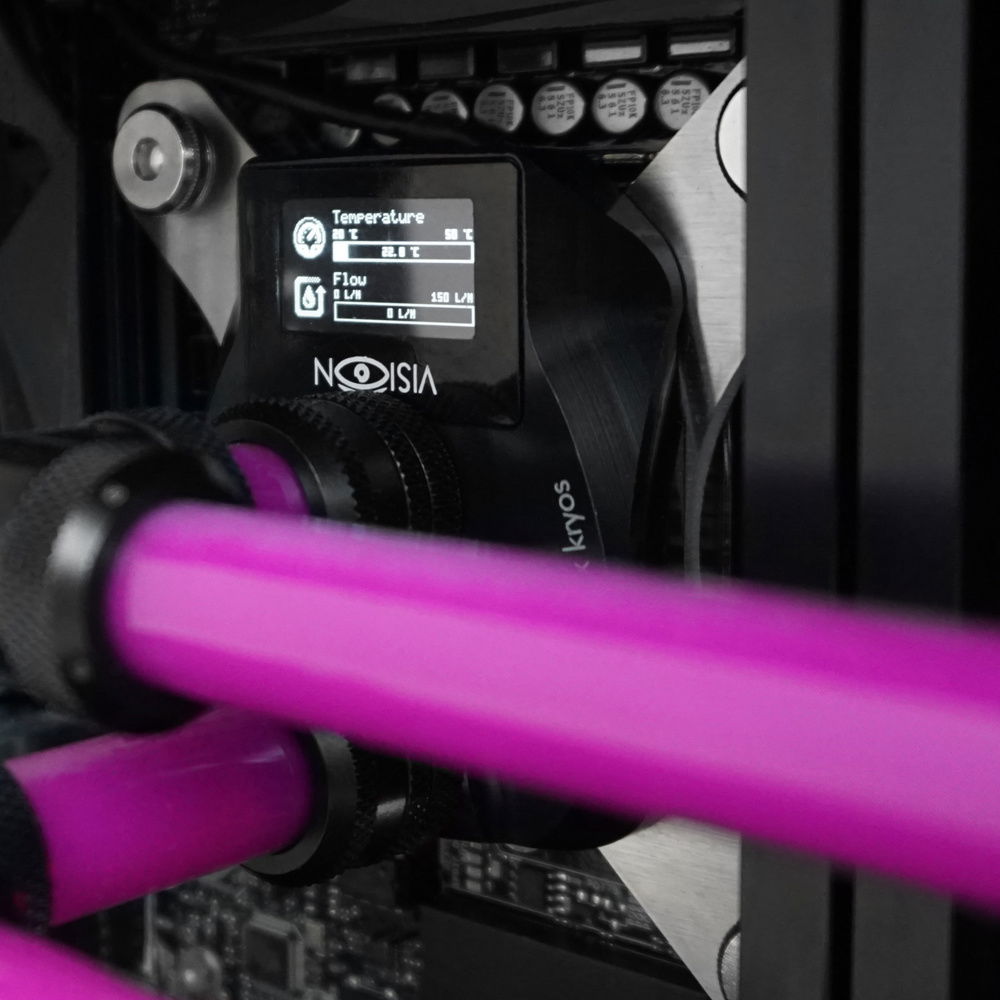

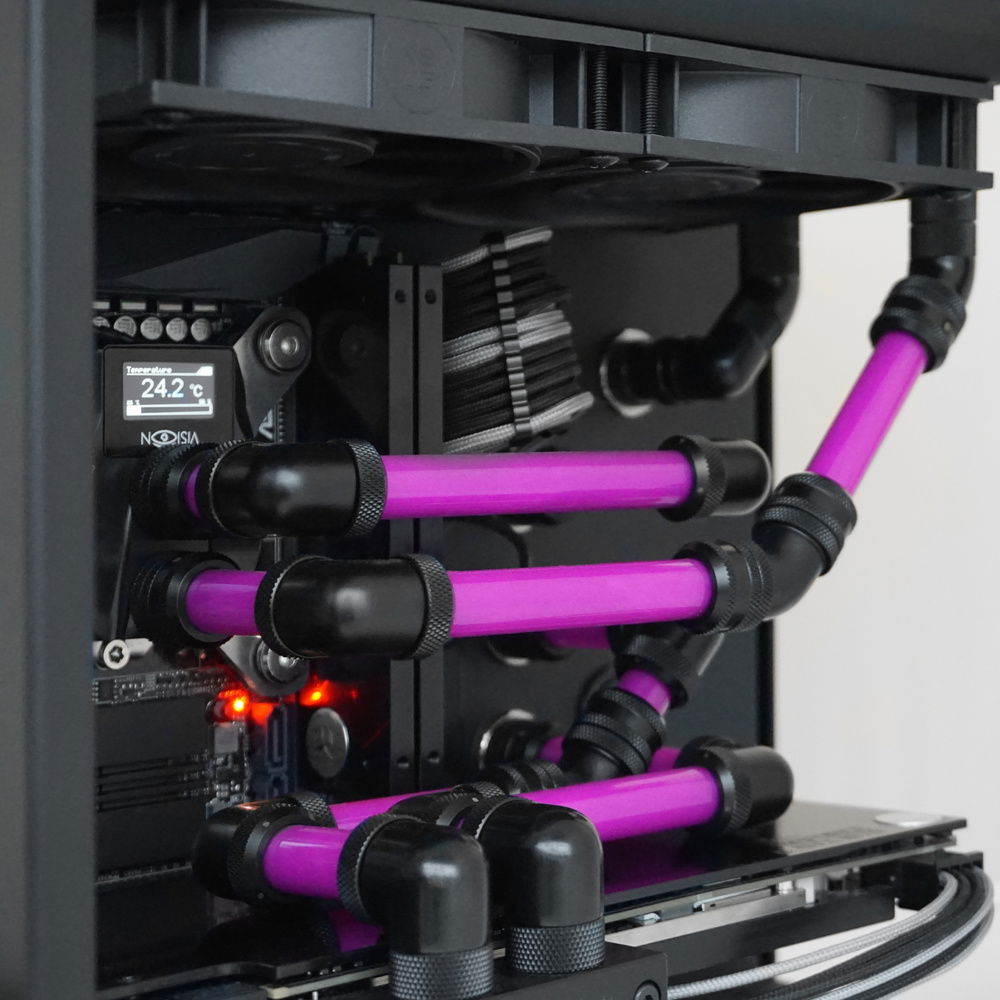

Temperature wise it's stable on stock clocks. Water temperature doesn't rise above 33°C. CPU temperature is stable at around 55°C at load, and GPU around 50°C on 1000~RPM fan speeds. The OLED panel on the CPU block displays not only temperature and flow, but also date, time and is customizable to show more or less what ever the user wants to via the Aquasuite software.
Color(s): Black Purple Silver
RGB Lighting? No
Theme: none
Cooling: Custom Liquid Cooling
Size: Mini-ITX
Type: General Build

Contests

This build participated in 1 contest.

Hardware

CPU
$ 170.00
Intel - Core i7-6700K
Socket: LGA 1151
Cores: 4
Motherboard
$ 231.10
ASUS - Z170i Pro Gaming
Chipset: Z170
CPU Socket: LGA 1151
Size: Mini-ITX
Graphics
$ 499.00
MSI - Aero
Chip Manufacturer: NVIDIA
Chip: GTX 1070 Ti
Storage
$ 73.91
Western Digital - WD Blue
Form Factor: M.2
Interface: M.2 (M)
Capacity: 250 GB
PSU
$ 199.00
Corsair - SF600
Wattage: 600
Form Factor: SFX
Efficiency: 80+ Gold
Case
$ 699.99
Lian Li - PC-Q37WX
Type: Mid-Tower
Side Panel: Tempered Glass
Cooling
Aquacomputer - Cuplex Cryos
Type: CPU Waterblock
Cooling
EKWB - GPU Blocks (discontinued)
Type: Custom Loop
Cooling
EKWB - Pump
Type: Custom Loop
Cooling
$ 67.23
EKWB - RAM Monarch
Type: Custom Loop
Cooling
Hardware Labs - Black Ice GTX
Type: Custom Loop
Size (WxHxD): 240 mm (2 x 120 mm)
CableMod
CableMod - Sleeved Cables
Mode: Custom
Sleeve: PRO ModFlex
Color: Black
