ITX Build AMD only with used parts

This PC is for our holiday flat. All parts are used parts I had lying around, except the SSD and the CPU cooler.
It doesn't need to be super powerfull, just enough to play a few easy games every now and then and do some officework.
First I went with a SATA SSD and the AMD Prism stock cooler, but the stock cooler was pretty loud and all the SATA-cables made cablemanagement even worse.

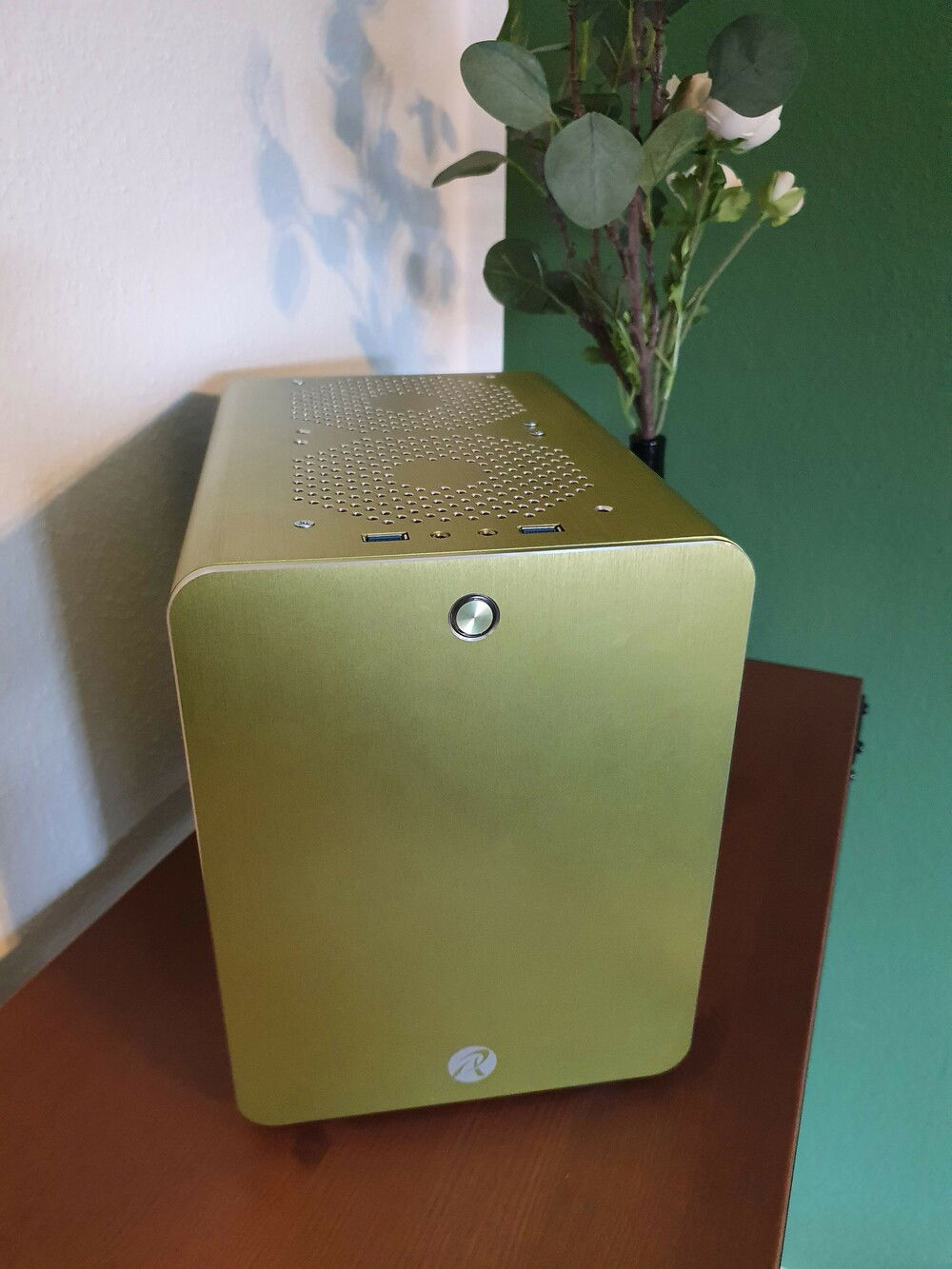

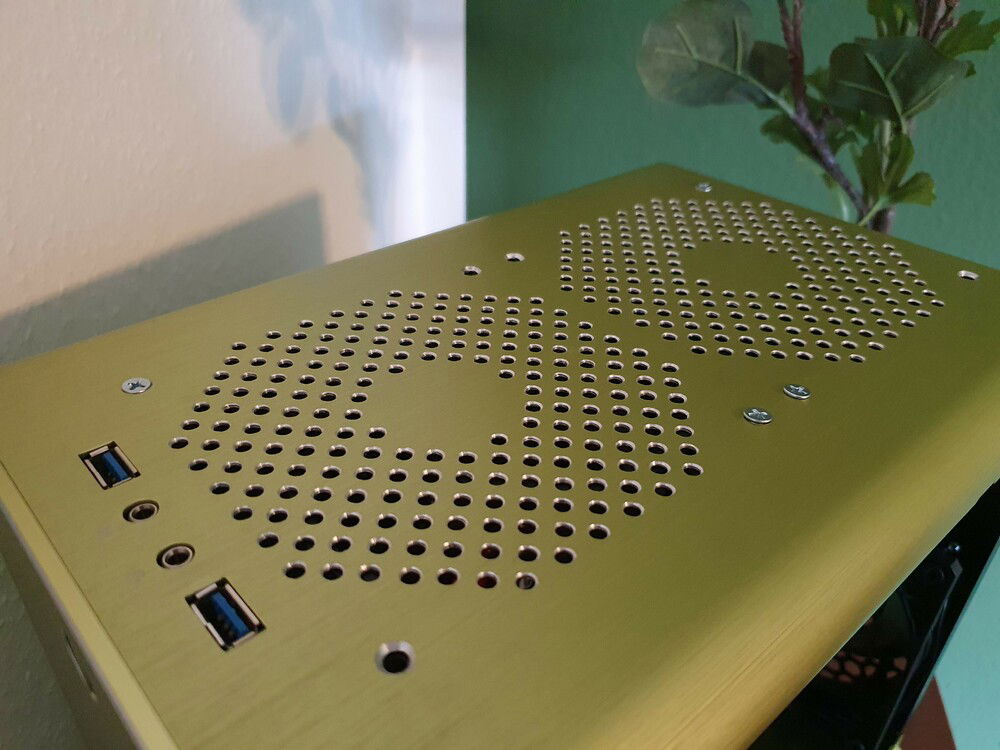

The case is a modded Raijintek Metis. I drilled holes in the top, so I was able to install 2 120mm fans in the top, which helps a lot with temps. The original sidepanel was removed, instead I used a clear arylic panel.

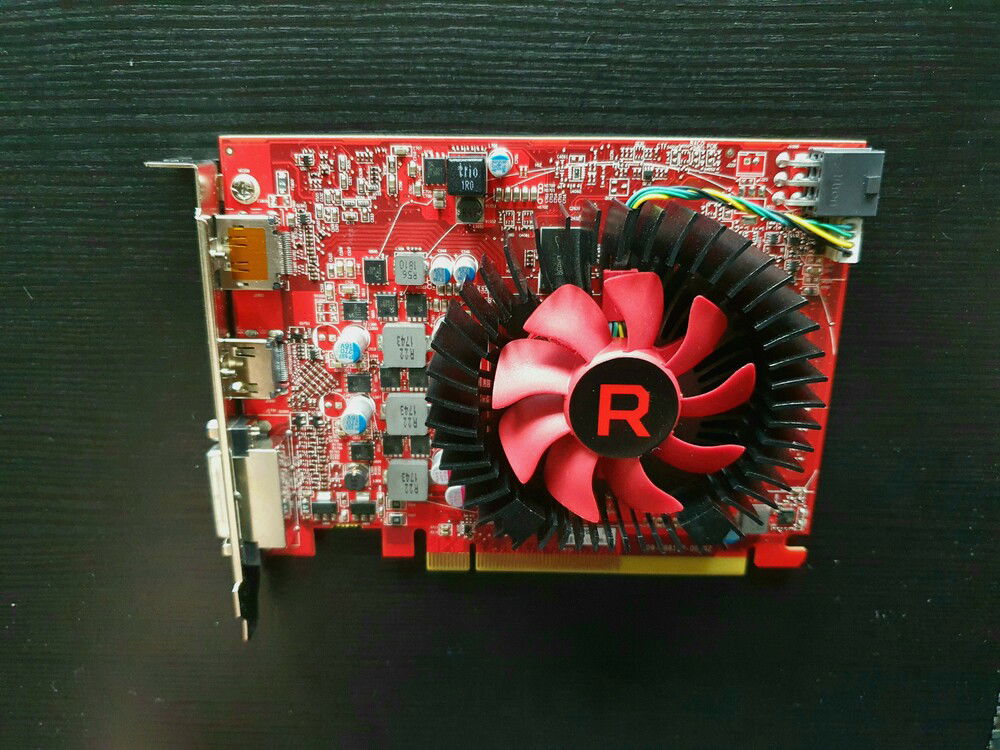

Officially the case supports ATX PSU's and 170mm GPU's. With SFX PSU's you can fit GPU's with up to 240mm (most midrange GPU's with 2 fans). The GPU I used is an OEM RX560 with Dell Bios. Doesn't look too epic, but gets the job done.
Color(s): Green Red
RGB Lighting? No
Theme: none
Cooling: Air Cooling
Size: Mini-ITX
Type: General Build

Hardware

CPU
$ 225.00
AMD - Ryzen 5 (1500X)
Socket: AM4
Cores: 4
Motherboard
$ 109.99
ASRock - Fatal1ty Gaming-ITX/AC (AB350)
Chipset: B350
CPU Socket: AM4
Size: Mini-ITX
Memory
Patriot - Viper 4 (3200MHz) (Red) (2x)
Type: DDR4
Capacity: 8 GB
Graphics
AMD - Radeon
Chip Manufacturer: AMD
Chip: RX 560
Storage
Crucial - P2
Form Factor: M.2
Interface: M.2 (M)
Capacity: 500 GB
PSU
$ 179.99
Corsair - SF450
Wattage: 450
Form Factor: SFX
Efficiency: 80+ Gold
Case
Raijintek - Metis Classic
Type: Mini-Tower
Side Panel: Window
Case Fan
$ 35.97
ARCTIC - P12 PWM PST CO (Black) (3x)
Size: 120 mm
Cooling
Thermalright - Full Copper (AXP-90R)
Type: Air Cooler
Size (WxHxD): 92 mm
