Hidden_Server

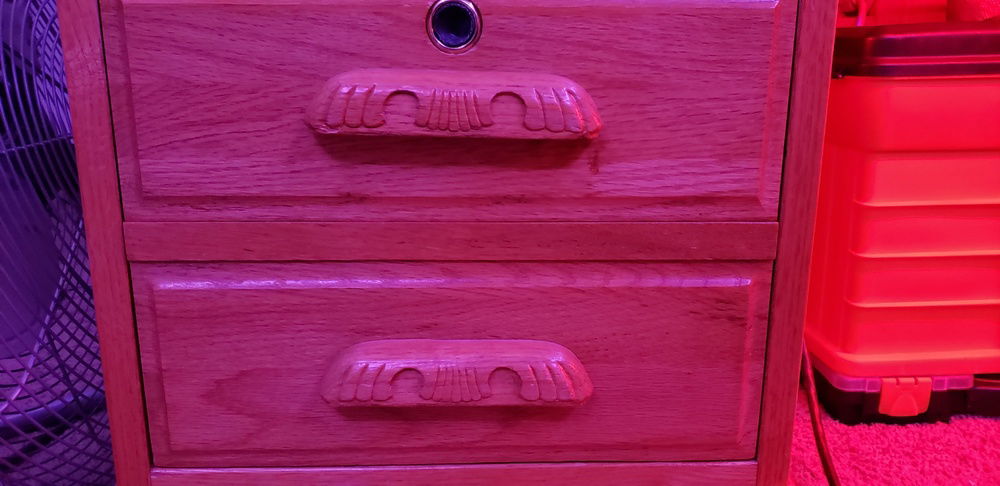

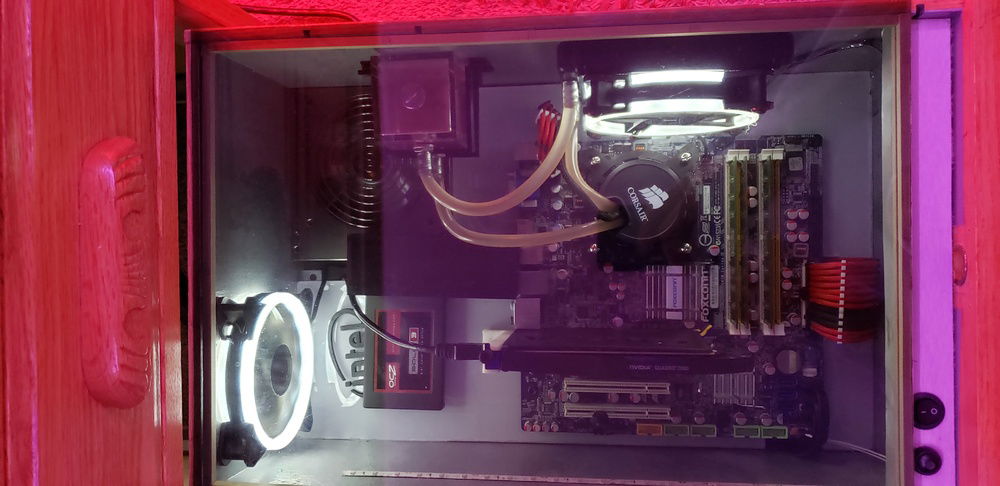

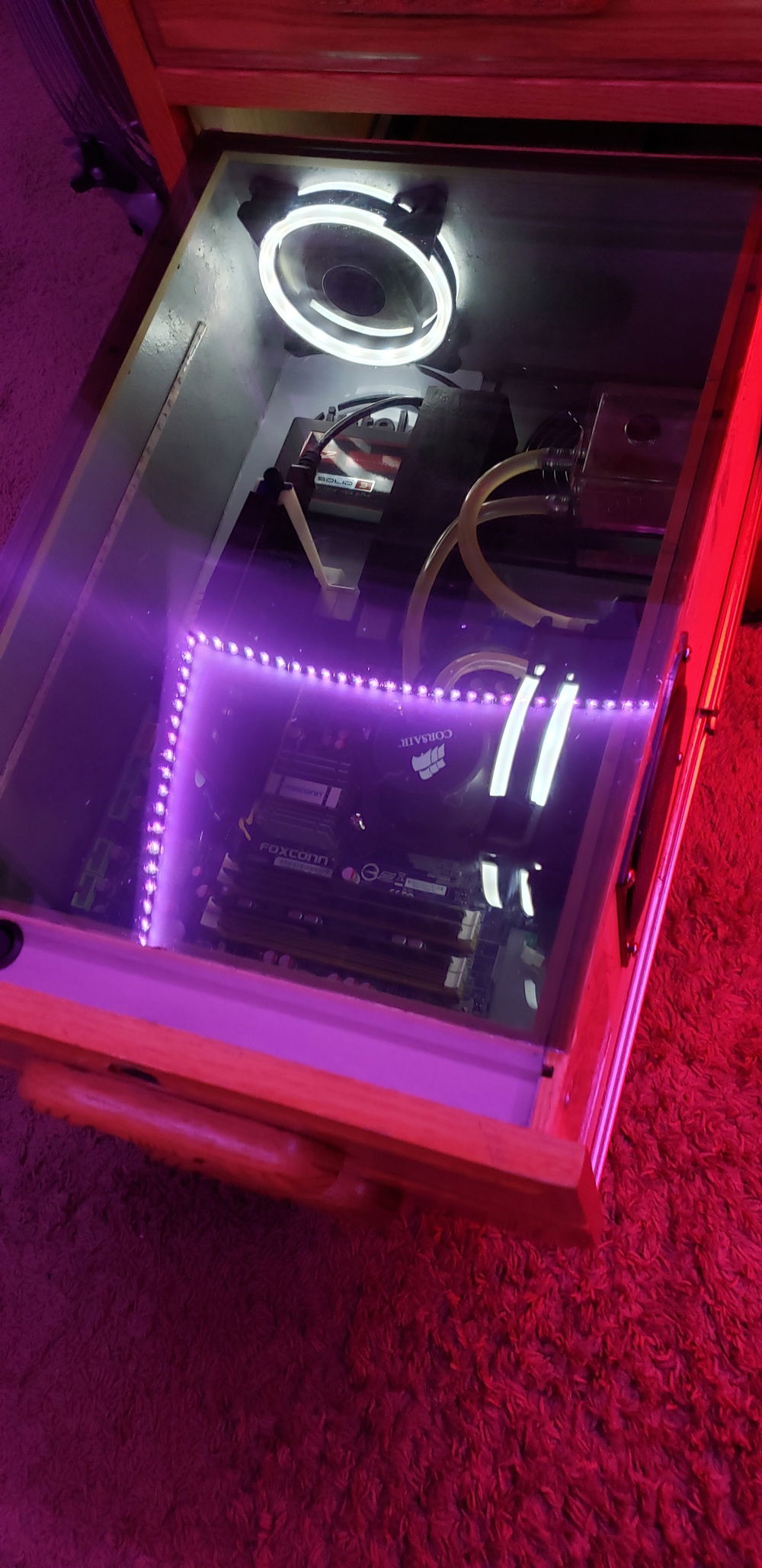

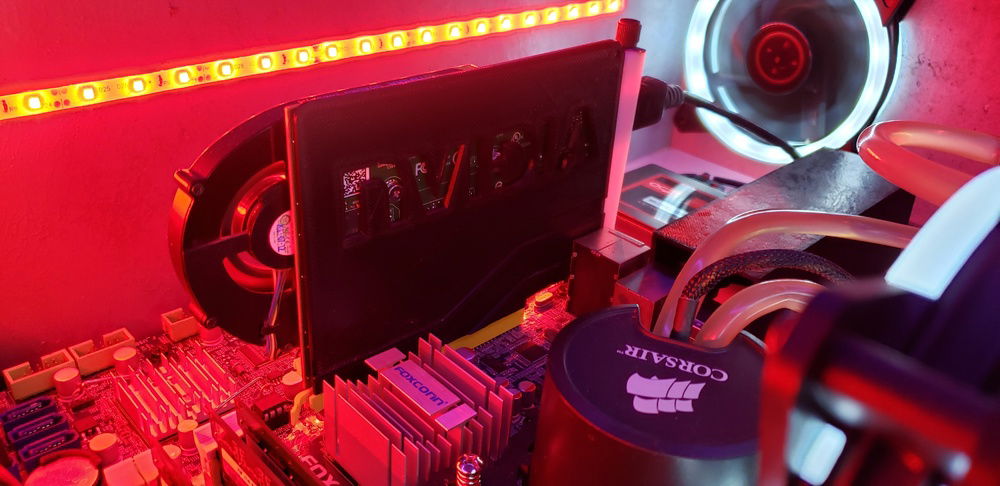

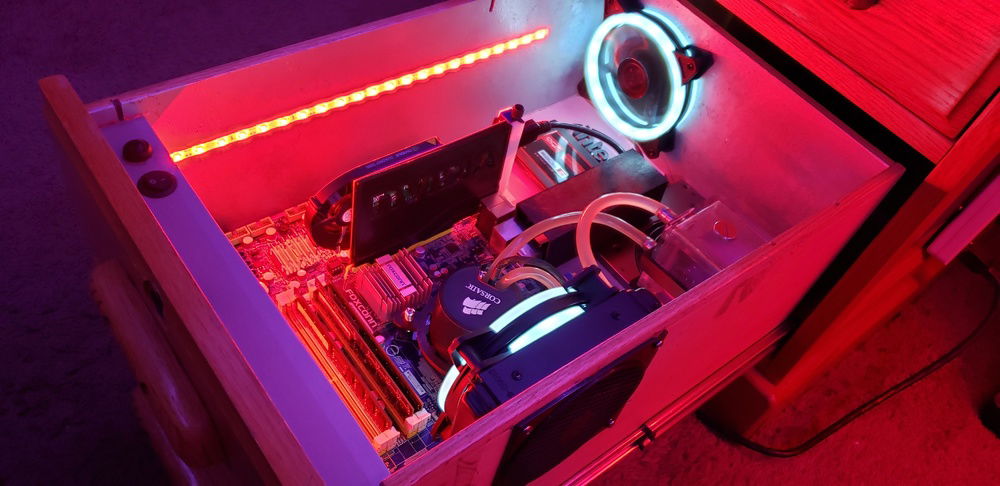

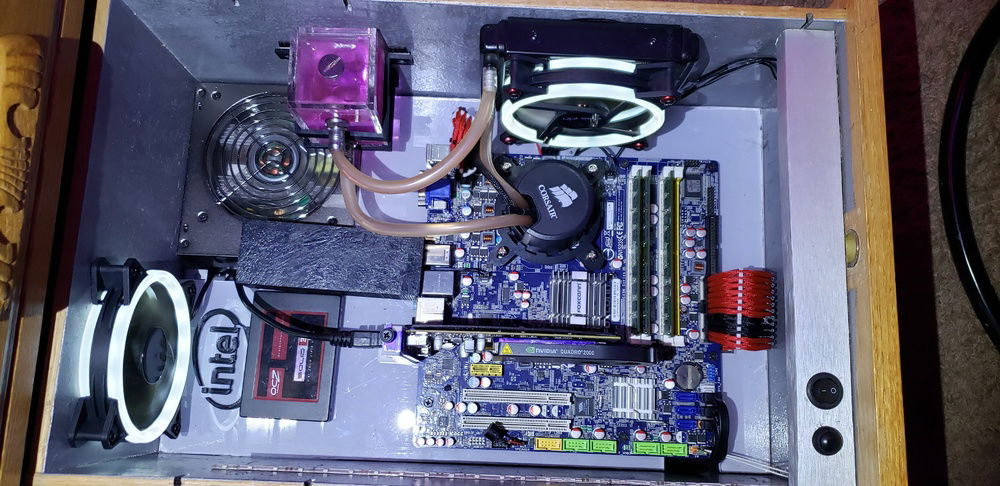

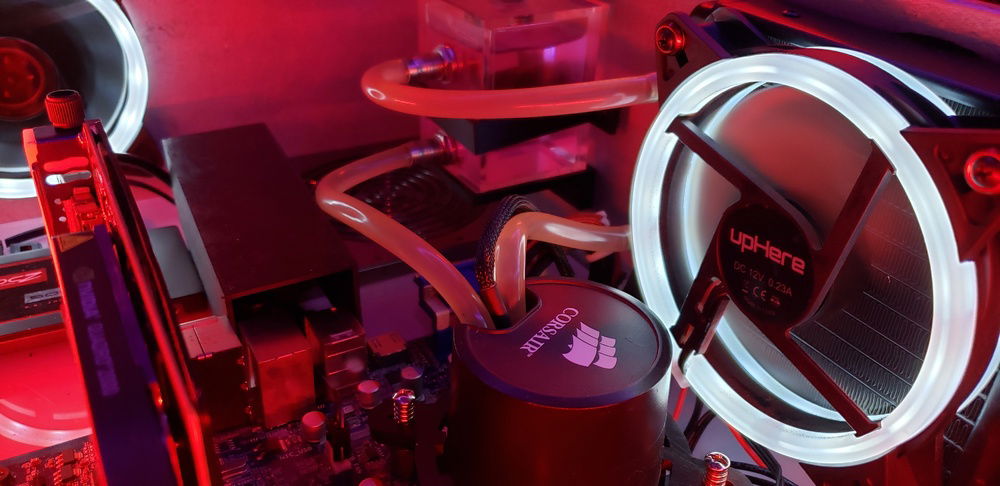

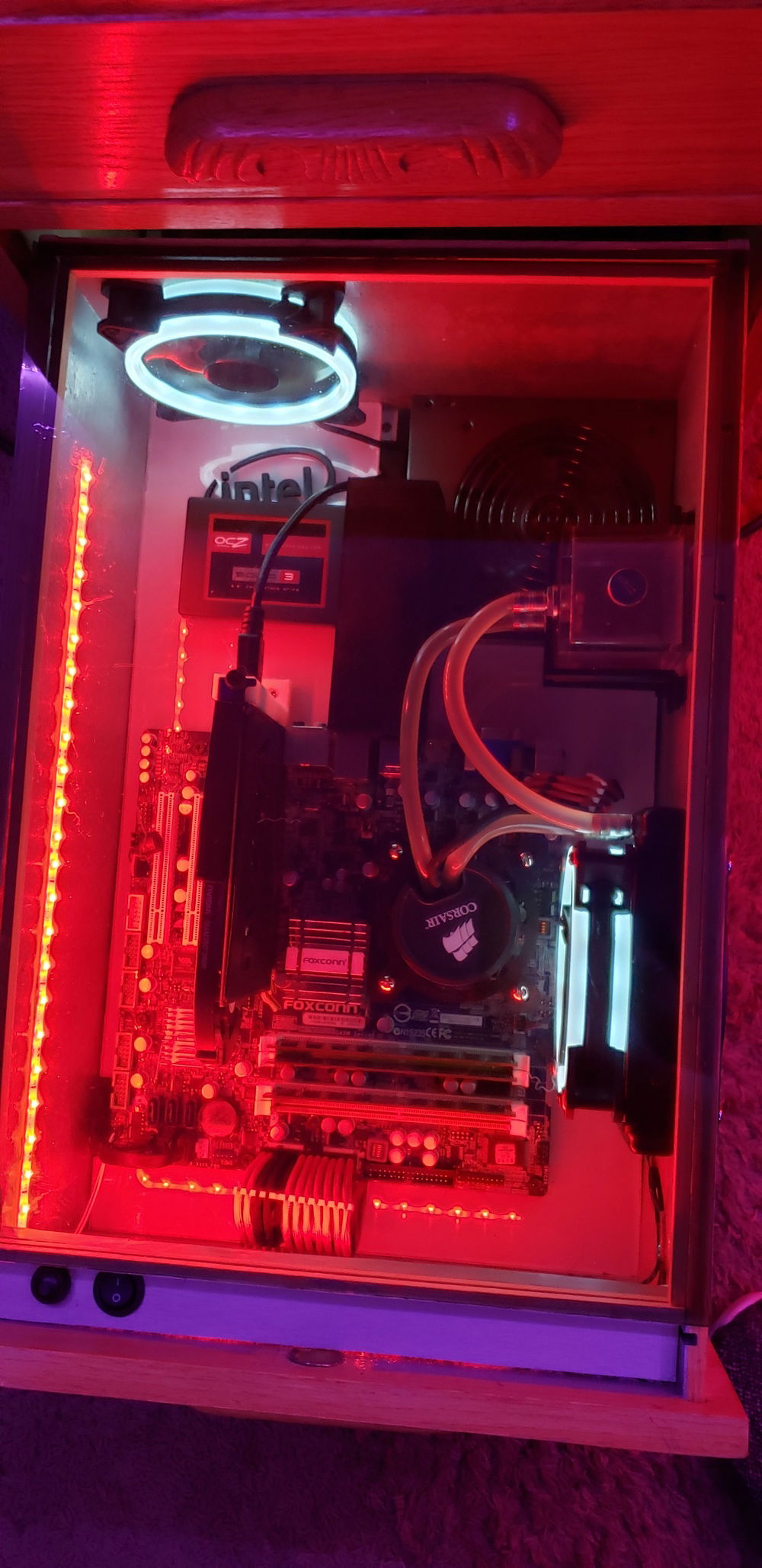

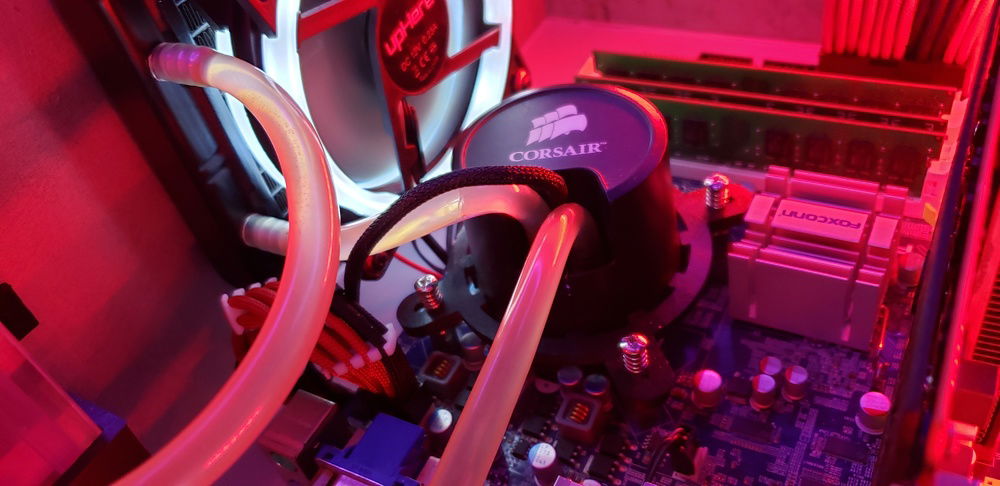

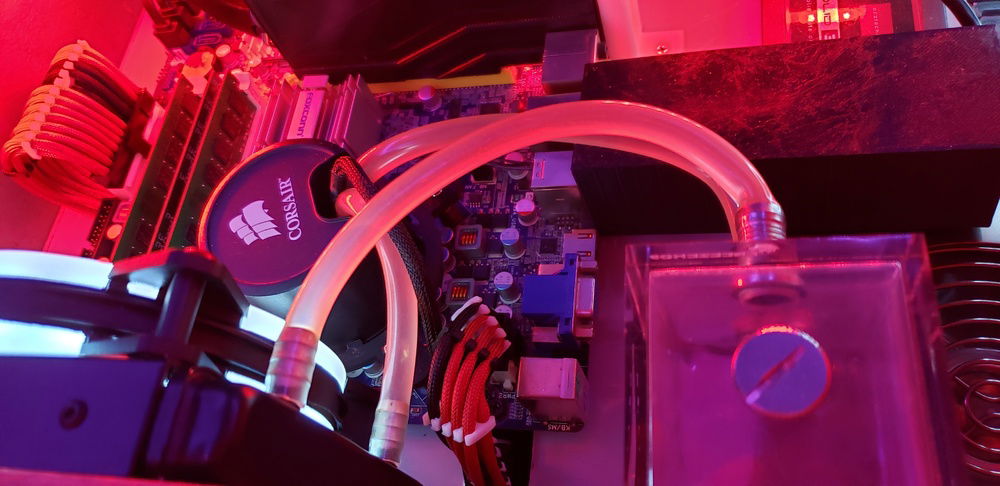

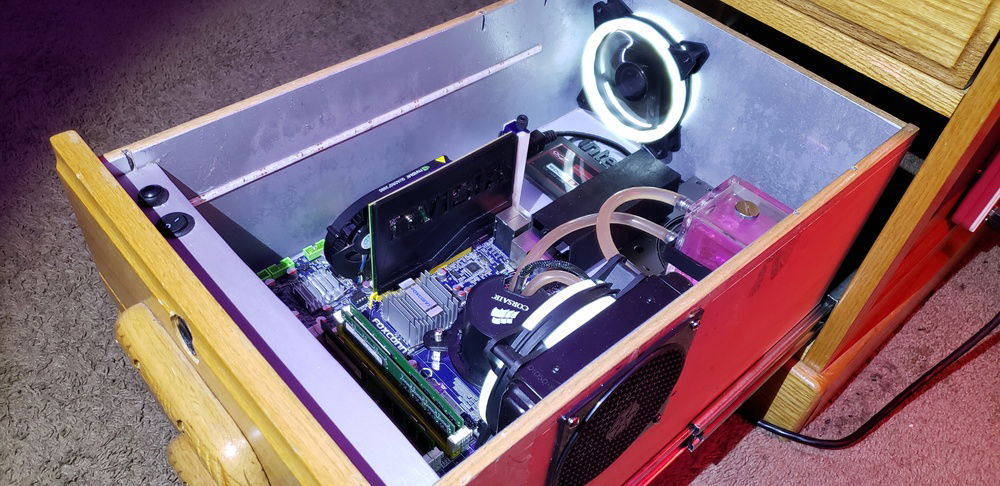

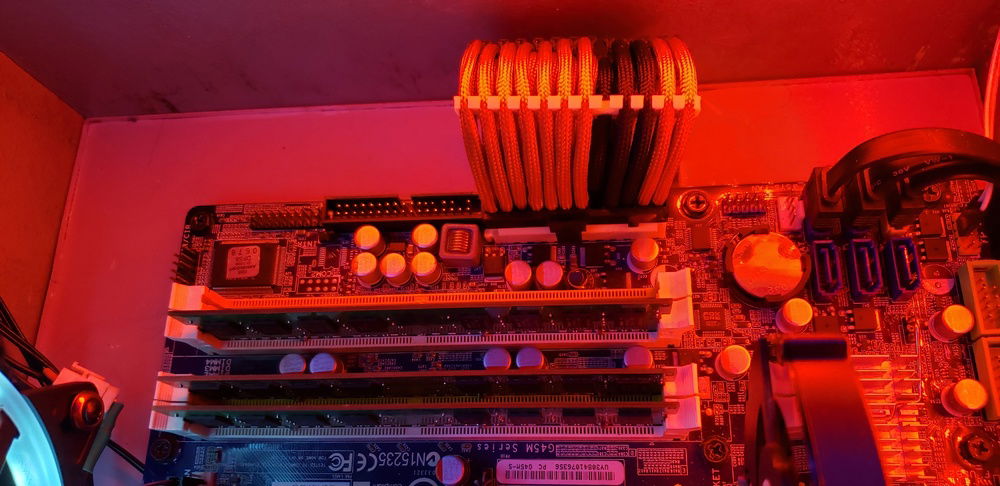

I had a desktop pc that I used as a Plex server and design station for my 3D printing that I do but I didn't want it taking up desk space or sitting on my carpeted floor. So I decided to build it into one of my desk drawers. It's an older system but It does what I need it to do plus lots more. Im still in the process of designing a motherboard armor cover and a better cover for the I/O wires. All the cables were sleeved by myself. The GPU backplate was also designed and 3d printed by me along with the reservoir mount and the aio block mount and backplate. Theres also the HDD mounts that were 3d printed but are not pictured. They're in a hidden section under the motherboard Tray witch is made out of 4mm Thick acrylic. There is 2-10 foot usb extension running up to the top of the desk for easier access along with a fan controller for the 320mm exhaust fan that blows out the back of the desk. If you want to know more about the build just ask
Color(s): Black Red
RGB Lighting? No
Theme: Desk / Table
Cooling: AIO Cooling
Size: Micro-ATX
Type: General Build

Hardware

CPU
$ 36.99
Intel - Xeon e5450
Socket: LGA 771
Cores: 4
Motherboard
Memory
$ 7.00
SK Hynix - RAM PC2-6400
Type: DDR2
Capacity: 2 GB
Graphics
$ 139.99
NVIDIA - Quadro 2000
Chip Manufacturer: NVIDIA
Chip: Quadro 2000
Interface: PCIe x16
Storage
$ 48.18
Seagate - Barracuda (ST3500418AS)
Form Factor: 3.5 Inch
Interface: SATA 6 Gb/s
Capacity: 500 GB
Storage
$ 24.30

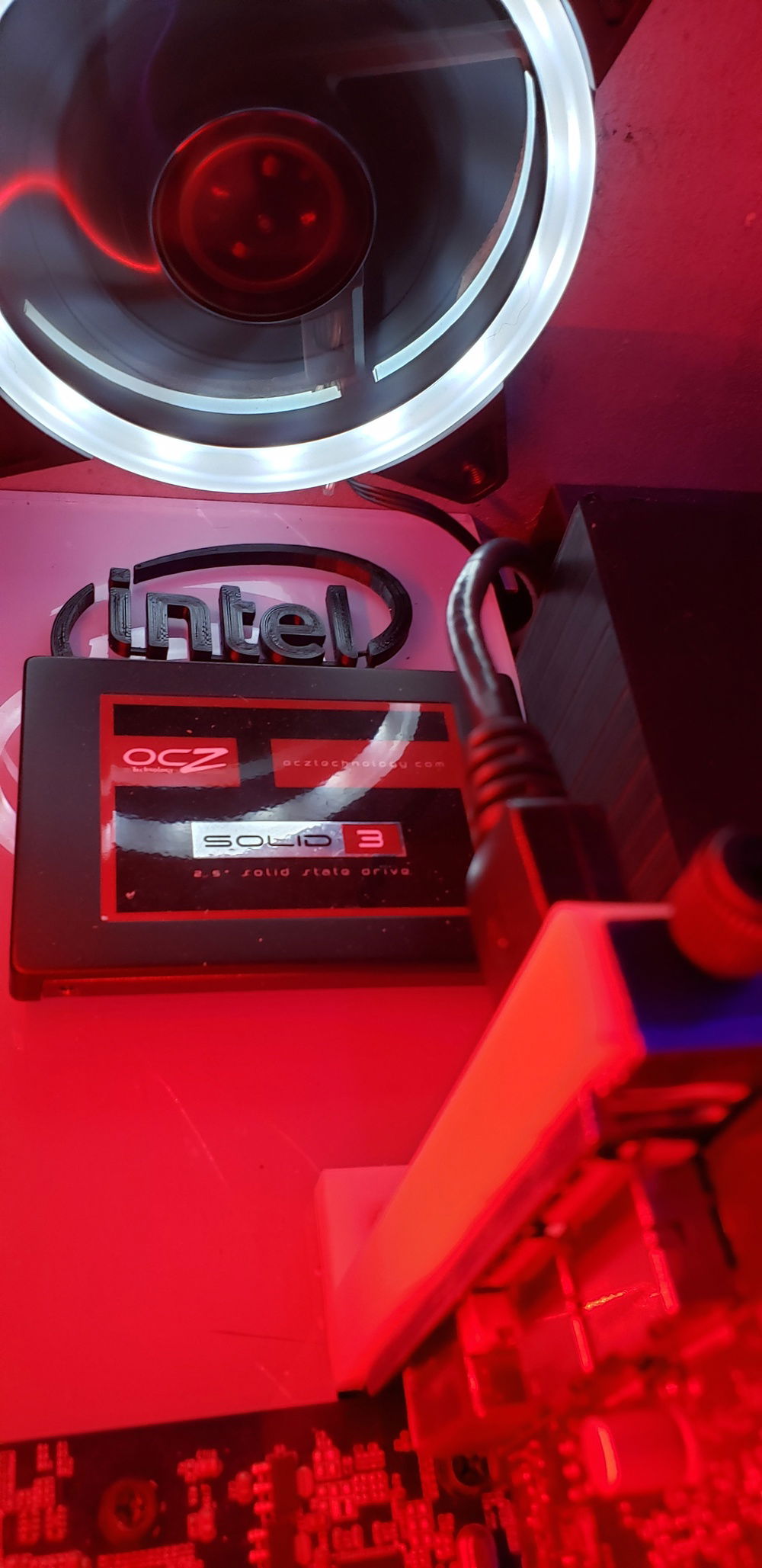

Toshiba OCZ - SATA 6.0 Gb-s
Form Factor: 2.5 Inch
Interface: SATA 6 Gb/s
Capacity: 60 GB
Storage
$ 99.97
Western Digital - Green
Form Factor: 3.5 Inch
Interface: SATA 6 Gb/s
Capacity: 2 TB
PSU
$ 45.95
Rosewill - 600w Power Supply
Wattage: 600
Form Factor: ATX
Case
Custom - Custom (custom)
Case Fan
$ 14.99
upHere - 3-Pack White LED
Size: 120 mm
Cooling
Corsair - Hydro H50
Type: AIO
Size (WxHxD): 120 mm
