Hewitt Rand 286 Ryzen 2700x

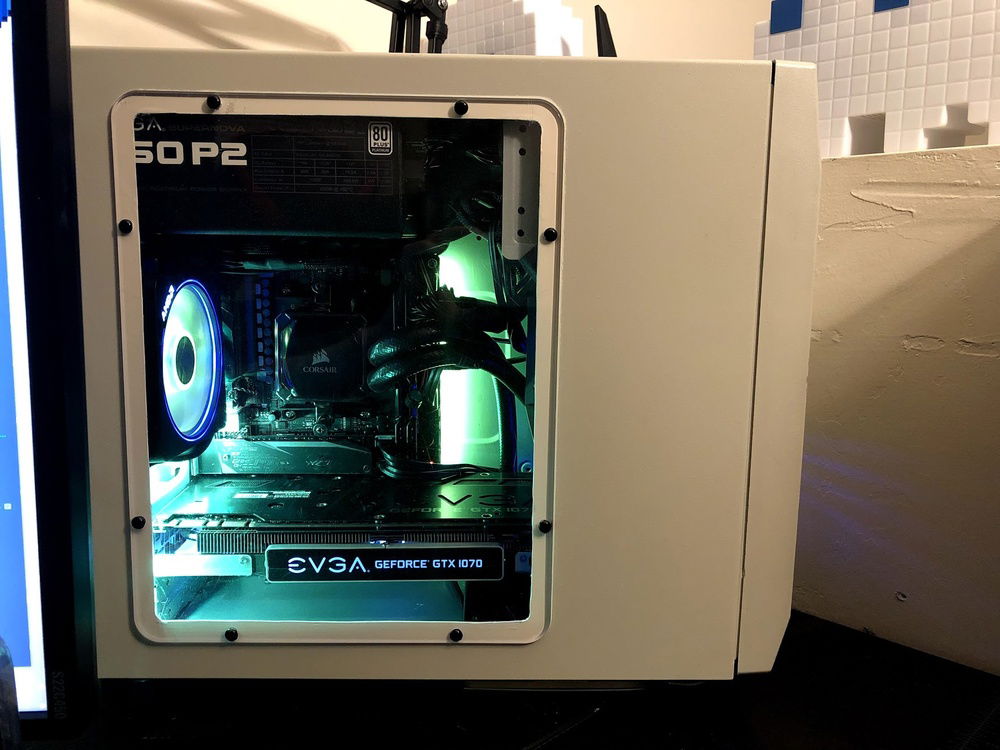

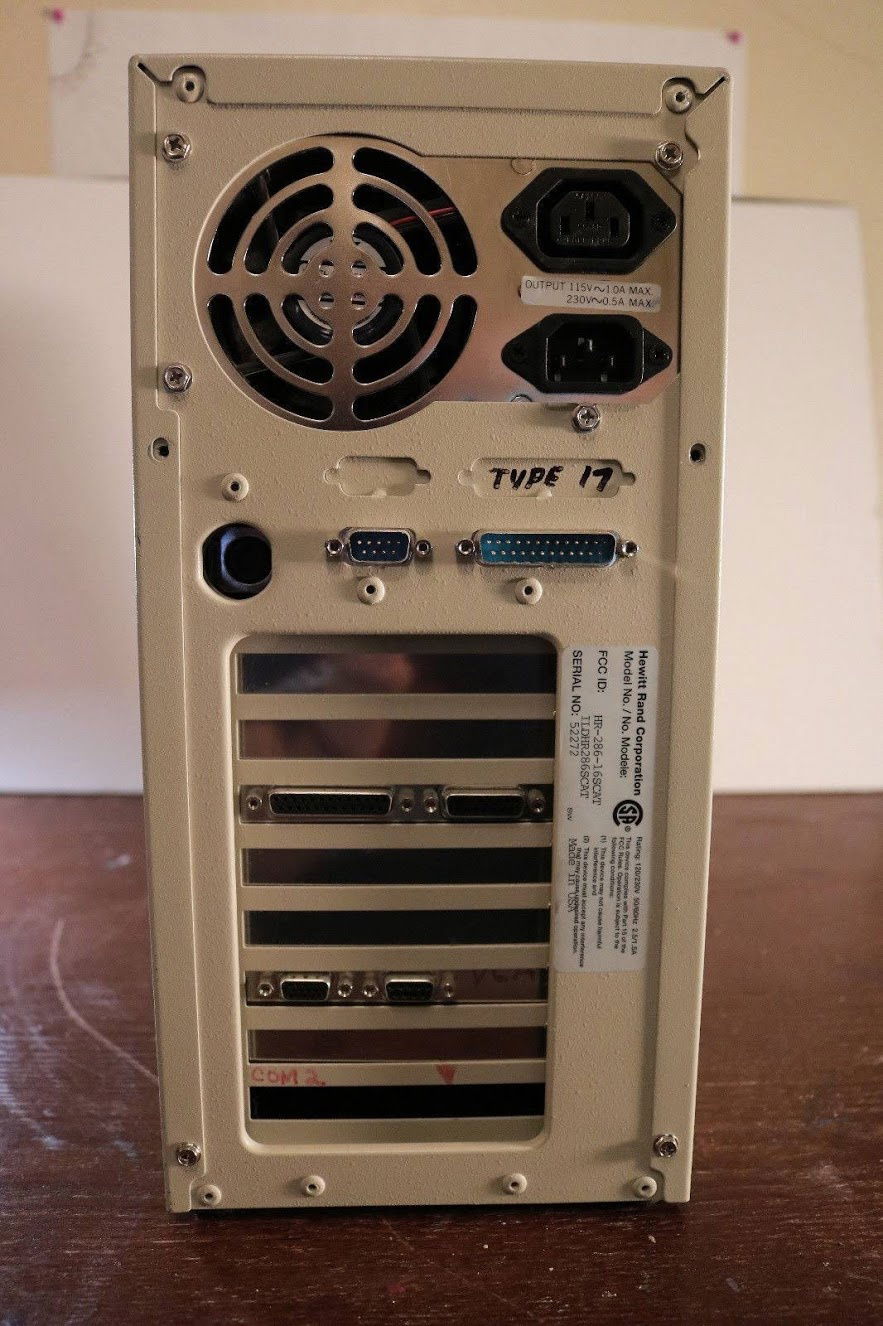

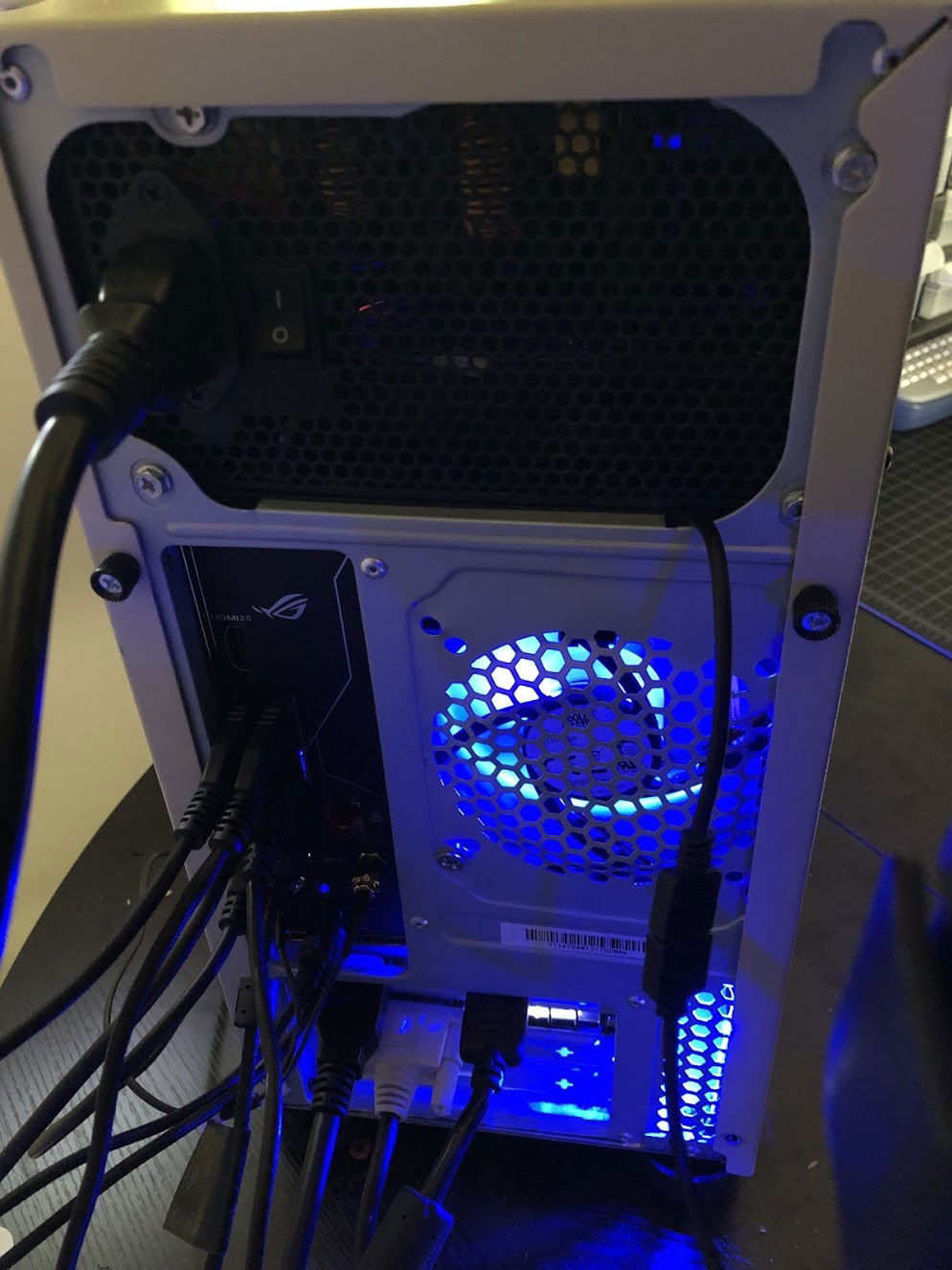

This is my first build that I wanted to create something truly one-of-a-kind. I started with selecting the right chassis and after a few years of searching I found the one that I knew would be a good platform to start. The Case is an old Hewitt Rand 286 that was in a nonfunctional state when it arrived. I went to work with removing the old hardware as well as removing various rivets holding the rear of the case on due to it being a non standard for modern PC hardware. (see before pics below). I ended up using parts from various cases. I used mainly the rear and motherboard tray of another similar sized modern case to complete the full case. I had originally intended for the build to be a "sleeper" but decided I wanted something with modern aesthetic while retaining the retro look so a window was cut to expose the inner workings as well as the RGB.

P.S. I did all of this in my freetime (over the course of a year) with nothing but a handful of tools, my cordless drill, and my dremel. I hope you enjoy!
Color(s): Black White
RGB Lighting? Yes
Theme: Retro
Cooling: AIO Cooling
Size: Mini-ITX
Type: General Build

Contests

This build participated in 1 contest.

Hardware

CPU
$ 184.00
AMD - Ryzen 7 (2700X)
Socket: AM4
Cores: 8
Motherboard
$ 324.20
ASUS - ROG Strix Gaming (B450-I)
Chipset: B450
CPU Socket: AM4
Size: Mini-ITX
Graphics
$ 184.00
EVGA - SC Gaming
Chip Manufacturer: NVIDIA
Chip: GTX 1070
Storage
$ 29.95
PNY - CS900
Form Factor: 2.5 Inch
Interface: SATA 6 Gb/s
Capacity: 240 GB
PSU
$ 91.45
EVGA - SuperNOVA 750 P2
Wattage: 750
Form Factor: ATX
Efficiency: 80+ Platinum
Case
Custom - Custom (custom)
Case Fan
$ 29.95
Noctua - NF-A12x15 PWM (Brown)
Size: 120 mm
Cooling
$ 248.58
Corsair - H60 AIO
Type: AIO
Size (WxHxD): 120 mm
