Gaming Rig

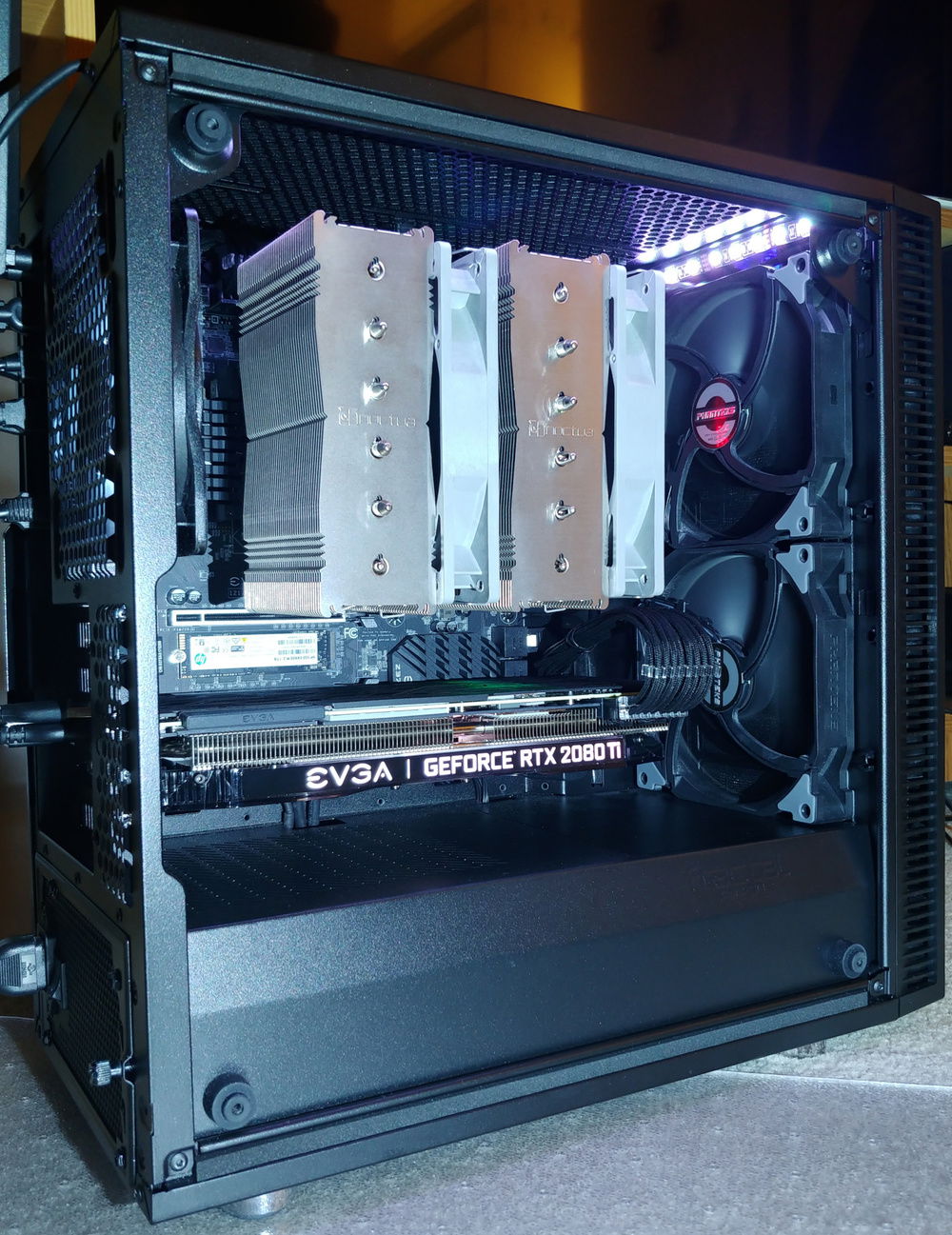

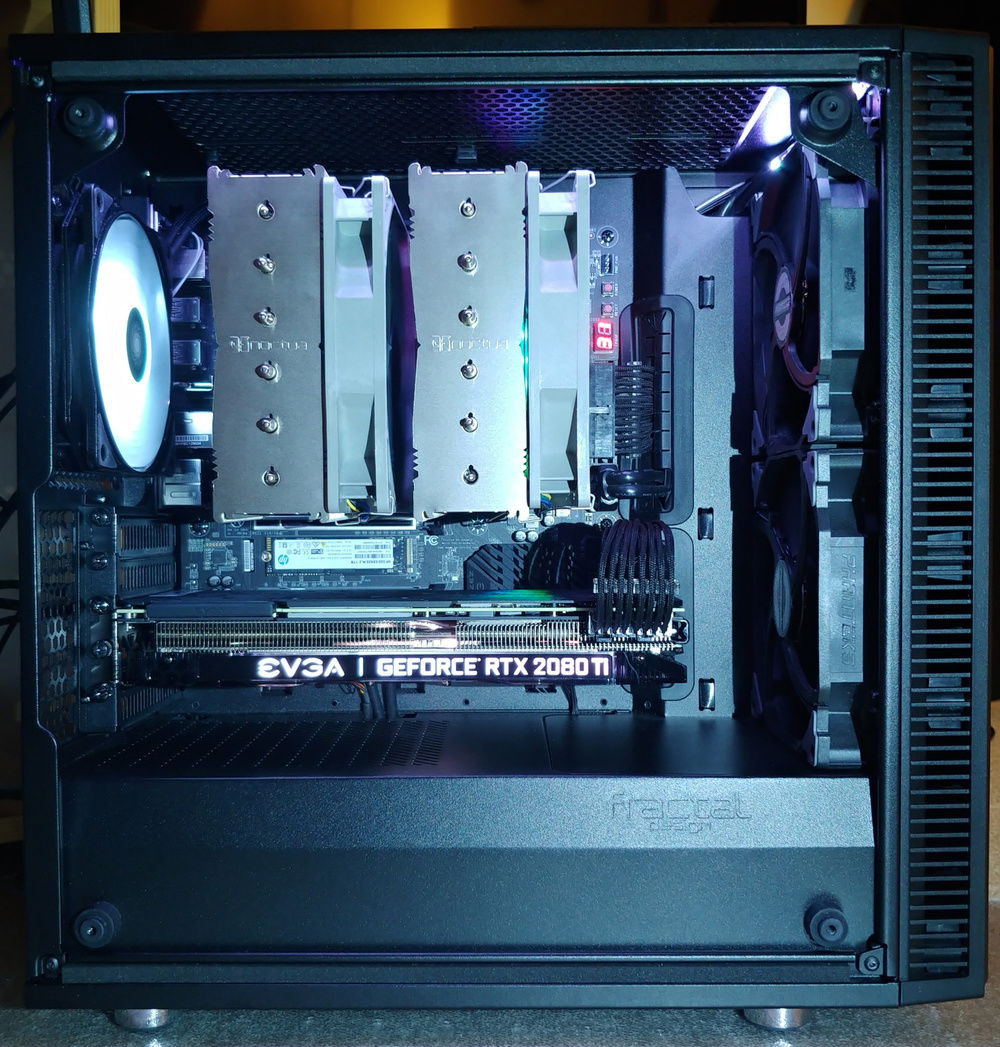

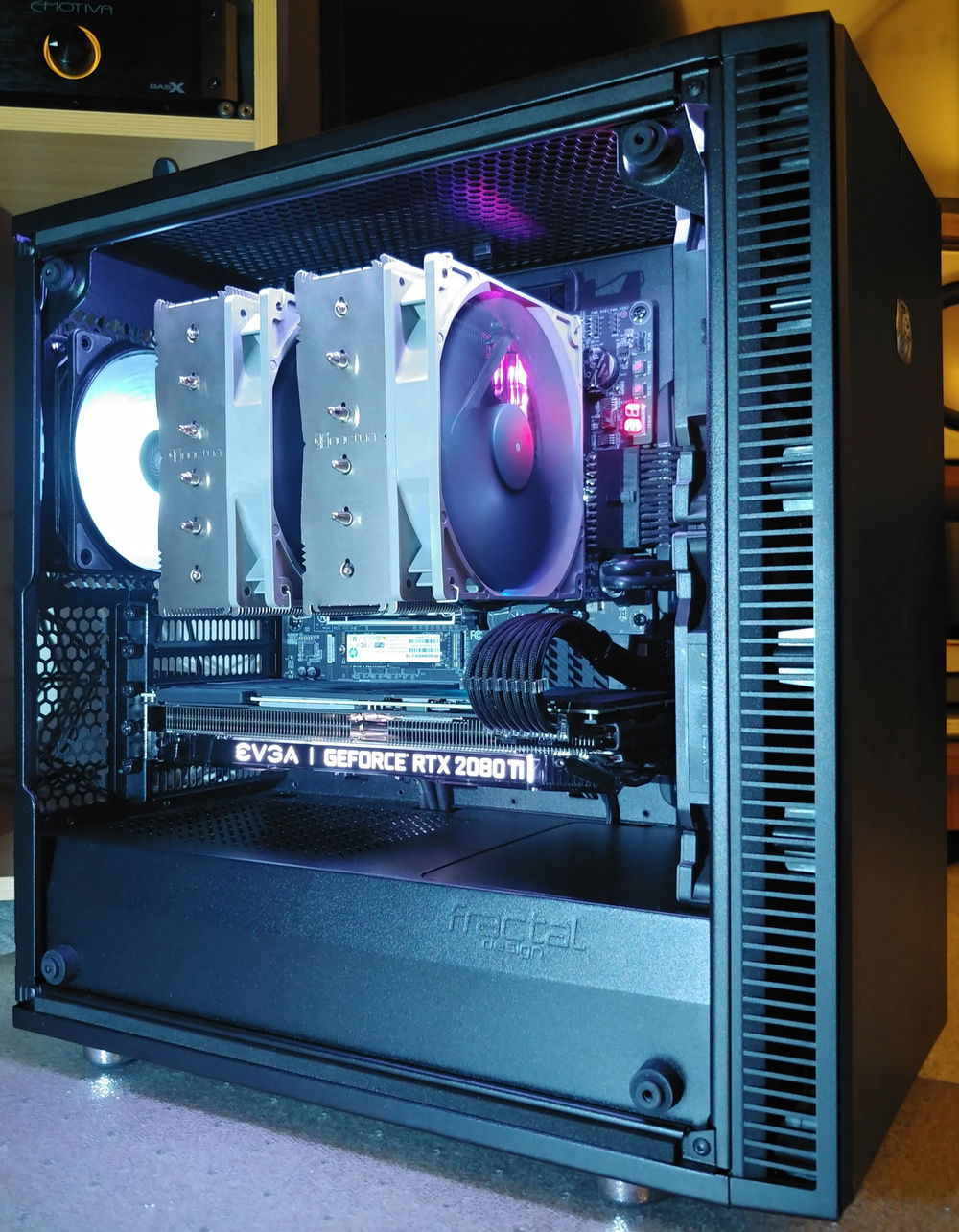

This is my main gaming rig. The Z370 motherboard needs a BIOS update to support the 9900K. Everything fit nicely except for the GPU. The back plate was too thick to fit under the Noctua NH-D15 so I had to install it on the bottom PCIe slot. The D15S would provide better clearance for the GPU so I'd recommend going with that instead instead of the regular D15. The RAM slots on the EVGA Z370 Micro align perfectly with the gap between the bottom part of the heatsink and the front fan of the D15 that you can mount the fan almost flush with the motherboard. You can see the RGB lights from the RAM just behind the front fan in the picture. There is an RGB LED strip on the top of the case. Both the LED strip and the rear fan are connected to an RGB controller which can be toggled with a remote.

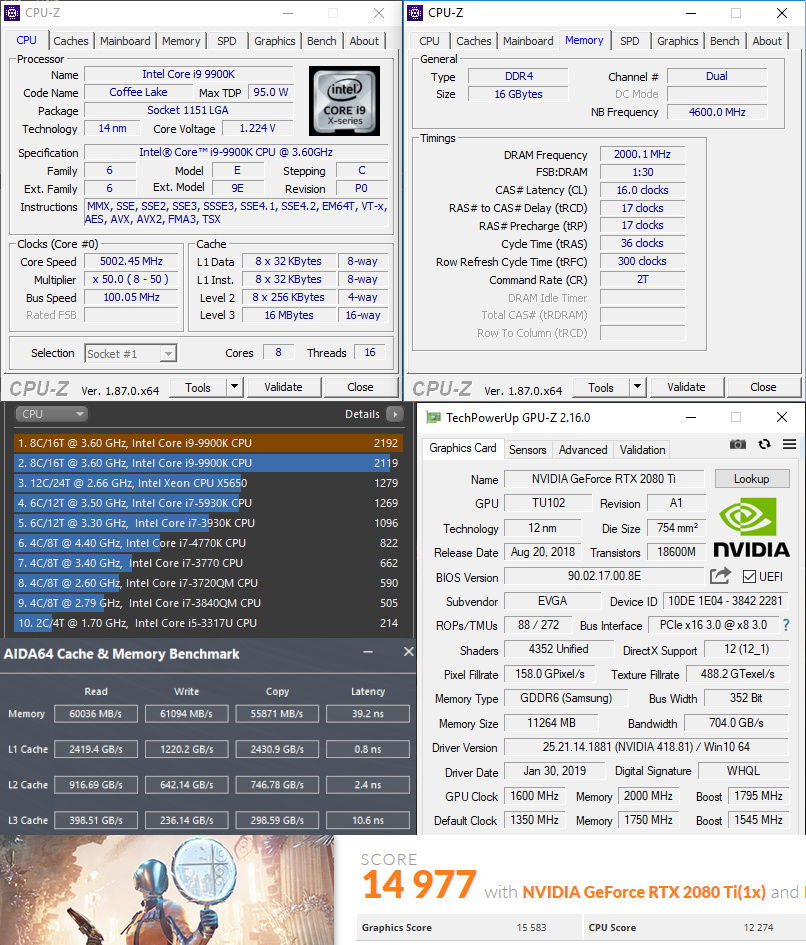

The 9900K runs at 5GHz at 1.2V + 0.5V offset. It idles at 30C but can get toasty at 90C+ when running prime95 or aida64 FPU test. RAM is running at 4000MHz, 16-17-17-36 timings at 1.425V. Could probably push higher frequencies but didn't want to raise the voltage too much. The 2080 Ti runs at +250MHz core and +1000MHz memory. The actual frequency fluctuates between 1900MHz to 2150MHz when gaming. It runs all my games maxed out at 1440p smooth like butter.
Color(s): Black
RGB Lighting? Yes
Theme: none
Cooling: Air Cooling
Size: Micro-ATX
Type: General Build

Contests

This build participated in 1 contest.

Hardware

CPU
$ 380.00
Intel - Core i9-9900K
Socket: LGA 1151
Cores: 8
Integrated Graphics: Yes
Motherboard
$ 100.00
EVGA - Z370 Micro ATX
Chipset: Z370
CPU Socket: LGA 1151
Size: Micro-ATX
Memory
ADATA - XPG Spectrix D80
Type: DDR4
Capacity: 16 GB
Graphics
$ 1,499.99
EVGA - Black Edition
Chip Manufacturer: NVIDIA
Chip: RTX 2080 Ti
Storage
$ 95.94
HP - EX920
Form Factor: M.2
Interface: M.2 (M)
Capacity: 1 TB
Storage
$ 21.49
micron - 1100
Form Factor: 2.5 Inch
Interface: SATA 6 Gb/s
Capacity: 2 TB
PSU
$ 219.99
EVGA - SuperNOVA P2
Wattage: 850
Form Factor: ATX
Efficiency: 80+ Platinum
Case
$ 227.88
Fractal Design - Define Mini C
Type: Mid-Tower
Side Panel: Tempered Glass
Case Fan
$ 79.97
DeepCool - RF120
Size: 120 mm
Case Fan
$ 24.99
Phanteks - PH-F140SP BLACK
Size: 140 mm
Cooling
$ 109.95
Noctua - NH-D15 Premium
Type: Air Cooler
CableMod
CableMod - Sleeved Cables
Mode: Custom
Sleeve: ModFlex
Color: Black
