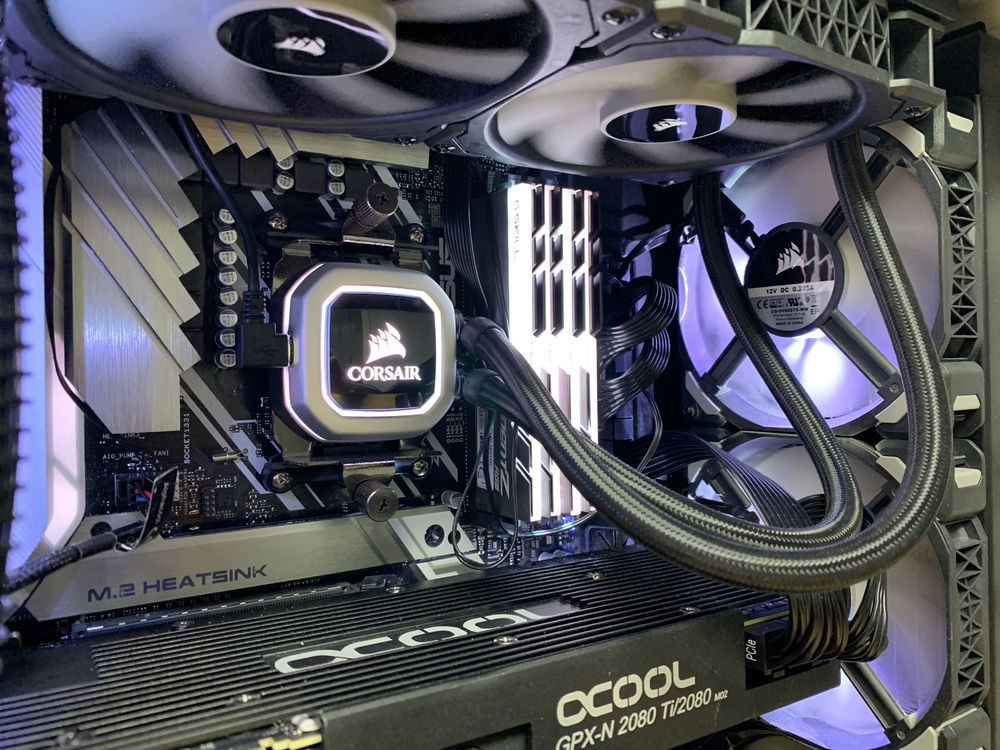

Gaming Rig

Parts:
Asus x470 Pro mother board
Ryzen 7 2700x
Corsair H150i Pro Rgb 360mm AIO
Corsair HX850i
Corsair ML120 RGB fans + Lighting Node + Pro
32GB G.Skill Trident Z RGB DDR4 3200MHz RAM (matched the sku to the board)
Samsung 500GB 970 Evo M2 SSD
Fractal Design Meshify C TG - White
Nvidia RTX 2080 TI FW
Alpha Cool Eiswoolf AIO

Details:
At idle the GPU sits at 40 celsius and the CPU at 45 celsius. The only fans moving are on the CPU radiator, the GPU radiator and case fans are not needed. The system draws around 130W and the PSU is totally silent with the fan off.

Under load the CPU gets up to 55 celsius and the GPU to 54 celsius. The GPU fans are running around 800RPM and the CPU fans also around 800 RPM, the fan on the back of the case sits around 400RPM just to feed cold air into the GPU radiator. The system draws around 500W, but the fans are not needed on the PSU as its around 40 celsius. So even under max load the system is totally silent.
Color(s): White
RGB Lighting? Yes
Cooling: AIO Cooling
Theme: Futuristic
Size: ATX
Type: General Build

Contests

This build participated in 1 contest.

Hardware

CPU
$ 398.99
AMD - Ryzen 7 (2700X)
Socket: AM4
Cores: 8
Motherboard
$ 375.99
ASUS - Prime (X470-Pro)
Chipset: X470
CPU Socket: AM4
Size: ATX
Memory
$ 279.99
G.Skill - Trident Z (3200MHz) (Black/RGB)
Type: DDR4
Capacity: 32 GB
Graphics
$ 2,199.00
NVIDIA - Founders Edition
Chip Manufacturer: NVIDIA
Chip: RTX 2080 Ti
Storage
$ 89.99
Samsung - 970 EVO 500 GB M.2 NVMe SSD
Form Factor: M.2
Interface: M.2 (M)
Capacity: 500 GB
PSU
$ 326.99
Corsair - HX850i
Wattage: 850
Form Factor: ATX
Efficiency: 80+ Platinum
Case
$ 115.36
Fractal Design - Meshify C, White
Type: Mid-Tower
Side Panel: Tempered Glass
Cooling
$ 329.00
Accessories
$ 24.99
