Fractal Torrent Nano-Tron

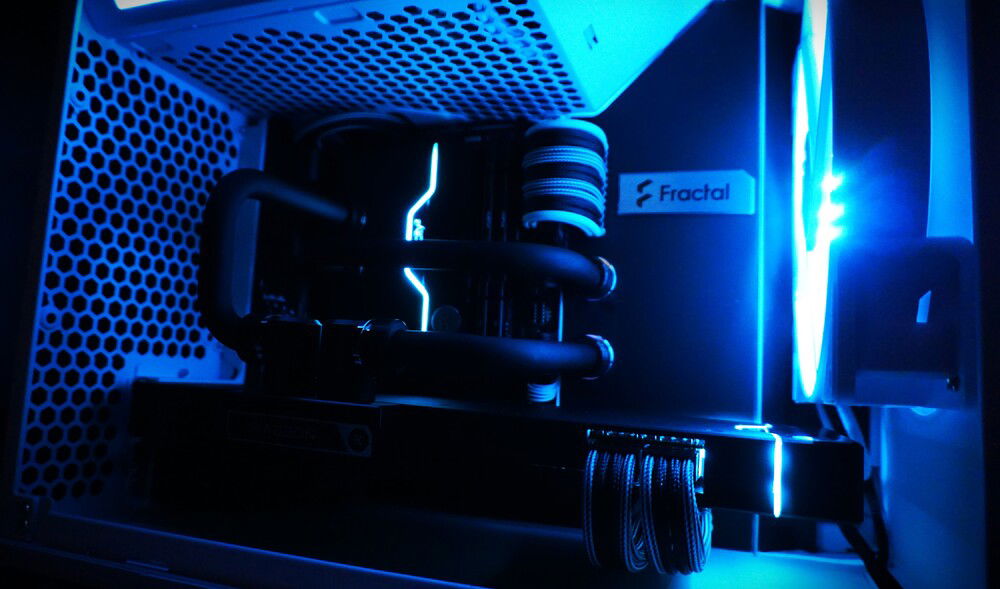

A custom loop build in a Fractal Torrent Nano White RGB. A custom backplate serves to route the tubing behind the case and stash the flow and temperature sensors out of sight. Black acetal contrasts with the nickel details on fittings and the cyan highlights on the cables and lighting gives the build a signature look.

Highly visible

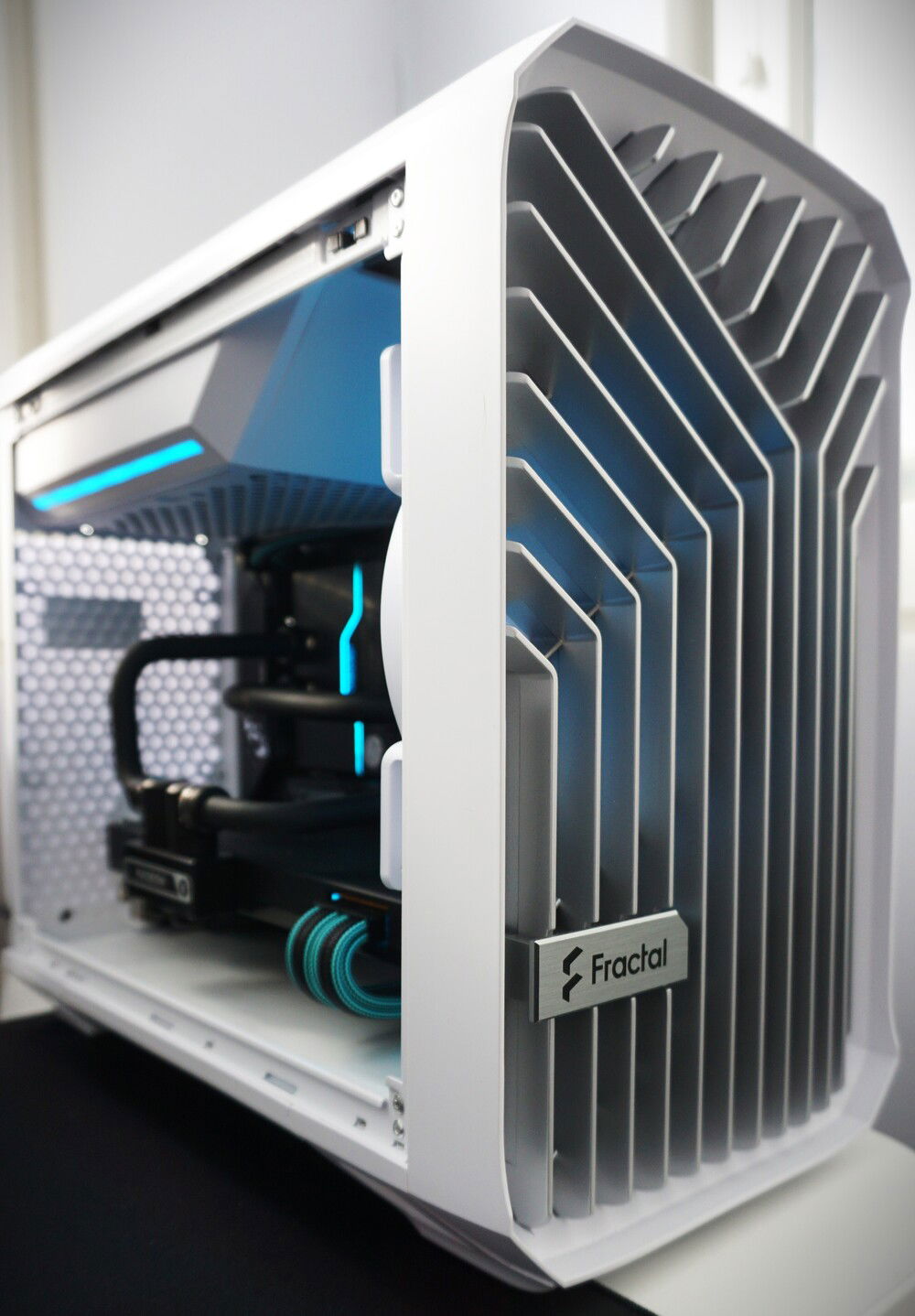

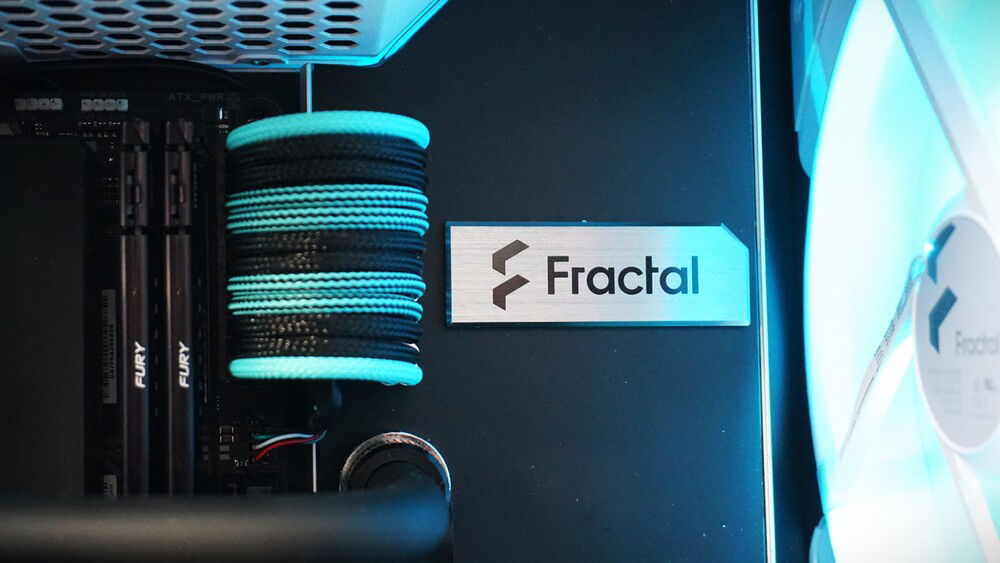

Case: Fractal Torrent Nano White RGB (and an extra badge, thank you Daniel)

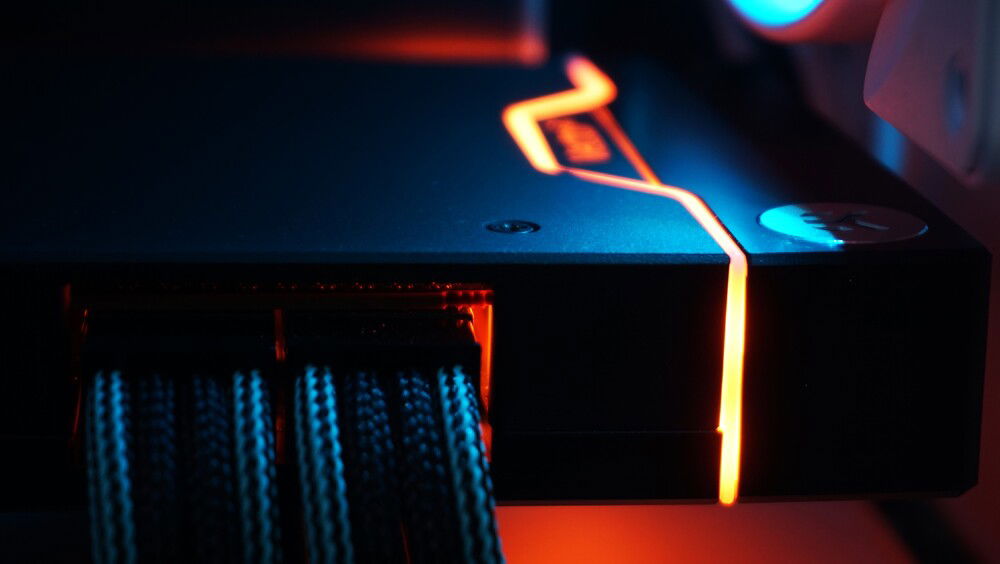

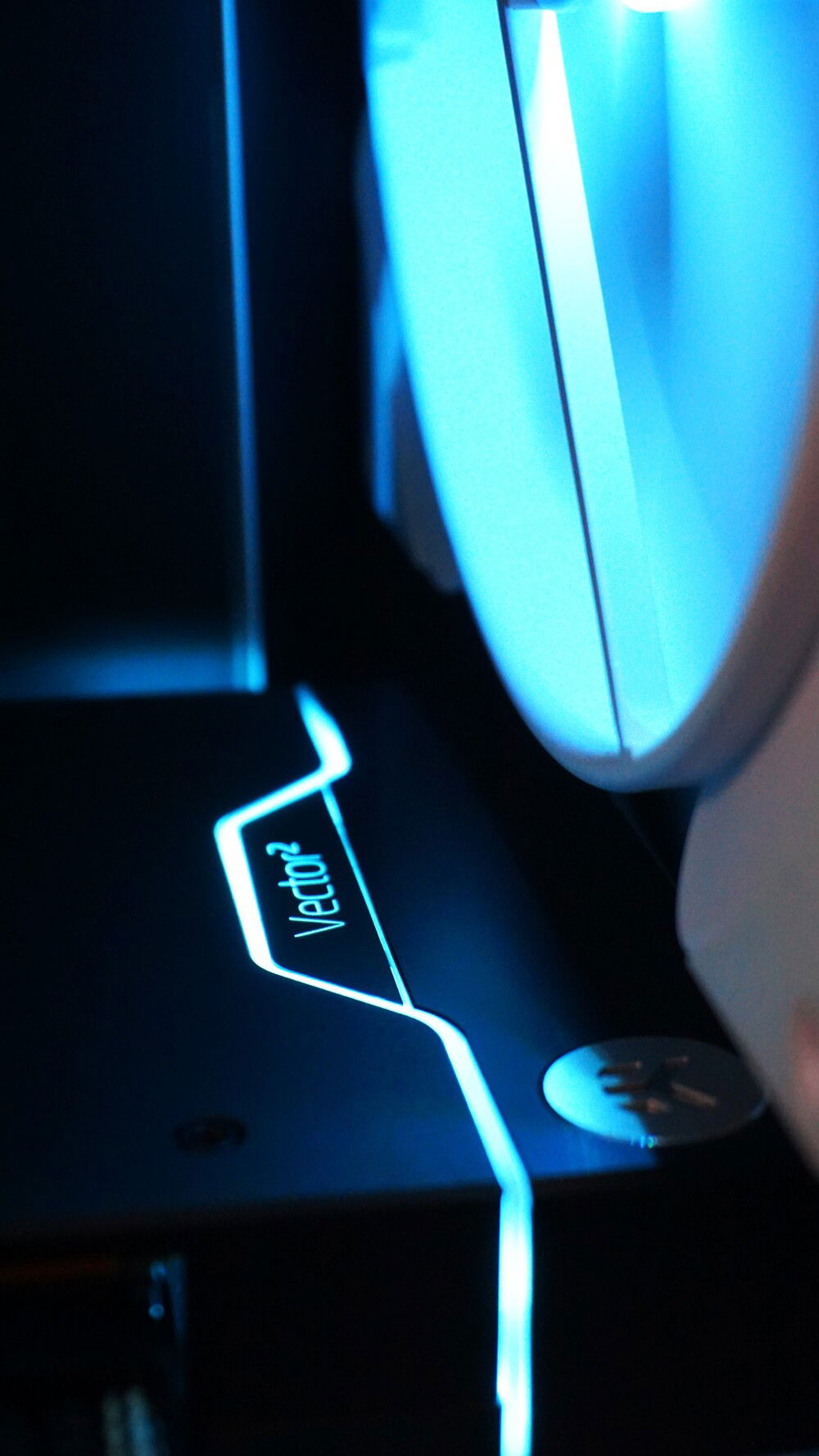

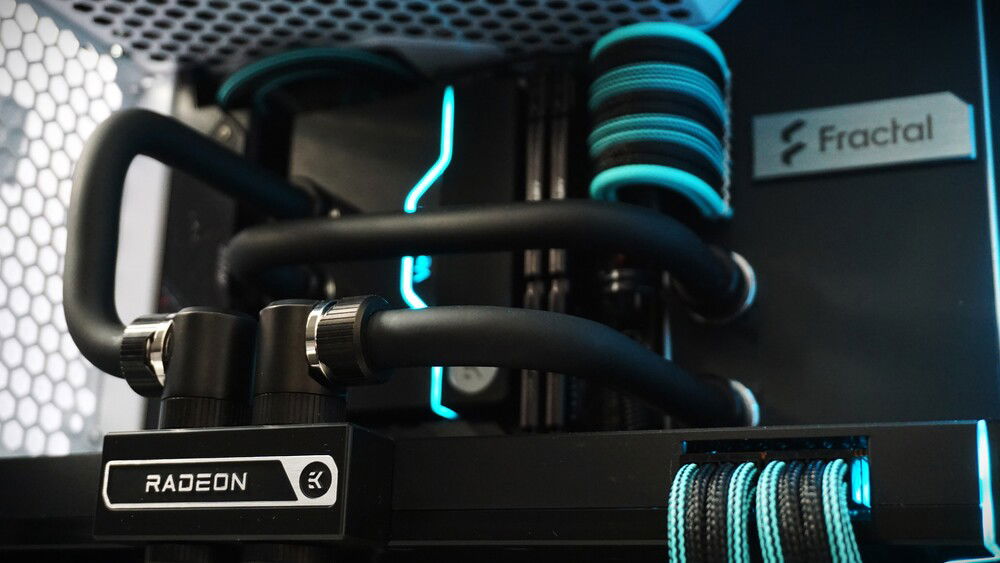

Blocks: EKWB Quantum Velocity² and Vector²

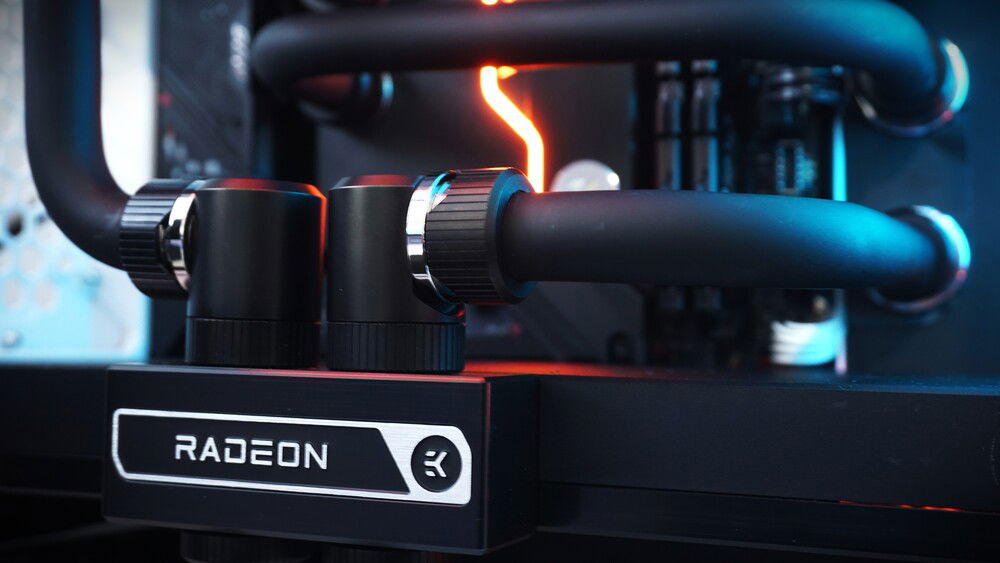

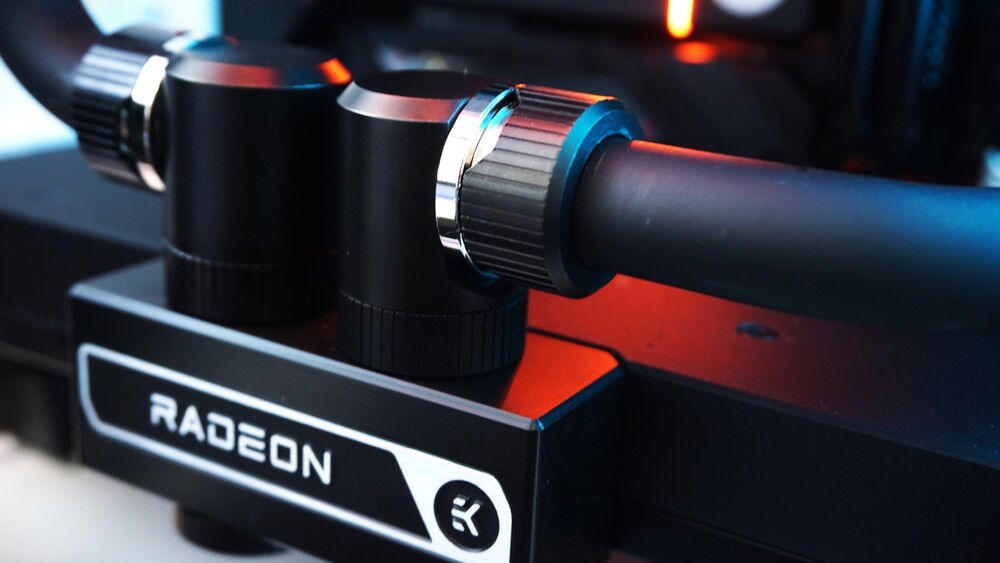

Fittings: EKWB Quantum Torque HDC 14 Nickel with black collars
Passthrough: Alphacool bulkhead short, nickel
Tubes: Corsair 14mm satin acrylic

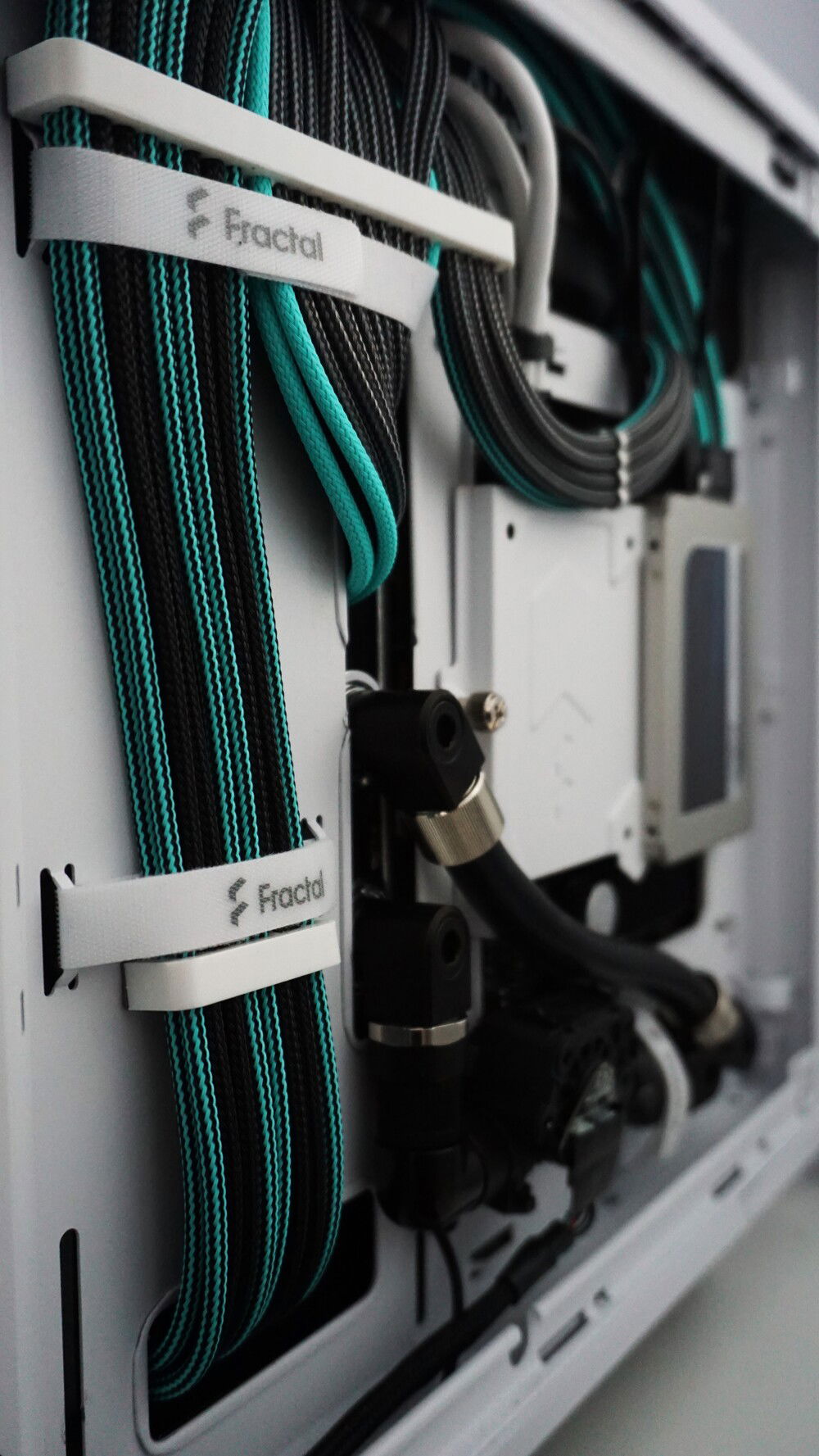

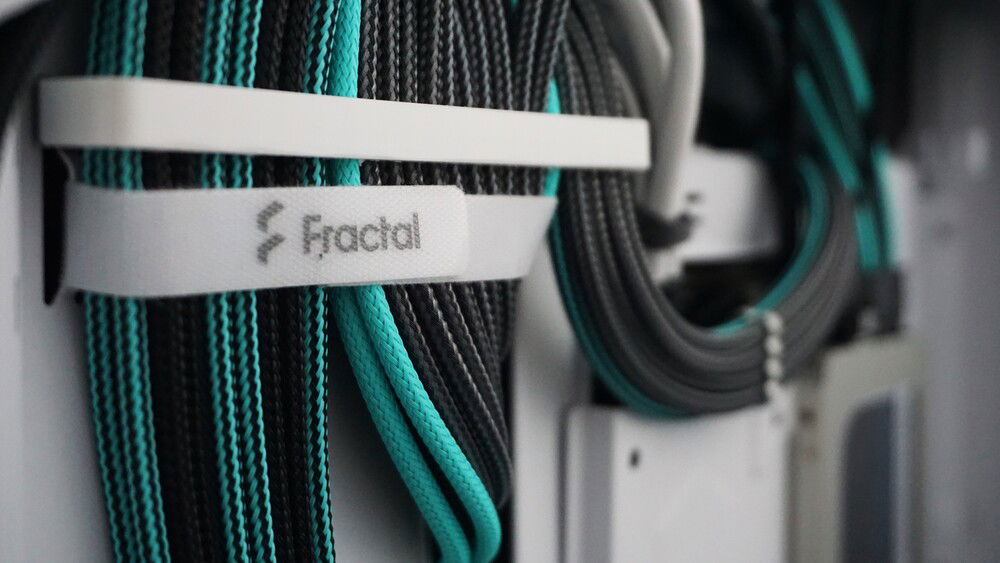

Cable sleeves: MDPC-X small, The-Turquoise, Carbon-Turquoise, Blackest Black, Liquid Carbon
Backplate: 14mm acrylic cut to size, matt black automotive vinyl, aluminum corner strips, argb strip behind the plate

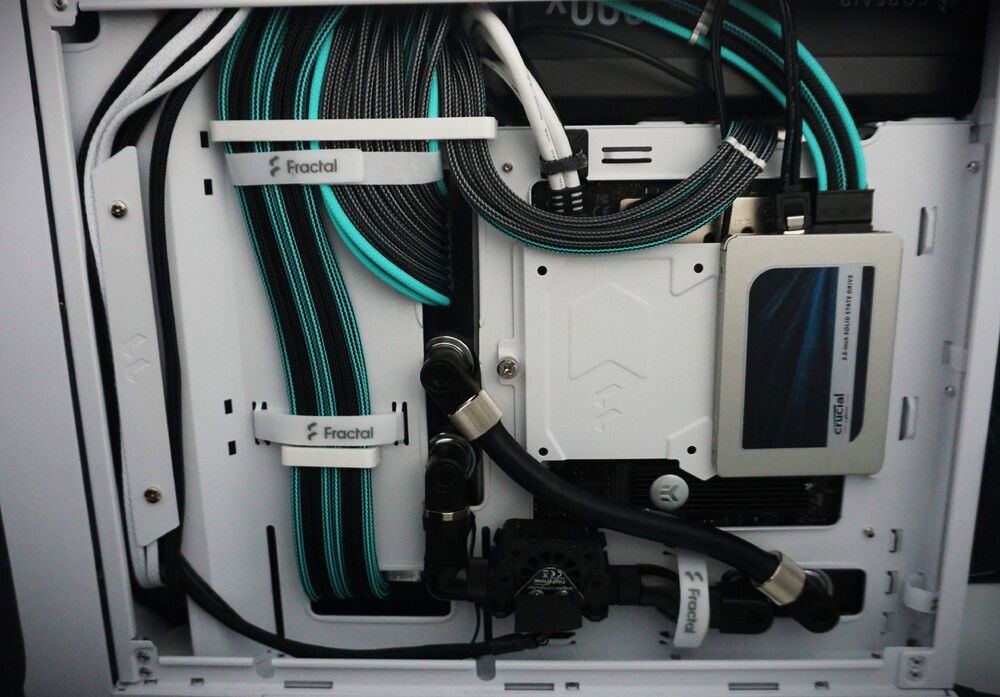

Behind the scenes
Tubes: Watercool 13/10mm EPDM
Fittings: EKWB Classic STC
Flow meter: Aquacomputer High Flow LT
Temperature sensor: Aquacomputer
Cable combs: 3d printed

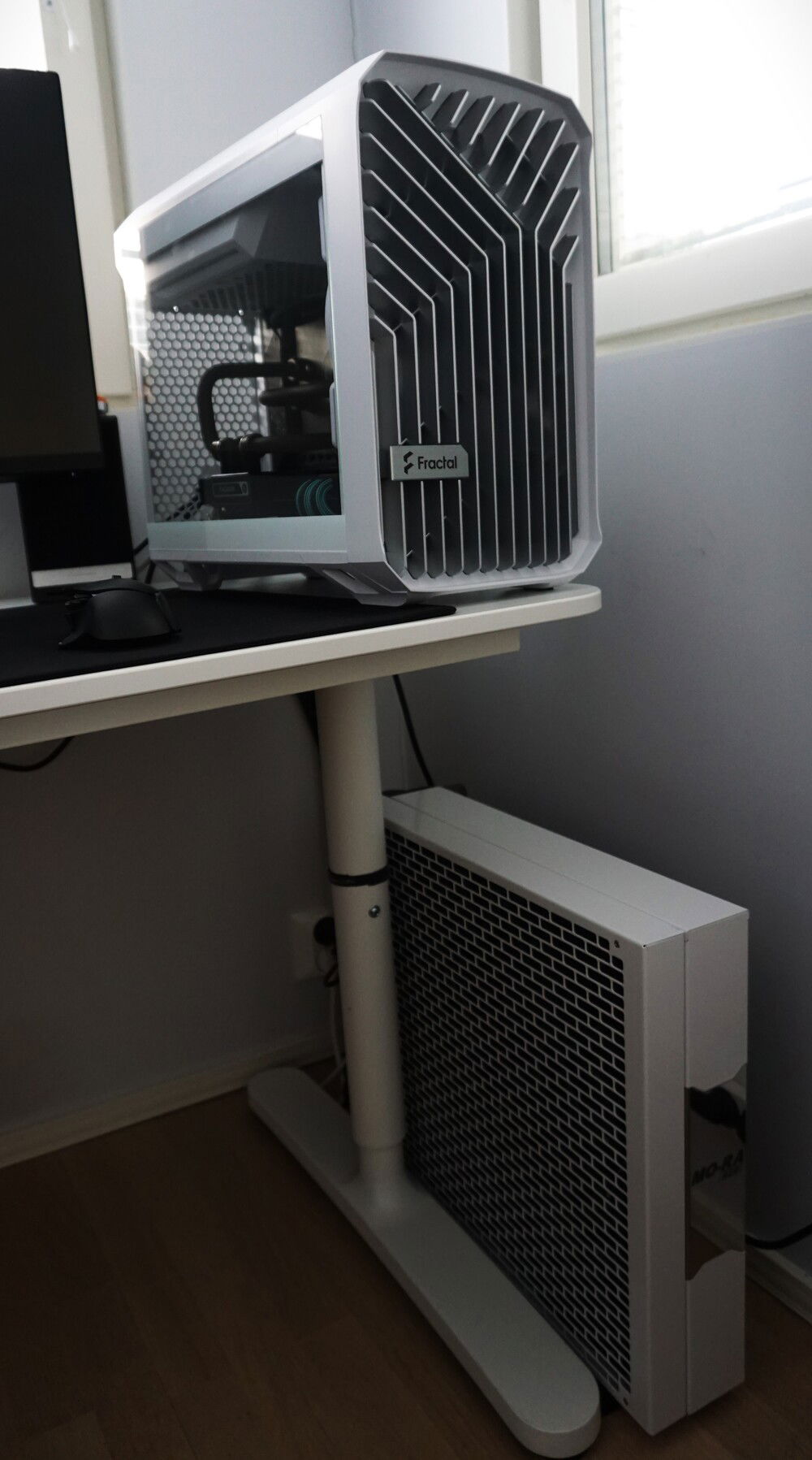

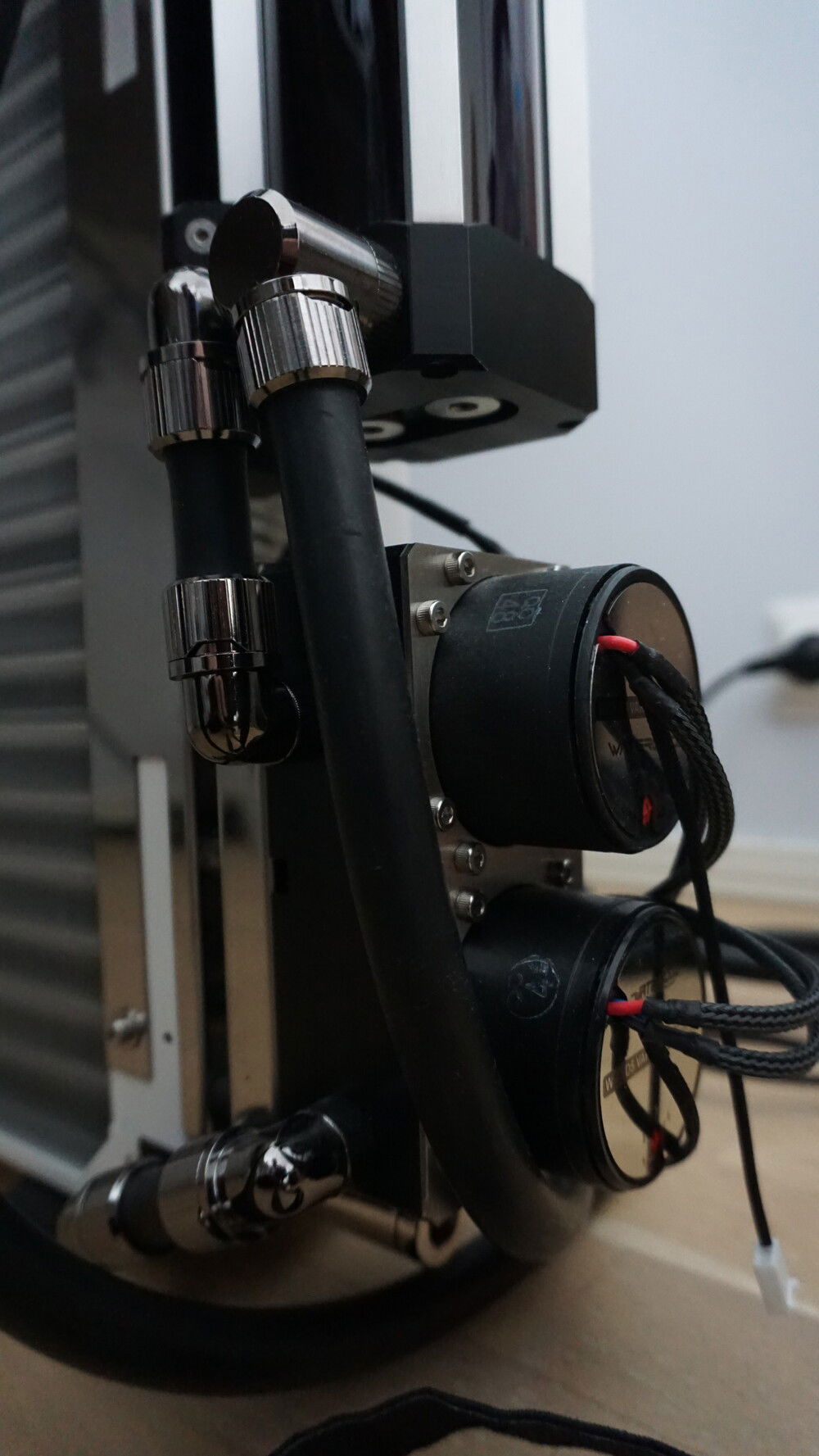

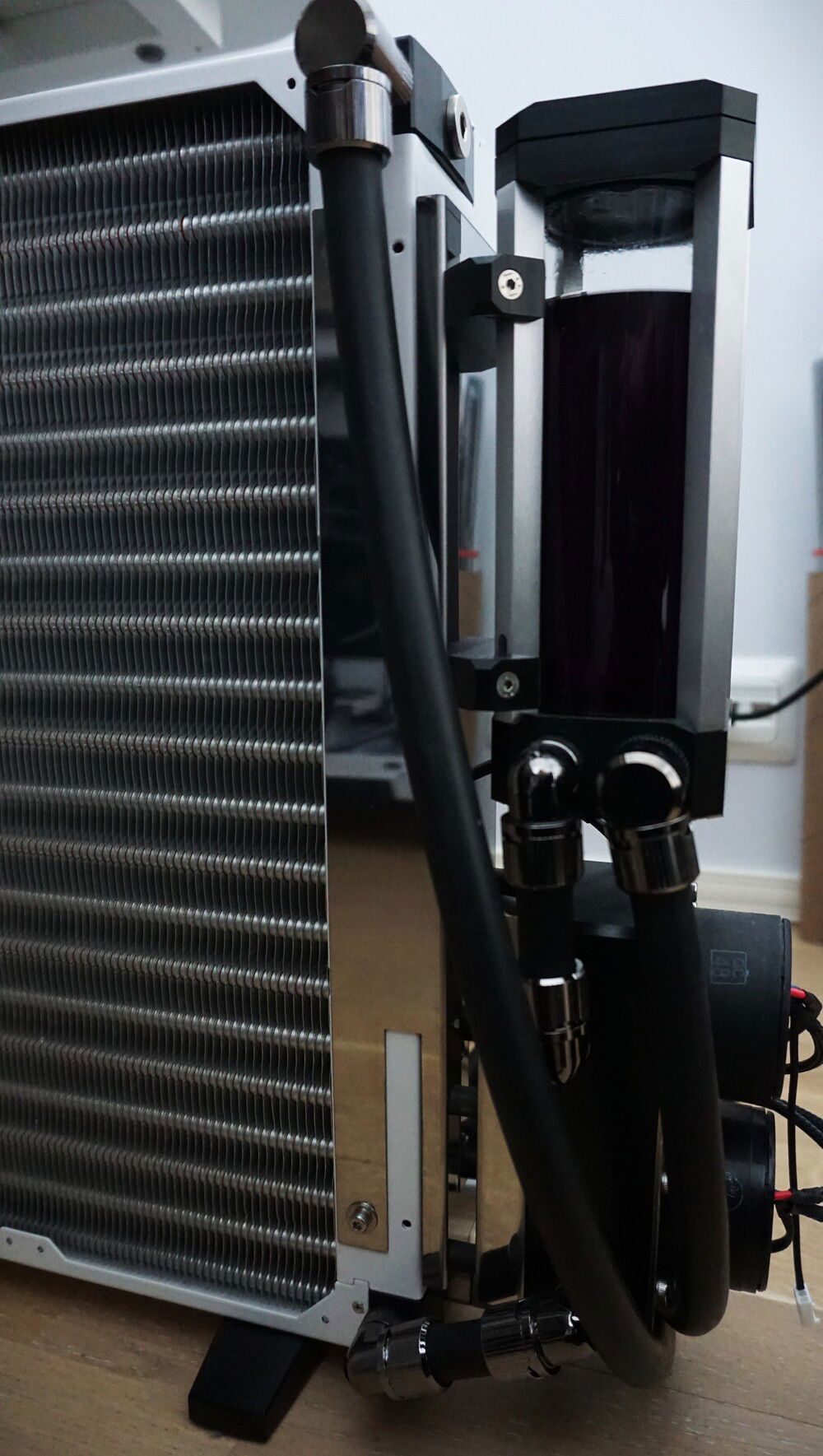

Cooling: Watercool Mo-Ra 420 LT, Noctua NF-A20 Chromax, 2xWatercool D5 Vario
Color(s): Black Light Blue Silver White
RGB Lighting? Yes
Theme: Sci-Fi
Cooling: Custom Liquid Cooling
Size: Mini-ITX
Type: General Build

Hardware

CPU
$ 204.00
AMD - Ryzen 5 7600X
Socket: AM5
Cores: 6
Integrated Graphics: Yes
Motherboard
$ 311.99
ASUS - ROG Strix B650E-I Gaming (WiFi 6E)
Chipset: B650
CPU Socket: AM5
Size: Mini-ITX
Memory
$ 127.99
Kingston - Fury Beast (6000Mhz) (Black/RGB)
Type: DDR5
Capacity: 32 GB
Graphics
AMD - Radeon XTX
Chip Manufacturer: AMD
Chip: RX 7900 XT
Interface: PCIe x16
Storage
$ 102.95
Kingston - KC3000
Form Factor: M.2
Interface: M.2 (M)
Capacity: 2 TB
Storage
$ 166.98
Samsung - 980 Pro
Form Factor: M.2
Interface: M.2 (M)
Capacity: 2 TB
PSU
$ 299.77
Corsair - RM1000x
Wattage: 1000
Form Factor: ATX
Efficiency: 80+ Gold
Case
$ 90.10
Fractal Design - Torrent Nano
Type: Mini-ITX
Side Panel: Tempered Glass
RGB: Yes
Cooling
$ 263.94
EKWB - EK-Quantum Torque HDC 14 - Nickel (6x)
Type: Fittings
Size (WxHxD): 140 mm
Cooling
$ 156.99
Cooling
Watercool - MO-RA3 420 D5-Dualtop Module
Type: Water Cooling
