hardware update 15.7.2021

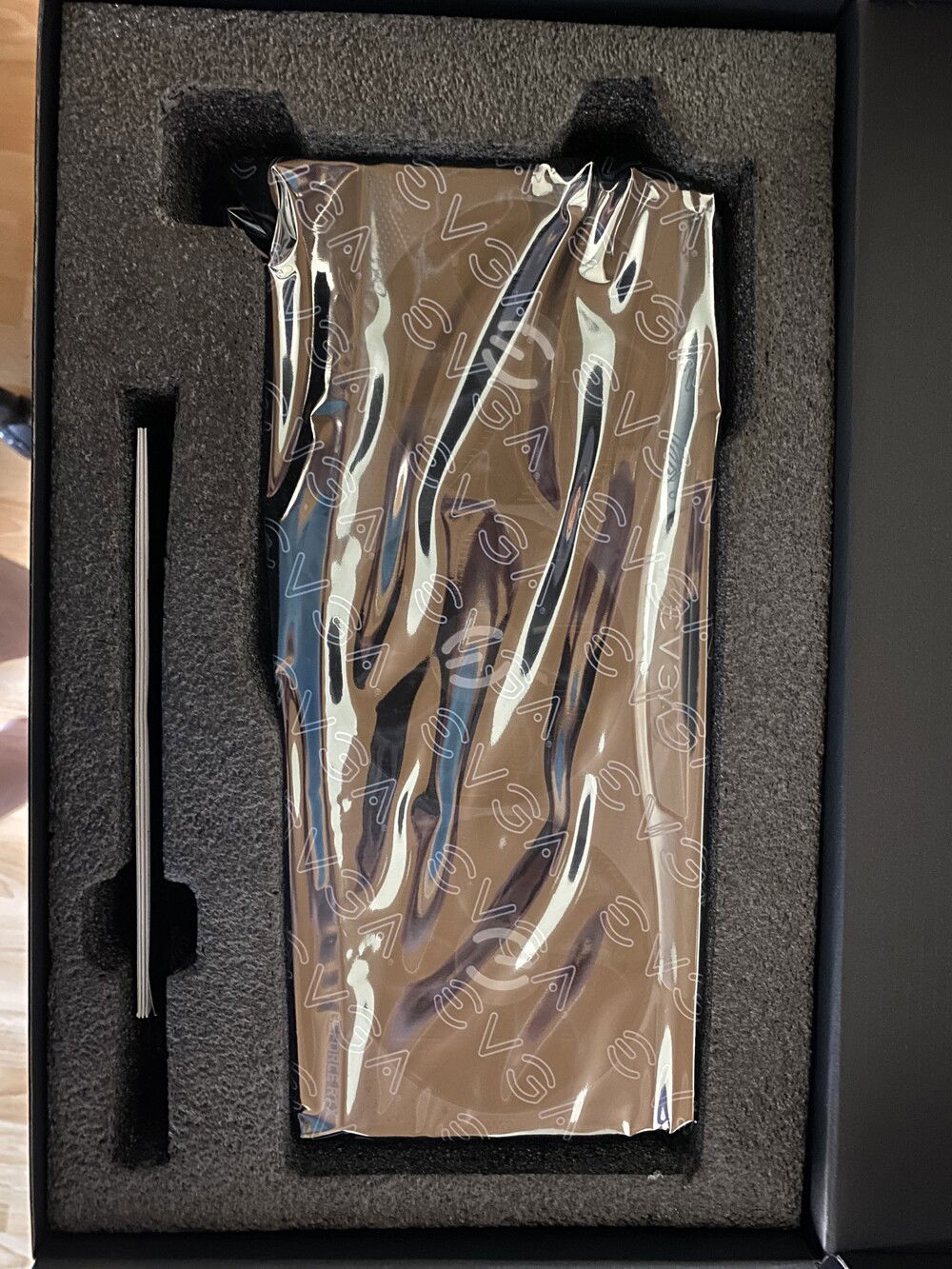

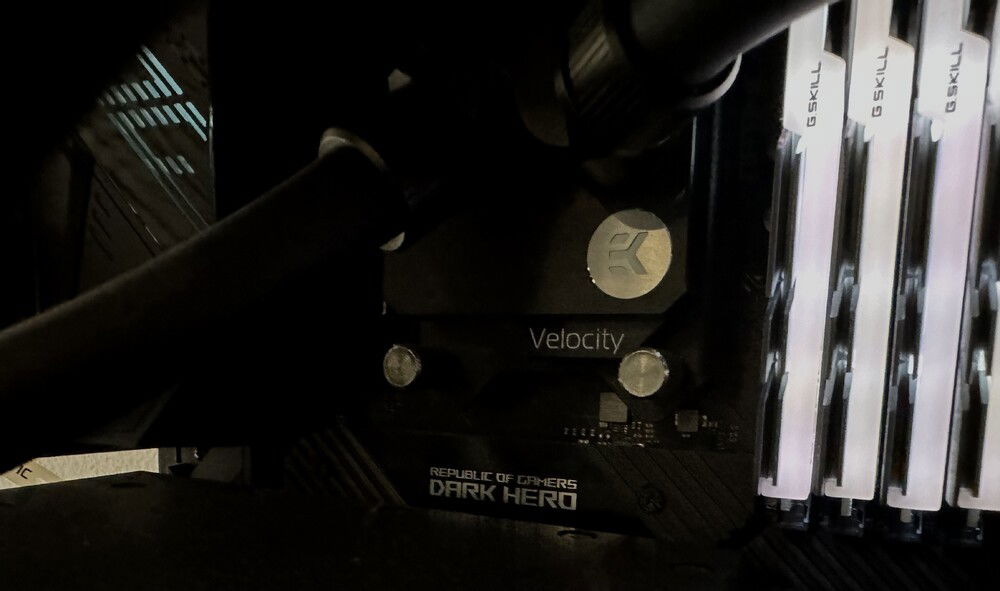

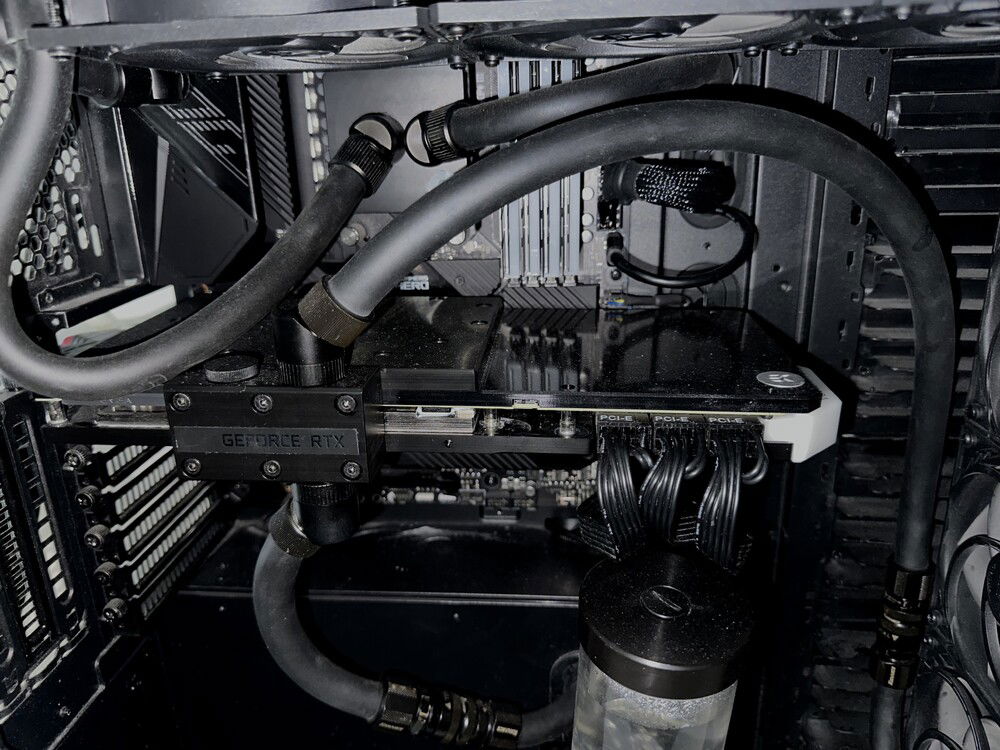

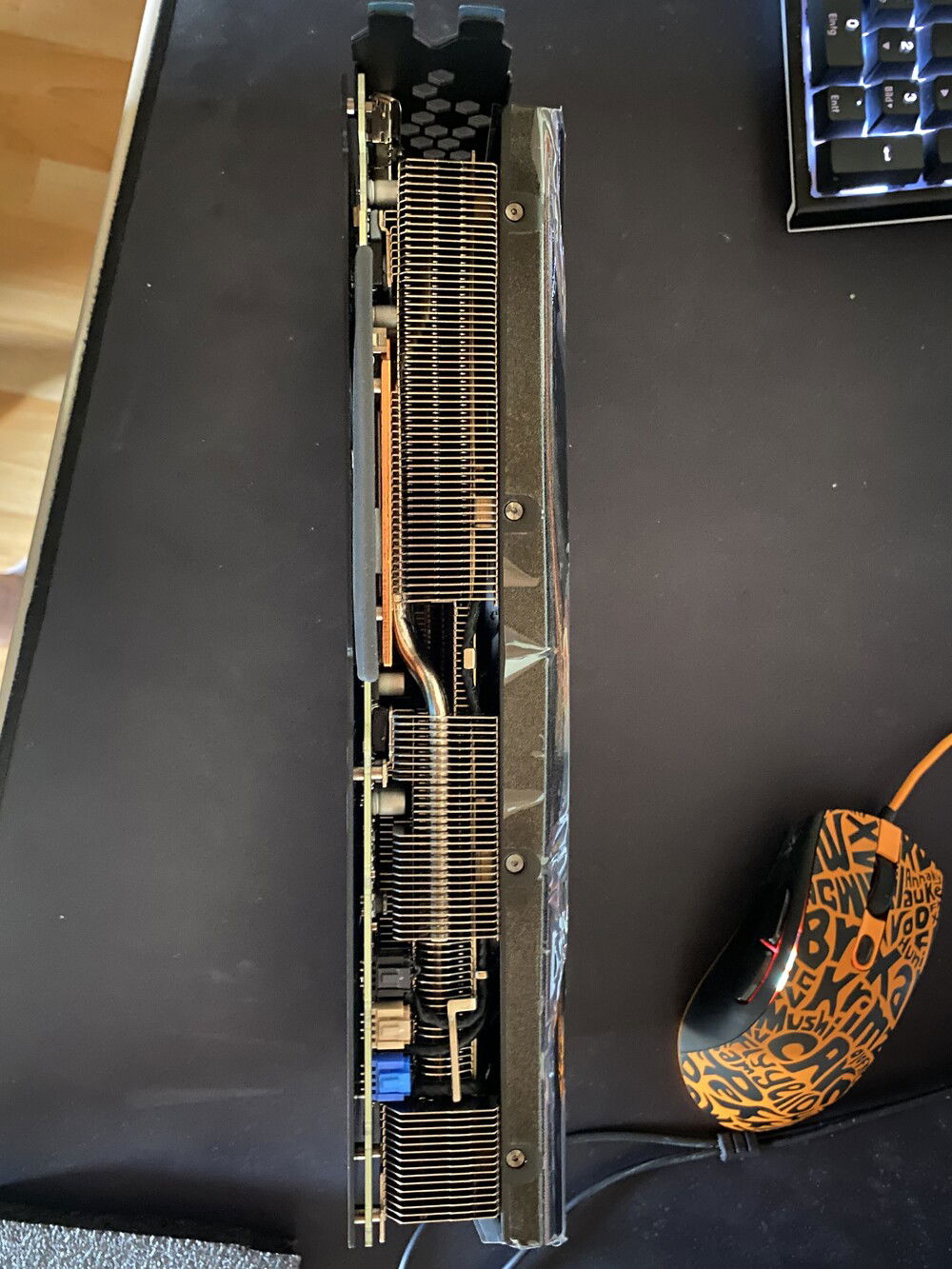

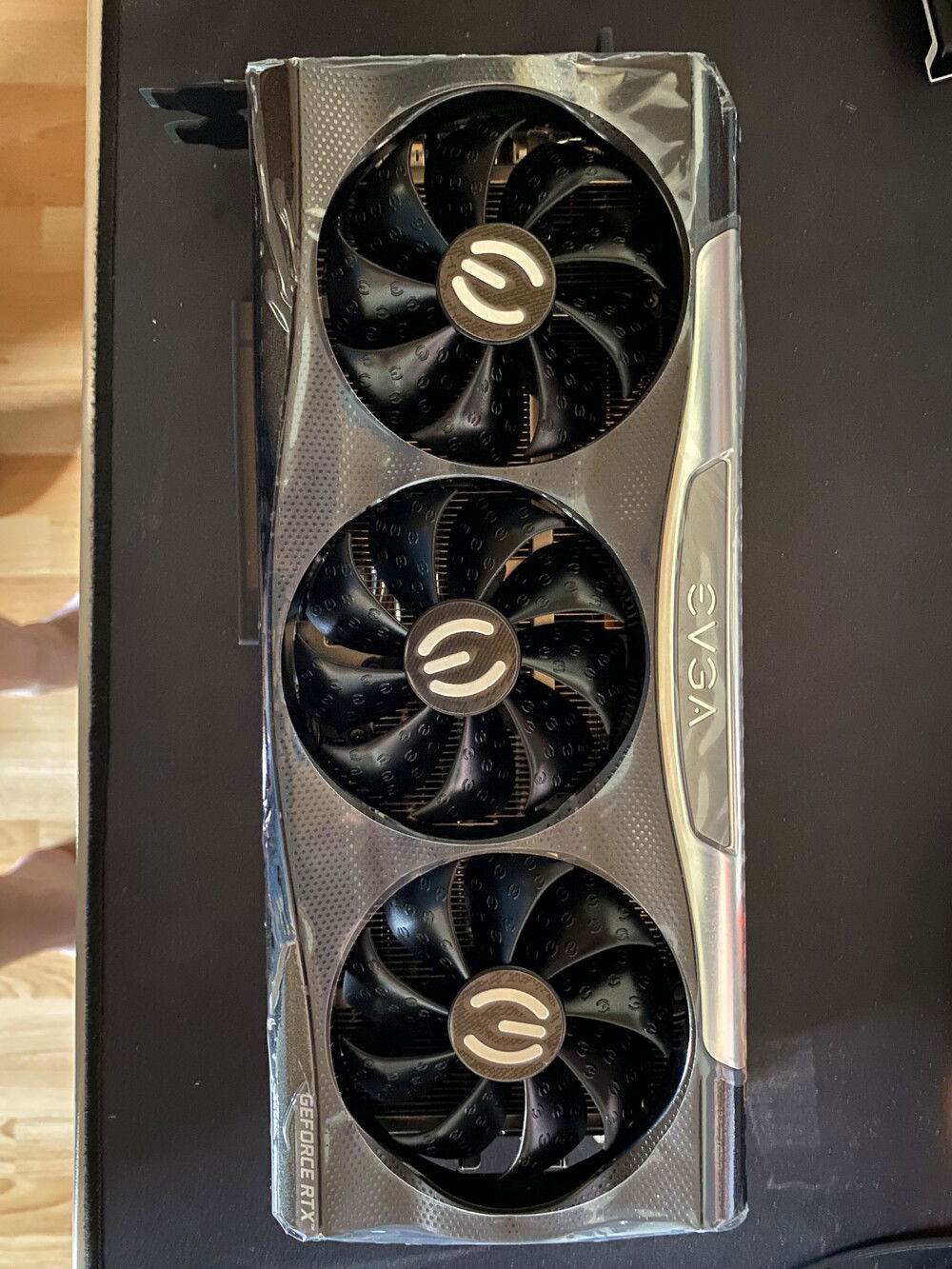

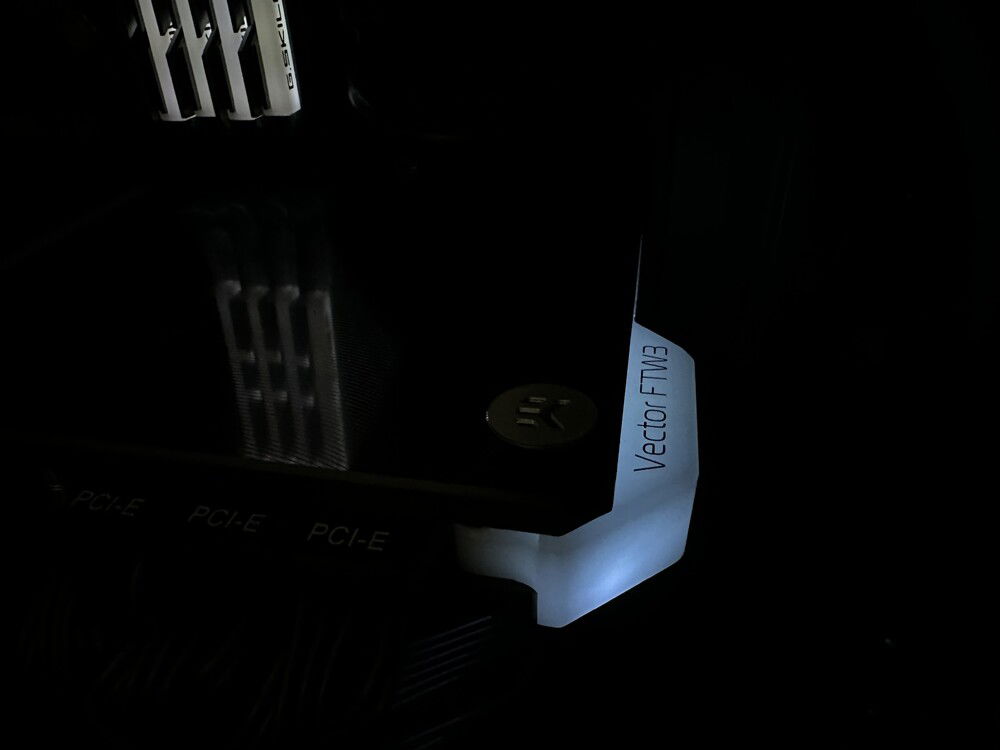

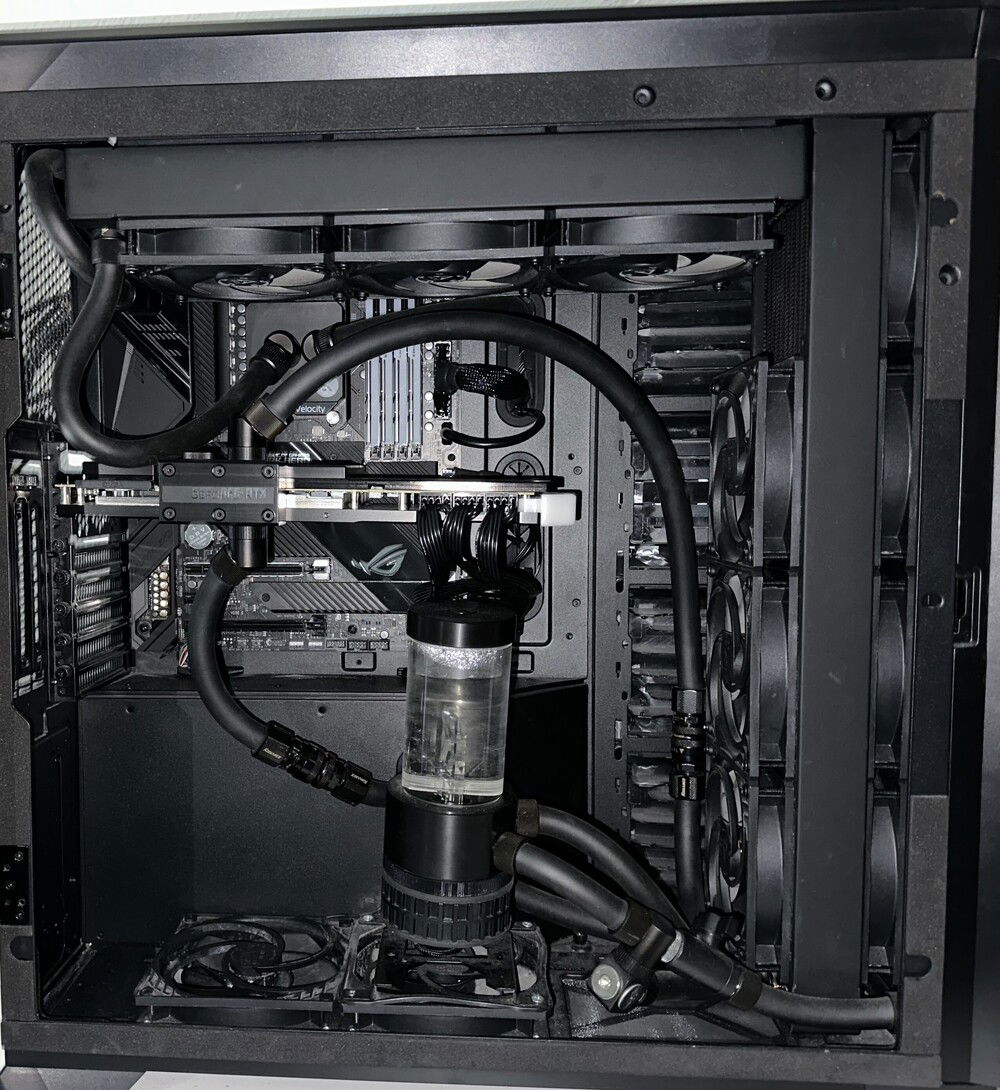

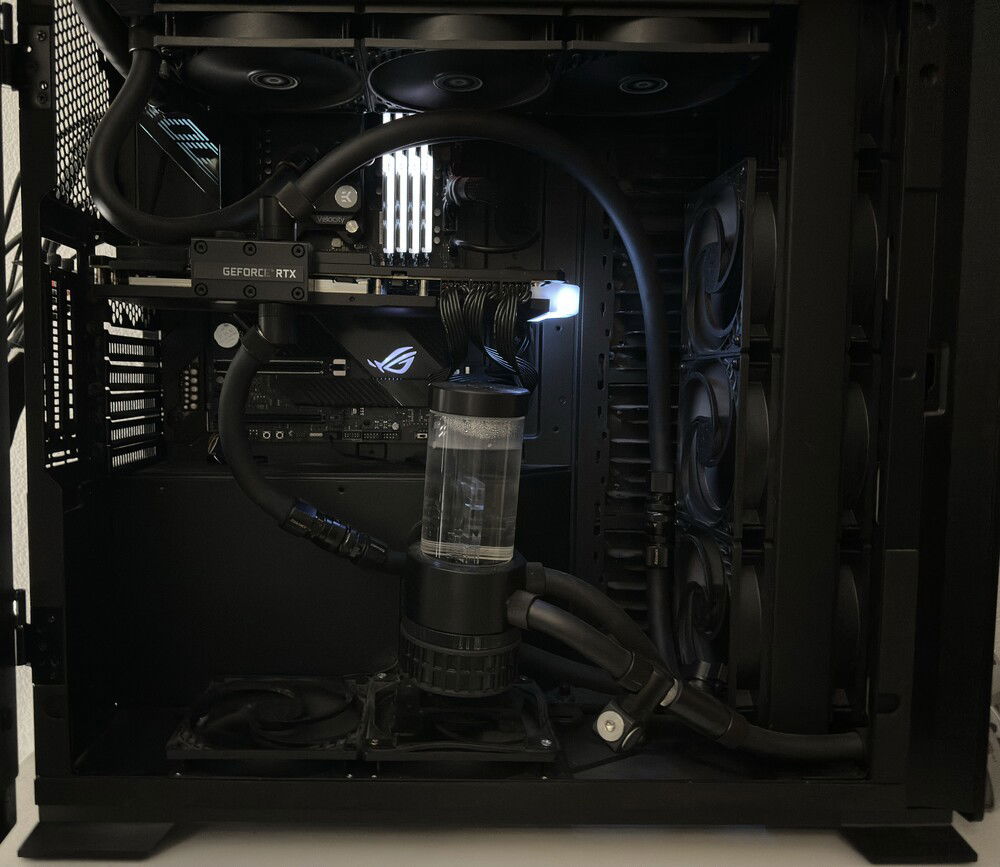

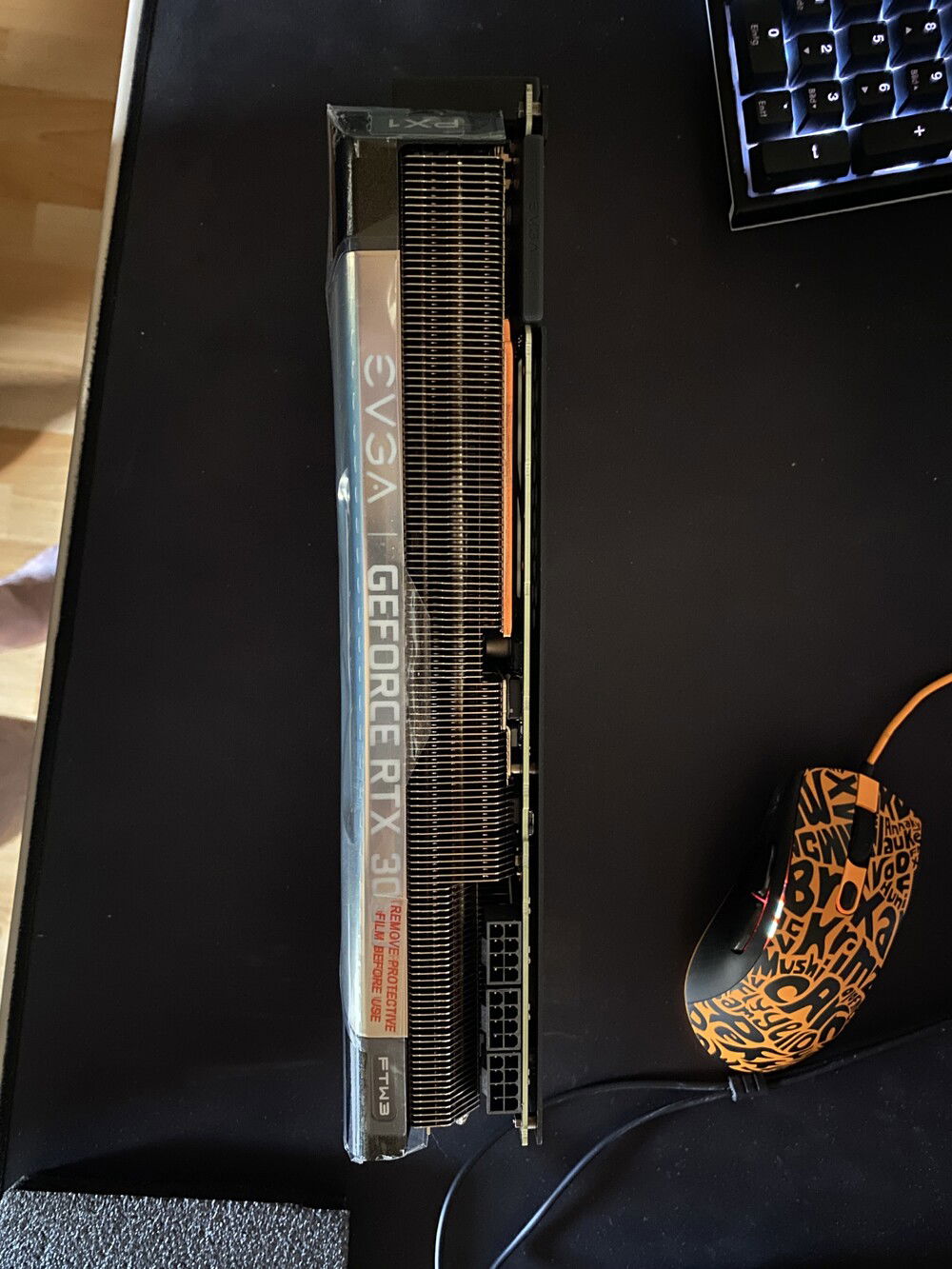

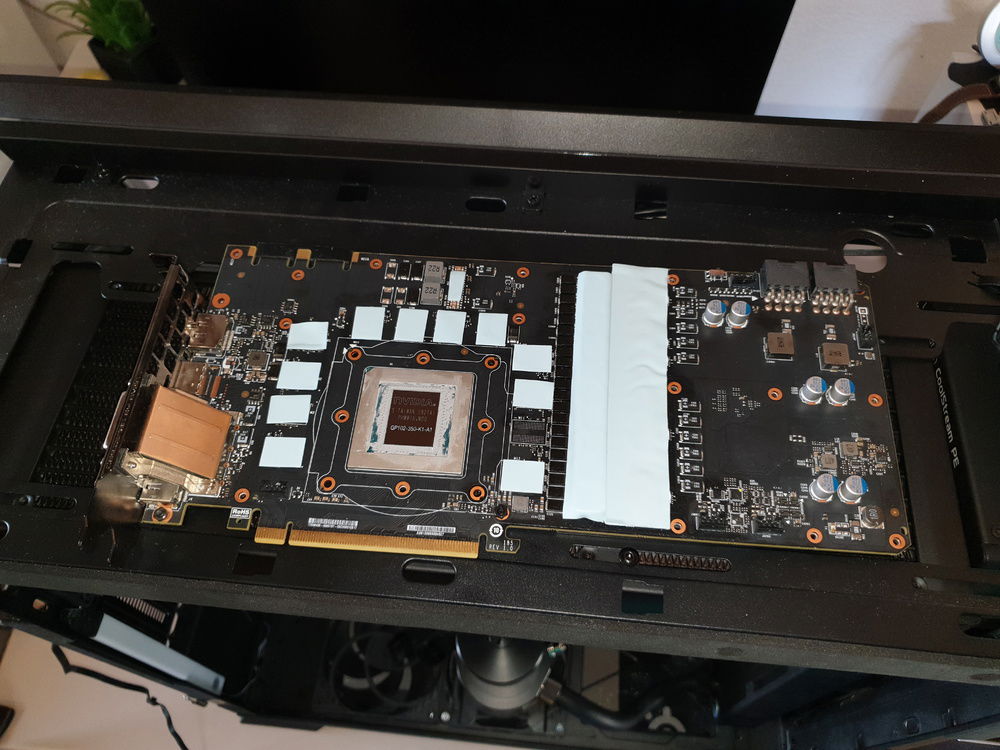

AMD Ryzen 5800X , ASUS dark hero x570 ,16 Gb g.skill 3200mhz cl 14 same ram kit I already had , EVGA RTX 3090 FTW3 Ultra, samsung evo 970 plus 250gb , Corsair MP400 4TB EKWB waterblock and Backplate, 3 more Fans on front Radiator quick connects for gpu and drain for loop, and yes I filled up the loop after the picture :D















little update I put fans on the top radiator now a week ago top of the case is now closing normal again without problems should have put them in from the beginning.

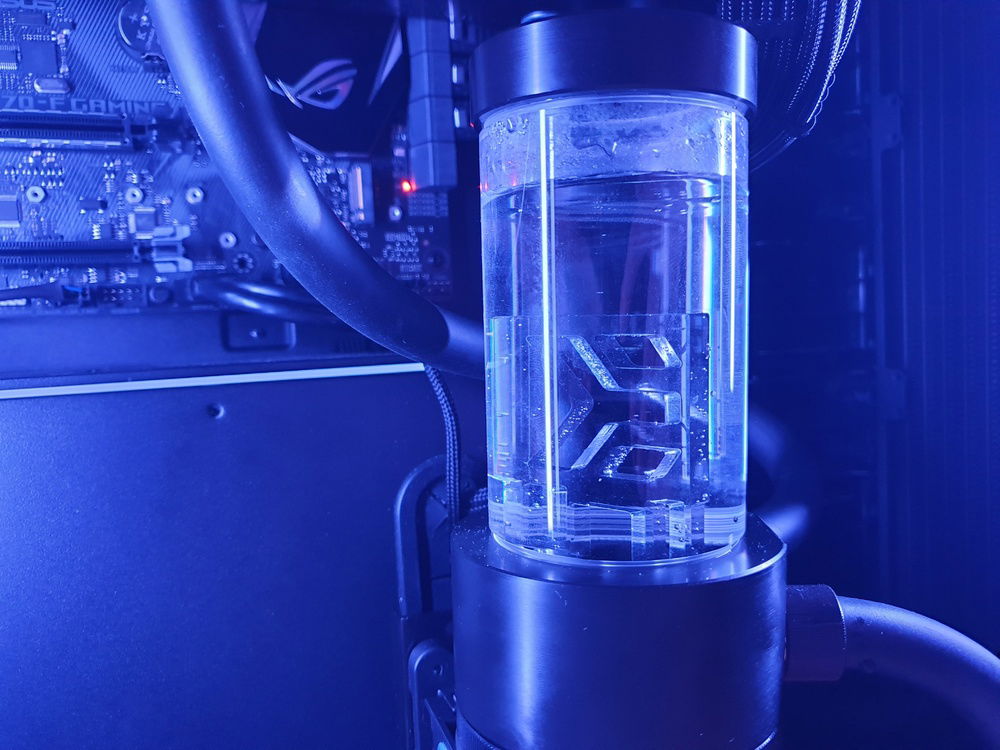

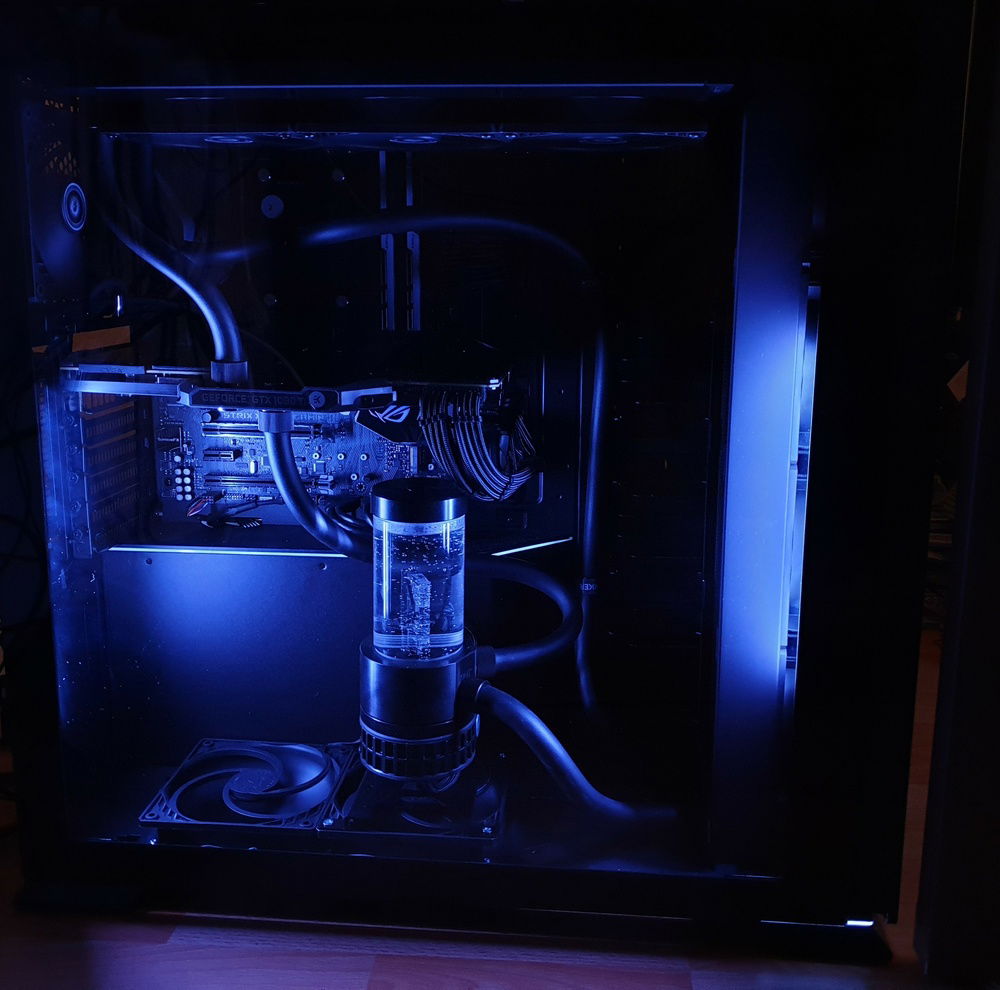

This is my first custom liquid cooling loop

some notes and pictures about the build what I could have done different or better

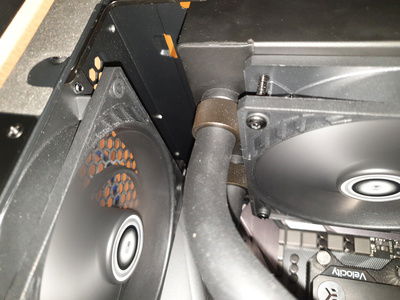

If you do push pull on the top the PE 360mm fits better because 120mm fans aren't that wide as the radiator and you can close the case top easy for me the case top mount hits the rad when I close it and it doesn't close perfect.

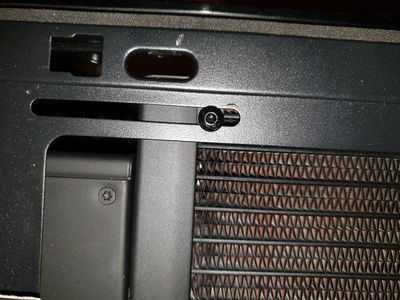

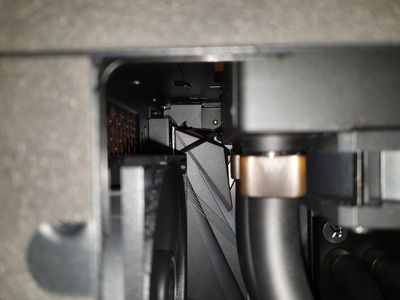

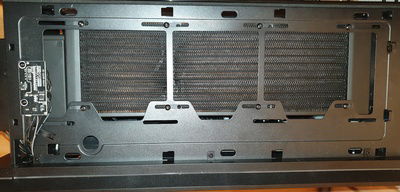

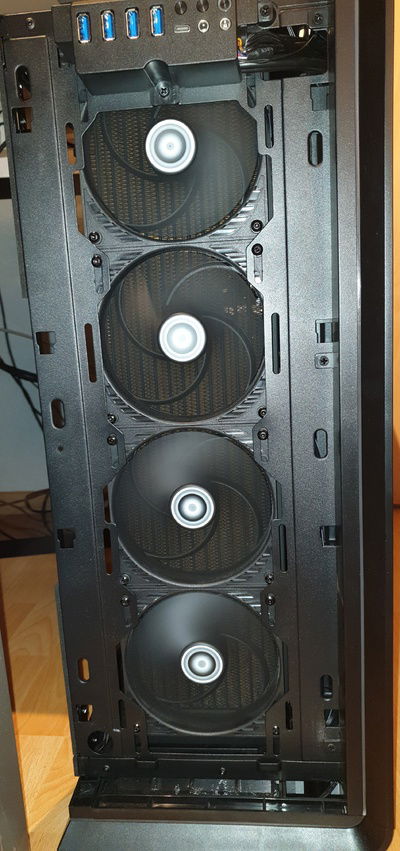

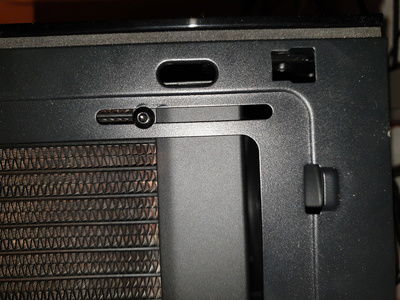

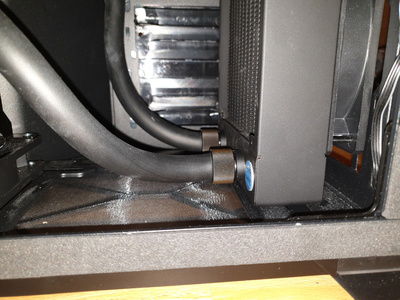

If you start building the system put the side intake fans first and after that the 480mm front radiator because it hides the screwholes and here are some pictures that show why some stuff didn't fit on my build what I just explained.

Short story I watched the video and heard what got recommended from GGF events

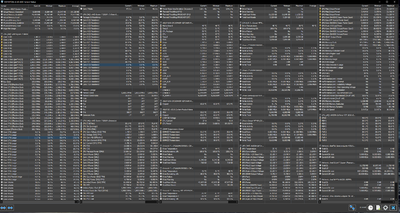

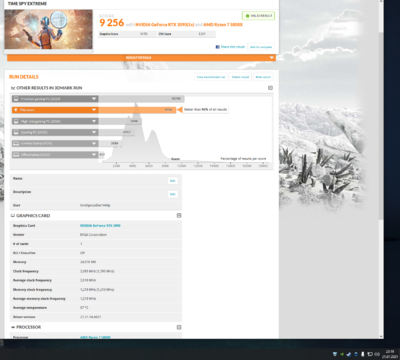

I never build a perfect system that doesn't have any stuff like this ^^ cooling performance is very nice with the system :)

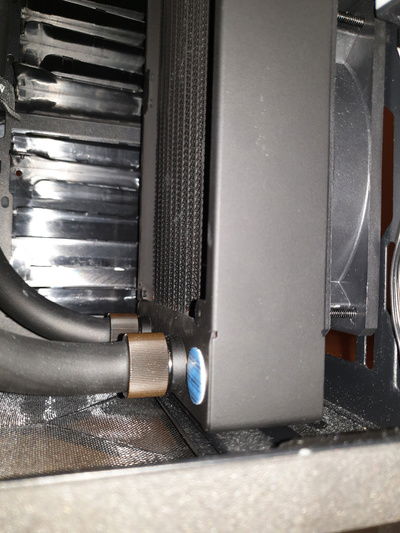

EKWB PE 360mm and EKWB PE 480mm fit how I put it in the case but not perfect when you do push on the front radiator as intake and push with the top radiator. The cooling performance is very good
