EH "SCYLLA II"

Worklog video :

https://www.youtube.com/watch?v=LjoN3DQluH4

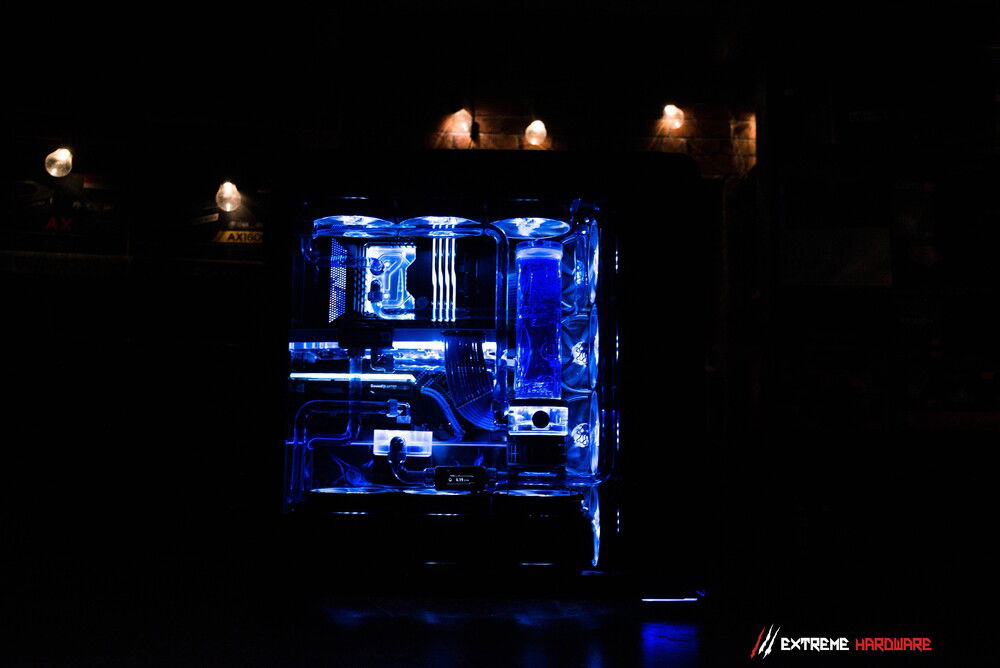

EH "SCYLLA II" is a development project of EH "SCYLLA", which was established in 2019. In fact, the machine was created completely from scratch, and from the old version only the case, NVMe drives, power supply, connectors and two coolers in the form of 480/60 + 360/30 remained, because 360/45 was replaced with 360/60 and equipped with P&Emoji.

We started work on the "SCYLLA II" project in 2022, but at that time the concept underwent several further modifications. Earlier art i9-12900K (SP 95 P) replaced with i9-12900KS (SP 108 P), Samsung DDR5 modules changed to SK Hynix modules. The lower 360/45 radiator was changed to 360/60 in a Push&Pull configuration, we added an additional D5 pump, and four side fans to bring cold air from outside the case to the center of the configuration. The LC improvement treatments translated into spectacular results. The setup is extremely quiet and the components are cool. For example, with PT 480W on the GPU, it's hard to break the 46C barrier on the core, even after a long time of full load on the card.

Although in the final phase of finalizing the project, the RTX 4090 slowly settled on the market, the current owner of the configuration decided to stay with the RTX 3090 variant, i.e. the proven design of the top Ampere, and change the GPU to the RTX 5090. The powerful GA102-300 is doing great in the resolution of 3440x1440p and DLDSR 5160x2160 100 Hz for which it is used. The i9-12900KS also remained unchanged despite the imminent launch of the i9-13900K at that time. After all, the top Alder, after appropriate adjustments, is in the top of the fastest CPUs in terms of driving the top GPU, and also emits much less heat to the system. The CPU needs only around 1.26v to run stable on the 5.2 / 41 / 44 profile, not only in games, of course, but also under full load during long-hour load tests. Generally, at the request of the person for whom the machine was created, it was important to stay with the Z690 EXTREME, i9-12900KS and RTX 3090 STRIX and four DDR5 modules. The material appeared on YT with a significant time slip, but it is known that each worklog appears sometimes and several months after the implementation of a given project :)




i9-12900KS 5.2 GHz P / 4.1 E / 4.4 Uncore (Main Profile)
ROG Maximus Z690 EXTREME
4x16 DDR5 G.Skill Trident Z5 bin 6600 CL34.40.40.105 (SK Hynix)
5800 MHz 32.34.34.32 T2 G2 + II / III
RTX 3090 STRIX PT 480W OC + 80 / + 1000
Creative AE9
SAMSUNG 970 EVO Plus 1 TB
Intel 660P 2 TB
Seasonic 1300 Platinium
Phanteks Enthoo Luxe 2 (early Enthoo 719)

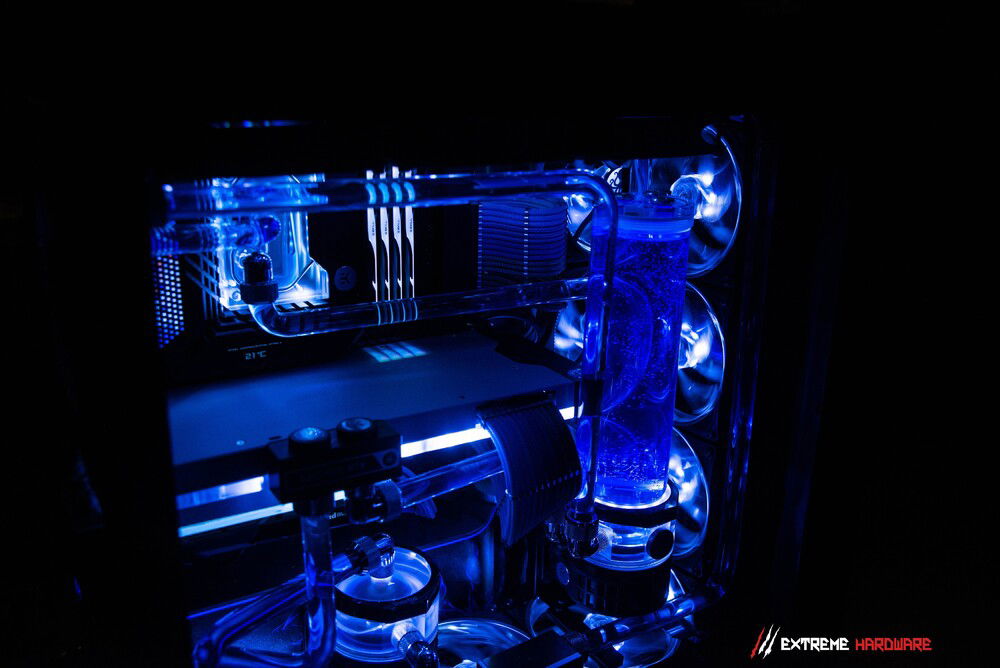

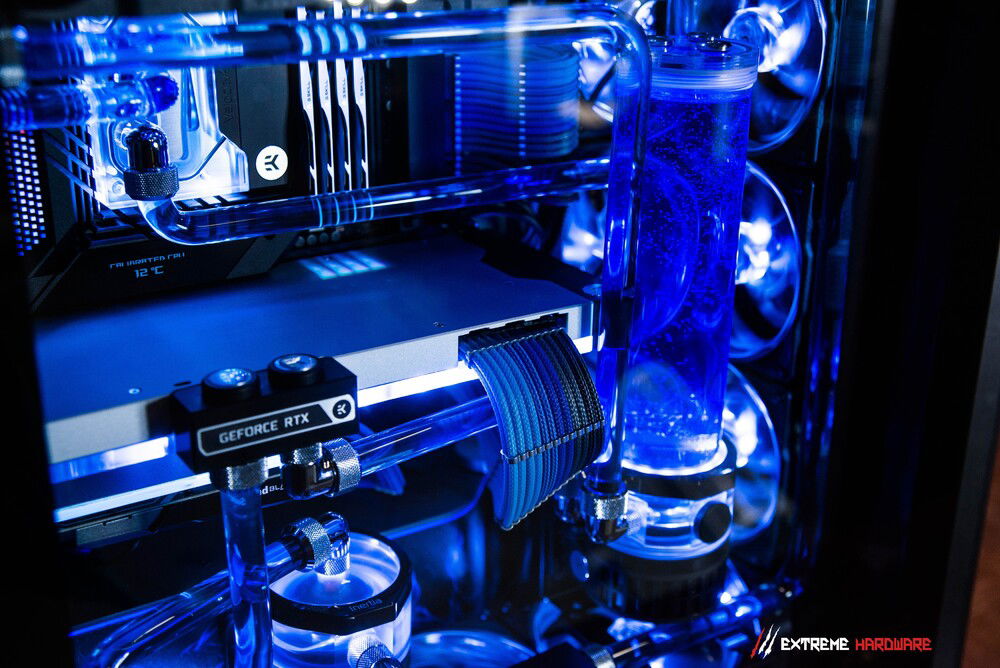

Custom LC :

Alphacool NexXxoss 480/60
Alphacool NexXxoss 360/60
Alphacool NexXxoss 360/30

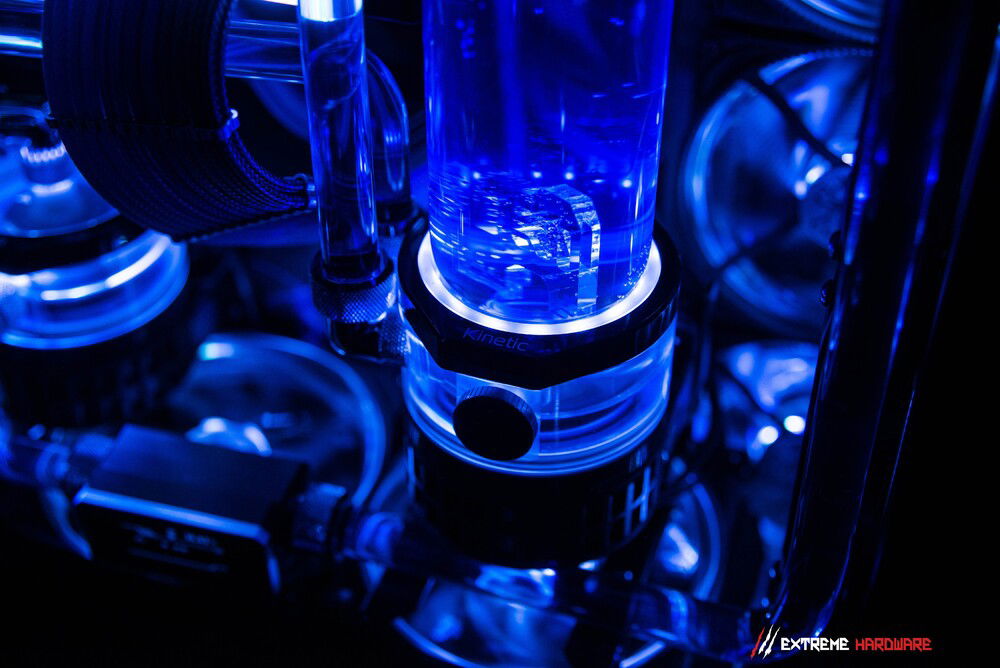

EK D5 G3

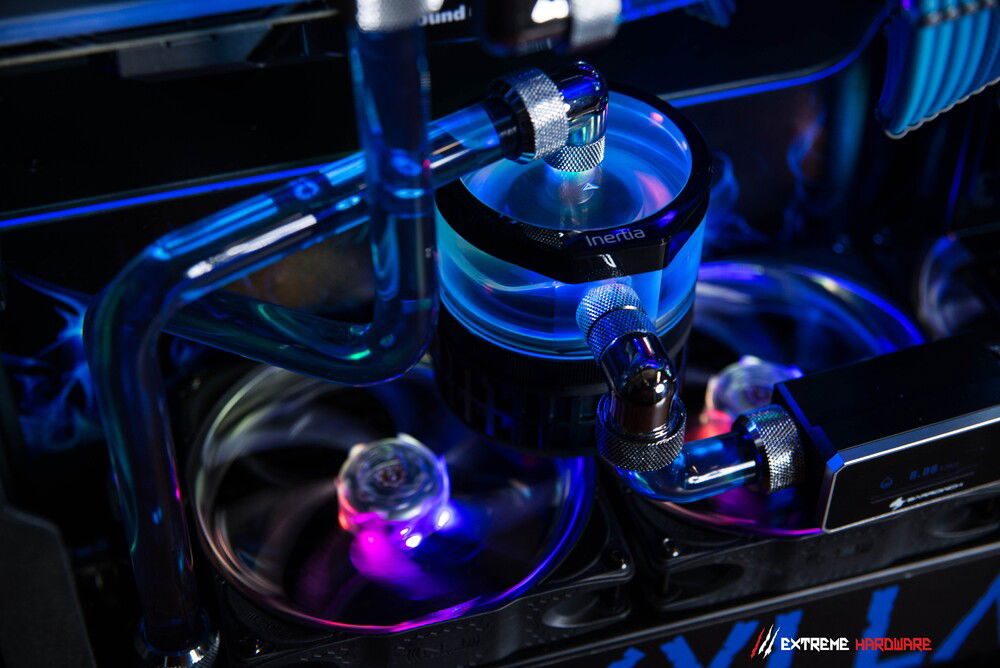

EK D5 Inertia

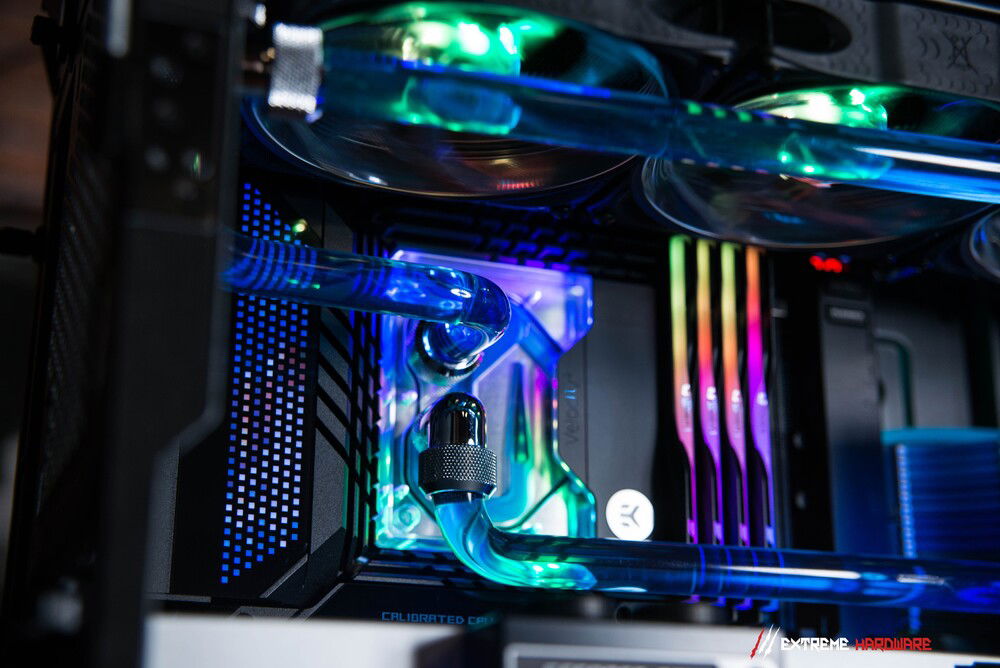

EK Velocity 2 LGA 1700 Nickiel Plexi

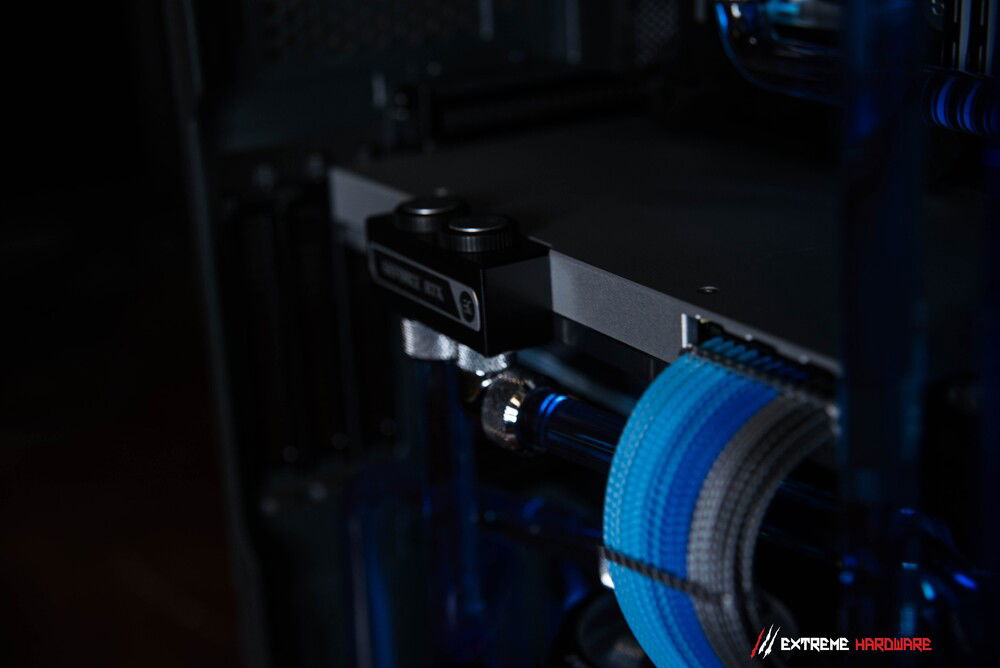

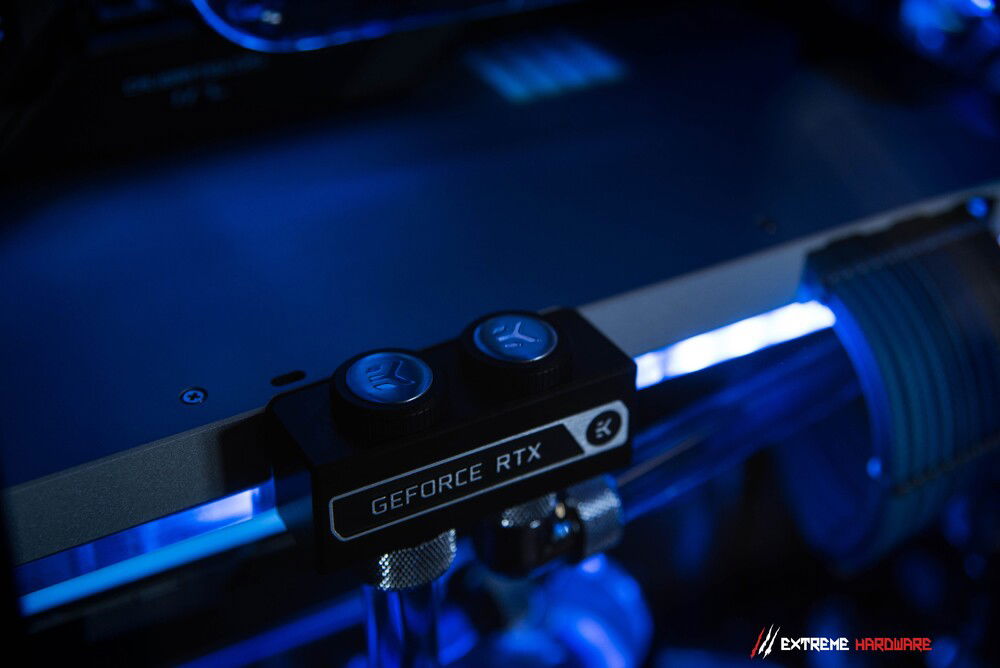

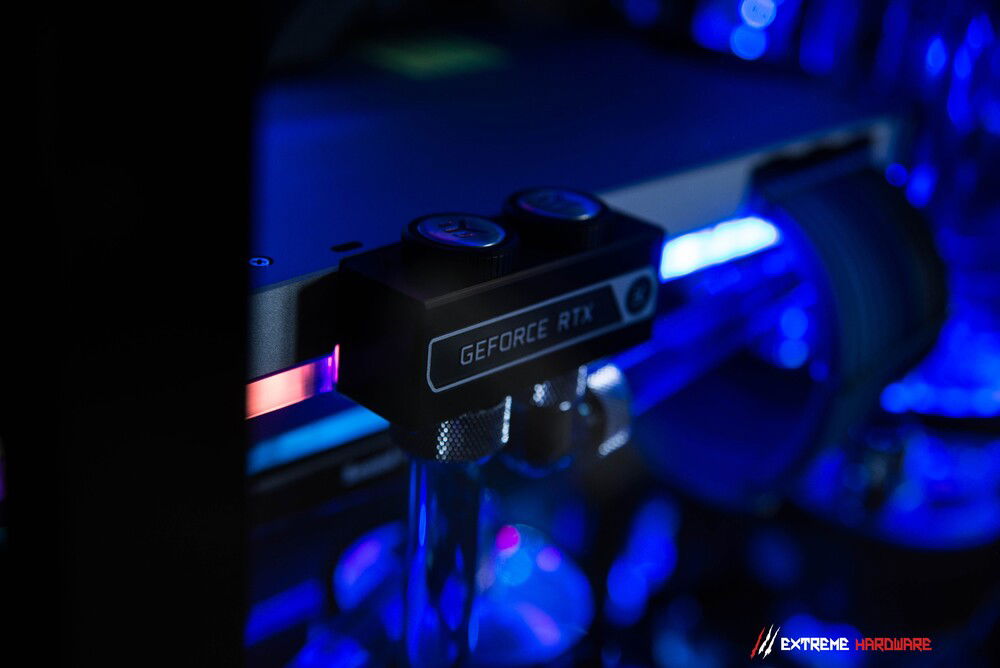

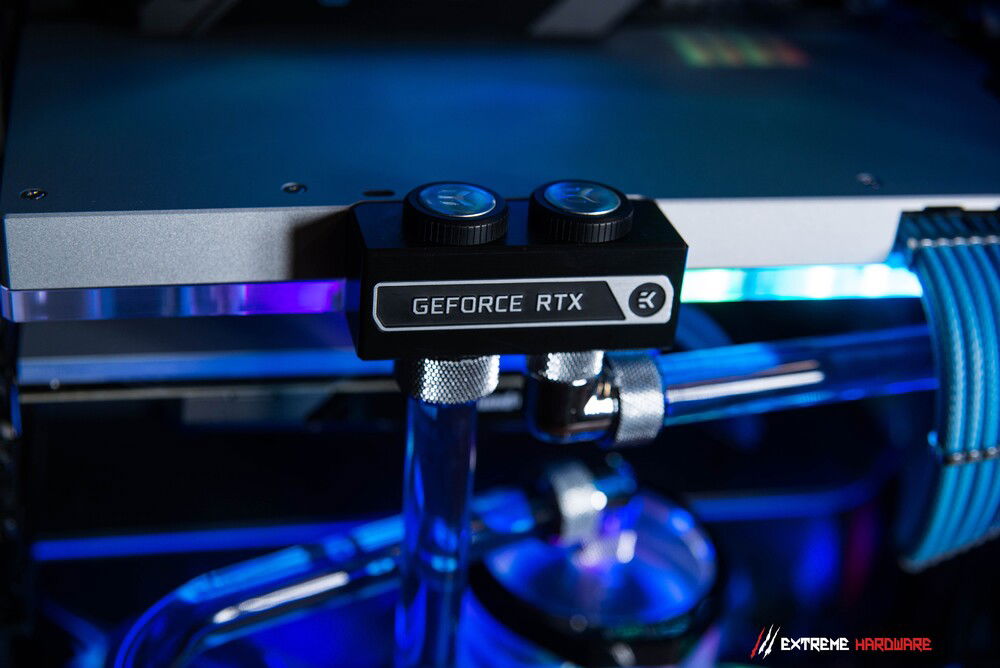

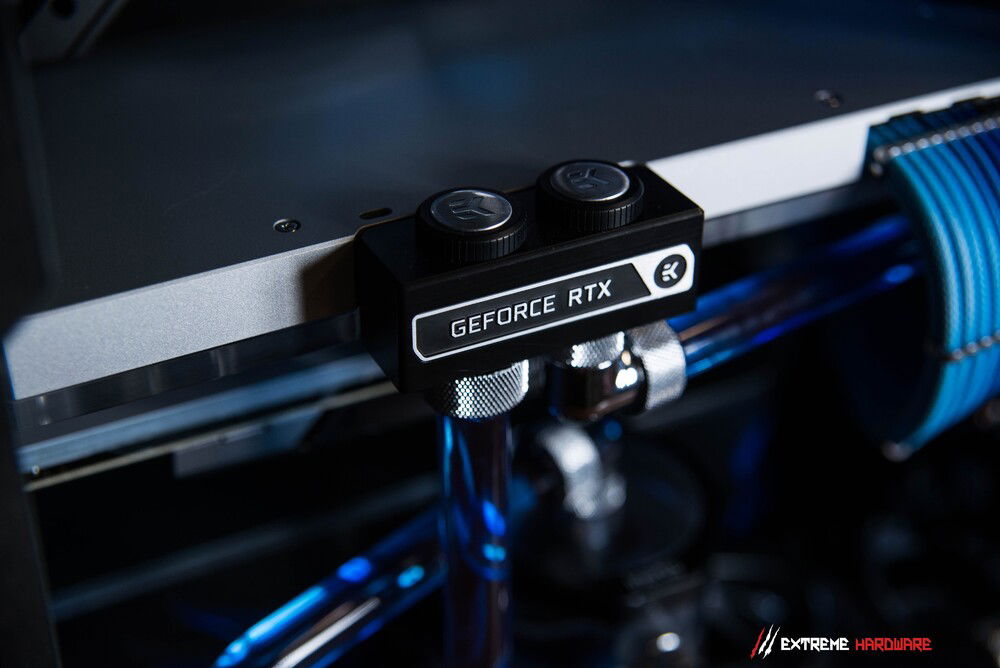

EK Vector V2 RTX 3090 STRIX
EK Vector Backplate V2 STRIX Silver
17x Noiseblocker E-LoopX 120 ARGB
3x XSPC Clear
1x XSPC UV Navy Blue
Fittings, adapters etc. Barrow. Valve EK Torque Valve
Barrowch Flow / Termo
Thermal Grizzly Contact Frame LGA 1700
Thermal Grizzly Krynoaut Extreme (CPU + GPU)
Color(s): Black Blue Silver
RGB Lighting? Yes
Theme: Fantasy
Cooling: Custom Liquid Cooling
Size: E-ATX
Type: General Build

Hardware

CPU
$ 699.00
Intel - Core i9-12900KS
Socket: LGA 1700
Cores: 16
Integrated Graphics: Yes
Motherboard
$ 1,099.99
ASUS - Rog Maximus Extreme
Chipset: Z690
CPU Socket: LGA 1700
Size: E-ATX
Memory
$ 249.98
G.Skill - Trident Z5 (6600MHz) (Black/RGB) (2x)
Type: DDR5
Capacity: 32 GB
Graphics
$ 1,799.00
ASUS - GeForce ROG Strix Gaming (O24G)
Chip Manufacturer: NVIDIA
Chip: RTX 3090
Interface: PCIe x16
Storage
$ 199.00
Intel - 660p
Form Factor: M.2
Interface: PCIe x4
Capacity: 2 TB
Storage
$ 92.99
Samsung - 970 EVO Plus
Form Factor: M.2
Interface: M.2 (M)
Capacity: 1 TB
PSU
$ 359.99
Seasonic - Prime Ultra
Wattage: 850
Form Factor: ATX
Efficiency: 80+ Platinum
Case
$ 300.00
Phanteks - Enthoo Luxe 2 (Black)
Type: Full-Tower
Side Panel: Tempered Glass
Case Fan
$ 509.15
BLACKNOISE - NB eLoop X (17x)
Size: 120 mm
Cooling
$ 62.25
Alphacool - NexXxoS ST30 Full Copper
Type: Custom Loop
Size (WxHxD): 360 mm (3 x 120 mm)
Cooling
$ 98.50
Alphacool - NexXxoS UT60 Full Copper
Type: Custom Loop
Size (WxHxD): 360 mm (3 x 120 mm)
Cooling
$ 103.75
Alphacool - NexXxoS XT45 Full Copper
Type: Custom Loop
Size (WxHxD): 480 mm (4 x 120 mm)
Cooling
$ 98.00
Barrow - Fittings (14x)
Type: Custom Loop
Cooling
$ 151.91
Cooling
$ 45.00
XSPC - Fluid (3x)
Type: Custom Loop
Accessories
$ 289.00
Estimated total value of this build:
$ 5,696.40
