EH "NIGHTWING" – Operational Record from Wayne Enterprises

Project EH “NIGHTWING” represents an advanced iteration of the previously approved EH “TR3B” platform. The system has been redesigned to enhance performance, scalability, and operational capabilities in high-risk and high-load computational environments (2560x1440p resolution with future 4K UHD deployment planned).

The graphics processing unit (RTX 3090 Ti FTW3) has been replaced by the next-generation ZOTAC RTX 5080 SOLID — a “SOLID Performance” class unit, offering approximately a ~50% increase in rasterization performance, even higher gains in RT/PT workloads, and full support for Frame Generation (FG) and Multi-FG (mFG) technologies. The cooling system has been expanded for improved thermal efficiency, introducing a Push&Pull configuration on the top 360/60 radiator.

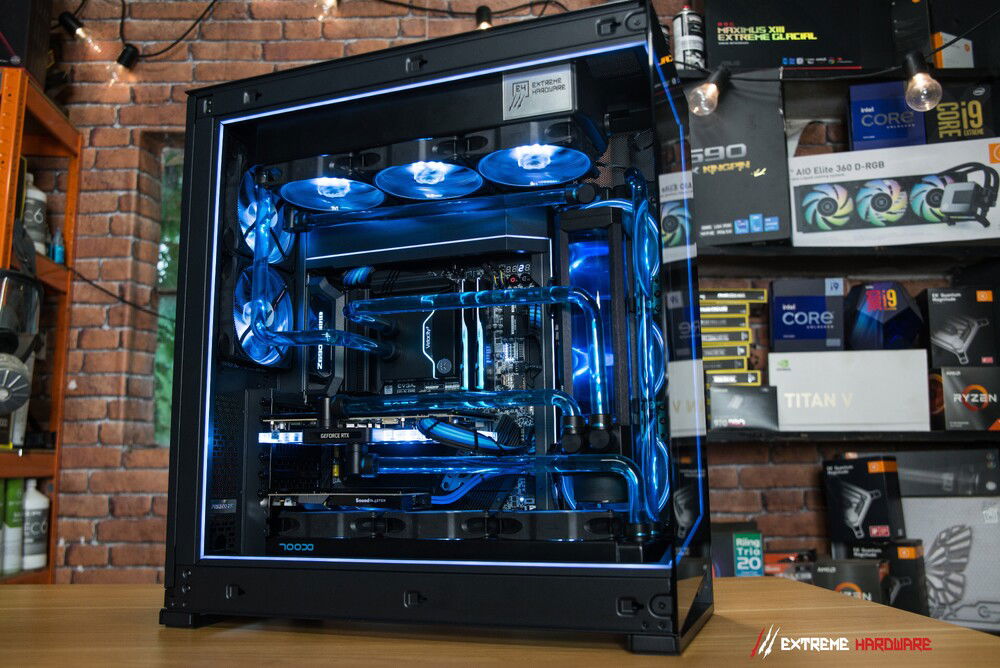

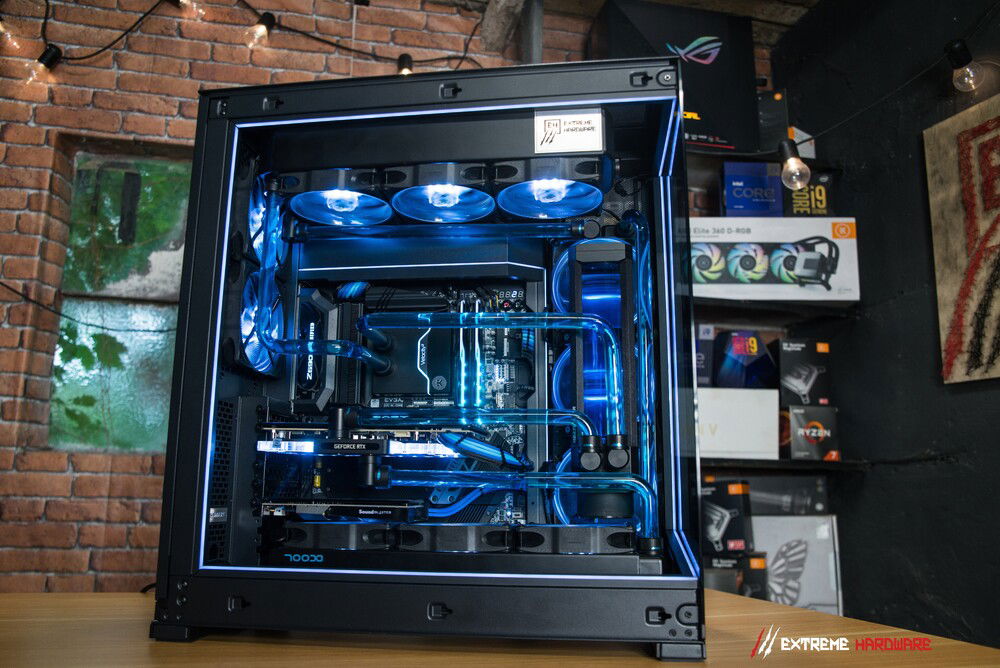

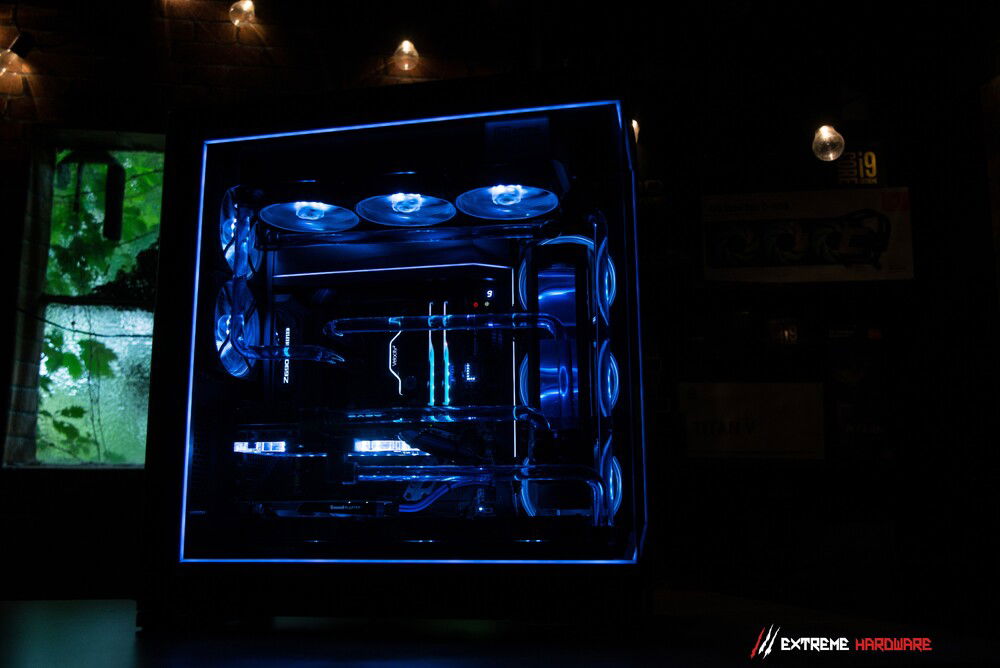

The architecture is housed within a new chassis — the Phanteks NV7 — providing improved airflow, aesthetics, and integration with D-RGB monitoring systems. The main processor unit (Intel i9-12900K) remains unchanged due to its optimal performance in operational tasks and its projected usability for at least three more years.

A planned future revision includes migration to the next-generation platform (x80/x90 architecture) and an update of the base system. Schedule — to be confirmed.

EH “NIGHTWING” Specification

CPU: i9-12900K 5.1 GHz P / 4.1 E / 4.6 Ring

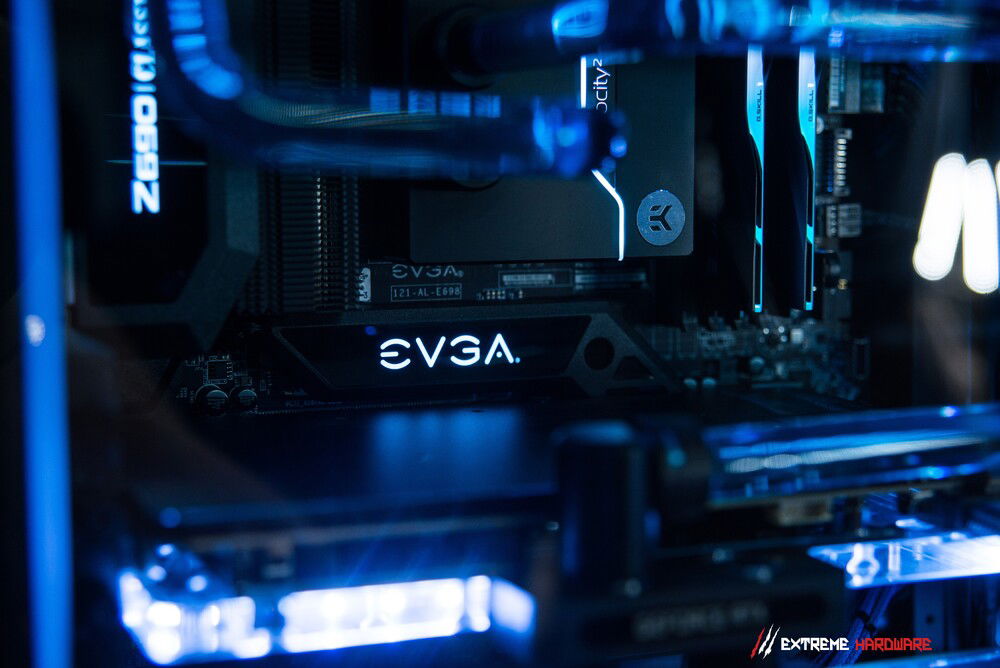

Motherboard: EVGA Z690 CLASSIFIED
Memory: 2x16 GB Trident Z5 6400 CL34.36.36.34 G2
GPU: ZOTAC RTX 5080 SOLID +350/+3000 PT 400W
Storage: 2x SAMSUNG 970 EVO Plus 2 TB, 1x SAMSUNG 980
PSU: Corsair HX1200

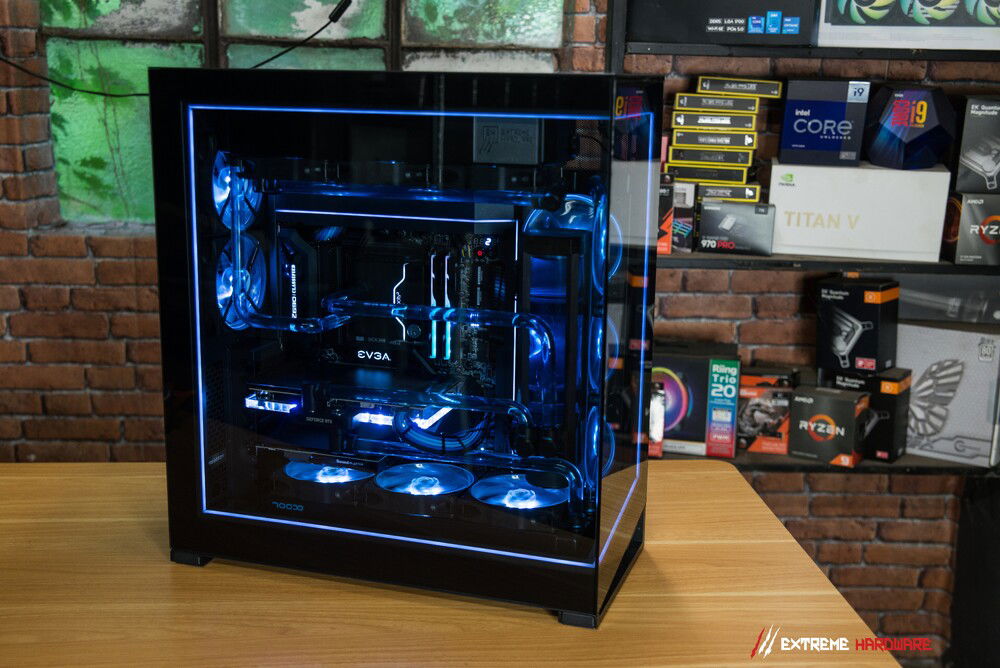

Case: PHANTEKS NV7 + D-RGB Kit

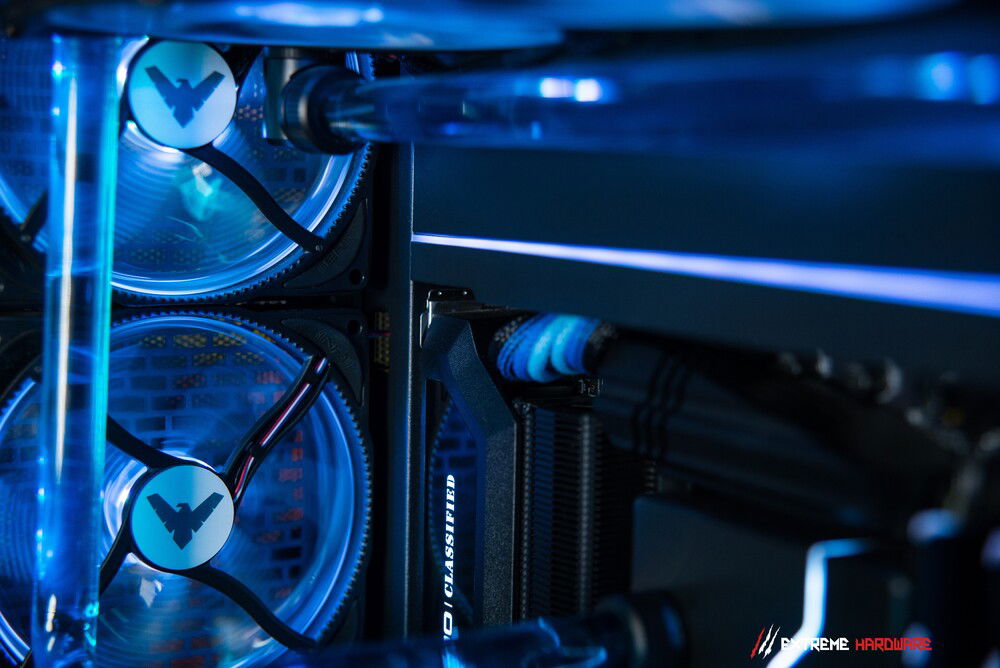

Custom Liquid Cooling:

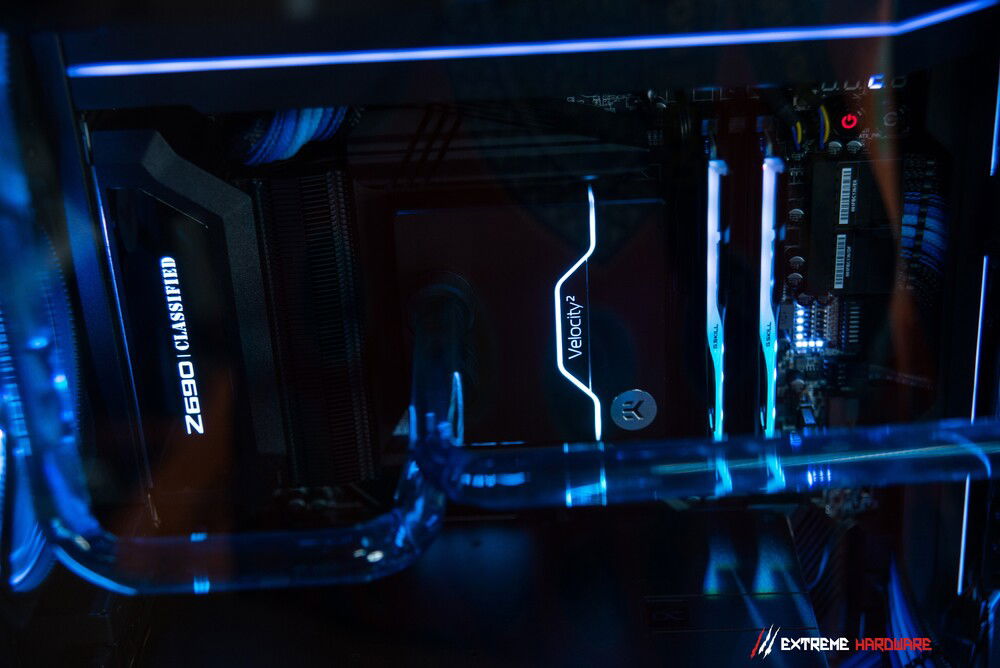

EK Velocity 2 Acetal

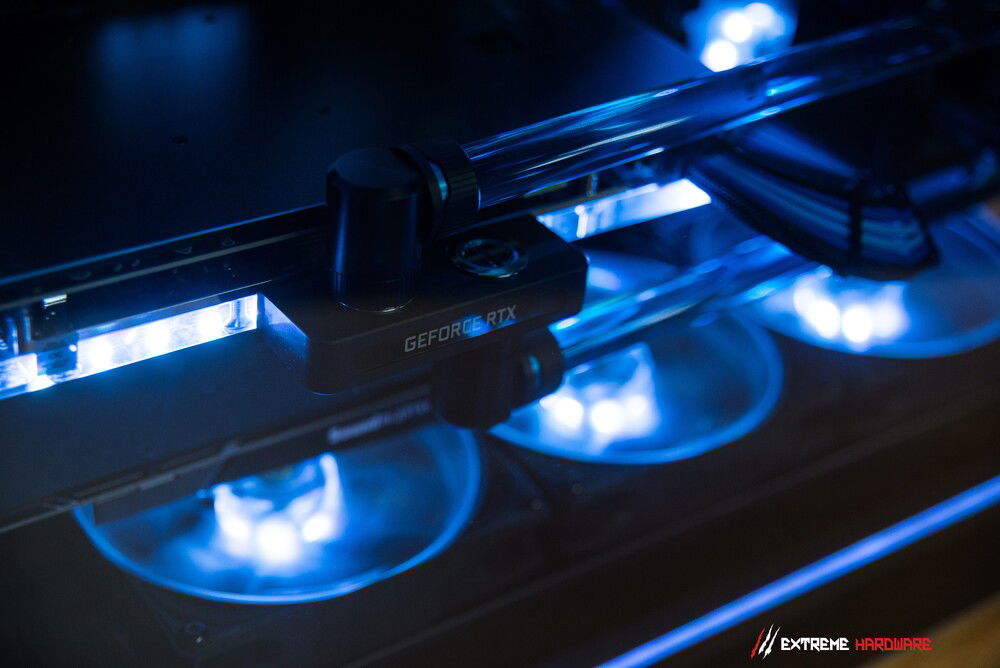

Alphacool Core RTX 5080 SOLID

1x 360/60 Alphacool UT60

1x 360/30 Alphacool ST30

1x 360/45 Alphacool XT45

14x Noiseblocker NB-eLoop X B12PS

1x Watercool Heatkiller D5 200MM

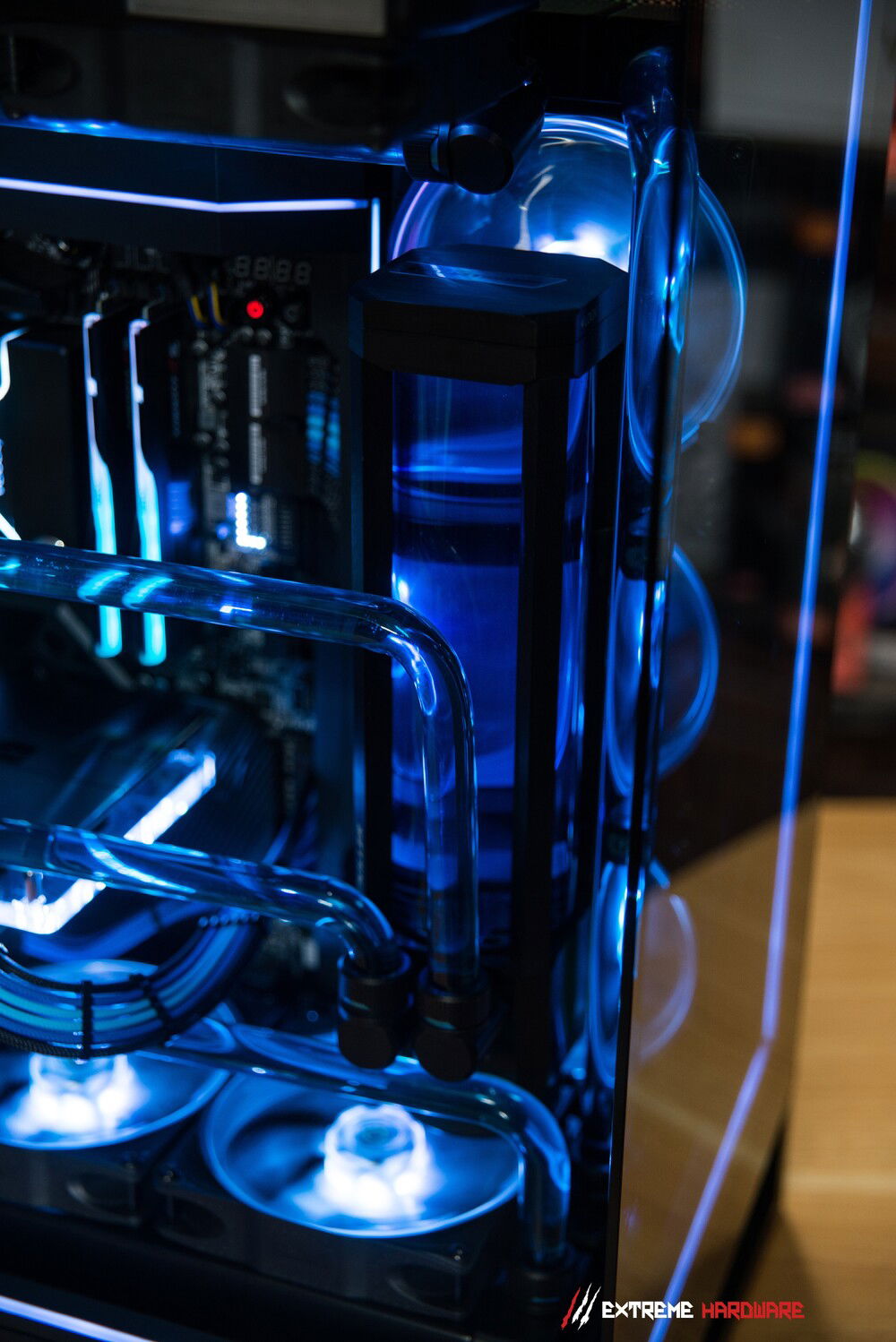

3x 1L XSPC Clear + XSPC Blue Navy dye

1x EK D5 G3

TG LGA 1700 CF

TG Kryonaut Extreme

Fittings, adapters, plugs, valve, etc. – EK Torque

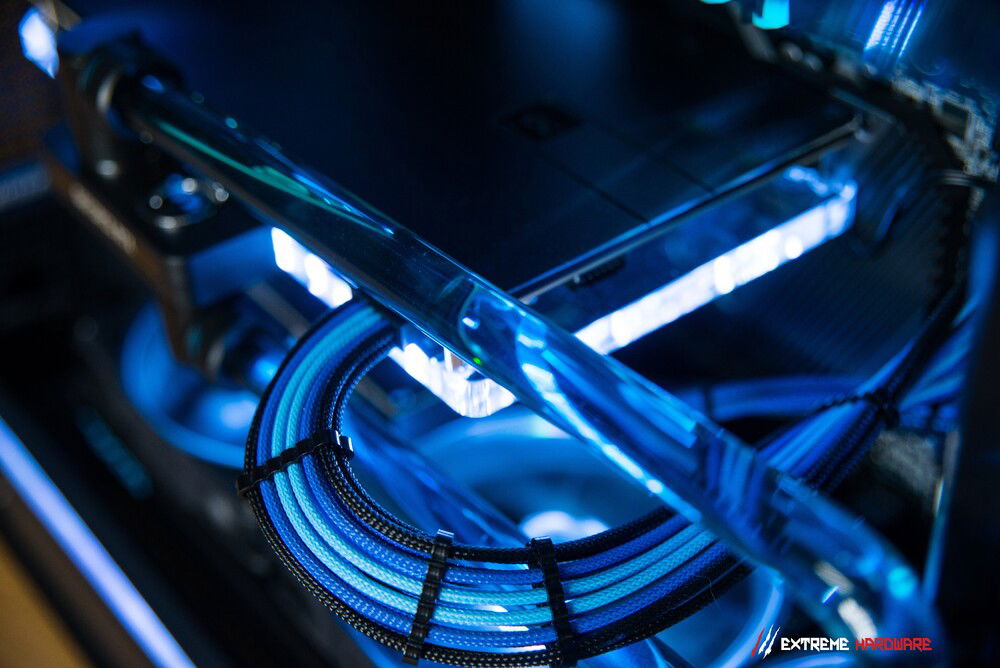

Sleeving: ExpandableCustoms
