Custom Shroud to cover/ Black out PSU/ Blacked out custom shroud for the 2x HDDs at the bottom right of the case.
Side view and blacked out where cables are routed.
Machine Running
My messy desk and displays

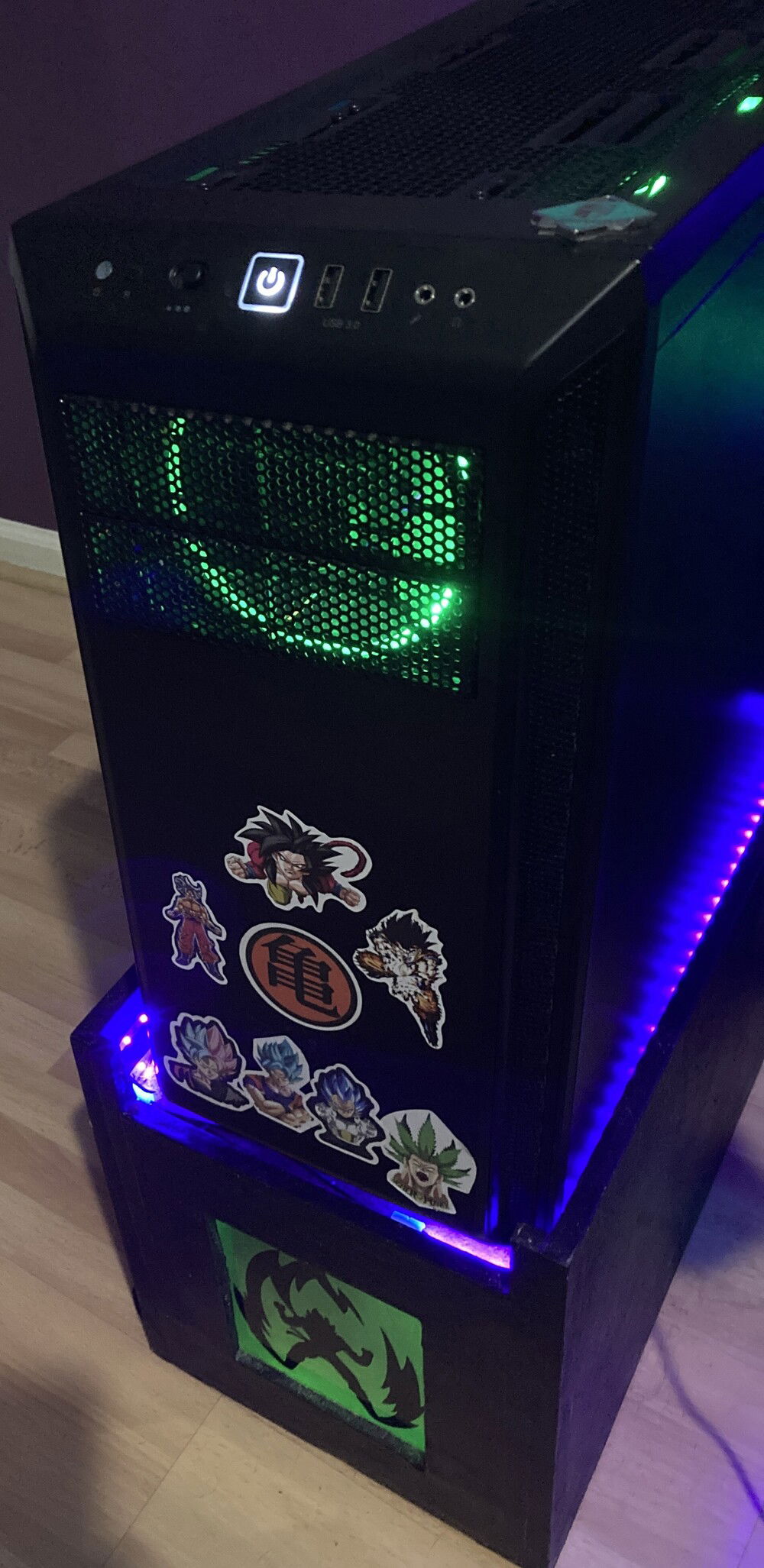

Modified Front having vinal made to replace stickers
Modified top cover and machine running for a few.
360 Matrix Fan installed on top of the Case; Have not seen anyone else do this to Be Quiet Pure Base 600
Dragon Ball Heroes Ryzen 9 5900x Machine
Ryzen 9 5900x Build chose a case with shitty air flow should have paid attention... but it worked out after modifying it!
Temps are now running 32-37*C at idle depending on how hot its in FL. CPU temp maxes at 76 when fully boosting cores to 5.1GHz or running Stress test. GPU idles at 26-29*C and has Maxed at 67*C when gaming in 4k. If all this was in a different case it would most likely run even cooler but the sound Dampening in the case makes it almost completely silent even with 3x120mm Fans mounted on the top of the Case externally.
Acid Etching on Tempered Glass with SSJ4/Great Ape
Modified iPad mini as Repeating Gif Display
Custom Made CPU stand and LED Lighting
Vented Top Panel Custom made z logo and Vents.
Gutted all but 2x HDD internal Bays
Removed Cage for 2x 5.2" Bays
Replaced Bay Covers with Vented and Filtered plates
Added Additional mount for 3x120MM Fans in Front as intake
3x Static Pressure fans mounted on 360MM Radiator as Exhaust
Now added additional 360mm Matrix single frame fan to the top of the case mounted to the AIO RAD
Rear 120MM Antec RGB Prism Fan Exhaust
HDD Cover for 3.5" Storage Drives
Mounted GFX Card Brace/ 3x92MM Force induction Fans for Triple Fan Graphics Card
Six Fans static Green Color
Rear Fan/ GFX brace fan/ Water block/Motherboard Rainbow Wave
Black light strips installed around Custom Computer Stand
Green light Strips inside Computer Stand with Recessed Glass and DB Images
55" Gaming Desk with Full Mat and RGB Mouse pad
2x 27" 2k 244HZ LG Ultra Gear Monitors on Triple Arm with old Dell 24" as Portrait display
48" IPS 4k LG Smart TV mounted above on articulating arm
420W 2.1 Optical Audio VMAI Sound Bar and Sub
Black light Strips Surrounding under Desk and Behind TV
Color(s): Black Green Purple
RGB Lighting? Yes
Theme: Anime
Cooling: AIO Cooling
Size: ATX
Type: General Build
Build Updates
Re-Modified Top Case Cover, Top mounted Fans on top of the case attached to Radiator; Added custom PSU shroud
I have 3 random fans currently mounted on the top of the case attached the AIO Rad. I Ordered a 360MM single Frame 3x120 aRGB fan to mount on the top of the case. Made custom Z logo and installed it on the top cover to act as vent grille. Made a custom blacked out cover for the PSU and wires/ Made blacked out cover for 2x 3.5" storage drives at the bottom front of the machine. I ordered custom Vinyl to replace all the stickers with the white background on the top cover and the front of the case. Here's pics, 360mm single frame fan comes in the mail tomorrow and vinyl comes in on the 22nd.
Custom Shroud to cover/ Black out PSU/ Blacked out custom shroud for the 2x HDDs at the bottom right of the case.
Perfected PBO Settings and Curve Optimization/Temps/Scores
Running Stable @ w/PBO to 5.1GHz on Preferred Cores 4.7-4.9 on Non-Preferred Cores (Sleeping unused cores can clock down to 550MHZ)
PBO Set to Expert
Limits Custom 200, 120, 140
Curve Optimizer - Core 1,6,4,5 Preferred at -30,-27,-27,-26 (all other cores -20)
Overboost Postive set to 125MHz
Scaler Manual 1x
DDR4 3200 @ 14 CAS 32GB
CPUZ SC 705.6/ MC 10339
CB20 9989
CB23 24111
CPU AVG Idle Temp 35C*-37*C
CPU Max Load Temp 86.1C* When running Prime95 24hr Test
GFX Idle Temp 24*C to 29C*
GFX When Gaming 46-67c* depending on Game
Added Modified top cover and top rad fans! Blacked out space in between the HDD bays and front panel.
Added 2x 120 MM fans to externally to the top of the radiator powered by USB. Blacked out the space where the fans meet the 3.5
HDD bays. Lowered temps another 3*C and added additional Curve Optimization and PBO manual limits, 200 140 160.
Side view and blacked out where cables are routed.
