Der Eiskreislauf - V1

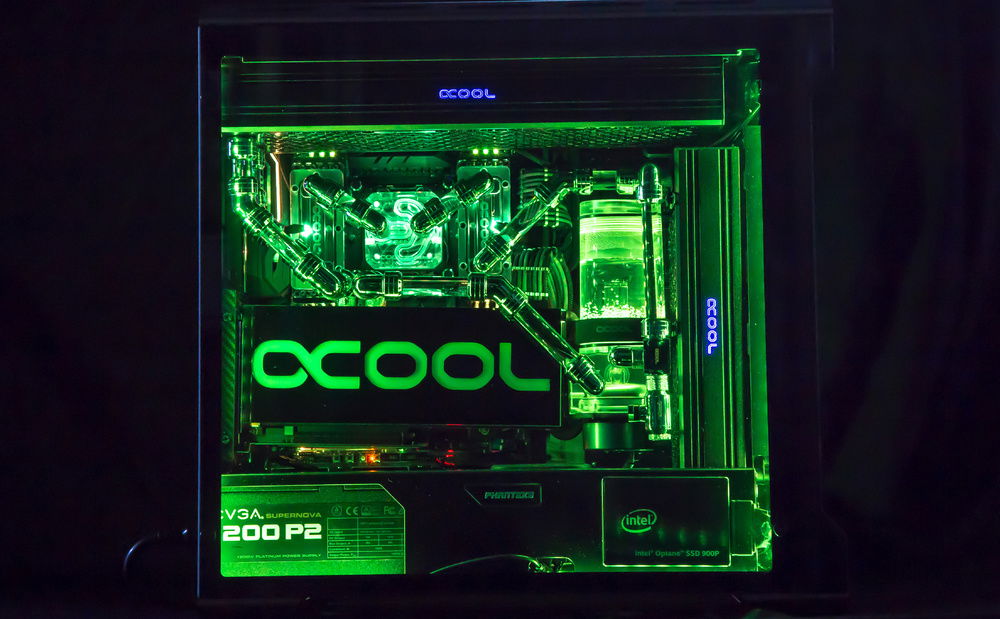

Der Eiskreislauf - "The Ice Loop" Version 1.0

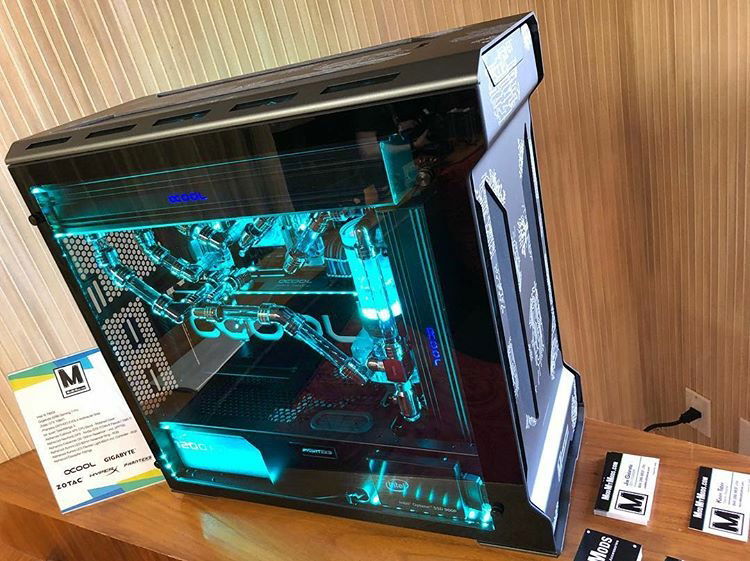

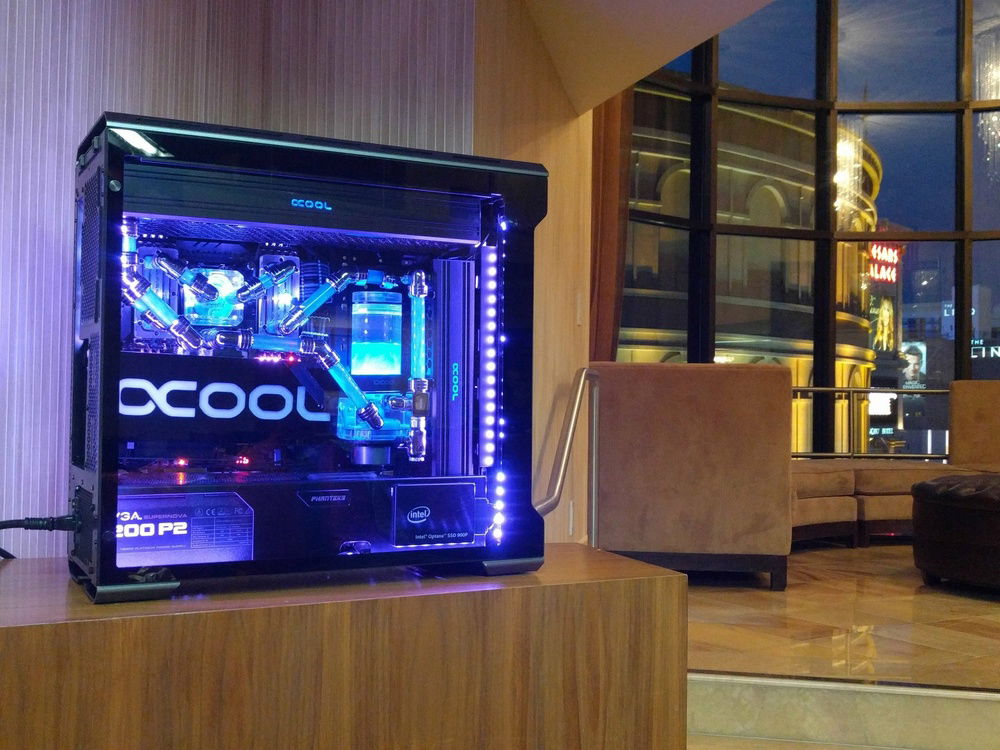

Originally built as a workhorse computer for BIGKevin (CMO of ModMyMods). Version 1 was built and completed to put on display for CES2018 in the Alphacool suite.

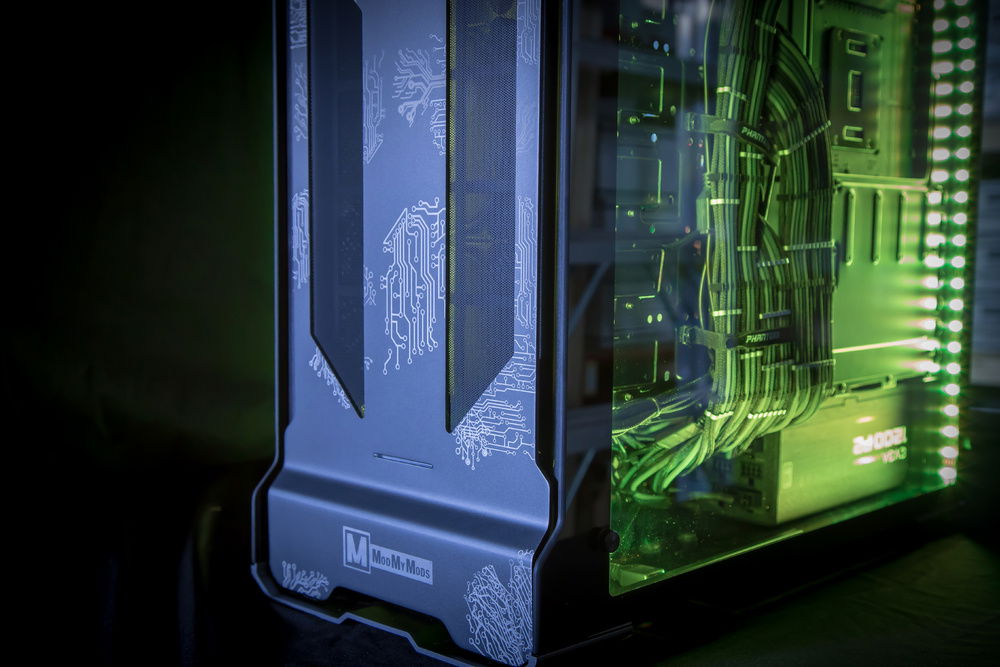

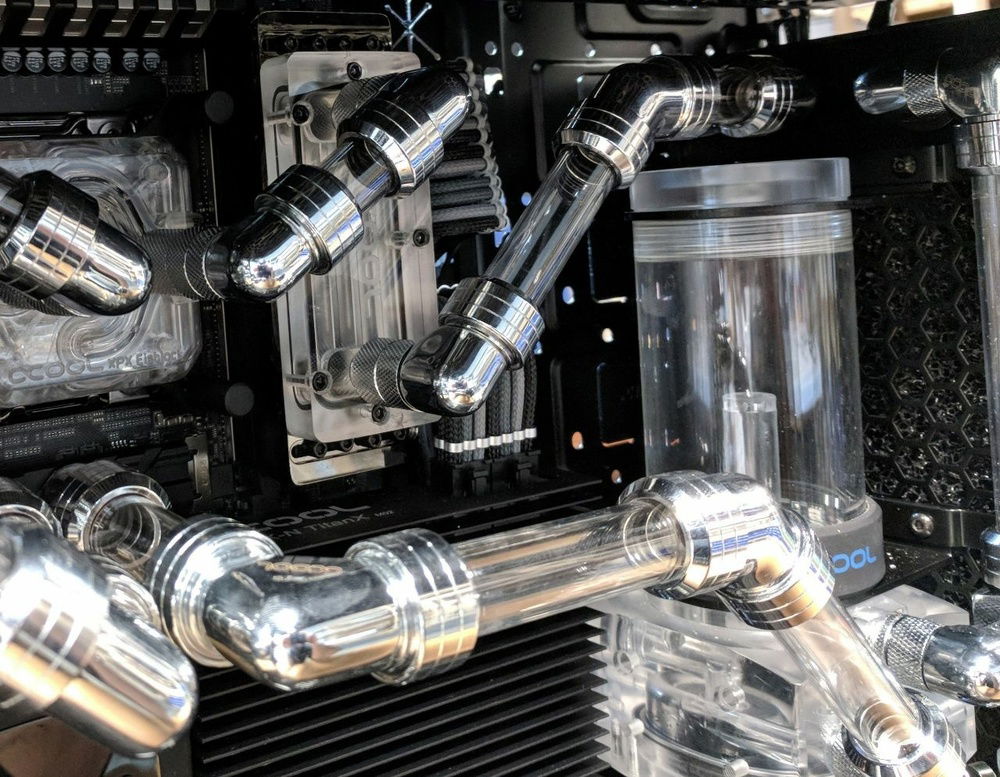

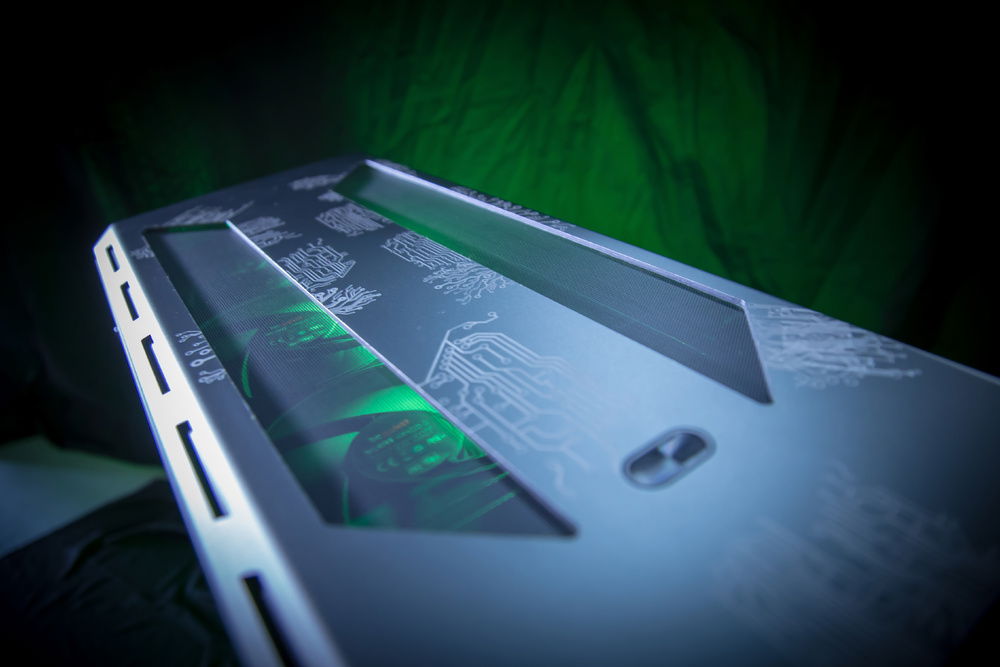

Featuring all sorts of great Alphacool goodies, the custom PC also includes various services that ModMyMods offers. We laser etched the top & front panels of the Phanteks EVOLV ATX case and cut out our infamous "air flow" design using the watercooled CNC at the shop. Since it was BIGKevin's first attempt at hard tubing, to make it easier we used fittings to make the bends allowing us to just make straight cuts. Although it was double the cost in fittings, it saved us from the headaches of bending tube. Honestly not very effective LOL. This was our first attempt at full RGB on everything using what LED strips were available at the time. This was before 5v digital RGB was even a thing and challenged us to get all of the RGB to work accordingly. This would change later on when we would recreate the build for PAX East 2018.

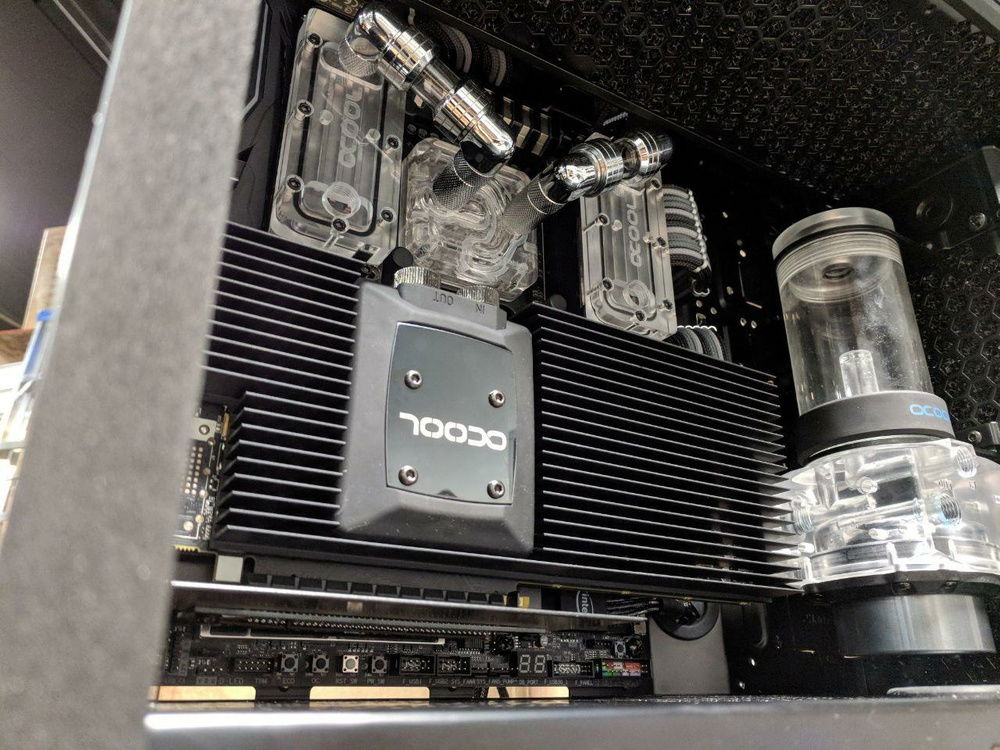

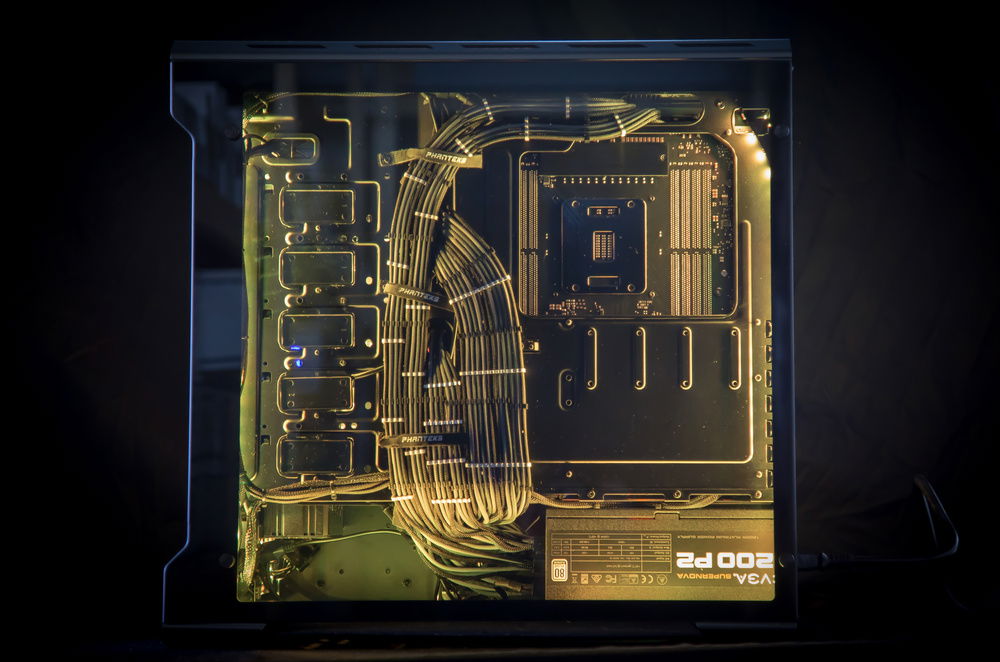

Everything from single braid cables to watercooling the RAM, all of it was custom. We tried to use all of the newly released parts from Alphacool to show off their products as well as our building capabilities. The rig featured Alphacool Eisbrecher radiators, the acrylic D5 reservoir with the VP755 pump, the plexi D-RAM X4 waterblock, the "polished" XPX Eisblock (CPU Waterblock) and the GPX-N Eisblock for GTX 1080ti (GPU Block). We worked with MR_UPC to have the cables sleeved and cut to custom length, as well as Chris.designs to add in a GPU backplate. Most of these products would be replaced the the next version of the build.
Color(s): Black Gray Silver
RGB Lighting? Yes
Theme: Brand
Cooling: Custom Liquid Cooling
Size: ATX
Type: General Build

Hardware

CPU
$ 400.00
Intel - Core i9 7900X
Socket: LGA 2066
Cores: 10
Motherboard
Gigabyte - AORUS Gaming 7 Pro
Chipset: X299
CPU Socket: LGA 2066
Size: ATX
Memory
Kingston - HyperX Fury (2400MHz) (8x)
Type: DDR4
Capacity: 4 GB
Graphics
$ 599.00
EVGA - GeForce SC Black
Chip Manufacturer: NVIDIA
Chip: GTX 1080 Ti
Interface: PCIe x16
Storage
$ 59.95
Gigabyte - M.2 PCIe
Form Factor: M.2
Interface: M.2 (M)
Capacity: 256 GB
Storage
$ 937.36
Intel - Optane 900P (2x)
Form Factor: 2.5 Inch
Interface: SATA 6 Gb/s
Capacity: 280 GB
PSU
$ 299.99
EVGA - SuperNOVA 1200
Wattage: 1200
Form Factor: ATX
Efficiency: 80+ Platinum
Case
Phanteks - Enthoo Evolv (Silver)
Type: Micro-ATX
Side Panel: Tempered Glass
Case Fan
$ 63.30
be quiet! - Pure Wings 2 (PWM) (5x)
Size: 120 mm
