Antec P120 Stealth

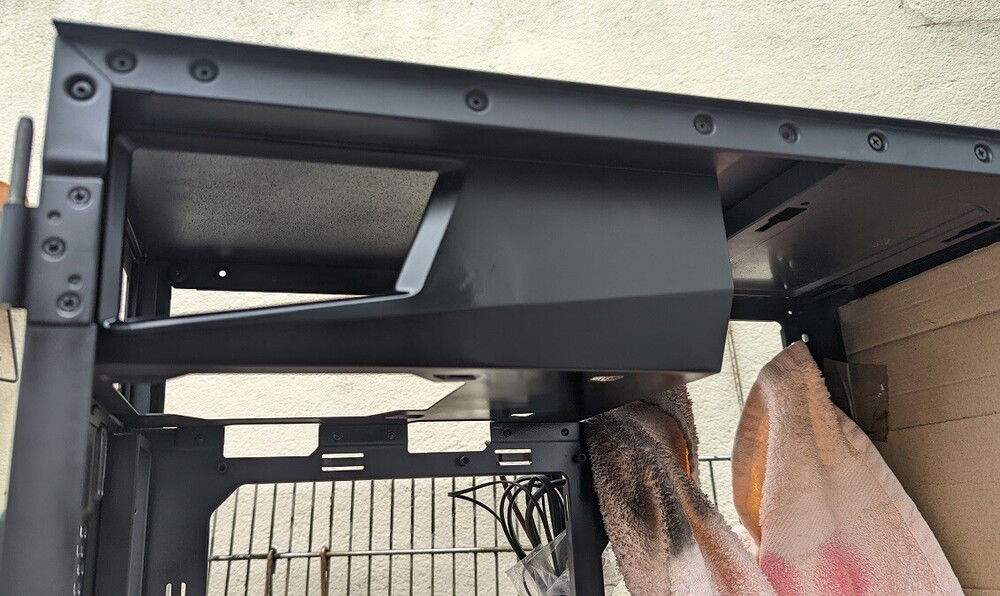

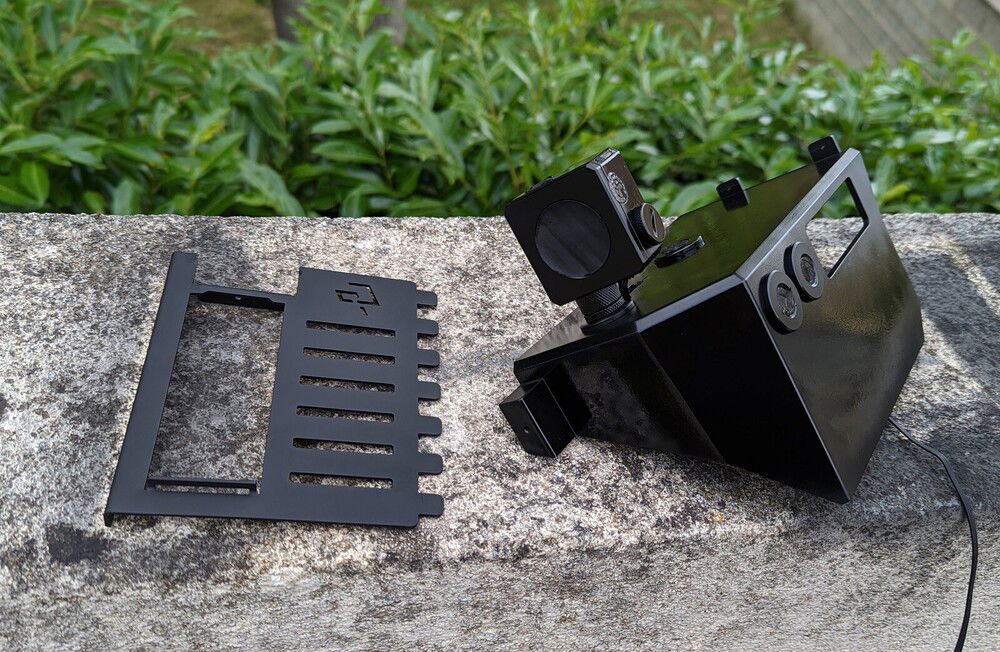

With this ''light'' modding I wanted two things, to have a personalized case but above all effective in terms of cooling and noise.

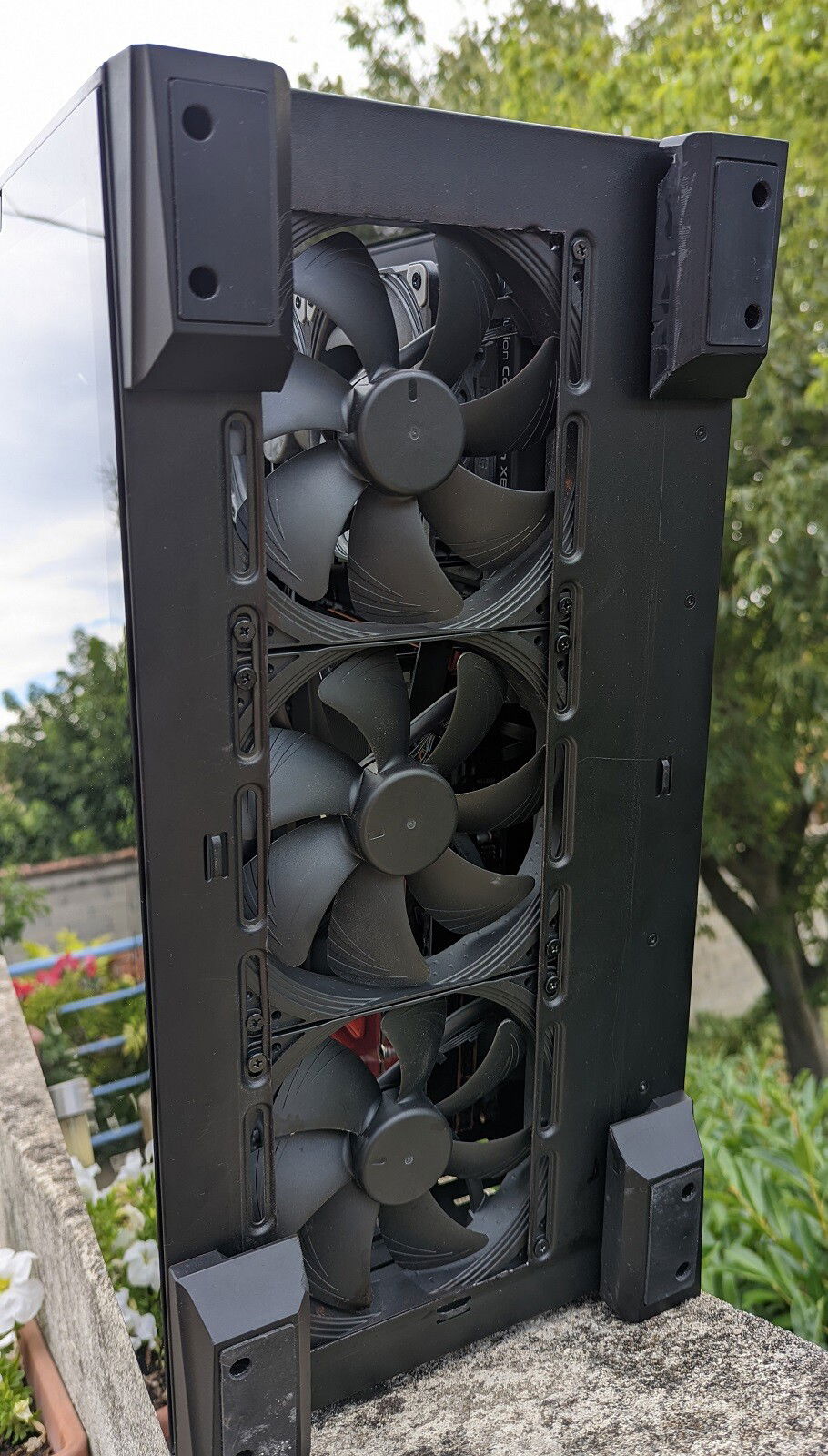

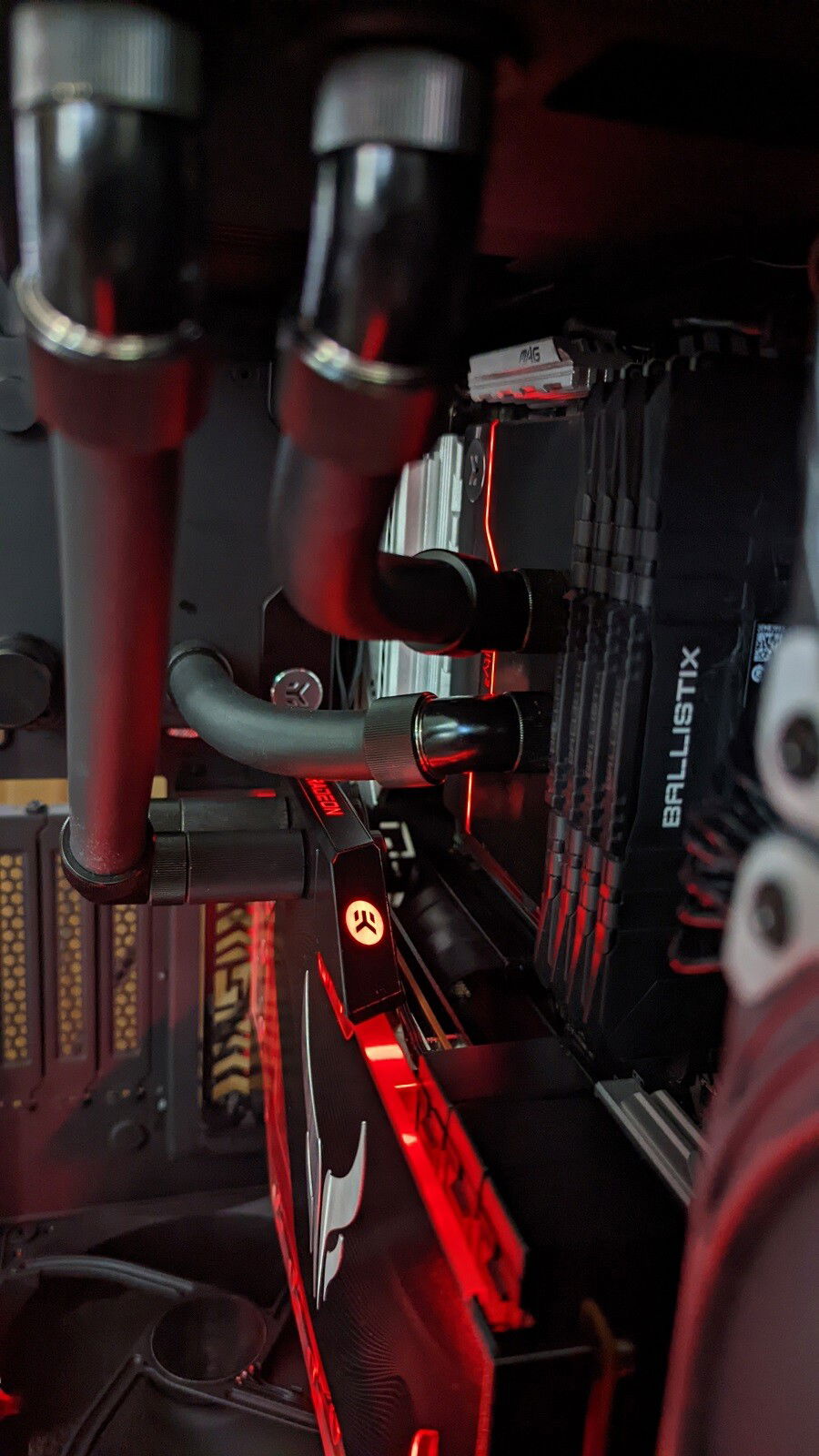

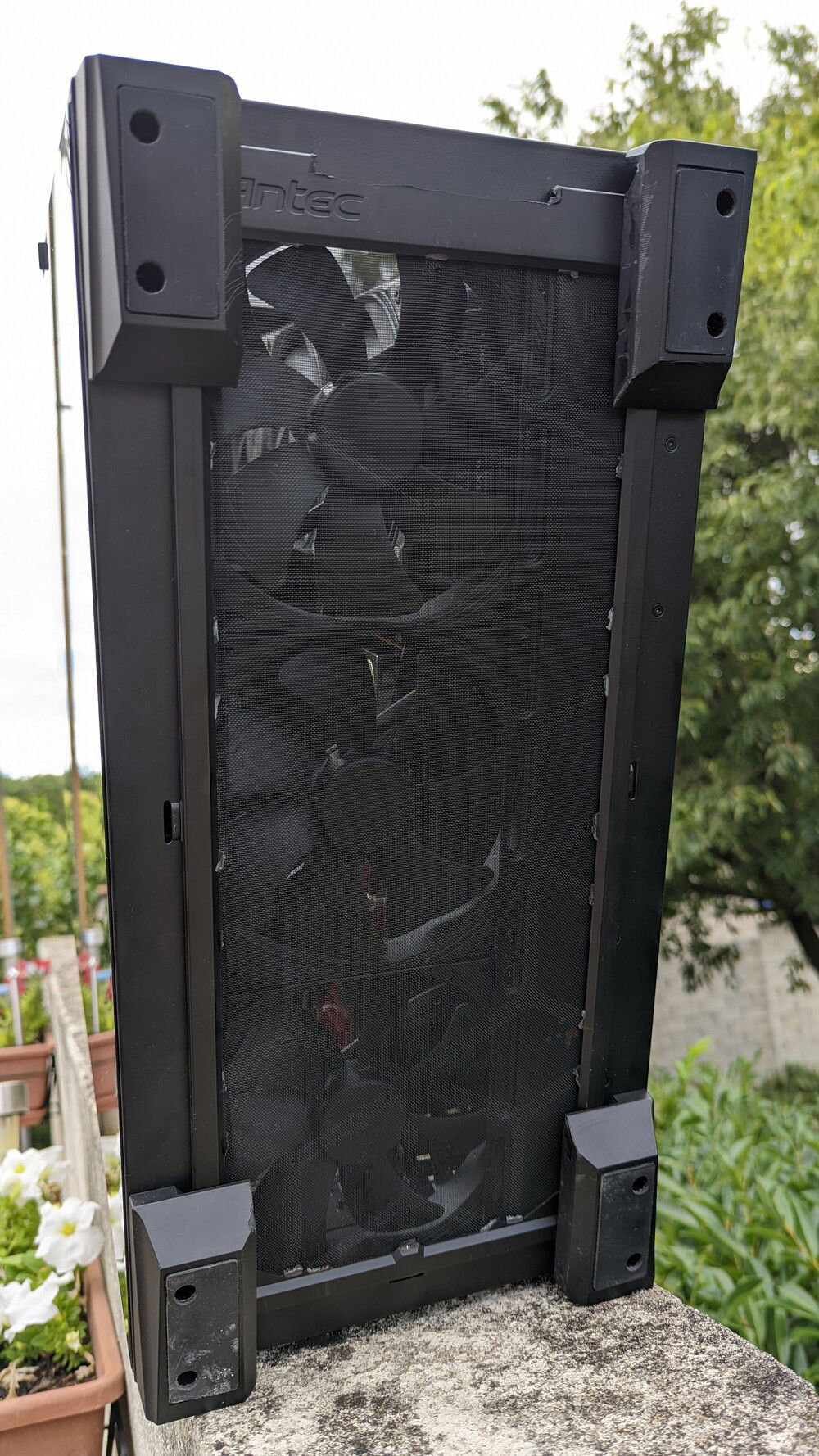

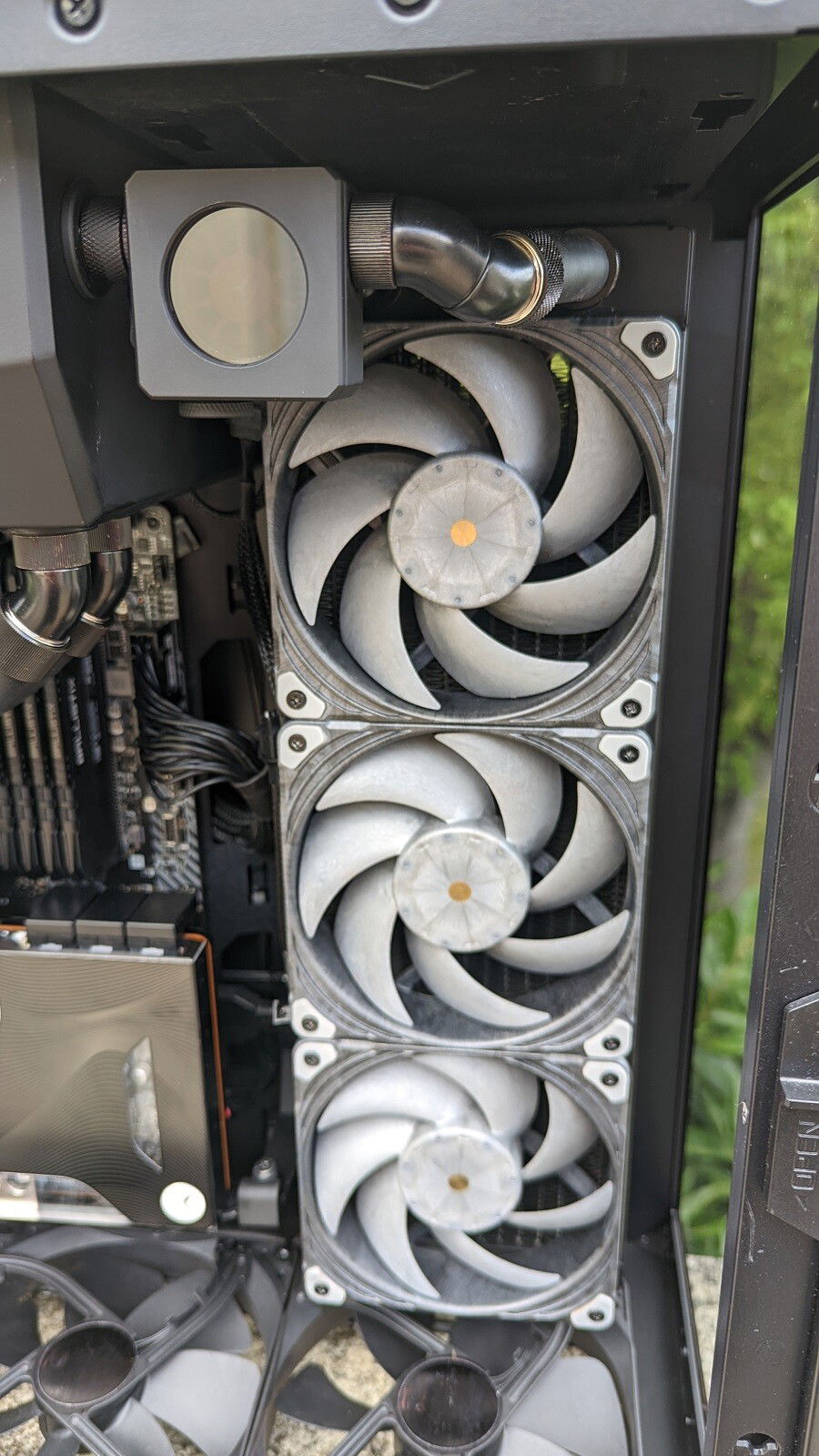

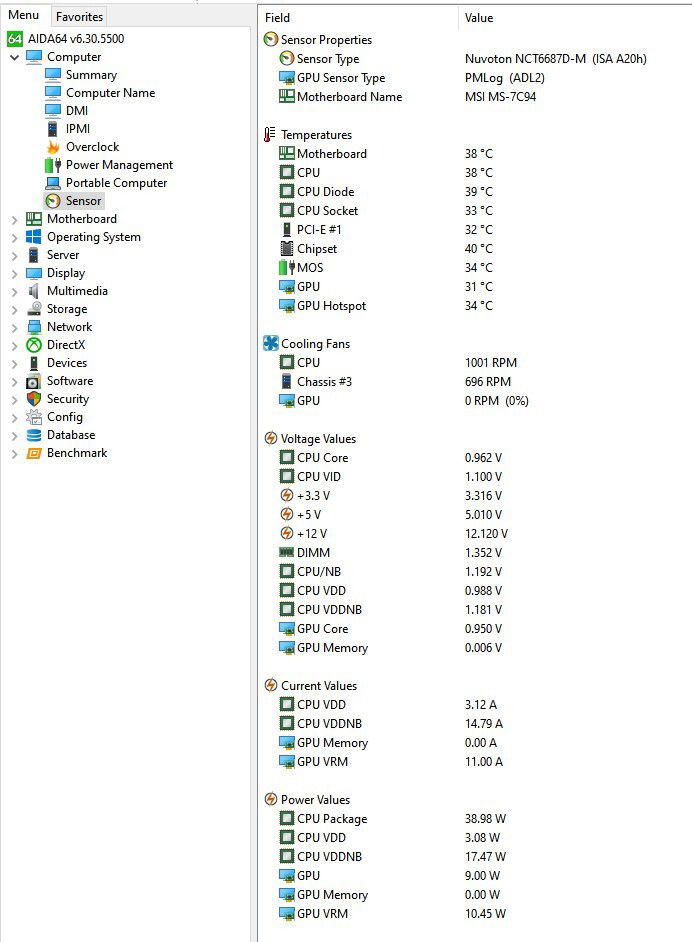

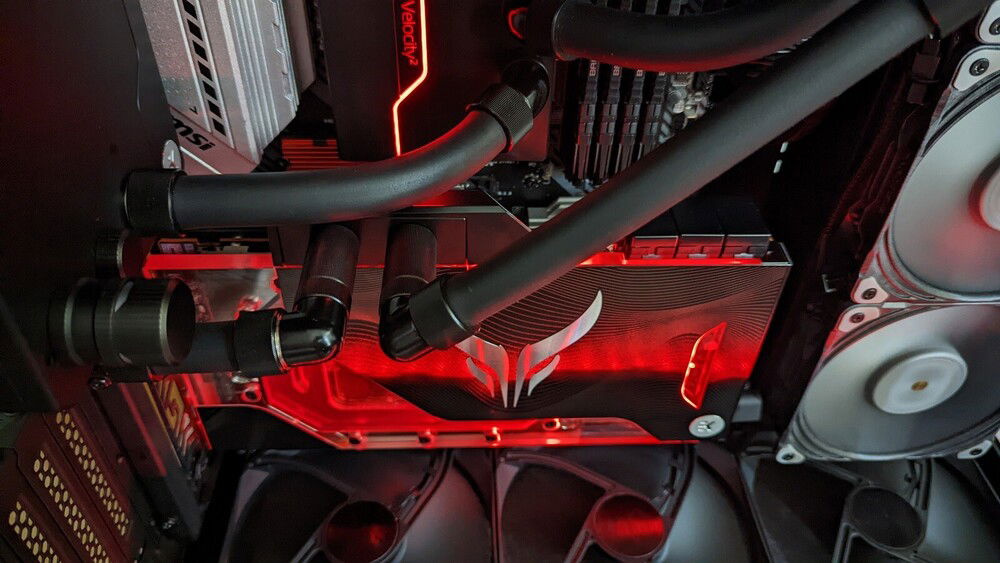

I chose x3 Noctua Chromax 140mm to inject fresh air which never exceed 60%, they have no constraints except the filter is very sufficient to have enough fresh air. For the Radiator I chose the EKWB XE360/60with 3x Phanteks T30, again for the sake of the compromise between noise and performance I set them to 75% maximum on the bios. The Velocity 2 AM4 Acetal water block seems remarkable to me, in normal operation the temperatures of the Ryzen 5800X3D are between 38°/50°. When I start a game, the temperatures of the RX6800 XT are very close to the temperatures of the 5800X3D, in short in gaming I am between 65°/78° but most often it is stable around 75° or less.

To sum up, on a single radiator, admittedly thick and of good quality, I manage to cool a fairly nice configuration in Ryzen 5800X3D with a 6800XT. I specify that I activated the MSi combo strike function in position 3, the RX 6800 XT is on automatic bios OC I did not do any manual overclocking. The case is discreet, silent with an optimal air flow it gives me a very good cooling level and without making noise.
Color(s): Black
RGB Lighting? Yes
Theme: Case Mod
Cooling: Custom Liquid Cooling
Size: ATX
Type: General Build

Hardware

CPU
$ 338.99
AMD - Ryzen 7 5800X3D
Socket: AM4
Cores: 8
Motherboard
MSI - MAG B550M Mortar Max WiFi
Chipset: B550
CPU Socket: AM4
Size: Micro-ATX
Memory
$ 169.99
Crucial - Ballistix (3600MHz) (Black)
Type: DDR4
Capacity: 32 GB
Graphics
POWERCOLOR - Radeon Liquid Devil
Chip Manufacturer: AMD
Chip: RX 6800 XT
Interface: PCIe x16
Storage
$ 75.00
Intel - 660p
Form Factor: M.2
Interface: PCIe x4
Capacity: 1 TB
Storage
$ 219.90
Samsung - 870 QVO (2x)
Form Factor: 2.5 Inch
Interface: SATA 6 Gb/s
Capacity: 1 TB
Storage
$ 197.99
Samsung - 960 EVO
Form Factor: M.2
Interface: M.2 (M)
Capacity: 500 GB
PSU
$ 568.00
Fractal Design - Ion+2 Platinum
Wattage: 860
Form Factor: ATX
Efficiency: 80+ Platinum
Case
$ 119.99
Antec - P120 Crystal
Type: Mid-Tower
Side Panel: Tempered Glass
Case Fan
$ 80.85
Case Fan
$ 89.97
Phanteks - T30 (3x)
Size: 120 mm
Cooling
$ 81.65
Cooling
Cooling
$ 223.17
Cooling
$ 128.23
Monitor
$ 510.61
Samsung - Odyssey G7
Size: 32 Inch
Panel: VA
Refresh Rate: 240 Hz
Keyboard
$ 139.99
Logitech - G815
Interface: Wired
Key Switch Type: Romer-G
Type: Full Size
Mouse
$ 129.99
Razer - Naga Hex V2
Interface: Wired
