Ailurus - Ryzen 5 1600, RX 570

This is a general purpose machine that represents my first foray into building a machine from scratch. It will be used for light gaming on occasions, but mostly for work. Building my own PC has been a dream of mine since childhood, and I never had the time or the means to make it a reality. Up to this point, I've disassembled, upgraded, and reassembled a number of older machines, but nothing of this caliber.

I started putting the ideas for this build together in early summer of 2017. I initially leaned toward an Intel system (possibly an i5 7600K)...I knew basically nothing about PC hardware, and in my mind, Intel represented quality. I started watching YouTube videos and quickly found out about Ryzen. I knew that an i5 or i7 would provide higher clock speeds for gaming, but eventually settled on Ryzen for better multithreaded performance in productivity workloads.

I started getting parts slowly in fall of 2017. I started with platform-neutral parts like the case, power supply, and SSD. I knew Coffee Lake, Ryzen 2, and potentially next gen GPU's would be out soon. When GPU prices went through the roof, my plans for a GTX 1060 went out the window. In spring of 2018, I bought a Ryzen 2200G as a short-term solution, built the system around that chip, and modestly overclocked it to 3.7 GHz on the stock cooler. Shortly after, ASUS released the Cerberus 1050 and 1050 Ti. I knew I'd only really be playing older titles (nostalgia), and those only occasionally, so I bit the bullet on the Ti model. I got it at a (relatively) reasonable price compared to the rest of the market because I nabbed it before it sold out and the price got too out of hand. When prices normalized, I eventually traded up to an RX 570.

After Ryzen 2 came out, I planned to pick up a Ryzen 2600 or 2600X, but my local Best Buy started carrying processors, and they had the 1600 (which was my original pick for this build) on sale for $159. WIth the 2600 selling for at least 30 to 40 dollars more, I didn't think the extra performance jump justified the price, especially because I was already planning to overclock.

I have this chip OC'ed to 3.9 GHz with 1.325V with an LLC setting of 4 (1 being extreme overcompensation for vDroop and 8 being max vDroop). Tested stability at 4 GHz and 1.3875 V on Prime95 Blend, and was stable for over an hour. However, eventually one core threw an error, so I backed it off to 3.9. I'd love to get to that magical 4.0 GHz, but I don't want to push voltage and temps too far.

I'm pretty happy with the way everything came out. If I had it to do again, I would have bought the CPU and GPU earlier, rather than waiting, but I had no way of knowing huge GPU price increases were coming. Did a lot of research, and though I might have tweaked a few things, I'm pretty proud of the result.
Color(s): Black Red
RGB Lighting? No
Theme: Color
Cooling: AIO Cooling
Size: ATX
Type: General Build

Hardware

CPU
$ 249.57
AMD - Ryzen 5 (1600) (YD1600BBAEBOX)
Socket: AM4
Cores: 6
Motherboard
MSI - TomaHawk Plus
Chipset: B350
CPU Socket: AM4
Size: ATX
Memory
$ 32.99
G.Skill - Ripjaws V (3200MHz) (Red)
Type: DDR4
Capacity: 16 GB
Graphics
$ 99.99
XFX - XXX Edition
Chip Manufacturer: AMD
Chip: GTX 570
Storage
$ 29.99
SanDisk - SSD Plus
Form Factor: 2.5 Inch
Interface: SATA 6 Gb/s
Capacity: 240 GB
Storage
$ 38.79
Western Digital - WD Blue Desktop (WD10EZEX)
Form Factor: 3.5 Inch
Interface: SATA 6 Gb/s
Capacity: 1 TB
PSU
$ 72.89
EVGA - 220-B3-0550-V1
Wattage: 550
Form Factor: ATX
Efficiency: 80+ Bronze
Case
$ 212.49
Phanteks - Eclipse P400
Type: Mid-Tower
Side Panel: Tempered Glass
Case Fan
$ 29.99
Case Fan
$ 59.97
Corsair - AF120 (Quiet) (Red)
Size: 120 mm
Cooling
$ 245.00

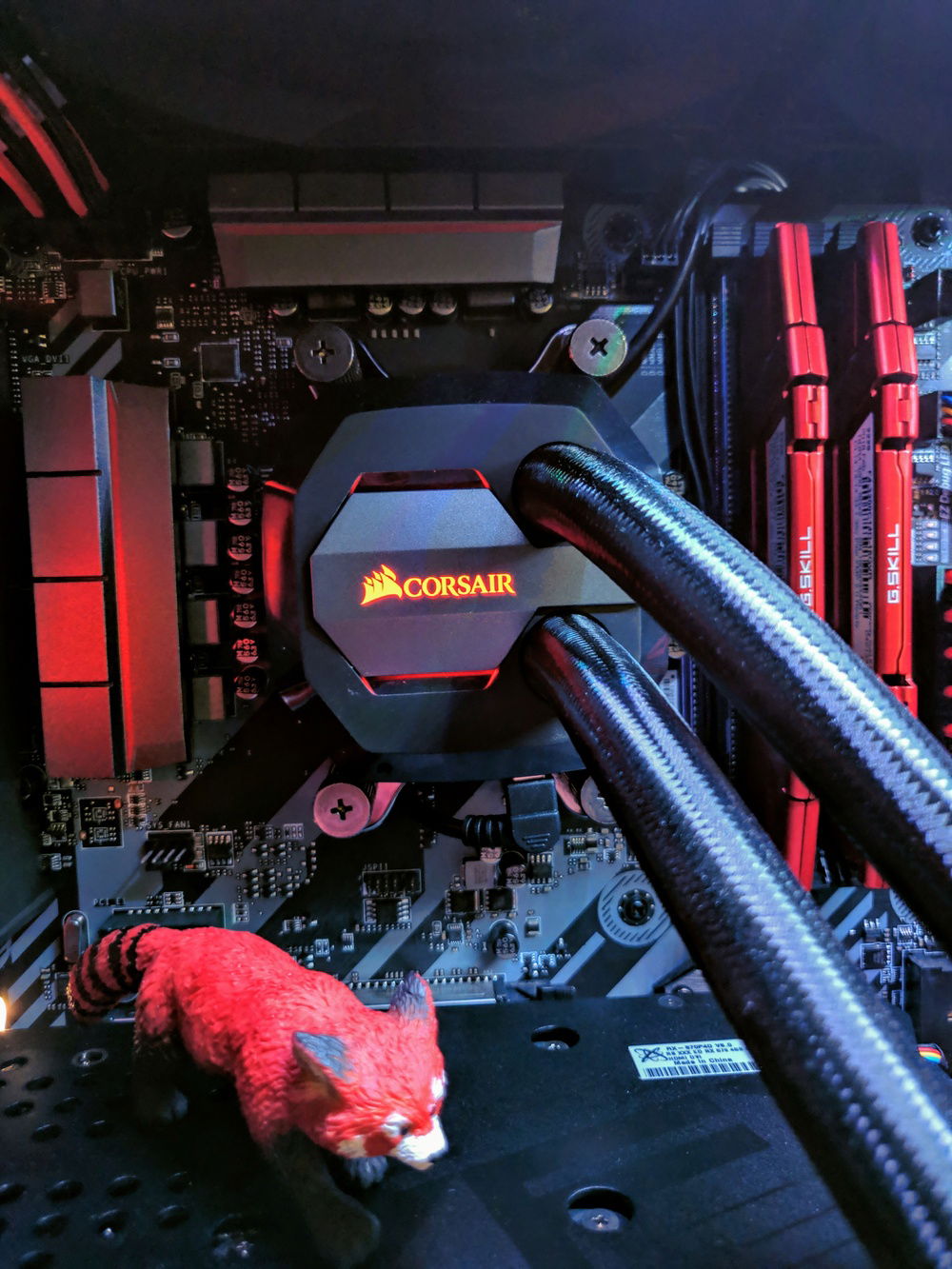

Corsair - Hydro H100i v2
Type: AIO
