Acrylic Tube

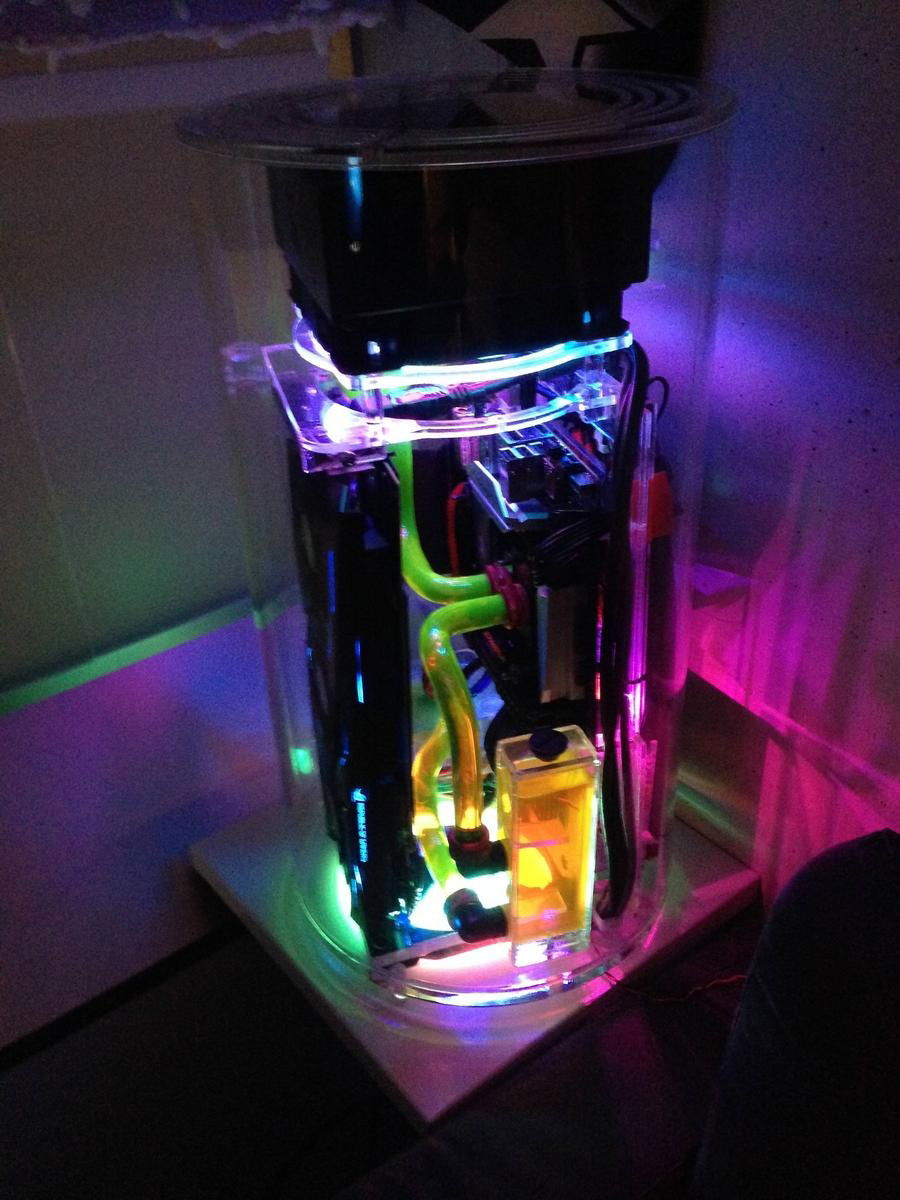

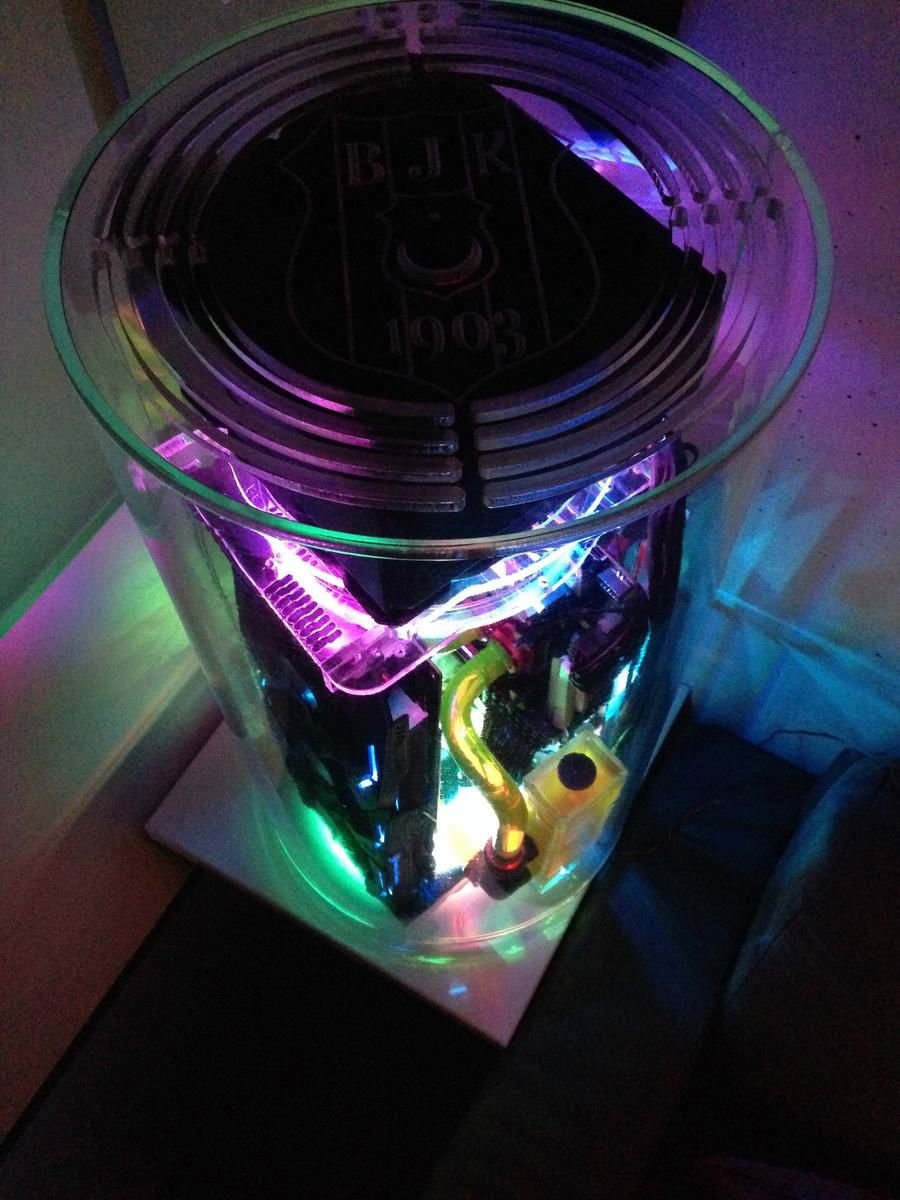

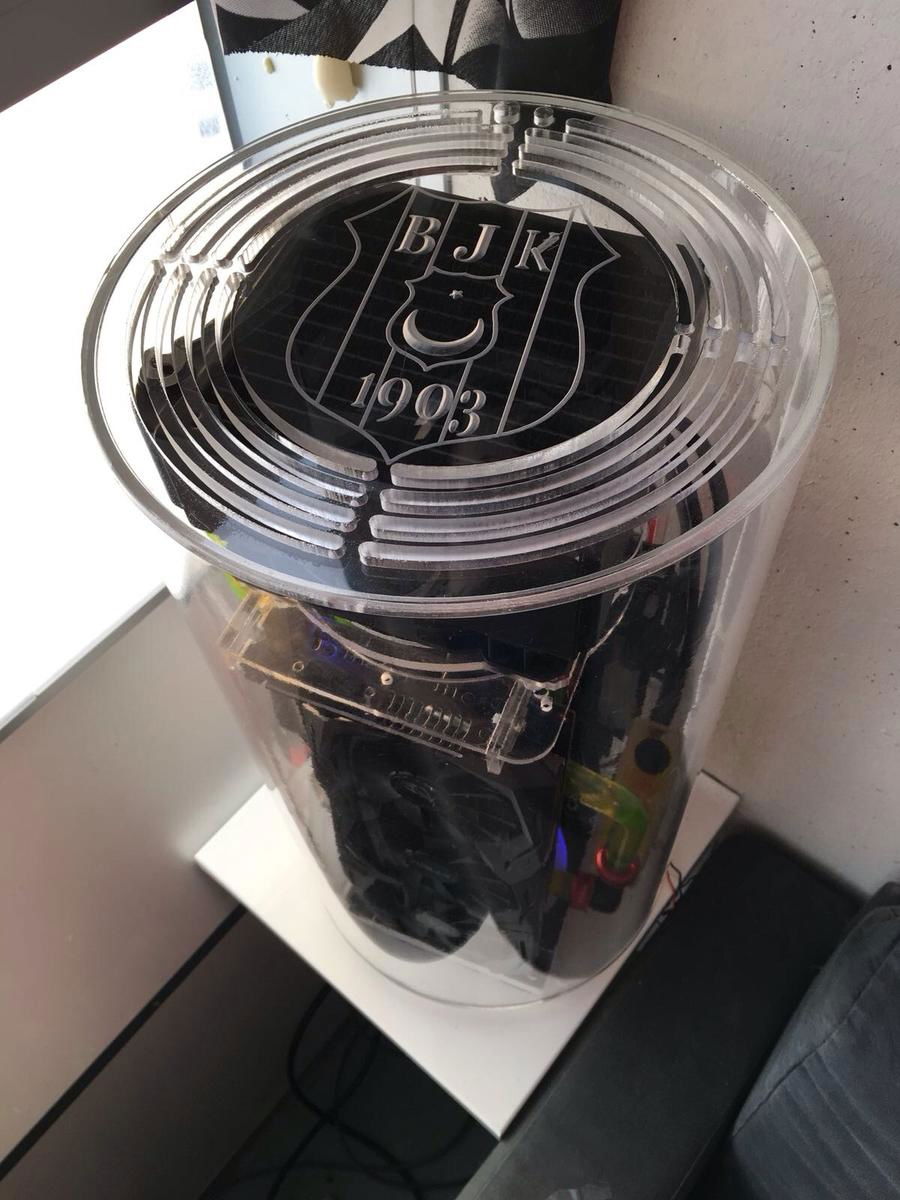

I wanted to create something different. I was tired of the standard cube shaped cases so i decided to create my own. The result is a Clear Acrylic Cylinder Shape case with custom water cooling. The dimensions are 250mm ( 9.8in ) diameter and 455mm ( 17.9in ) in height. It fitts an mITX board and a full size GPU.

My first idea was to make it 200mm (aprox 7.8in)in diameter but then i wouldnt be able to use water cooling soi decided to add a bit to the size.

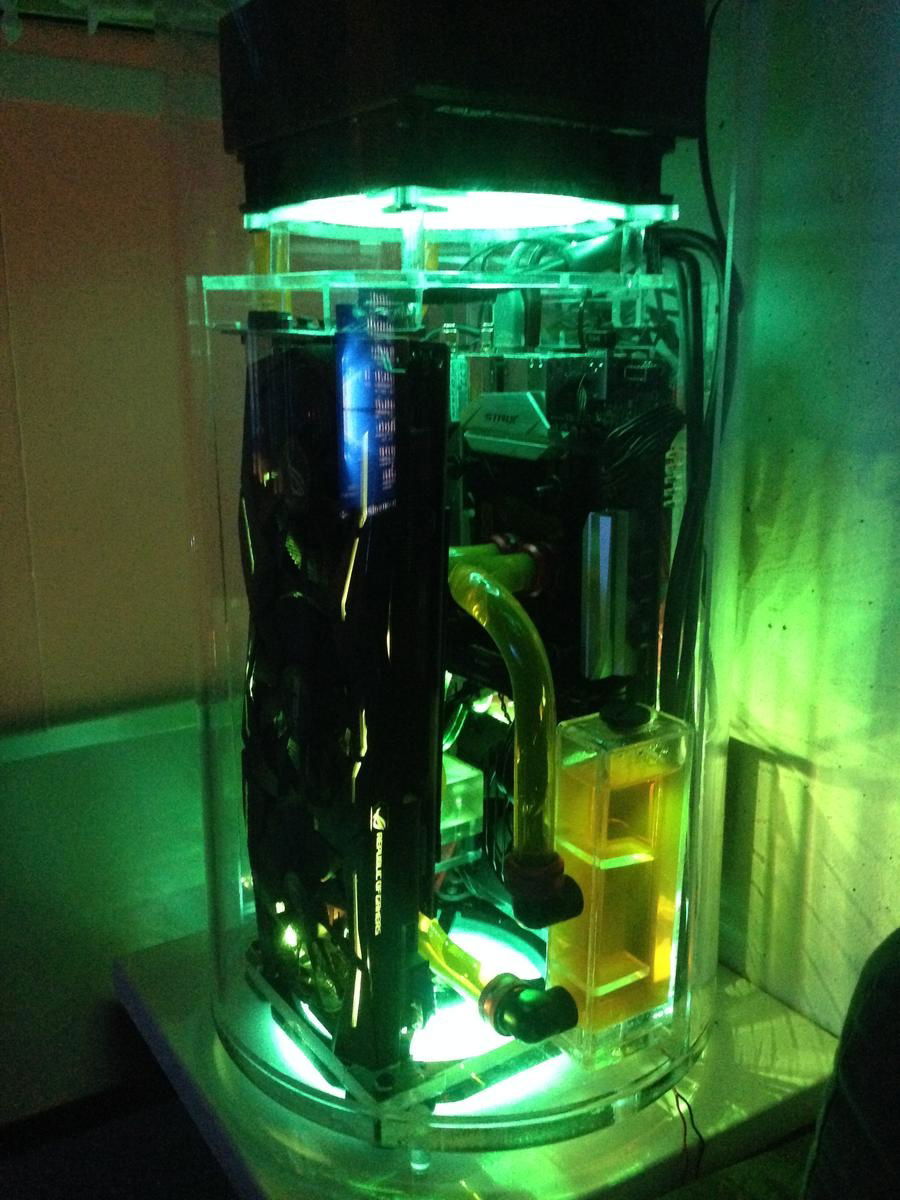

I have mounted a fan at the bottom for cold air intake and one at the top under the radiator that is blowing out. The PSU is placed ontop/beside the fan så it doesnt stand in the way for the airflow, it takes the air from inside the case and out at the bottom. I had some concerns that the hot air from the PSU would get in to the case because of the intake fan but i decided to it that way in the end and havent noticed anything on the temps.

the motherboard is placed ontop of the PSU with the connectors up, i first wanted to have all the connections down but then it would collide with the PSU, an alternative was to put the mobo more to the center but then it wouldnt fit with custom water cooling.

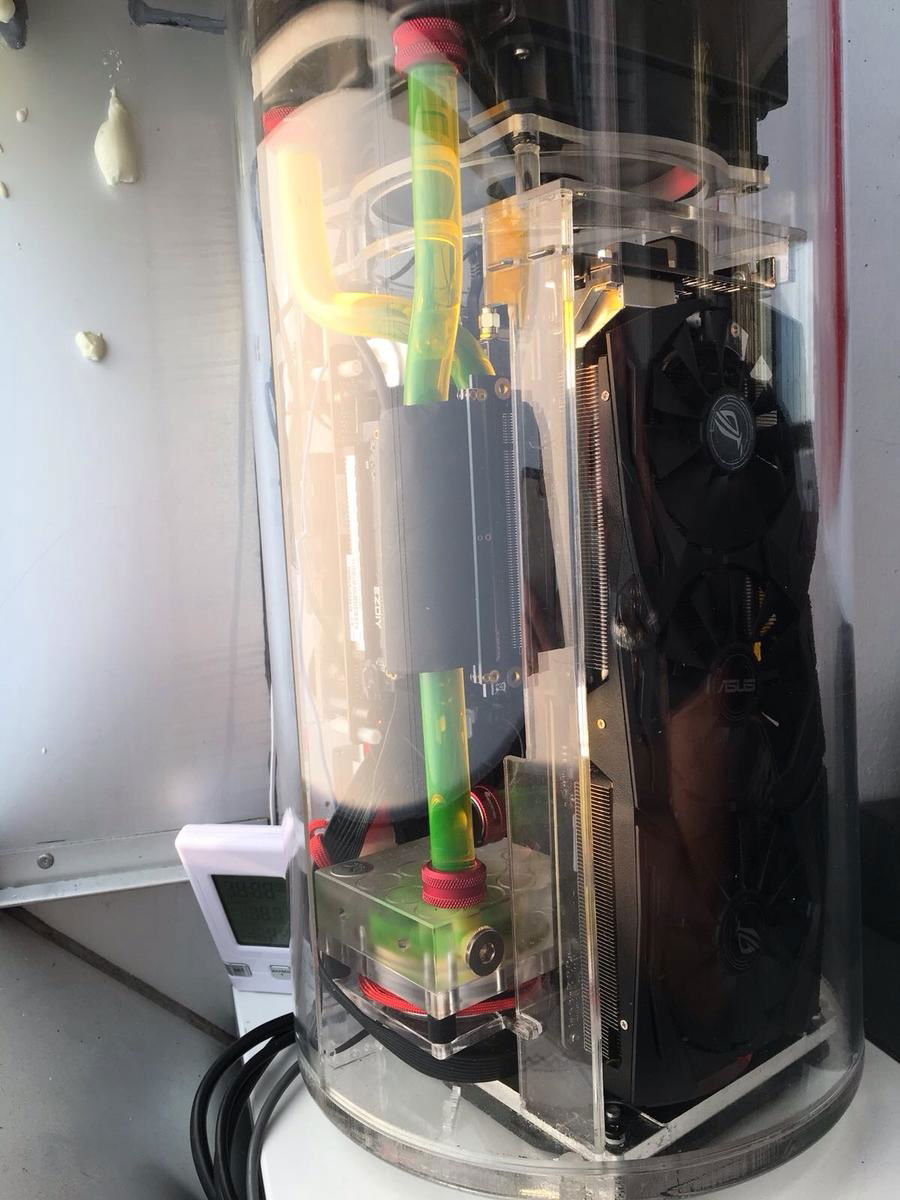

The gpu is mounted at the ''front'', and with the connection up. I thought that it would light up more but it is darker than i imagened so i have to come up with something for the GPU.

The SSD and the HDD (from a laptop) is mounted behind the motherboard/ontop of the PSU, blended with all the cables....

The only thing that im not so pleased with is the cables at the back, i started making sleeved cables but it got to bulky so i scrapped that idea, the cables and the led remote is making it really hard to hid cables so it is what it is.. turned to the wall!. in the future my plan is to mold a piece of plastic and cover it..

I designed everything in a CAD program then milled it in different thickness of Clear acrylic.

I think thats all
Color(s): Red
RGB Lighting? Yes
Theme: none
Cooling: Custom Liquid Cooling
Size: Mini-ITX
Type: General Build

Hardware

CPU
$ 117.94
Intel - Core i5-8600K
Socket: LGA 1151
Cores: 6
Integrated Graphics: Yes
Motherboard
$ 465.60
ASUS - ROG Strix (Z370-I)
Chipset: Z370
CPU Socket: LGA 1151
Size: Mini-ITX
Memory
$ 228.68
Corsair - Vengeance LPX (4400MHz) (Black)
Type: DDR4
Capacity: 8 GB
Graphics
$ 149.99
ASUS - GeForce ROG Strix Gaming
Chip Manufacturer: NVIDIA
Chip: GTX 1060
Interface: PCIe x16
Storage
Samsung - 750 EVO
Form Factor: 2.5 Inch
Capacity: 250 GB
Storage
$ 125.00
Samsung - HD502HJ
Form Factor: 2.5 Inch
Interface: SATA 6 Gb/s
Capacity: 500 GB
PSU
$ 179.98
Corsair - SF450
Wattage: 450
Form Factor: SFX
Efficiency: 80+ Gold
Case
Custom - Custom (custom)
Case Fan
$ 91.39
Corsair - LL140 (RGB)
Size: 140 mm
Case Fan
$ 91.39
Corsair - LL140 (RGB)
Size: 140 mm
