Finally powered up!
Shiny
New longer pcie cables made
Almost there
Leak testing gpu after cleaning with the custom external loop
Nearly done
Rear of custom external loop.
Internal only loop

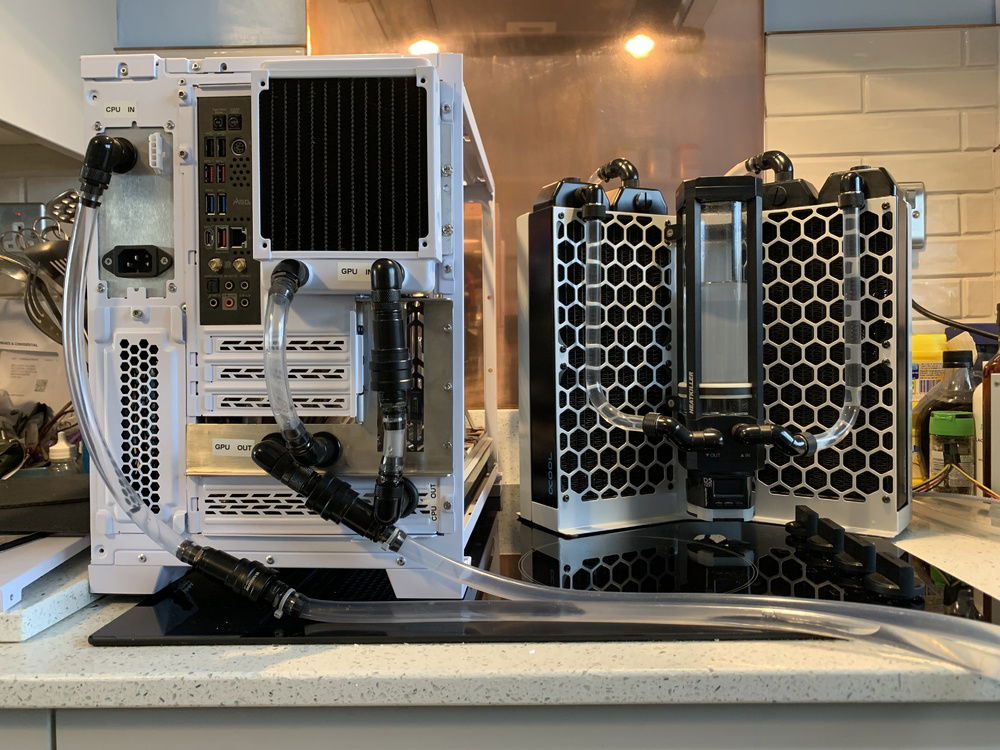

One combined internal/external loop both gpu and cpu.
Separate dual cpu internal, gpu external loops
Leak testing entire run.
That shouldn’t be there!
Final cable management.
Wait, the vertical mount isn’t out yet for the mini?
Test fitting again

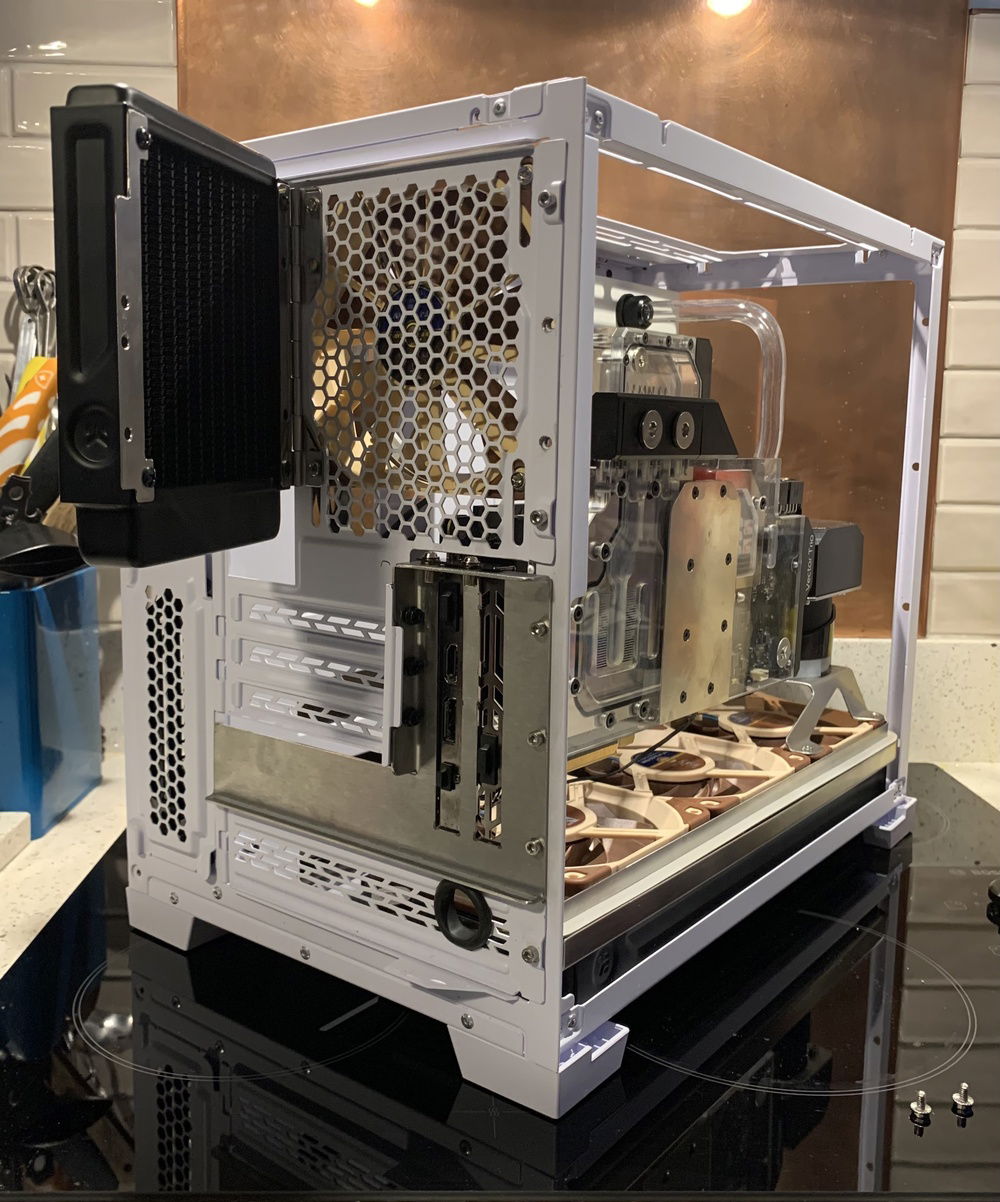

Swing out rad
Moved the badge, and made a mirror backing for the reservoir

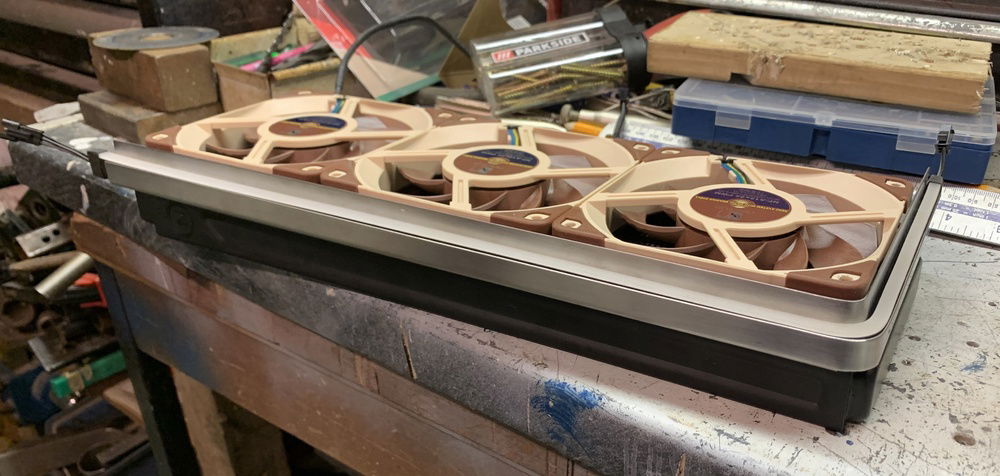

Custom brushed led strip mount
Had to trim the foot
Speed hole
Built not bought!
GPU plumbing
Pump mount made
Custom cable shroud and original psu hole blanking plate
Trial fit of psu
Pipe bending time
011D Mini with ATX PSU, configaruble internal/external loop.
A Lian Li 011D Mini, that I chopped about until I could fit a full size psu in. And made my own vertical mount as the Lian Li one isn’t available anywhere. Cooled with custom external/internal loop. Waiting on a couple of fans to finish fully.
Loop is configurable as internal only, internal and external, or dual internal/external.
Lots of custom brackets, mounts, panels and enclosures.
Modified Heatkiller res to take Aquacomputer Ultitube led ring.
MSI MEG Unify Z490 ATX
i7 10700K overclocked to 5.2 all core (although I have benchmarked at 5.3)
MSI Gaming X Trio RTX 2080
32gb G Skill Trident Z 3400mhz
2tb Adata XPG M.2
256gb Samsung 960 M.2
2x 2tb firecuda sshd
Be Quiet straight power 11 850w PSU (ATX sized!)
Custom braided cables
2x Aquacompter D5 Next
EK FLT 120
Watercool Heatkiller tube 200 D5 mount
Watercool Heatkiller D5 pump top
Watercool Heatkiller IV CPU block
EK Vector Trio GPU block
2x Alphacool XT45 280mm radiators
EK Coolstream classic 360
EK Coolstream classic 120
a mixture of Alphacool and Barrow fittings
3x Noctua NF-A12x25
1x Noctua NF-F12
4x Corsair ML 140
2x Aquacomputer Splitty 4
2x Phanteks neon strip 400mm, 1x 550mm
1x Phanteks halos lux
Various custom bits and pieces
A modified Lian Li 011D Mini
Loop is configurable as internal only, internal and external, or dual internal/external.
Lots of custom brackets, mounts, panels and enclosures.
Modified Heatkiller res to take Aquacomputer Ultitube led ring.
MSI MEG Unify Z490 ATX
i7 10700K overclocked to 5.2 all core (although I have benchmarked at 5.3)
MSI Gaming X Trio RTX 2080
32gb G Skill Trident Z 3400mhz
2tb Adata XPG M.2
256gb Samsung 960 M.2
2x 2tb firecuda sshd
Be Quiet straight power 11 850w PSU (ATX sized!)
Custom braided cables
2x Aquacompter D5 Next
EK FLT 120
Watercool Heatkiller tube 200 D5 mount
Watercool Heatkiller D5 pump top
Watercool Heatkiller IV CPU block
EK Vector Trio GPU block
2x Alphacool XT45 280mm radiators
EK Coolstream classic 360
EK Coolstream classic 120
a mixture of Alphacool and Barrow fittings
3x Noctua NF-A12x25
1x Noctua NF-F12
4x Corsair ML 140
2x Aquacomputer Splitty 4
2x Phanteks neon strip 400mm, 1x 550mm
1x Phanteks halos lux
Various custom bits and pieces
A modified Lian Li 011D Mini
Color(s): White
RGB Lighting? Yes
Theme: Case Mod
Cooling: Custom Liquid Cooling
Size: ATX
Type: General Build
Contests
This build participated in 2 contests.
| Rank | Contest | Date |
|---|---|---|
| #204 | Build of the Month - March 2021 | ended |
| #414 | EK 10K Challenge | ended |
