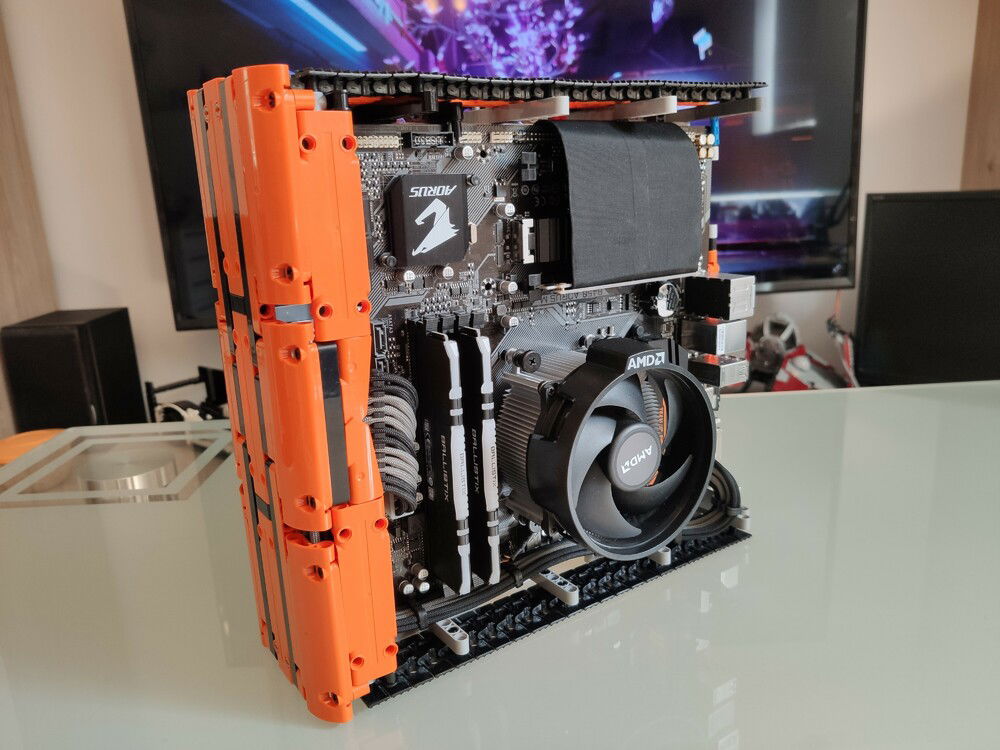

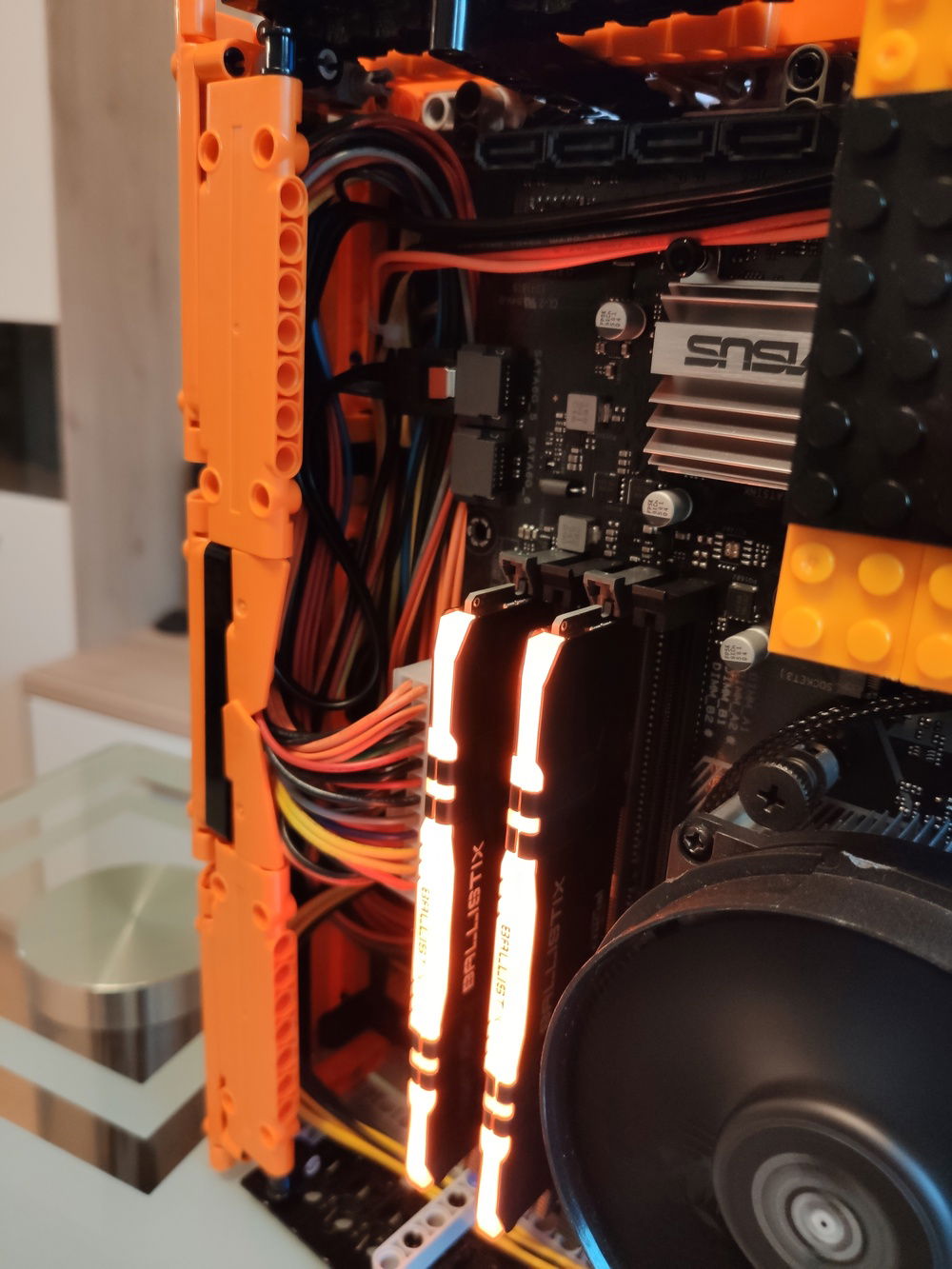

Added my own custom sleeves. :)

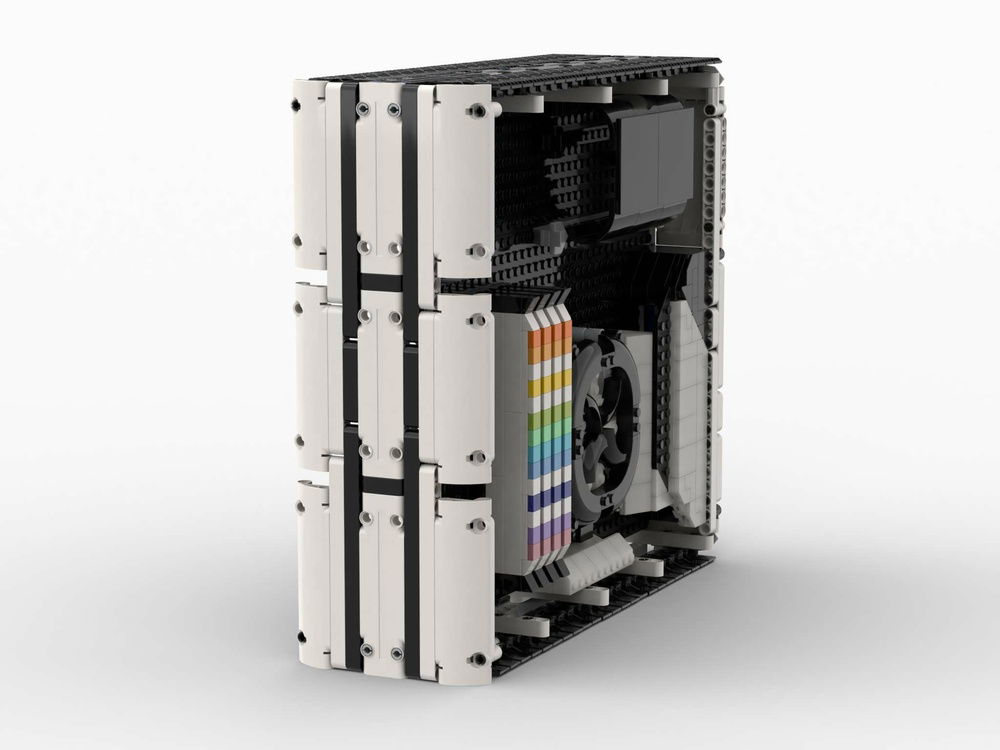

3D-Render of version 2 with LEGO-dummy components. Created in Stud.io.

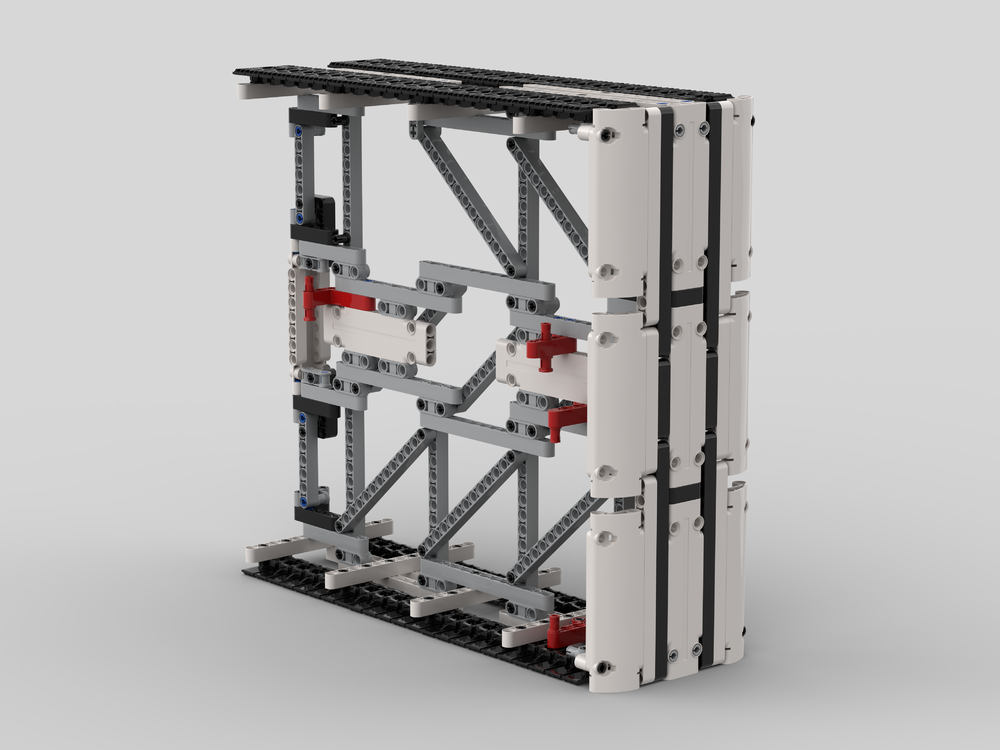

First Render of the base construction of the case in Stud.io, working on some improvements.

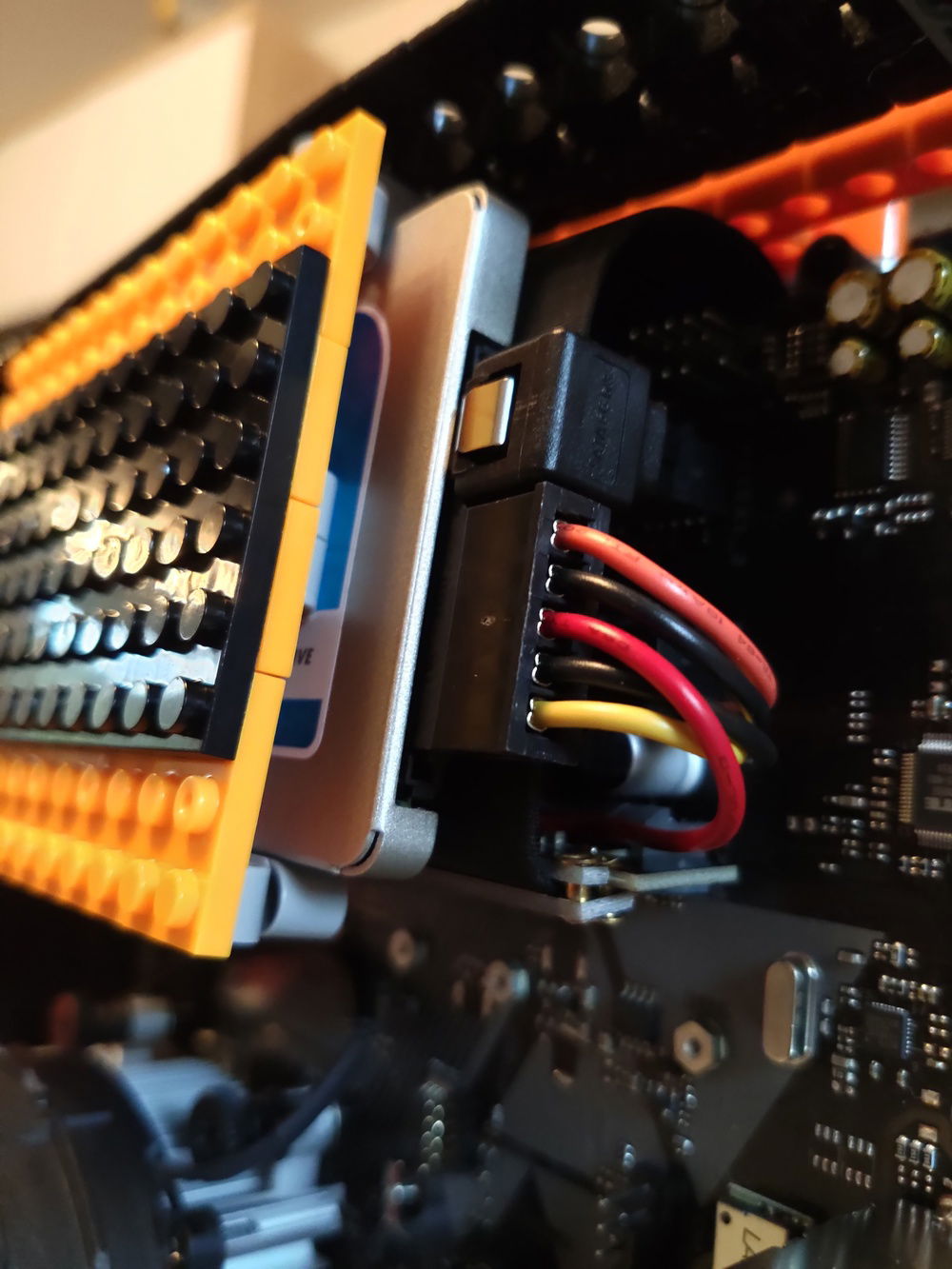

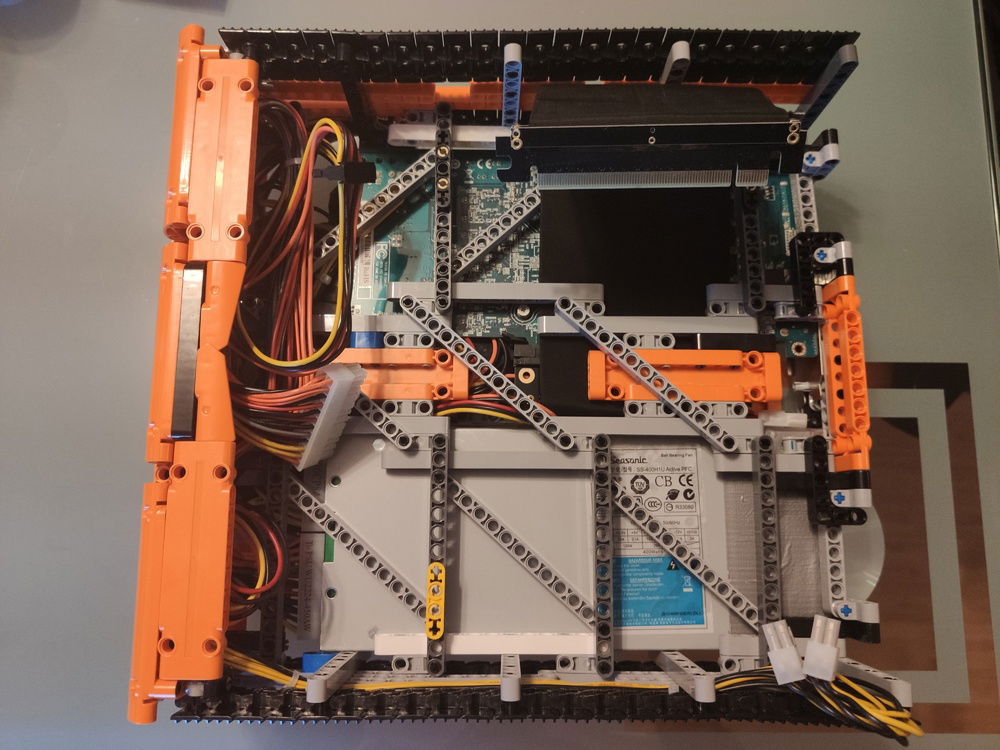

here you can see some parts of the inner constuction

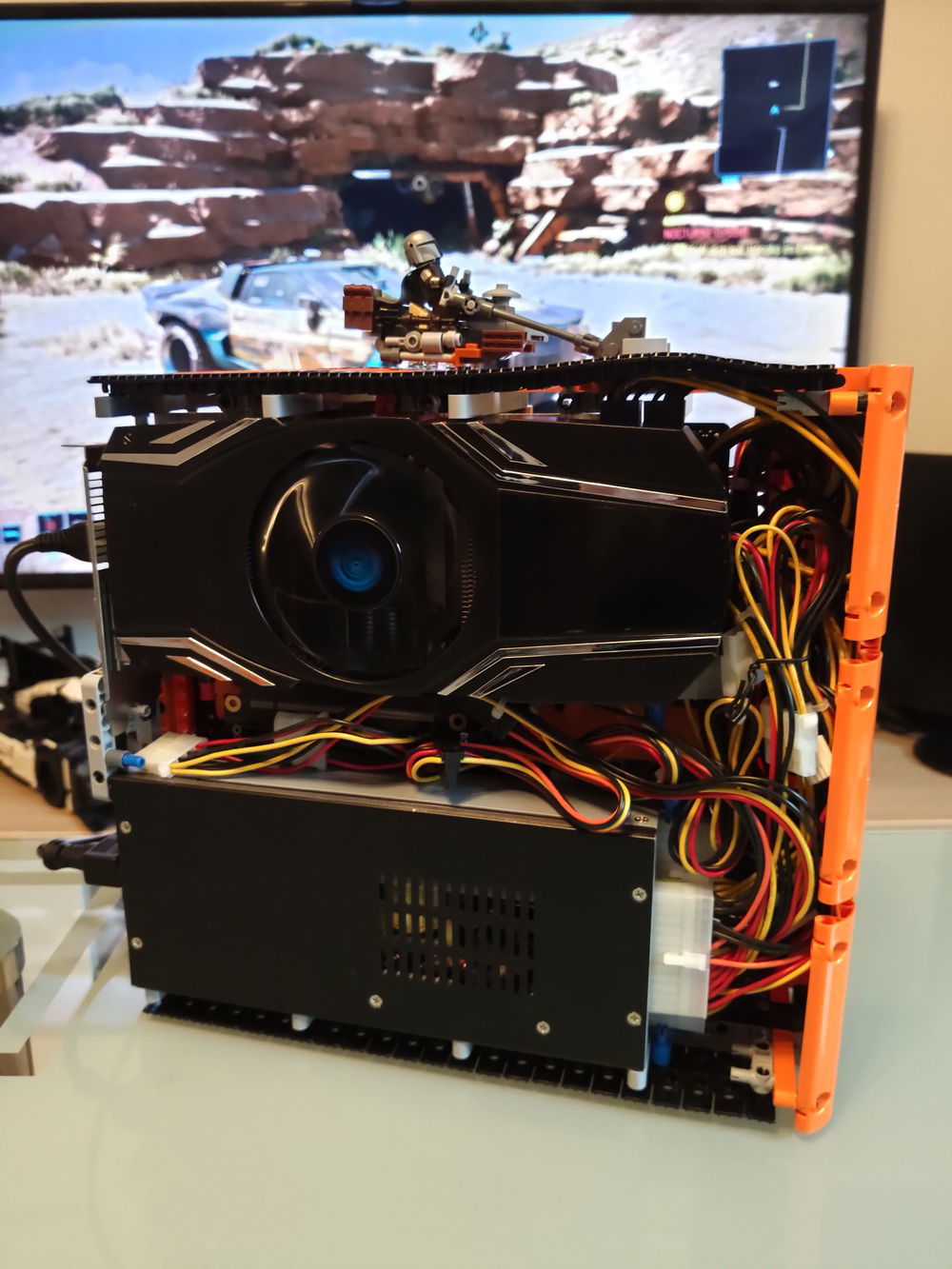

the mess without the cable cover^^
Brickbuild

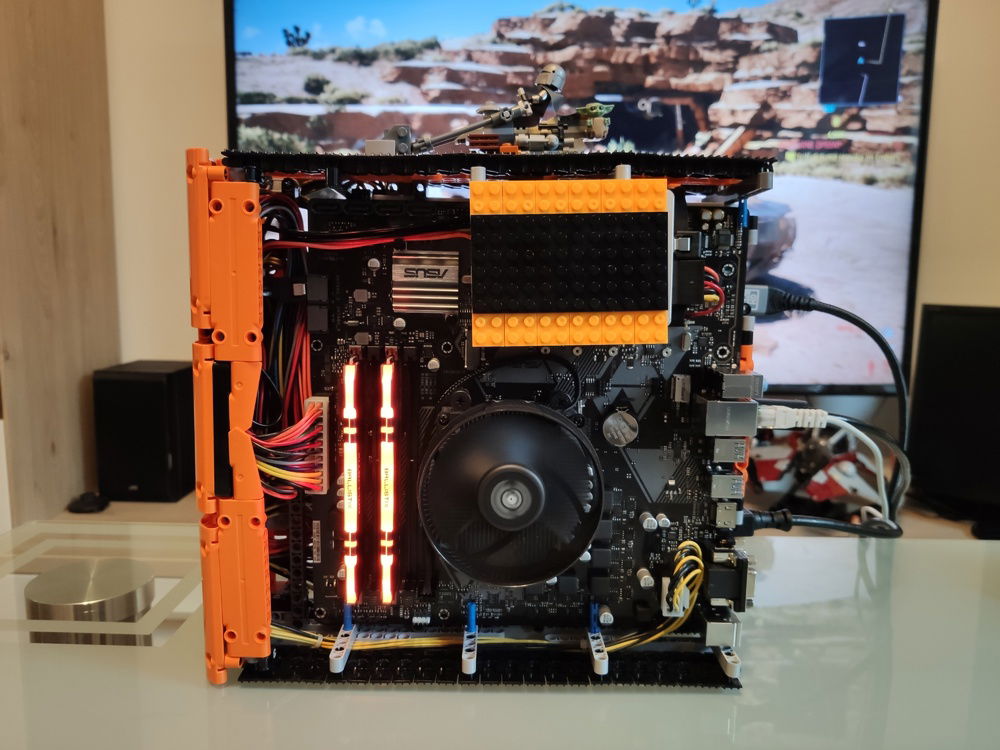

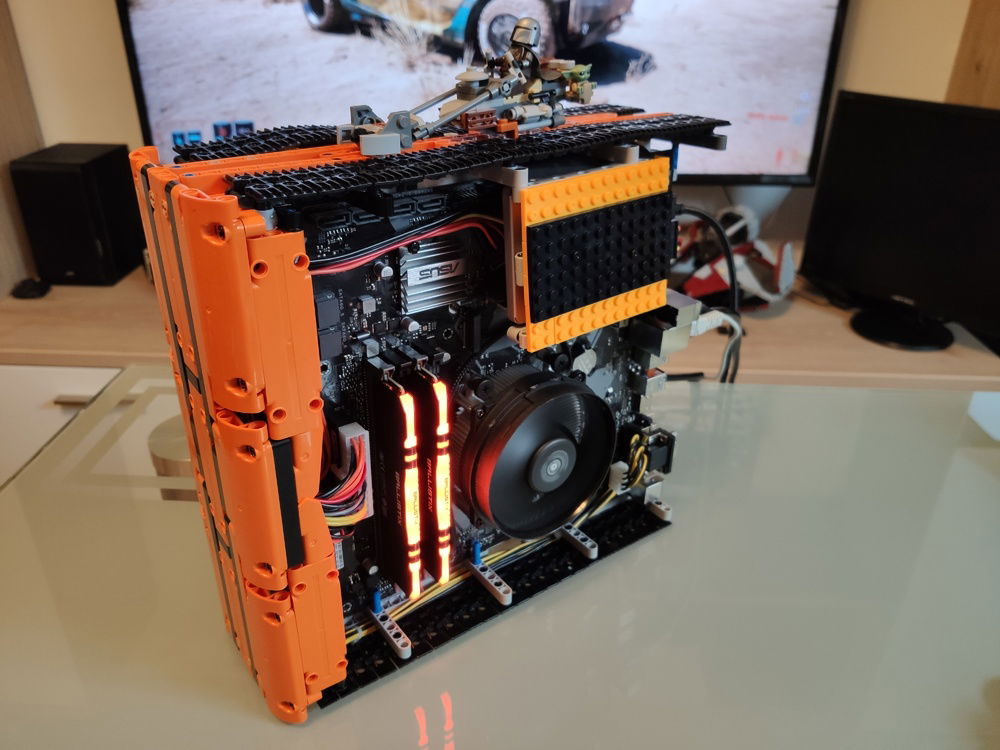

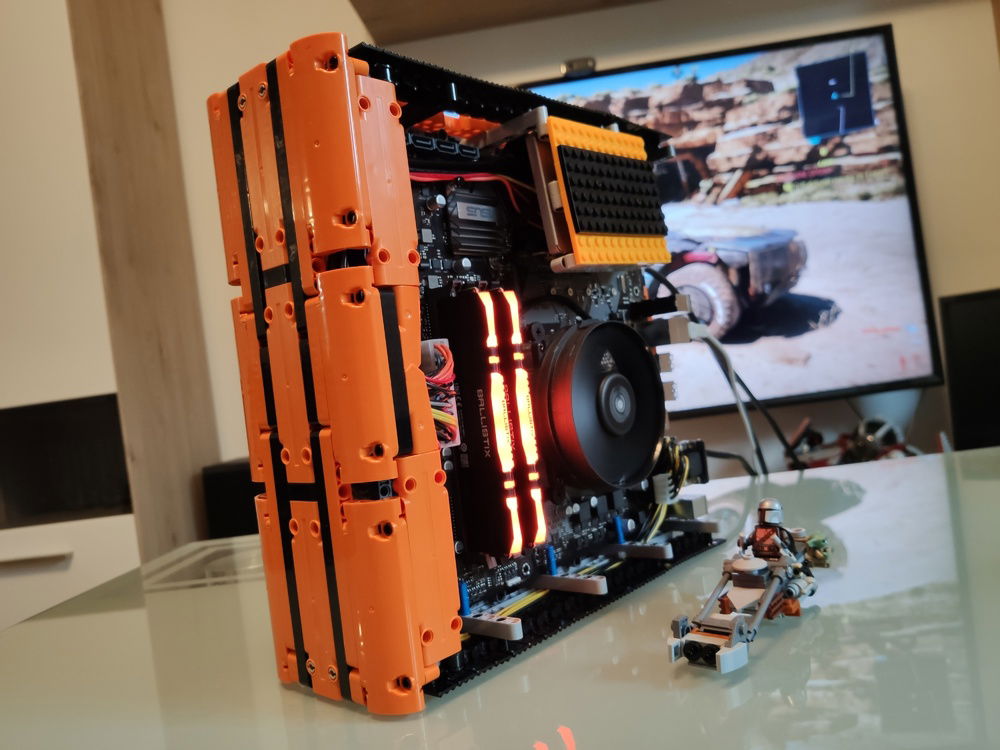

Here is my small form factor PC for you ![Emoji]()

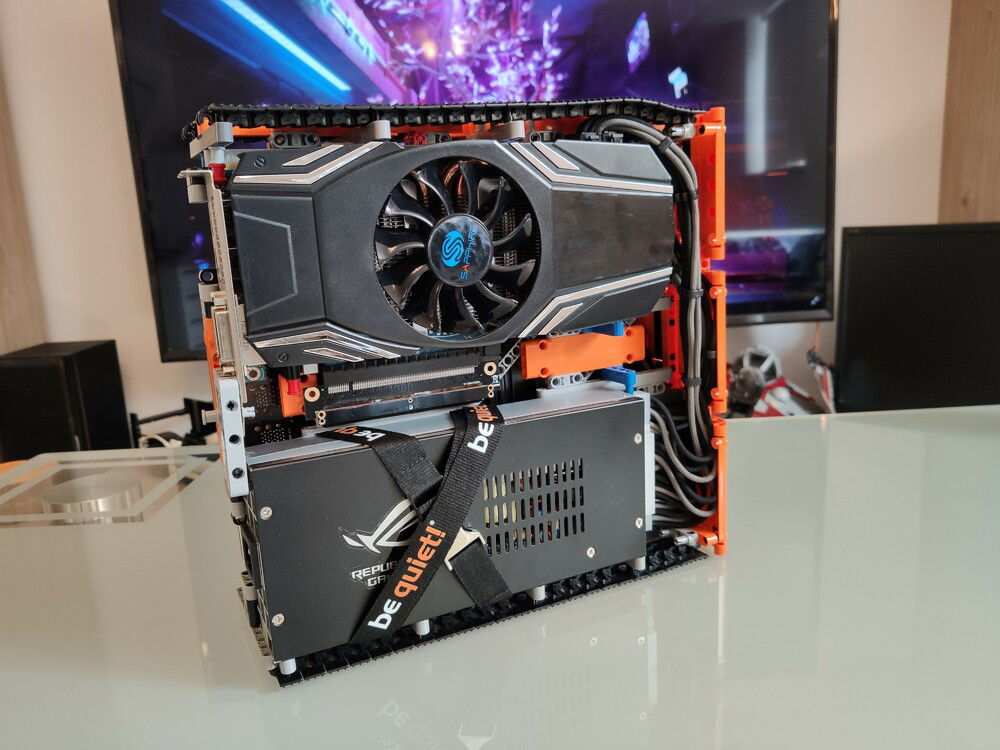

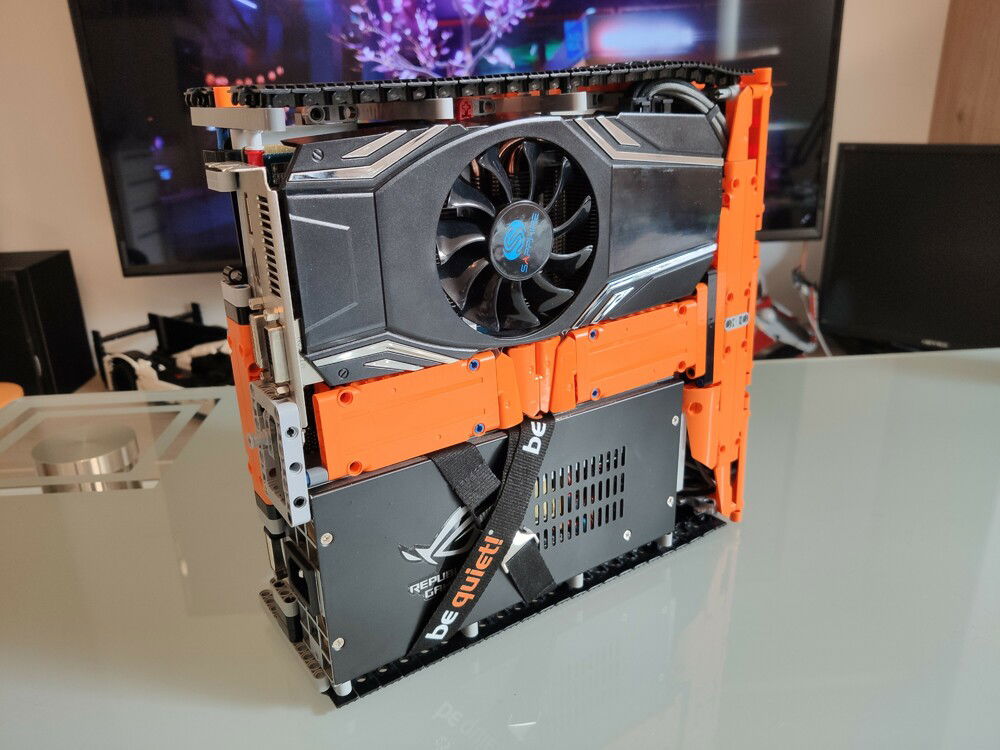

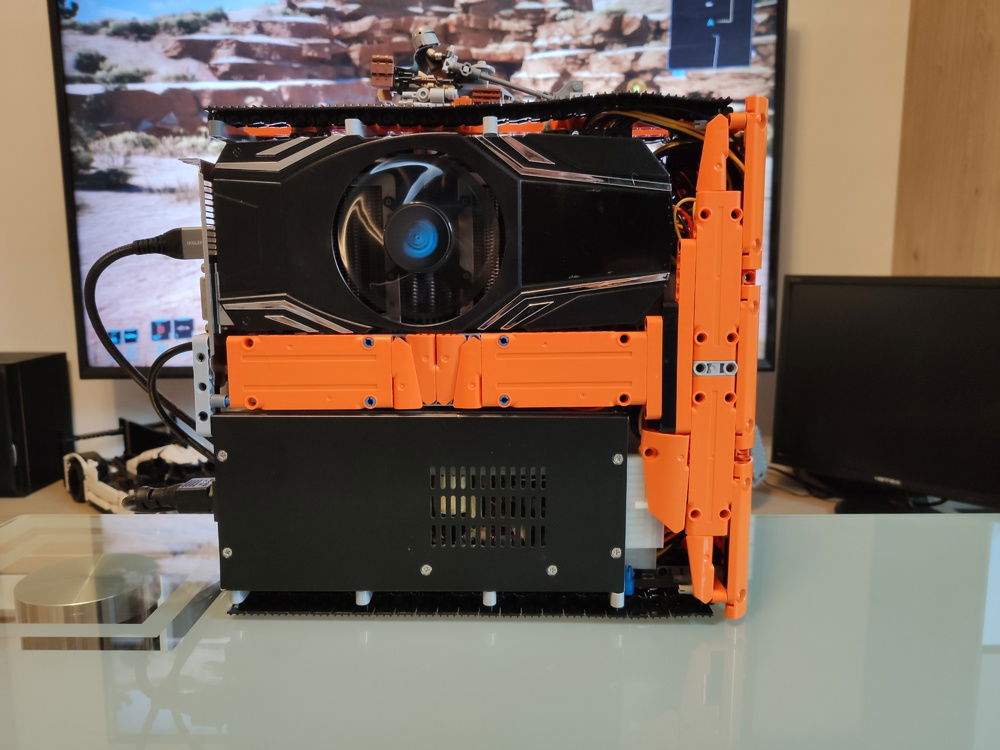

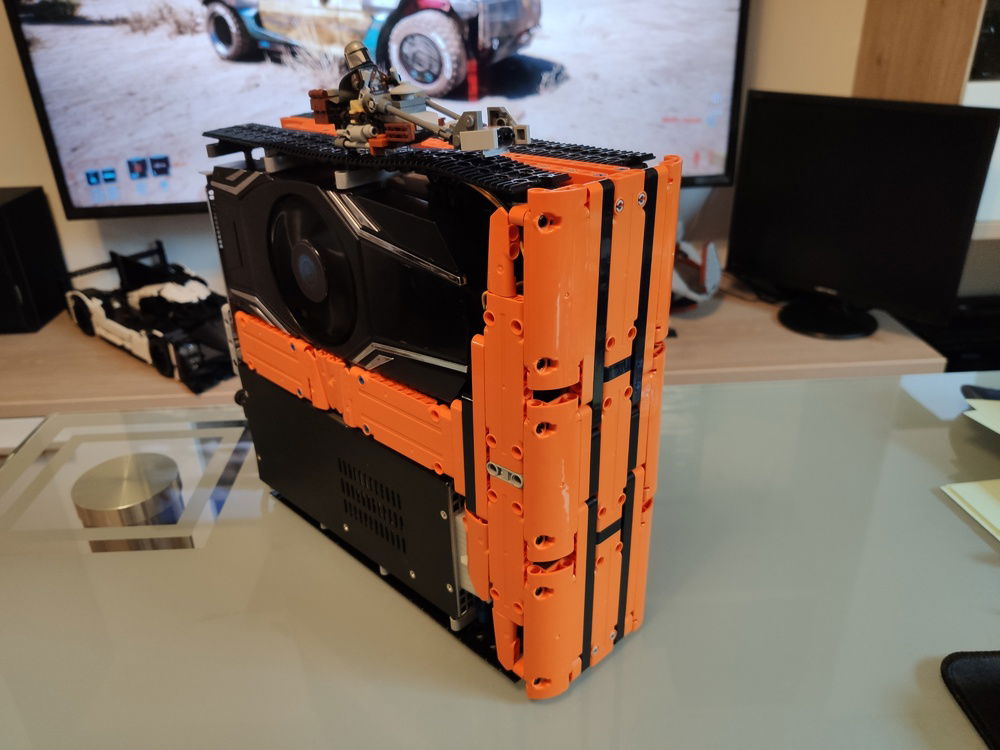

Its case is build from technic bricks/LEGO and fits an μATX motherboard, as well as an dual slot graphics card and an 1u power supply, all helt together just by bricks (no glues, no srews).

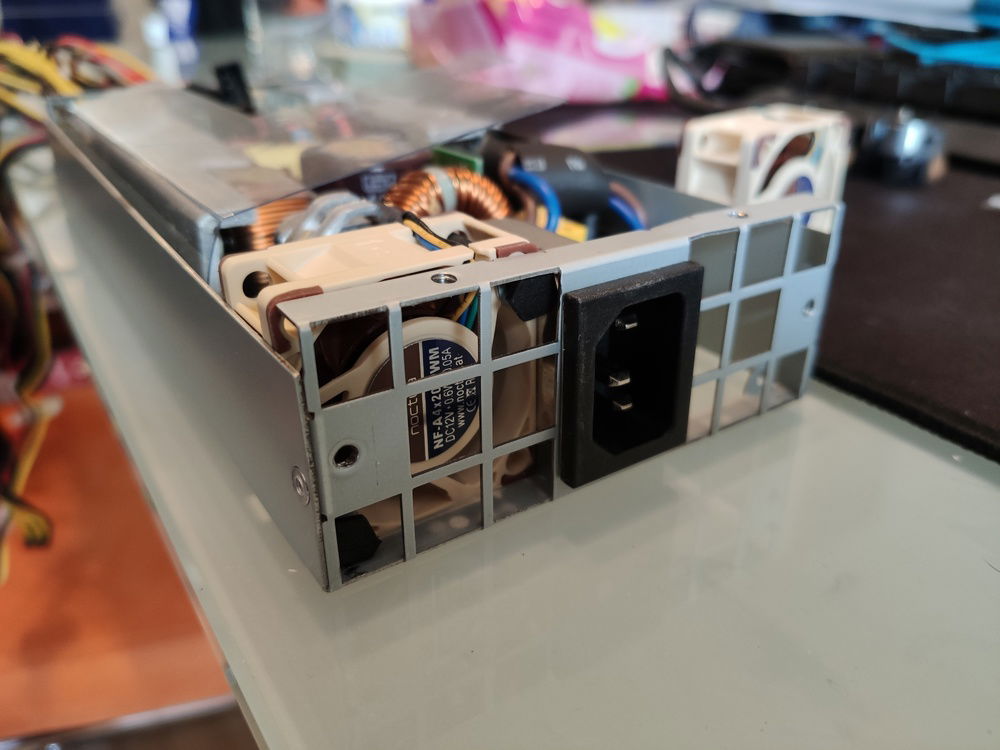

My build is featuring an AMD Ryzen 2400G, 16GB of Crucial Ballistix RGB, an HD 6870, a 500GB Crucial BX300 and a proprietary 1u psu (with some added Noctua 40mm fans to make it at least a bit quieter). Moreover I´m using a 25cm riser cable to conect the gpu to the motherboard.
The case has a size of 10×28×30cm (w×h×d), and therfore a volume of just 8.4 liter, which is pretty small for an μATX PC.

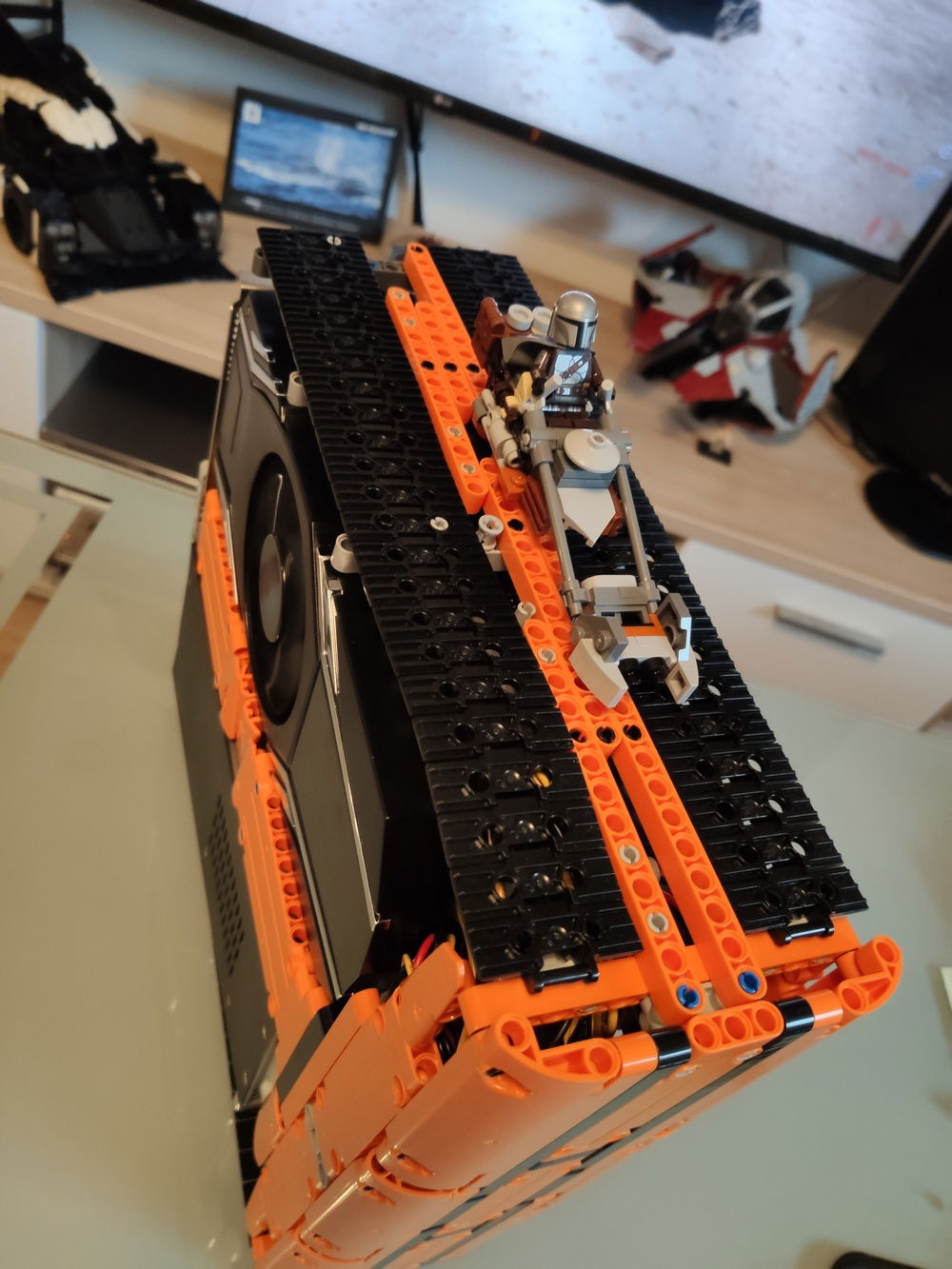

Thanks to its inner triangular construction it is actually pretty stable so that if the components inside are mounted properly the whole system can be held with one hand on the front, back or at one of the main components (cpu cooler/mb, gpu or psu).
Instructions are avaible on my instagram account.
Its case is build from technic bricks/LEGO and fits an μATX motherboard, as well as an dual slot graphics card and an 1u power supply, all helt together just by bricks (no glues, no srews).
My build is featuring an AMD Ryzen 2400G, 16GB of Crucial Ballistix RGB, an HD 6870, a 500GB Crucial BX300 and a proprietary 1u psu (with some added Noctua 40mm fans to make it at least a bit quieter). Moreover I´m using a 25cm riser cable to conect the gpu to the motherboard.
The case has a size of 10×28×30cm (w×h×d), and therfore a volume of just 8.4 liter, which is pretty small for an μATX PC.
Thanks to its inner triangular construction it is actually pretty stable so that if the components inside are mounted properly the whole system can be held with one hand on the front, back or at one of the main components (cpu cooler/mb, gpu or psu).
Instructions are avaible on my instagram account.
Color(s): Black Orange
RGB Lighting? Yes
Theme: none
Cooling: Air Cooling
Size: SFF
Type: General Build
Contests
This build participated in 9 contests.
| Rank | Contest | Date |
|---|---|---|
| #31 | Build of the Month - December 2021 | ended 2021-12-27 |
| #48 | Build of the Month - November 2021 | ended 2021-11-27 |
| #49 | Build of the Month - October 2021 | ended 2021-10-27 |
| #39 | Build of the Month - September 2021 | ended 2021-09-27 |
| #55 | Build of the Month - August 2021 | ended 2021-08-27 |
| #49 | Build of the Month - July 2021 | ended 2021-07-27 |
| #45 | Build of the Month - June 2021 | ended 2021-06-27 |
| #70 | Build of the Month - April 2021 | ended 2021-04-27 |
| #15 | SFFPC meets builds.gg Contest | ended 2021-03-27 |
Build Updates
Added custom cable sleeves
2021-08-16
