NZXT Back2School H510 Elite

Project-based on an NZXT H510 Elite Matte Black, with a back-to-school theme, and transforming our X79 into a more versatile setup for future articles.

The objective of the project was to make a very simple modification, a painting with a different color: chalkboard effect. This allows you to draw different and themed graphics on the box, making it possible to clean everything with a damp cloth.

This project was present at Magicshot Techdays 2020 Gaming Expo

Sponsorships:
NZXT Portugal

Modifications:

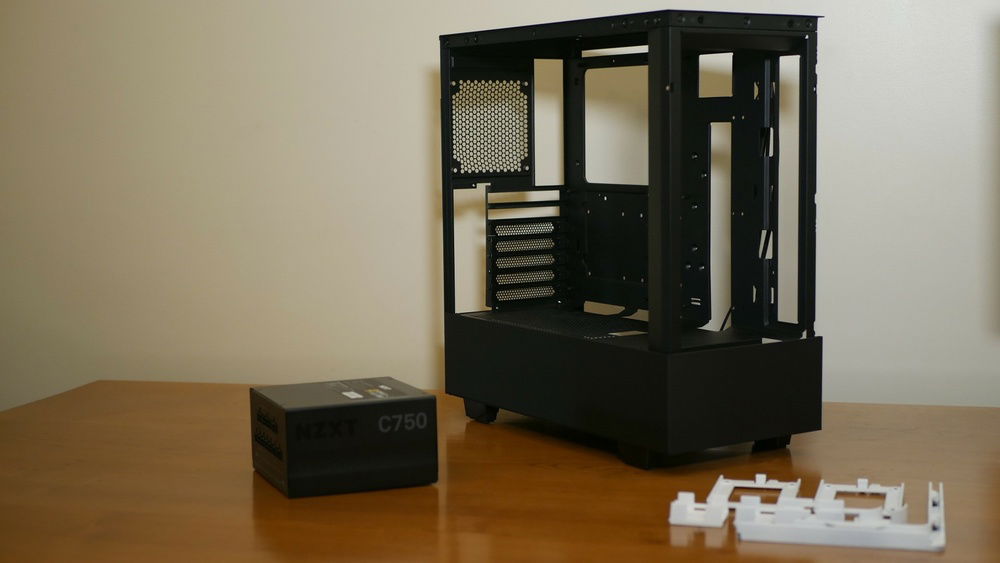

# Painting on the outside using paint with chalkboard effect;

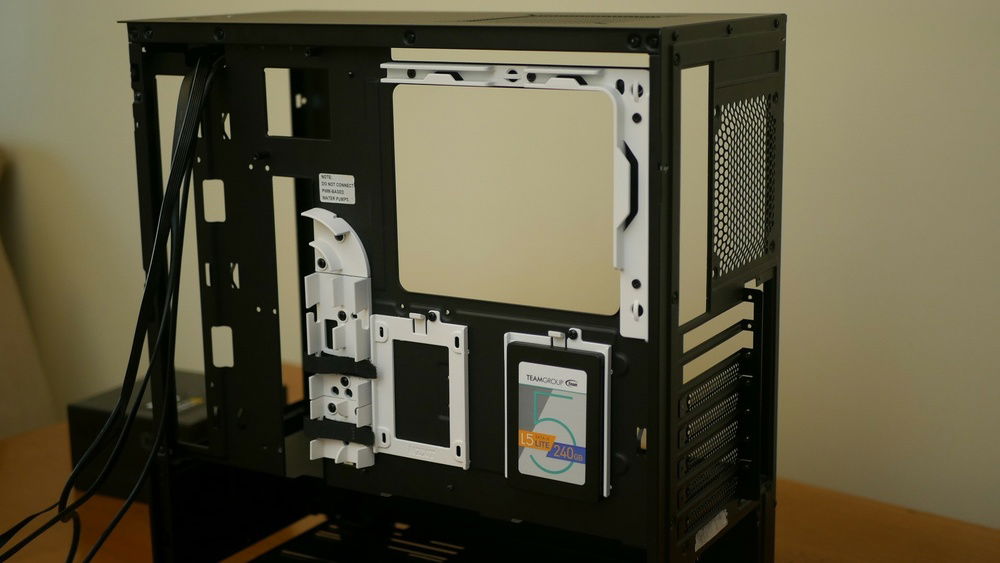

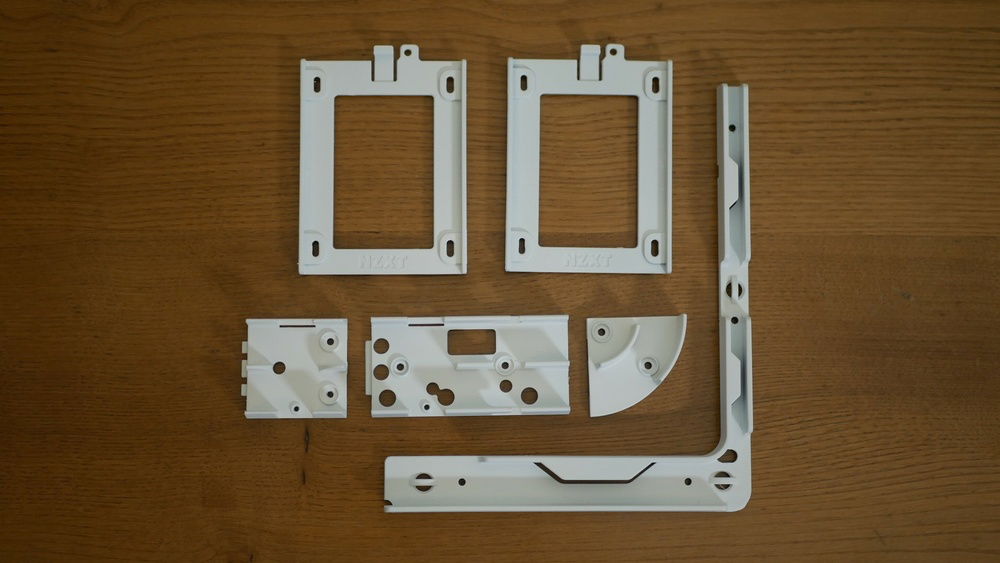

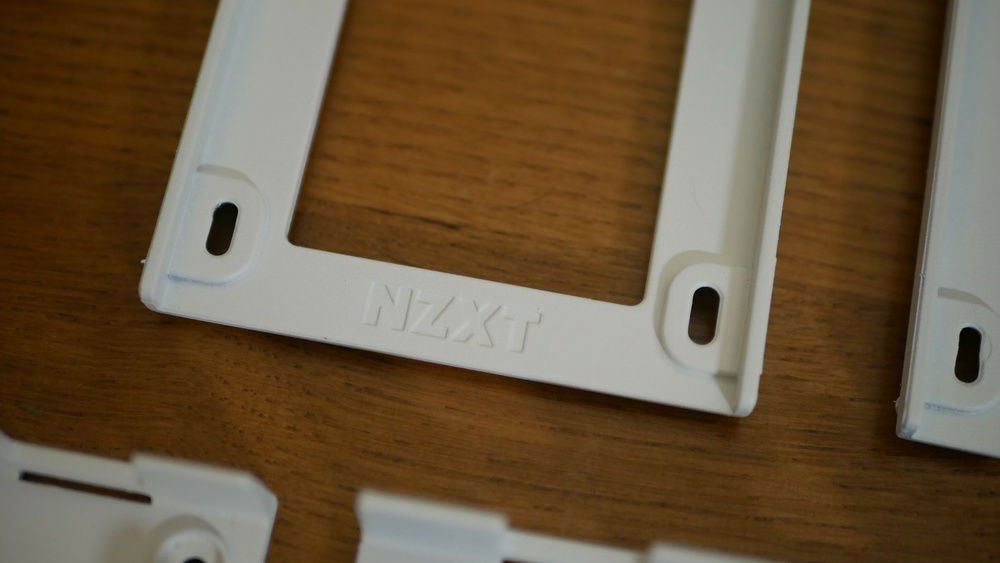

# Paint inside the cable management rails in matt white;

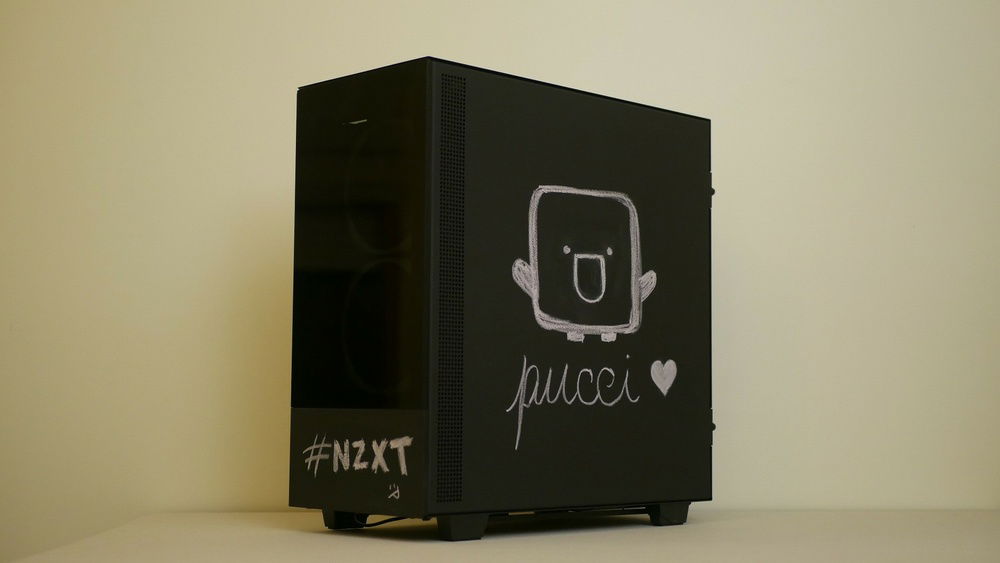

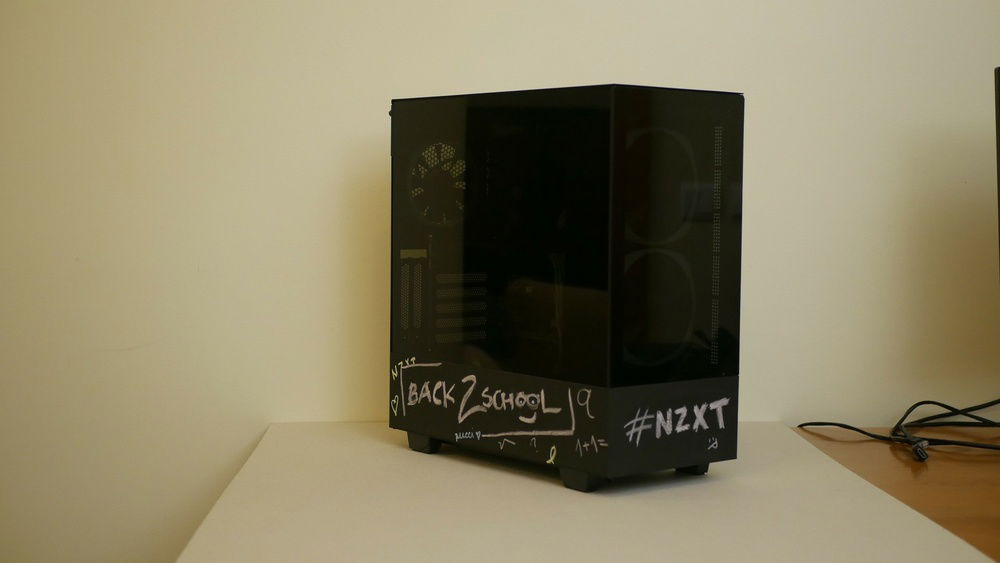

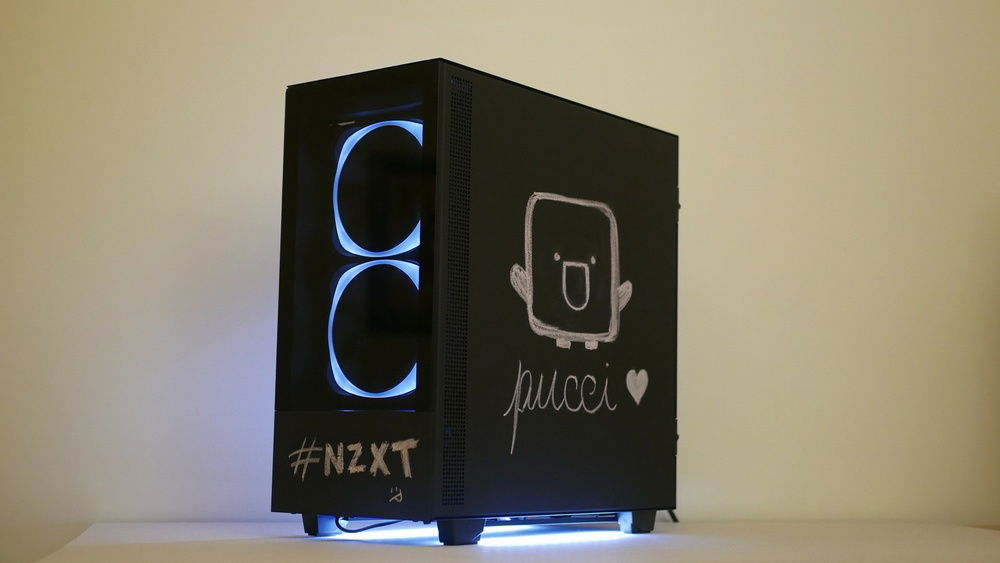

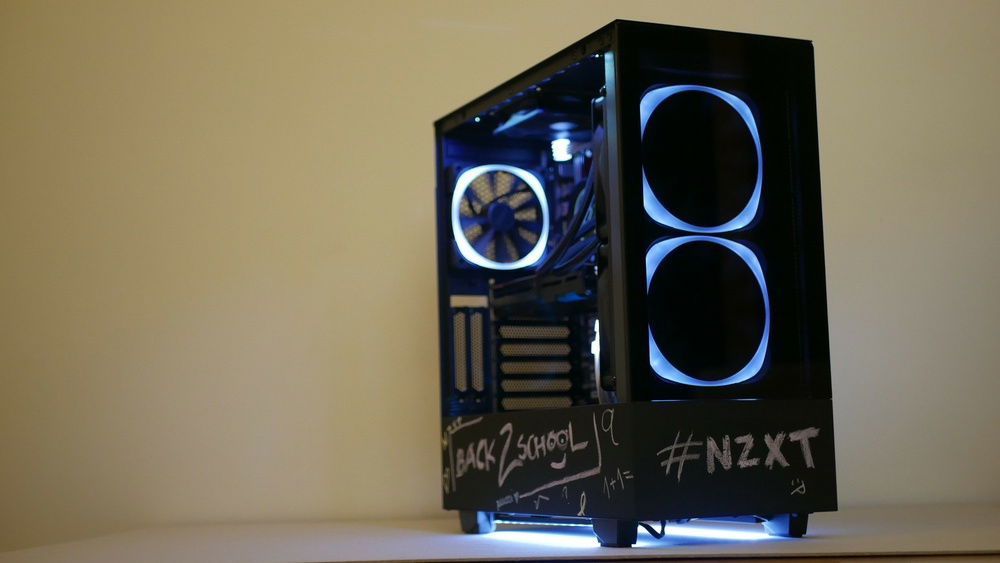

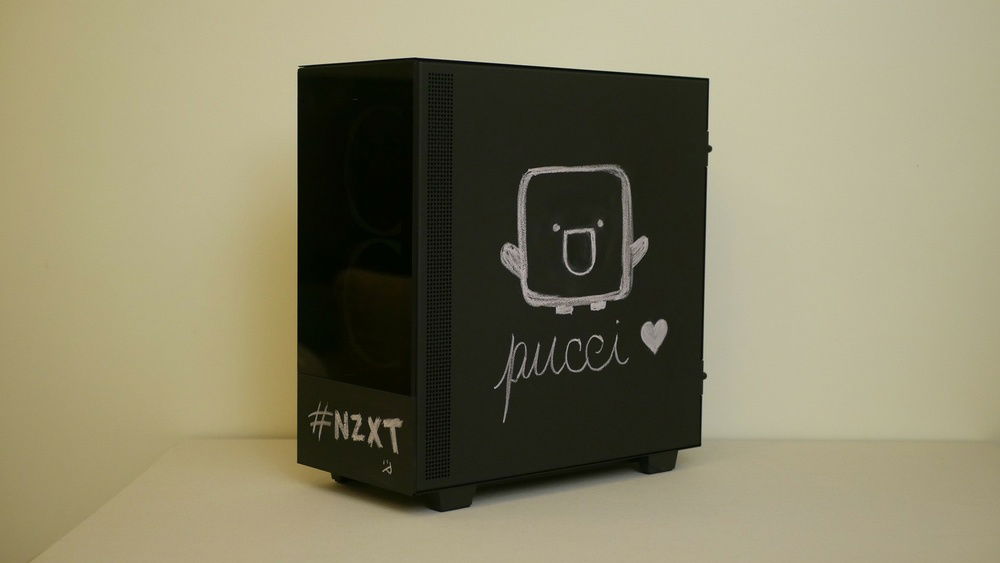

# Chalk-themed drawing of the return to school (2020) with Pucci;

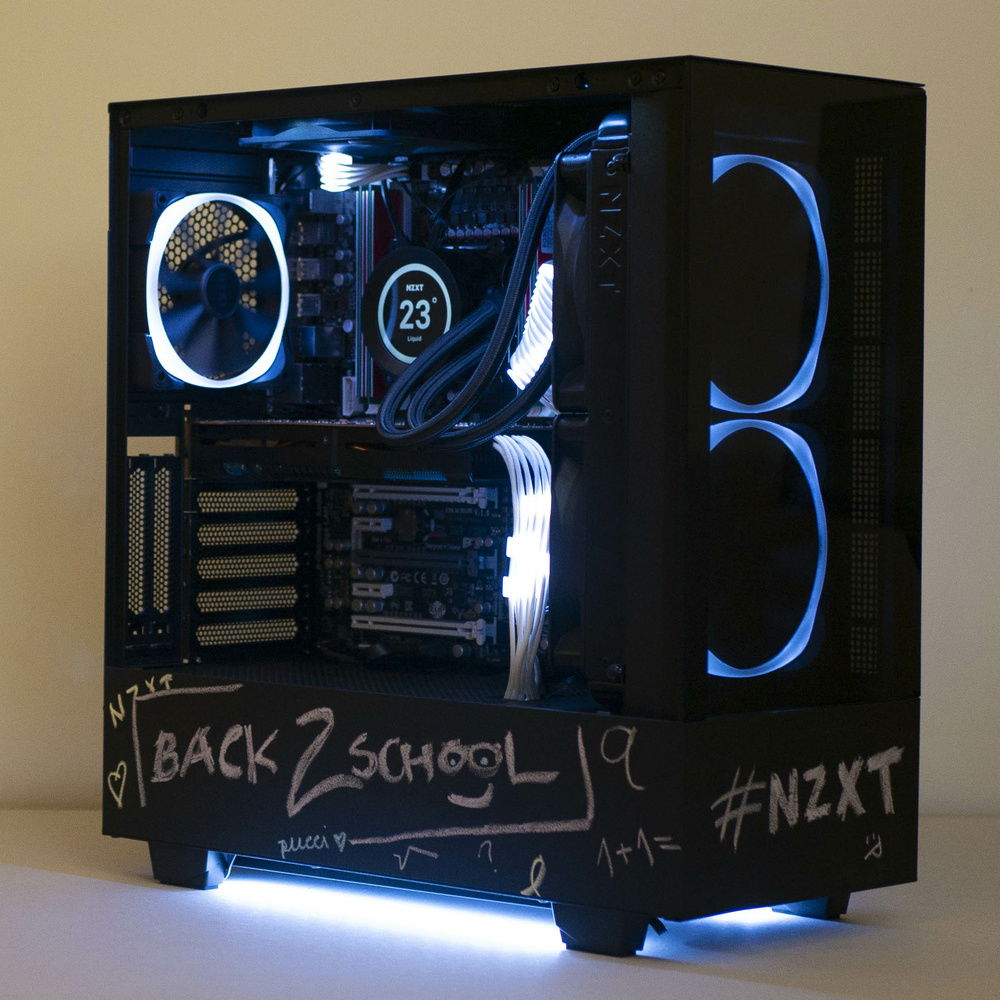

# Interior with black and white;
# White or NZXT purple lighting;

Color(s): Black White
RGB Lighting? Yes
Theme: Art
Cooling: AIO Cooling
Size: ATX
Type: General Build

Build Updates

Video log

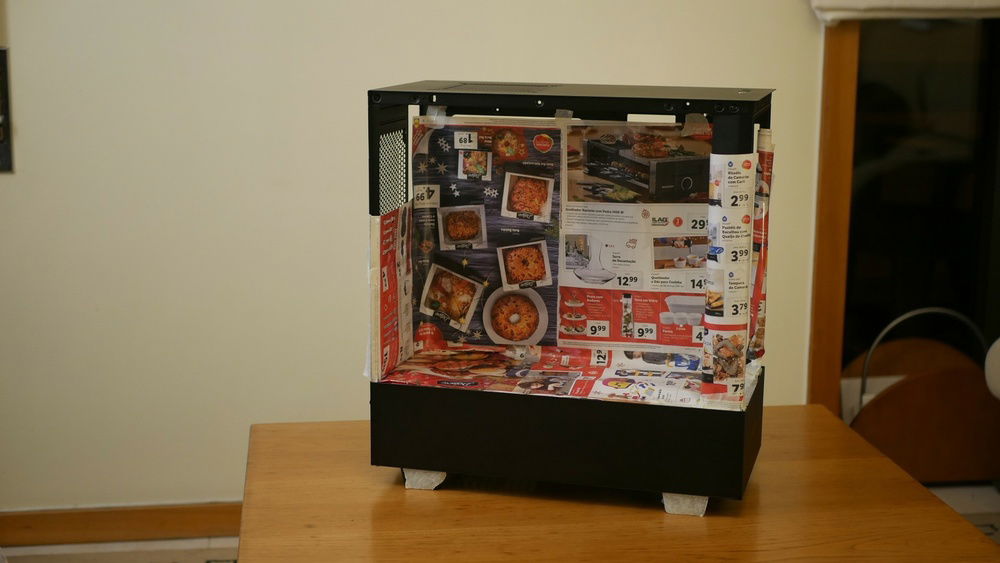

Painting

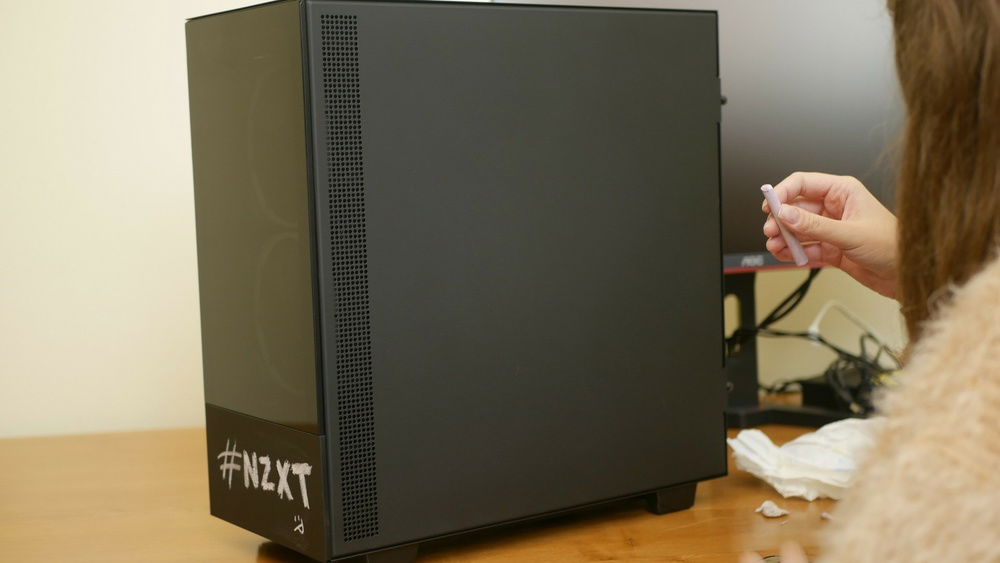

Drawing with chalk

Hardware

CPU
Intel - Xeon E5-2690 (v2)
Socket: LGA 2011
Cores: 10
Motherboard
ECS - X79R-AX Deluxe
Chipset: X79
CPU Socket: LGA 2011
Size: ATX
Memory
TBD/To Be Determined - Exceleram Red Culvert (4x)
Type: DDR3
Capacity: 4 GB
Graphics
ZOTAC - AMP!
Chip Manufacturer: AMD
Chip: GTX 560
Interface: PCIe x16
Storage
$ 106.00
TeamGroup - L5 Lite (Black)
Form Factor: 2.5 Inch
Interface: SATA 6 Gb/s
Capacity: 240 GB
PSU
$ 118.99
NZXT - C750
Wattage: 750
Form Factor: ATX
Efficiency: 80+ Gold
PSU
$ 118.99
NZXT - C750
Wattage: 750
Form Factor: ATX
Efficiency: 80+ Gold
Case
$ 191.47
NZXT - H510 Elite (Black)
Type: Mid-Tower
Side Panel: Tempered Glass
Case Fan
$ 156.95
NZXT - AER 2
Size: 120 mm
Cooling
$ 223.99
NZXT - Kraken Z63
Type: AIO
CableMod
$ 35.95
CableMod - Basic Cable Extension Kit - 8+6 Pin Series
Mode: Stock
Sleeve: ModFlex
Color: White
Accessories
