Indigo Project

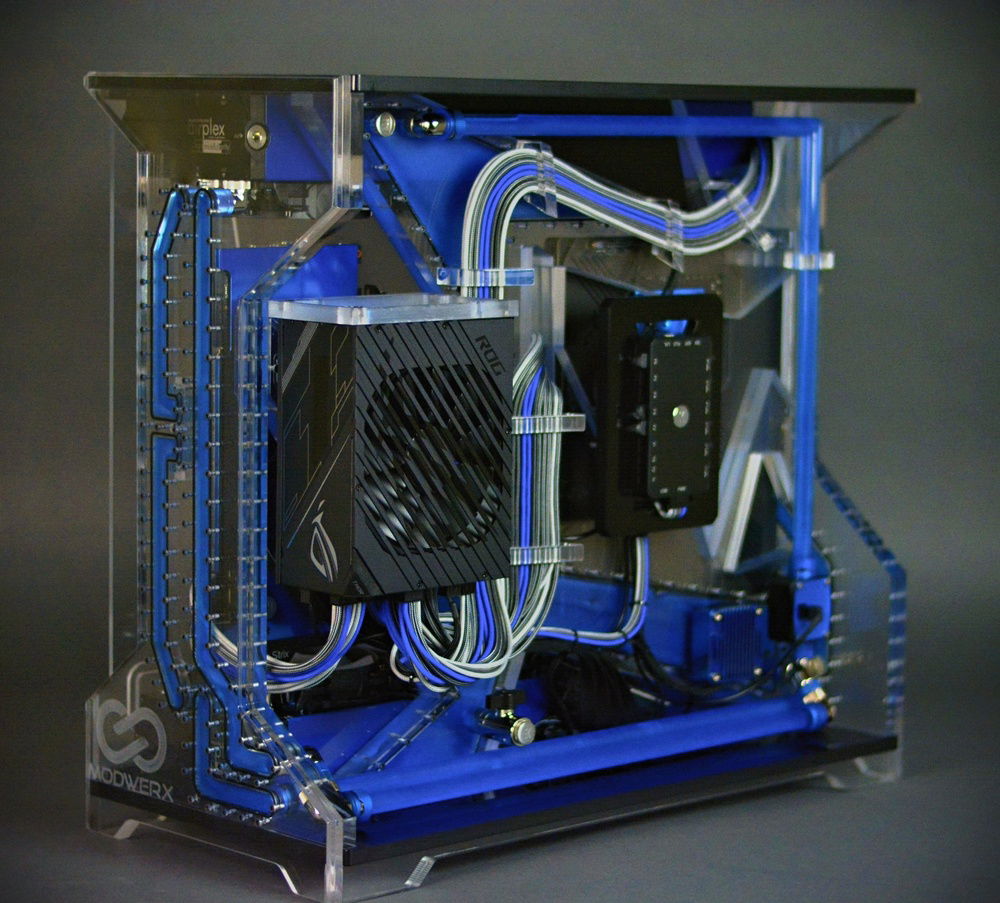

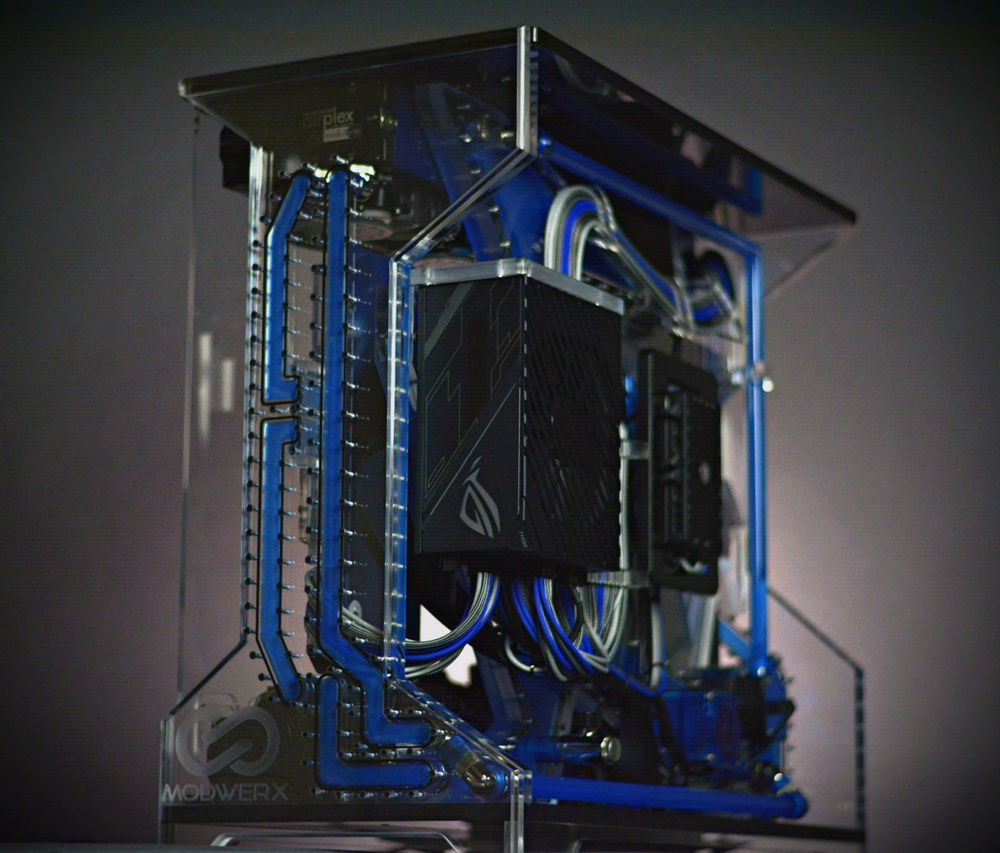

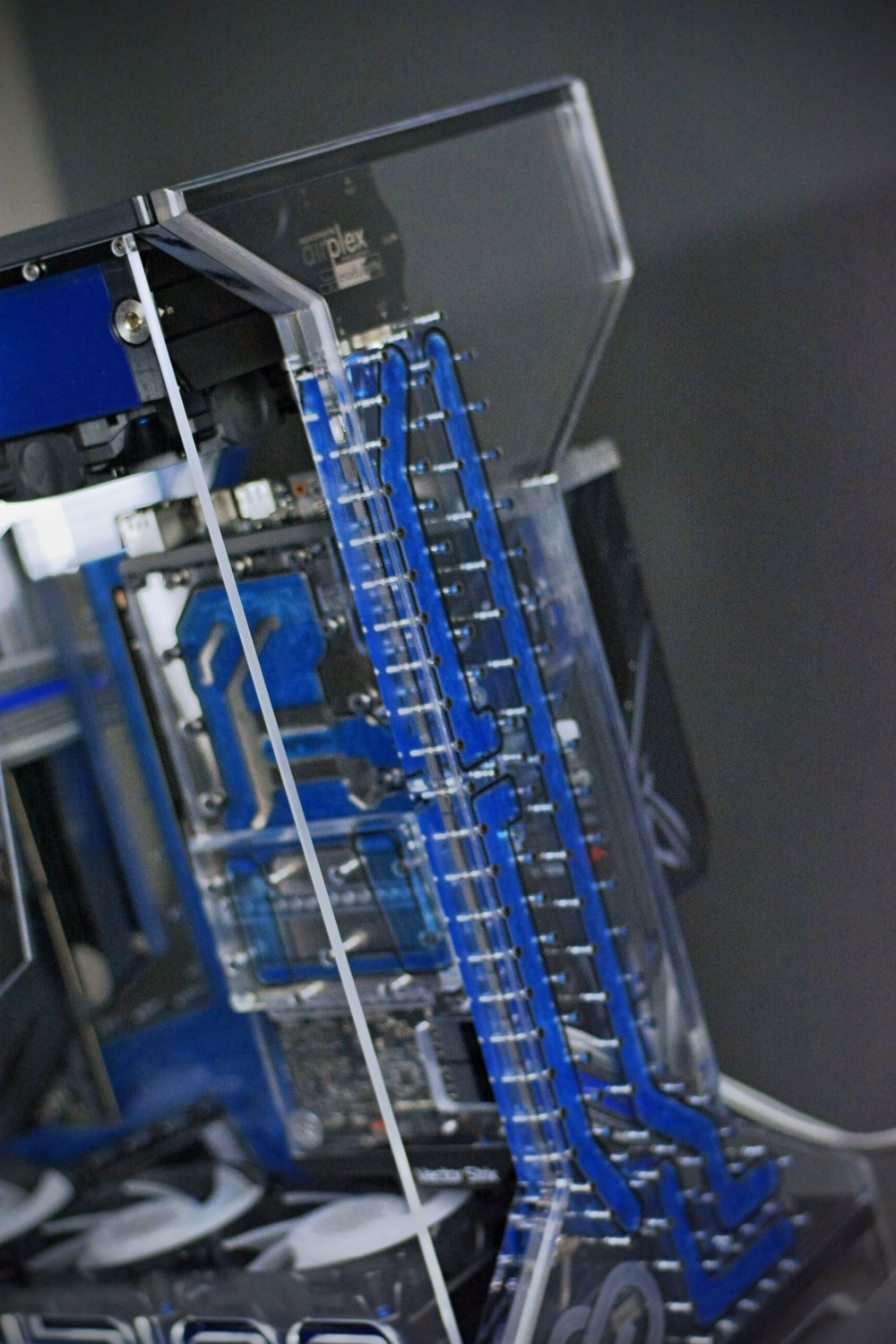

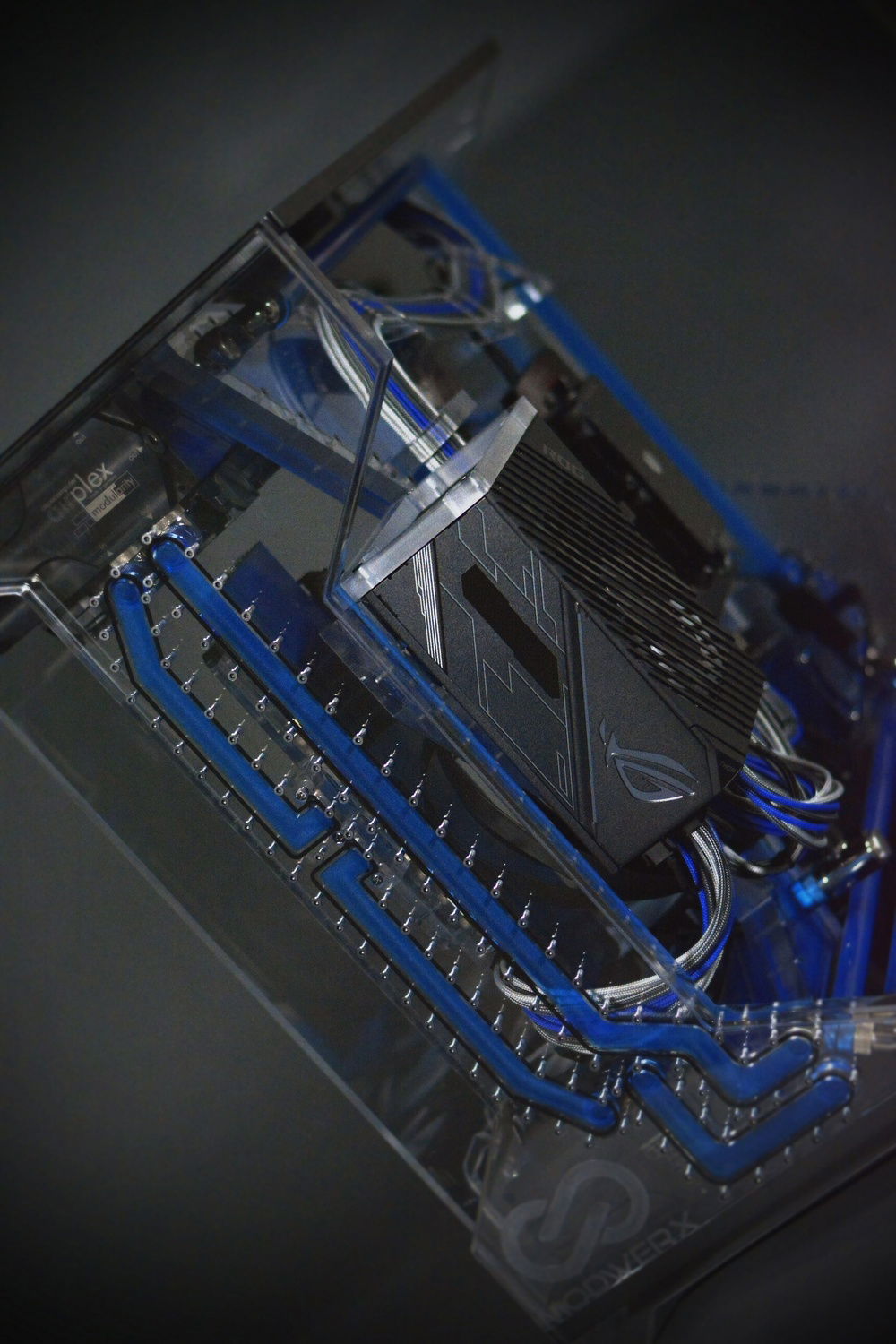

Scratch built case from acrylic in black and clear. Radiators, fittings, and other various components have been powdercoated in LP blue from Prismatic Powders. Tubing was cut and joined together using a chemical welding process and eliminated the need for bends using heat. The front and rear panels have been designed to be coolant channels or more commonly referred to as distro plates to tie the front and rear together. The motherboard panel is also a reservoir and uses a crazy shape that's not used in many reservoirs. I wanted something that went far outside the usual square box style steel/aluminum enclosures that are so common with PC building. The insane shapes and harsh lines make this a one of a kind build for sure. I hope you enjoy the pics as much as I did designing and building it. This case will be available for sale once I make the necessary adjustments to my drawing. There will also be a smaller version of this model to hold 2 360mm radiators as well. This build was a prototype and as such should be viewed that way. This is in now way a finished production ready enclosure. If you have an interest in purchasing one of these cases please feel free to contact me.
Color(s): Black Blue
RGB Lighting? Yes
Cooling: Custom Liquid Cooling
Theme: Futuristic
Size: E-ATX
Type: General Build

Hardware

CPU
AMD - Ryzen 9 (3950X)
Socket: AM4
Cores: 16
Motherboard
$ 1,124.86
Gigabyte - AORUS Xtreme
Chipset: X570
CPU Socket: AM4
Size: E-ATX
Memory
$ 691.96
G.Skill - Trident Z (3600MHz) (Black/RGB) (4x)
Type: DDR4
Capacity: 32 GB
Graphics
$ 1,299.88
ASUS - GeForce ROG Strix OC (Black)
Chip Manufacturer: NVIDIA
Chip: RTX 2080 Ti
Interface: PCIe x16
Storage
$ 1,399.98
Samsung - 970 PRO (2x)
Form Factor: M.2
Interface: M.2 (M)
Capacity: 2 TB
PSU
$ 699.99
ASUS - ROG Thor
Wattage: 1200
Form Factor: ATX
Efficiency: 80+ Platinum
Case Fan
$ 63.99
Cooling
Cooling
EKWB - EK-Torque HTC-16 - Nickel
Type: Fittings
Cooling
$ 135.23
Cooling
EKWB - Fittings
Type: Custom Loop
Cooling
EKWB - Pump
Type: Custom Loop
Unable to dertermine total build value (missing part value)
