S4 mini classic

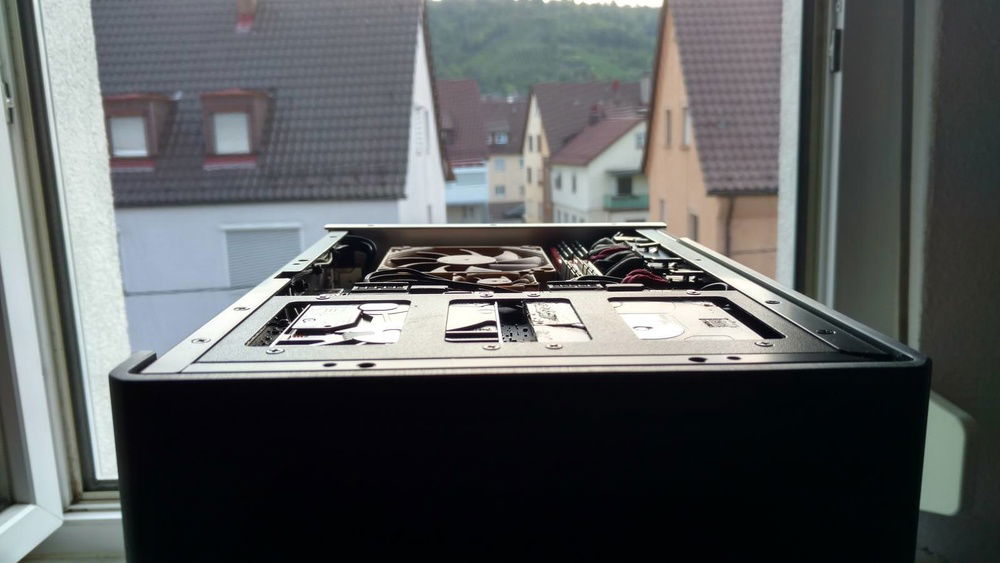

This system was mostly build for travel and it has survived a few airports already.

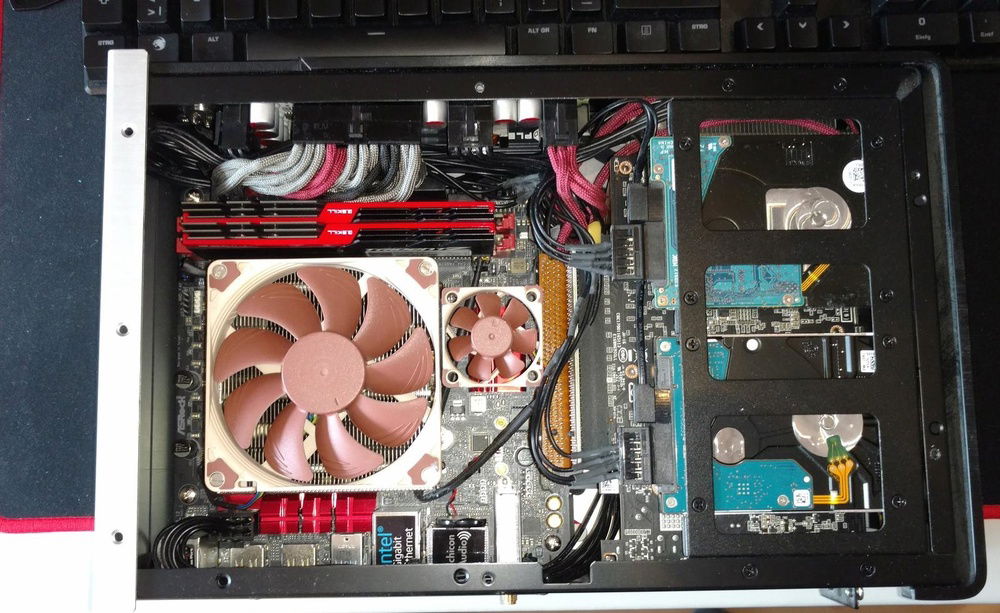

The most challenging part was to get all the cables to fit and to mod them to the right length.
Originally build with a 1600X but replaced with a 2600 due to the lower TDP (this helped a little with CPU temp).
The video card was modded with two Noctua NF-A9x14 PWM fans to fit into the case. The heat fins fit with a little less then a millimeter space and the original shroud was simply too big.

Overall very happy with how the system turned out and when idle it's nearly inaudible even at higher room temperatures.

*The RAM was replaced after the pictures where taken.


Color(s): Black Silver
RGB Lighting? No
Cooling: Air Cooling
Theme: none
Size: Mini-ITX

Hardware

Category Brand / Part Info
CPU AMD - Ryzen 5 2600
Cores: 6
Socket: AM4
Motherboard ASRock - Fatal1ty X370 Gaming-ITX/ac
Chipset: X370
Size: miniITX
Memory Support: DDR4
Memory Corsair - Vengeance LPX
Capacity: 16 GB
Type: DDR4
Storage Seagate - BarraCuda
Type: HDD
Capacity: 1TB
Form Factor: 2.5"
Storage Western Digital - WD Black
Type: SSD
Capacity: 250 GB
Form Factor: M.2
Storage Western Digital - WD Blue Mobile
Type: HDD
Capacity: 1TB
Form Factor: 2.5"
Graphics ZOTAC - AMP
Chip Manufacturer: NVIDIA
Chip: 1060
PSU HDPLEX - HDPLEX (discontinued)
Form Factor: NanoATX
Wattage: 300W

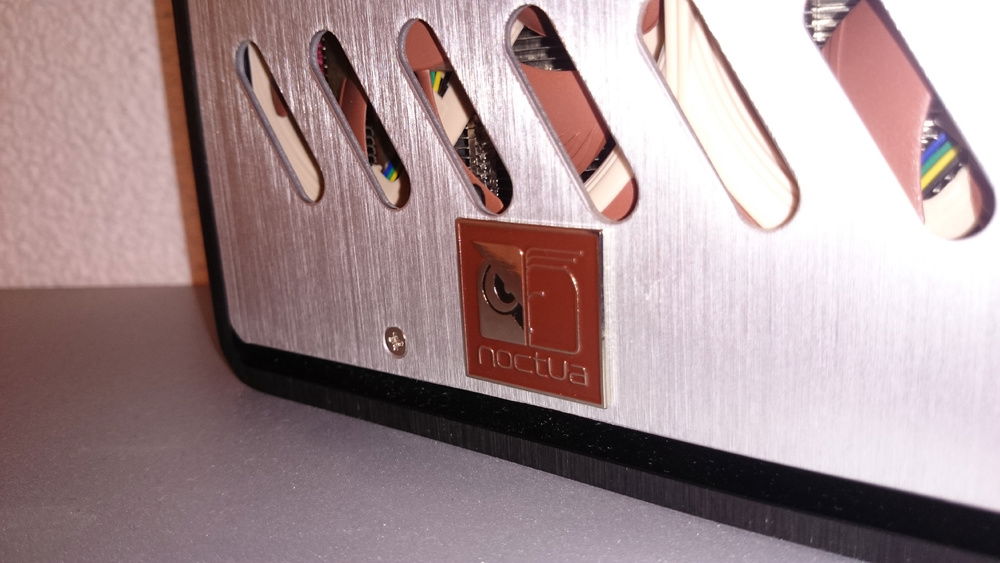

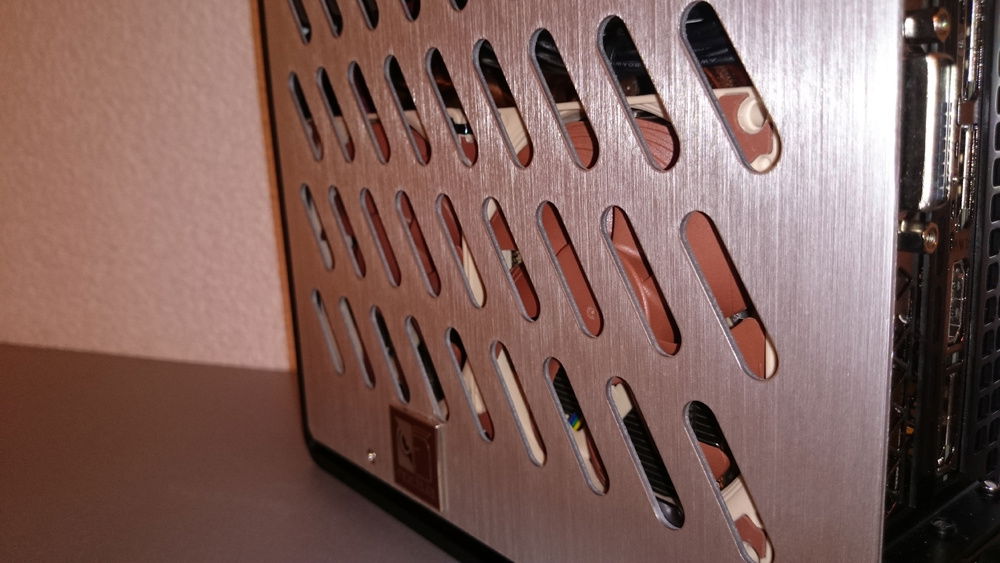

Case NFC - S4 Mini
Type: Mini-ITX
Motherboard Support: Mini-ITX
Side Panel: Solid
Case Fans Noctua - NF-A12x15 PWM
Size: 120
