Tribute to Mass Effect ——TT Core P7 (Work in Progress)

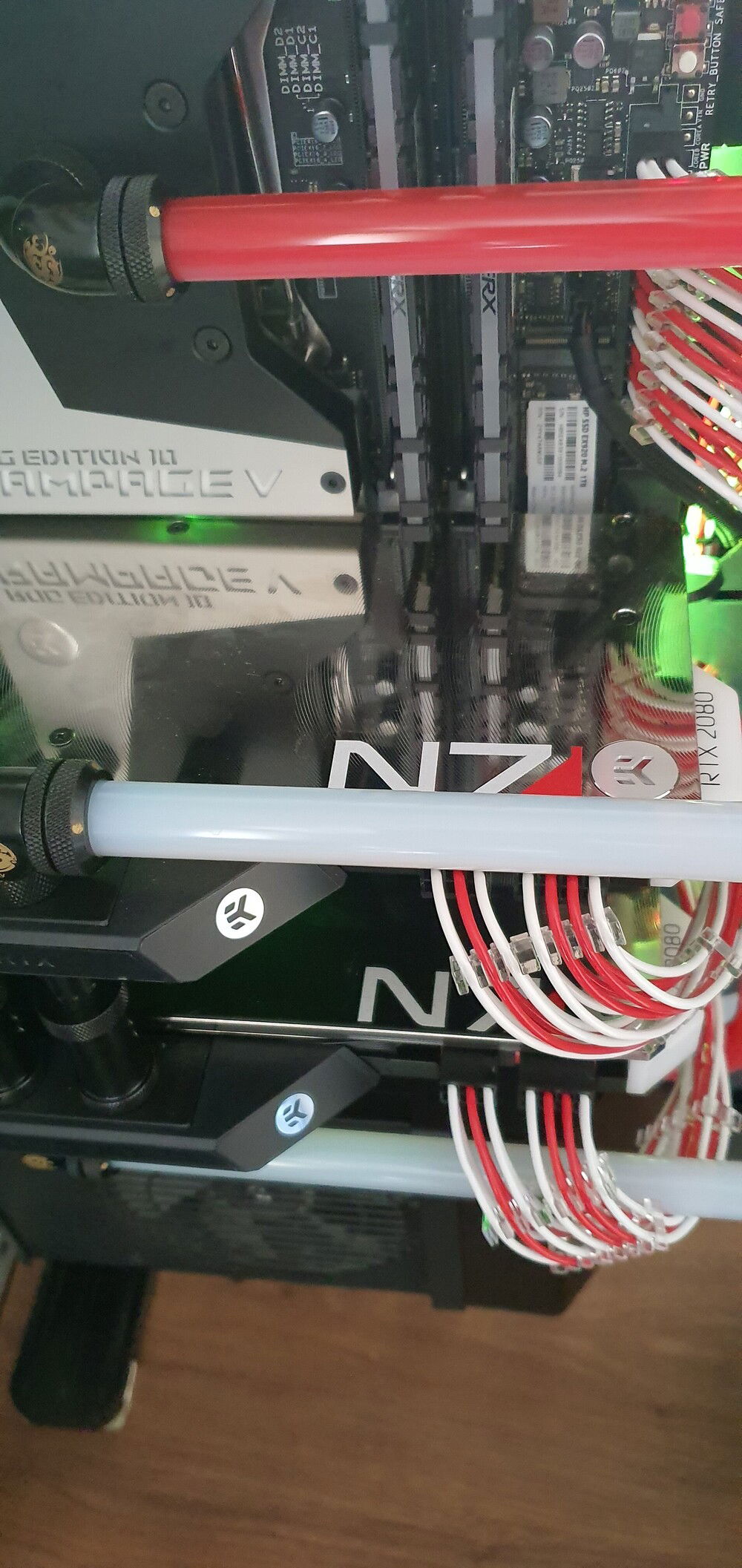

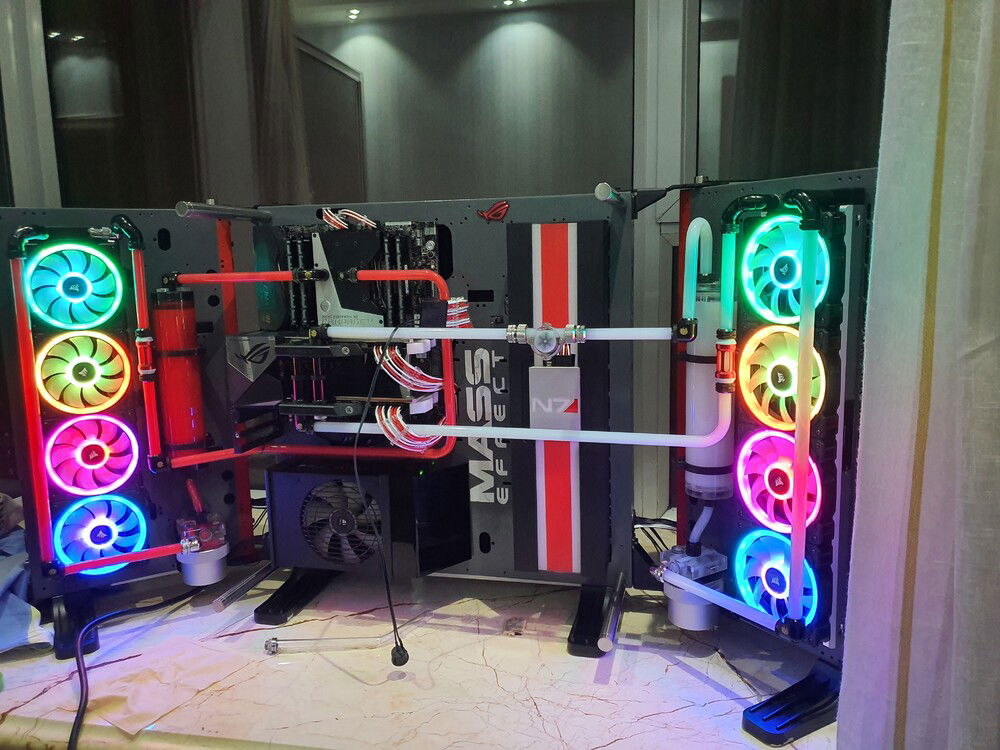

Current picture shows my old build (TT Core P7).
This time I'll Refurbishment and upgrade my old design to a new level!
Continuous updating!
Color(s): Carbon Red Silver White
RGB Lighting? Yes
Theme: Video Game
Cooling: Custom Liquid Cooling
Size: XL-ATX
Type: General Build
Build Updates

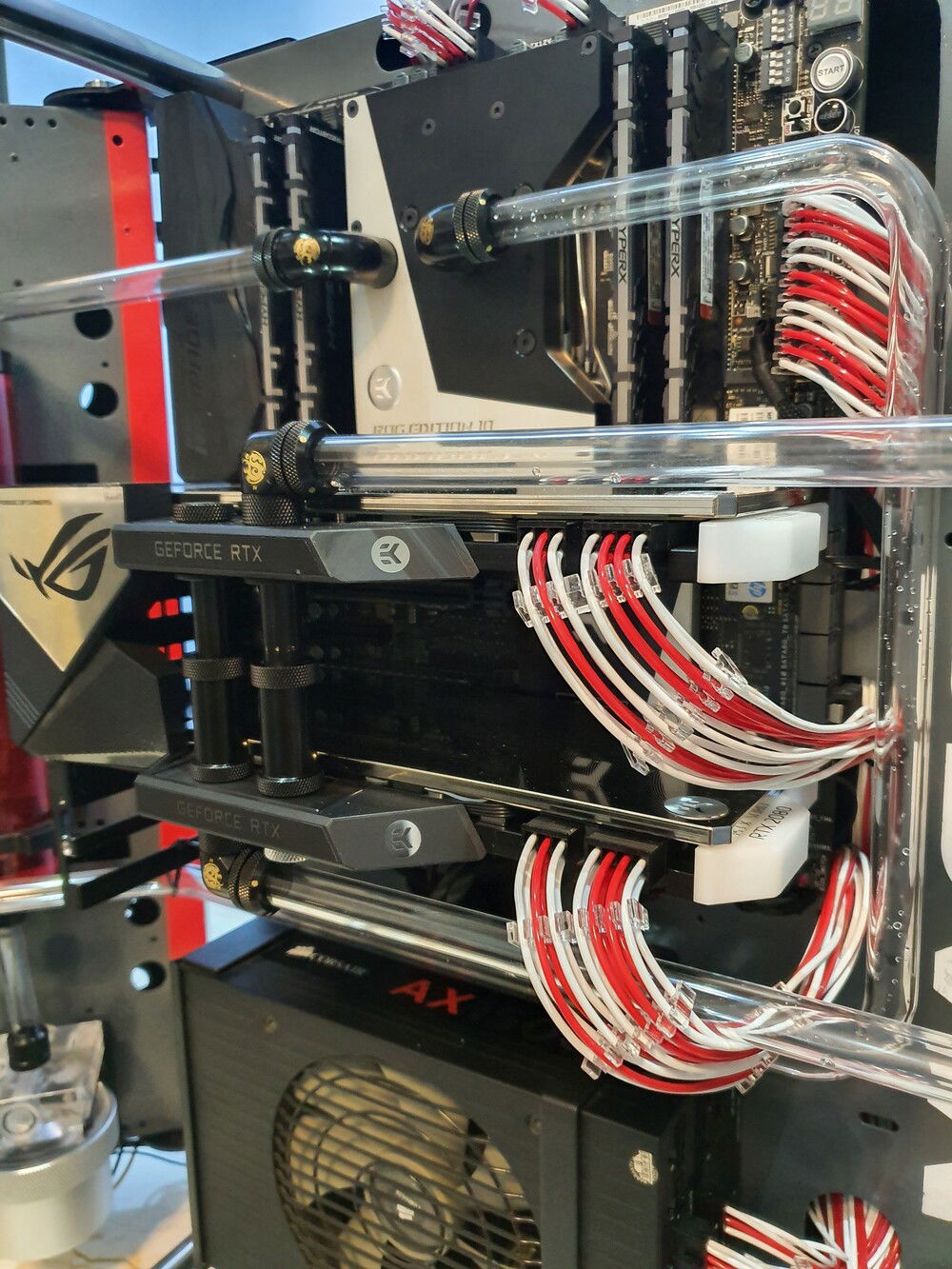

Disassemble the old build
2022-01-27
Disassemble the old build, cleaning and refurbishing
disassemble old build
Design theme & water loop
2022-01-27
Determine the theme as Mass Effect
Concepting case modify
Design water loop

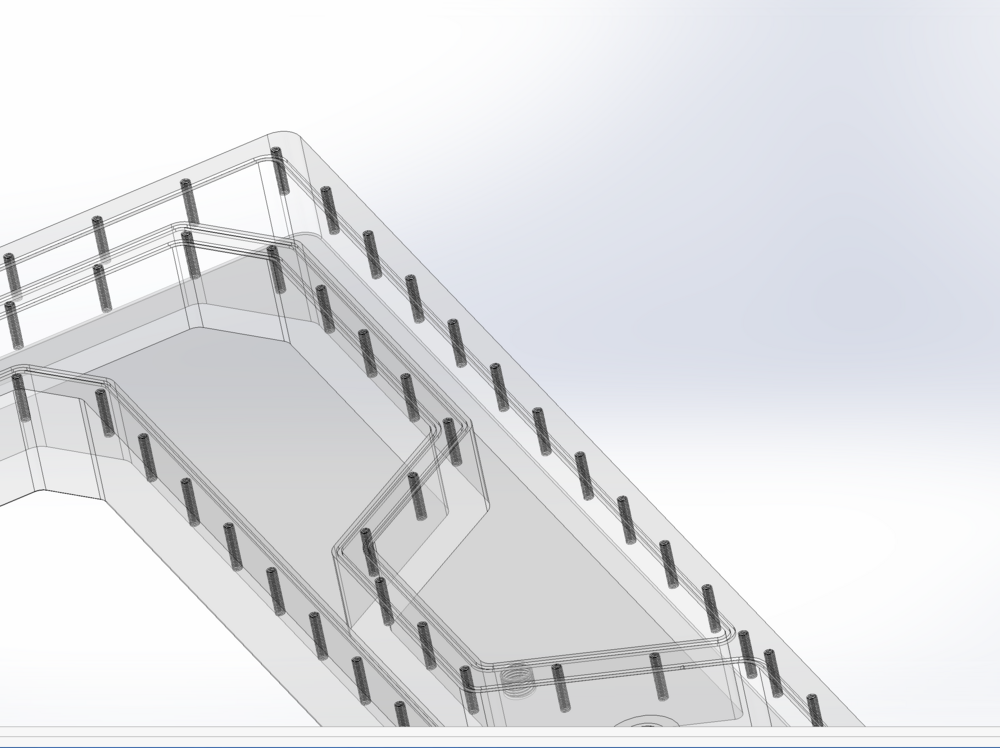

Design the structure of distribution plates
Draw the custom distribution plate on Soildworks
2022-01-27
Complete the drawing, send to machining center.
Cut & modify the Case
2022-01-27
Using carbon plate cover the original side case
2022-01-27

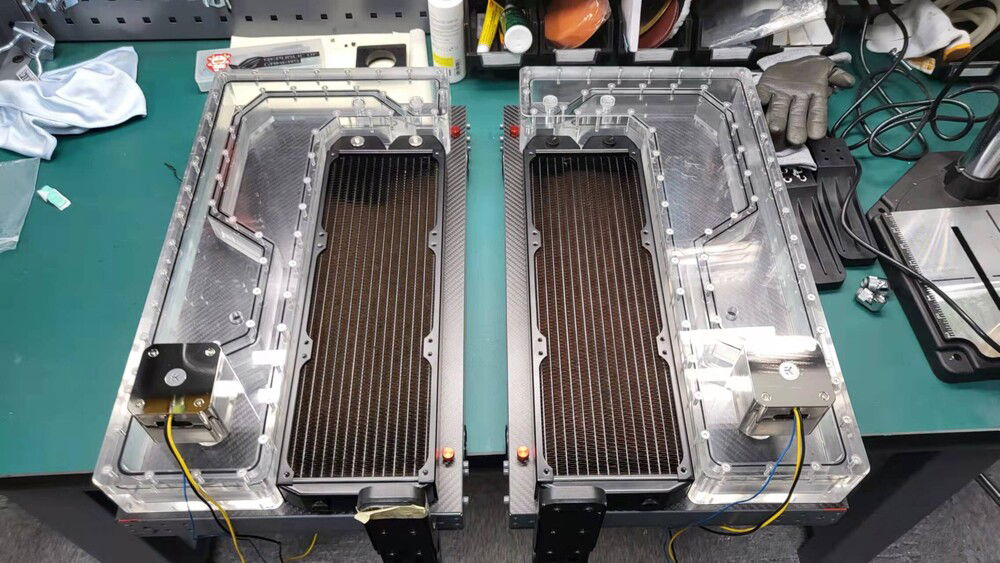

Receiving custom distribution plate
2022-01-27

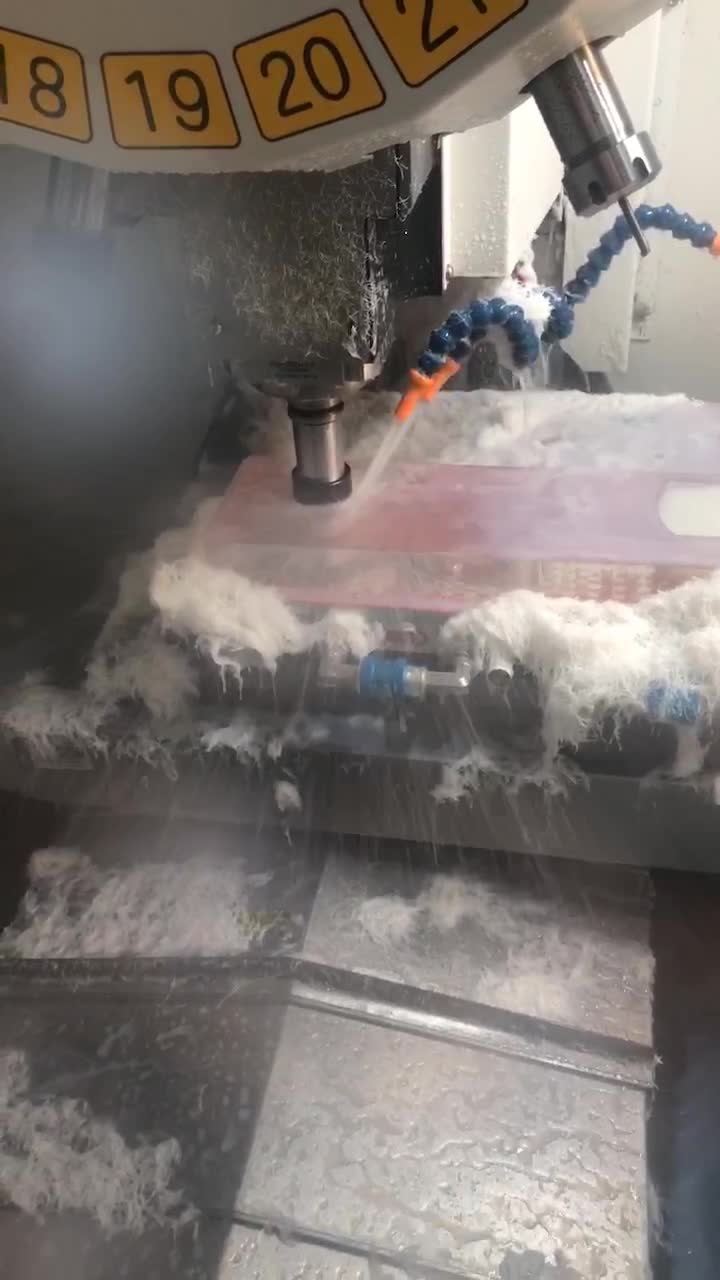

Finish machining. Receive the plate, check the error.
machining distribution plate

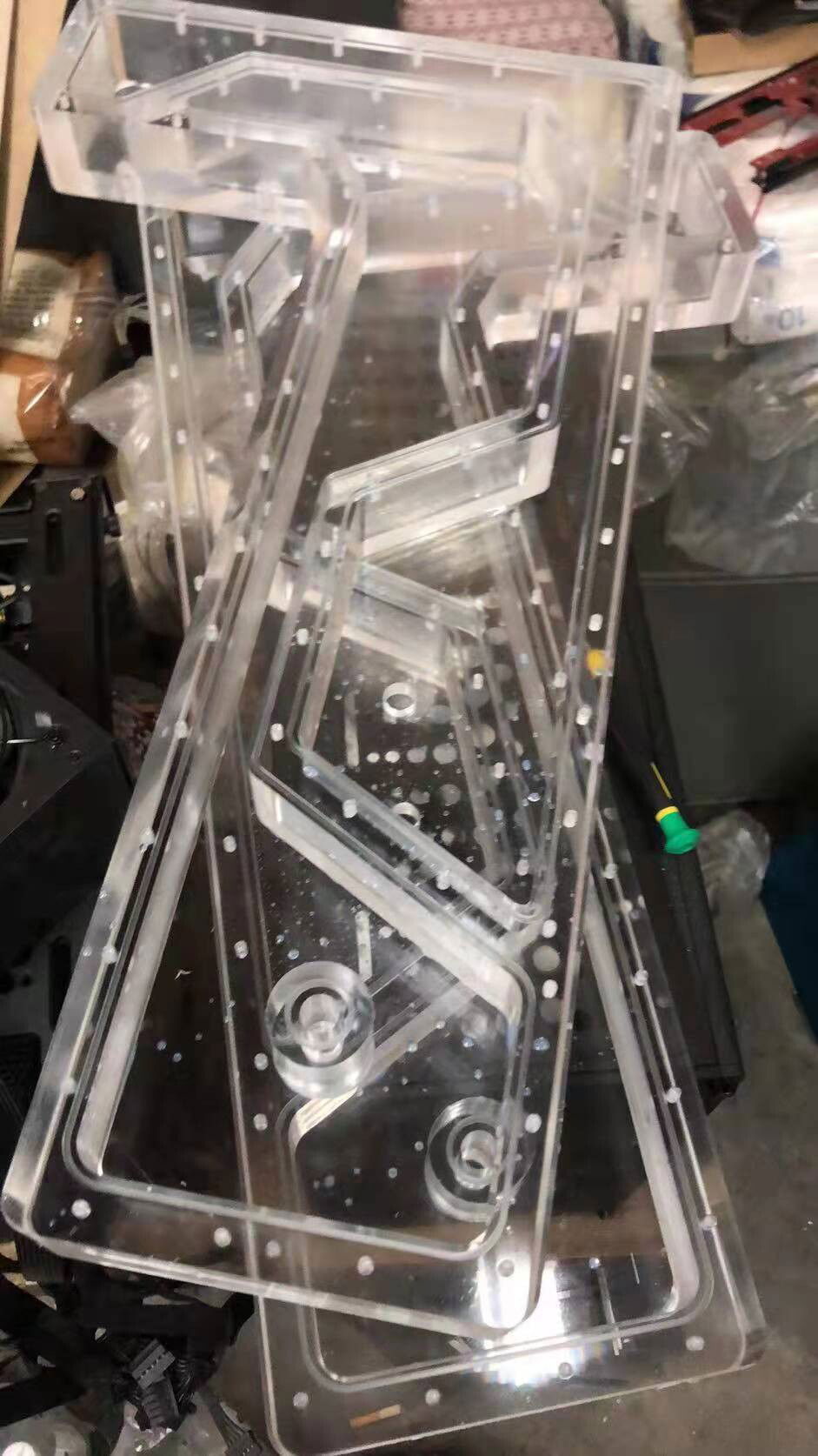

Complete machining
Mounting the distribution plate
2022-01-27
Punch through the case
Mounting the distribution plate
Install the pump and pump cover on the distribution plate
Mounting the radiator
mounting parts on the side case

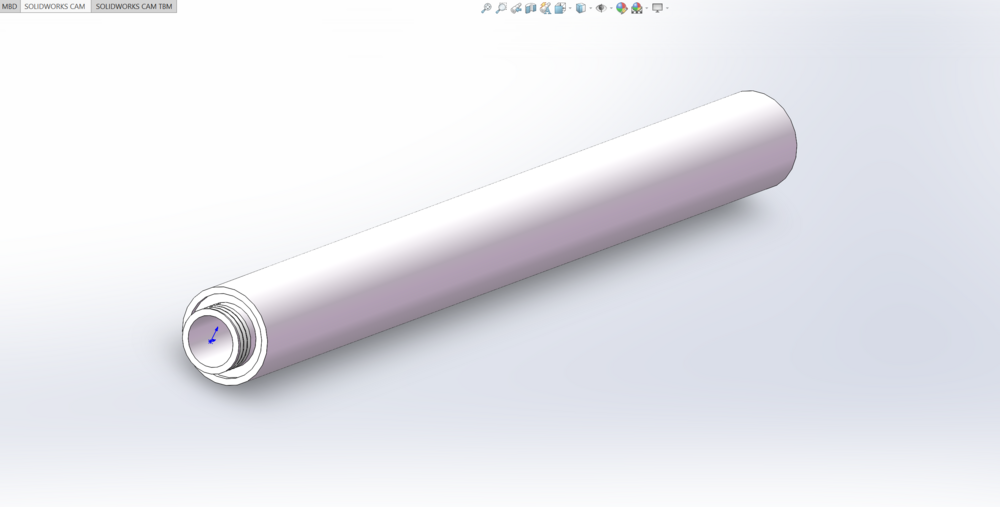

Draw the custom connecting tube by Solidworks
2022-01-27
Complete the Drawing
Sent to machining center
Drawing custom connecting tube

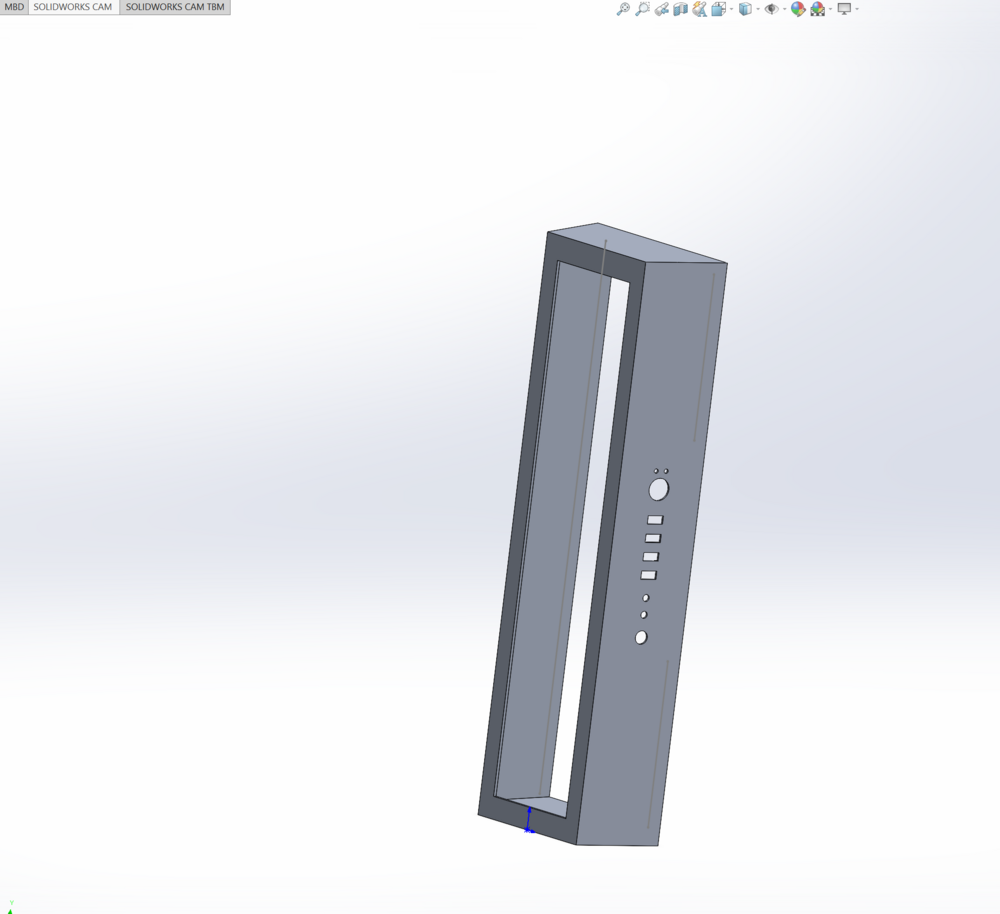

Draw the secondary screen holder (with build in I/O panel slot)
2022-01-27
Complete the measuring and drawing, Send to machining center
Drawing side screen holder

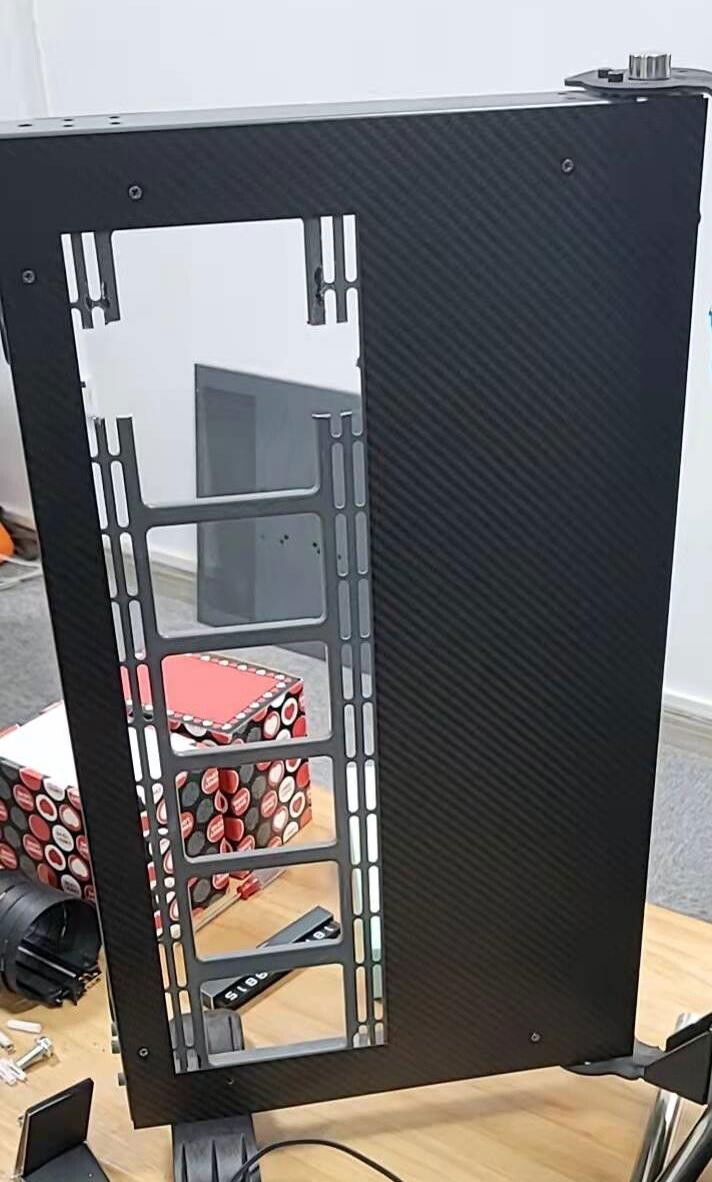

Mounting carbon plate to central case
2022-01-28
Open slot and screw hole on the carbon plate.
Using MB screw to mount Carbon plate on the case
Drill passing-through hole on the case & carbon plate

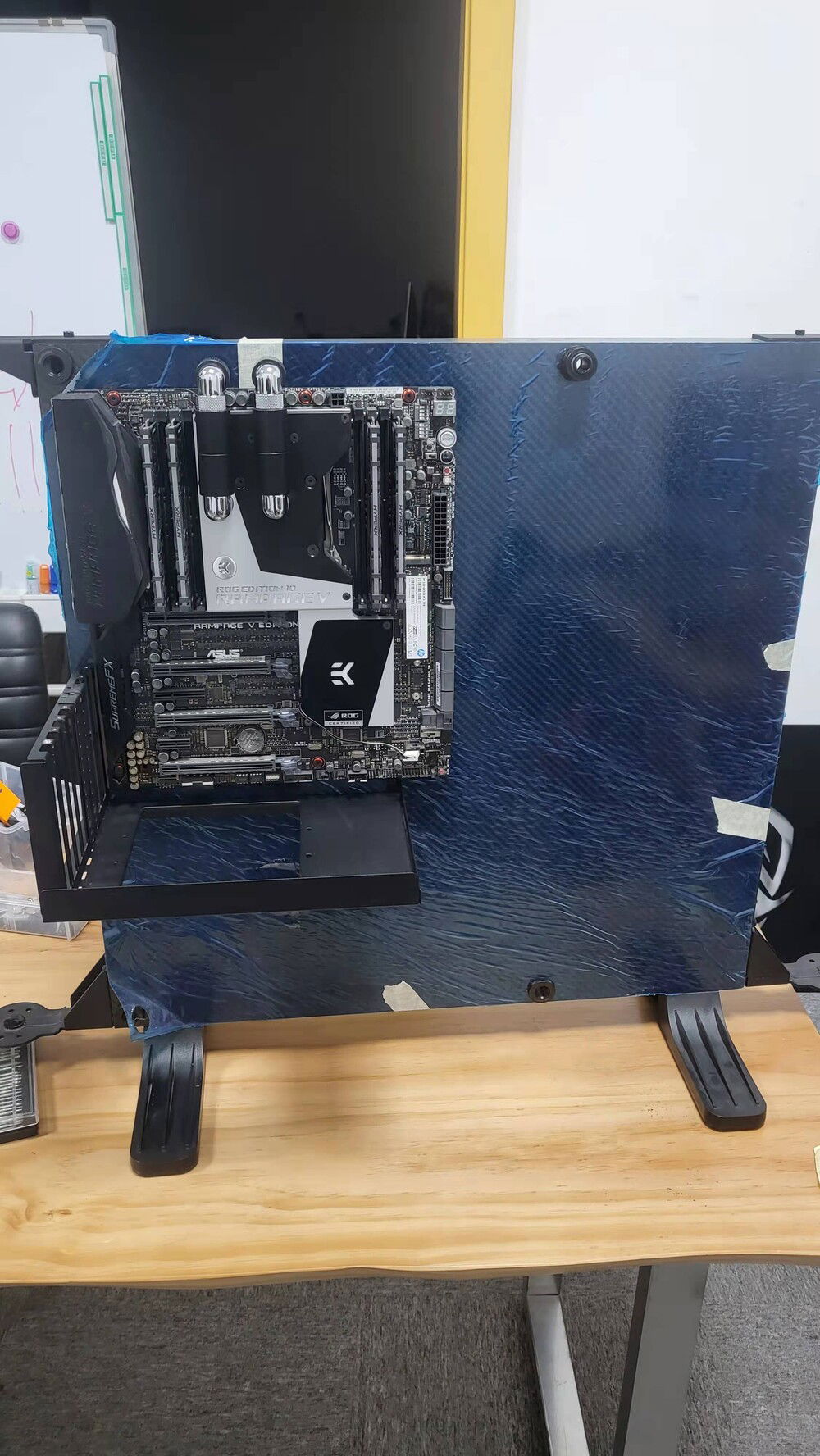

Try to mount mother board and vertical GPU holder
