Thermaletake P3 Titanium (TTP3-T)

Part list:
https://au.pcpartpicker.com/b/8h4qqs

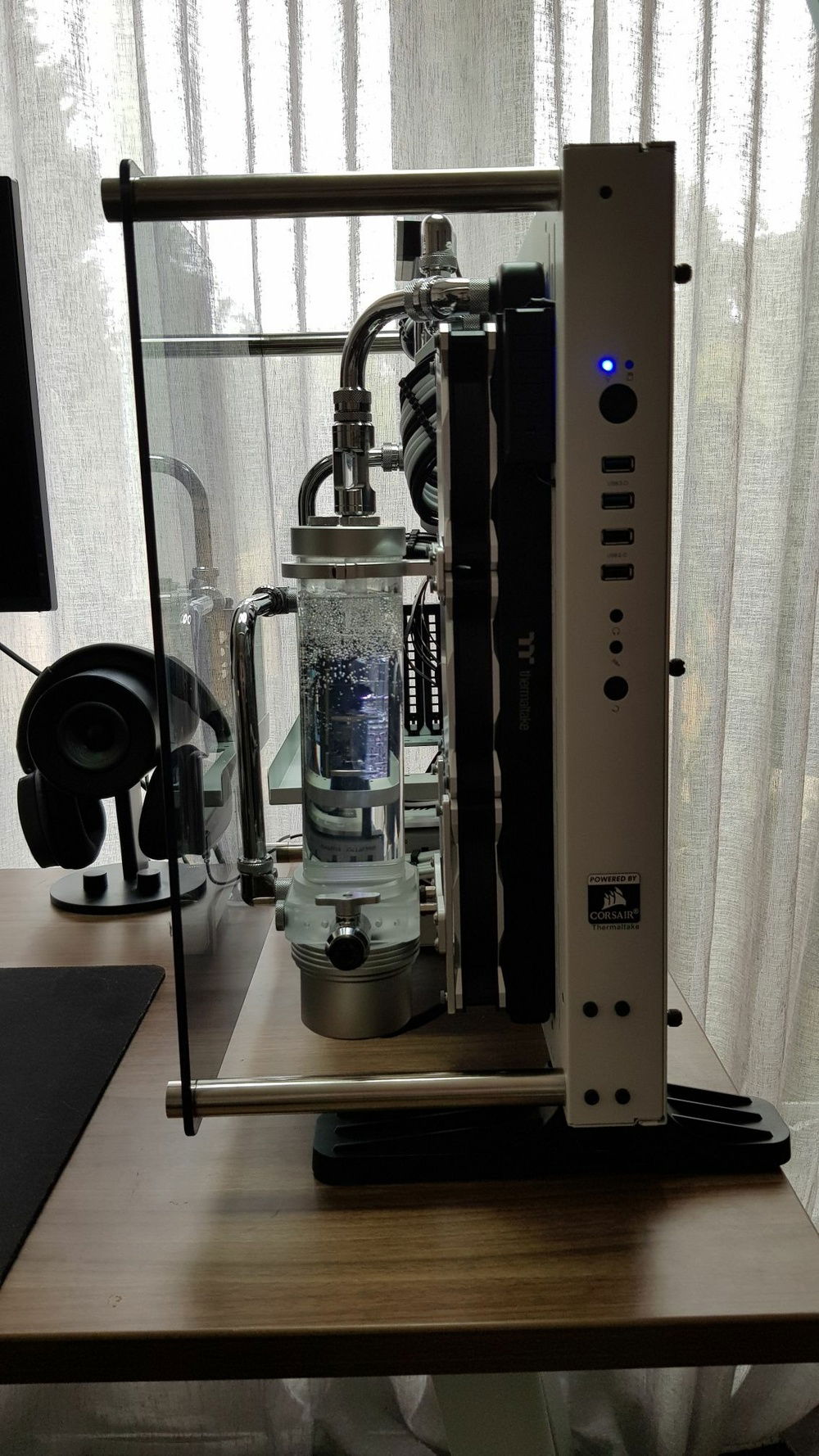

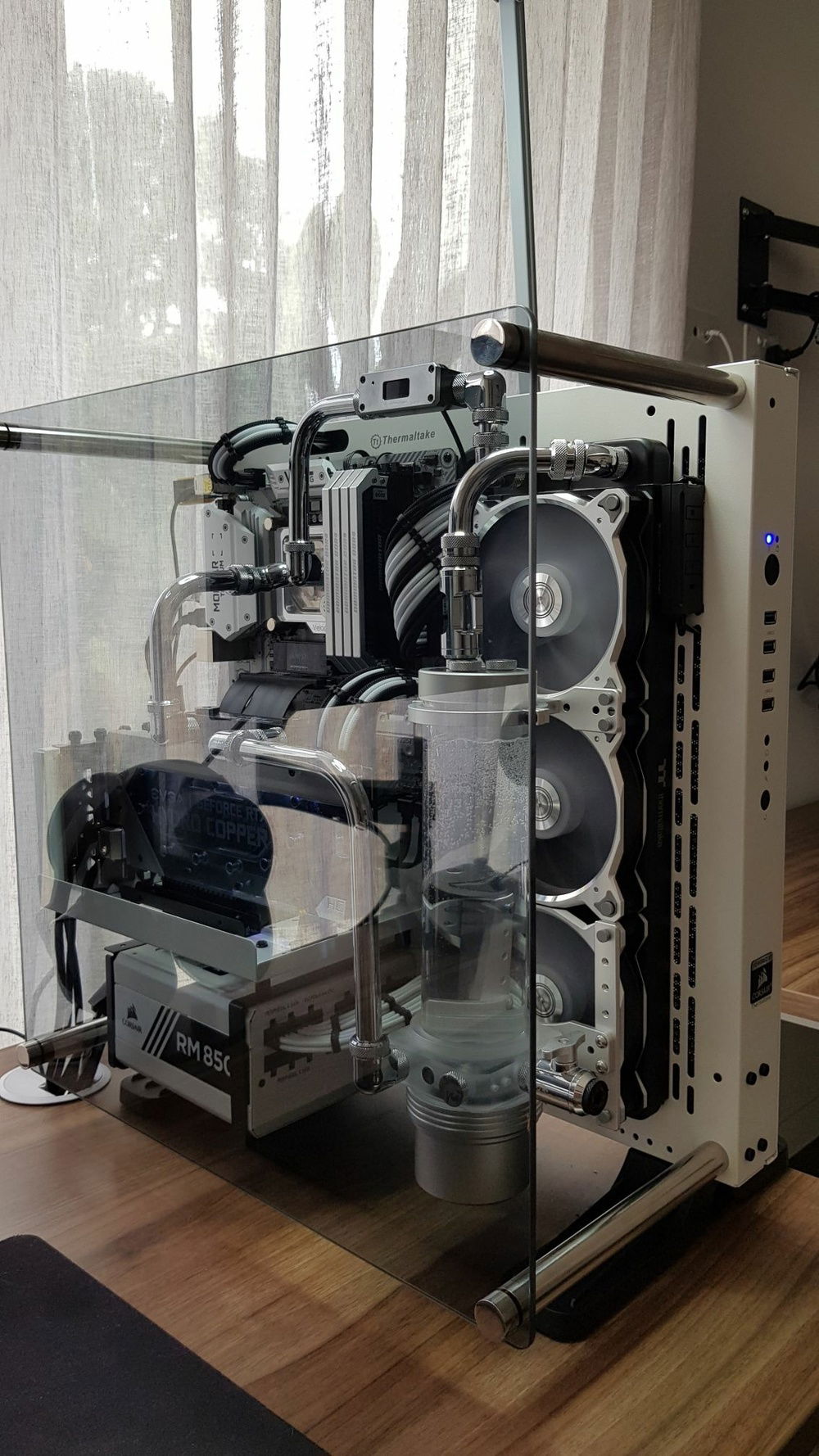

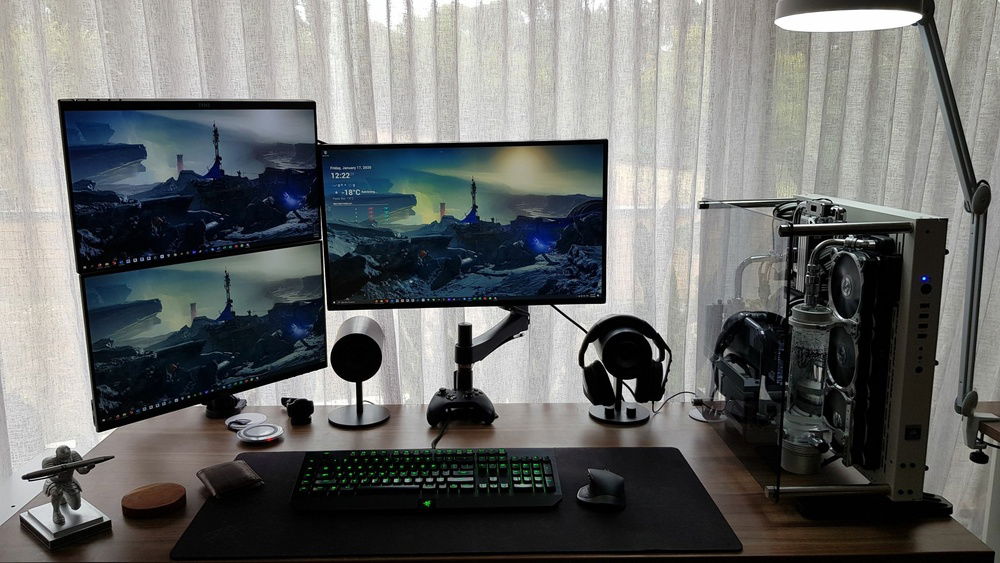

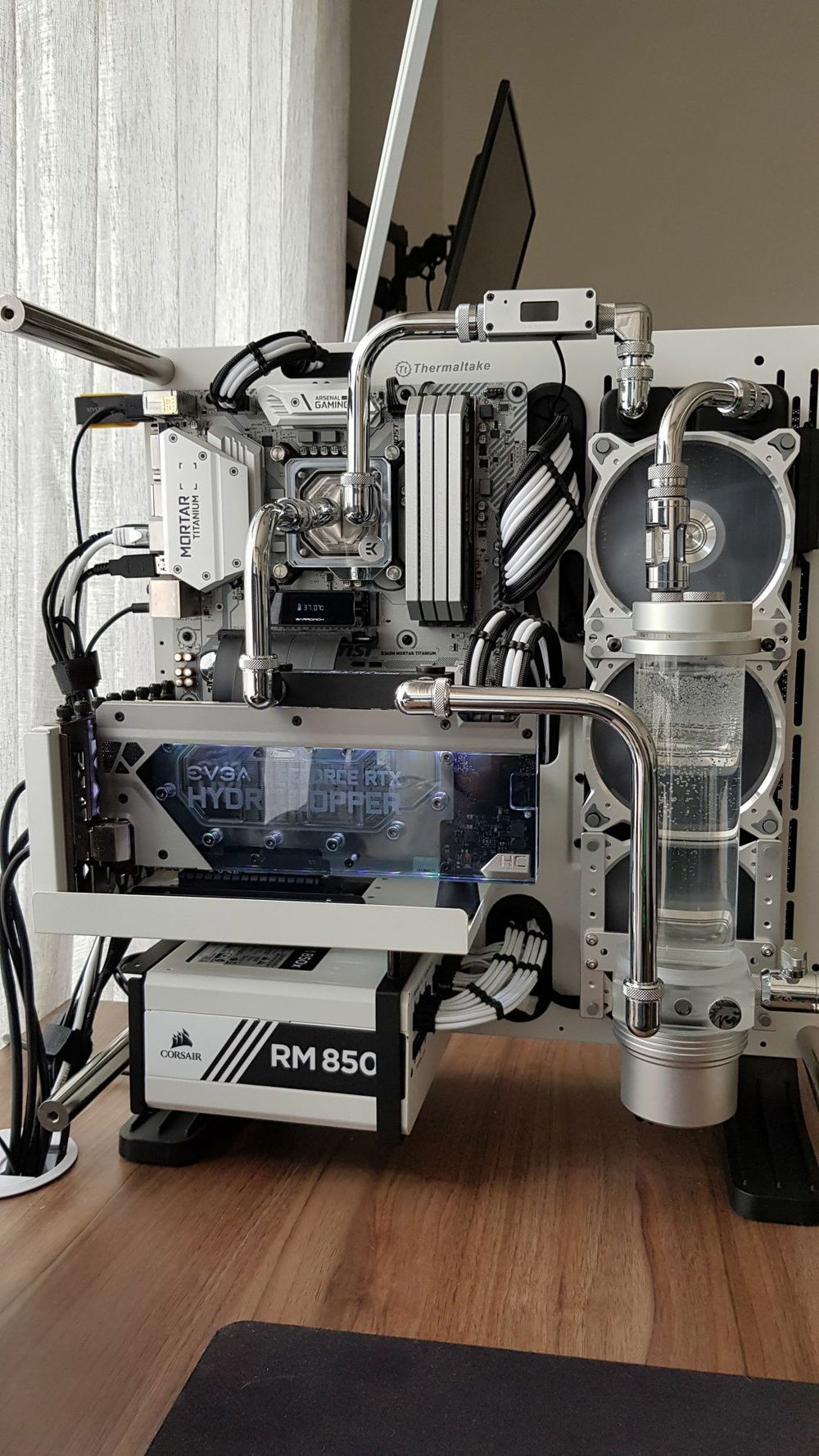

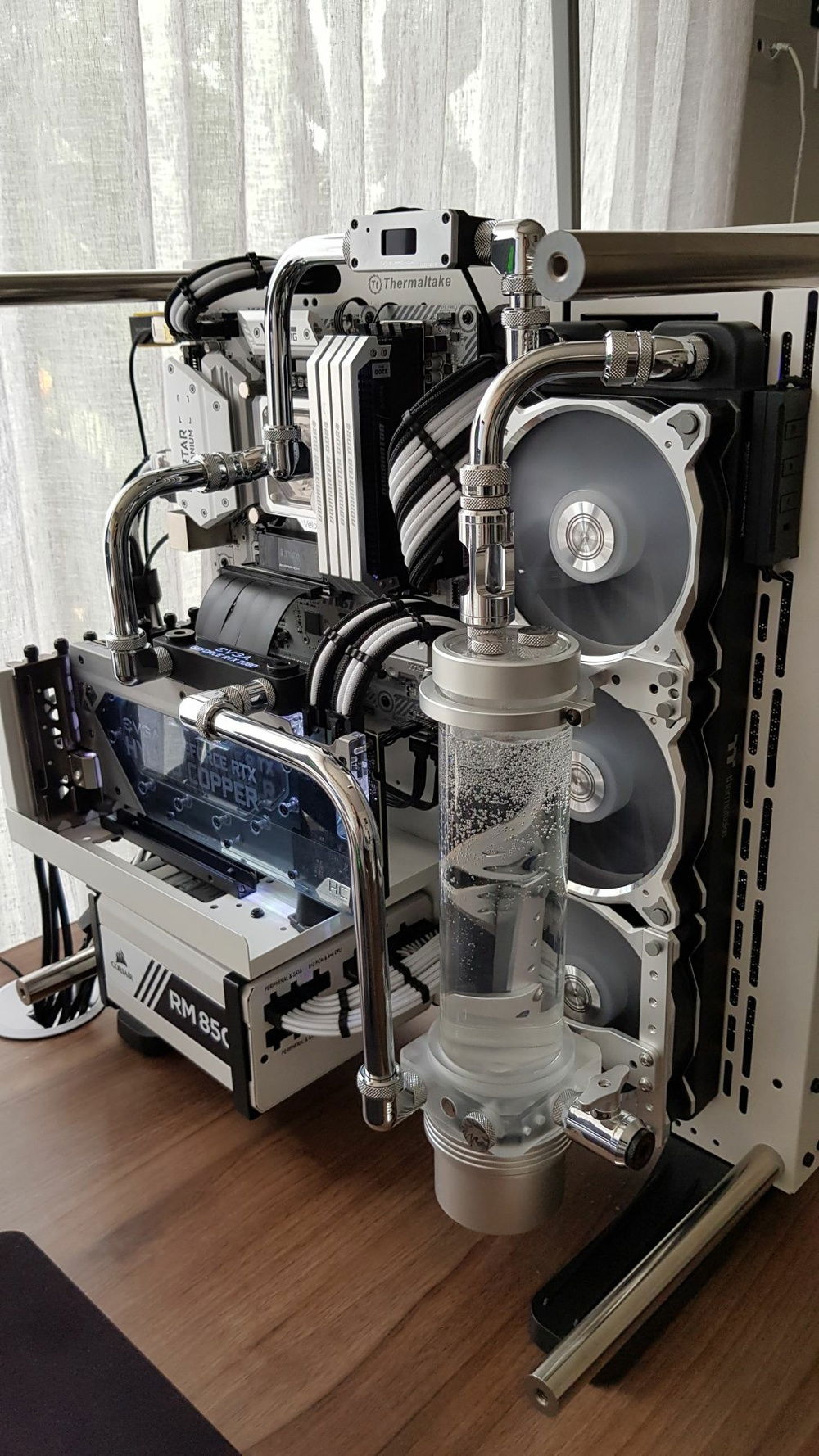

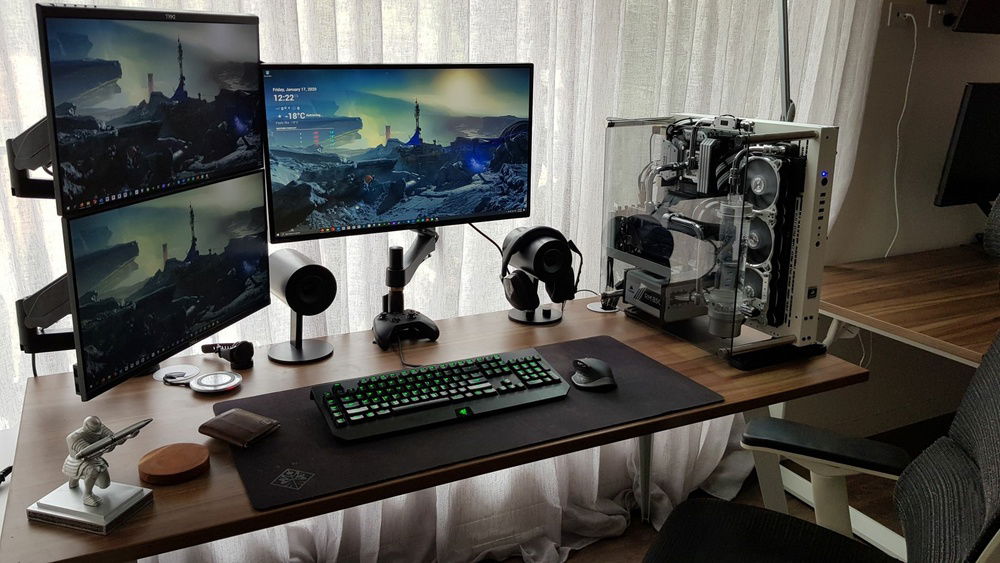

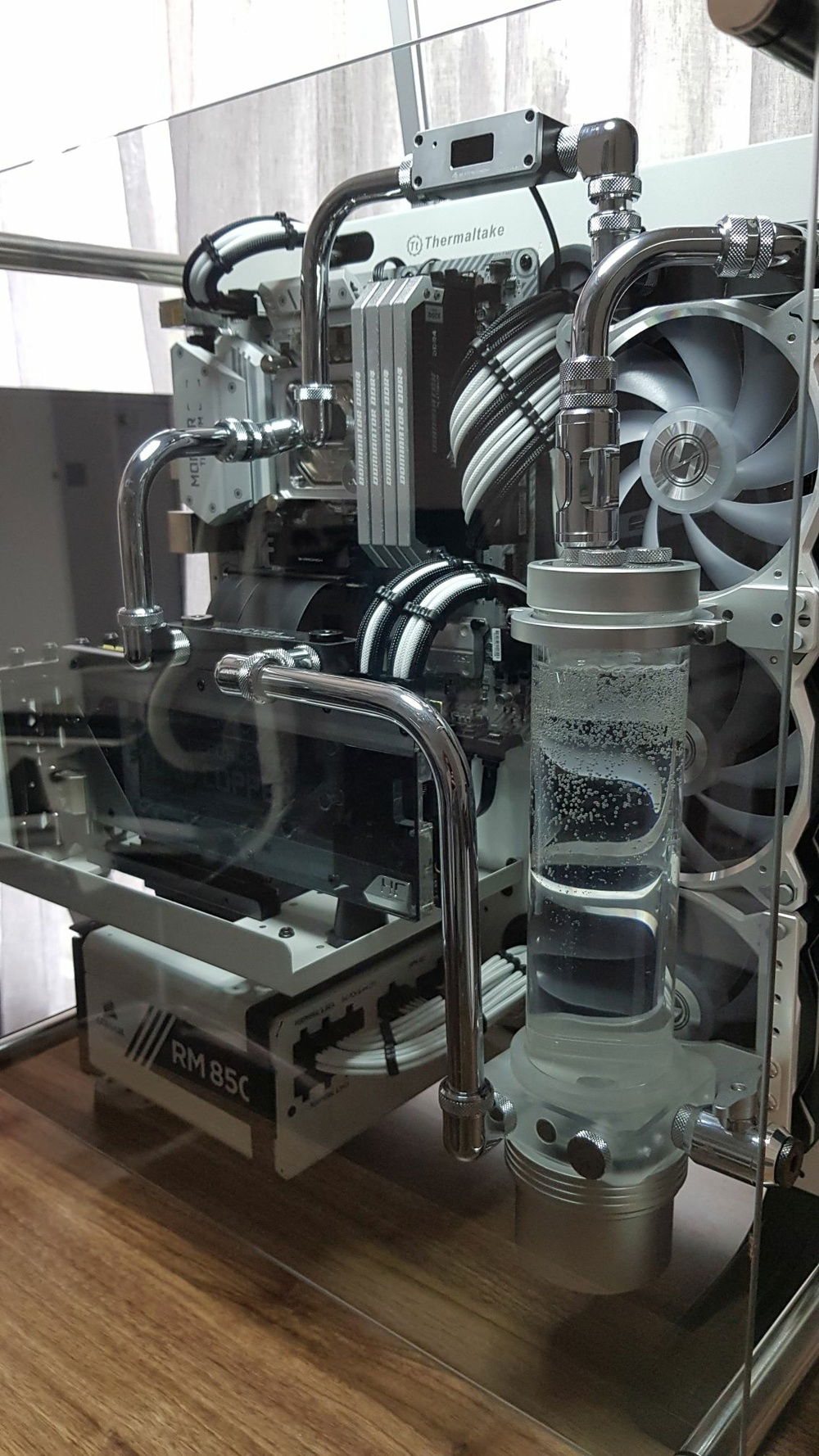

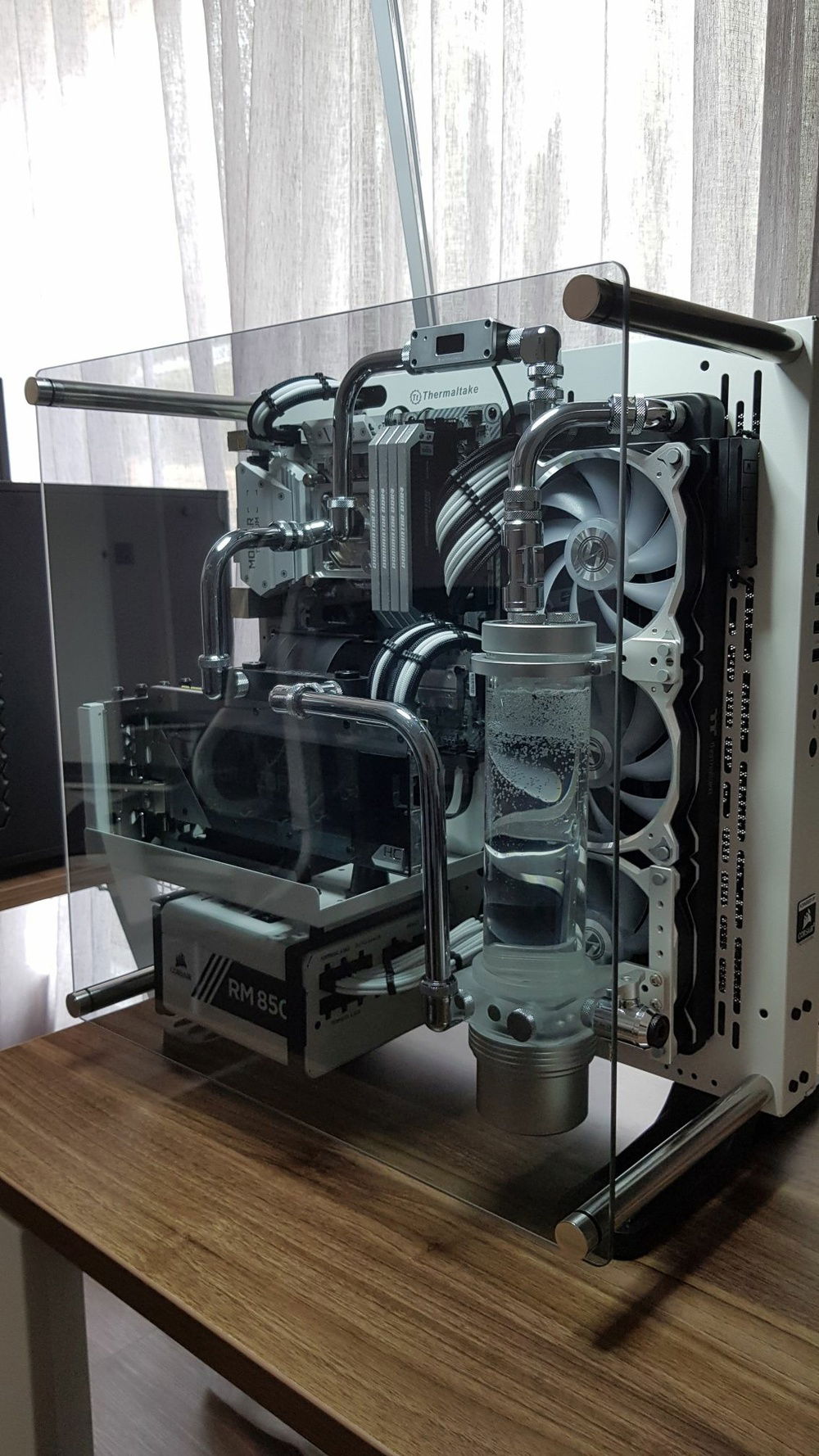

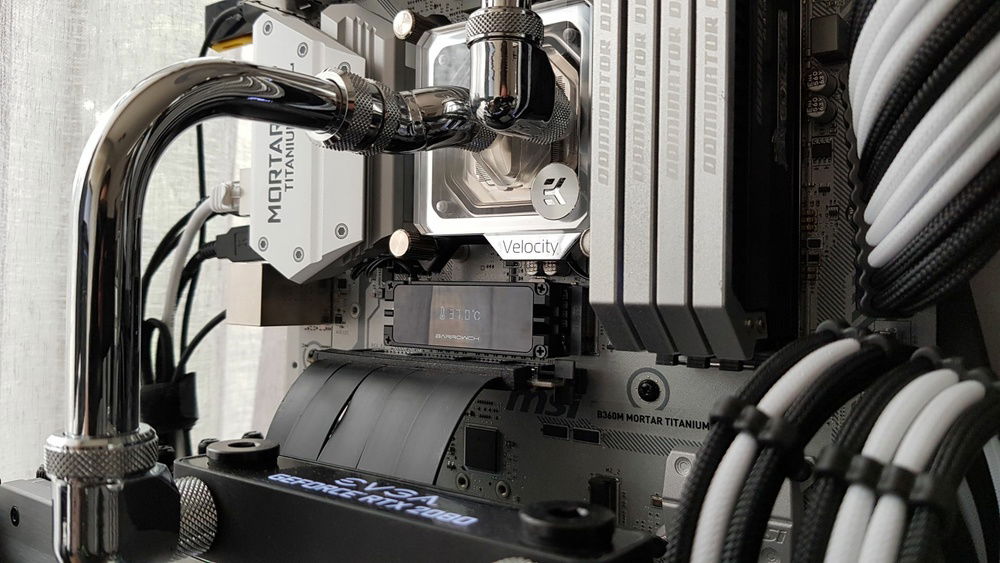

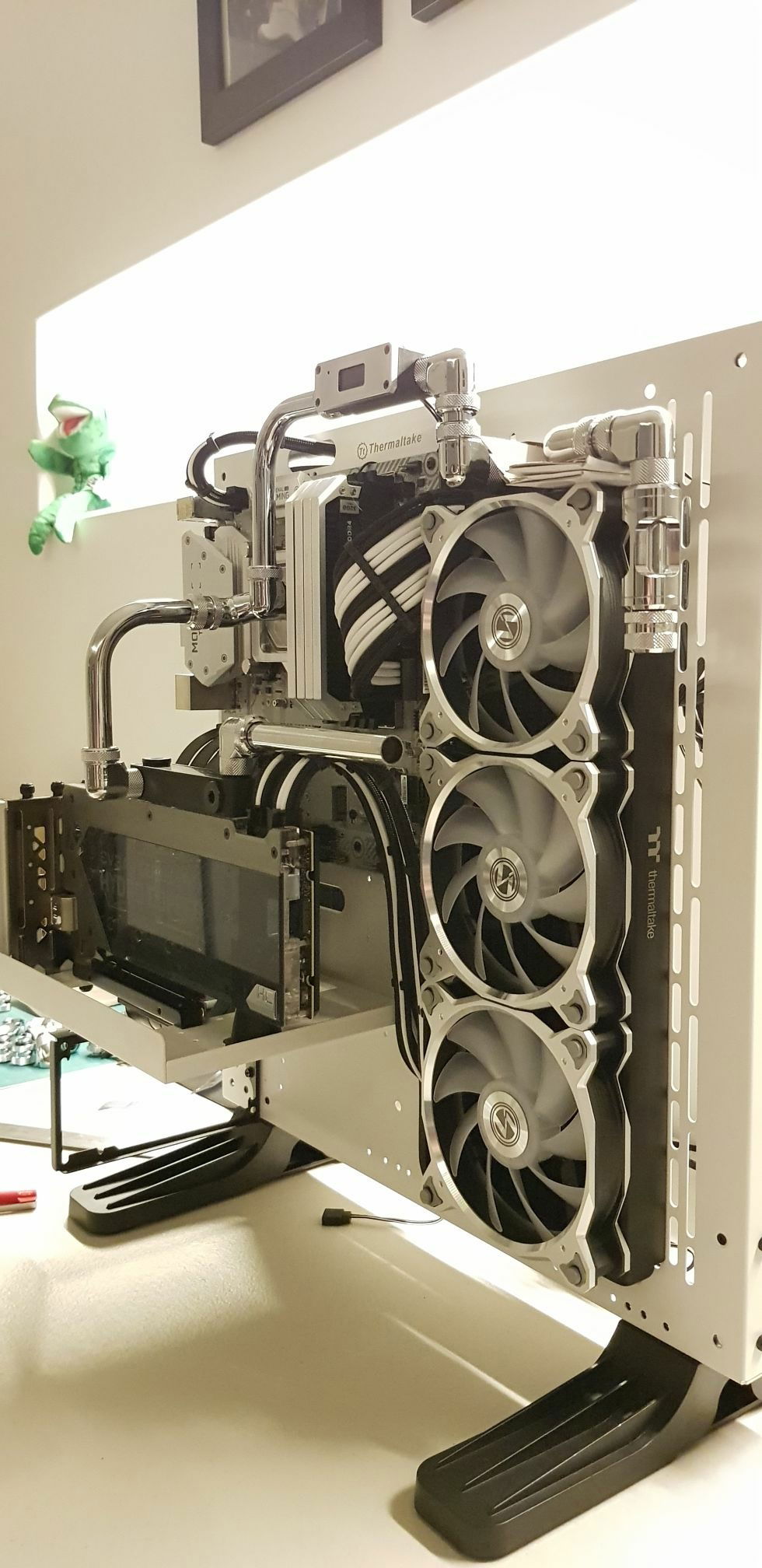

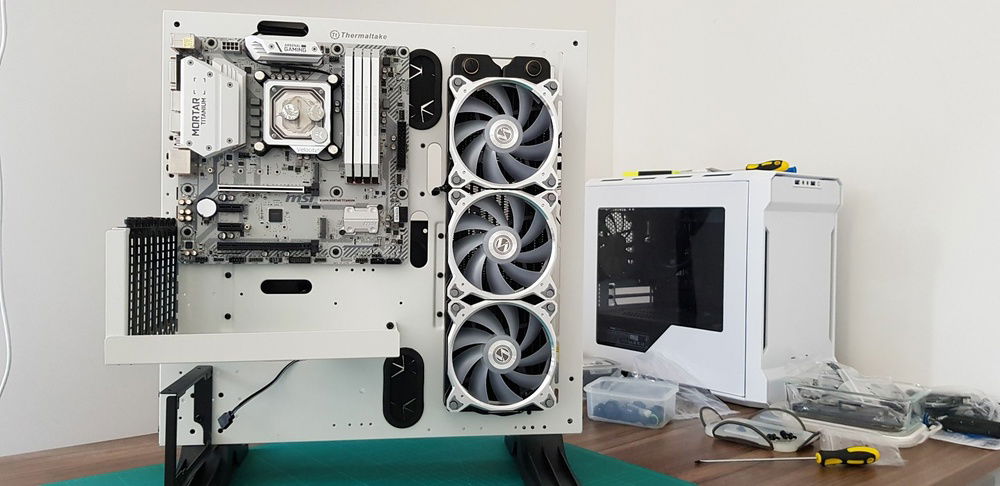

Autodesk workstation & 1440p gaming. Longed to do a P3, it was an absolute dream to build on and made water cooling as easy as possible. If I were to do it again, I'd go with a better motherboard and forgo the colour scheme slightly.

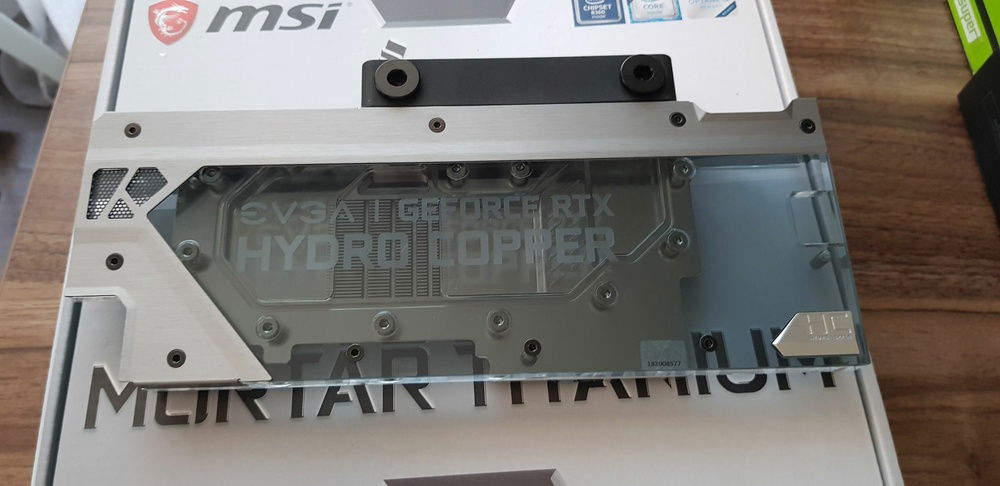

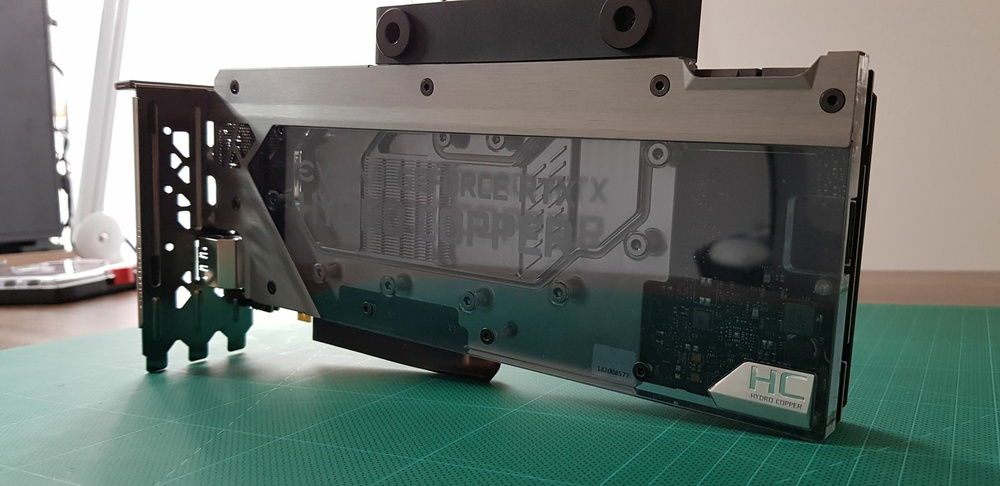

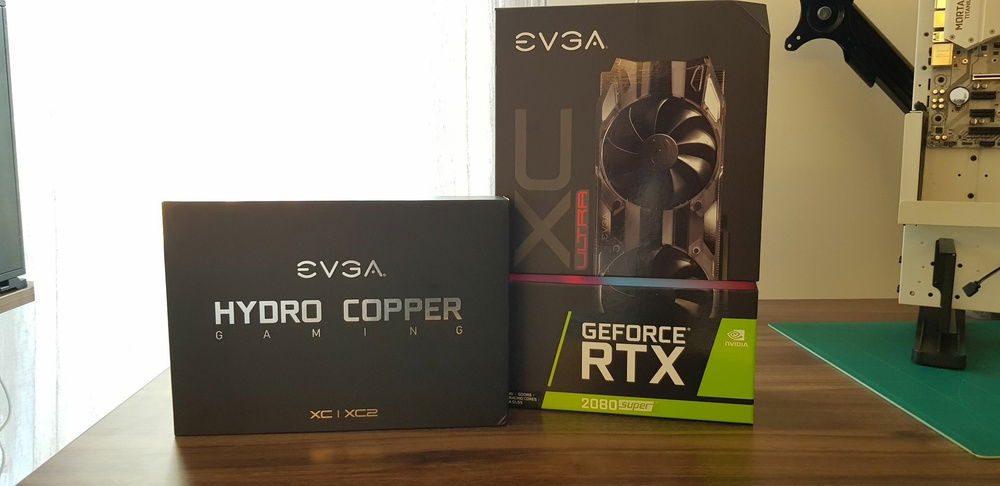

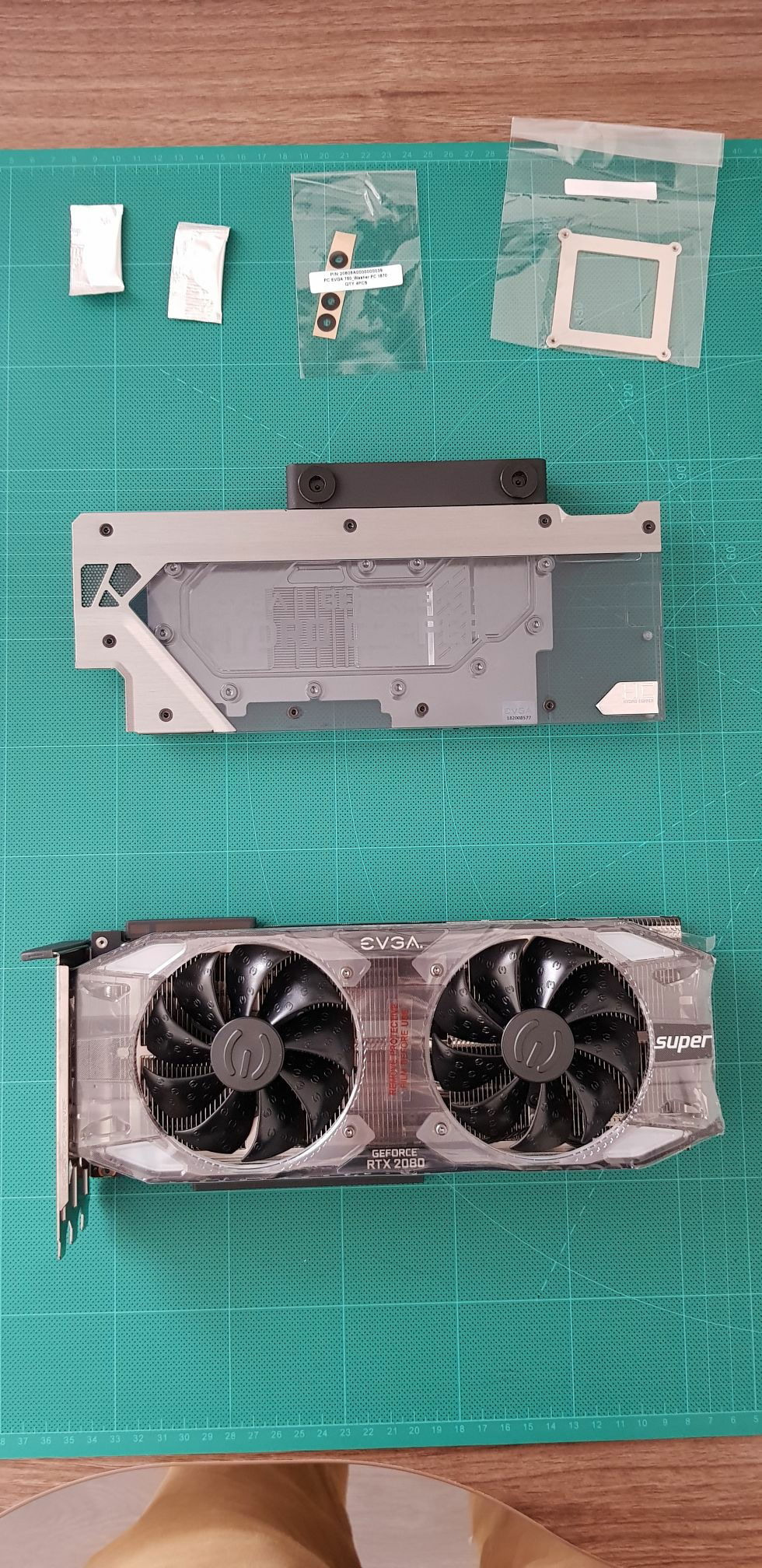

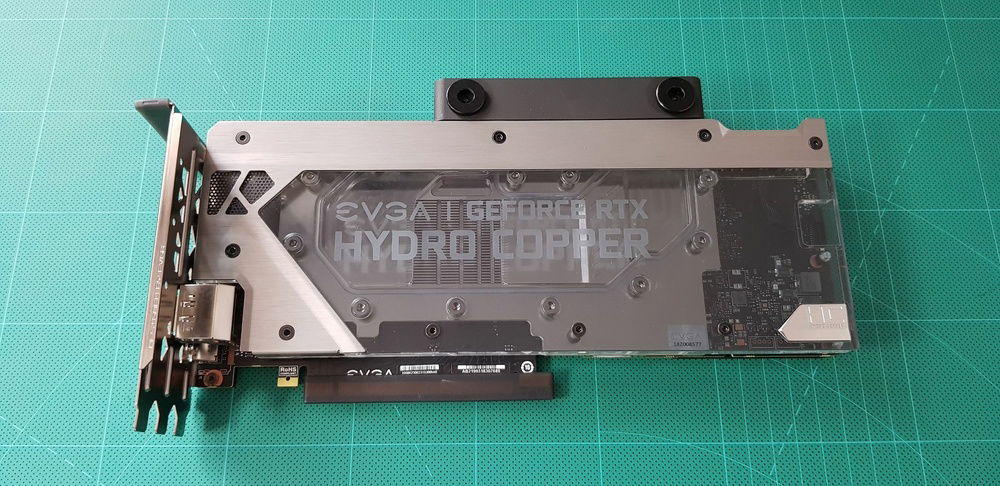

Testing so far has proved decent temperatures -- GPU 25c/52c | CPU 28c/60c (ambient 21.5c), fan speed around 900RPM is whisper quiet. Credit to the EVGA HC block, it is a fantastic product with all the thermal pads pre-applied.

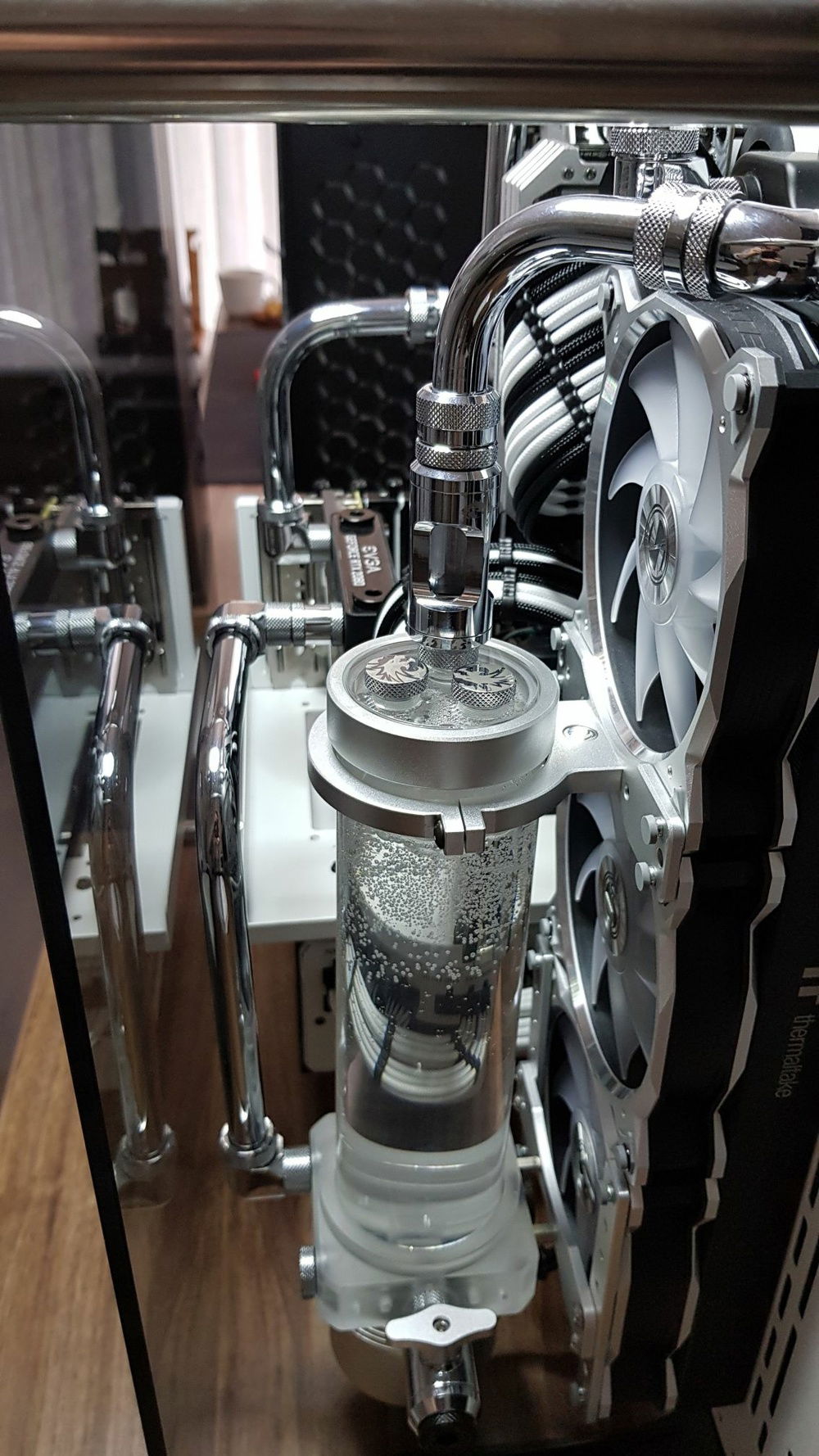

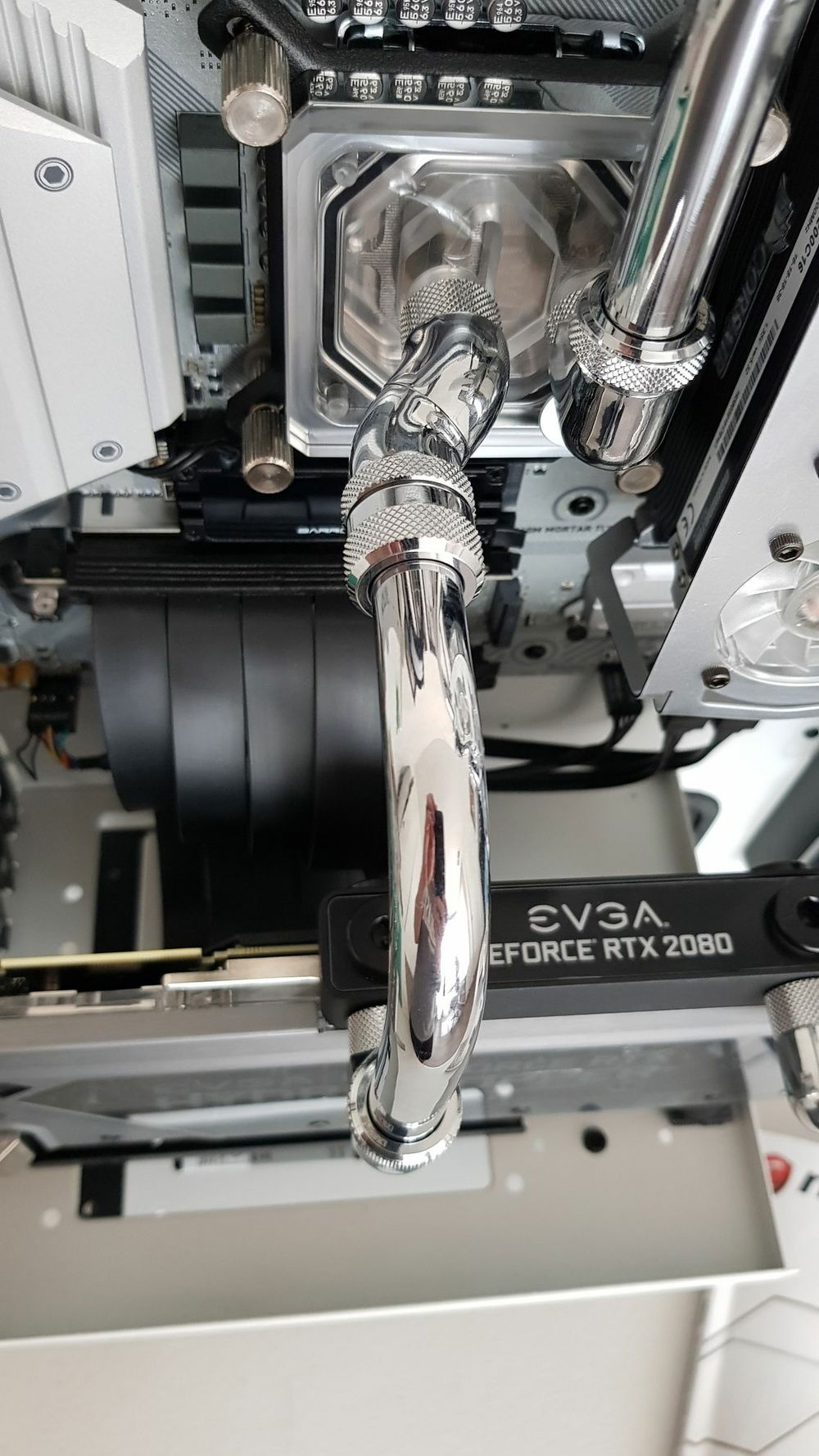

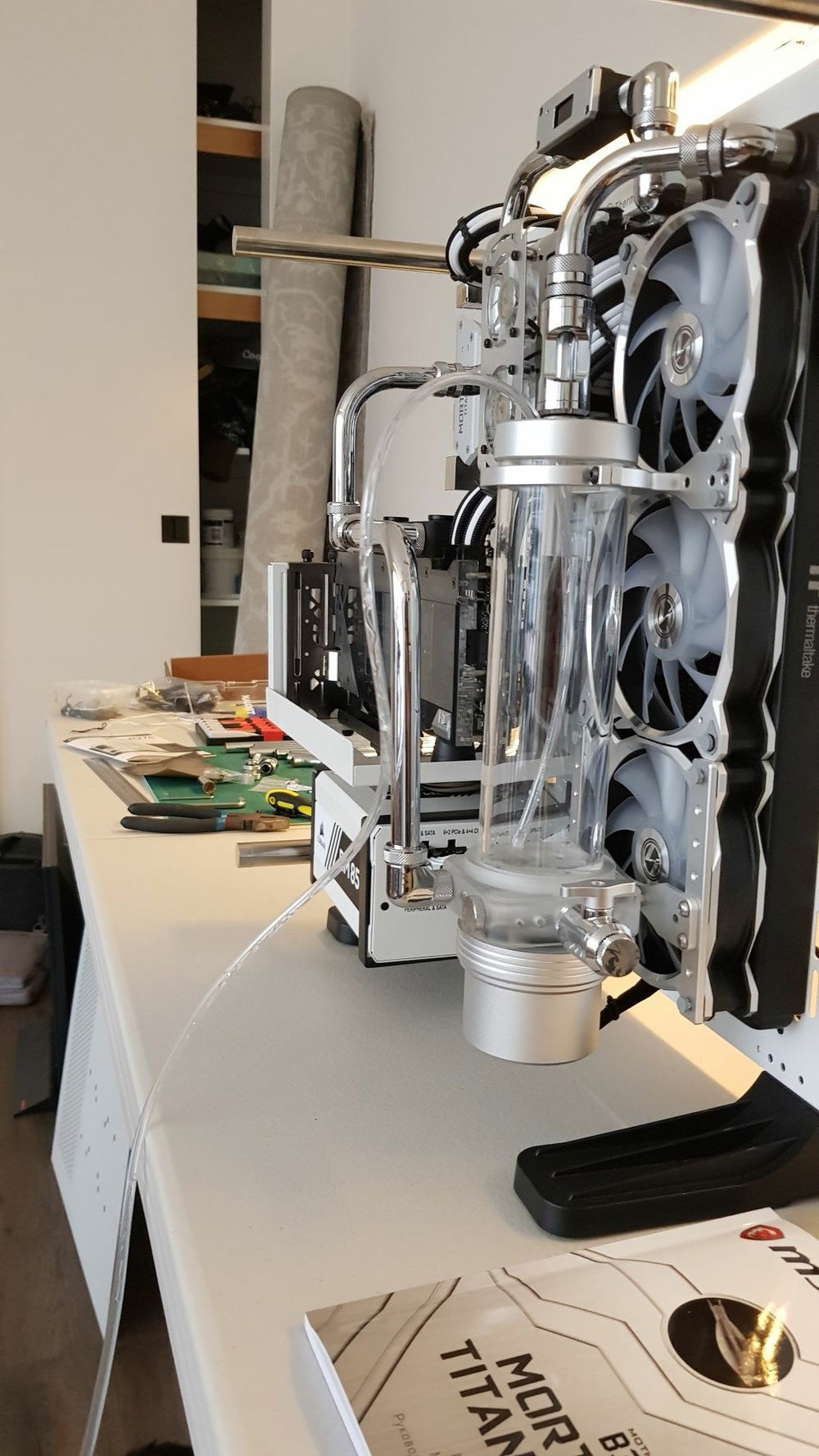

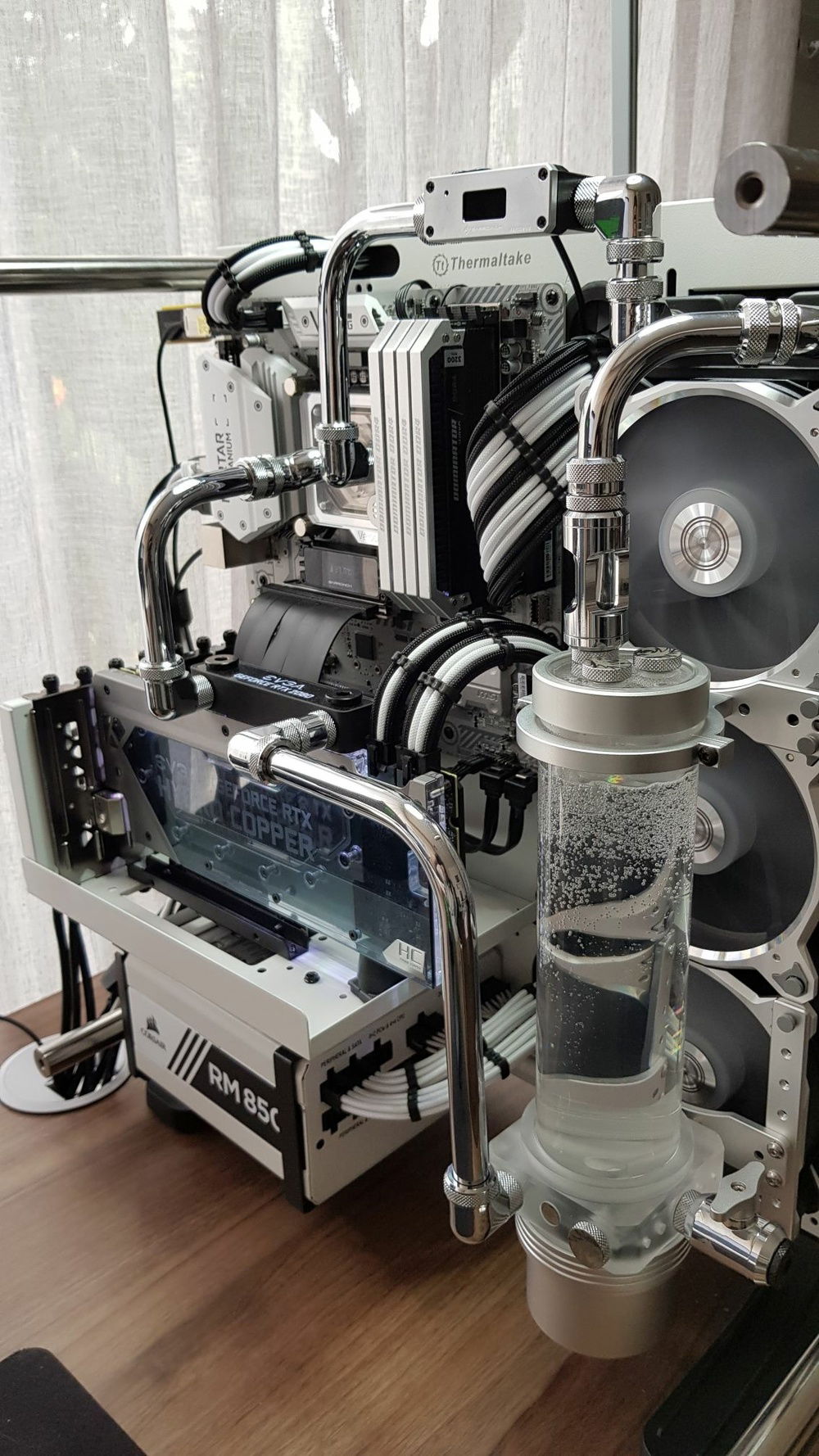

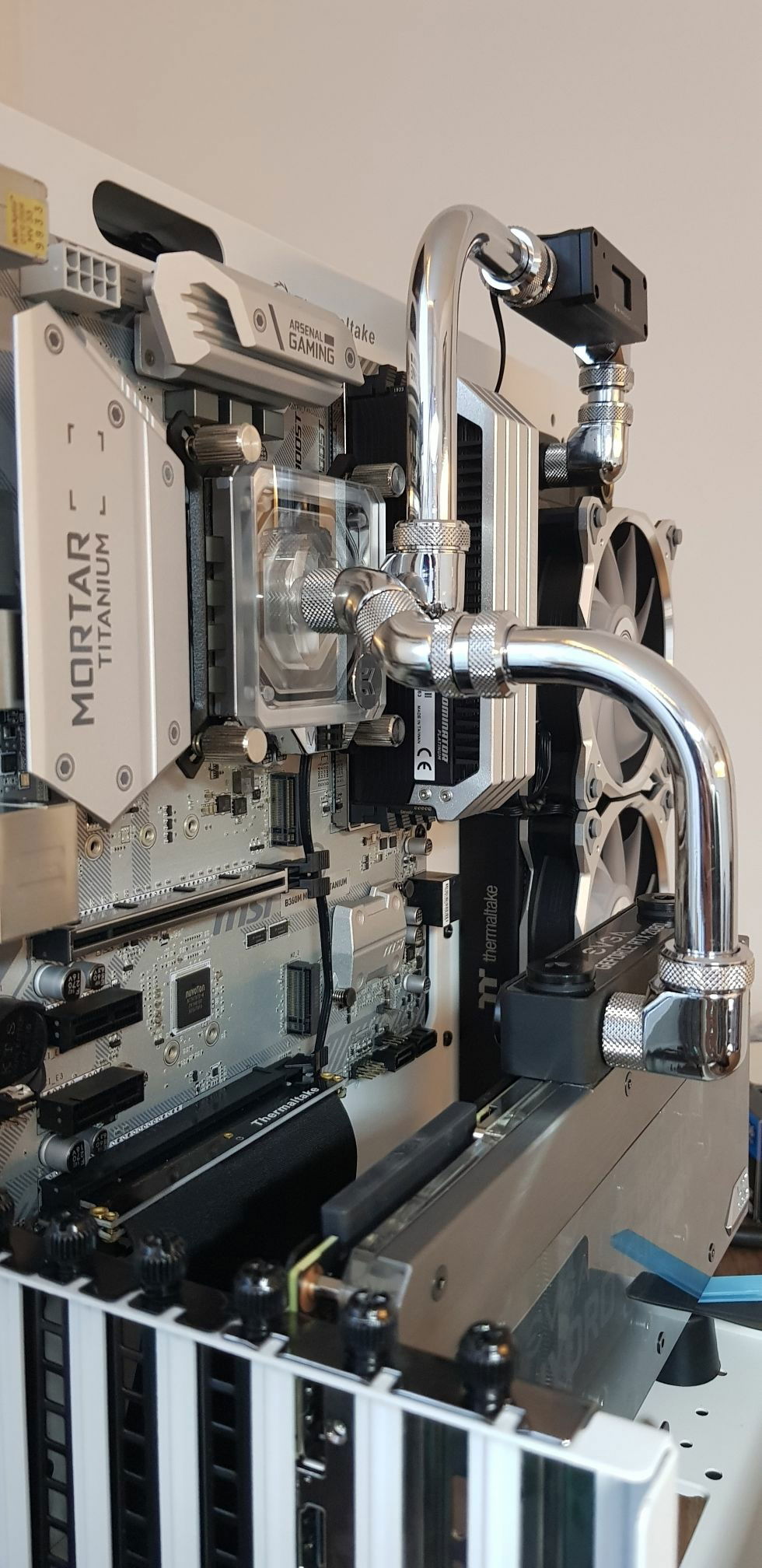

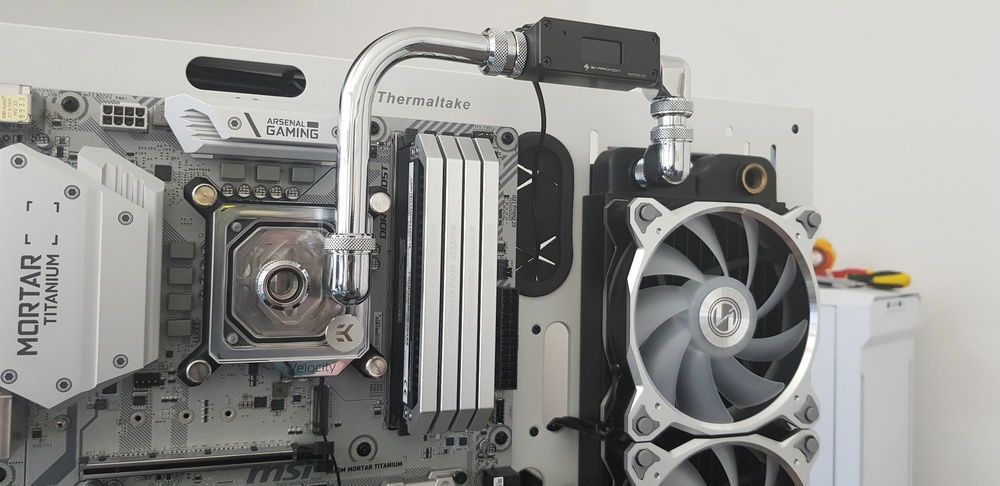

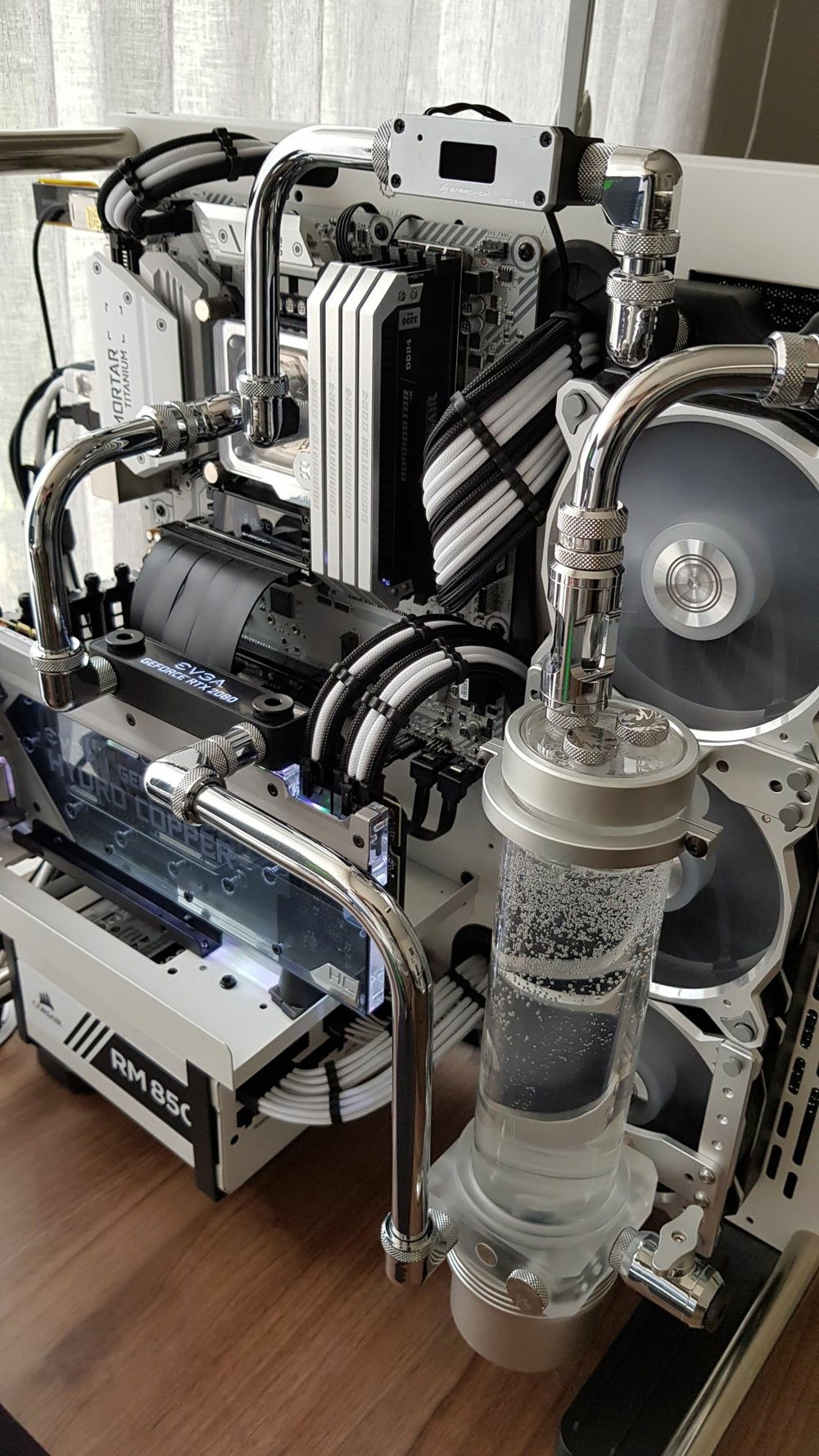

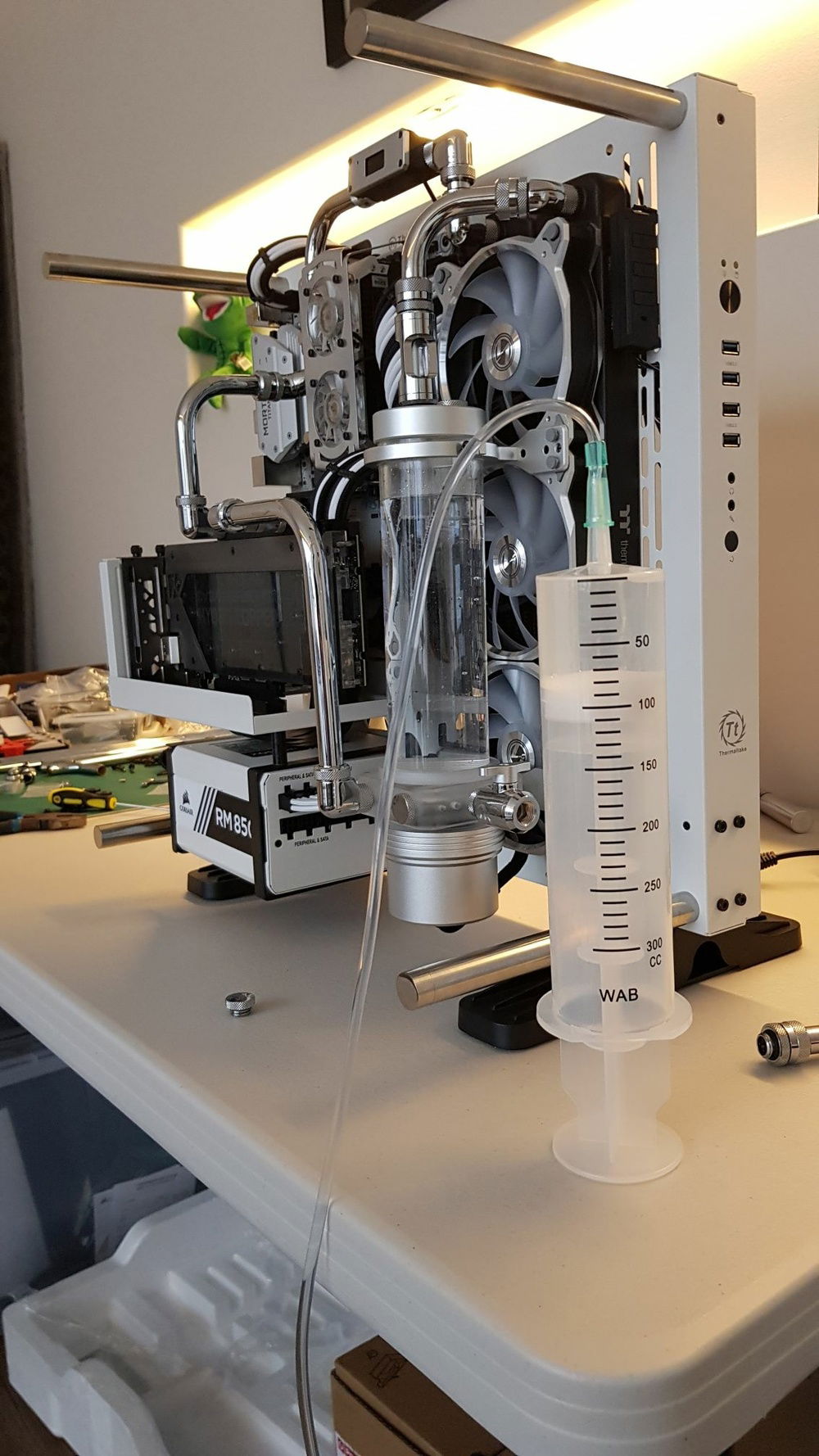

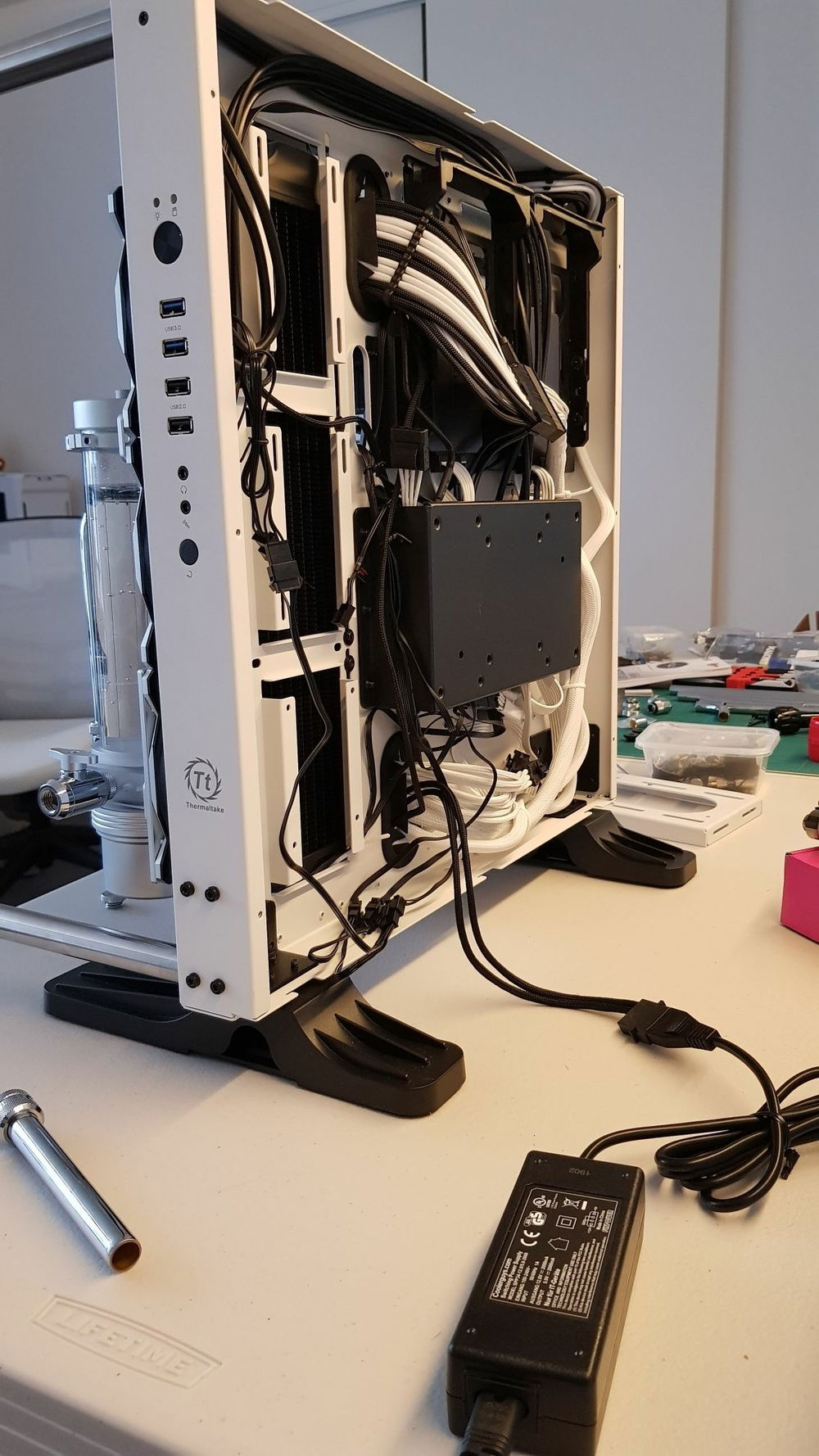

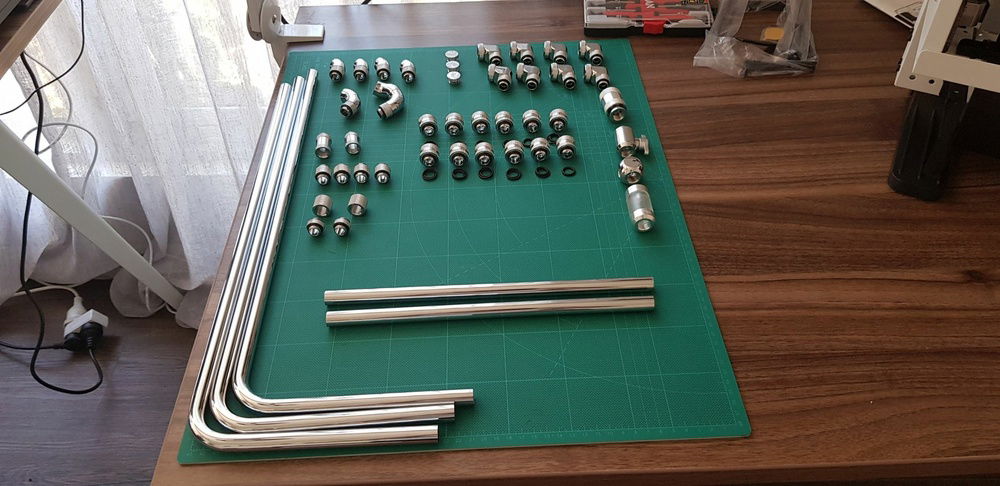

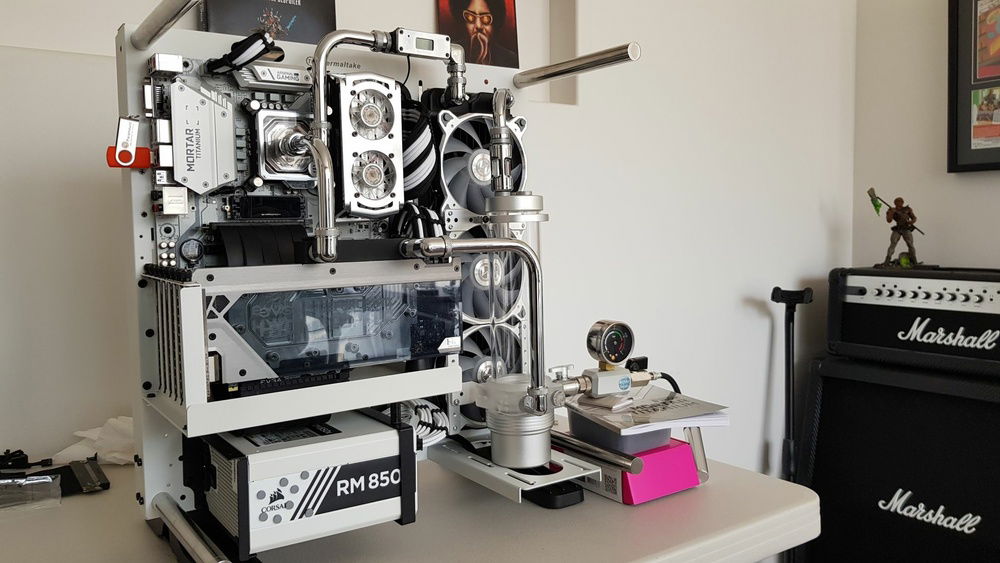

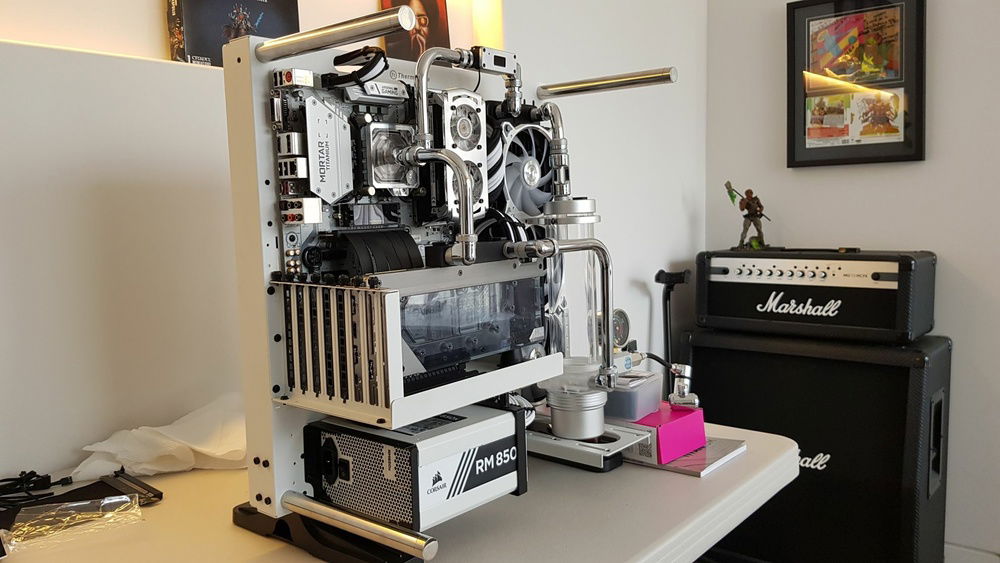

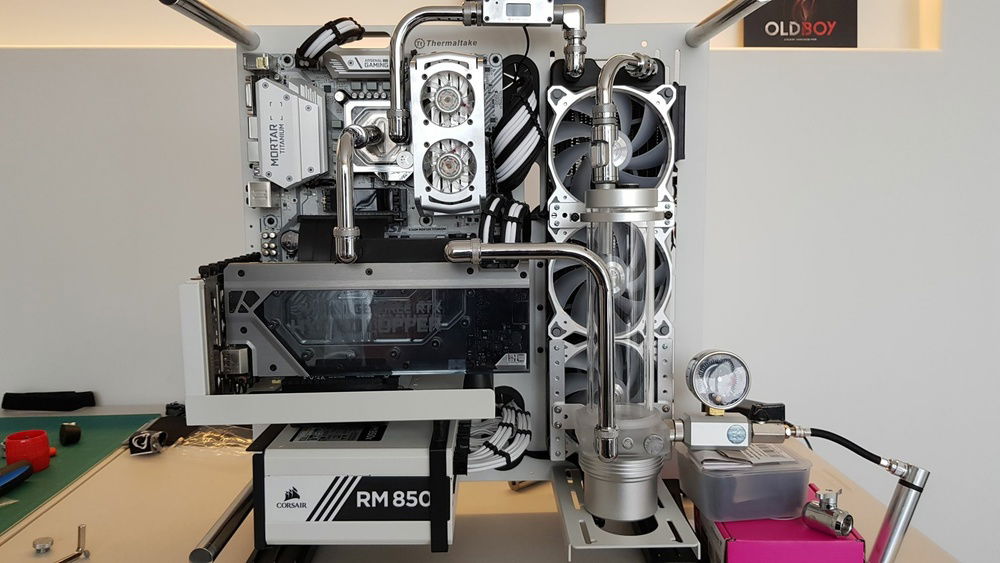

Mistakes made were: not wiring up the motherboard before piping up the GPU - made it very difficult to do after the GPU was installed. Changed the GPU - CPU connection, reducing number of fittings by one. I also bought too many fittings & didn't end up using the rotary anywhere in the system. My approach was to keep the runs as short as possible & reduce the number of fittings that could cause potential leaks. The EKWB leak testing kit proved to be worth the money spent. Pumping the system up to 0.5bar (50kPa) found a weakened O-ring at the temperature sensor. I replaced it and pressure held at 0.5bar for over a day before removing.
Color(s): Black Silver White
RGB Lighting? No
Cooling: Custom Liquid Cooling
Theme: Industrial
Size: ATX
Type: General Build

Hardware

CPU
$ 299.99
Intel - Core i7 9700K
Socket: LGA 1151
Cores: 8
Integrated Graphics: Yes
Motherboard
MSI - B360M MORTAR TITANIUM
Chipset: B360
CPU Socket: LGA 1151
Size: Micro-ATX
Memory
$ 236.99
Graphics
$ 799.99
NVIDIA - RTX 2080 Founders Edition
Chip Manufacturer: NVIDIA
Chip: RTX 2080
Storage
$ 115.97
Crucial - CT1000P1SSD8
Form Factor: M.2
Interface: M.2 (M)
Capacity: 1 TB
PSU
$ 124.49
Corsair - RM850x White
Wattage: 850
Form Factor: ATX
Efficiency: 80+ Gold
Case
$ 291.79
Thermaltake - Core P3 (White)
Type: Mid-Tower
Side Panel: Open
Unable to dertermine total build value (missing part value)
