the Mini

this one I built with 2 things in mind: how do i fit as many standard PC items into as small a space as possible, and how do I go about building my wife a PC just for her?

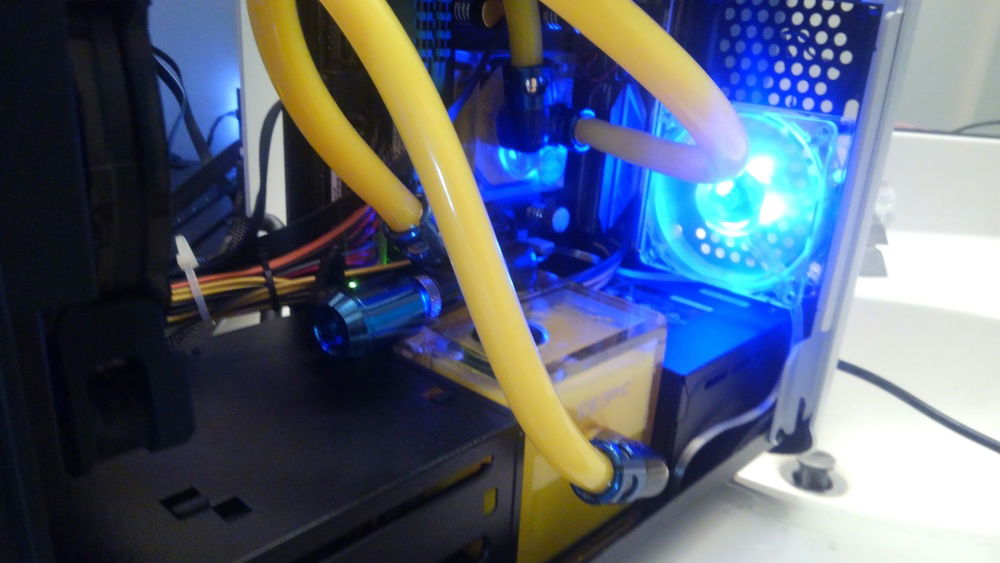

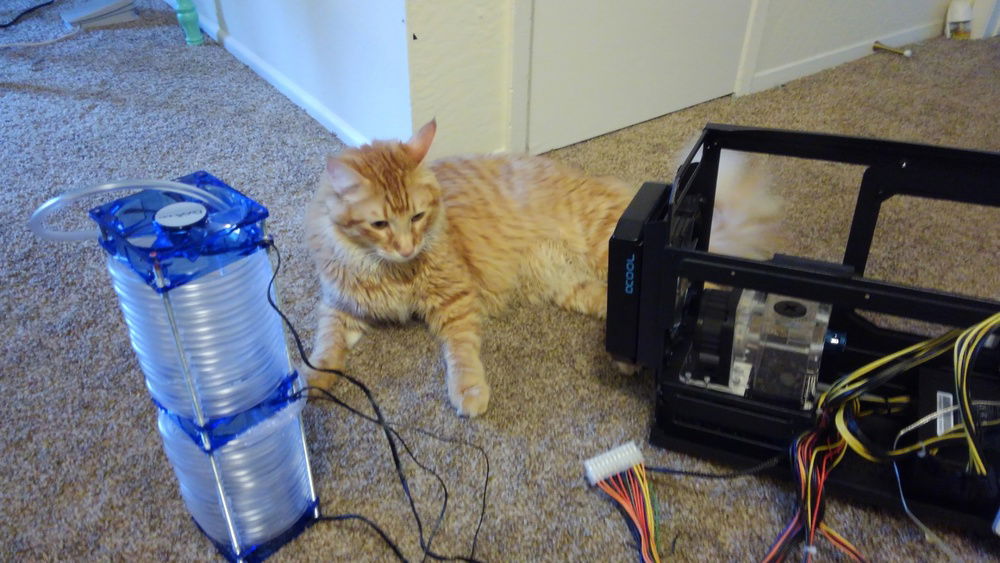

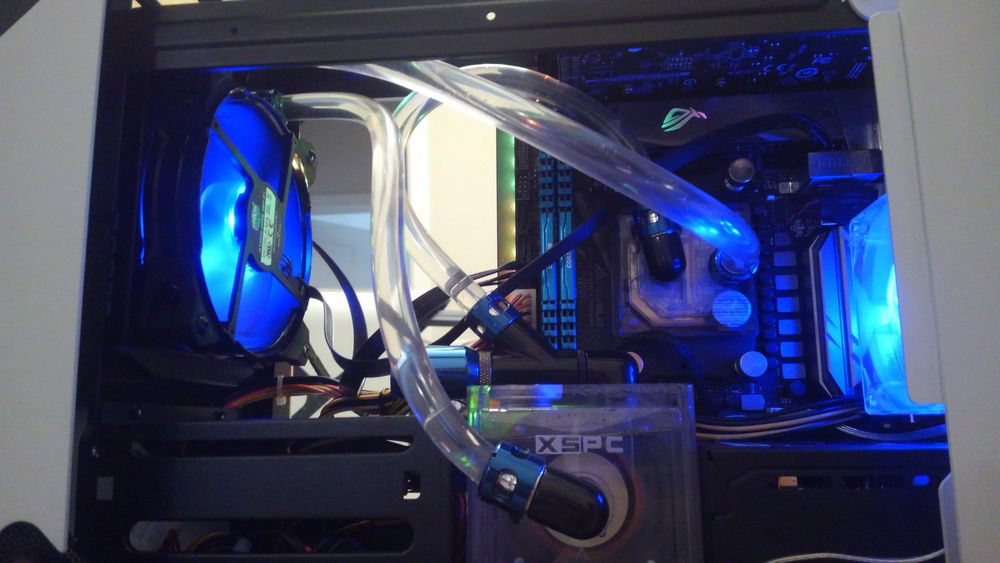

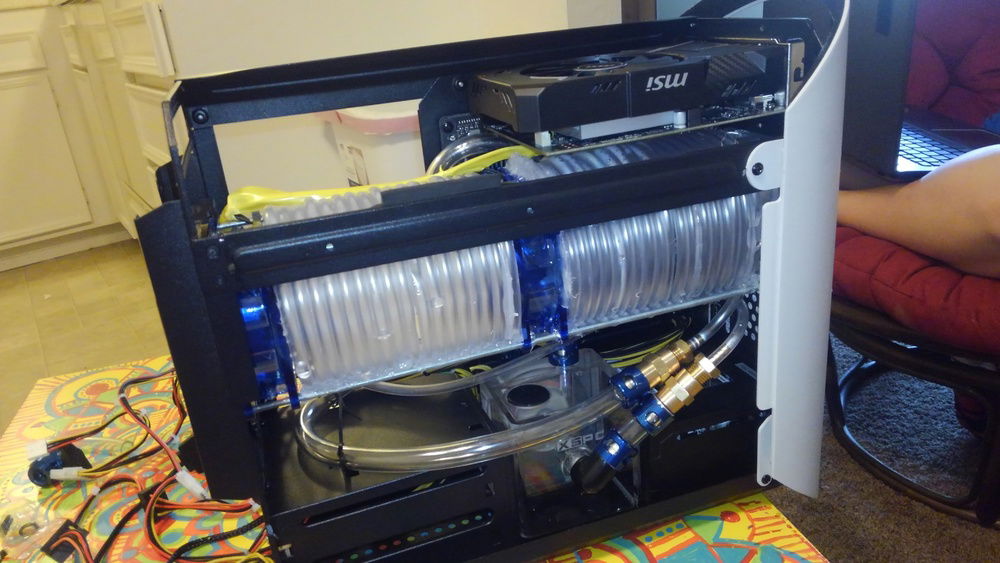

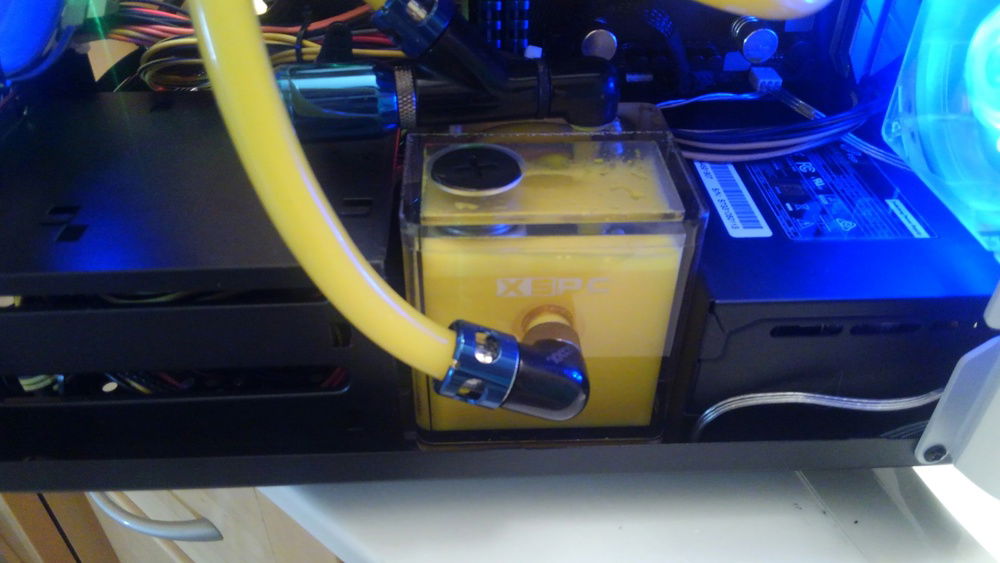

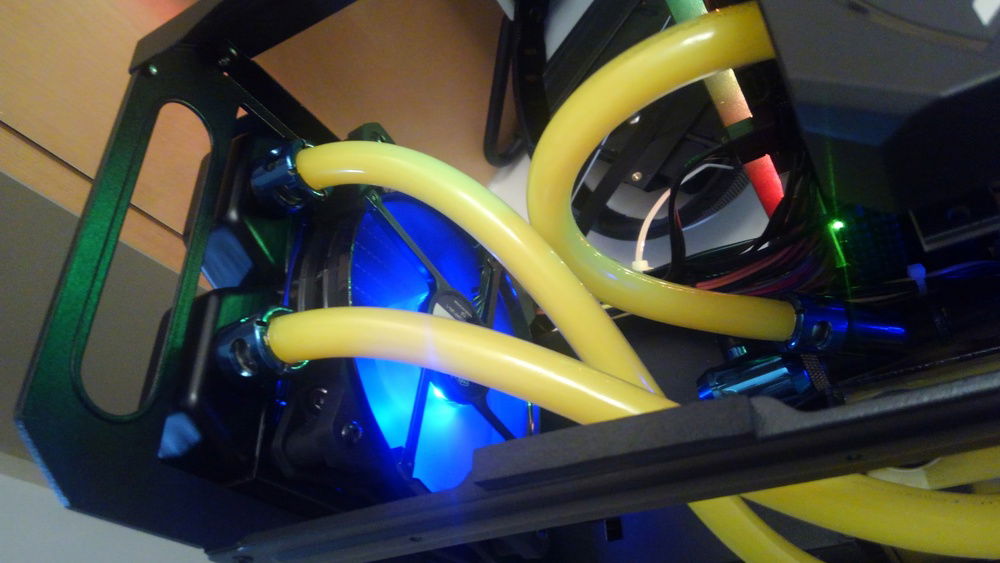

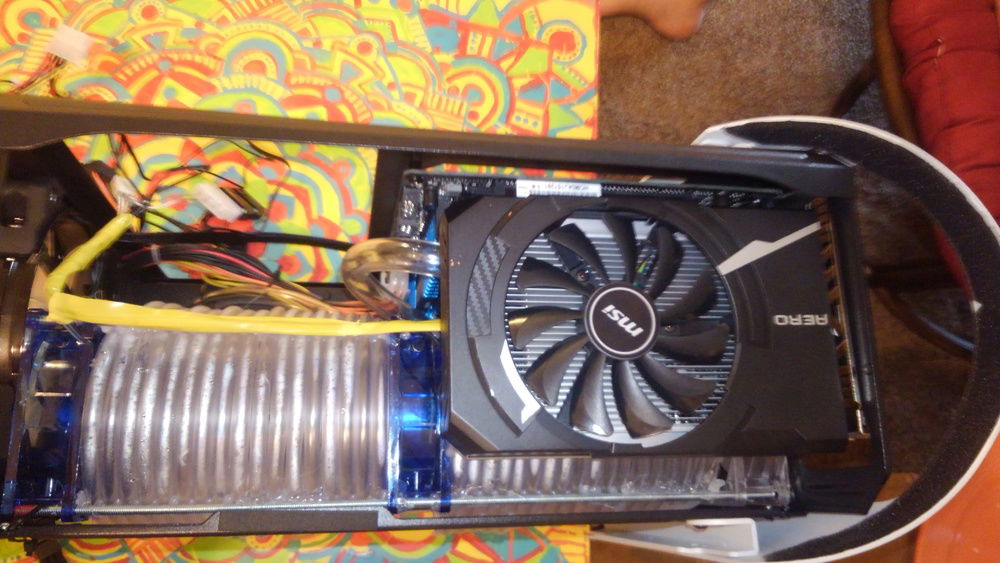

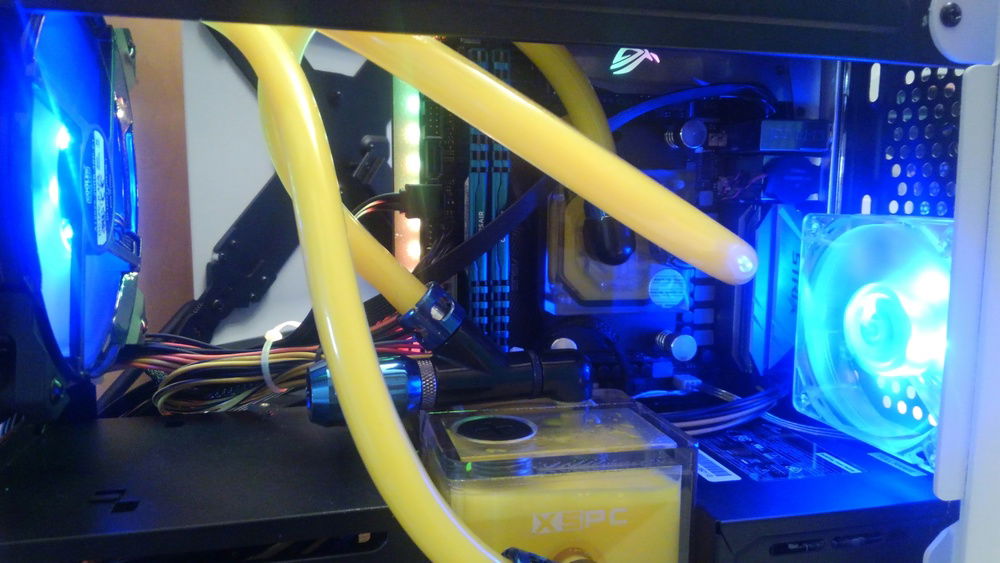

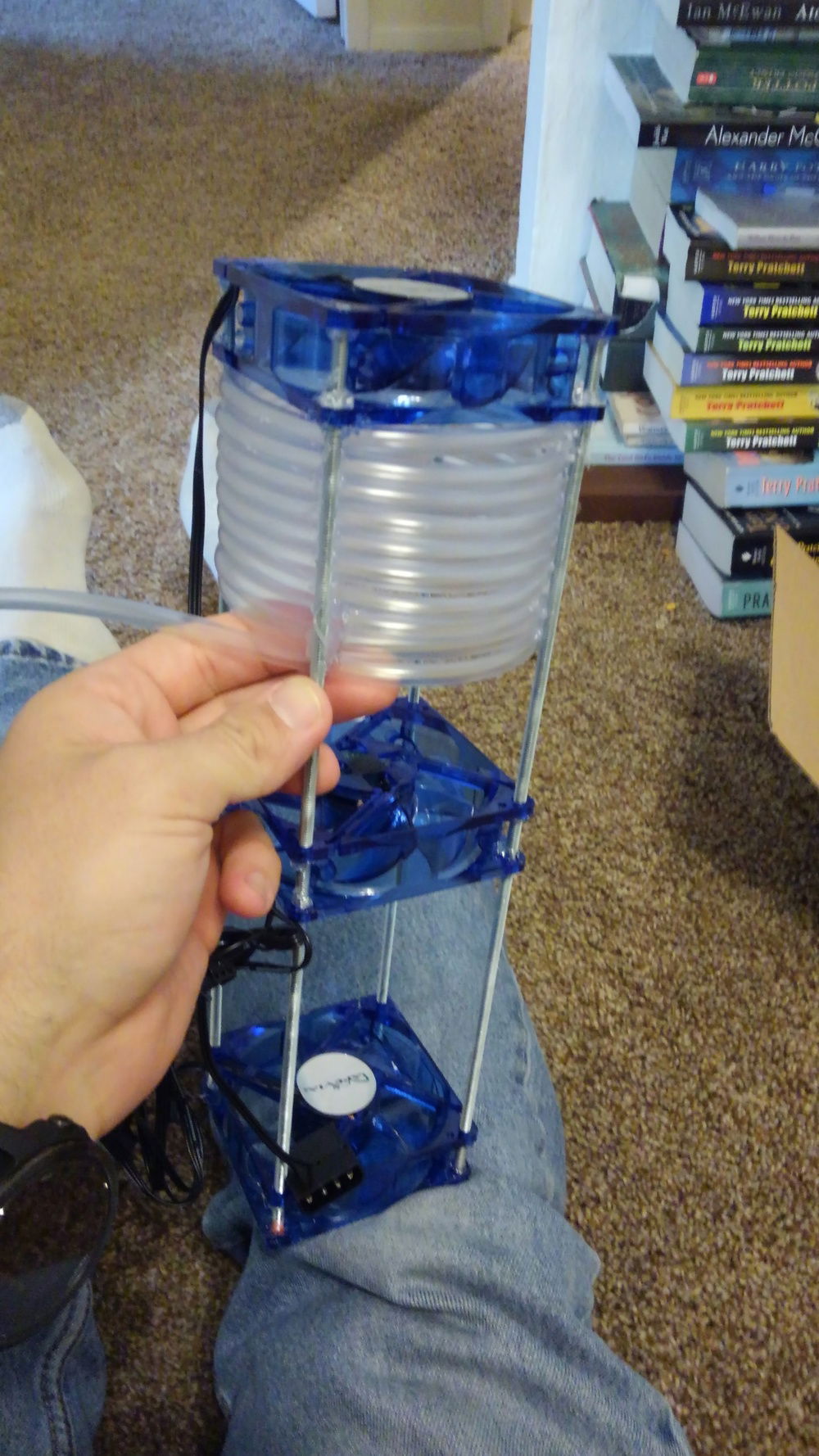

I found and used anything based on M-ITX sizing. again like my last build, custom looping seemed to be the best way to go after a while. I decided to use flex tubing on this build because of the cramped, unforgiving spaces. Also I was trying out a new design for a radiator based on wrapping smaller tubing around several fans in series. Theoretically it was great but the execution needed more work. Not to mention given the confined spaces I couldn't sacrifice airflow as badly as my design did.
My wife wanted some color to the case so I got the Portal in white. We took some construction paper and spray paint and she handled the rest.
Color(s): Light Blue Yellow
RGB Lighting? Yes
Cooling: Custom Liquid Cooling
Theme: Nature
Size: Mini-ITX
Type: General Build

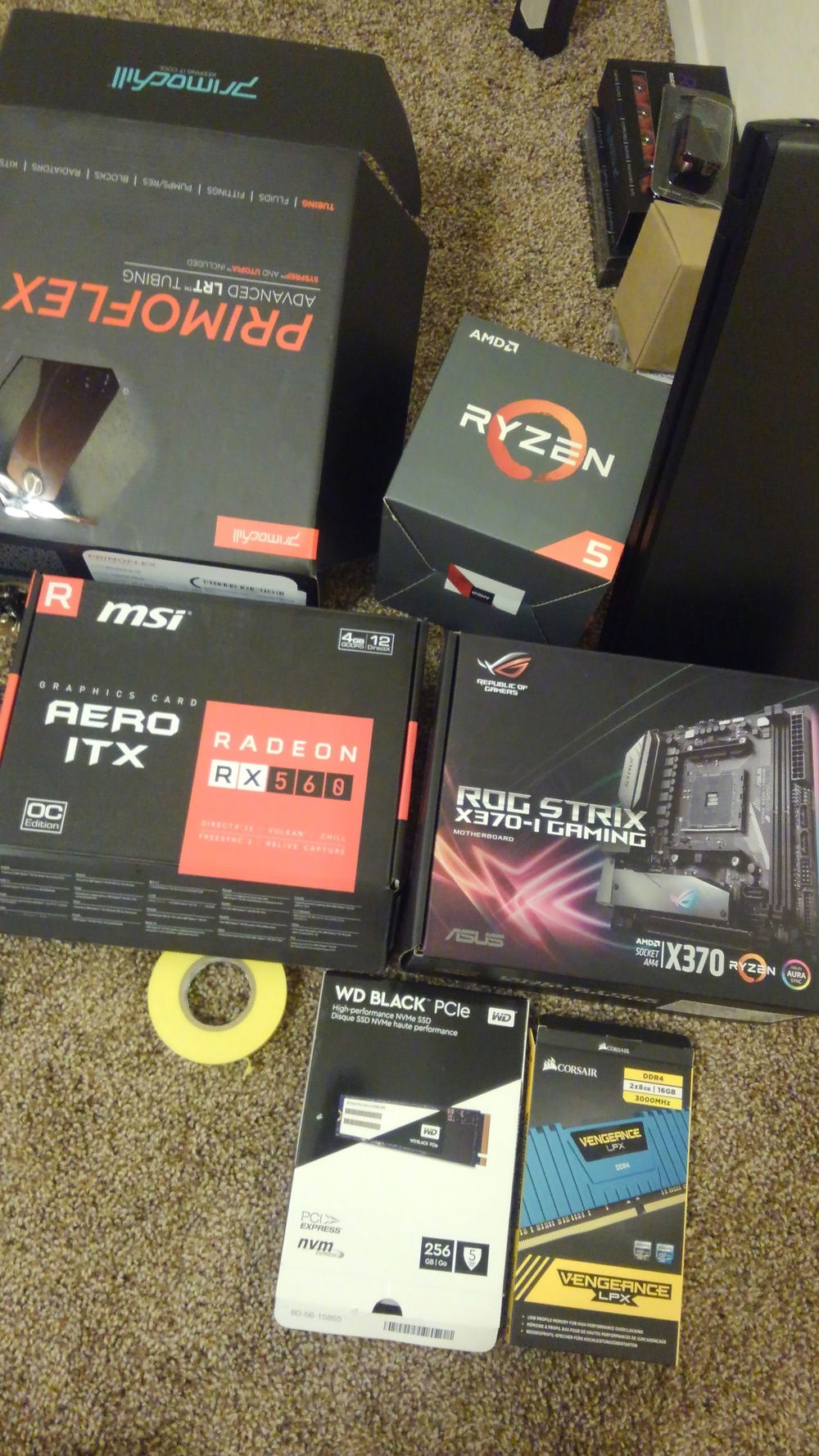

Hardware

CPU
$ 189.99
AMD - Ryzen 5 (1400)
Socket: AM4
Cores: 4
Motherboard
$ 558.68
ASUS - ROG Strix Gaming (B350-I)
Chipset: B350
CPU Socket: AM4
Size: Mini-ITX
Memory
$ 41.28
Corsair - Vengeance LPX (3000MHz) (Black)
Type: DDR4
Capacity: 8 GB
Graphics
$ 369.99
MSI - AERO ITX
Chip Manufacturer: AMD
Chip: RX 560
Storage
$ 159.99
Western Digital - WD Black (WDS500G2X0C)
Form Factor: M.2
Interface: M.2 (M)
Capacity: 500 GB
PSU
$ 99.99
FSP - FSP400-60FGGBA
Wattage: 400
Form Factor: ATX
Efficiency: 80+ Gold
Case
$ 233.36
BitFenix - Portal White
Type: Mini-Tower
Side Panel: Solid
