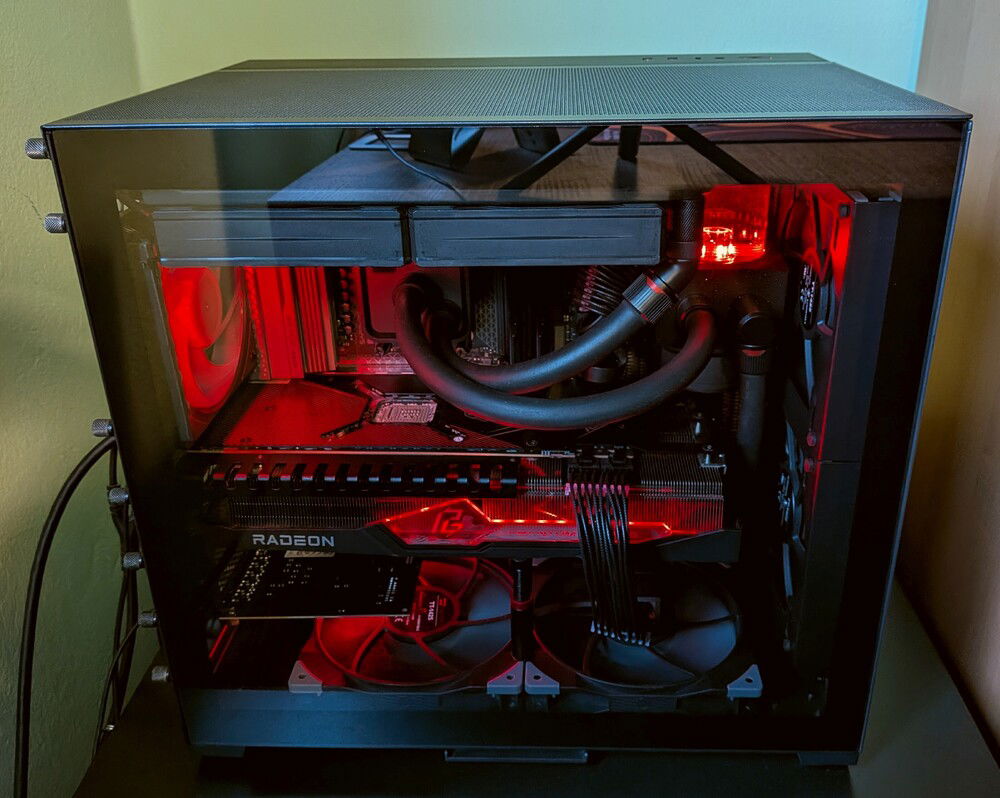

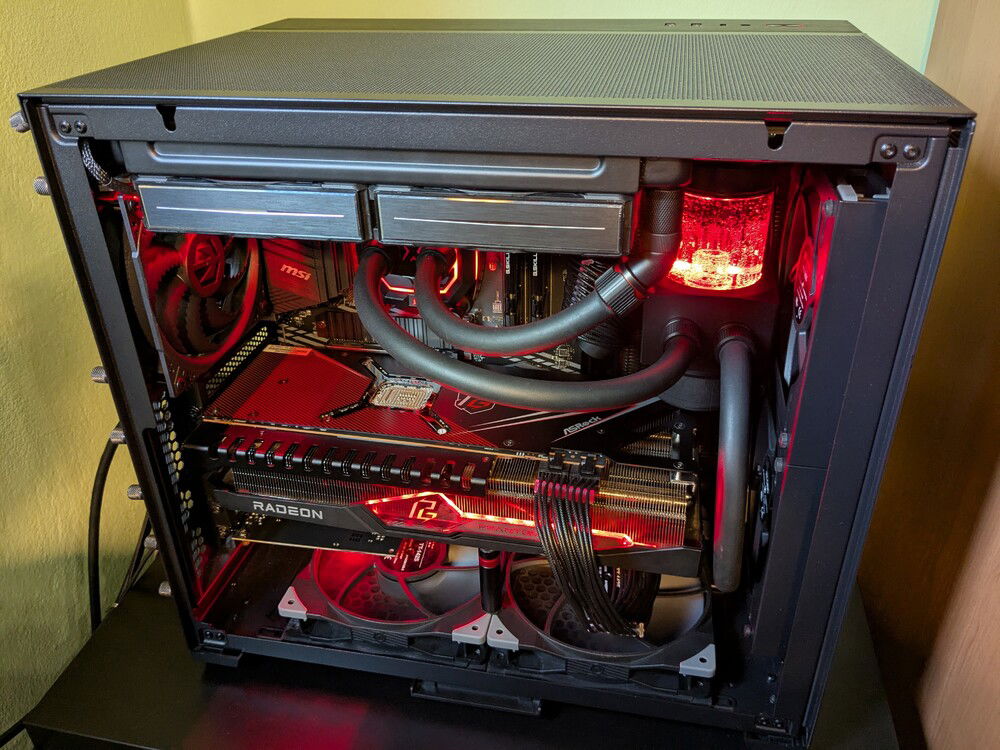

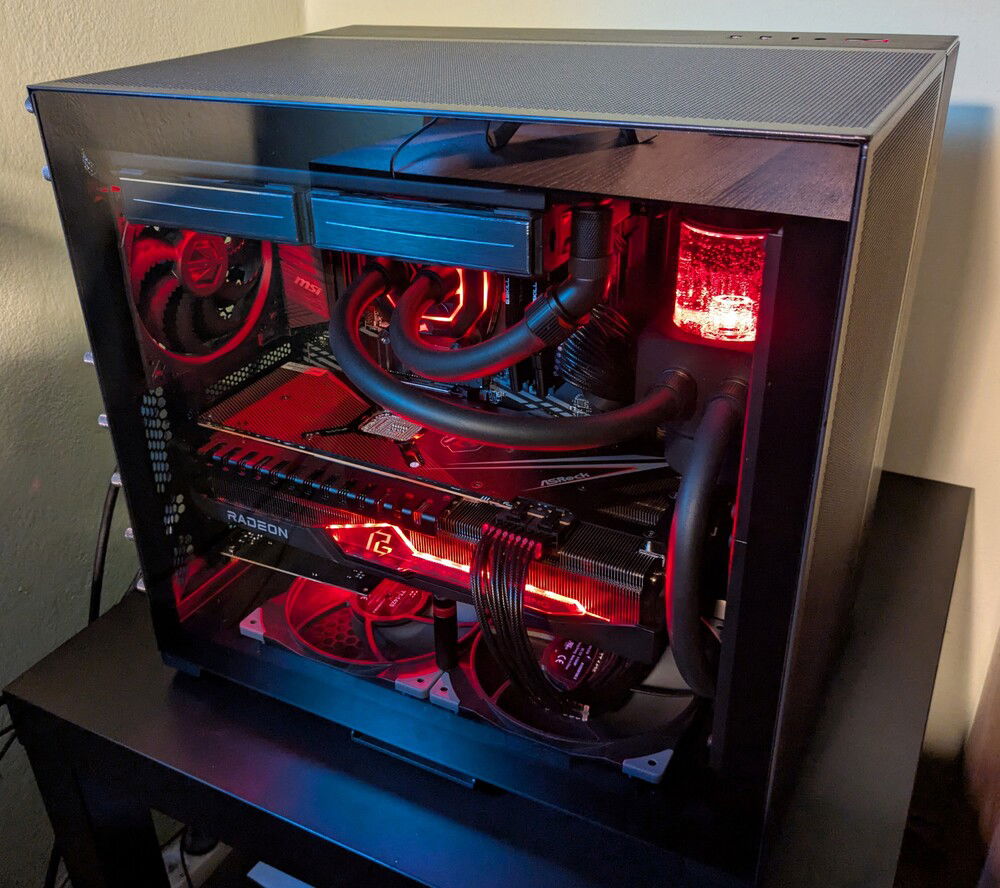

Red Box 2.0

Major update of my previous build in more airflow and watercooling friendly case.

Main components:
  • CPU: AMD Ryzen 7 5800X
  • Mobo: MSI B550-A PRO
  • Ram: 2x8GB Crucial Ballistix Sport LT 3200MHz

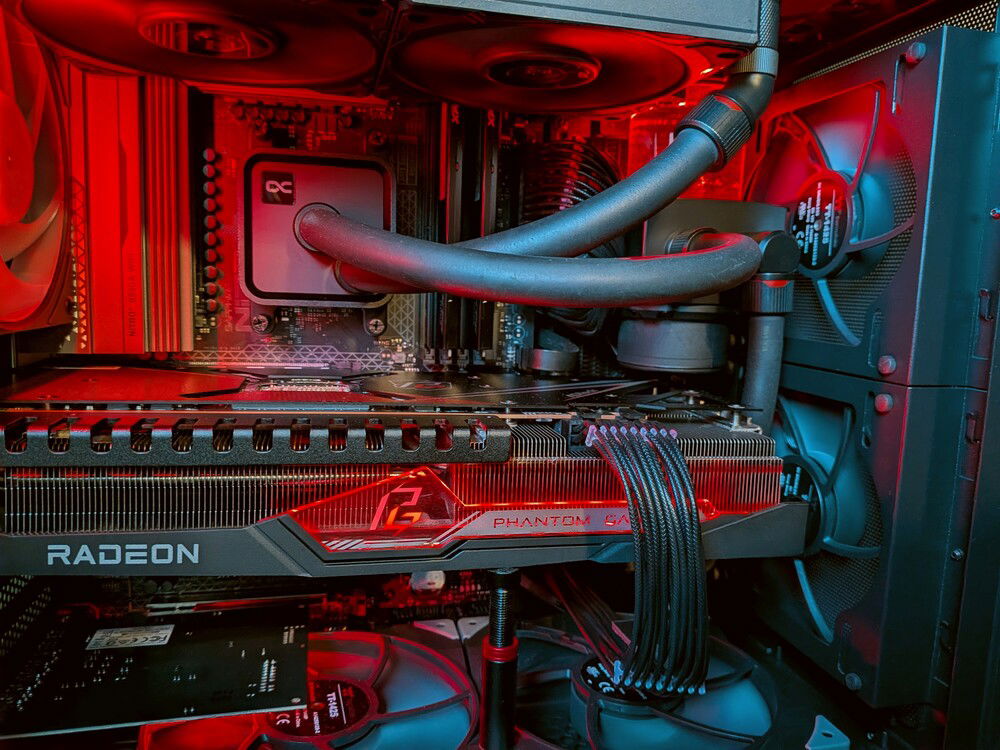

  • GPU: ASRock Radeon RX 7900 XT Phantom Gaming
  • PSU: Seasonic VERTEX GX-850
  • Case: Lian Li O11 Air Mini

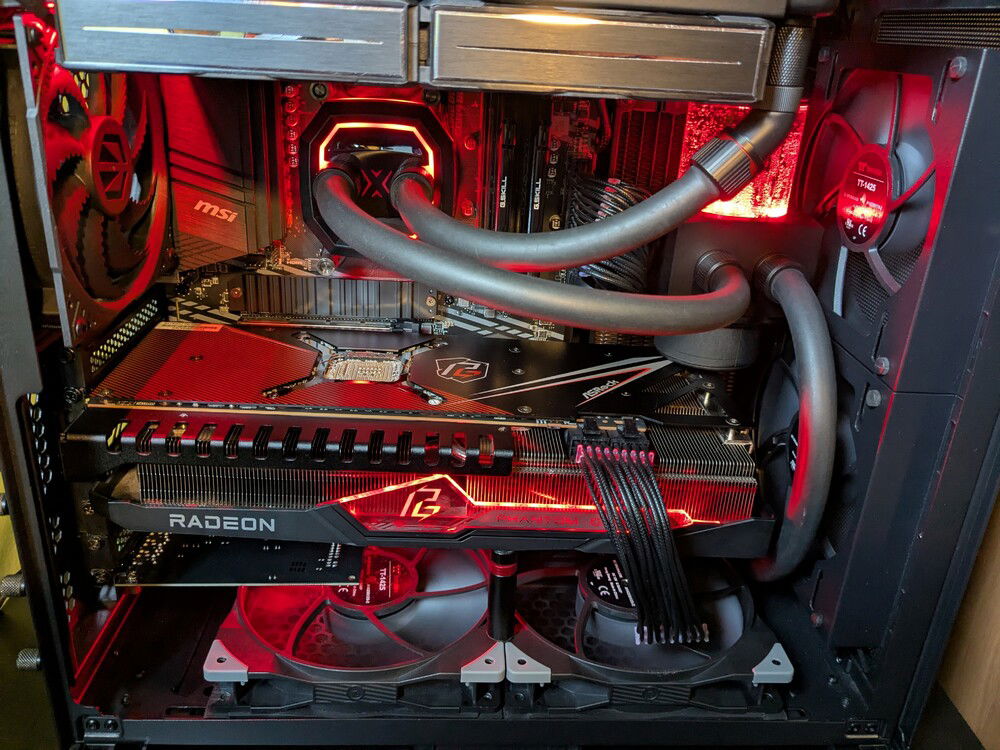

Custom loop parts:

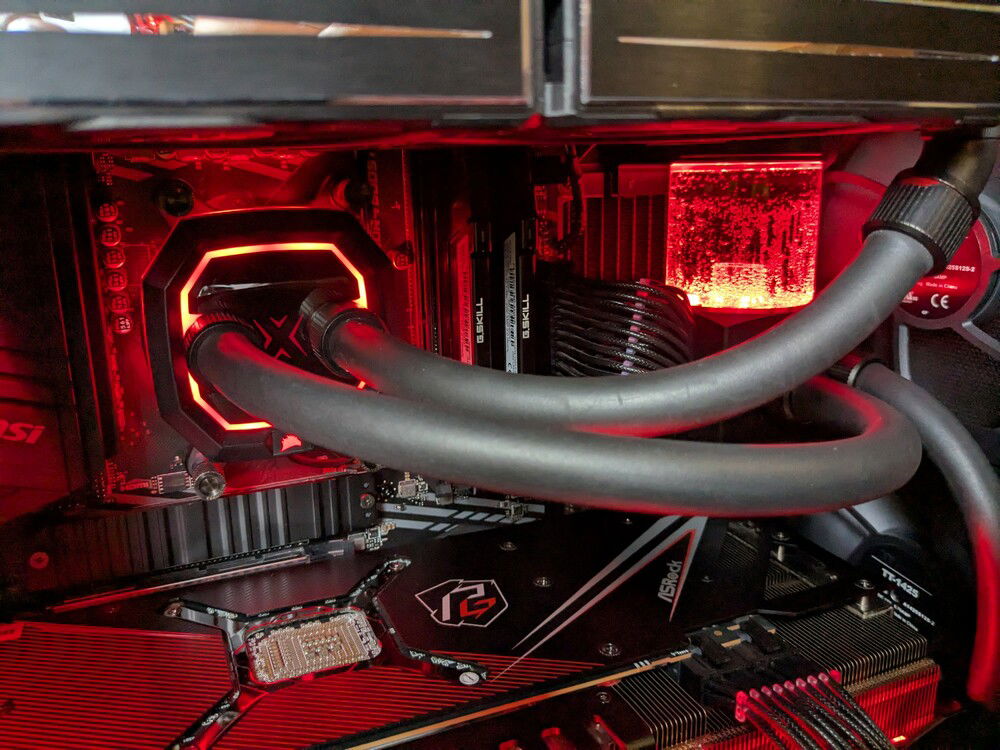

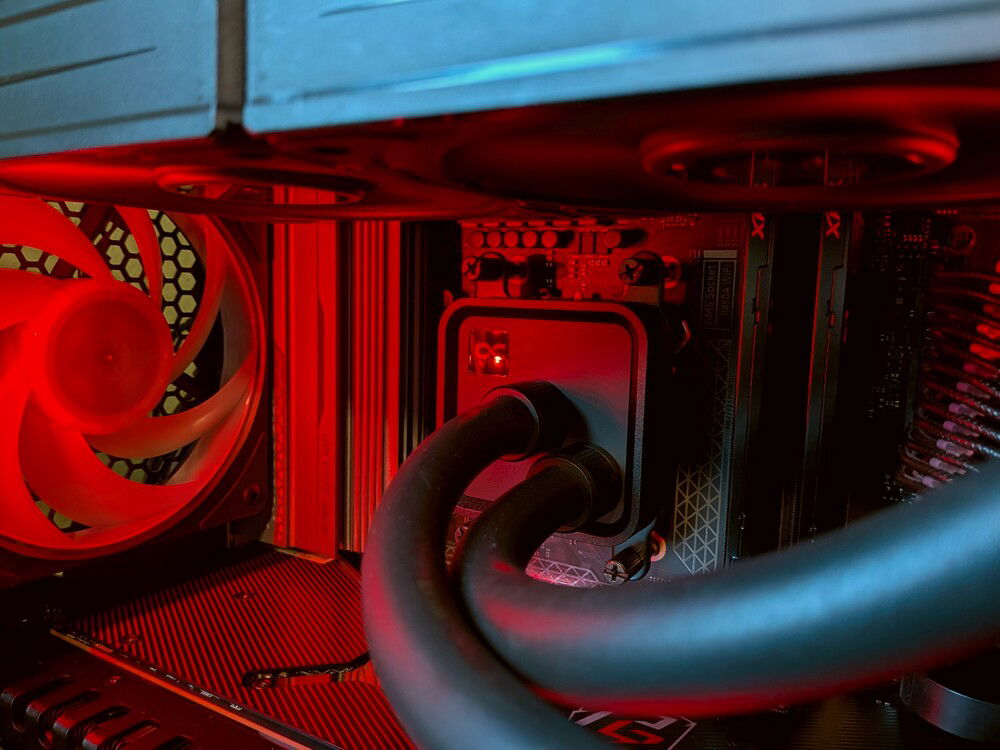

  • CPU Block: Corsair XC5 RGB Pro
  • Radiator: Corsair XR7 240

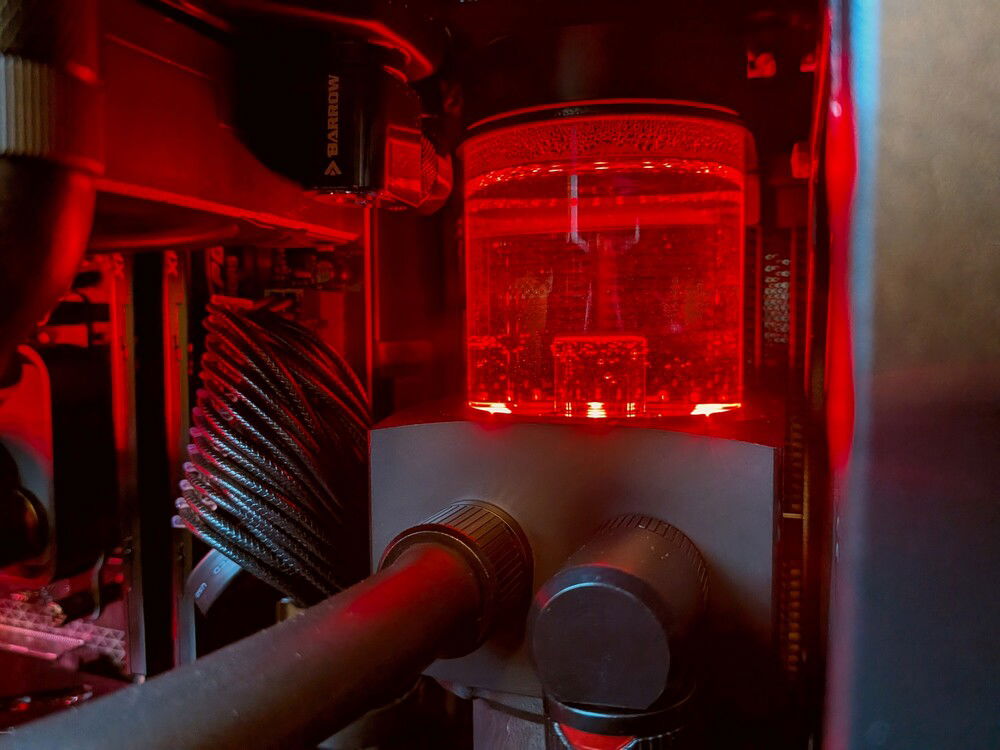

  • Pump/Res: EK-Quantum Kinetic FLT 80 + EK D5 G3 PWM
  • Tubbing: EK-Tube ZMT 10/16
  • Fittings: 6x EK-Quantum Torque STC 10/16 + Red Color Rings
  • Plugs: 3x EK-Quantum Torque, EK-Quantum Torque Micro

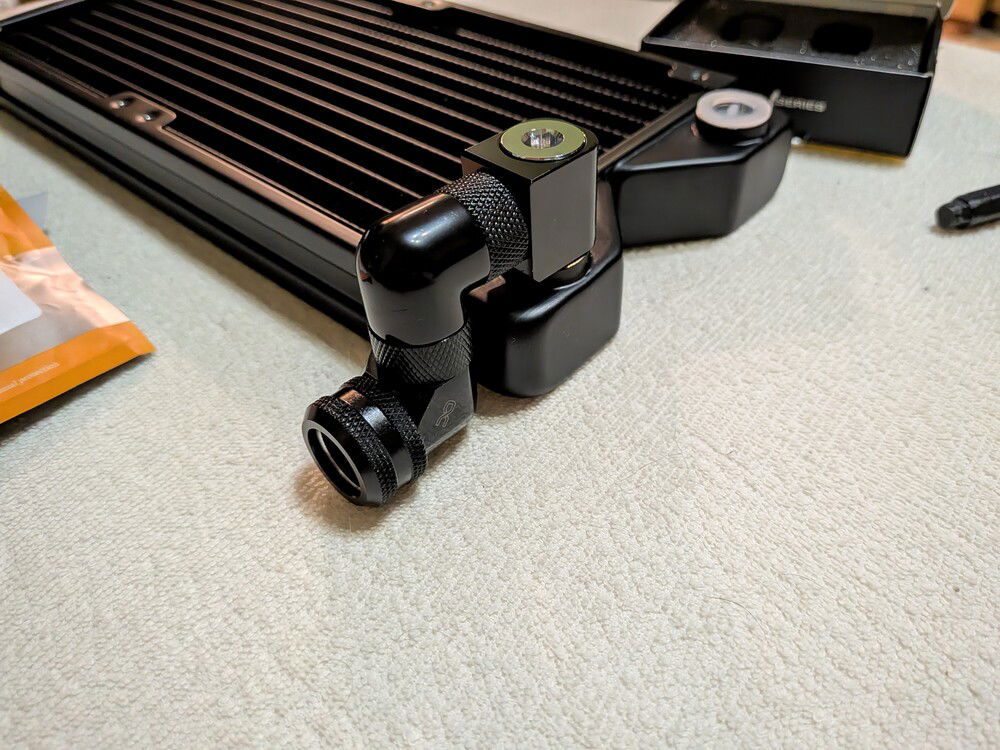

  • Adapters: 2x Corsair 45, EK-AF 45, EK-Quantum Torque 90

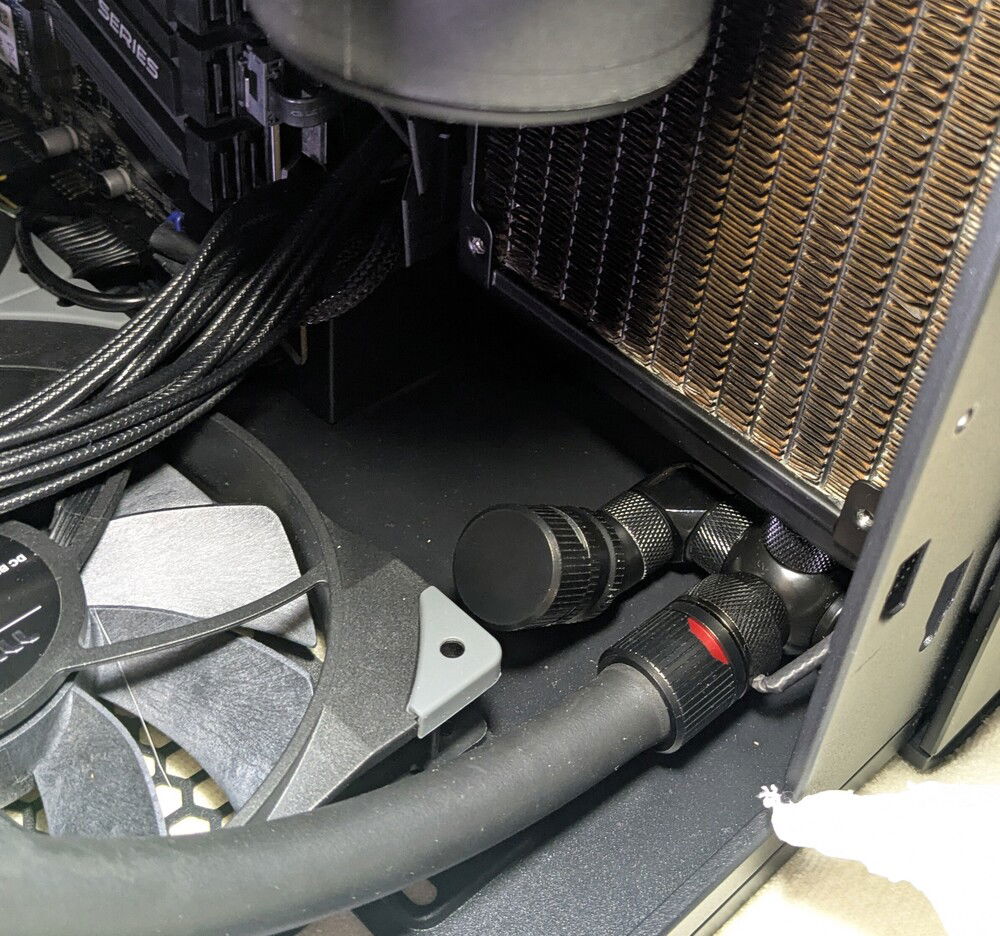

  • Extras: EK-Loop Uni Pump Bracket 120, EK-Quantum Torque Drain Valve, Alphacool Eiszapfen Temp Sensor, Adafruit Trinket M0(For reading coolant temp)

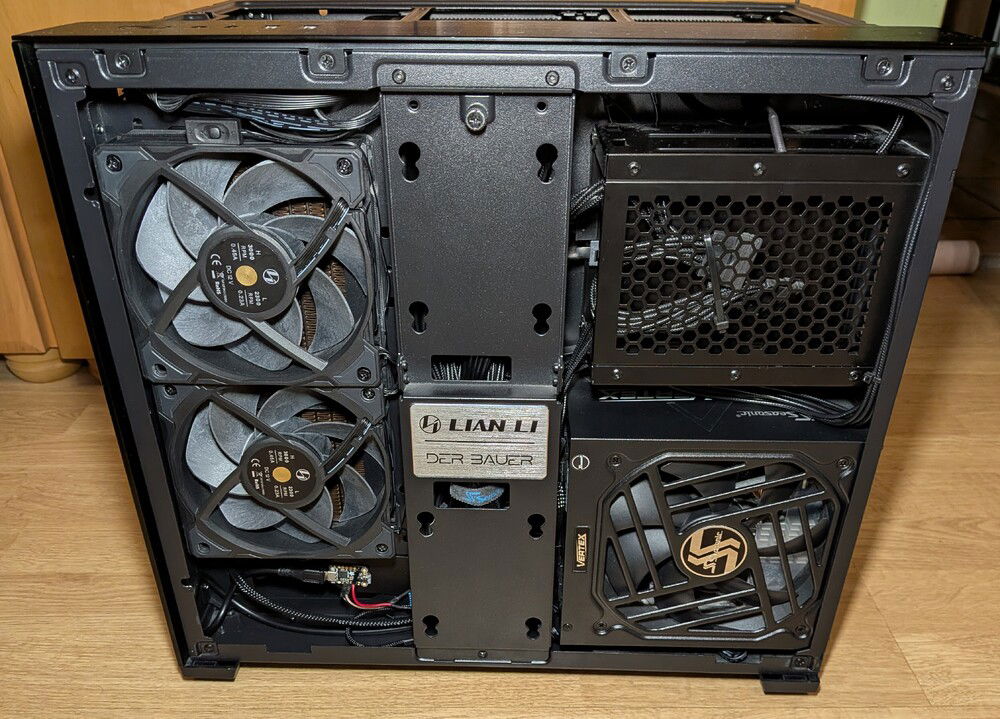

Fan config:
  • Bottom intake: 2x Thermaltake Toughfan 14
  • Front intake: Thermaltake Toughfan 14

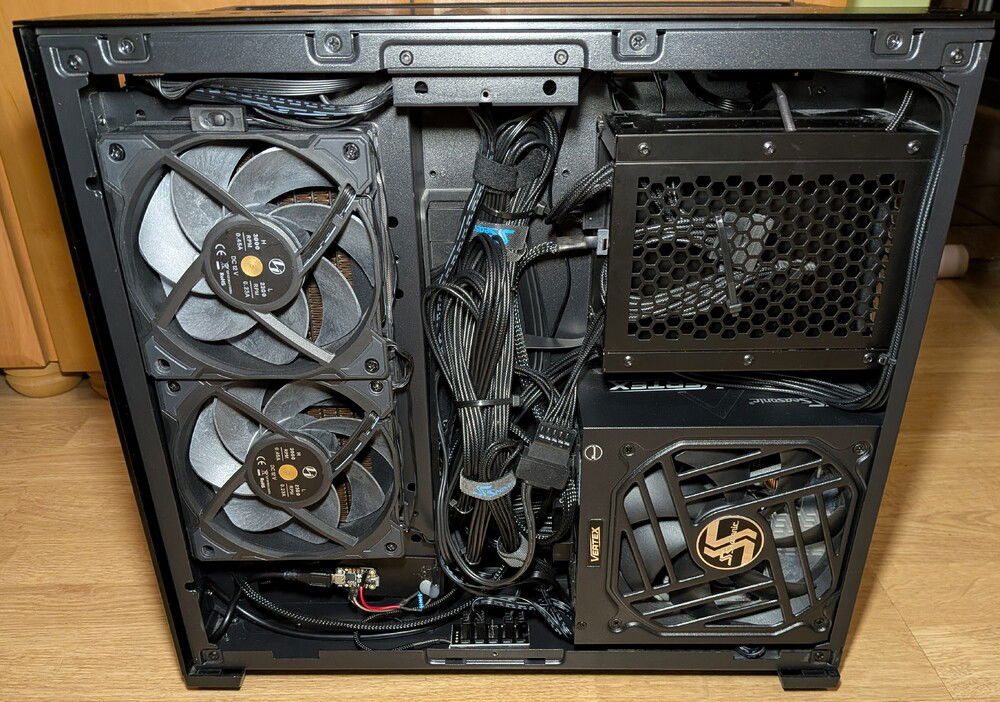

  • Side exhaust: 2x Lian Li UNI FAN P28
  • Top exhaust: 2x Arctic P12
  • Rear exhaust: Arctic P12 A-RGB
Color(s): Black Red
RGB Lighting? Yes
Theme: Color
Cooling: Custom Liquid Cooling
Size: ATX
Type: General Build

Build Updates

Fans shuffle

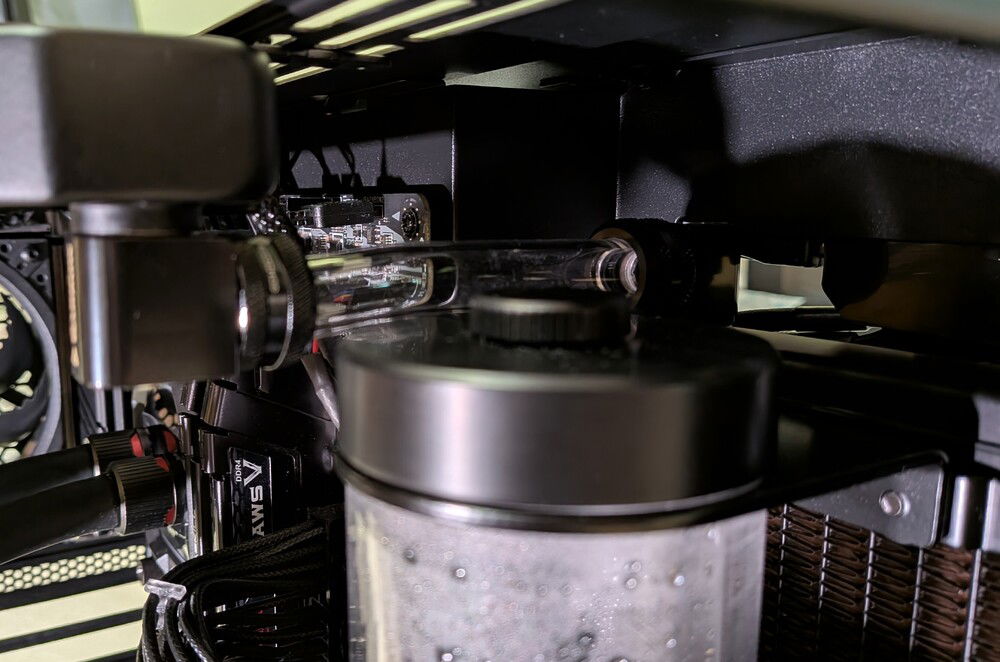

New reservoir and few changes

Unexpected GPU upgrade

Hardware

CPU
$ 160.54
AMD - Ryzen 7 (5800X)
Socket: AM4
Cores: 8
Motherboard
$ 125.99
MSI - Pro (B550-A)
Chipset: B550
CPU Socket: AM4
Size: ATX
Memory
$ 90.00
Crucial - Ballistix Sport LT (3200Mhz) (White) (2x)
Type: DDR4
Capacity: 8 GB
Graphics
$ 800.00
ASRock - Radeon Phantom Gaming OC
Chip Manufacturer: AMD
Chip: RX 7900 XT
Interface: PCIe x16
Storage
$ 51.99
Crucial - MX500
Form Factor: 2.5 Inch
Interface: SATA 6 Gb/s
Capacity: 1 TB
Storage
$ 52.44
Kingston - A2000
Form Factor: M.2
Interface: M.2 (M)
Capacity: 500 GB
Storage
$ 18.99
Western Digital - Scorpio Blue
Form Factor: 2.5 Inch
Interface: SATA 3 Gb/s
Capacity: 500 GB
PSU
$ 149.99
Seasonic - Vertex GX-850
Wattage: 850
Form Factor: ATX
Efficiency: 80+ Gold
Case
$ 119.00
Lian Li - O11 Air Mini
Type: Mini-Tower
Side Panel: Mesh
Case Fan
$ 19.98
ARCTIC - P12 (2x)
Size: 120 mm
Case Fan
$ 52.99
ARCTIC - P12 PWM PST 0dB (Black/A-RGB)
Size: 120 mm
Case Fan
$ 86.00
Lian Li - Uni P28 (2x)
Size: 120 mm
Case Fan
$ 119.97
Thermaltake - ToughFan 14 (3x)
Size: 140 mm
Cooling
$ 99.99
Corsair - Hydro X XR7
Type: Radiator
Size (WxHxD): 240 mm (2 x 120 mm)
Cooling
$ 82.69
Corsair - XC5 RGB Pro
Type: CPU Waterblock
Cooling
$ 37.09
EKWB - EK-AF Angled 45° G1/4 Black
Type: Fittings
Cooling
$ 31.99
EKWB - EK-CryoFuel (Clear)
Type: Coolant
Cooling
$ 228.09
EKWB - EK-Quantum Kinetic FLT 80
Type: Pump/Reservoir Combo
Cooling
$ 32.18
EKWB - EK-Quantum Torque Drain Valve - Black
Type: Fittings
Cooling
$ 18.00
EKWB - EK-Quantum Torque Plug (Black) (3x)
Type: Fittings
Cooling
$ 11.49
EKWB - EK-Quantum Torque Rotary 90° (Black)
Type: Fittings
Cooling
$ 359.94
EKWB - EK-Quantum Torque STC-10/16 (6x)
Type: Fittings
Cooling
$ 38.99
EKWB - EK-Tube ZMT
Type: Tubing
Accessories
$ 29.50
Alphacool - Eiszapfen temperature sensor G1/4 Deep Black
Accessories
$ 81.22
Creative - Sound Blaster Z
Estimated total value of this build:
$ 2,785.35
