Old faithful

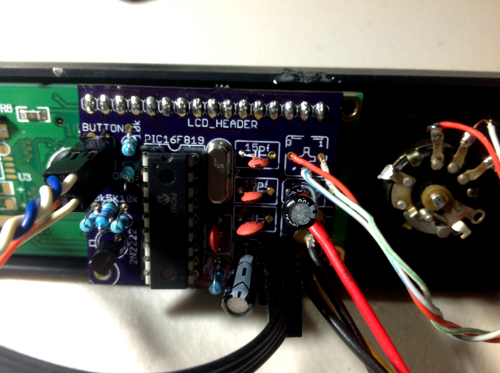

Mini-itx performance build based around the old sandy ridge architecture. Custom San Ace server grade 4amp 12v 48watt pwm fans utilized for quiet but powerful cooling. Custom fan controller for cpu built using a pic micro controller. Slave square generator utilized to control secondary fans for case and gpu. Additional cooling for guy from 60mm san ace dc fans undervalued to 5v. Total cooling capacity in excess of 860cfm. Demcifilters.

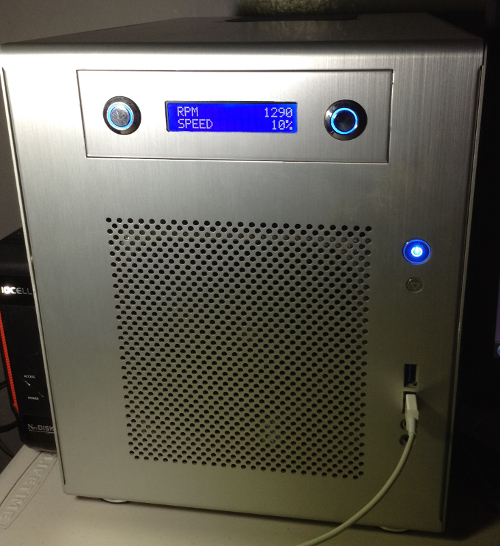

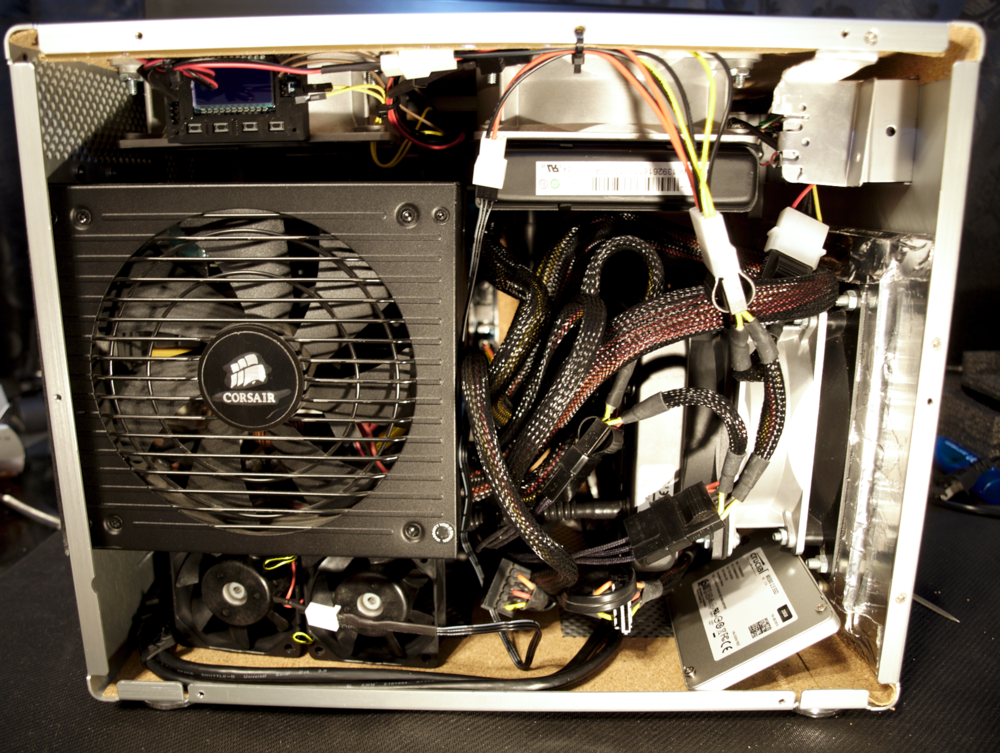

4.3ghz oc, +180mhz on gpu, memory @2133mhz. Temps sub 60c cpu @ load, sub 45c gpu @ load. Fans at 10% duty cycle, 1250rpm, 35 decibels total system noise under load.
Color(s): Black Silver
RGB Lighting? No
Theme: Retro
Cooling: AIO Cooling
Size: Mini-ITX
Type: General Build

Hardware

CPU
$ 111.00
Intel - Core i7 2600K
Socket: LGA 1155
Cores: 4
Motherboard
ASUS - P8Z77-I DELUXE
Chipset: Z77
CPU Socket: LGA 1155
Size: Mini-ITX

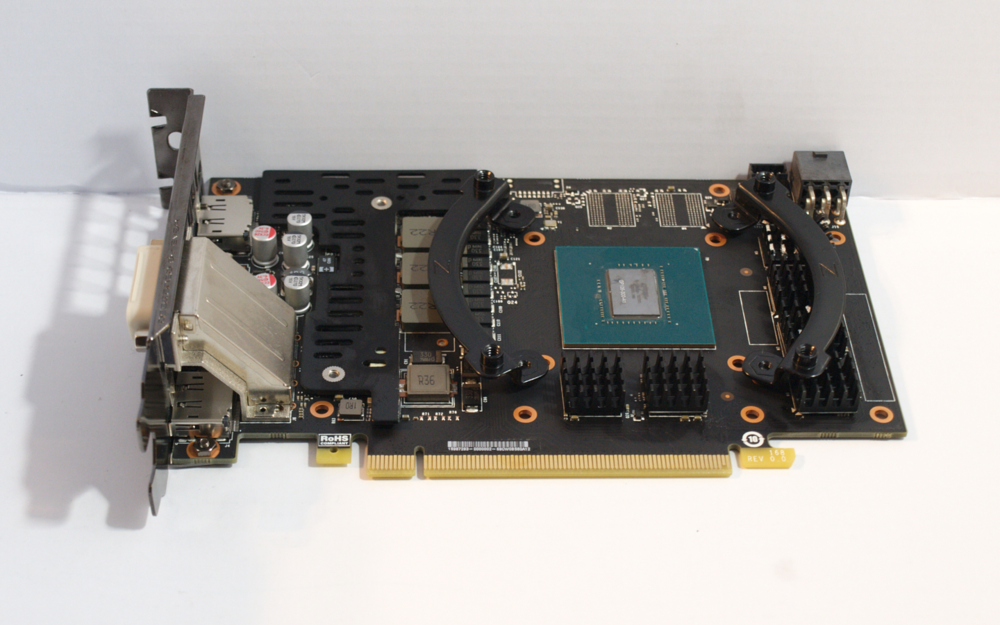

Graphics
$ 174.00
EVGA - GTX 1060 3GB
Chip Manufacturer: NVIDIA
Chip: GTX 1060
Storage
$ 92.99
Crucial - MX200 (OLD VERSION)
Form Factor: 2.5 Inch
Interface: SATA 6 Gb/s
Capacity: 250 GB
PSU
$ 79.99
Corsair - CX650M
Wattage: 650
Form Factor: ATX
Efficiency: 80+ Bronze
Case
Lian Li - PC-Q08A (discontinued)
Type: Mini-Tower
Side Panel: Solid
Accessories
$ 30.99
Monitor
LG - 25UM57-P
Size: 25 Inch
Panel: IPS
Refresh Rate: 60 Hz
