O11D EVO - Work in Progress…Always!

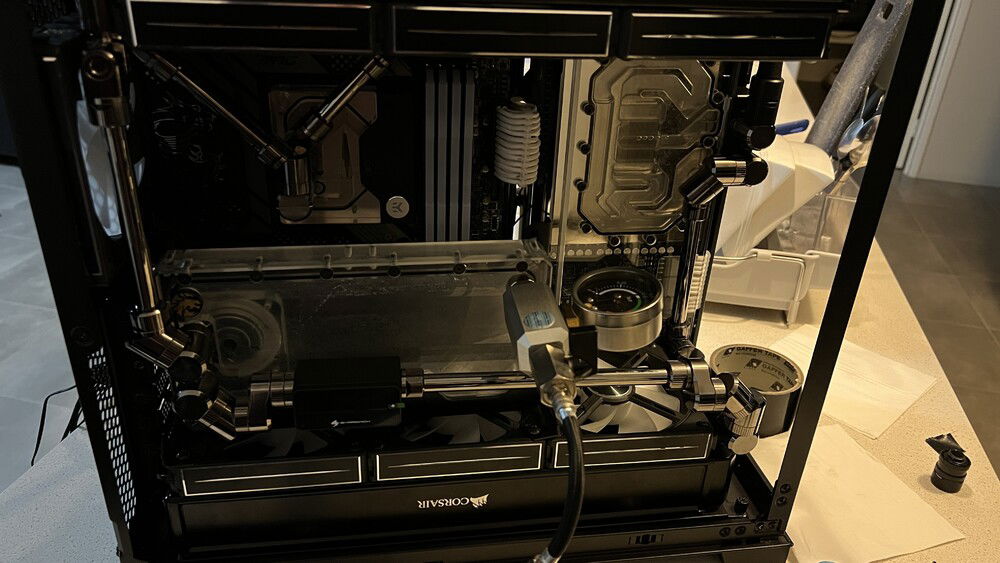

This is a work in progress.

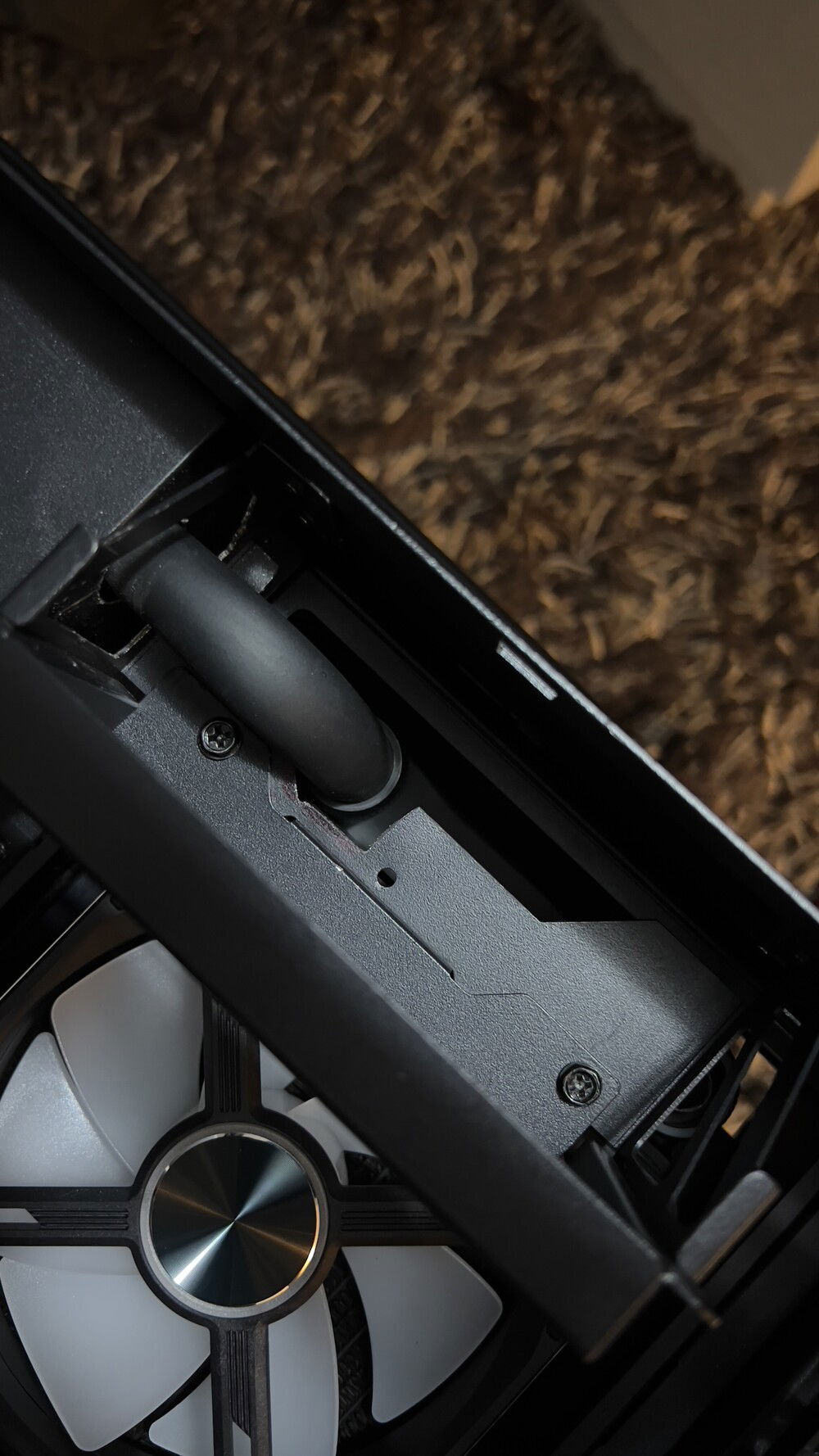

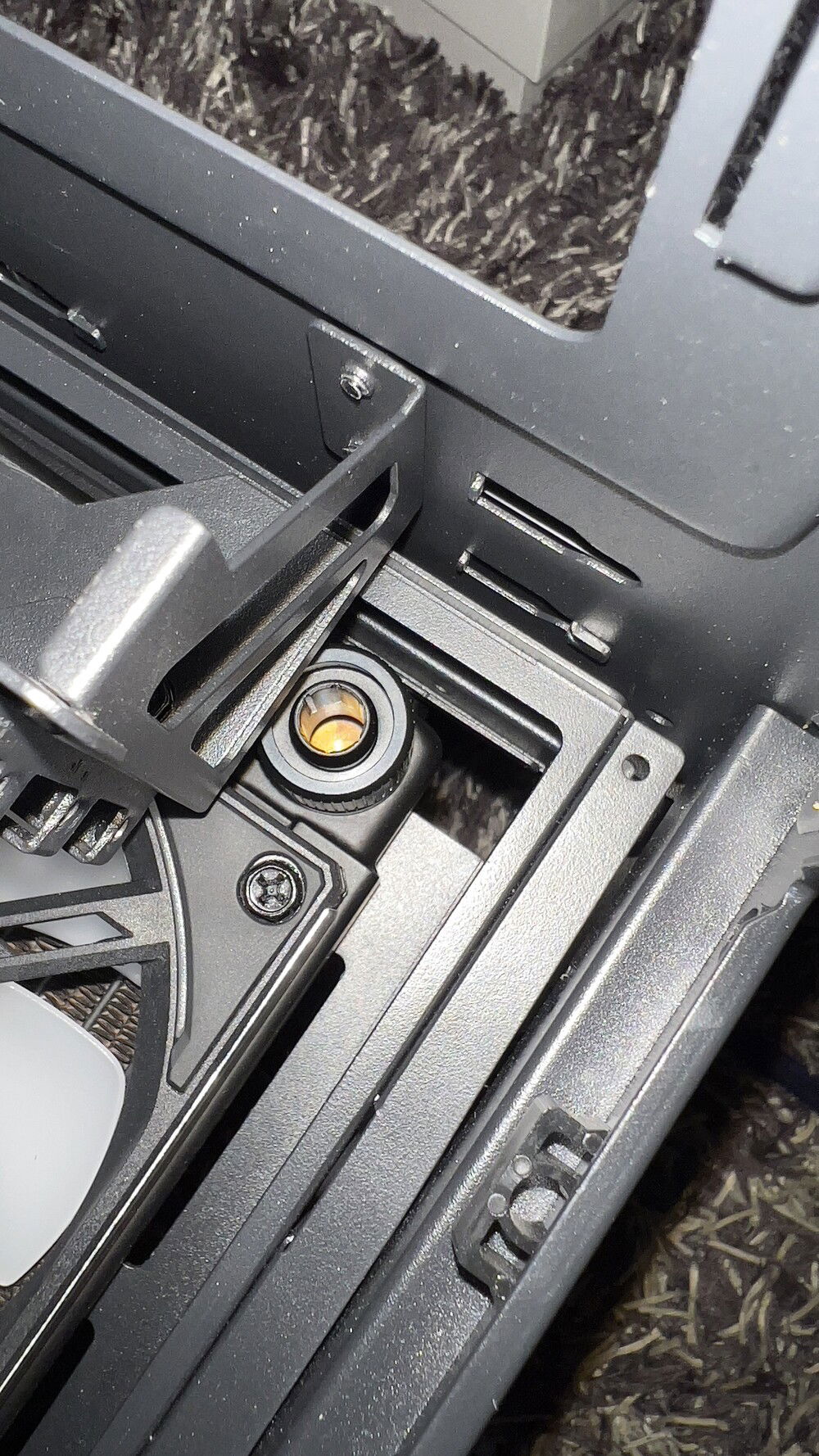

P.s. the Drain plug is just a place holder... Ran out of fittings... will have to siphon like I did the first stage when it wasn't installed...

i9 12900KF | ASUS ROG Strix GeForce RTX 3080 Ti OC Gaming
- PCPartPicker


It’s had 4 stages so far:
- No GPU block - 90+C GPU temps but 29C max Water temps
- No flow sensor - Just curious: 1GPM mark…

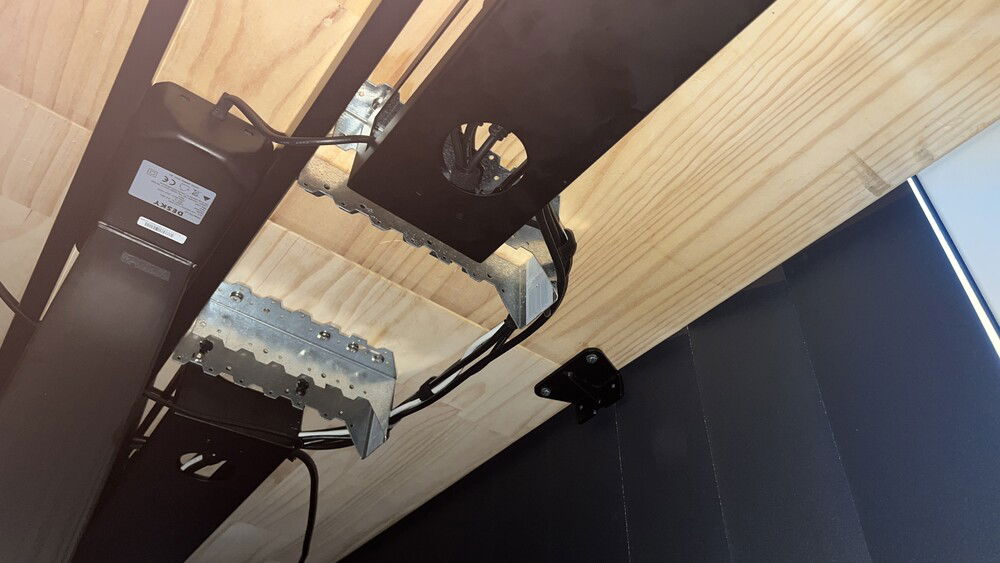

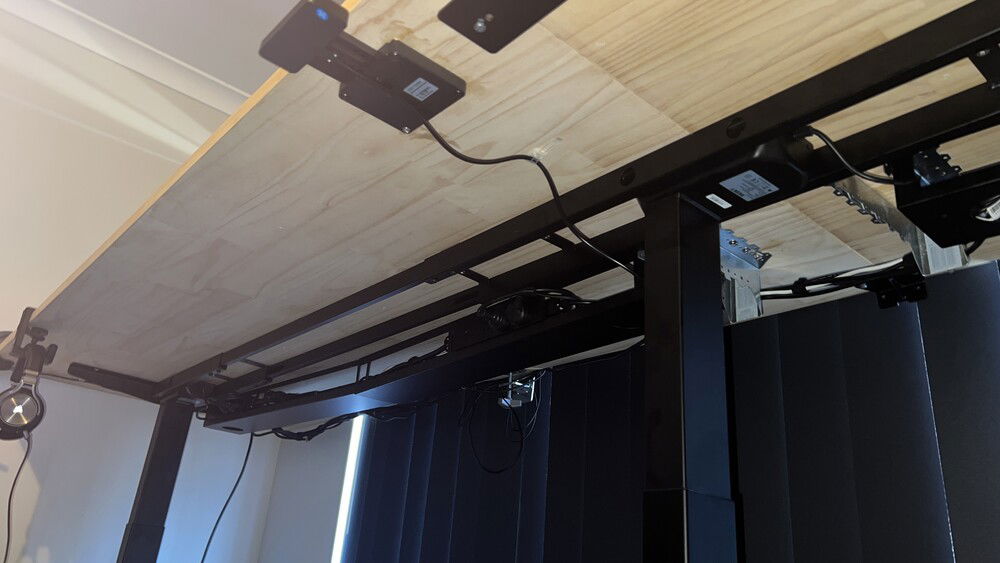

- New Desky Triple Stand Desk Frame w/ custom Bunnings table tops and custom mounted cable management

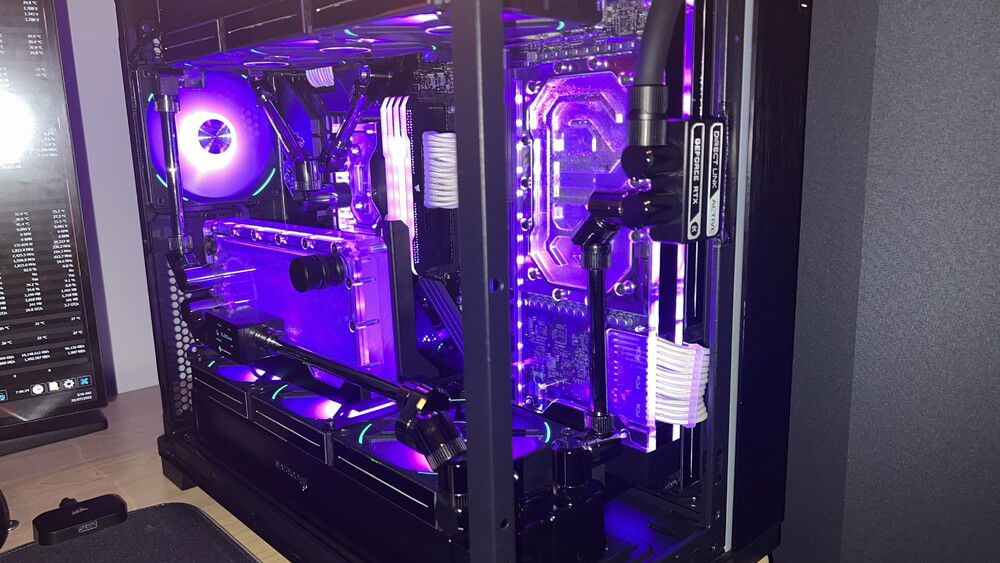

- Current - 37C max water temps. 900RPM fan speed but loud pump and flow sensor

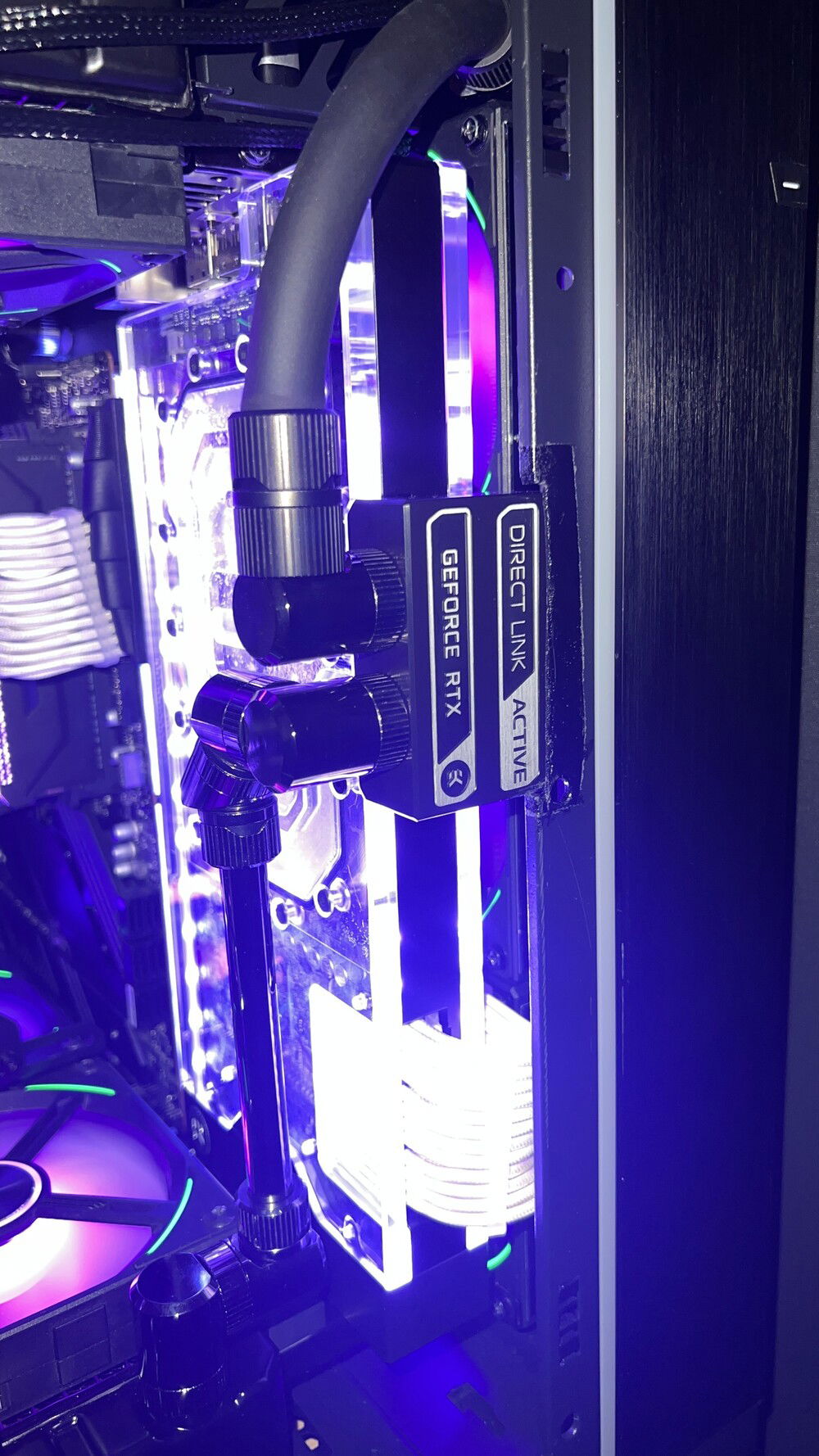

The final stage of this build will be as follows (GPU out line is angled and it blocks the side radiator):

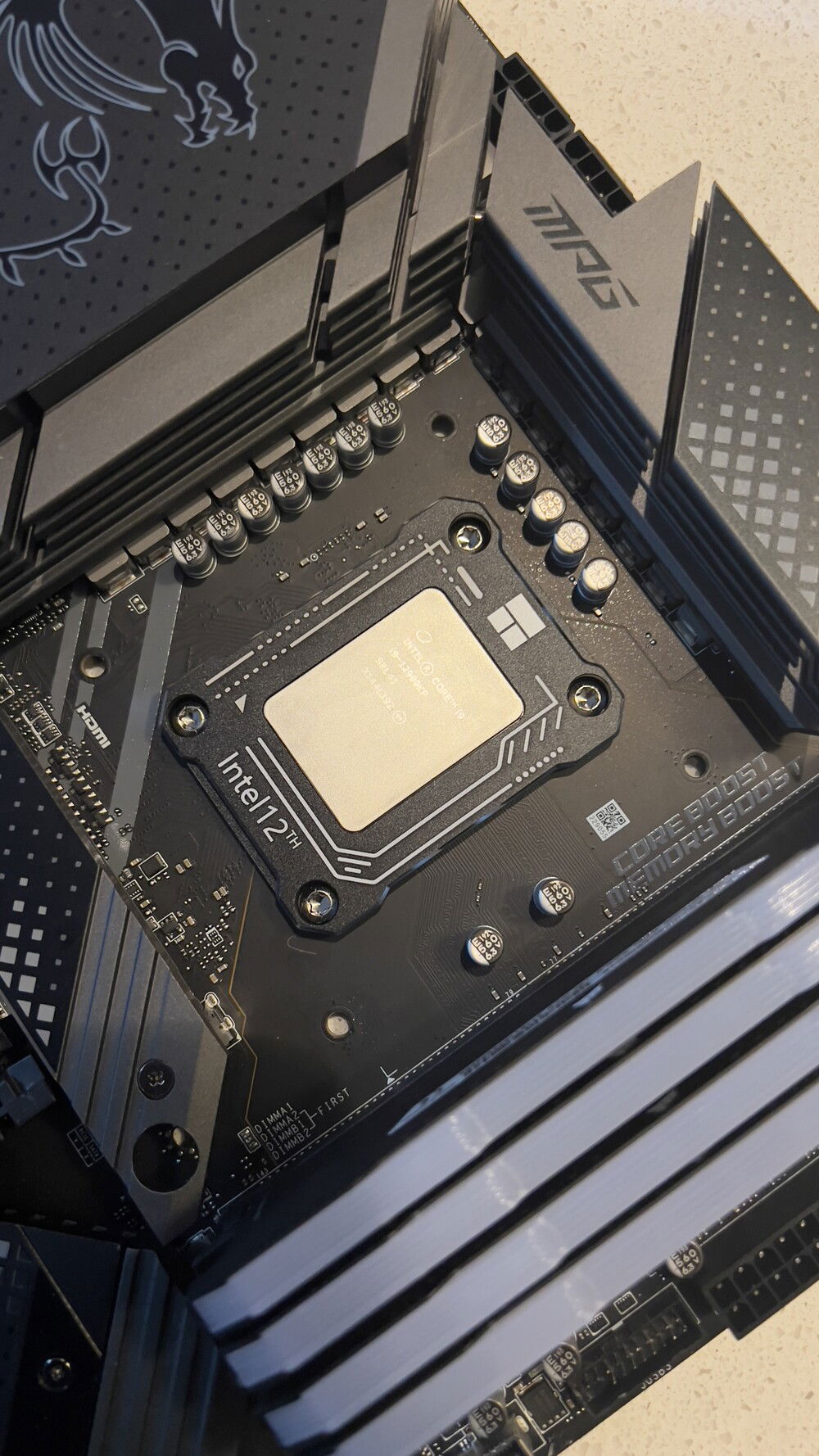

- CPU delidded - Need 13900K & EKWB Velocity2 block mods for direct die cooling (currently being developed)
- O11D EVO EKWB Distro Plate
- Moving items around for improve airflow
- Removing the flow sensor (noisy and temporary - needed to know my flow rate.): max = 3.83LPM
- New Bottom Radiator (Alphacool Nexxos Monsta), moving the XR7 to the side and shelving the XSPC TX
- Push/Pull on Bottom and Side Radiator
Color(s): Aluminum Black Chrome Purple
RGB Lighting? Yes
Theme: none
Cooling: Custom Liquid Cooling
Size: ATX
Type: General Build

Hardware

CPU
$ 264.54
Intel - Core i9-12900KF
Socket: LGA 1700
Cores: 16
Integrated Graphics: Yes

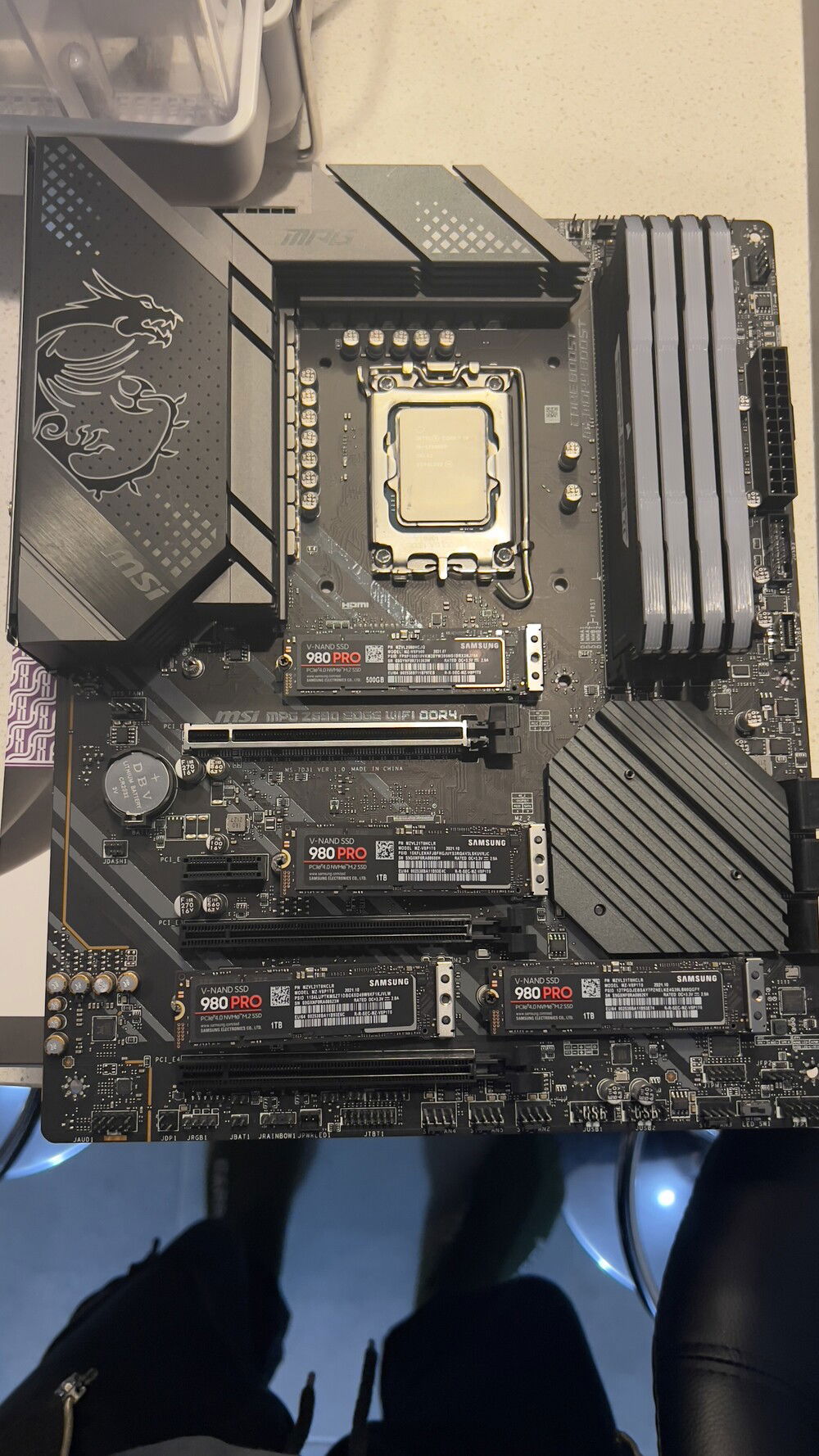

Motherboard
MSI - Mpg Edge (WiFi)
Chipset: Z690
CPU Socket: LGA 1700
Size: ATX
Memory
$ 79.99
Corsair - Vengeance Pro SL (3600MHz) (Black/RGB)
Type: DDR4
Capacity: 32 GB
Graphics
$ 1,579.99
ASUS - GeForce ROG Strix OC LC Gaming
Chip Manufacturer: NVIDIA
Chip: RTX 3080 Ti
Interface: PCIe x16
Storage
$ 155.40
Samsung - 960 PRO
Form Factor: M.2
Interface: M.2 (M)
Capacity: 512 GB
Storage
$ 929.97
Samsung - 960 PRO (3x)
Form Factor: M.2
Interface: M.2 (M)
Capacity: 1 TB
PSU
$ 385.00
Corsair - HX1000 Platinum
Wattage: 1000
Form Factor: ATX
Efficiency: 80+ Platinum
Case
Lian Li - O11 Dynamic Evo
Type: Full-Tower
Side Panel: Tempered Glass
RGB: Yes
Case Fan
$ 999.90
Lian Li - Uni AL120 (10x)
Size: 120 mm
