Node 202

Hello everyone, I want to show you my custom assembly in the node 202 water-cooled case, I immediately apologize for my English because I used a translator))

To begin with, almost all the components had to be somehow modified and adjusted so that they fit into the case, and even the case itself was also modified, the power supply had to be disassembled and redone in the same way, I moved the power supply button to the back of the case.
I used a 280 radiator, someone said that only 240 can fit into this case, but with the refinement of the case, it fit perfectly and 280 from Alphacool, the thickness of the radiators is 30mm, in general, in this assembly there is also a 120 radiator and a total of 2 radiators that do an excellent job with cooling i9 9900k processor and Nvidia 2080ti graphics card.
I used 16mm acrylic tubes, but in one place above the power supply I had to use a 10mm tube, since it was fundamentally very important for me not to exceed the thickness of the case itself. I used distilled water. I did not use the reservoir due to lack of space in the case, in principle, and it is not needed there
Separately. I want to note that I managed to install a card reader for sd and micro sd cards, as well as usb type C

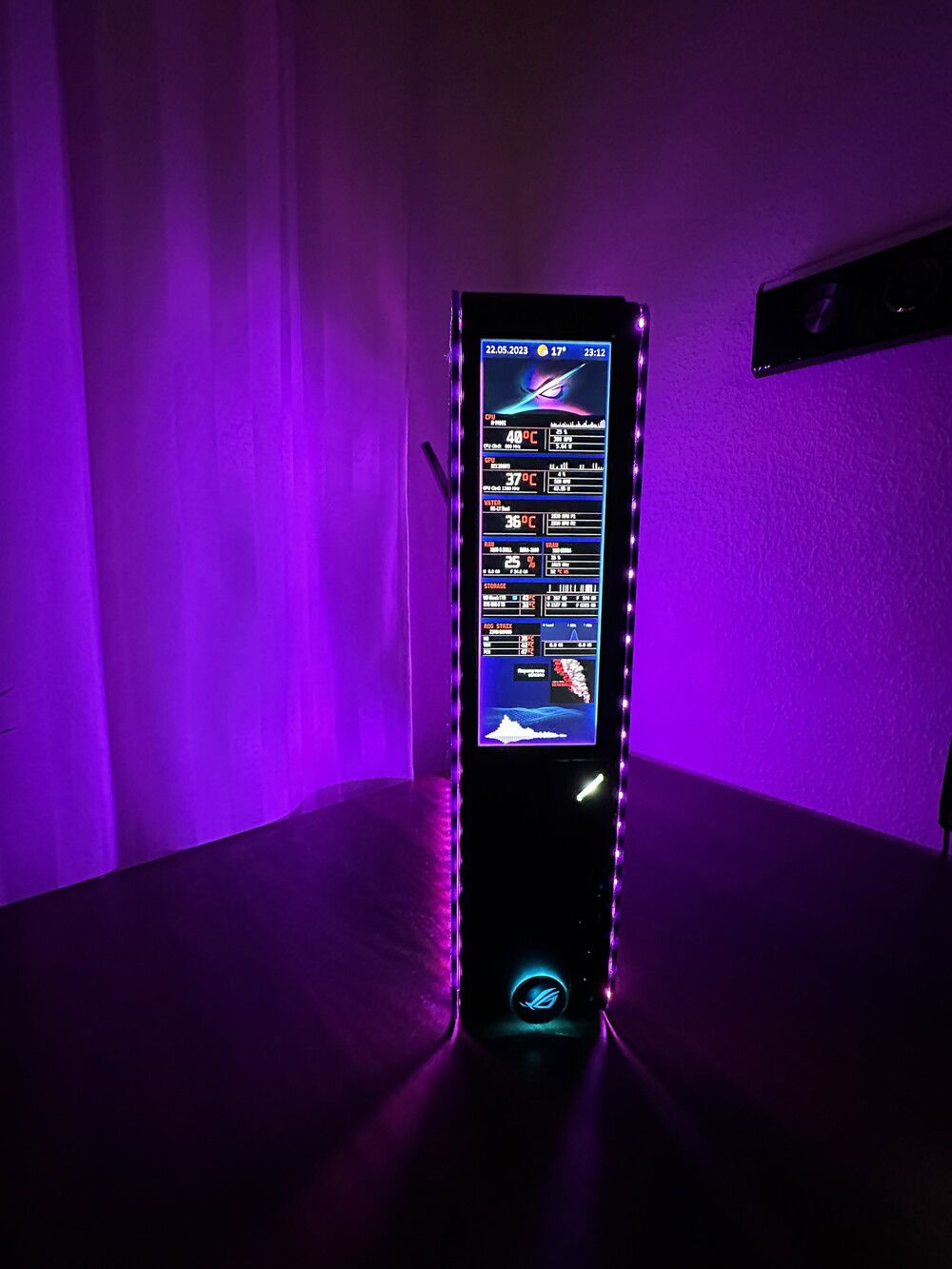

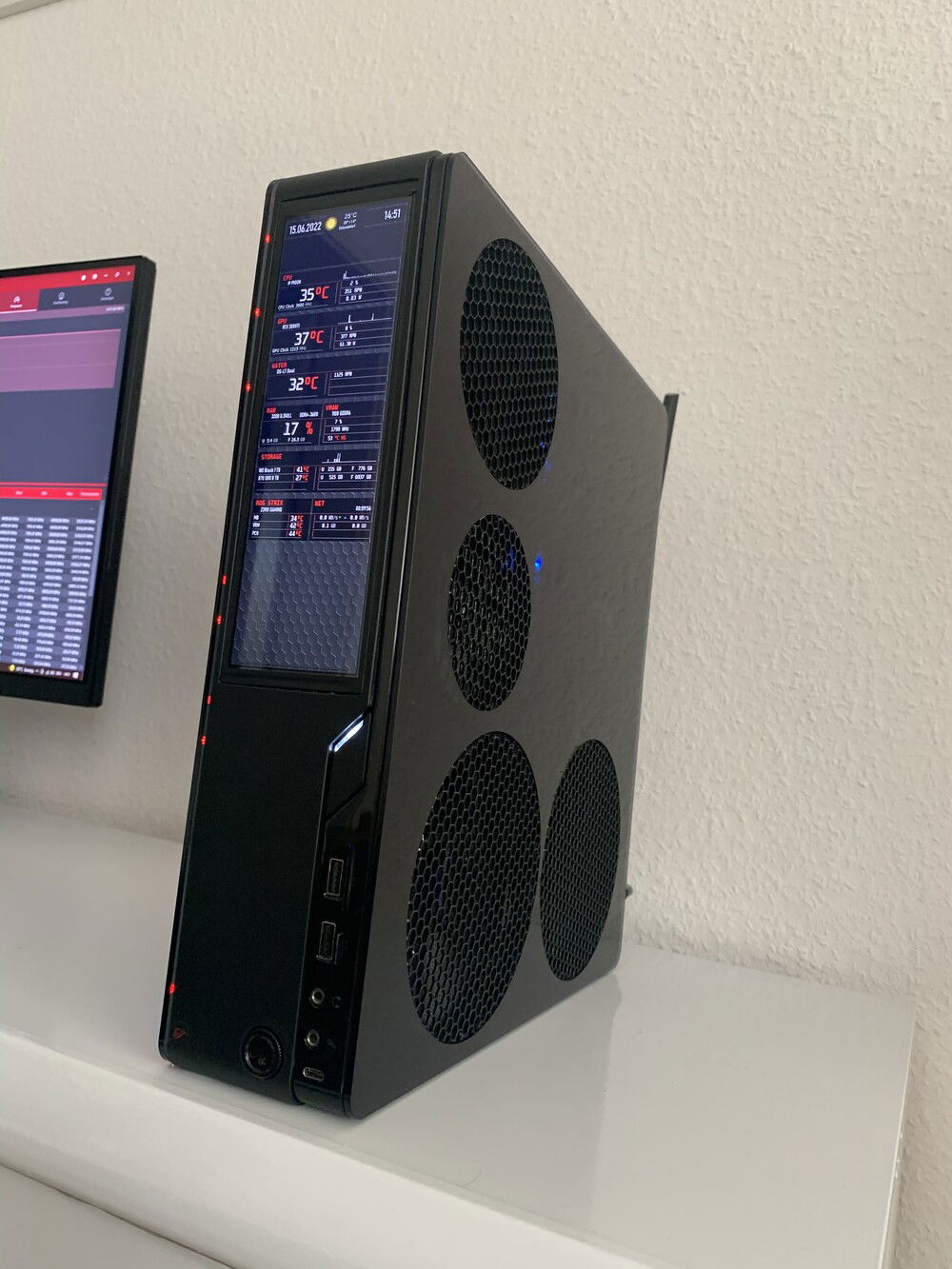

7.9 inches of Display to control all important temperatures and indicators also managed to fit into this case.

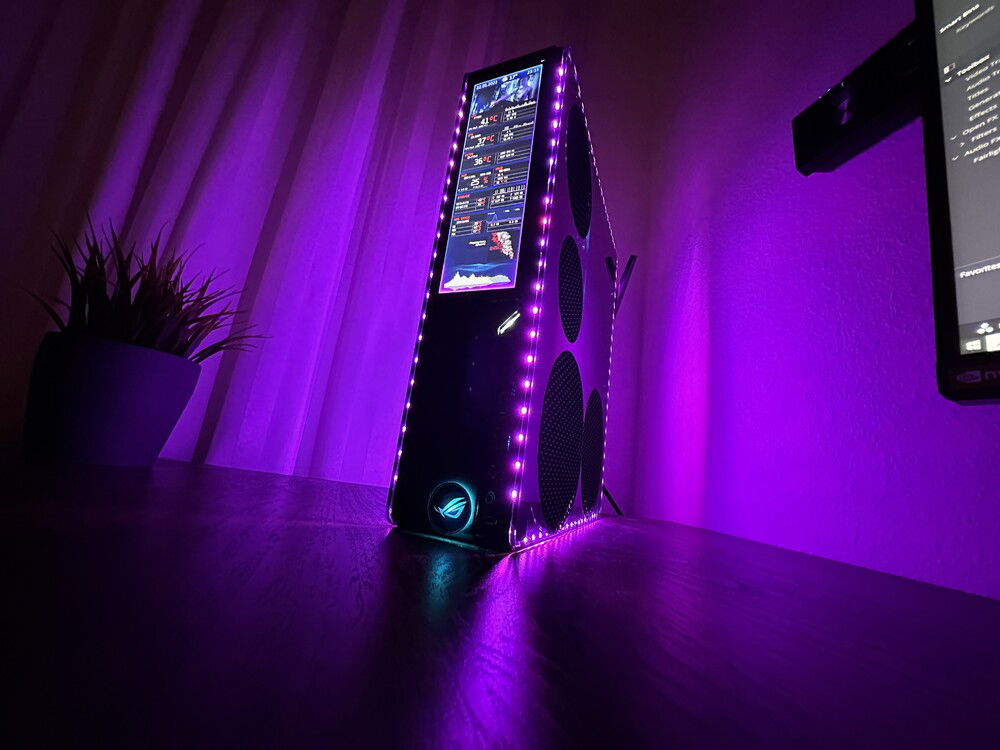

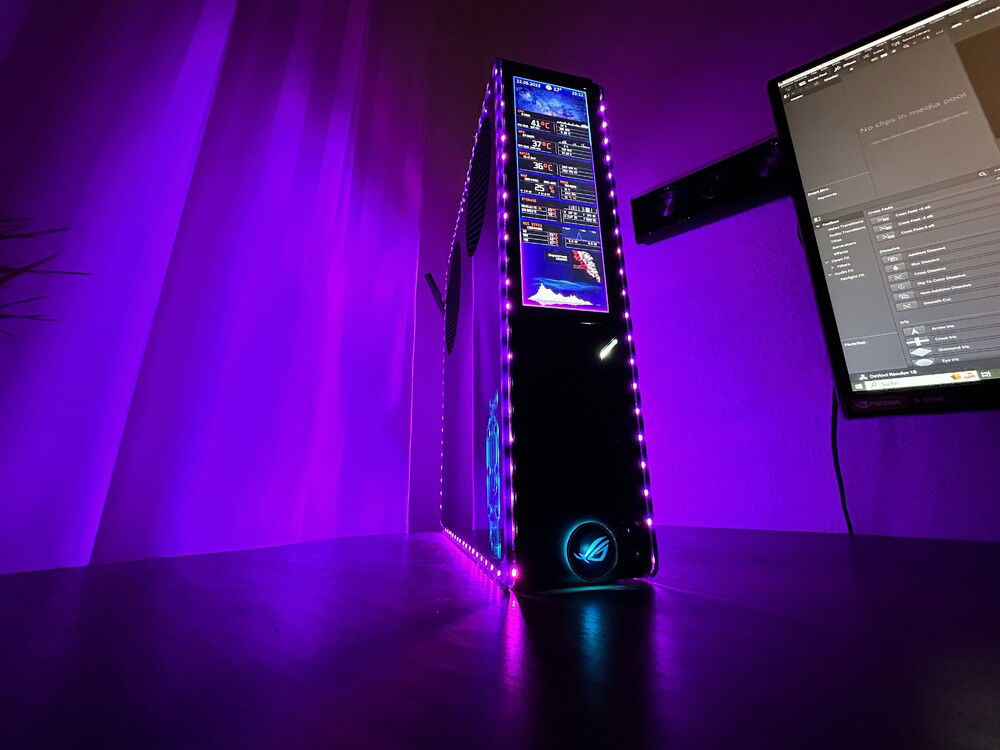

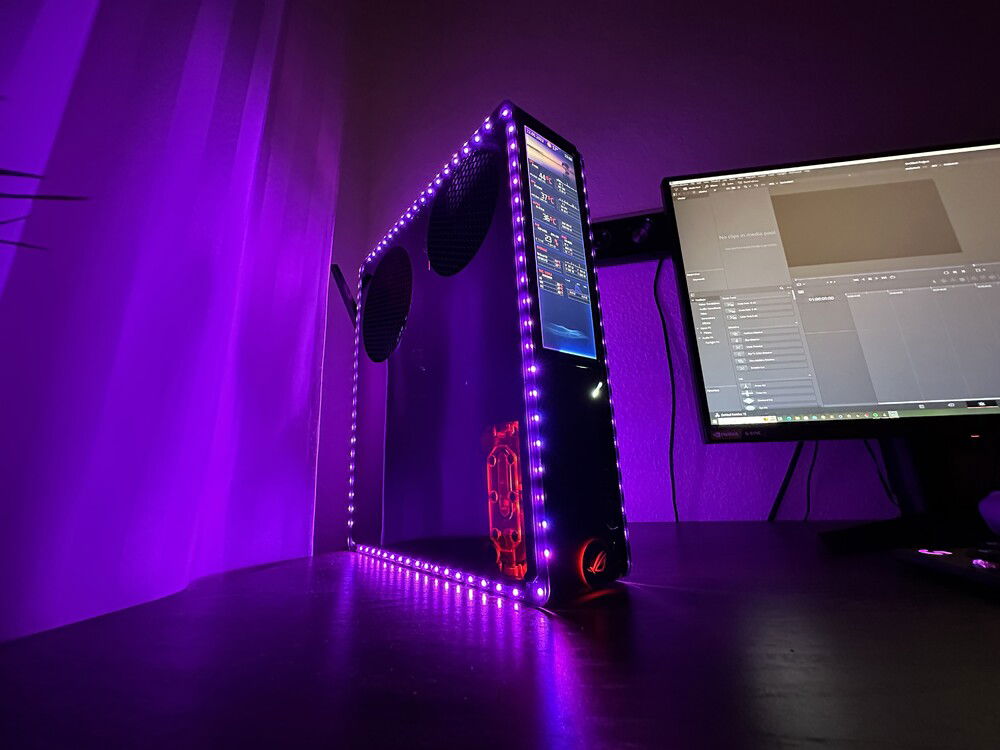

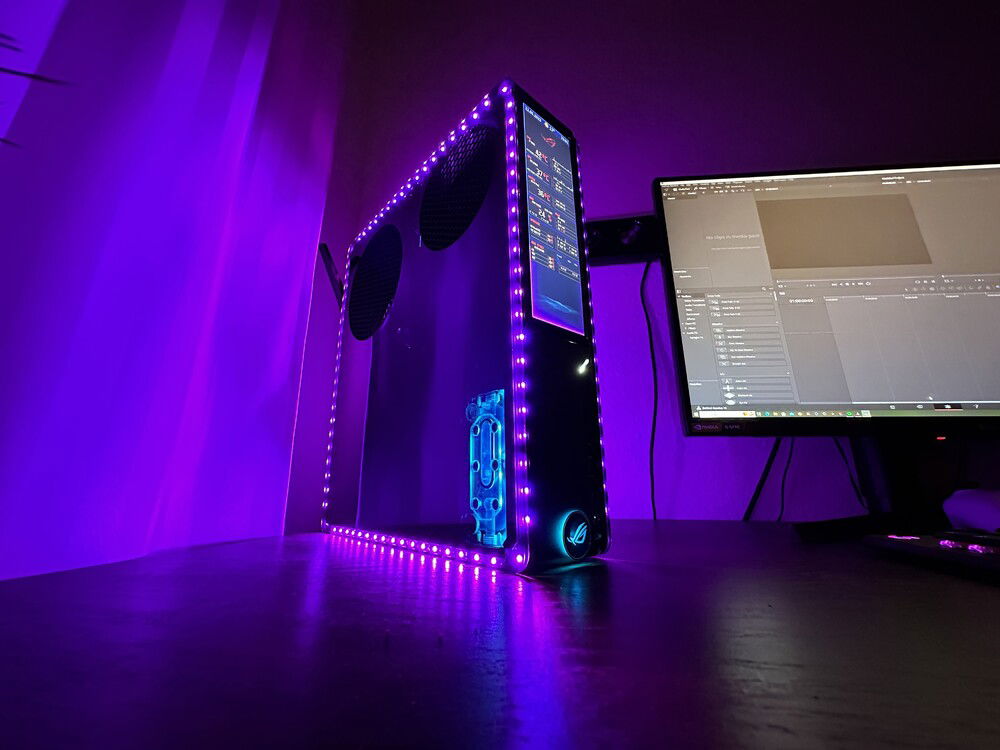

I installed an Argb tape on the top of the case for more fps in games, joke ))
And so it turned out, it turned out to be a quiet system, which was initially a priority for me, and even under load the system works quietly, In general, write me what you think )

https://youtu.be/-oH-CFweIhQ
Color(s): Black
RGB Lighting? Yes
Theme: Art
Cooling: Custom Liquid Cooling
Size: Mini-ITX
Type: General Build

Hardware

CPU
$ 507.99
Intel - Core i9-9900K
Socket: LGA 1151
Cores: 8
Integrated Graphics: Yes
Motherboard
$ 249.99
ASUS - ROG Strix Gaming (Z390-I)
Chipset: Z390
CPU Socket: LGA 1151
Size: Mini-ATX
Memory
$ 159.99
Graphics
$ 599.99
ASUS - Turbo
Chip Manufacturer: NVIDIA
Chip: RTX 2080 Ti
Storage
$ 649.99
Samsung - 870 QVO
Form Factor: 2.5 Inch
Interface: SATA 6 Gb/s
Capacity: 8 TB
Storage
$ 159.99
Western Digital - WD Black
Form Factor: M.2
Interface: M.2 (M)
Capacity: 1 TB
PSU
$ 144.99
Corsair - SF600
Wattage: 600
Form Factor: ATX
Efficiency: 80+ Platinum
Case
$ 102.46
Fractal Design - Node 202, Black
Type: Mini-Tower
Side Panel: Solid
Case Fan
$ 111.75
Cooling
$ 26.89
Alphacool - DC-LT Pump
Type: Pump
Estimated total value of this build:
$ 2,784.35
