GPU finally mounted internally

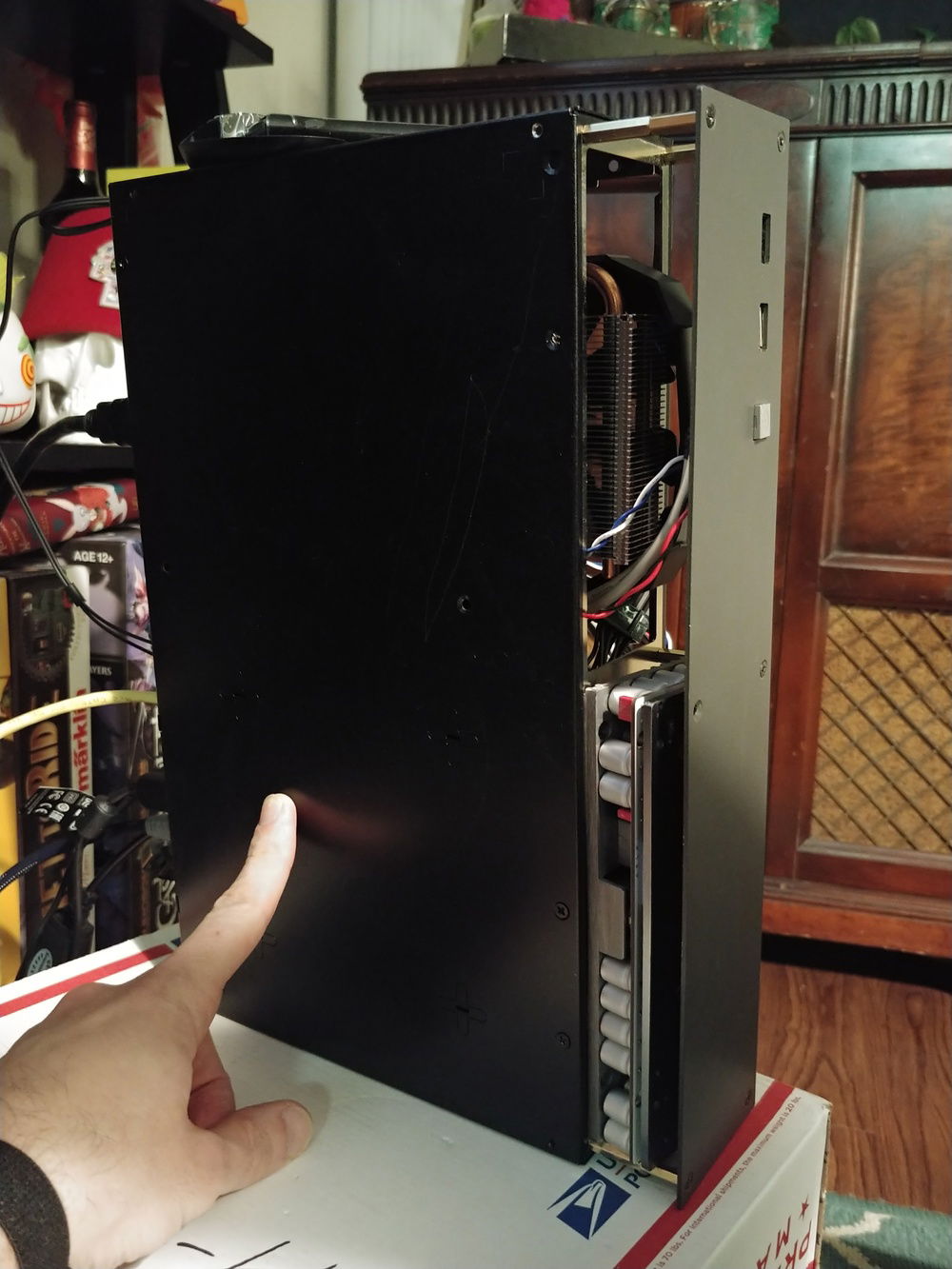

Here's the case lying flat, but I intend it to be upright with the help of a stabilizing stand when complete.

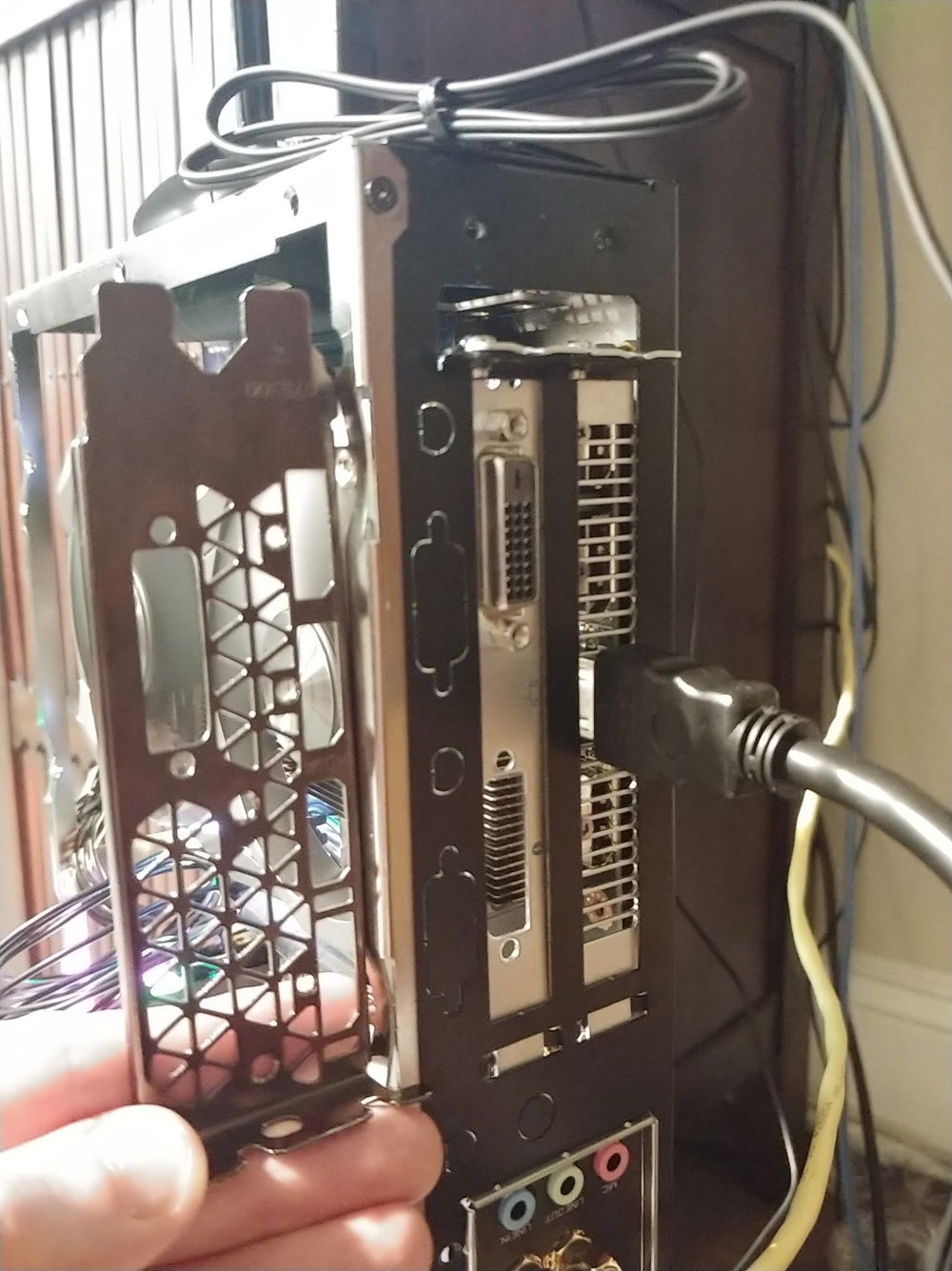

Replaced GPU I/O shield with a generic one off eBay to mount the card reversed.

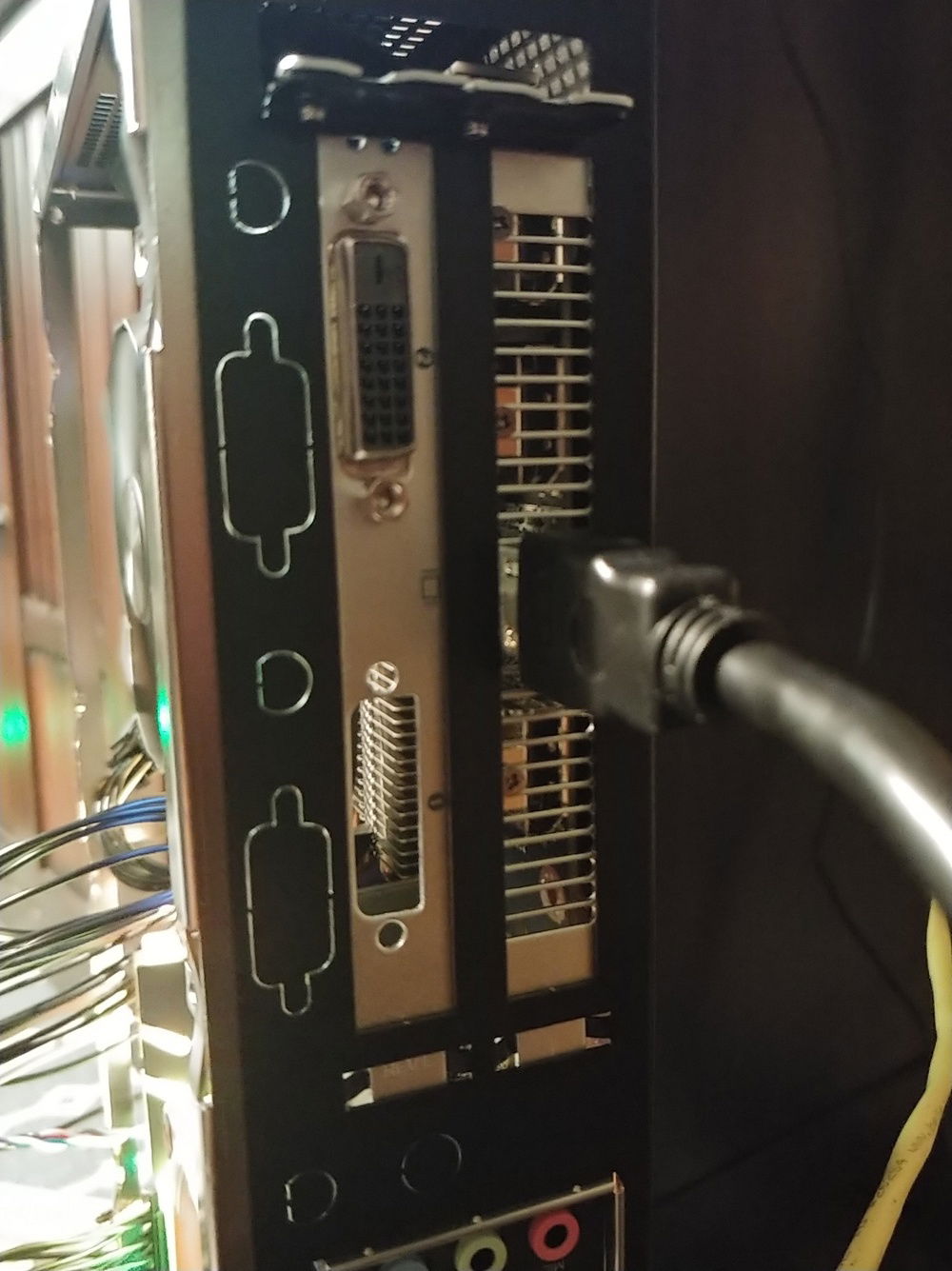

Slightly modded to allow the HDMI port

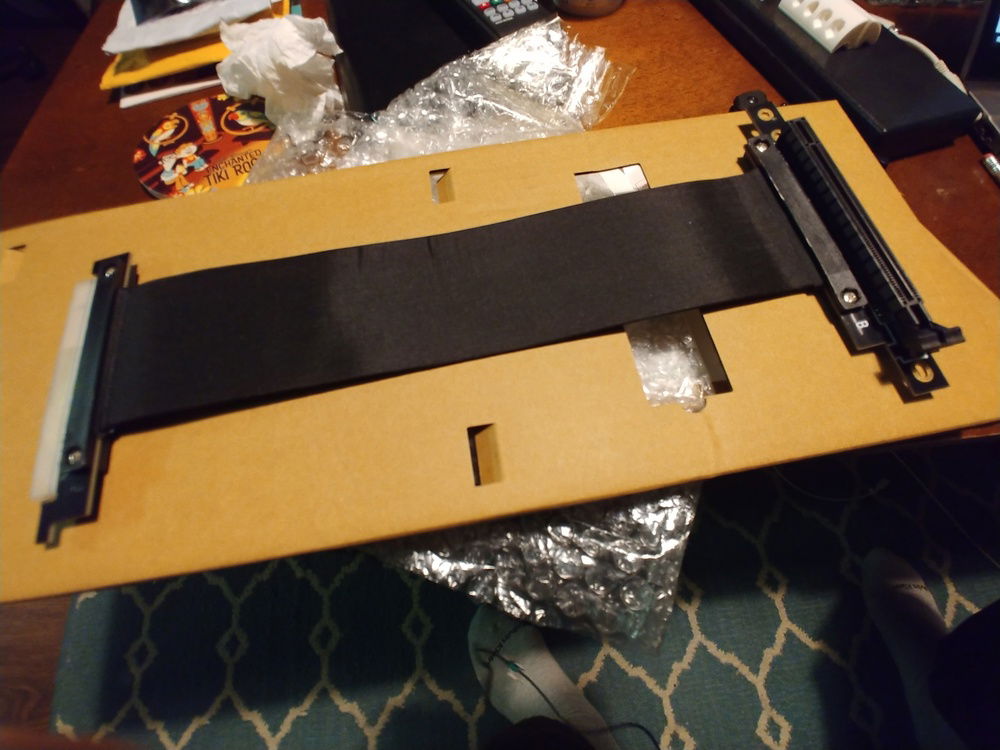

Low profile right angle pcie riser from Li-Heat

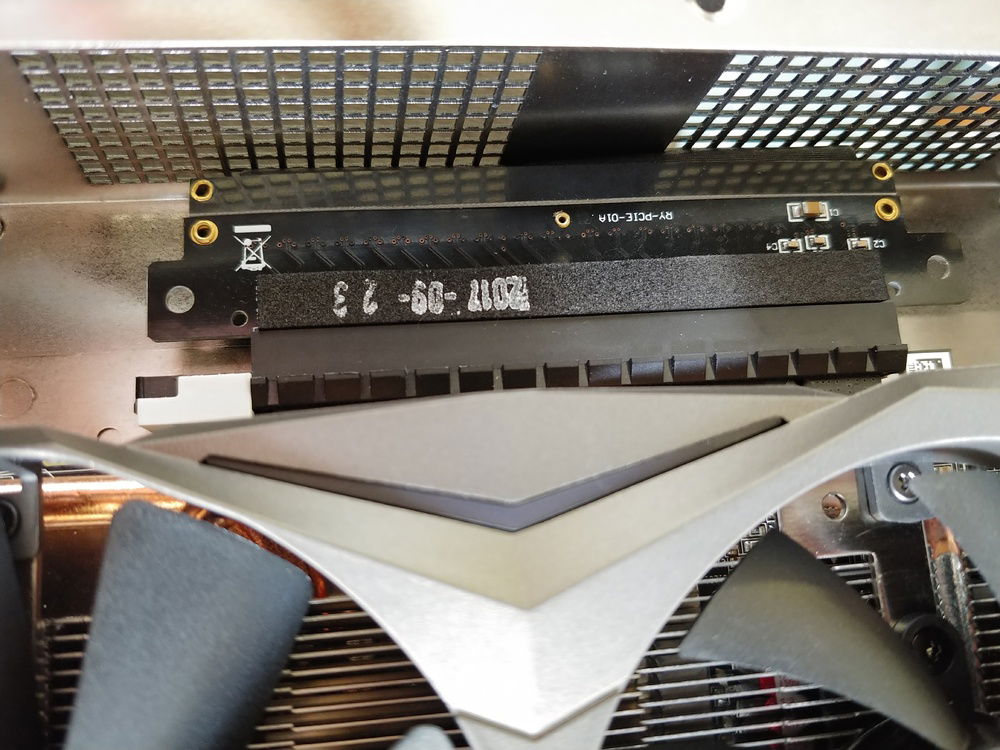

First pcie riser cable had much to large of a connector.

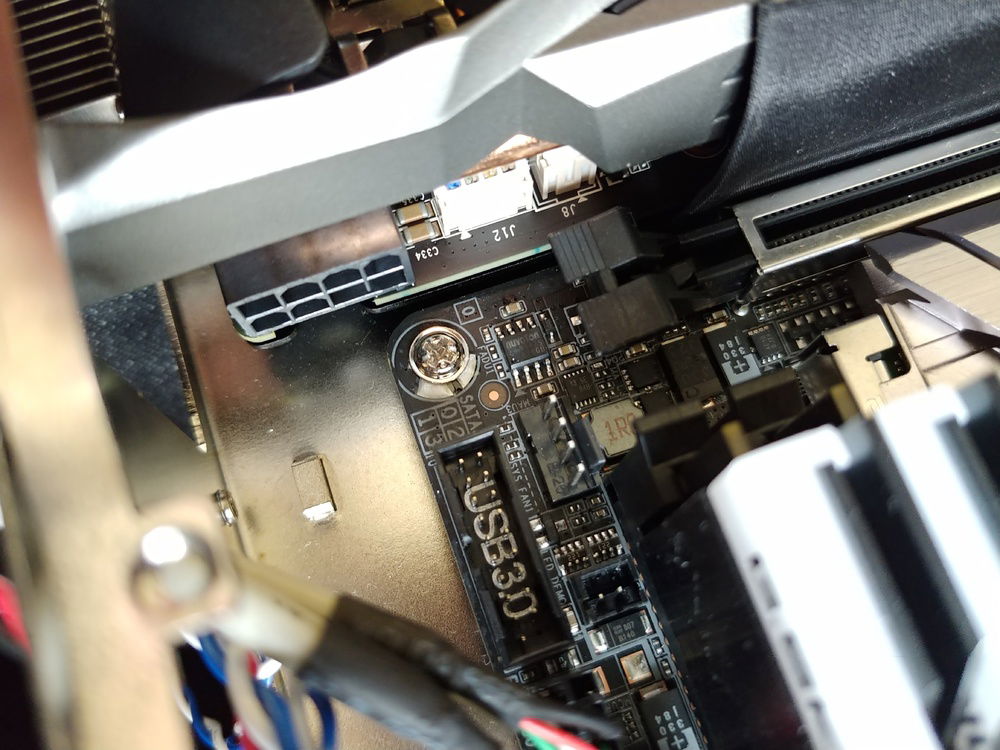

Very tight clearance between GPU and mobo

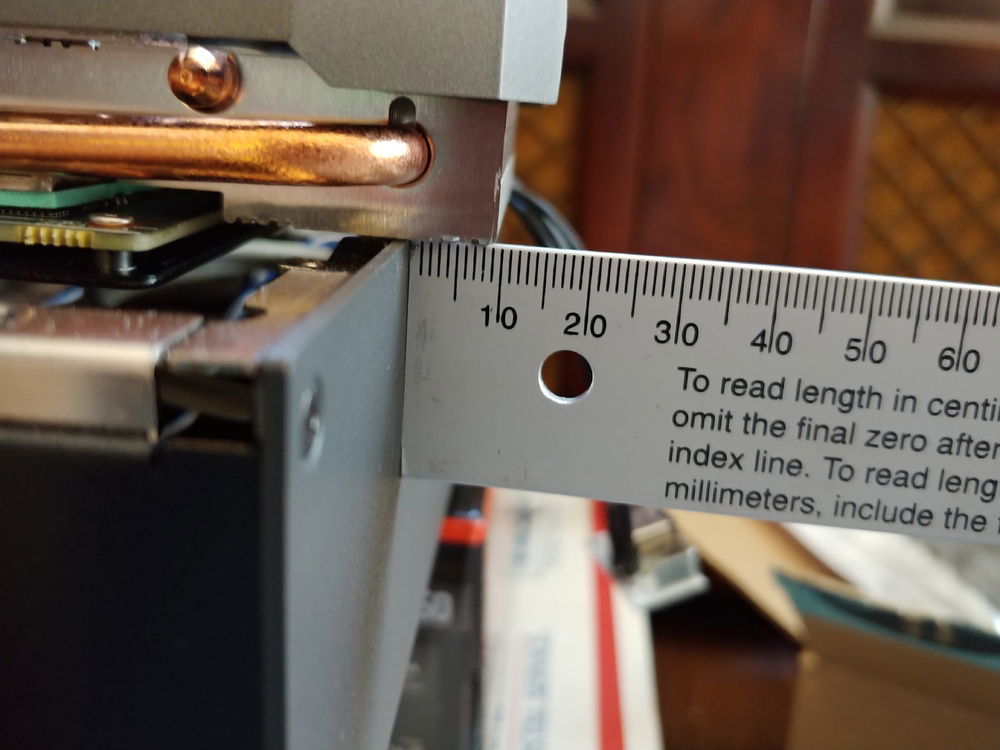

Need to push the front panel about 15-20mm

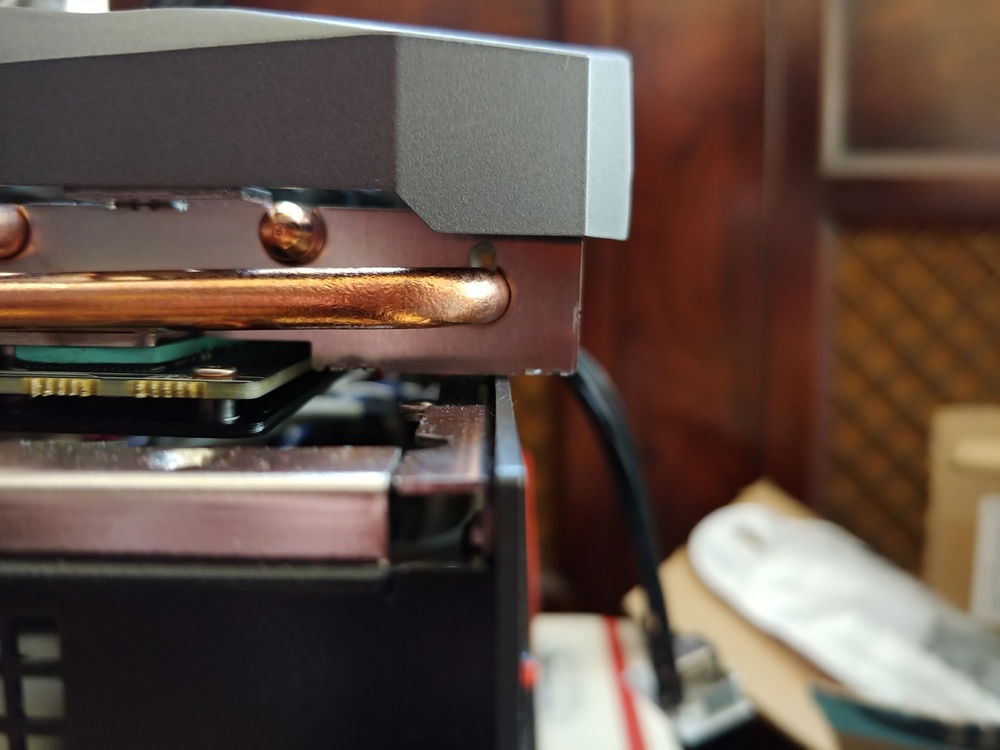

GPU overhang.

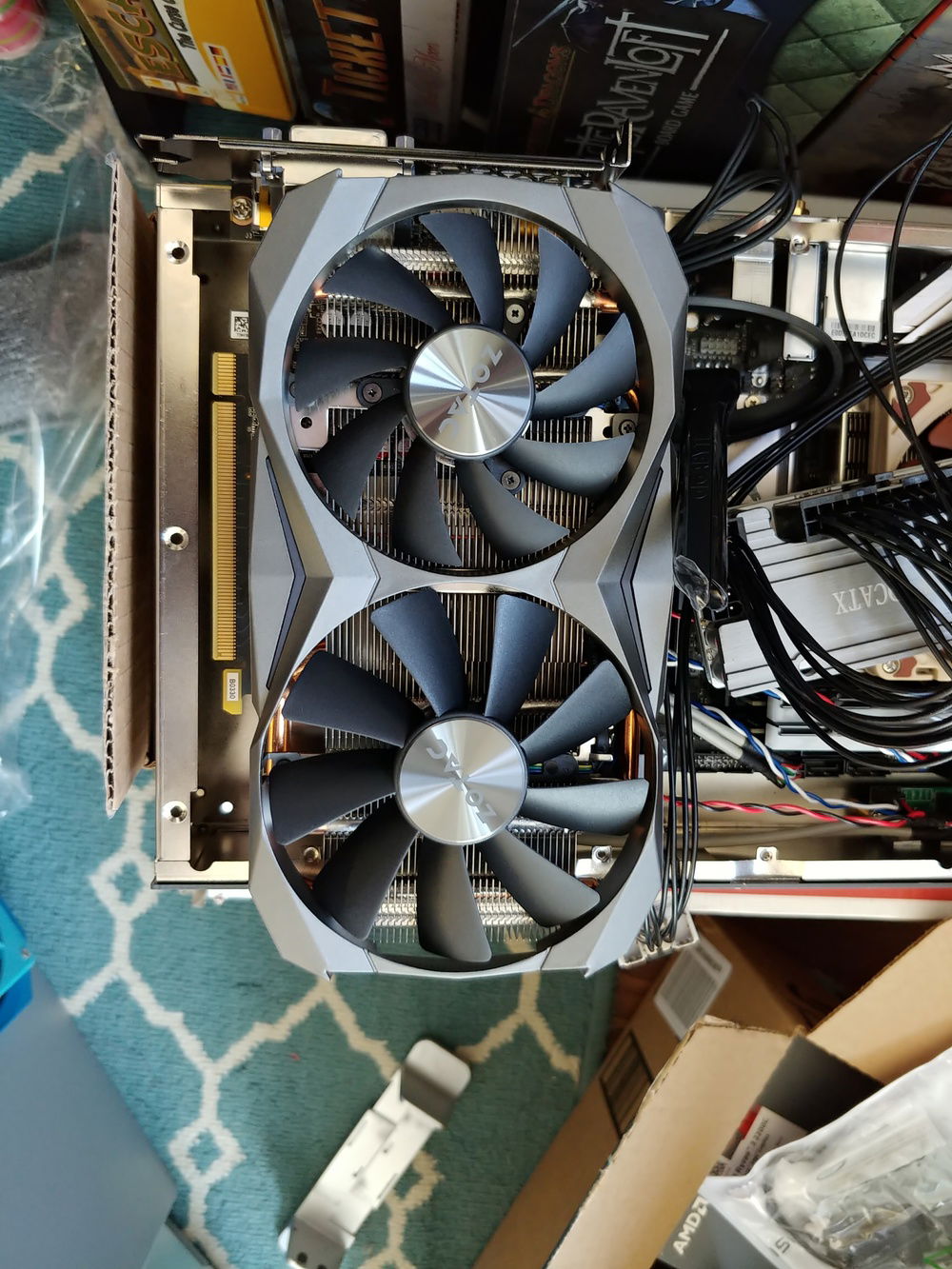

Knew the GPU would extend a bit beyond the case dimensions.

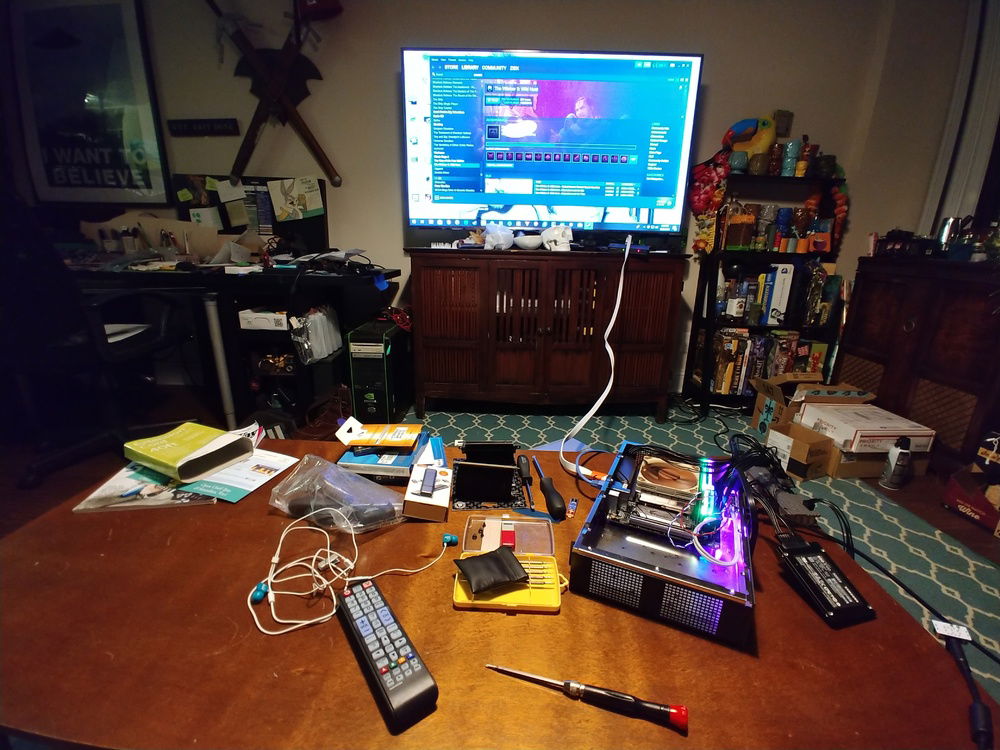

Initial test before GPU arrived
View from the back

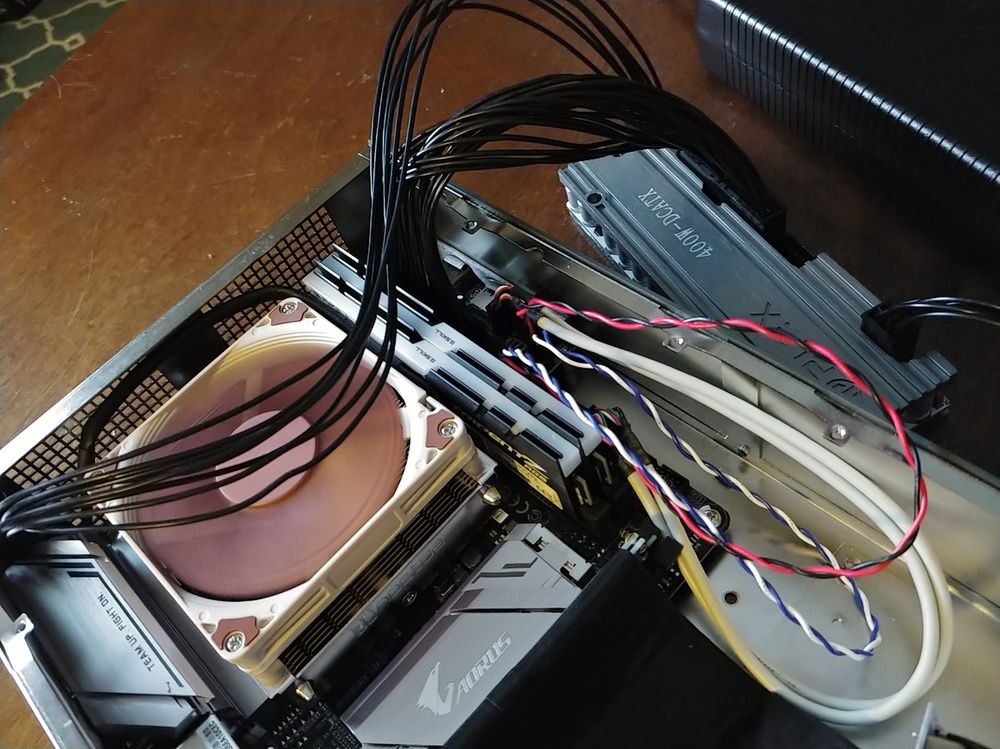

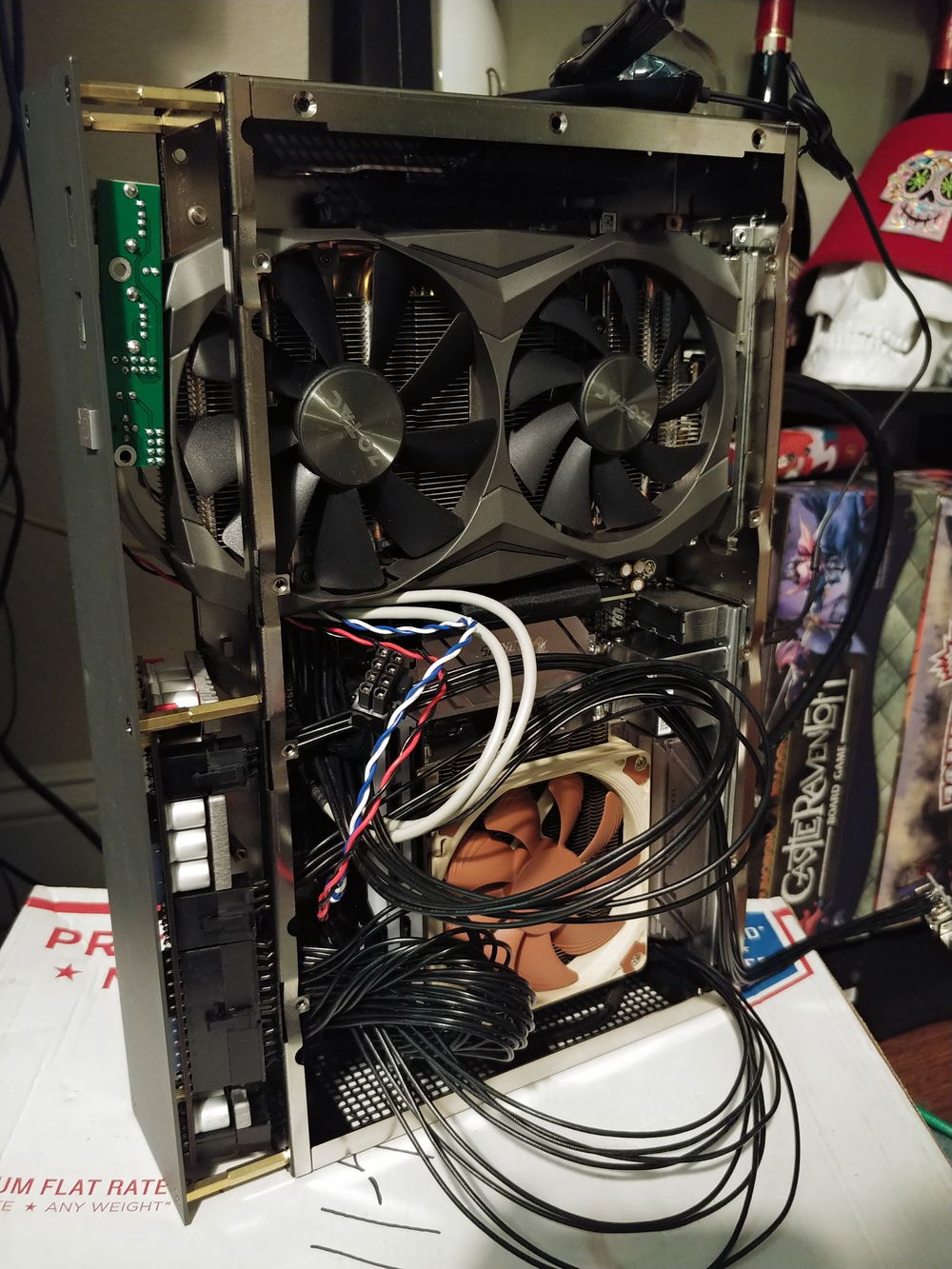

Rats nest in the open side.

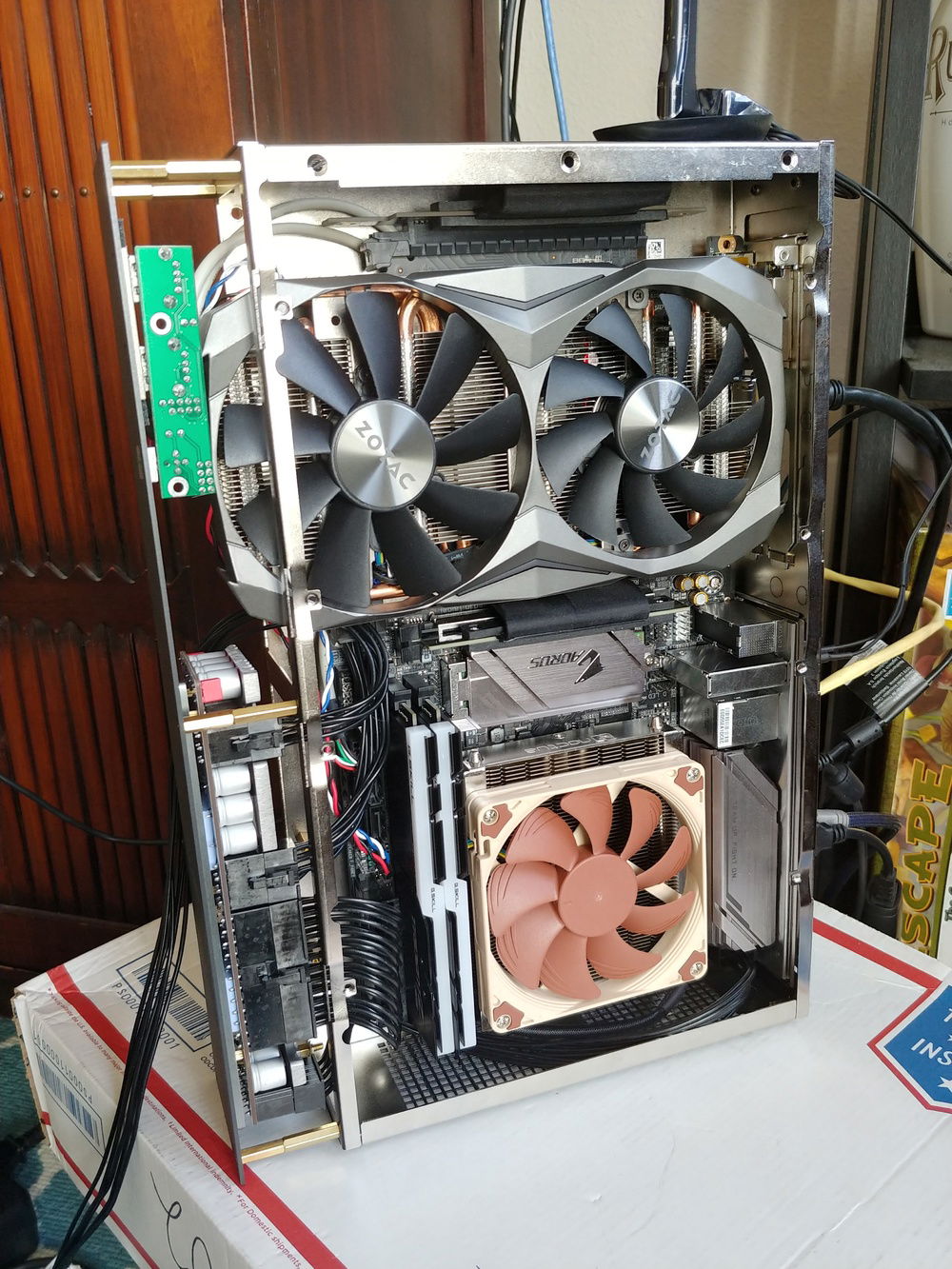

NFC Skywire power cables installed. (Thanks for helping with the custom short PCIE cable, Josh!)
Last cabling concern is to mount my power jack.
MC600 ITX Gaming
Approve!
Reasonable amount of power in a very slim case. WIP
Color(s):
Black
RGB Lighting?
Yes
Theme:
none
Cooling:
Air Cooling
Size:
Mini-ITX
Type:
General Build
Build Updates
Offset the front panel with brass standoffs.
View from the back
Rats nest in the open side.
Installed short PSU power cables (NFC Skywire).
Hardware
Category / Value
Brand / Part
CPU
$ 110.00
AMD
-
Ryzen 3 (2200G)
Socket: AM4
Cores: 4
Integrated Graphics: Yes
Motherboard
$ 121.51
Gigabyte
-
AORUS Pro (WiFi) (B450I)
Chipset: B450
CPU Socket: AM4
Size: Mini-ITX
Memory
$ 67.49
G.Skill
-
Trident Z (3600MHz) (Black/RGB)
Type: DDR4
Capacity: 32 GB
Graphics
$ 398.68
ZOTAC
-
Mini
Chip Manufacturer: NVIDIA
Chip: GTX 1070 Ti
Storage
$ 322.99
Samsung
-
860 EVO
Form Factor: M.2
Interface: M.2 (M)
Capacity: 1 TB
PSU
$ 100.00
HDPLEX
-
Generic
Wattage: 400
Form Factor: ATX
Efficiency: 80+
Case
Logic Supply
-
MC600
Type: Mini-Tower
Side Panel: Solid
