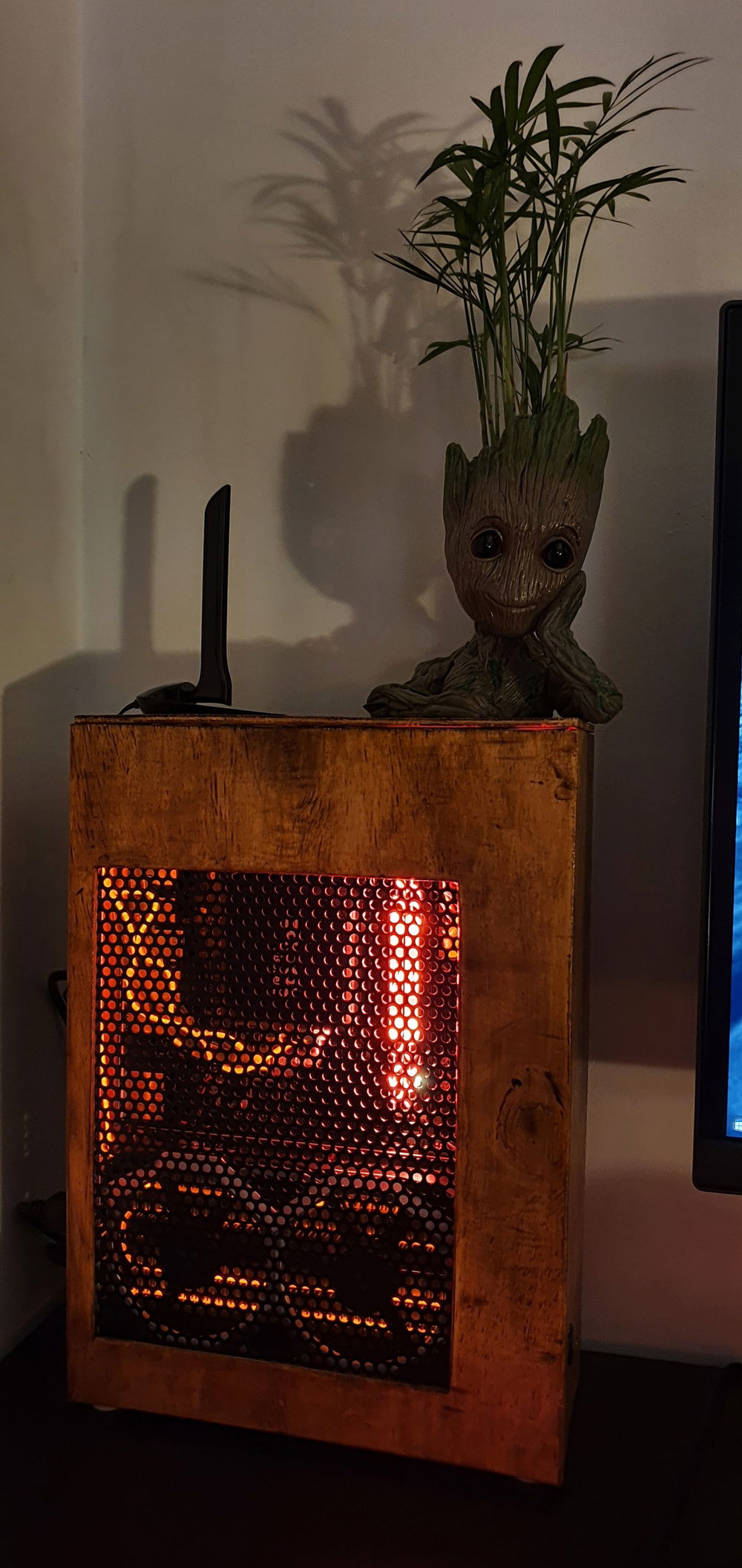

Lumberjack's ITX, merging with tiny Groot😅

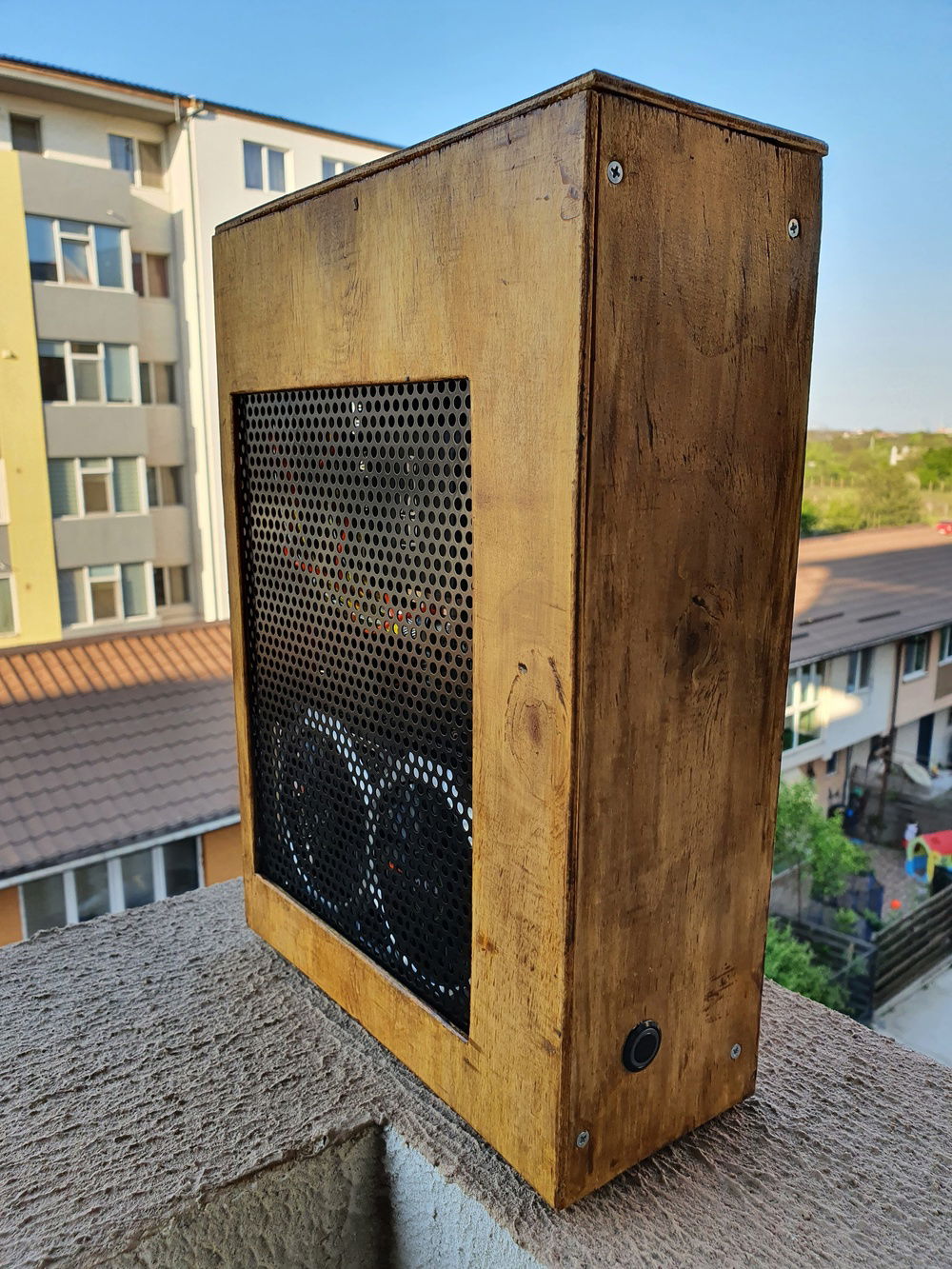

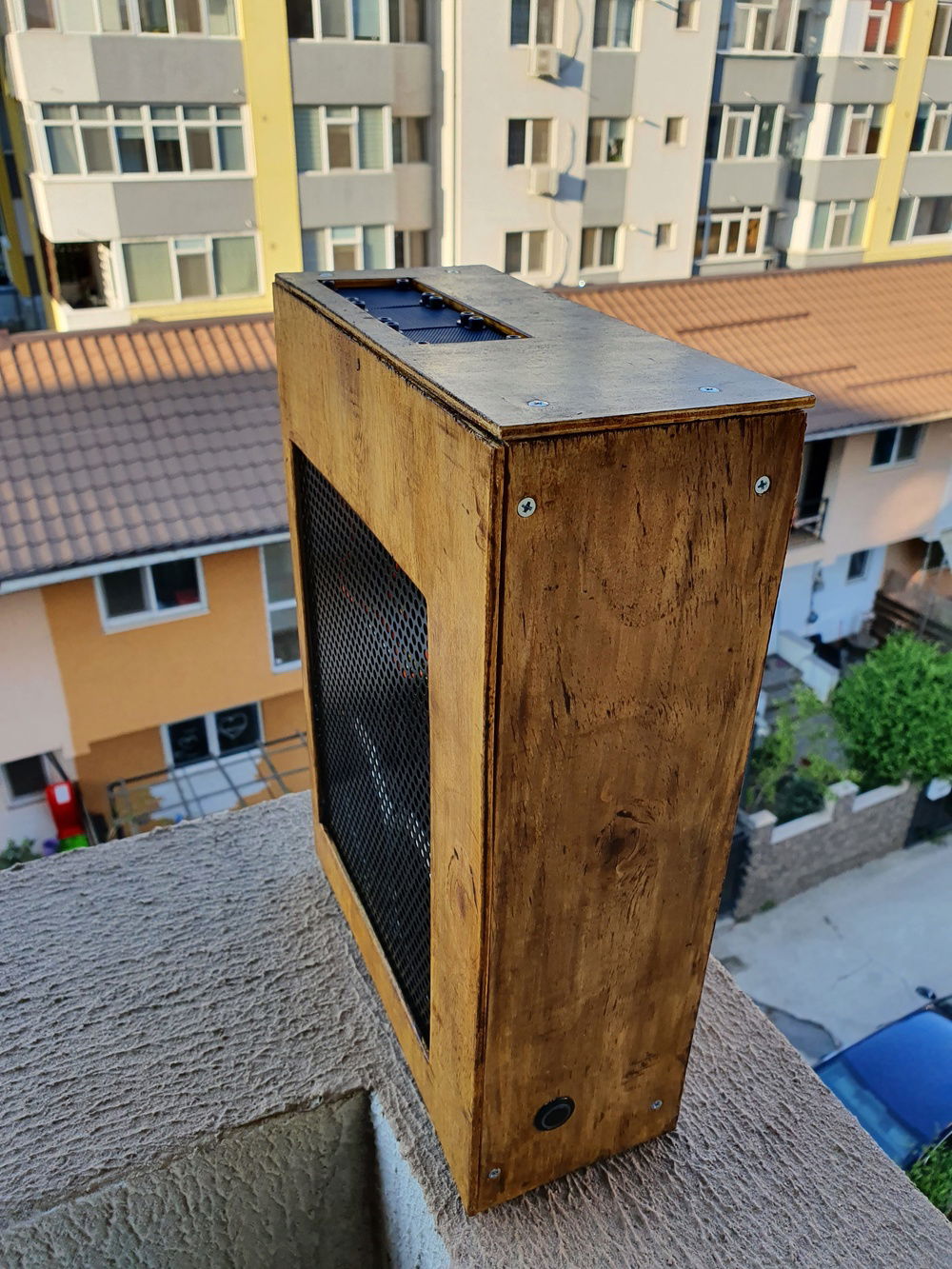

Natural light is always the better choice, therefore, I present you my neighbourhood.😅
Also, my project Lumberjack's ITX.

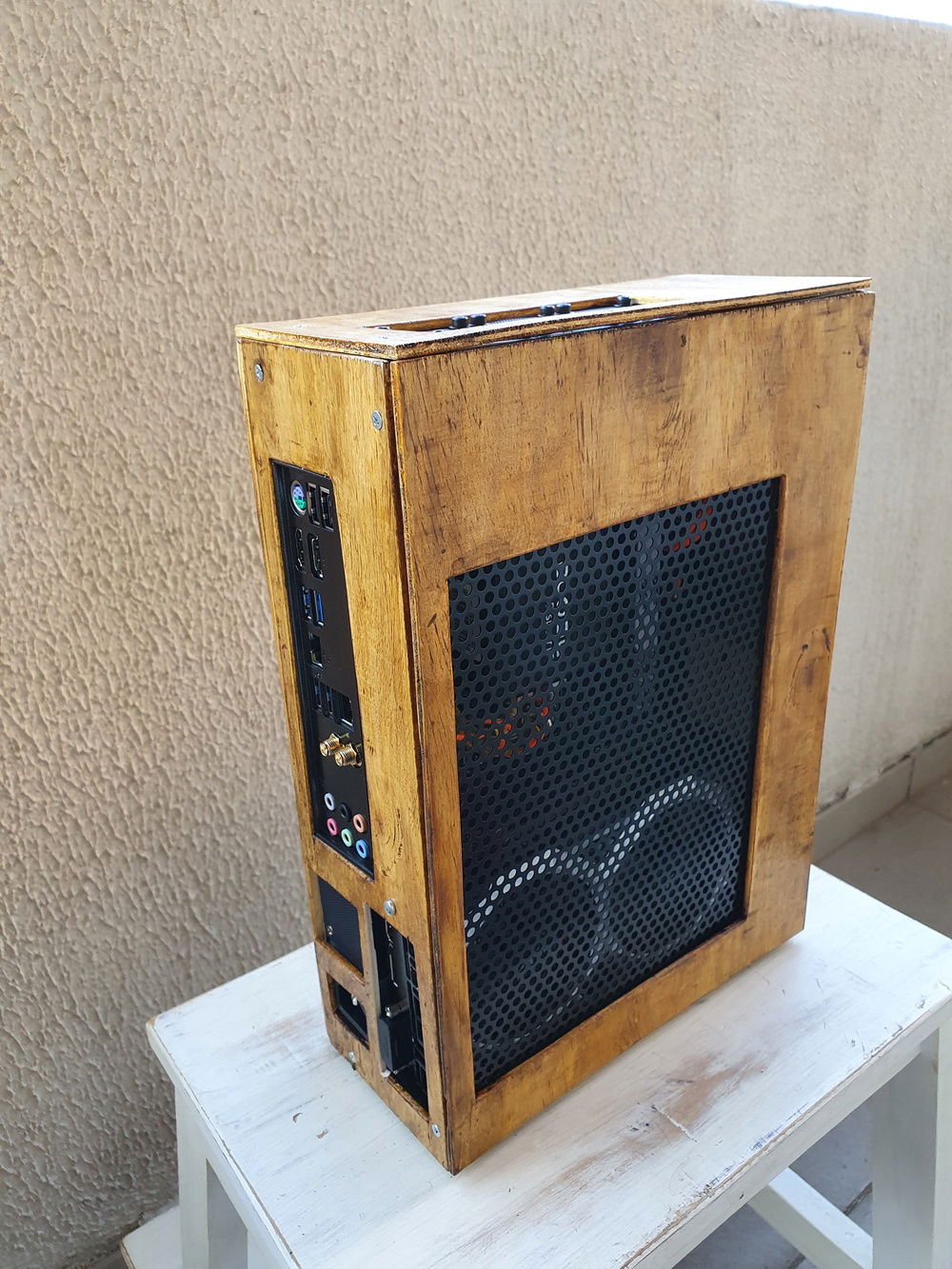

Side and back panel.

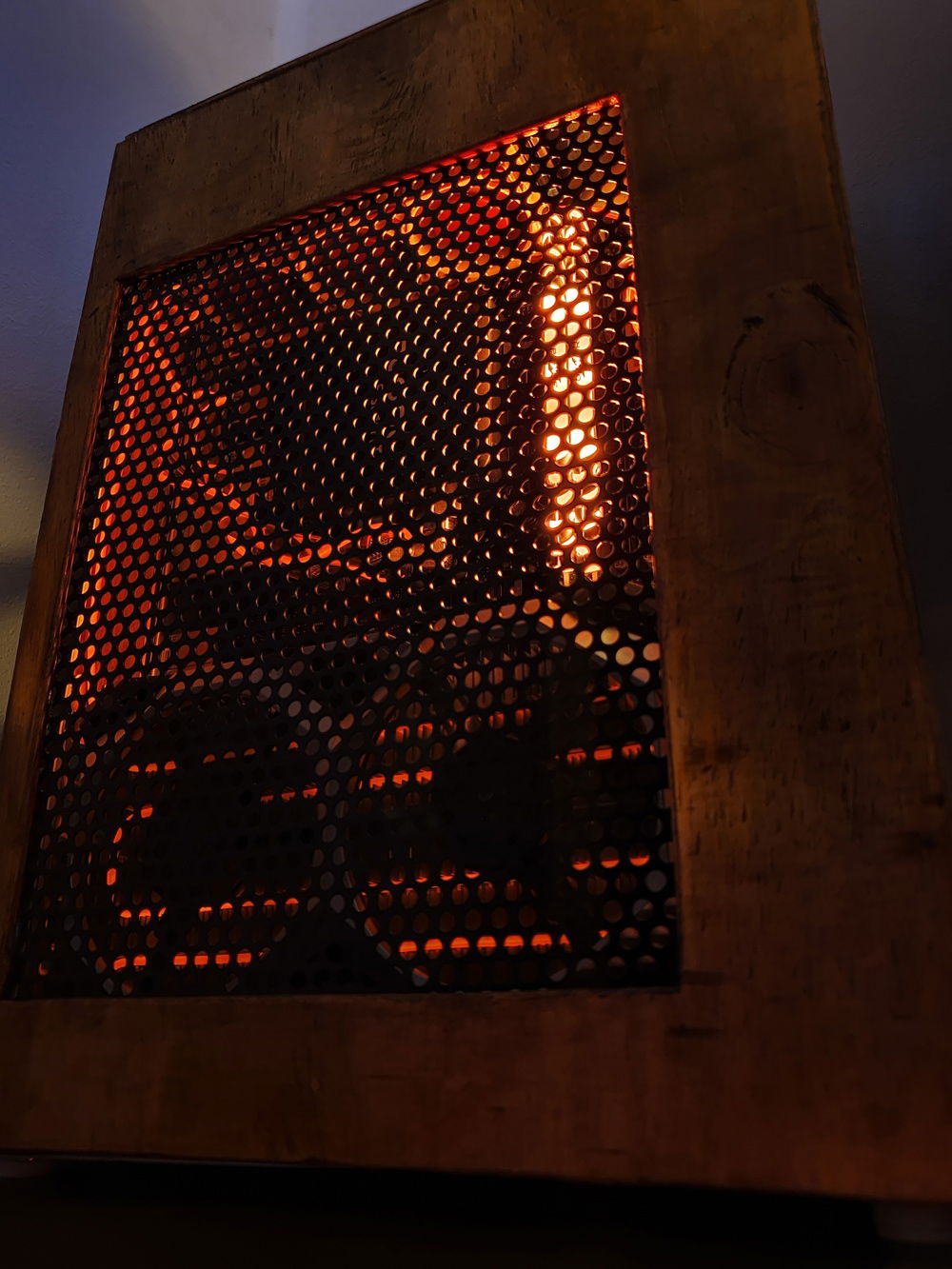

A little bit of RGB lighting, but set to orange. Thanks to the Silicon-Power XPOWER Turbine RGB which are compatible with Gigabyte's RGB platform too.

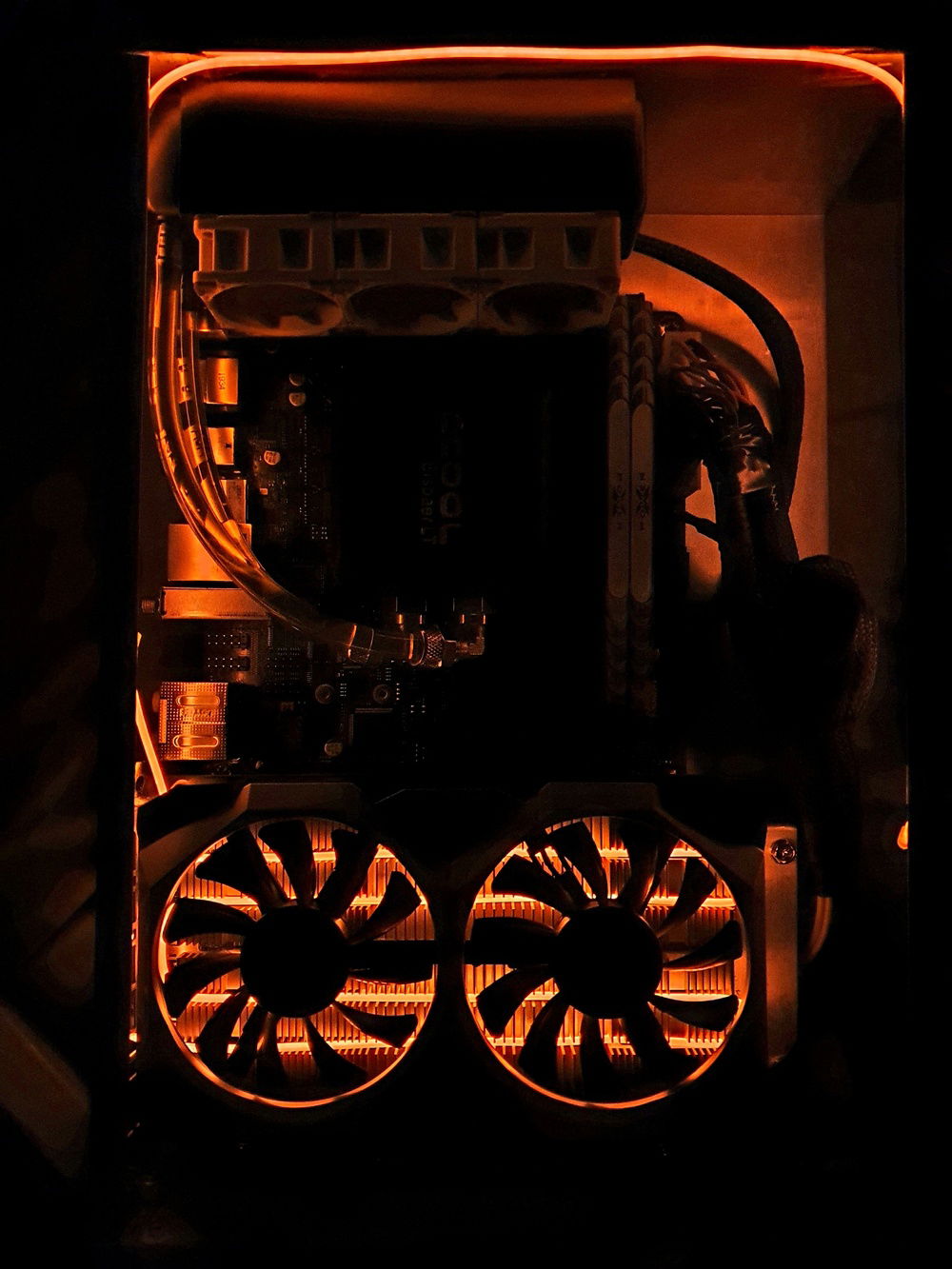

I really think that EL wire does the job perfectly when it comes to bringing out the industrial looks of the GPU.

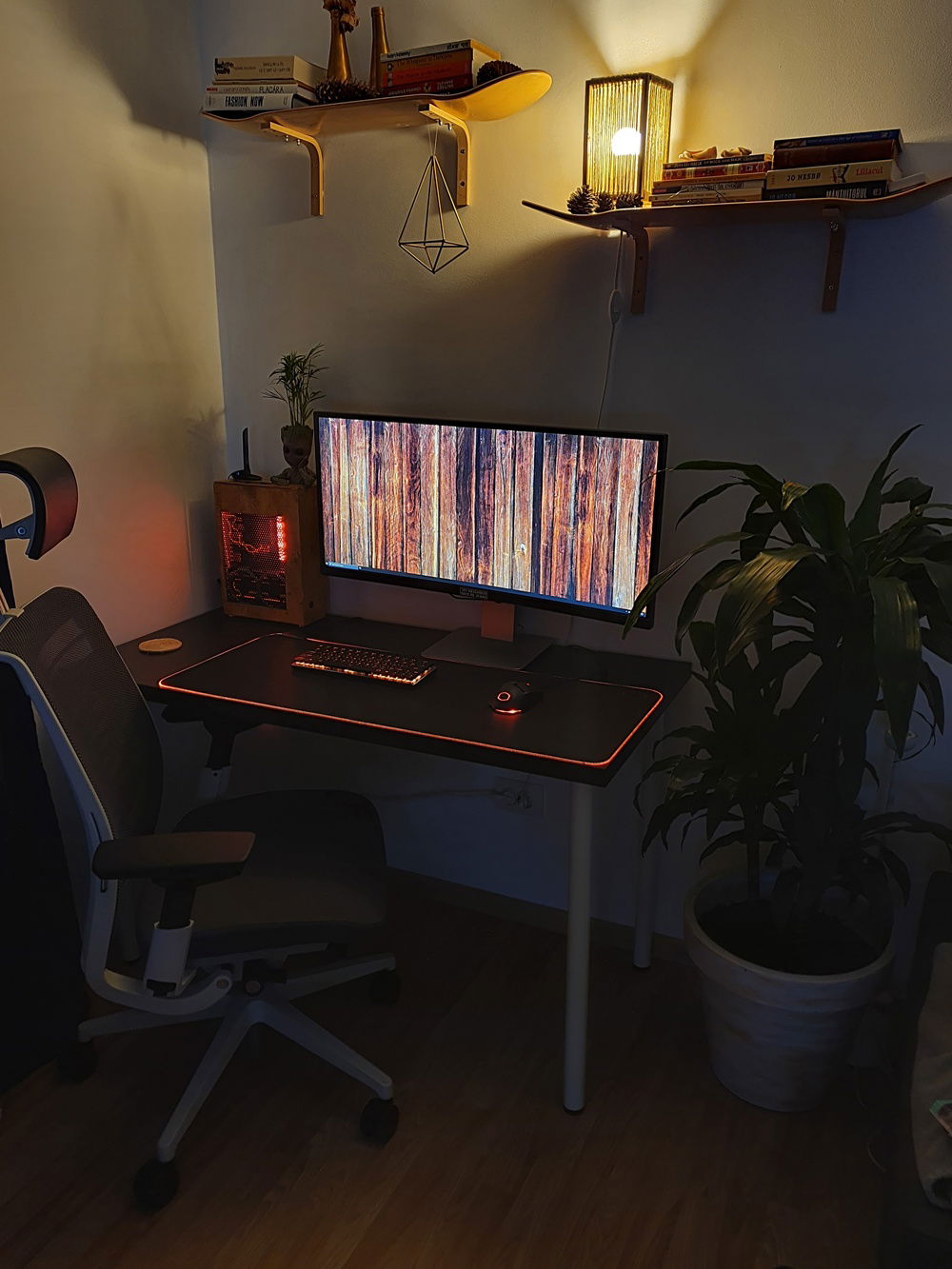

The SFFPC powered cozy corner of my living room.

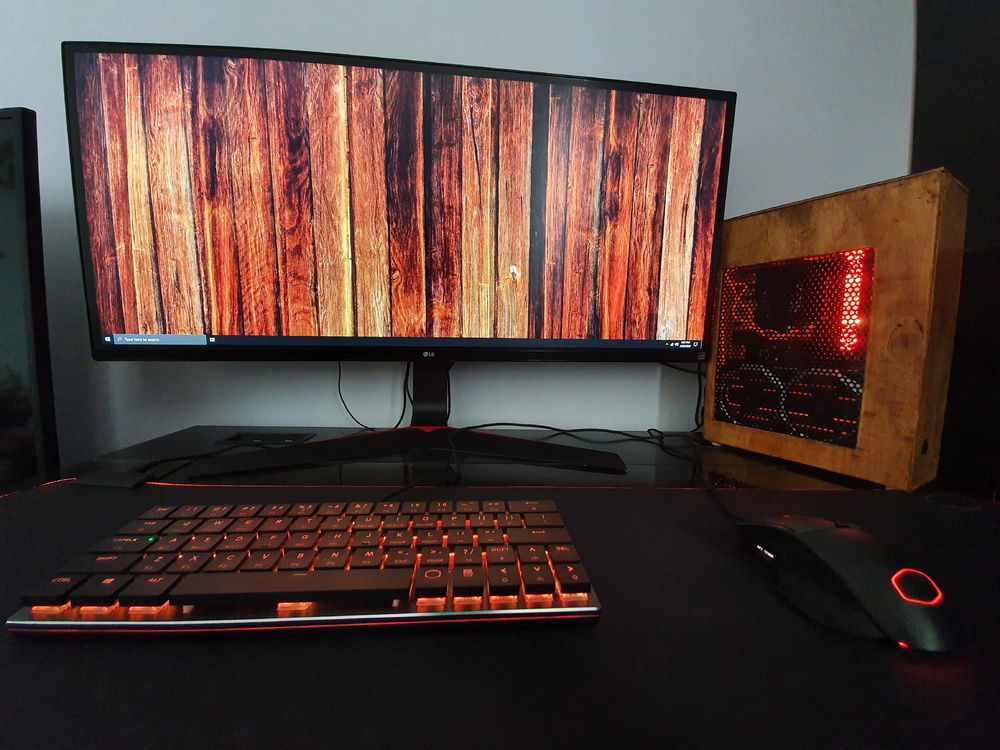

Orange theme all over.

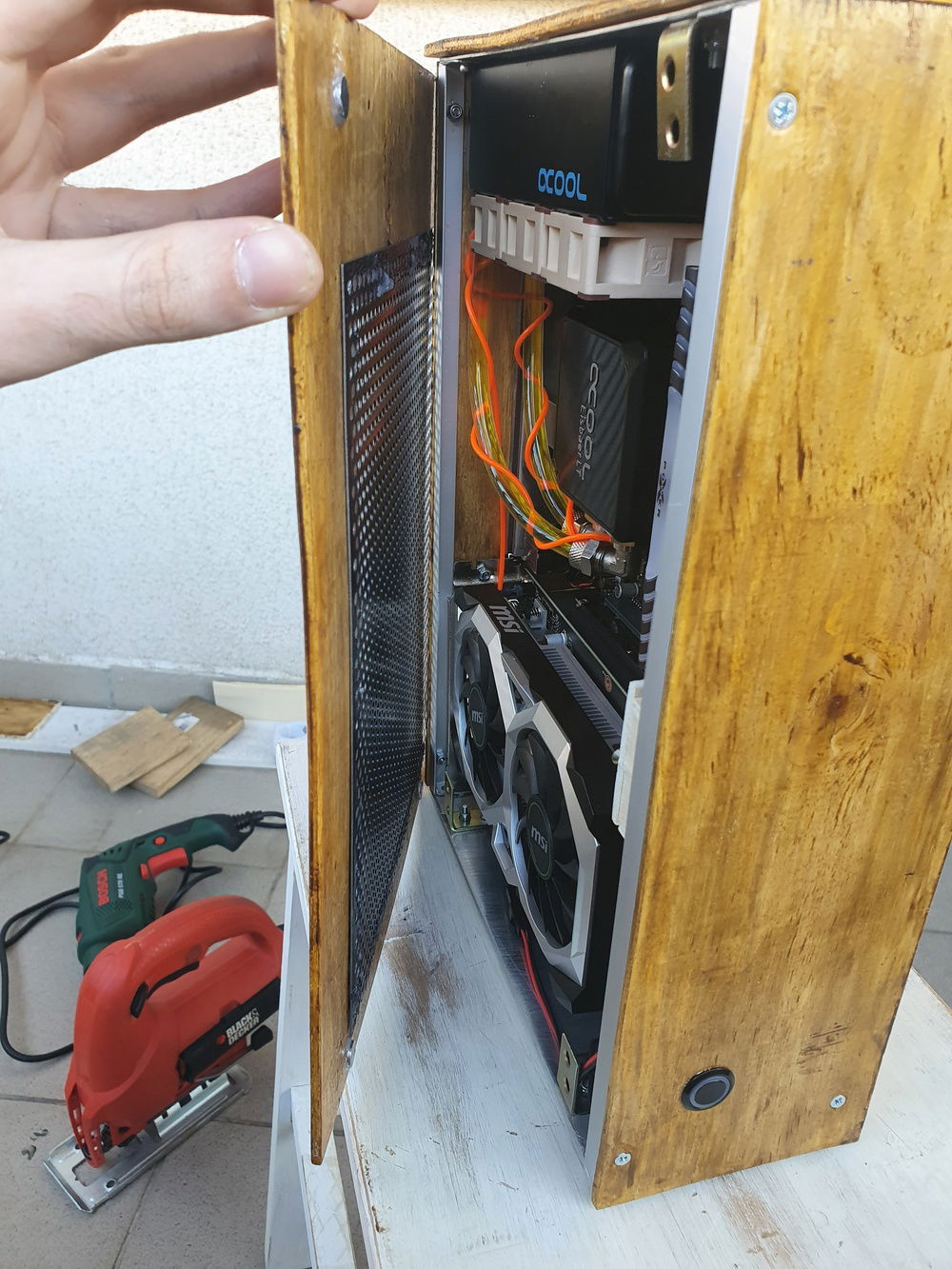

The side panel sits in place thanks to magic (just kidding, there's magnets involved)

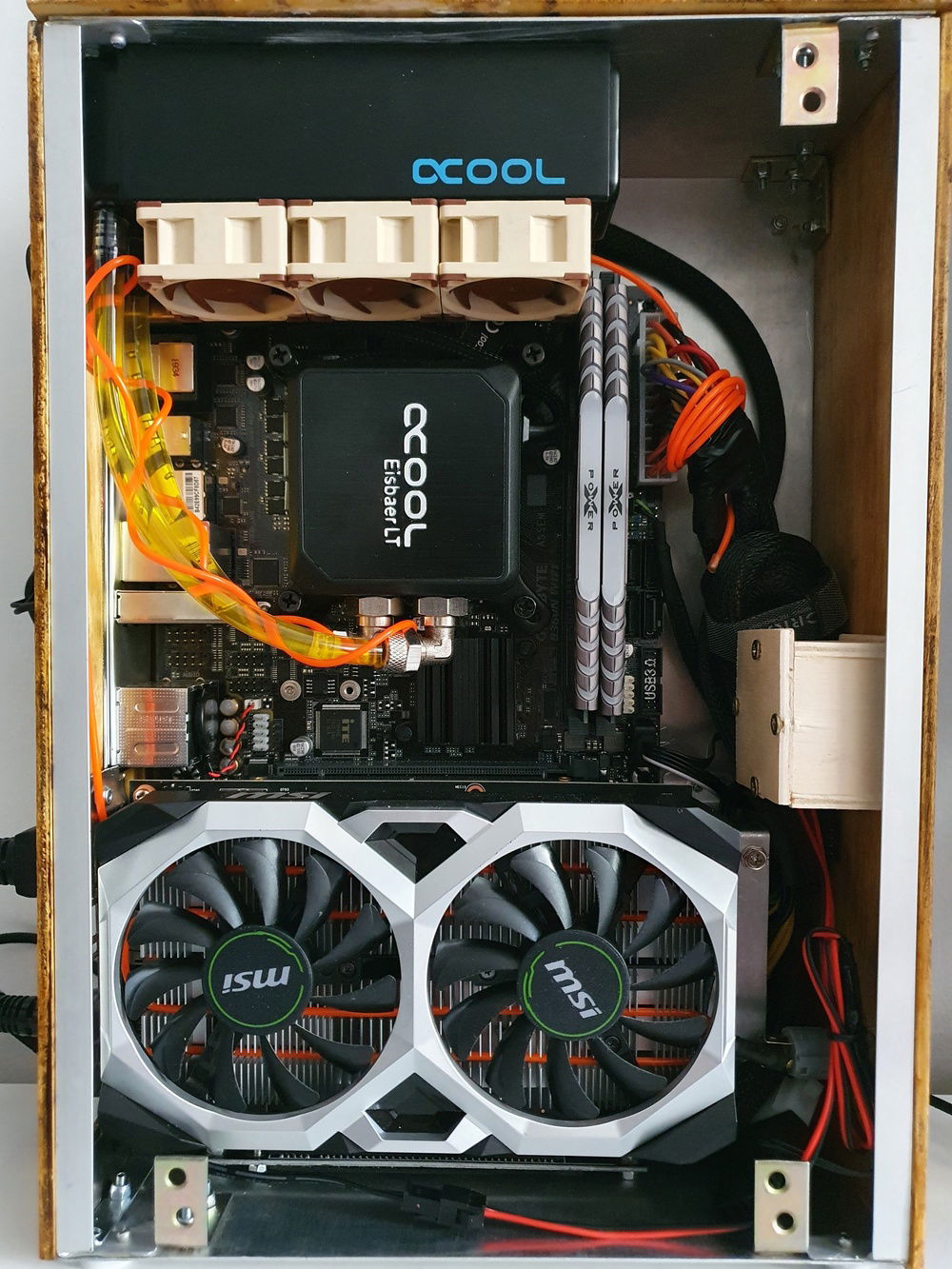

Full view of the entire build without the side panel on.

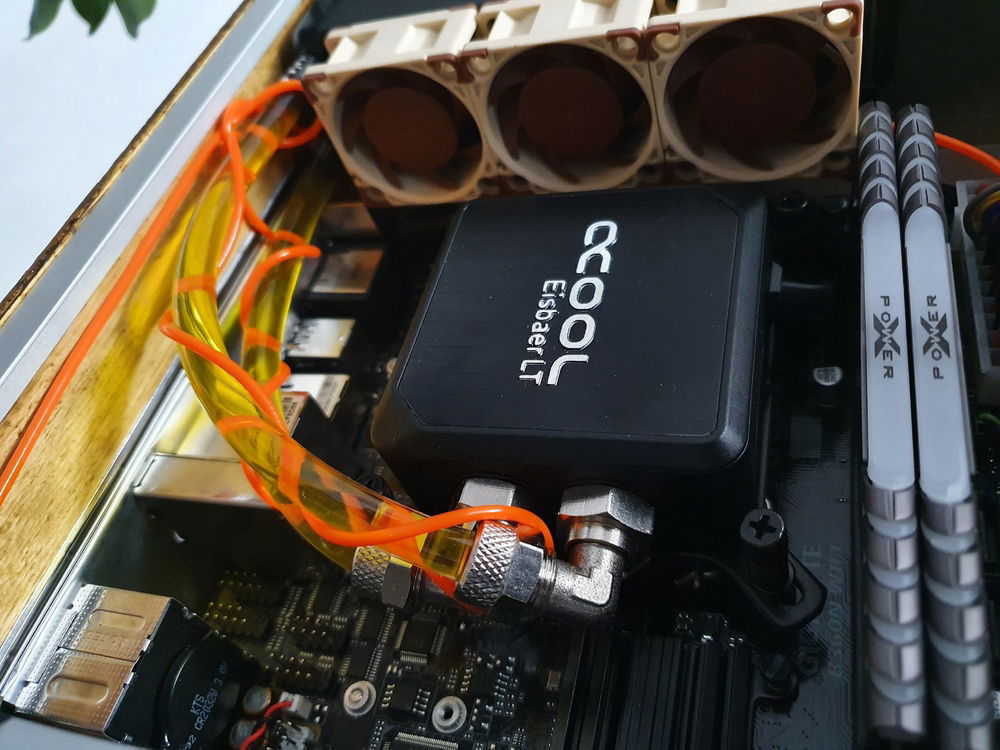

Smallest custom loop for a full size CPU ever. IKR? Also, the EL wire wrapped around the tubing. Thank you Alphacool and Noctua for making this cooler possible.

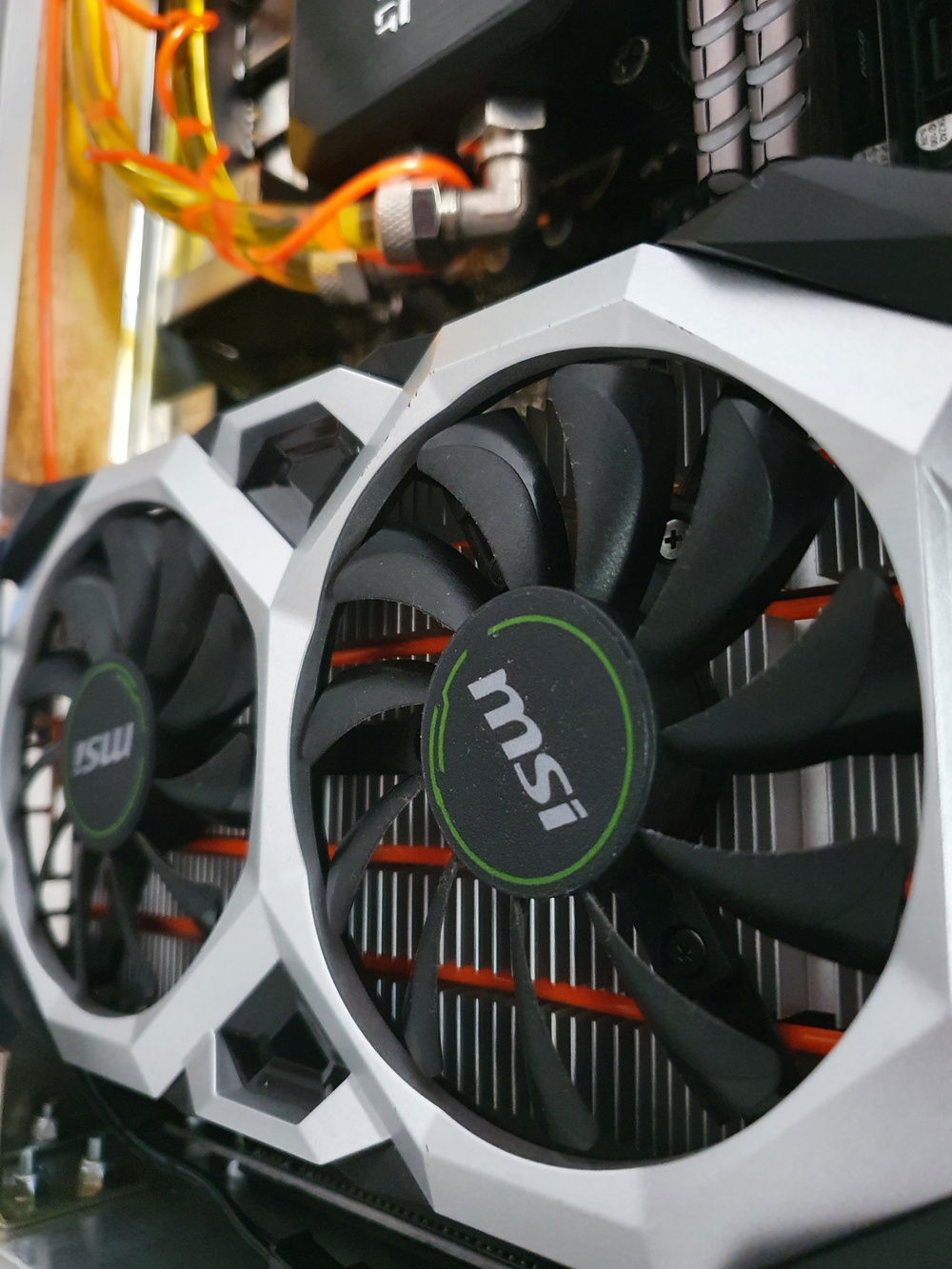

Decided to get creative and shove the EL wire through the GPU's radiator. Thank you MSI for the tiny and very potent GTX 1650 Ventus XS

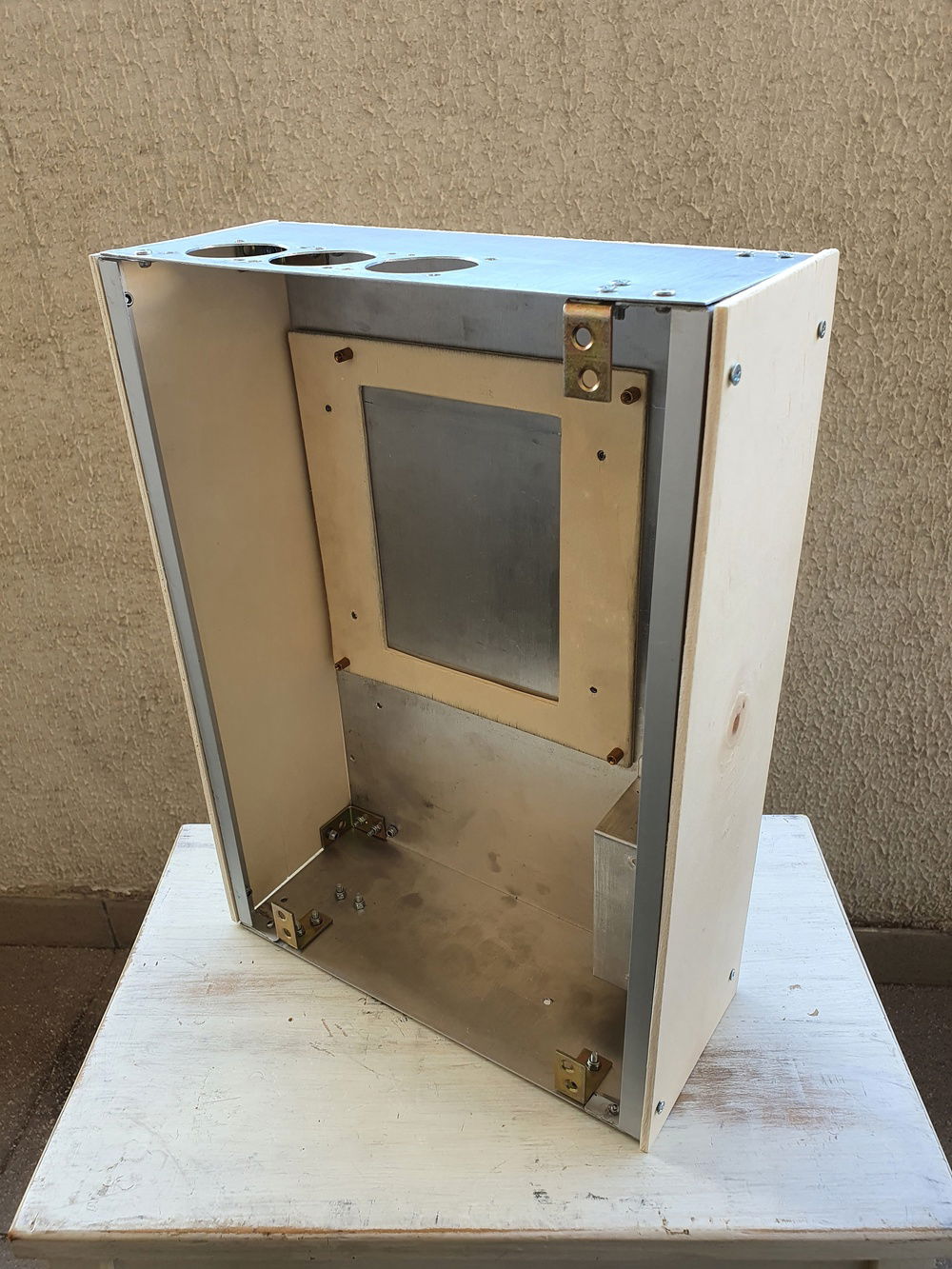

The entire case's structure is made of aluminium and the sides and top are covered with wood sheets.

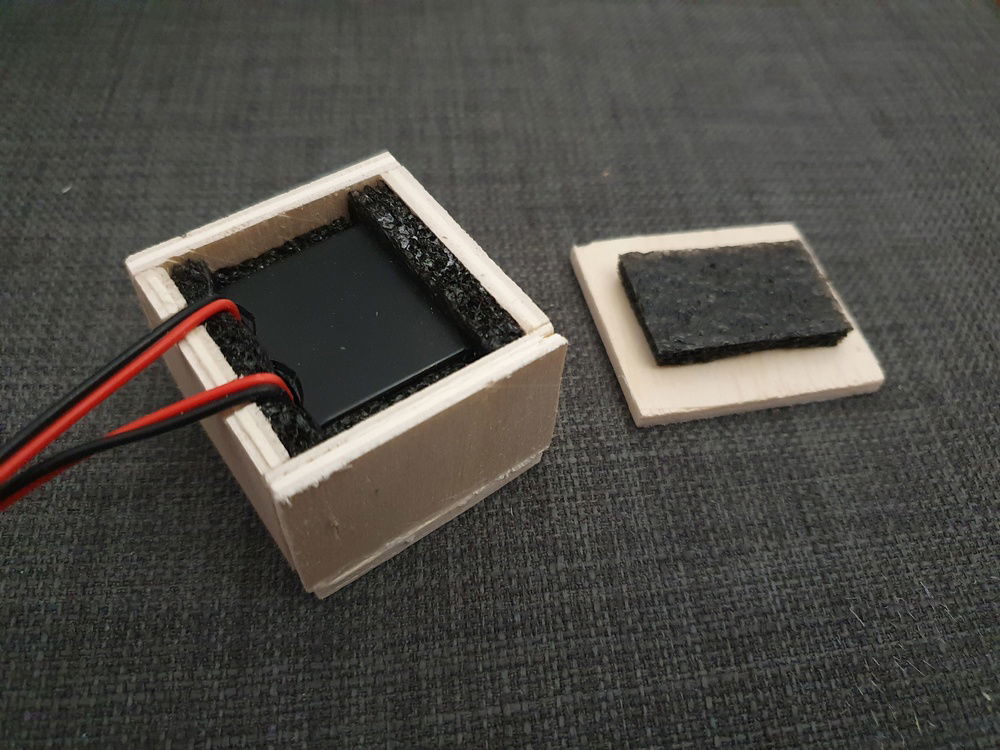

Wooden enclosure padded with sponge for the 12v driver as it makes the annoying pitch noise. The driver will power up the orange EL wire.

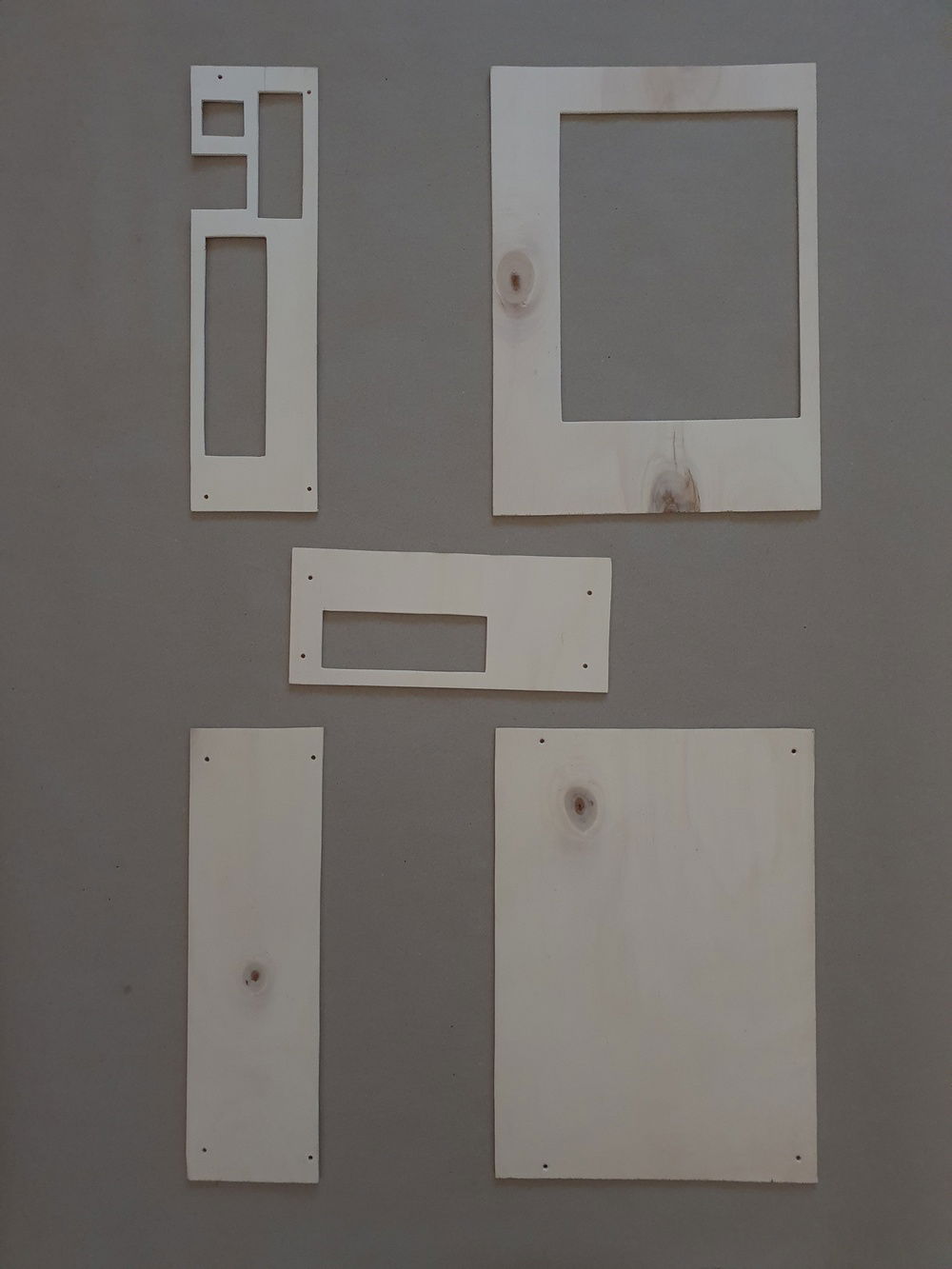

The wooden panels were all manually sawed and drilled.

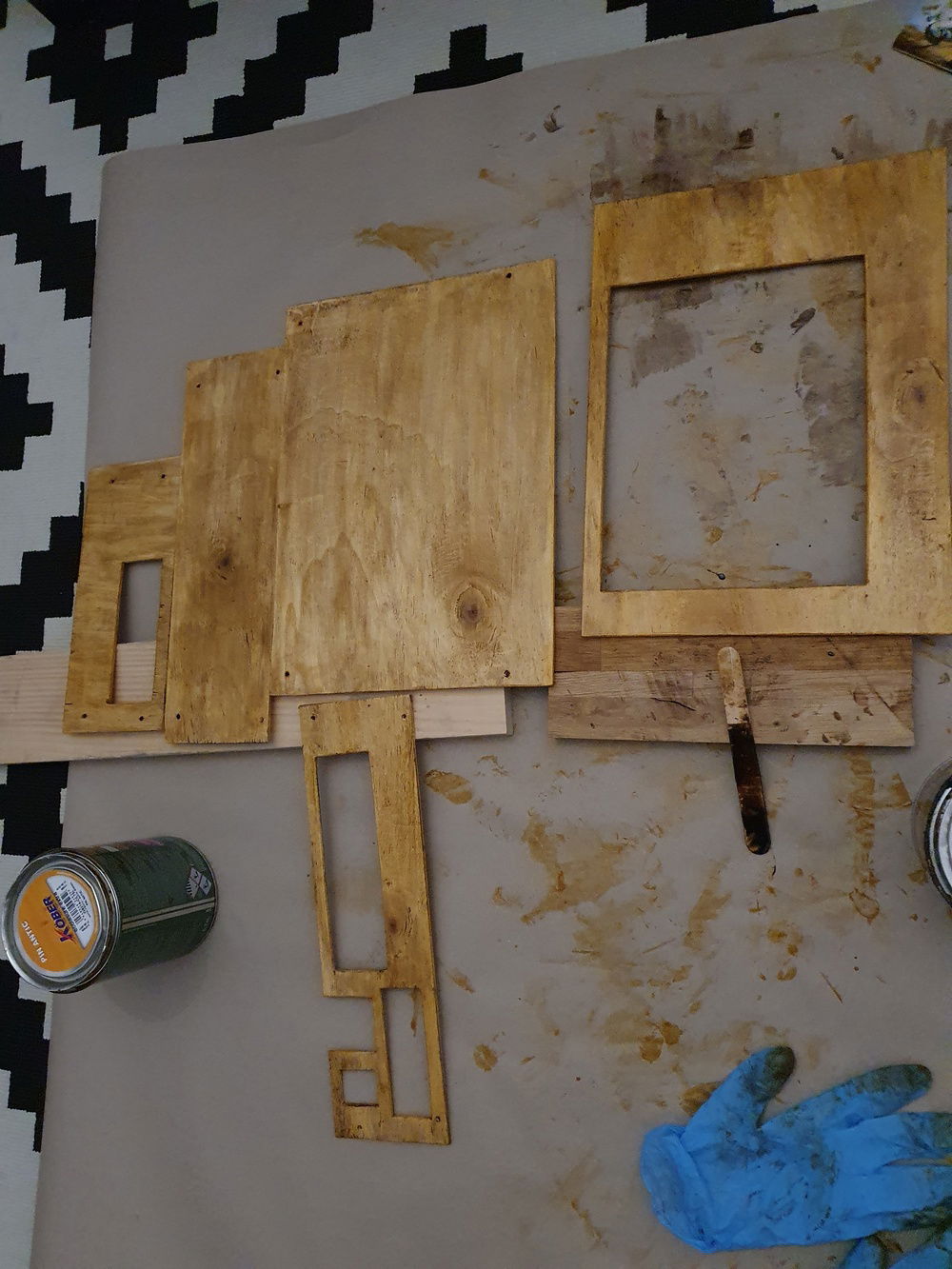

These were also oiled, to obtain the desired wooden texture.

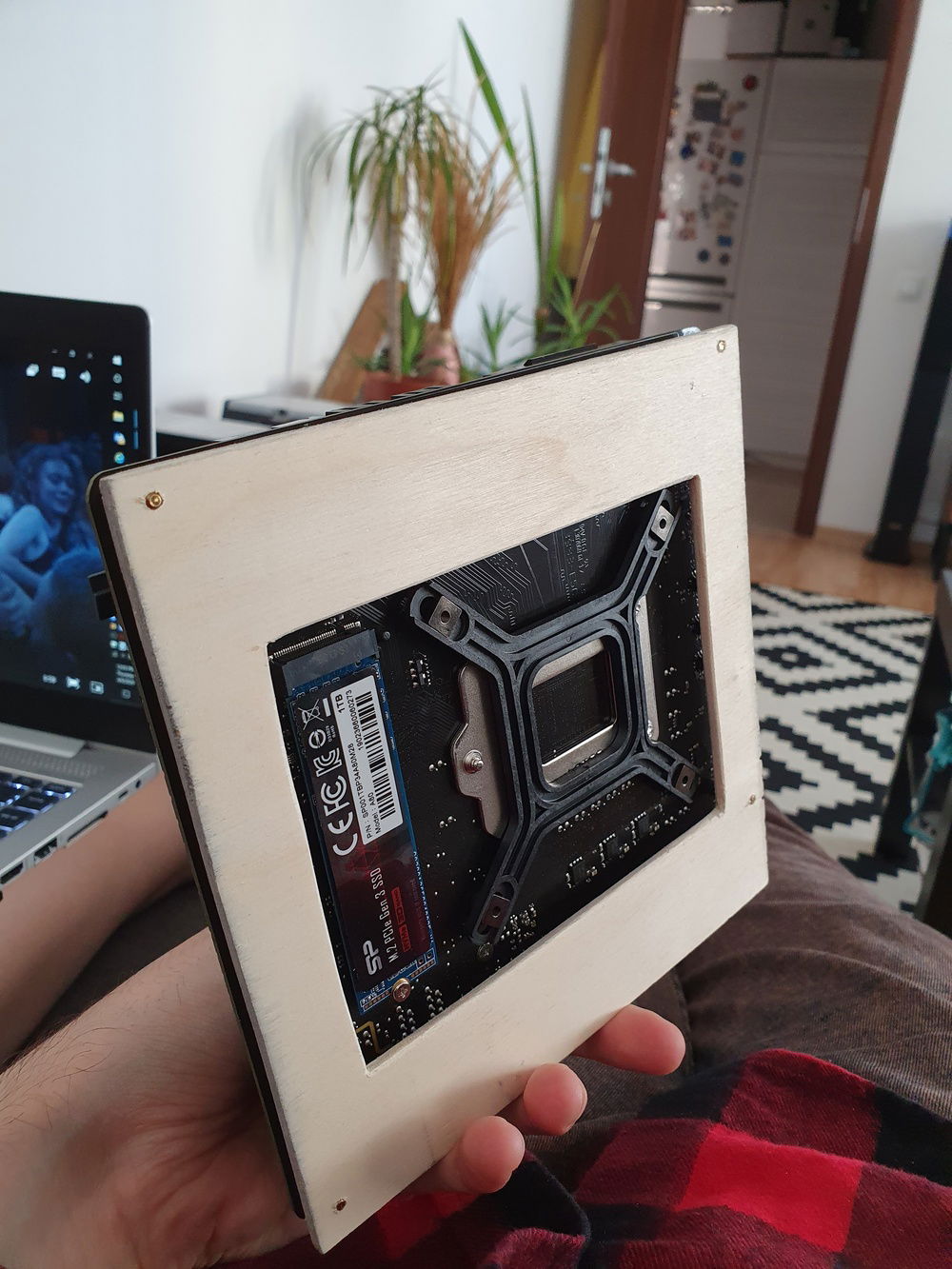

The motherboard's mount is also made out of wood, with a hole cut in the middle, to allow room for the 1TB M.2 NVMe Silicon-Power provided.

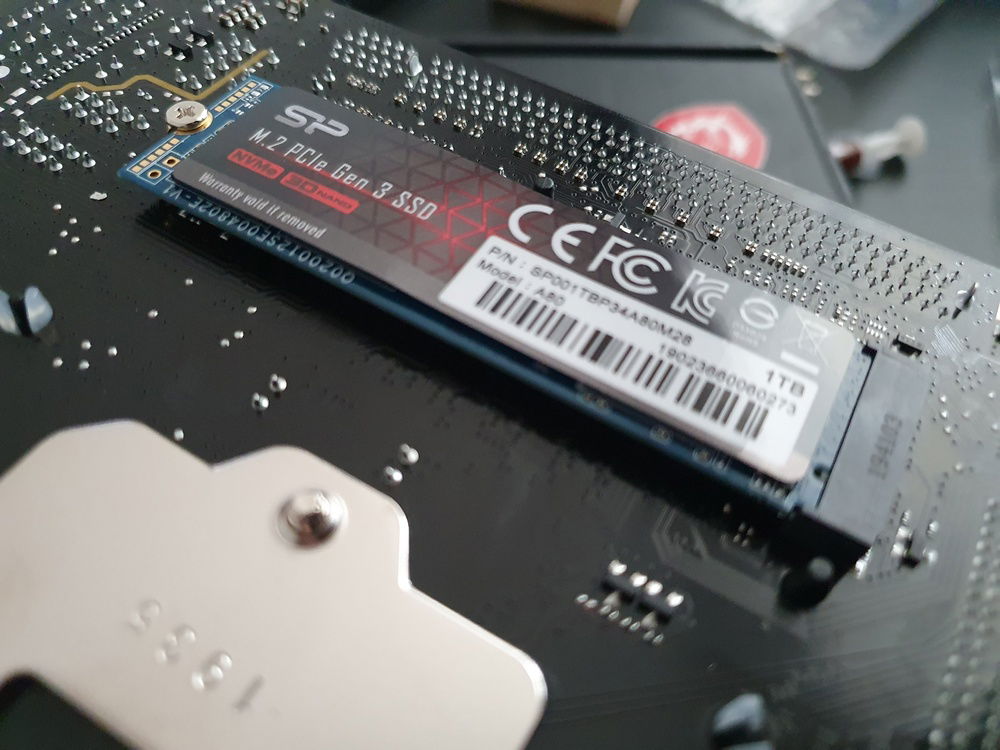

The mighty (but tiny) 1TB Silicon-Power P34A80 NVMe.

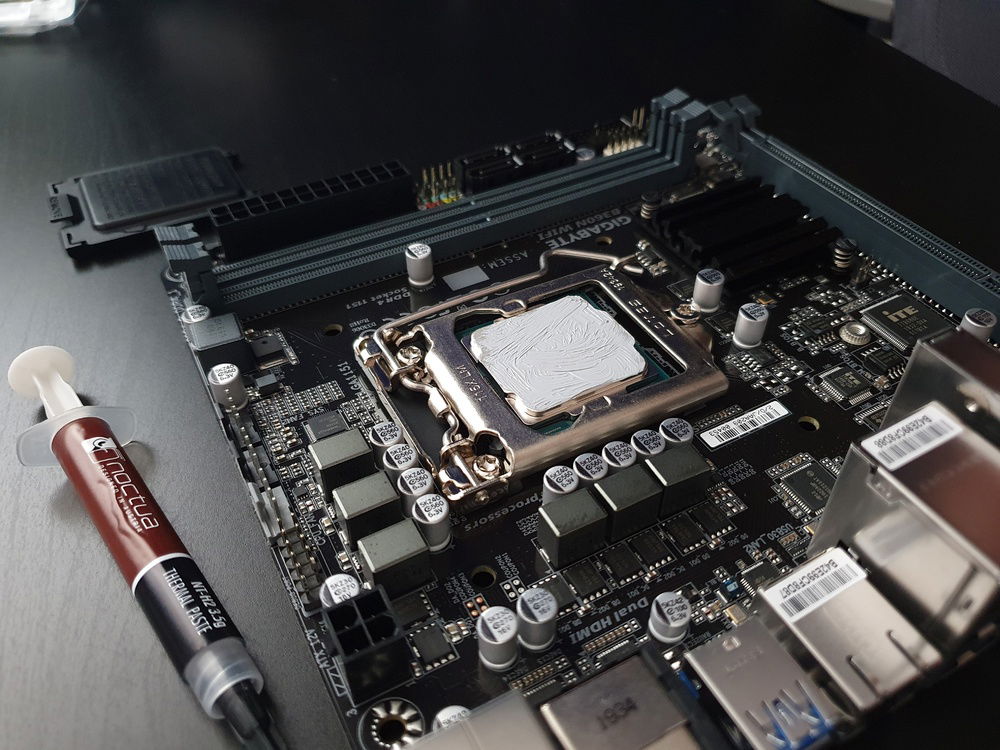

You may think that the Intel i3 9100F is a bottleneck, but for a 1080p gaming machine it does it's job marvelous. Fits like a charm with the GTX 1650.

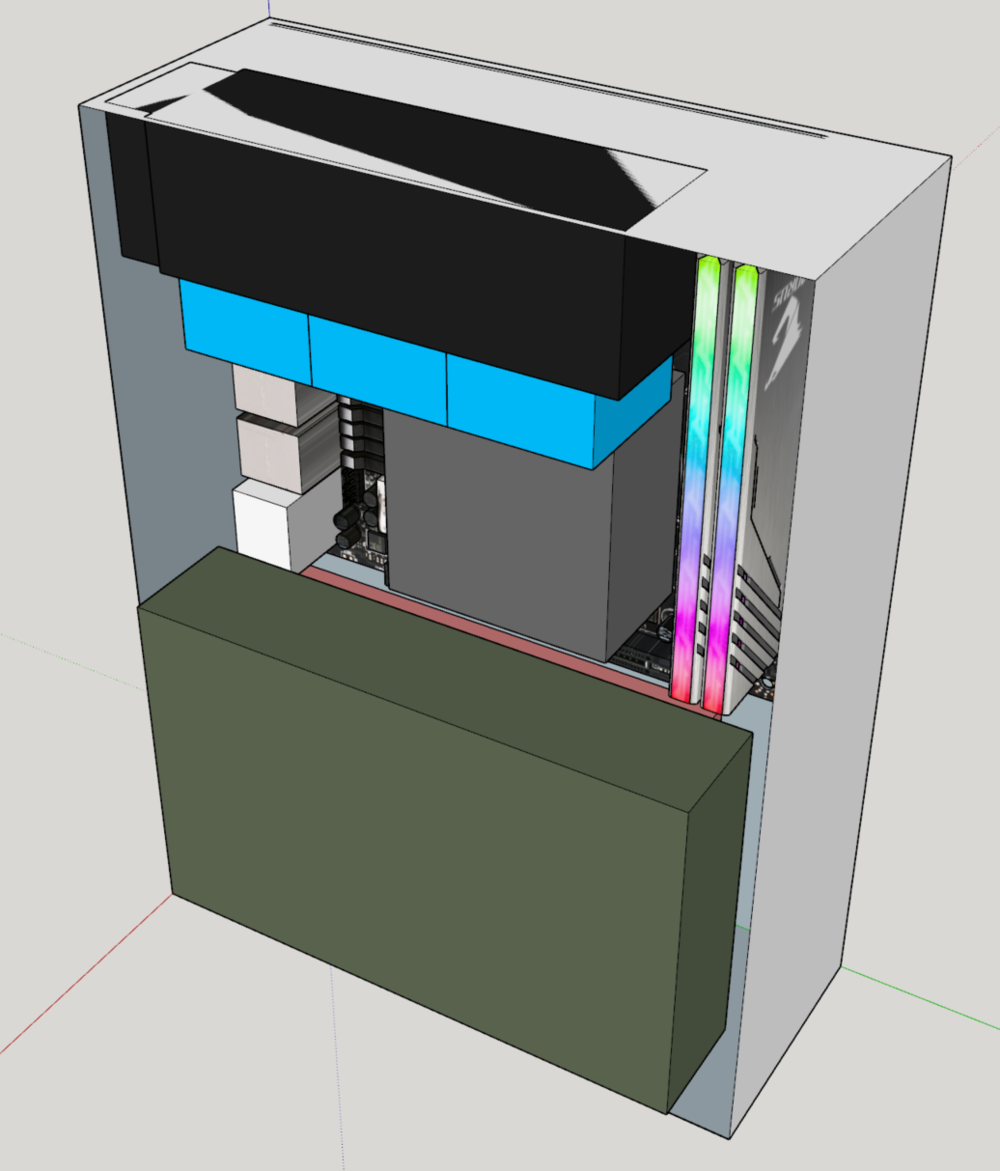

Black: Triple 40mm radiator;
Blue: 3x 40x20mm PWM fans;
Dark green: GPU;
Red: FlexATX PSU;
Gray: CPU block/pump/reservoir combo.
Lumberjack's ITX
Color(s): Black Brown Orange
RGB Lighting? Yes
Theme: Industrial
Cooling: Custom Liquid Cooling
Size: Mini-ITX
Type: General Build
Contests
This build participated in 1 contest.
