Lian Li O11 Dynamic - Copper

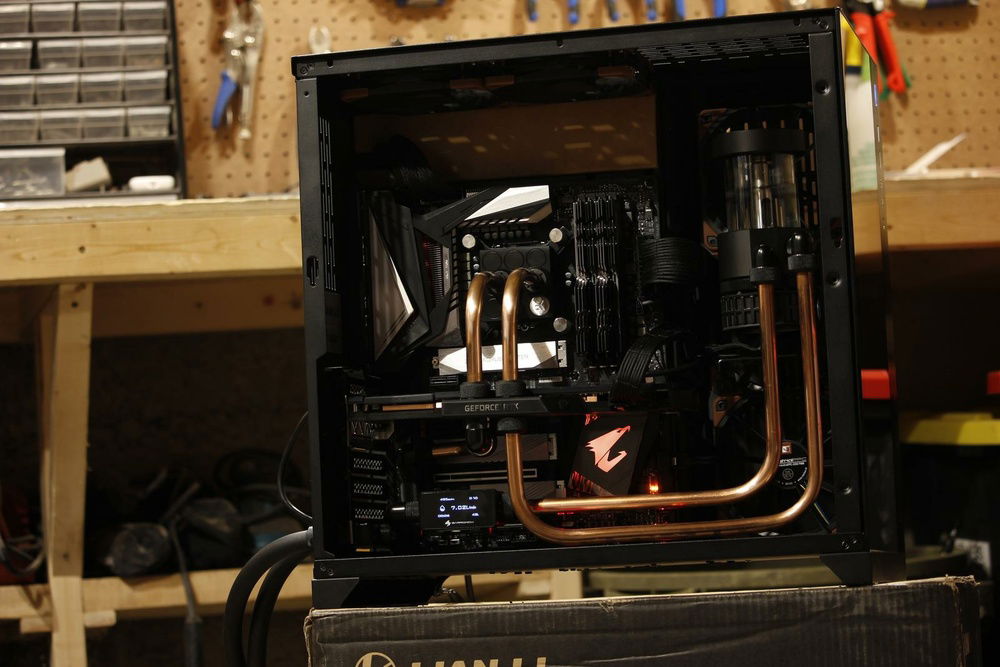

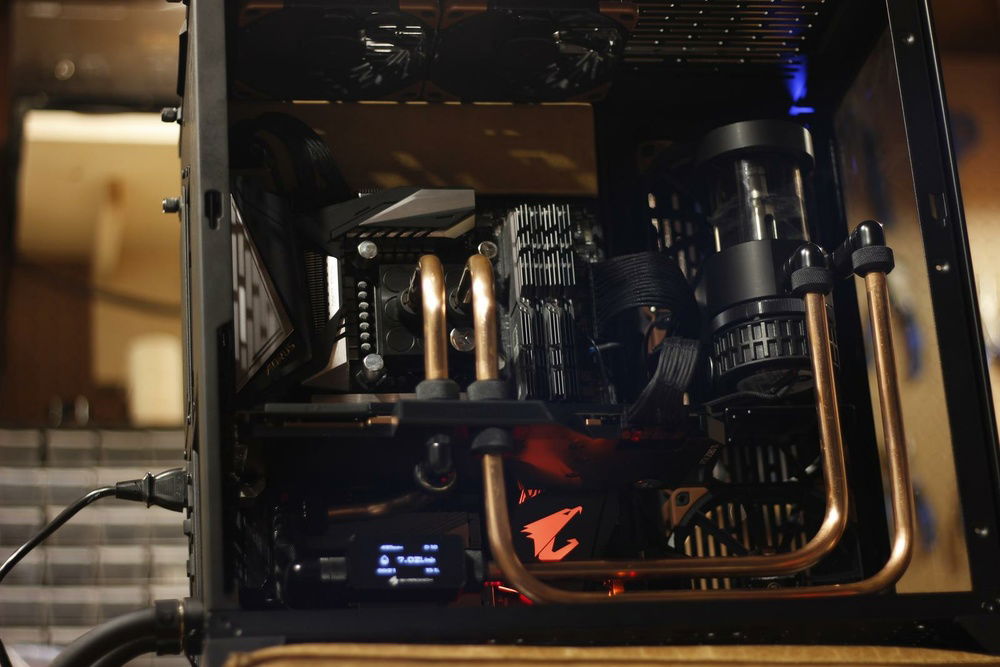

Let me introduce my new build and my first hard tube water cooled PC.

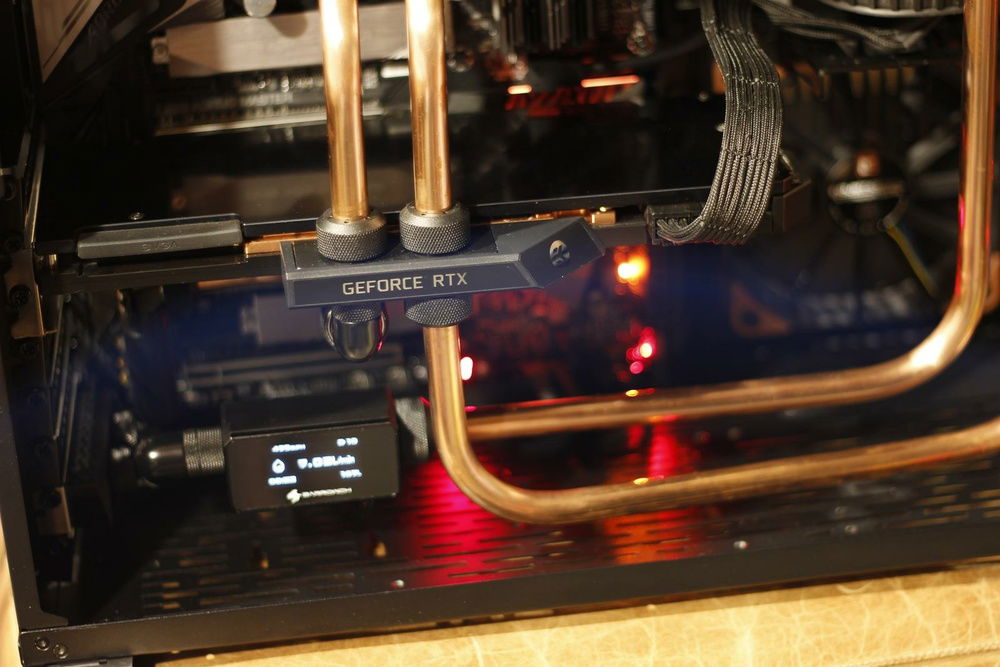

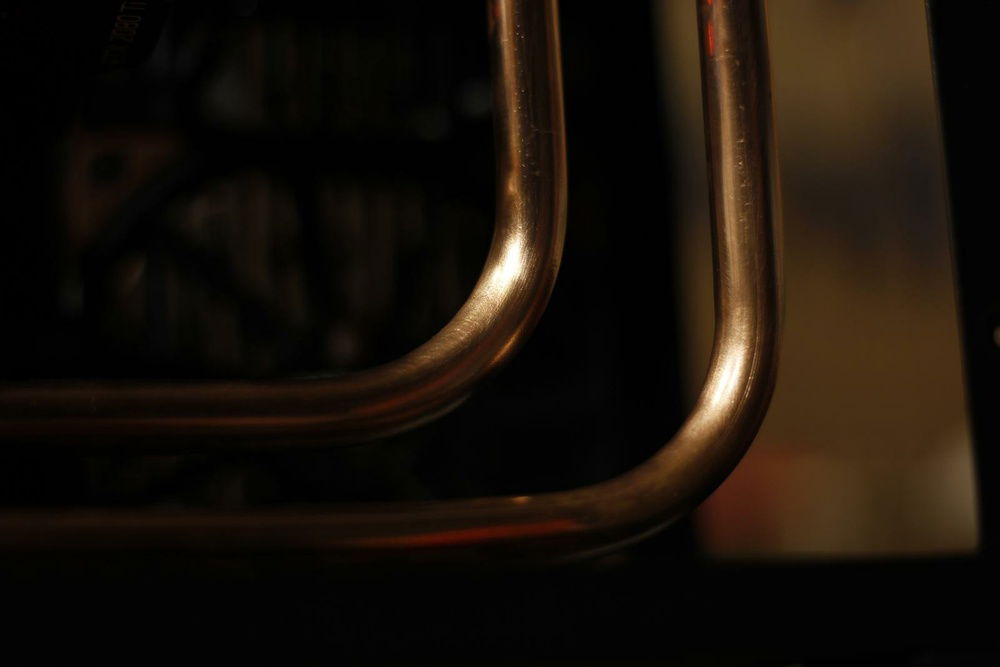

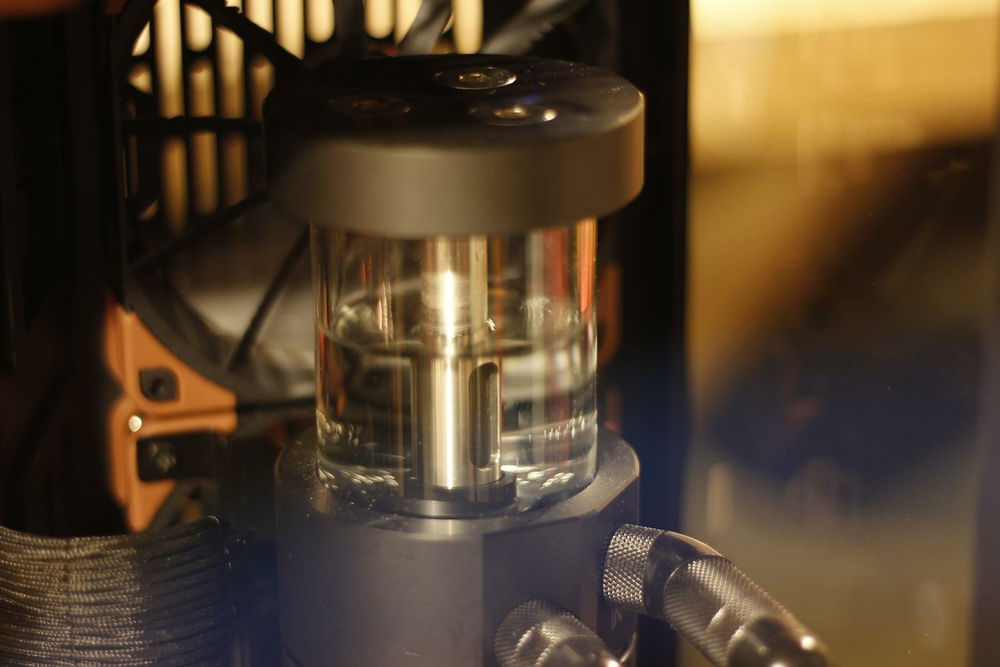

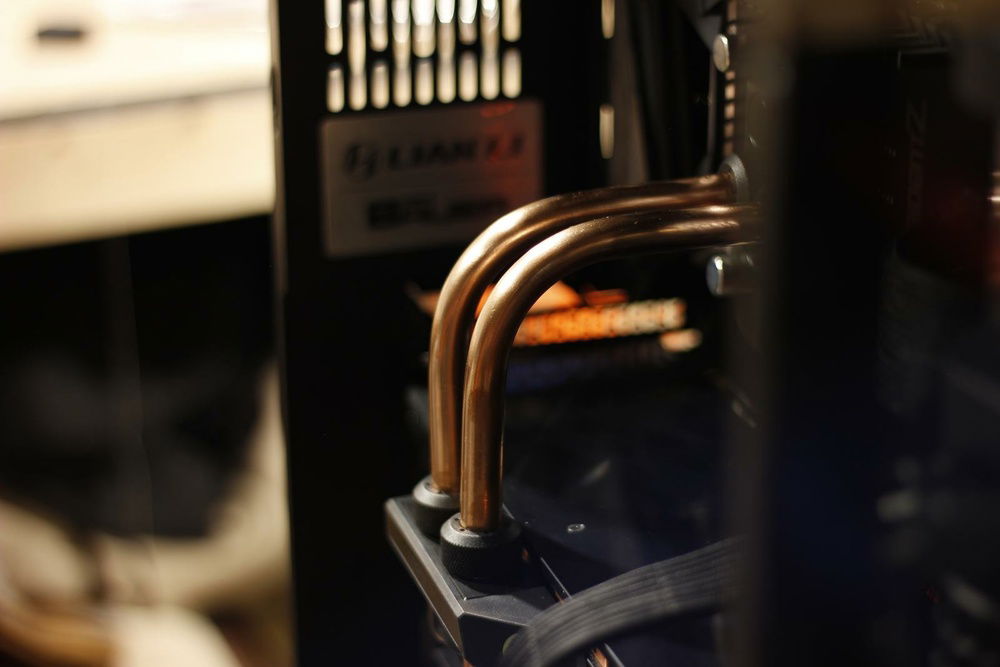

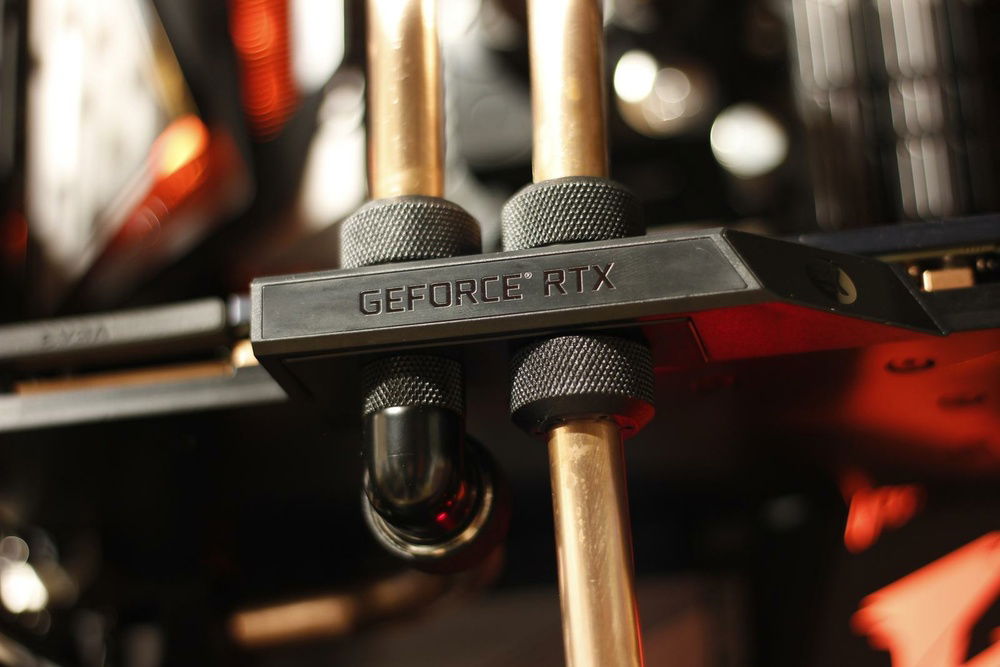

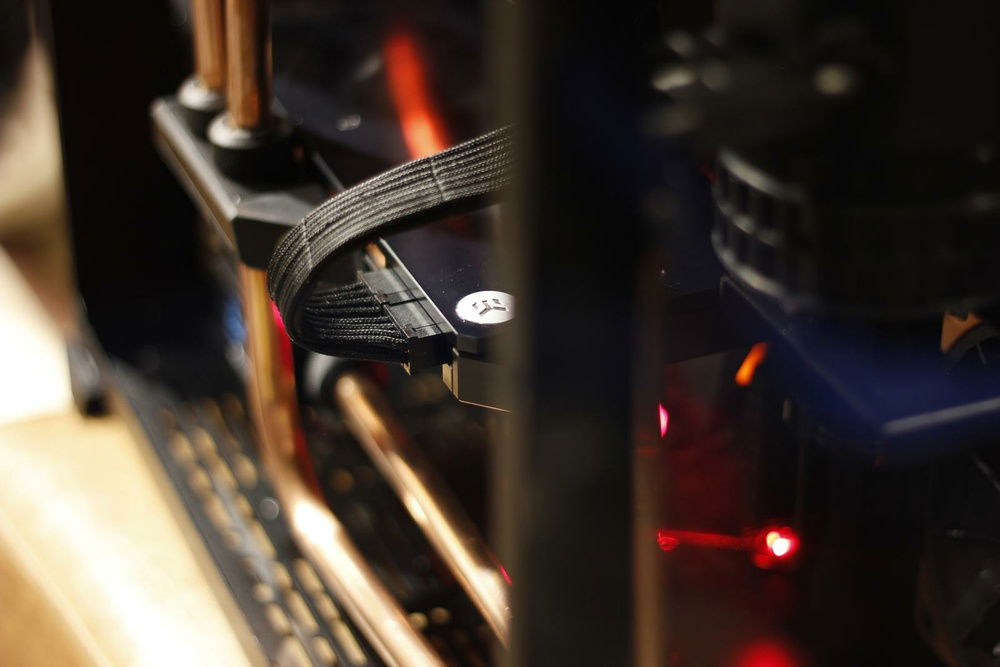

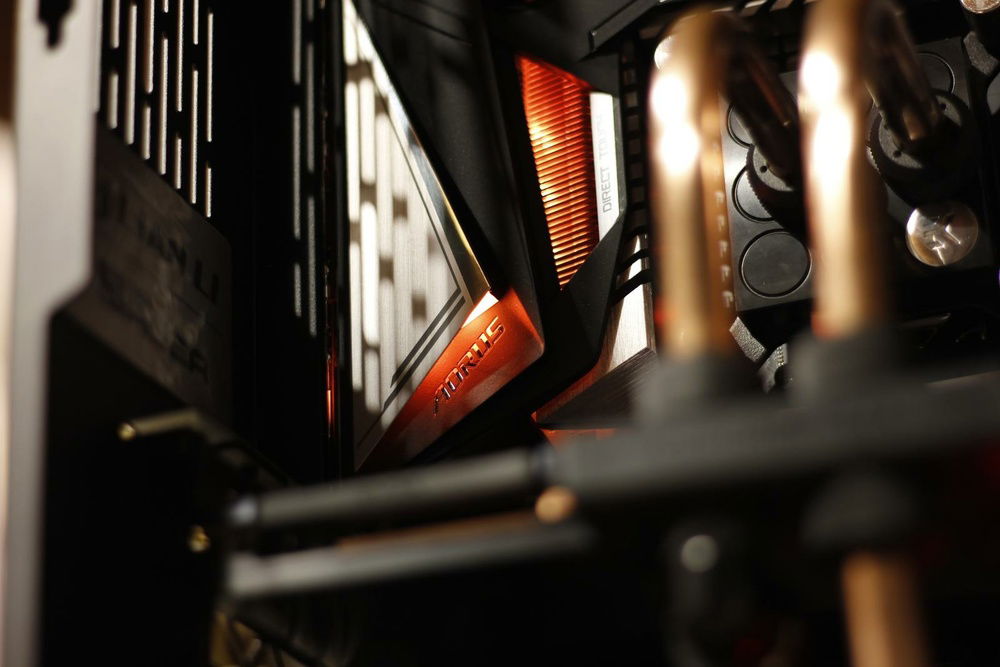

-1/2 soft copper pipes, -PrimoChill fittings, -EK D5 pump, -EK water blocks, -Mo-Ra3 420.

I never was a big fan of the hard tube water cooled PCs but a couple months ago I saw one with copper pipes and I was amazed. There was no question that, sooner or later I would build my own variant, and here it is. The build went fairly easily and smoothly without interruptions, except at the very end when I did a pressure test with the EK leak tester at 0.75 bar and the pipes popped out several times. Since I’ve never done this before, it turned out I didn’t tight enough the clamping rings. As a final touch I put a cover to the top made from top grain leather. Oh and soundproofed the case using butyl automotive sound deadener with much better result than I expected, now I can't hear out the HDD and no rattling from the panels.
Color(s): Black
RGB Lighting? Yes
Theme: Industrial
Cooling: Custom Liquid Cooling
Size: ATX
Type: General Build

Hardware

CPU
$ 380.00
Intel - Core i9-9900K
Socket: LGA 1151
Cores: 8
Integrated Graphics: Yes
Motherboard
$ 439.99

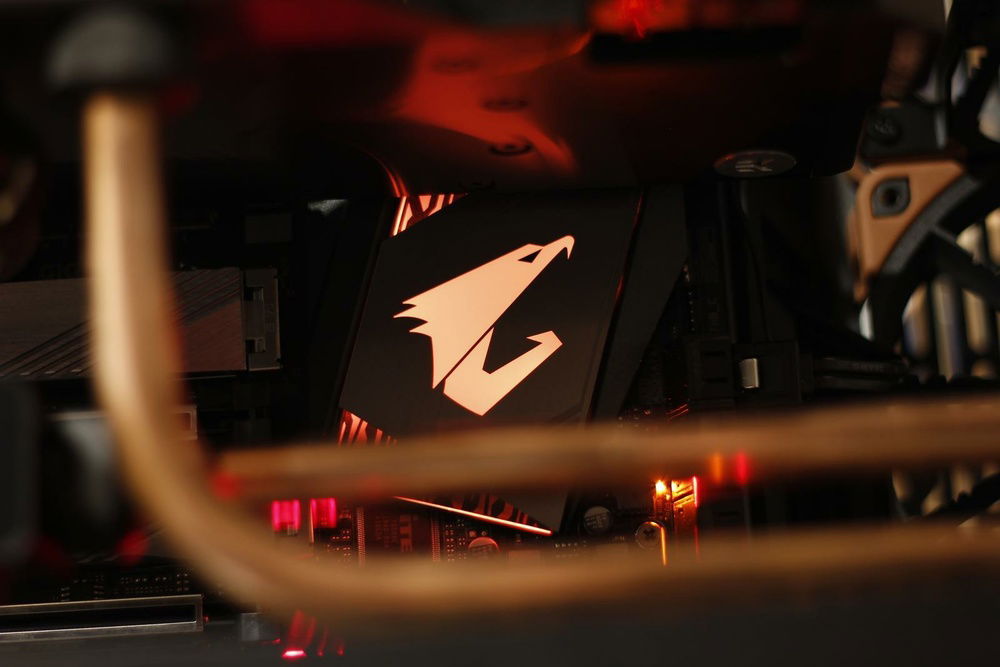

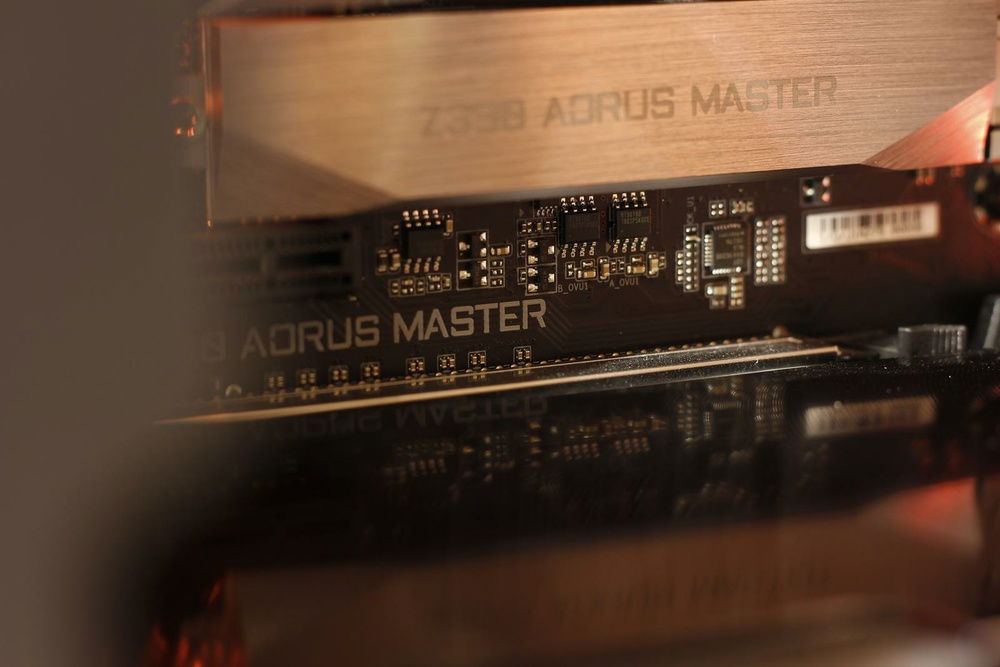

Gigabyte - Aorus Master
Chipset: Z390
CPU Socket: LGA 1151
Size: ATX
Memory
G.Skill - Trident Z (3200MHz) (Silver)
Type: DDR4
Capacity: 32 GB
Graphics
$ 1,499.99
EVGA - Black Edition
Chip Manufacturer: NVIDIA
Chip: RTX 2080 Ti
Storage
$ 272.00
ADATA - XPG Gammix S11
Form Factor: PCIe x4
Interface: PCIe x4
Capacity: 480 GB
Storage
$ 62.99
ADATA - XPG SX8200 Pro
Form Factor: M.2
Interface: M.2 (M)
Capacity: 1 TB
Storage
$ 176.00
Seagate - Barracuda Pro (ST10000DM0004)
Form Factor: 3.5 Inch
Interface: SATA 6 Gb/s
Capacity: 10 TB
PSU
$ 598.68
Seasonic - Prime Ultra
Wattage: 650
Form Factor: ATX
Efficiency: 80+ Titanium
Case
Lian Li - 011 Dynamic
Type: Mid-Tower
Side Panel: Tempered Glass
Case Fan
Case Fan
$ 139.75
Cooling

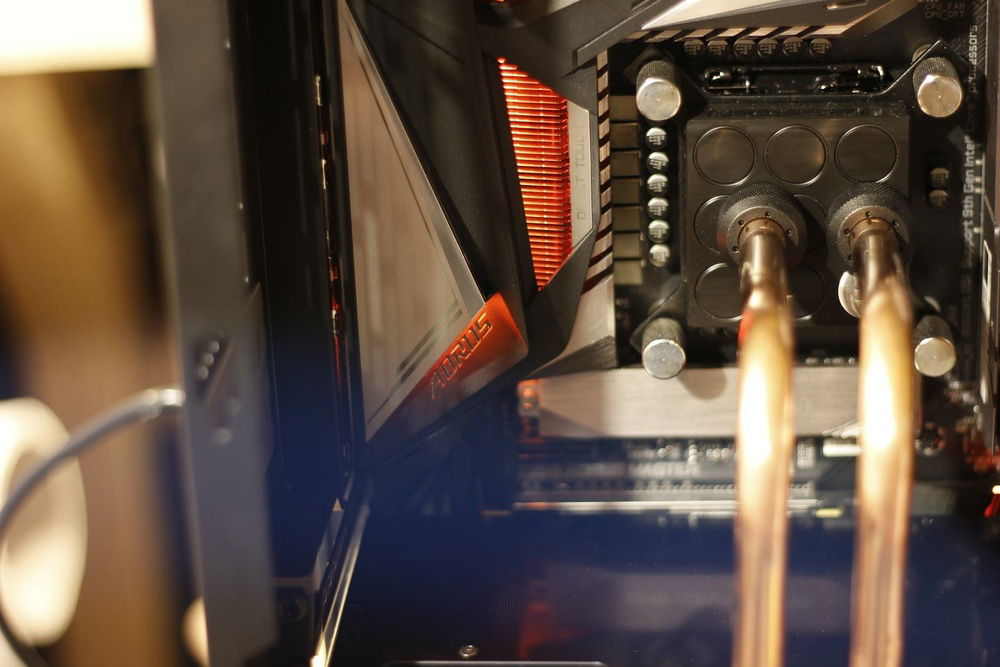

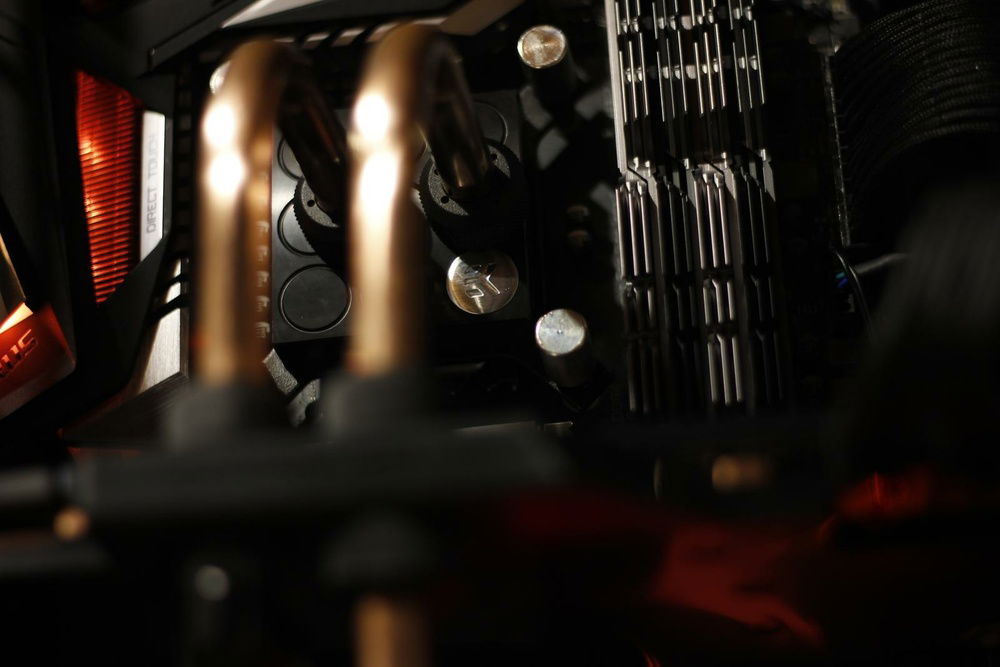

EKWB - EK-Supremacy EVO (Original CSQ)
Type: CPU Waterblock
Cooling
Cooling
$ 226.21
Monitor
$ 599.00
Acer - Predator Z35P
Size: 35 Inch
Panel: VA
Refresh Rate: 100 Hz
