i9 7980xe + Titan Volta in modded Corsair 900D

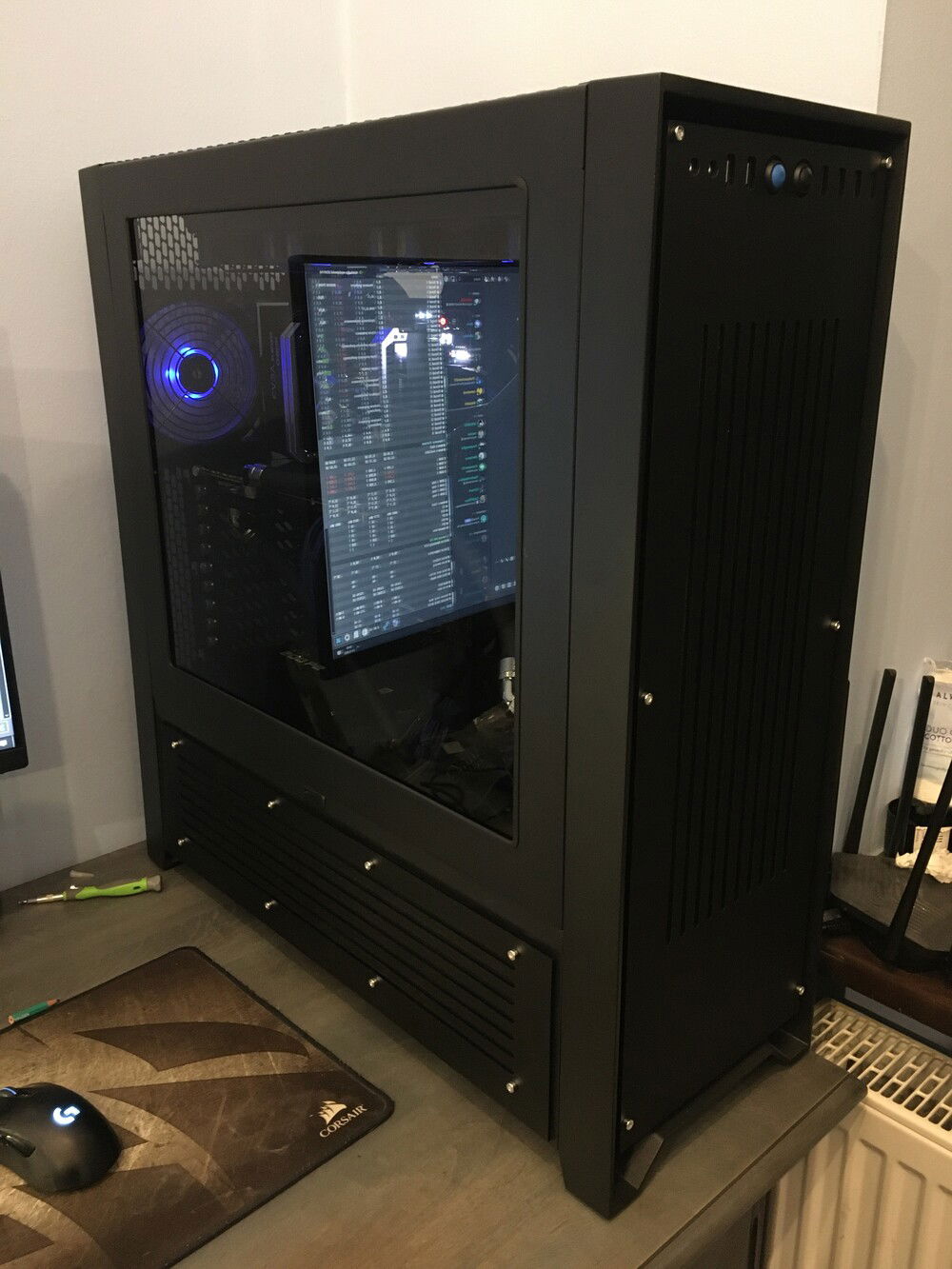

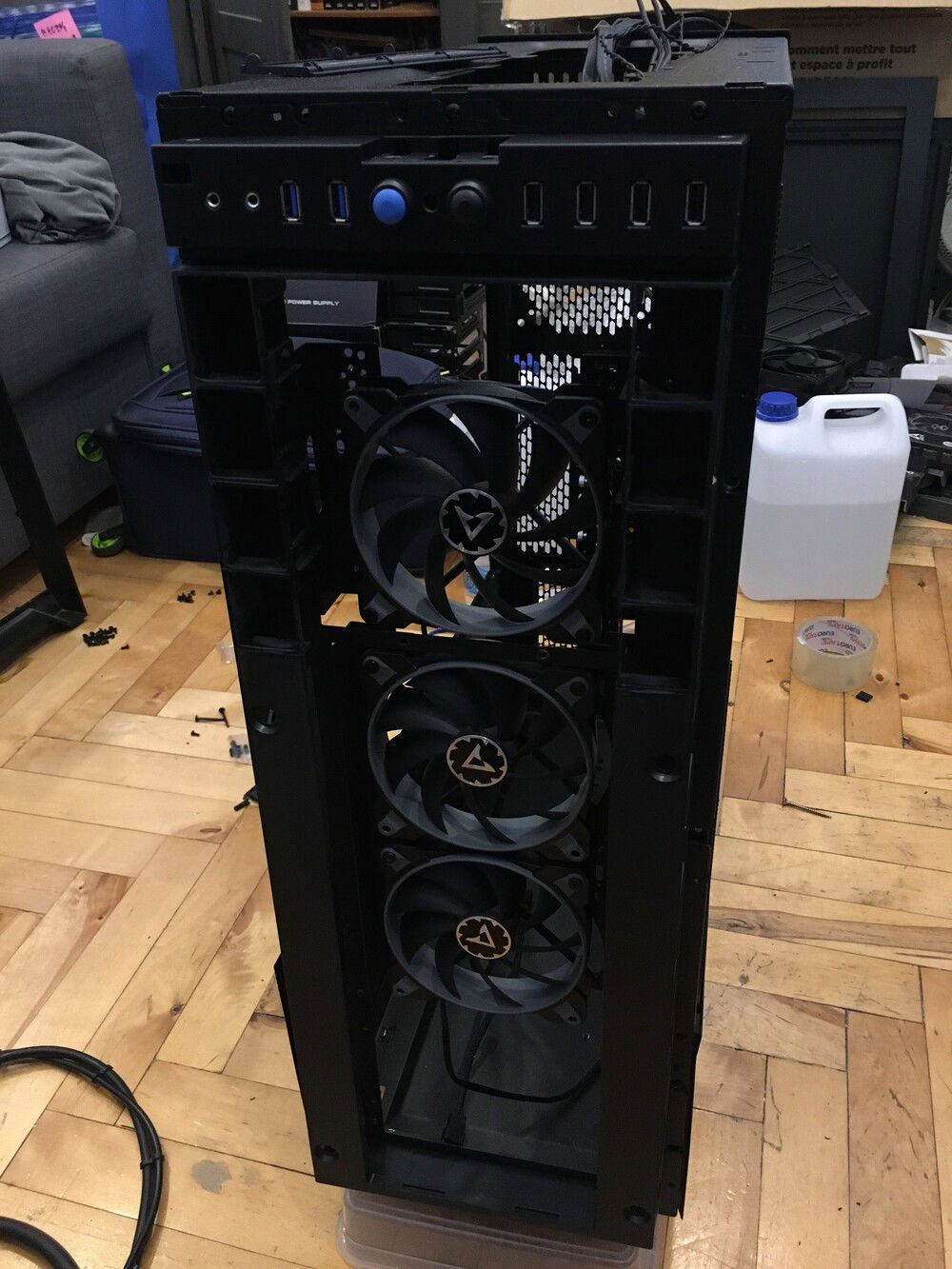

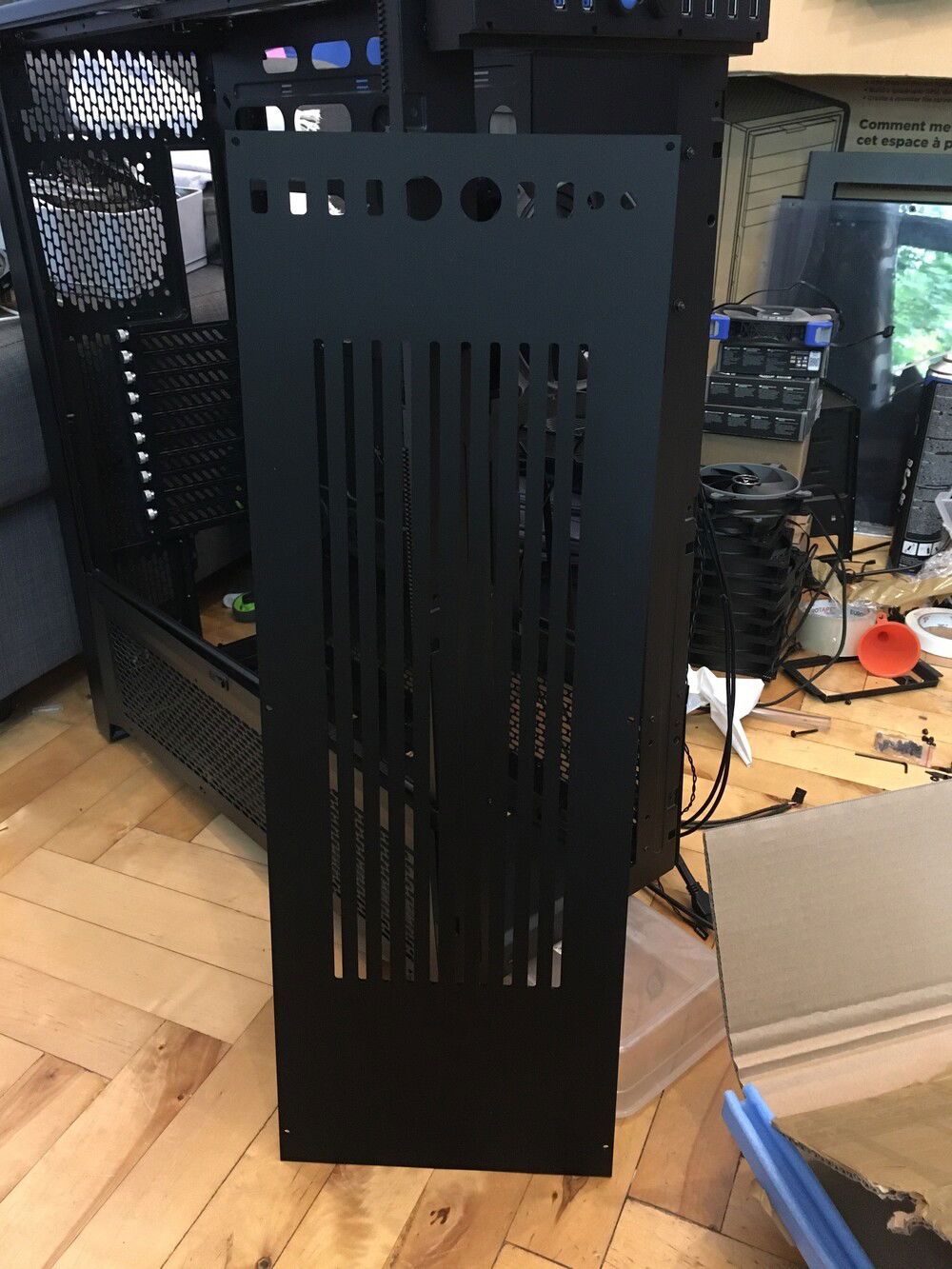

Main goal of this build was to feature high end hardware from 2017-2018 era. I also wanted to keep visual vibe, so no RGB - only lighting comes from LEDs on the mobo and single color Corsair ML fans. All modded parts were designed by me and made from matte plexiglass. That includes both bottom panels, front panel and masking plate replacing 5.25 cage. Plexi window was also replaced by tempered glass.

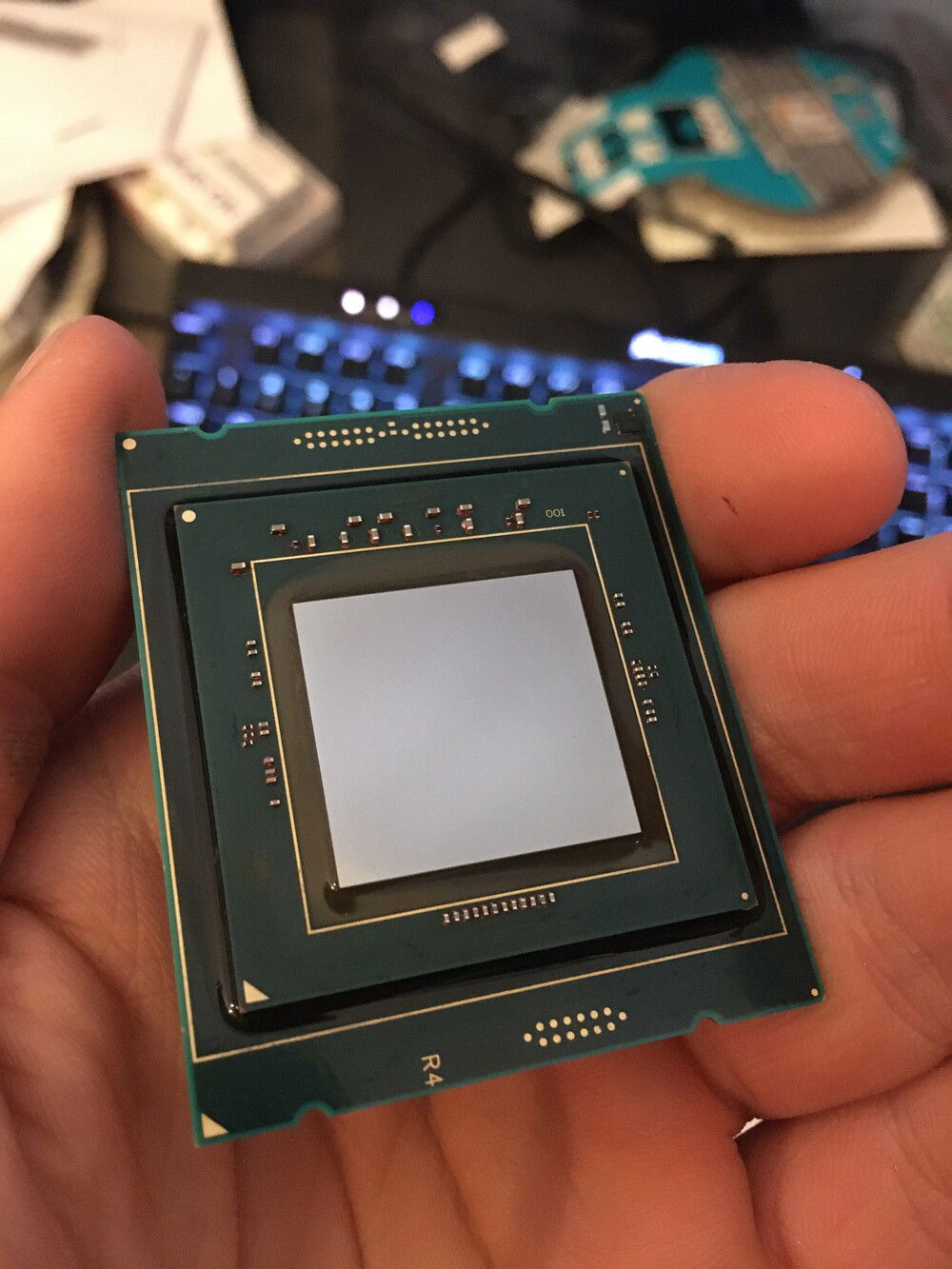

Cpu die is lapped using 2000 and 10000 grit stone made for knife sharpening. Der8auers direct die frame is also lapped to compensate for the lower silicon height and keep good mounting pressure.

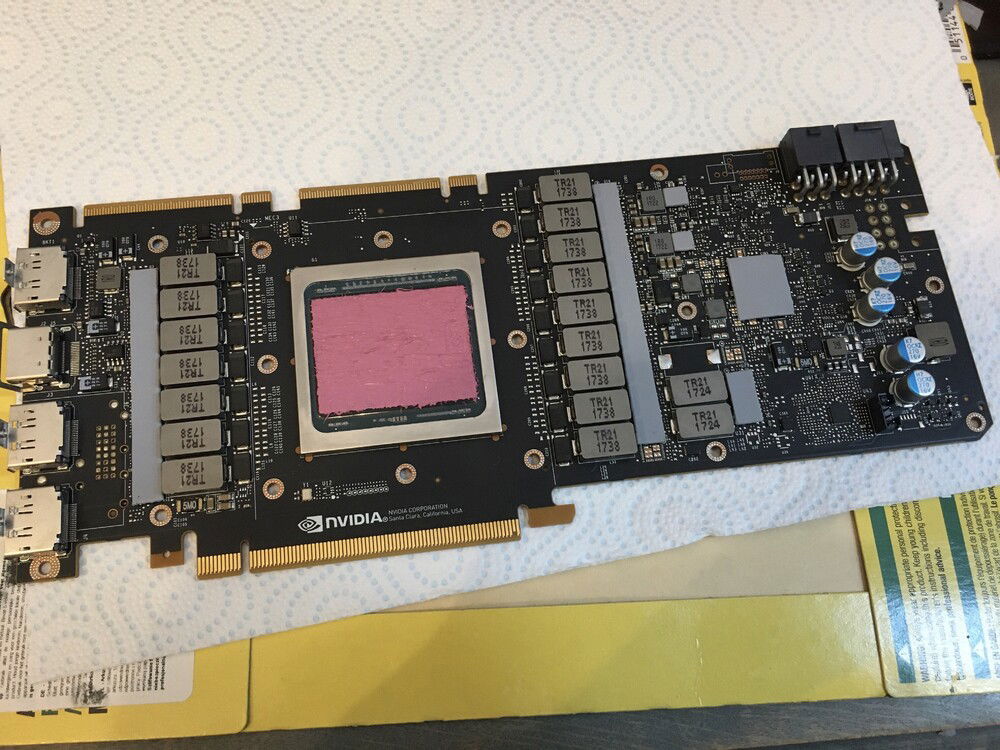

Additionally GPU was modded by soldering two 5mohm resistors in parallel in order to increase power limit (not really much use for daily but I also wanted to grab some HWbot points).
Color(s): Black Blue Silver
RGB Lighting? No
Theme: Case Mod
Cooling: Custom Liquid Cooling
Size: E-ATX
Type: General Build

Hardware

CPU
$ 949.00
Intel - Core i9 7980XE
Socket: LGA 2066
Cores: 18
Motherboard
$ 598.86
EVGA - X299 DARK
Chipset: X299
CPU Socket: LGA 2066
Size: E-ATX
Memory
$ 236.99
Graphics
$ 1,258.00
NVIDIA - Titan V
Chip Manufacturer: NVIDIA
Chip: Titan V
Storage
$ 299.98
Samsung - 860 EVO (2x)
Form Factor: 2.5 Inch
Interface: SATA 6 Gb/s
Capacity: 1 TB
Storage
$ 109.00
Samsung - 970 EVO Plus
Form Factor: M.2
Interface: M.2 (M)
Capacity: 256 GB
Storage
$ 79.50
Samsung - 970 EVO Plus
Form Factor: M.2
Interface: M.2 (M)
Capacity: 500 GB
PSU
$ 499.99
EVGA - SuperNOVA 1200
Wattage: 1200
Form Factor: ATX
Efficiency: 80+ Platinum
Case
$ 349.99
Corsair - Obsidian 900D
Type: Full-Tower
Side Panel: Acrylic
Case Fan
$ 118.60
ARCTIC - P12 (10x)
Size: 120 mm
Case Fan
$ 79.96
Corsair - ML140 Pro (Blue) (4x)
Size: 140 mm
Cooling
$ 404.90
Cooling
$ 113.41
Alphacool - NexXxoS XT45 Full Copper
Type: Custom Loop
Size (WxHxD): 420 mm (3 x 140 mm)
Cooling
$ 109.13
Cooling
$ 170.42
Thermaltake - Pacific CL480
Type: Radiator
Size (WxHxD): 480 mm (4 x 120 mm)
Cooling
$ 103.05
Watercool - HeatKiller Tube 200 D5
Type: Reservoir
Estimated total value of this build:
$ 5,675.30
