[i100 Pro] Cadet

I recently moved and found myself having a lot less space for my setup than I was used to.

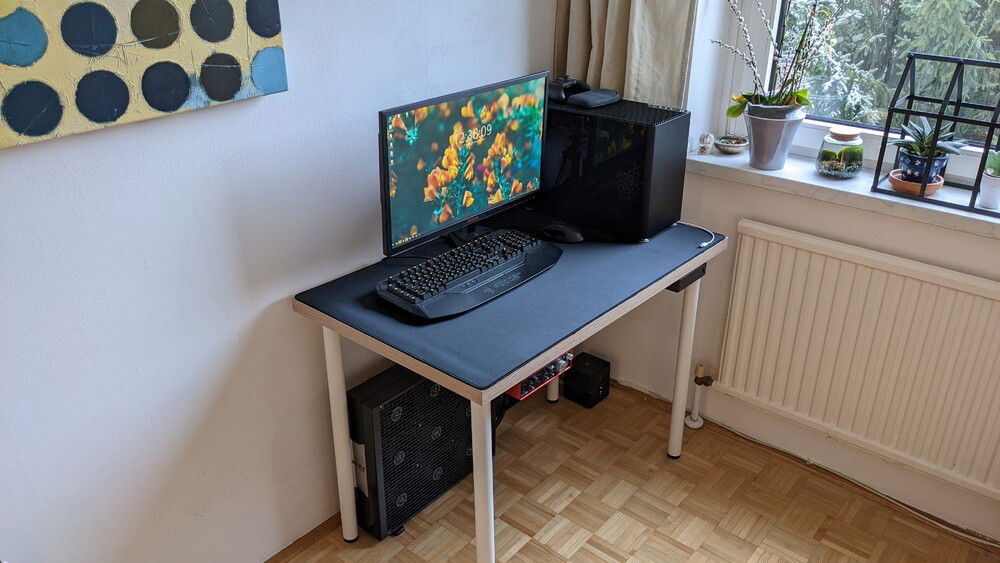

So I used the opportunity for a new build which aims to accommodate my hardware in a more compact chassis which I can put on a small table.

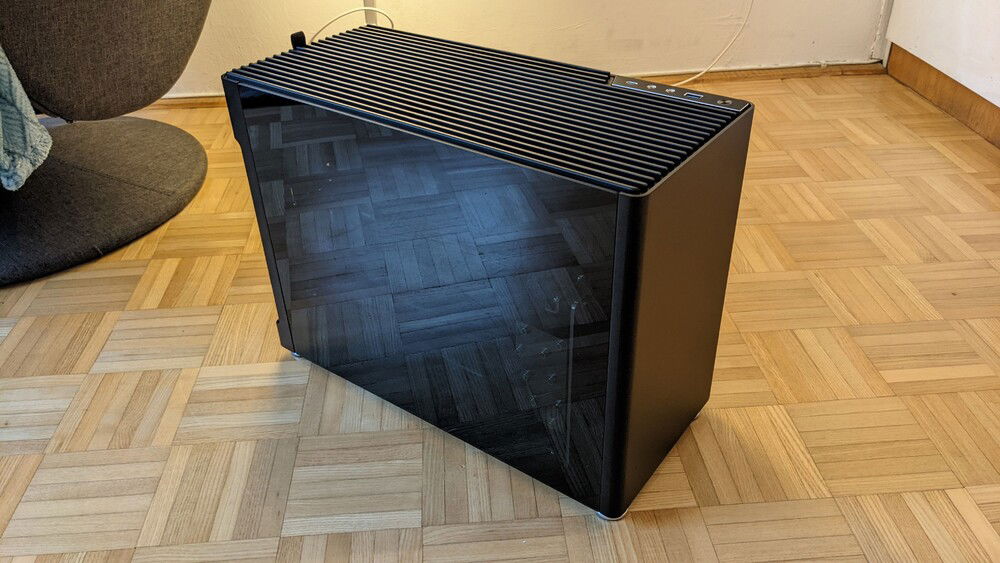

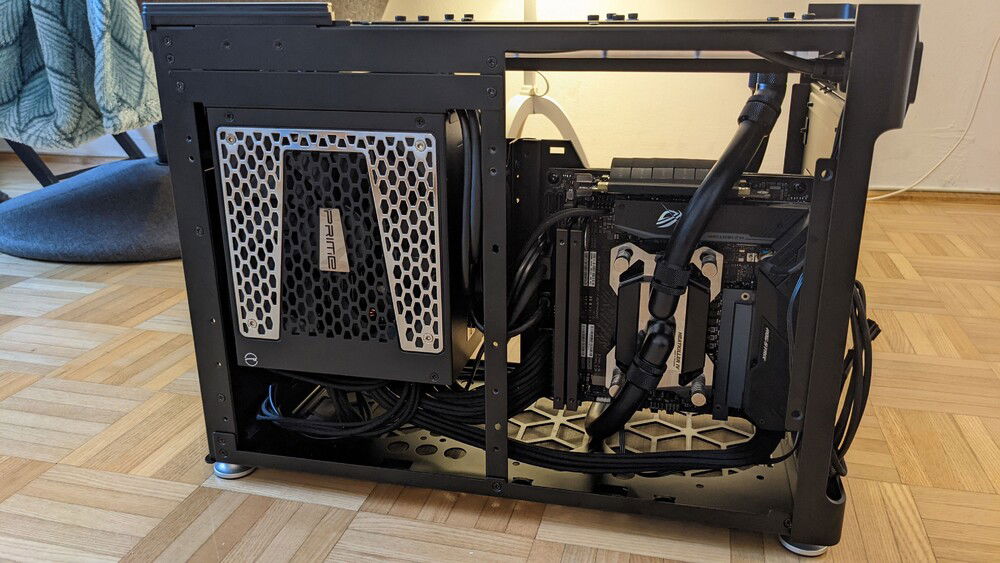

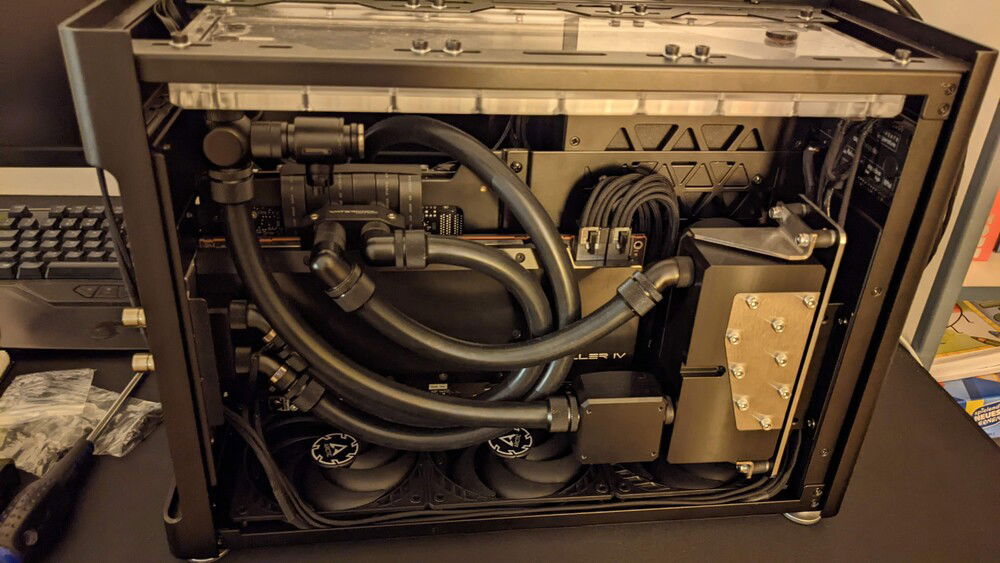

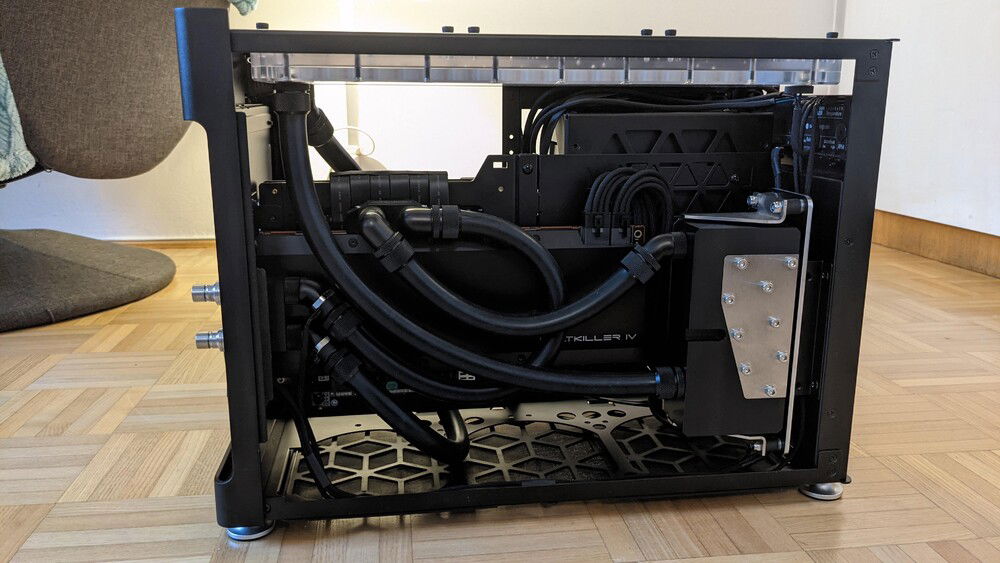

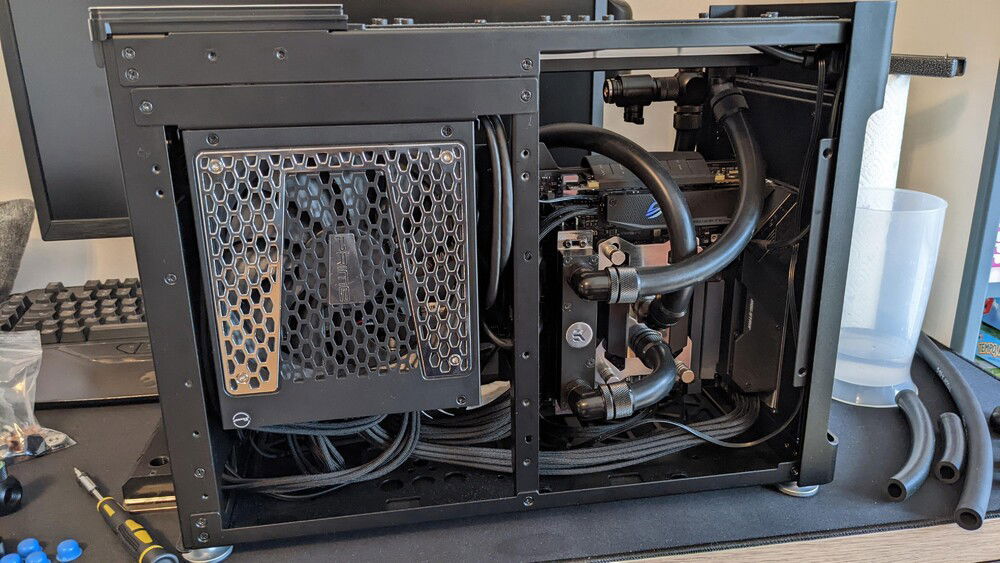

I wanted to hold on to my oversized ATX PSU and since I already have an external radiator, the case only needed to be big enough for installing the pumps inside next to the hardware. After quite a lot of browsing, I found the Jonsplus i100 Pro to be a good compromise when it comes to size and features.

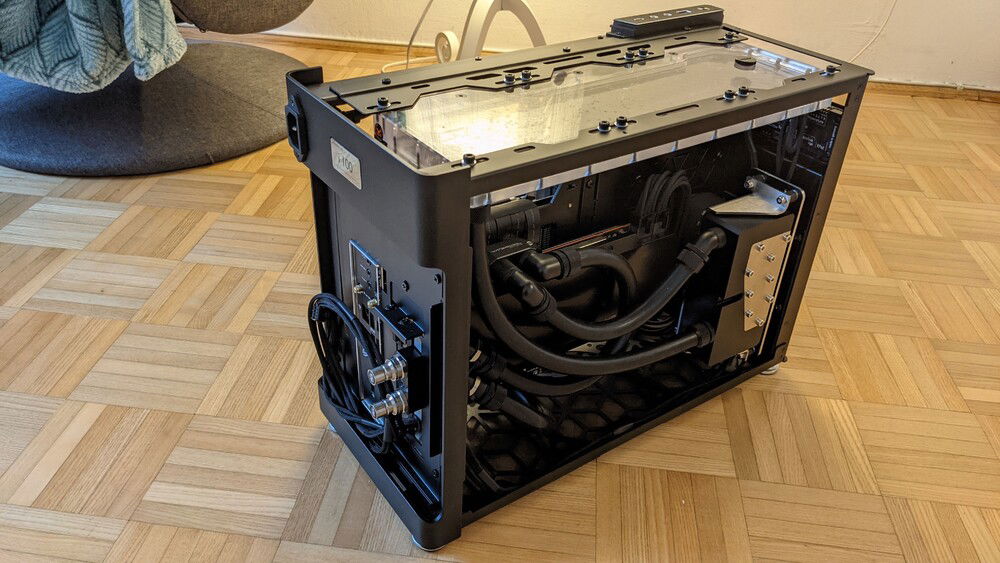

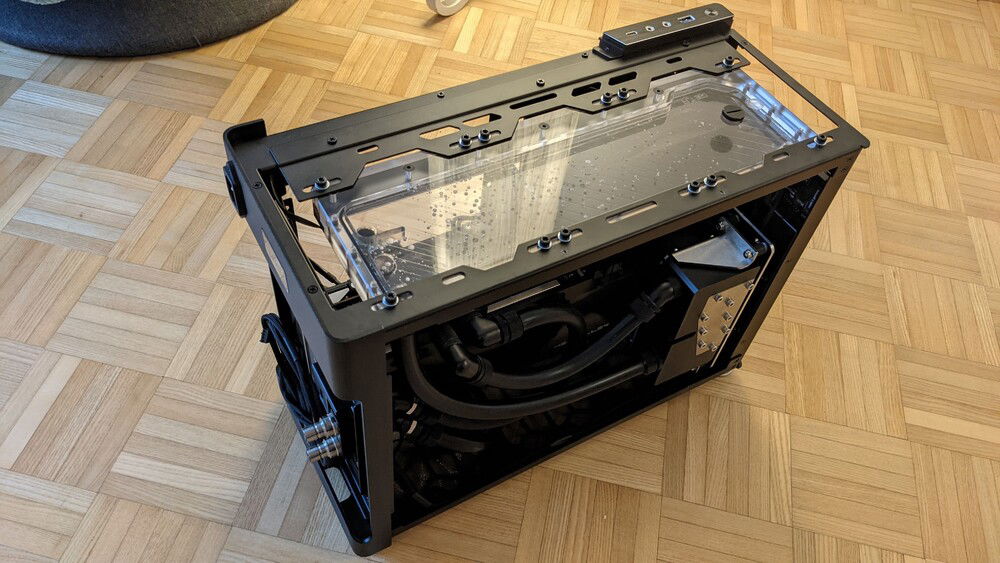

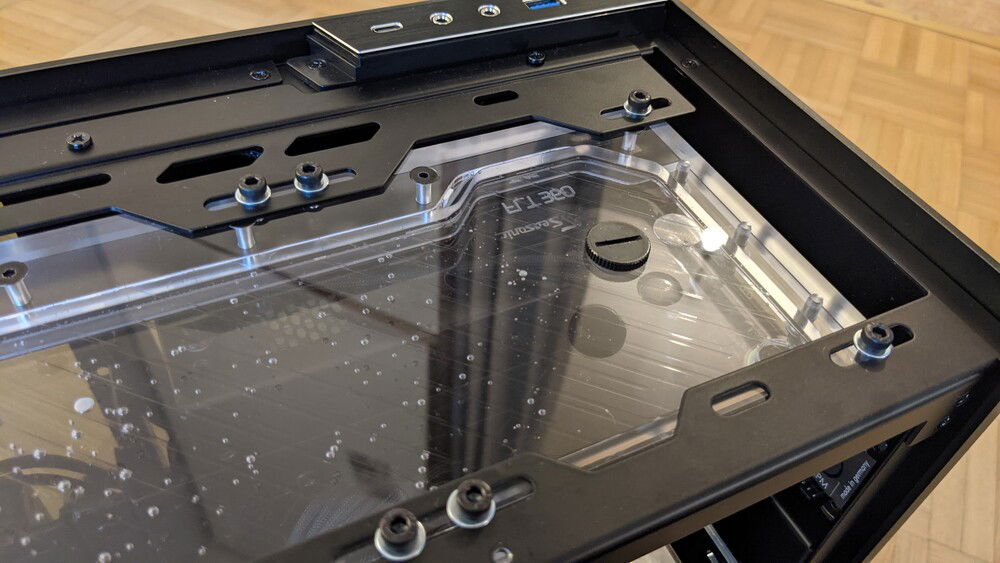

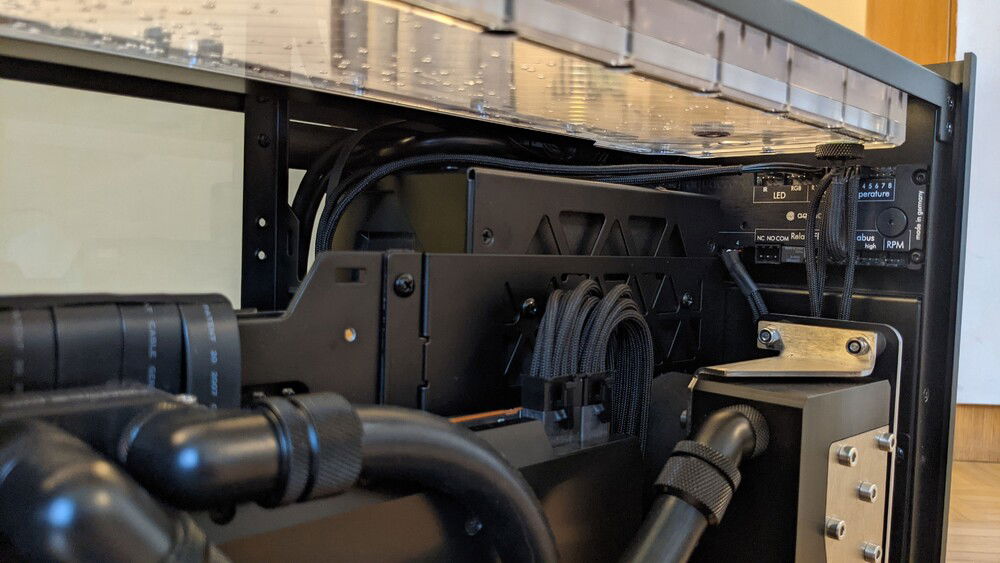

To fill out the remaining empty space I went for a flat reservoir which is sized like a 360mm radiator and put it in the top, this makes filling the loop a lot easier and quicker. Having a horizontal reservoir also has its downsides, but I figured that having more volume is worth it.

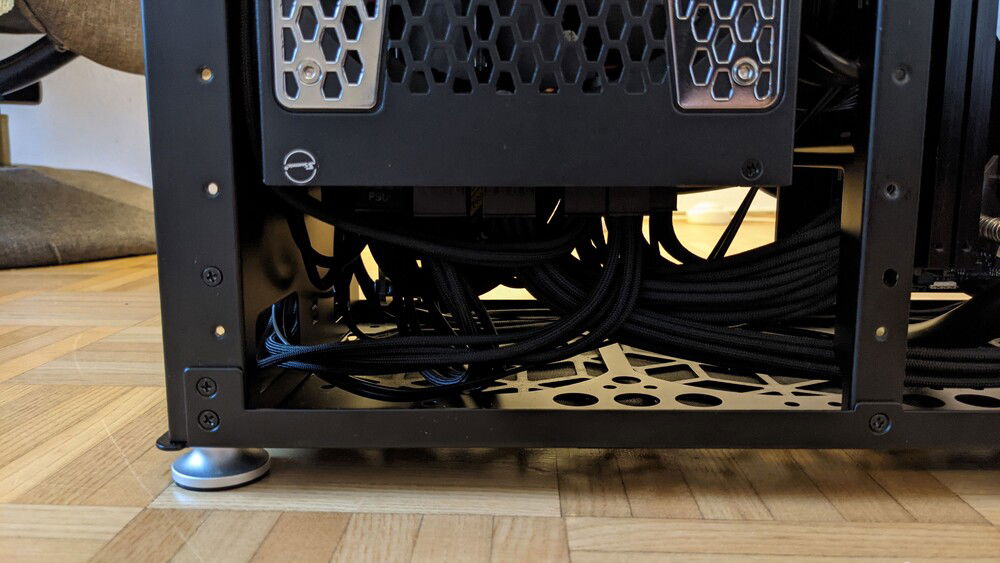

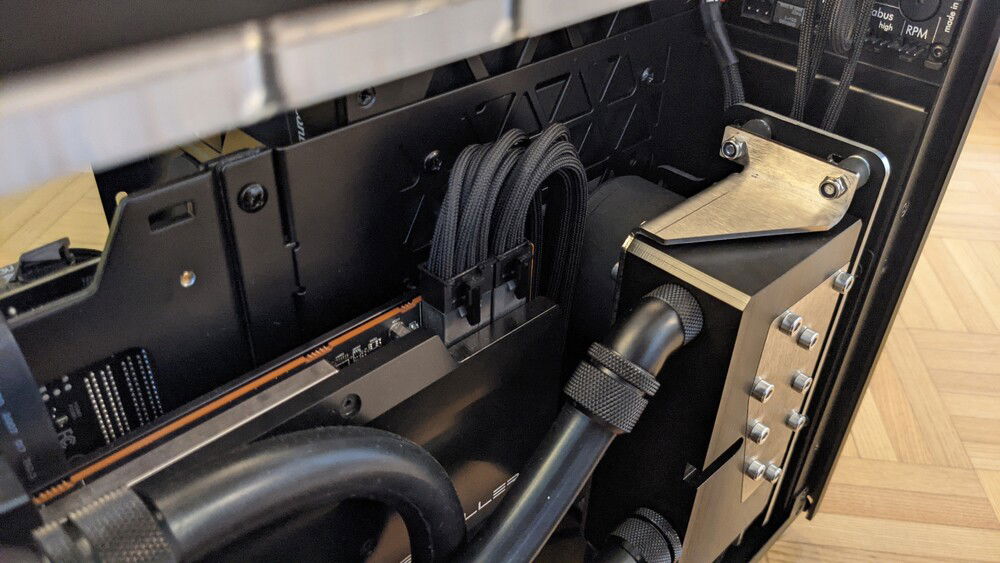

I also put 3x120mm slim fans in the bottom so the case doesn't heat up too much, but it isn't really necessary. At the moment, the RAM-cooler sticks out to the side of the case, so I can't put the sidepanel of the case in place. I'll make a new top for the cooler, which has the ports on the side.

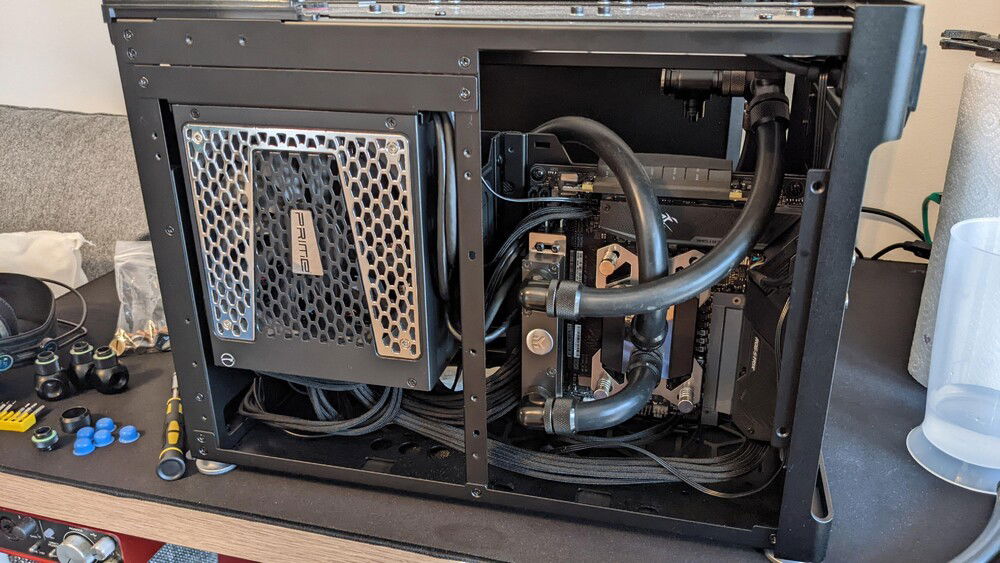

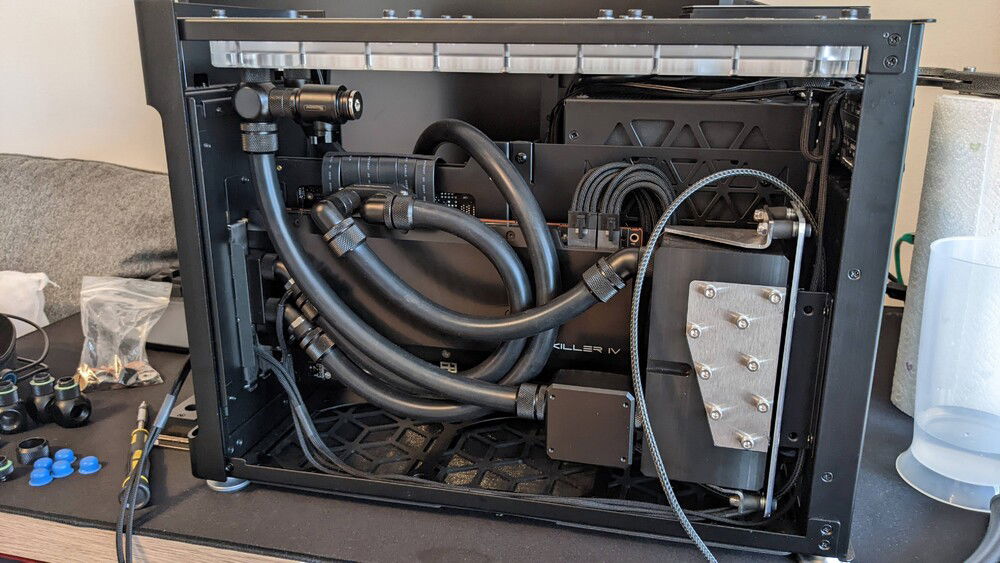

Currently the whole loop is made with flexible 16/10mm tubing and that already was a bit tricky. The next step will be to go for hardtubing, I already have everything I need for the conversion but lack a bit of motivation. (^^)

Once I find some time to finish everything up I'll update the picture-section with nicer/better shots of everything.
Color(s): Black
RGB Lighting? No
Theme: none
Cooling: Custom Liquid Cooling
Size: Mini-ITX
Type: General Build

Hardware

CPU
$ 395.00
AMD - Ryzen 9 (3900X)
Socket: AM4
Cores: 12
Motherboard
ASUS - ROG Strix Gaming (B550-I)
Chipset: B550
CPU Socket: AM4
Size: Mini-ITX
Memory
$ 152.99
G.Skill - Trident Z (3200MHz) (Black/RGB)
Type: DDR4
Capacity: 32 GB
Graphics
AMD - Radeon XT
Chip Manufacturer: AMD
Chip: RX 5700
Interface: PCIe x16
Storage
Samsung - 850 EVO
Form Factor: 2.5 Inch
Interface: SATA 6 Gb/s
Capacity: 1 TB
Storage
$ 89.99
Samsung - 970 EVO 500 GB M.2 NVMe SSD
Form Factor: M.2
Interface: M.2 (M)
Capacity: 500 GB
PSU
Seasonic - Prime TX
Wattage: 1000
Form Factor: ATX
Efficiency: 80+ Titanium
Case
Jonsbo - i100 Pro
Type: Mini-Tower
Side Panel: Tempered Glass
Case Fan
$ 26.97
ARCTIC - P12 Slim (3x)
Size: 120 mm
