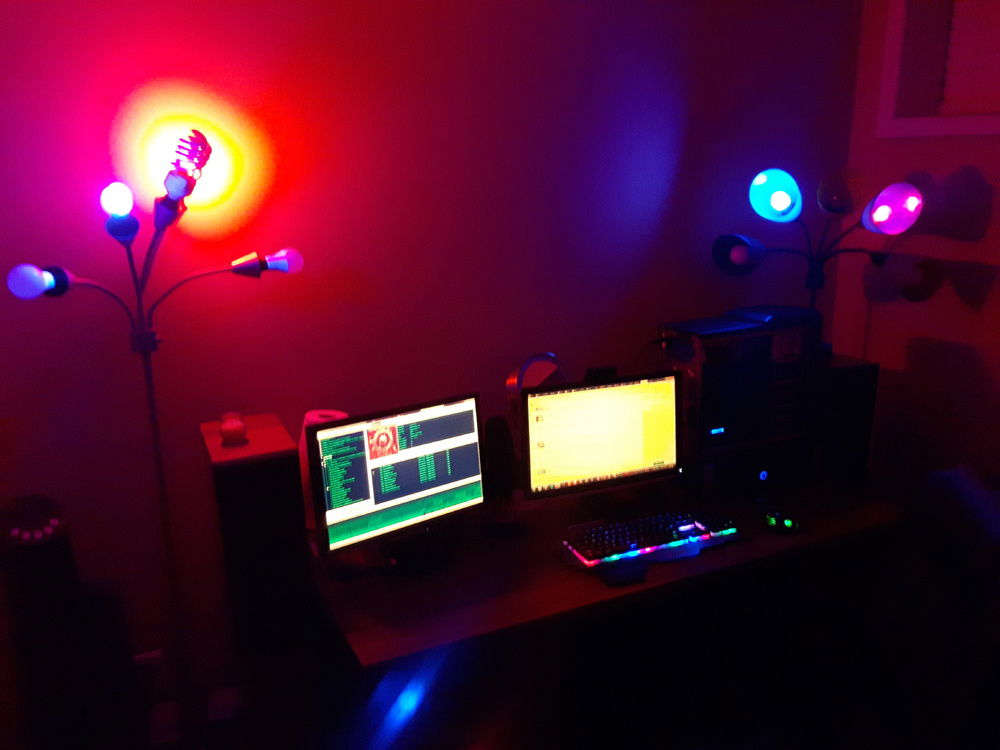

Red & Blacklight ambient lighting

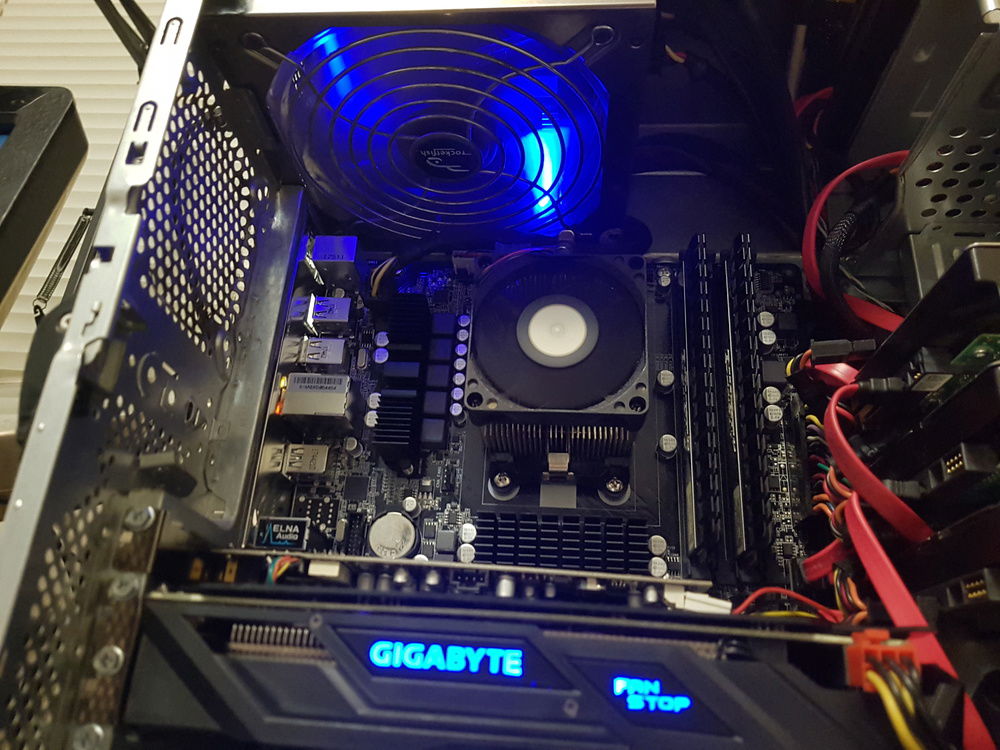

After upgrading the motherboard to an ASRock 870M Pro3, now i can fit in more hard drives and have enough USB 2.0 to run all my peripherals without having to unplug/plug in different things.

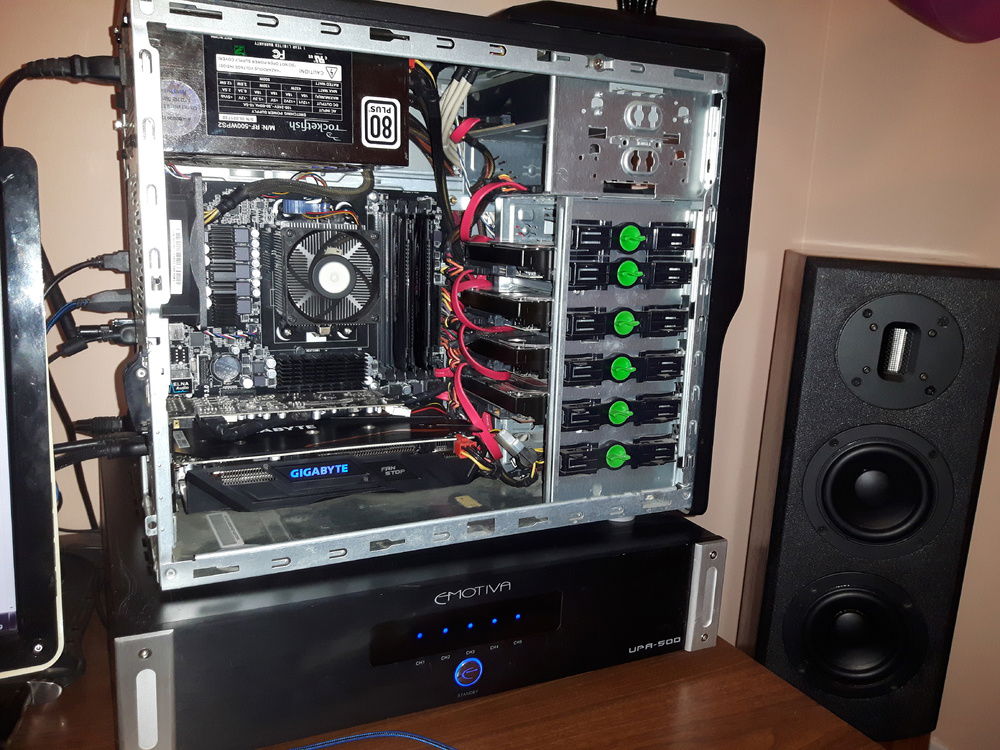

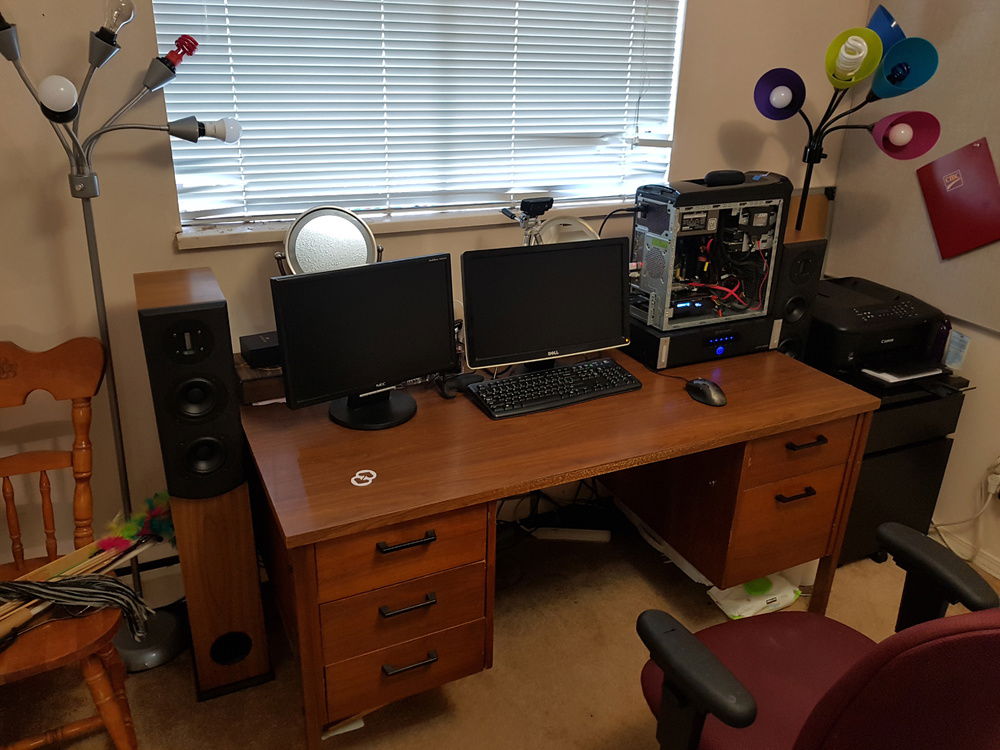

Improved streaming setup facing the bed, also hooked up a loaned Emotiva UPA-500 power amplifier.

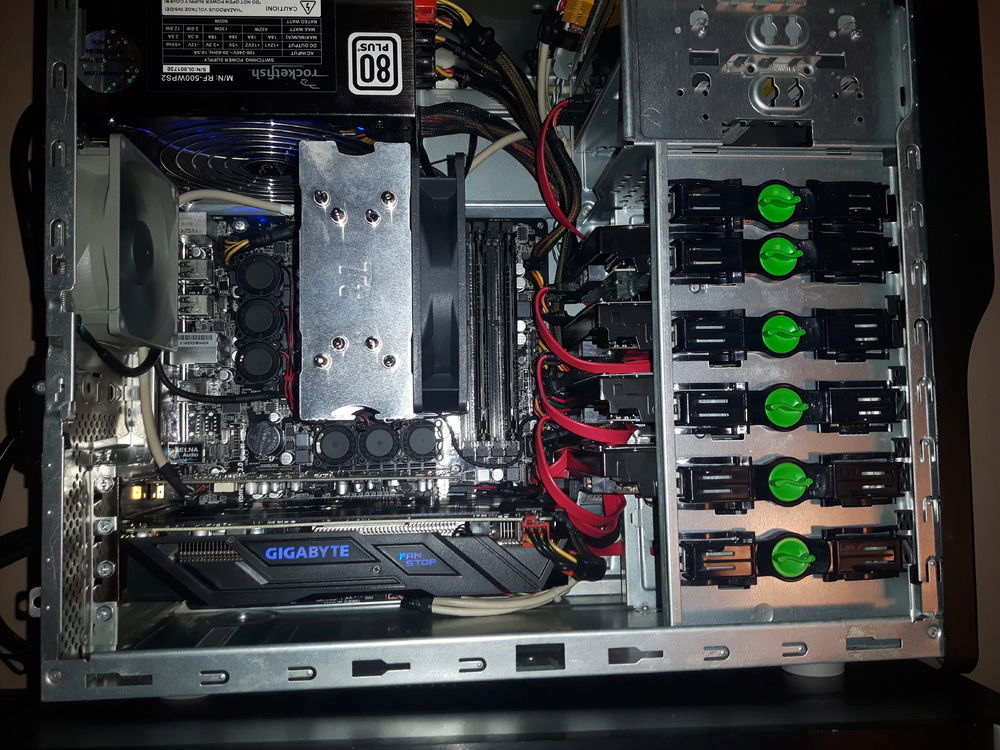

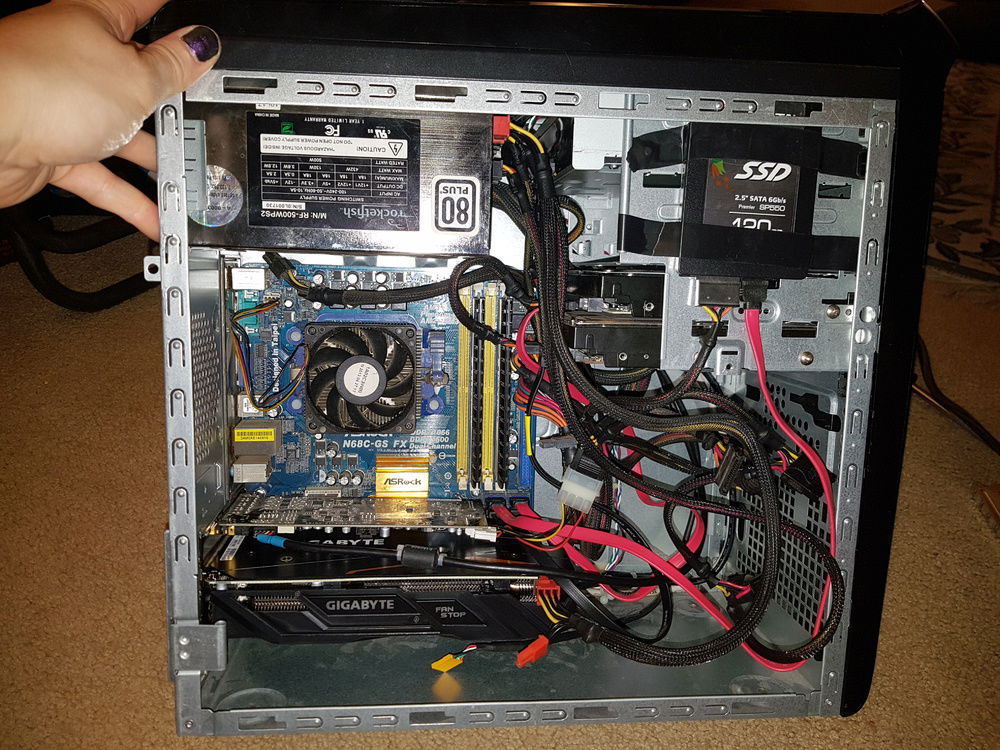

GTX 1050 Ti after replacing the GTX 285.

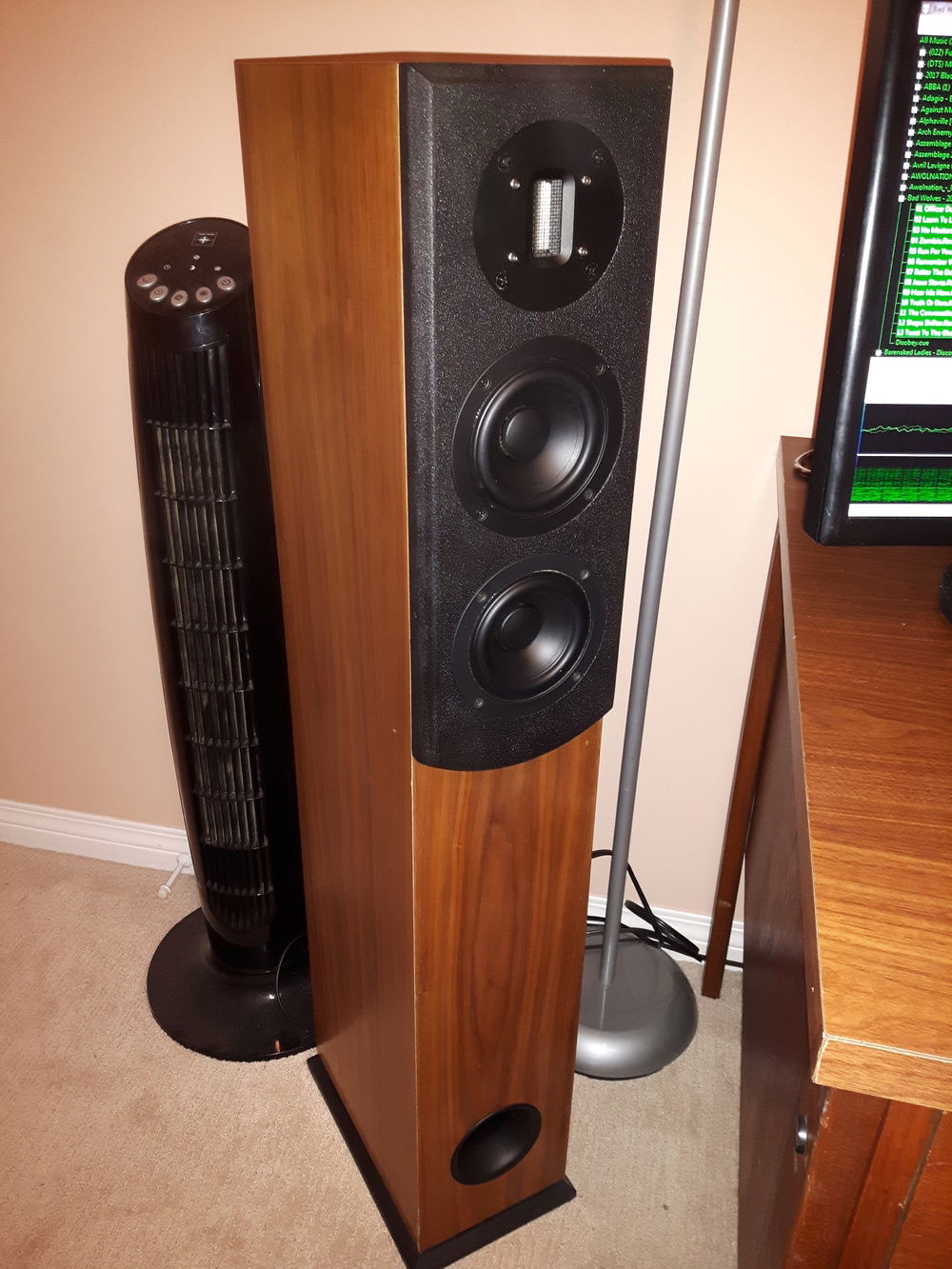

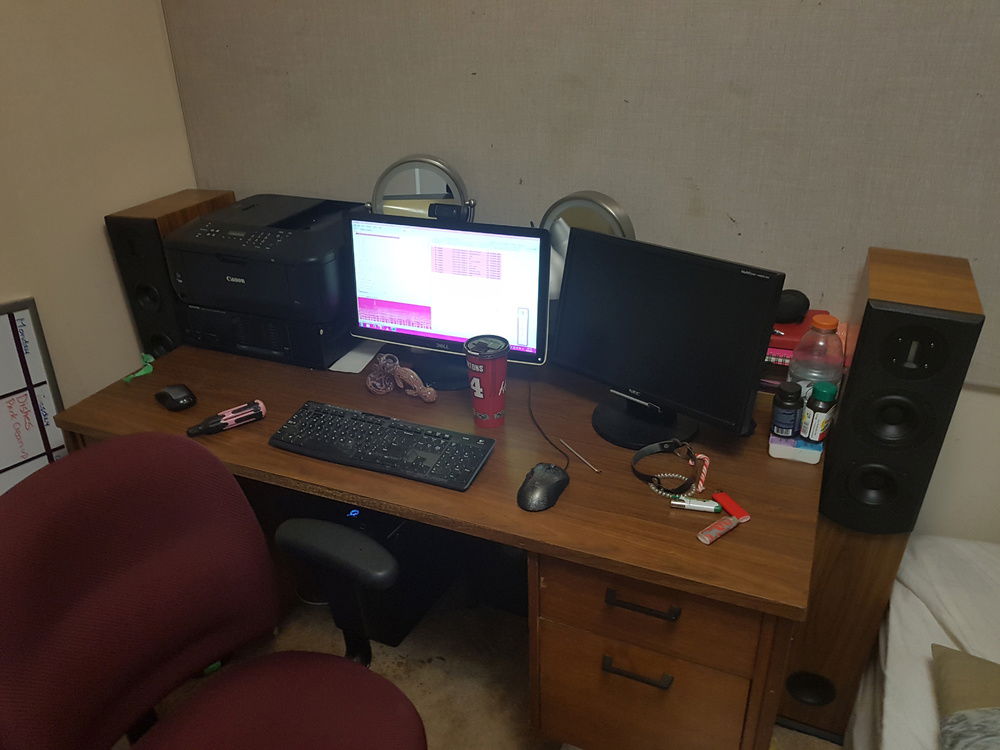

Frankenputer after moving from the living room to the bedroom and hooking up the custom Speedster TMM speakers my friend built.
Frankenputer ~2016 as the living room media PC, taken when we had couchbed set up. Unfortunately i have no earlier pics with the projection TVs.

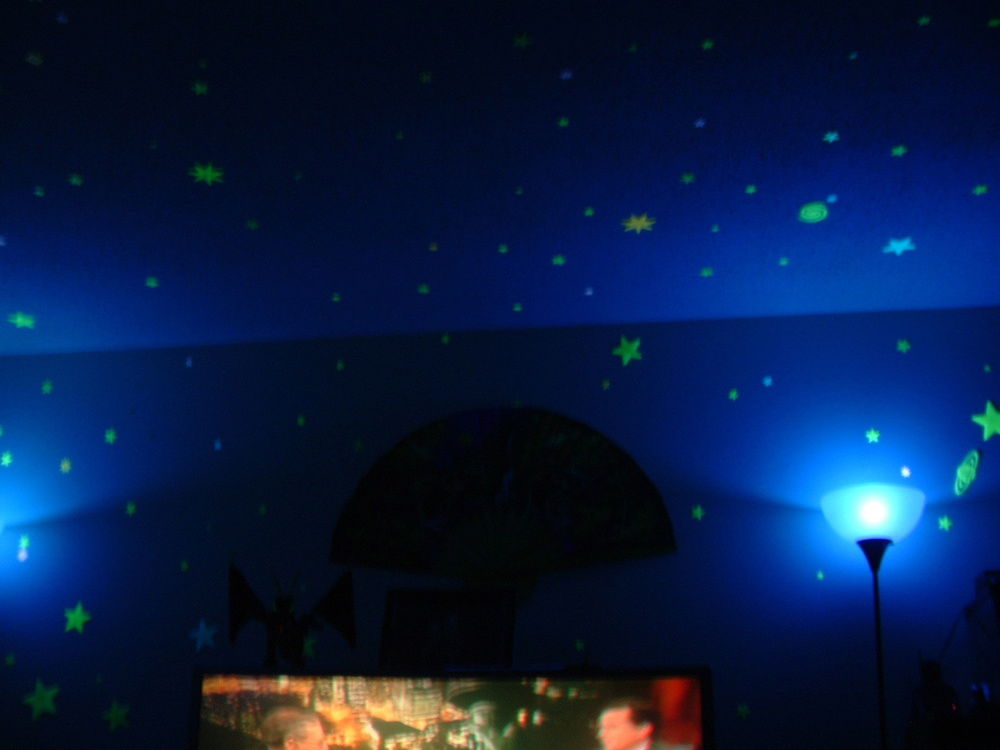

Living room black light ambience for movies.
Frankenputer mostly disassembled.

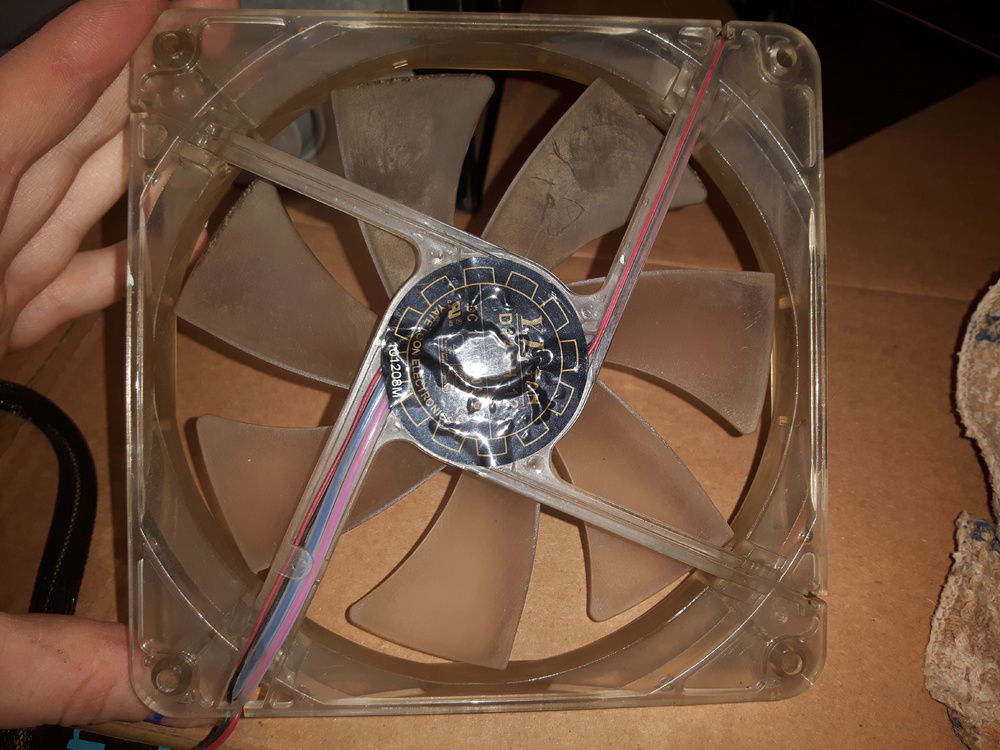

Cleaning the PSU fan, very sticky from my ex smoking indoors in my old apartment.

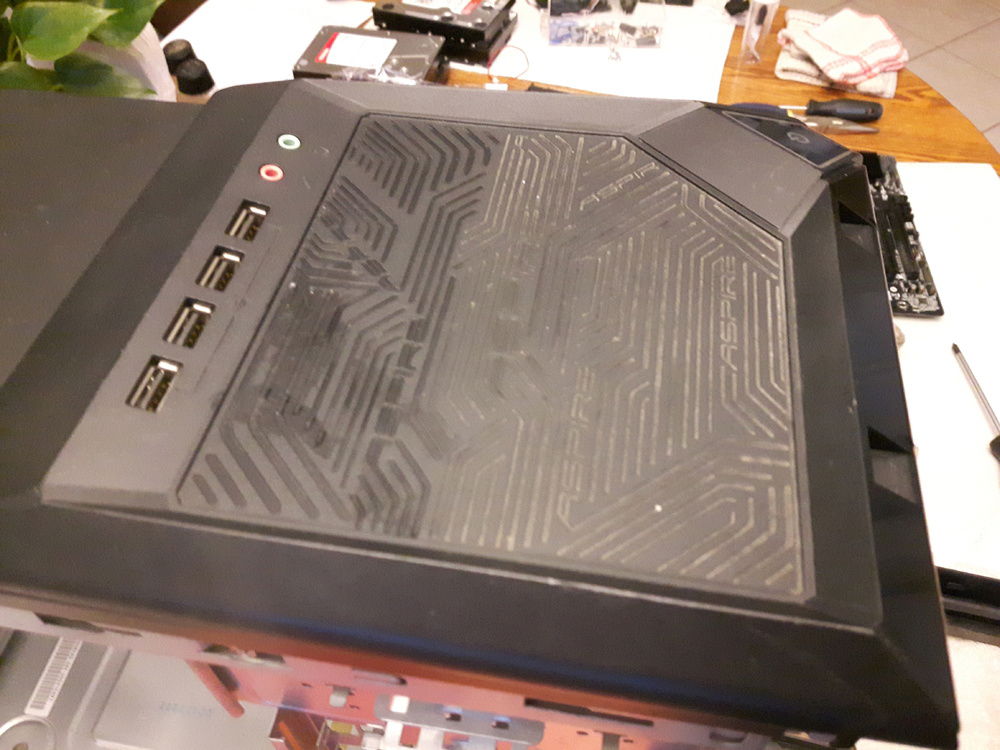

Cleaning the case details with a q-tip.

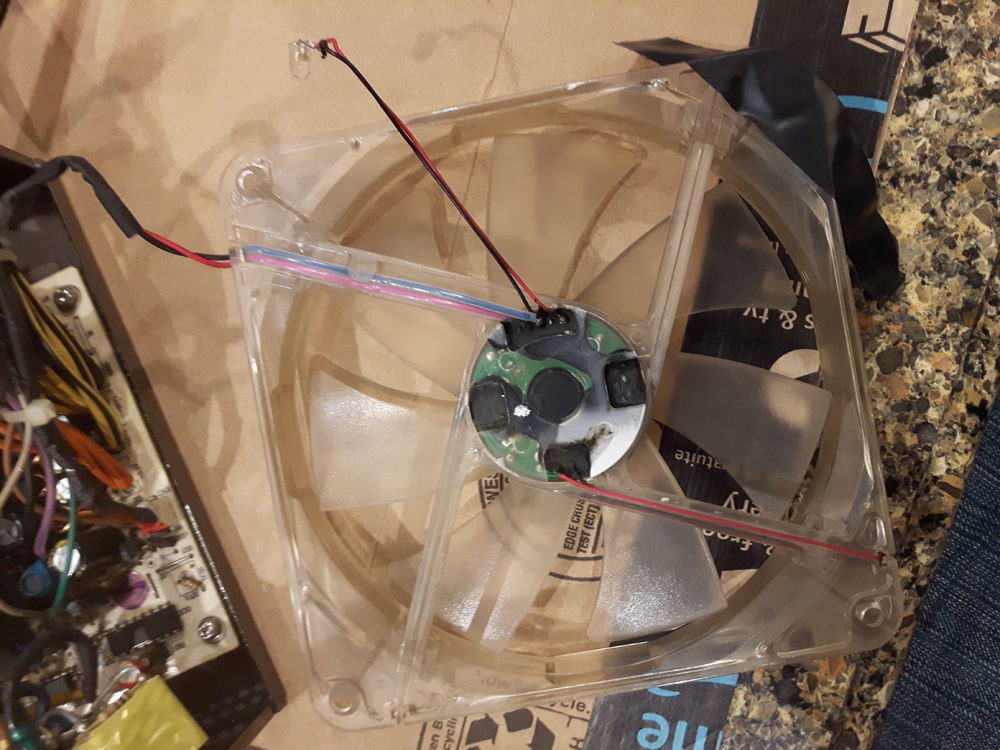

PSU fan LED before modification. It would shine in my face while trying to sleep. The wires won't reach to the other side (top right).

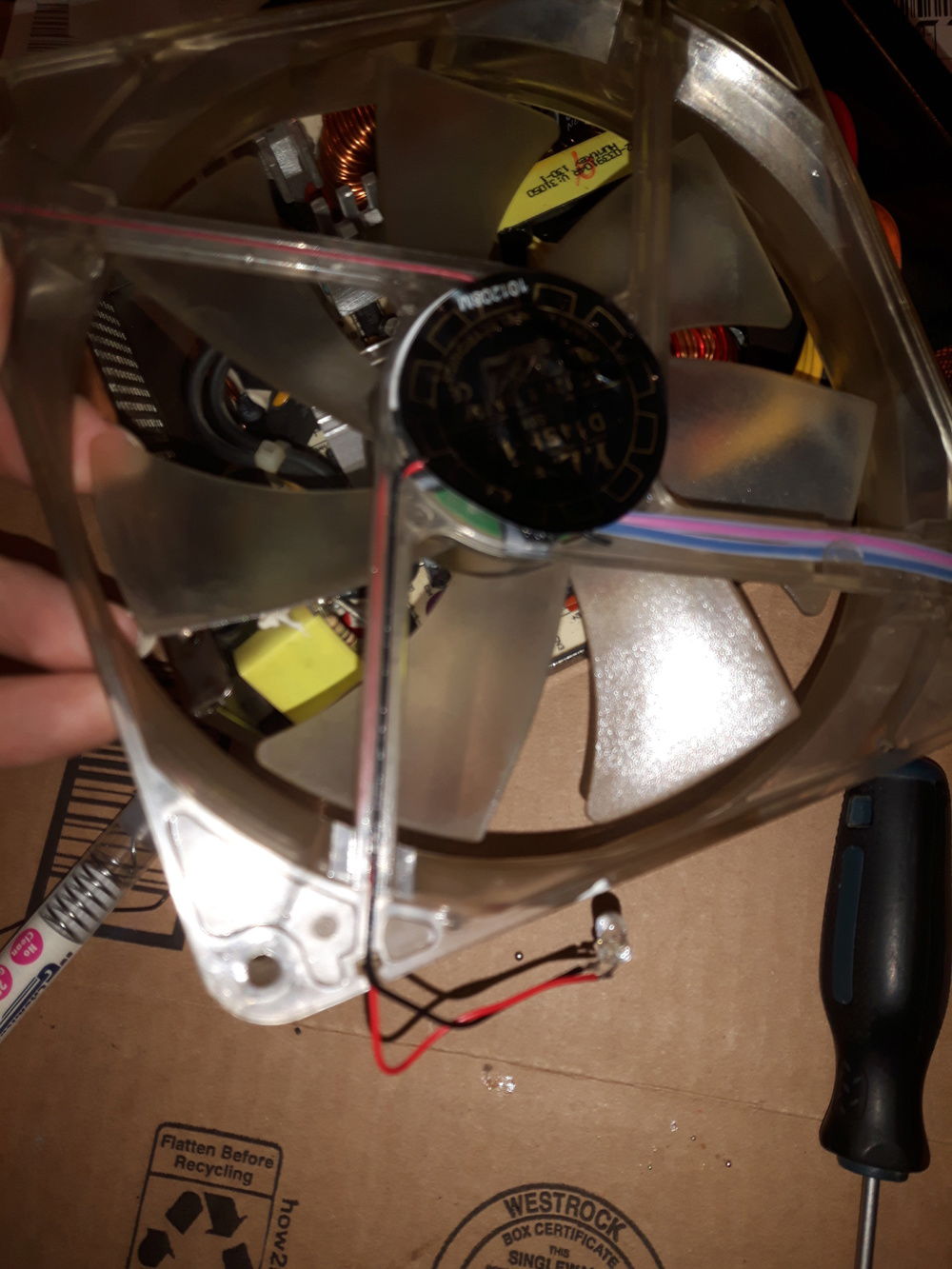

Soldered on new wires from an old case fan, and pressed them into the groove leading to the other side.

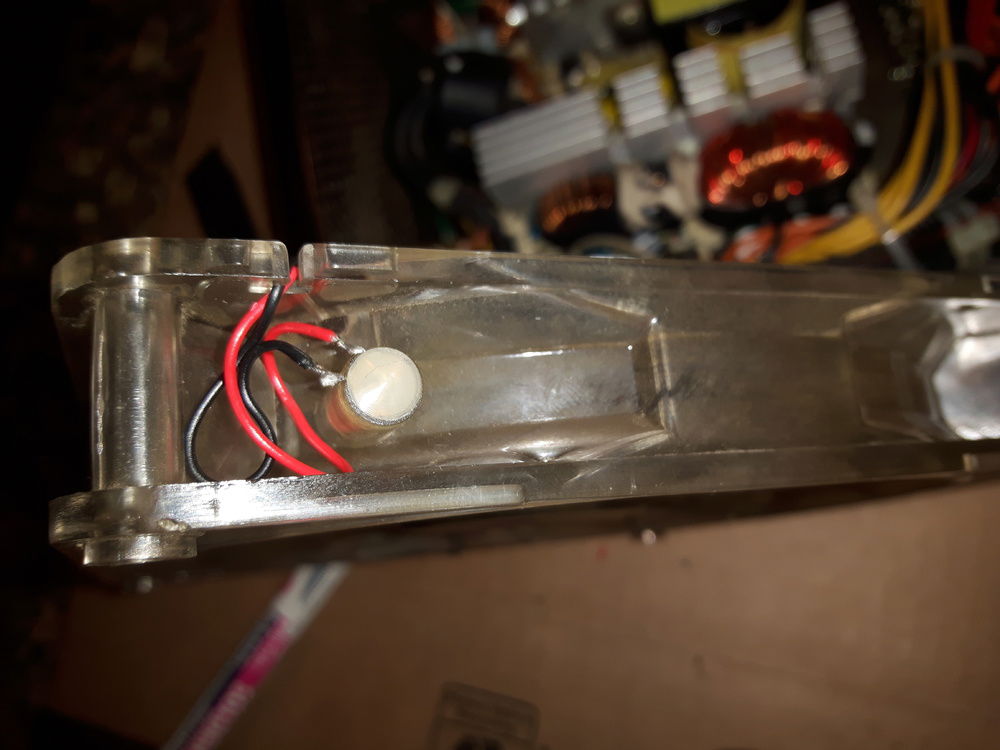

Put the LED in it's new home.

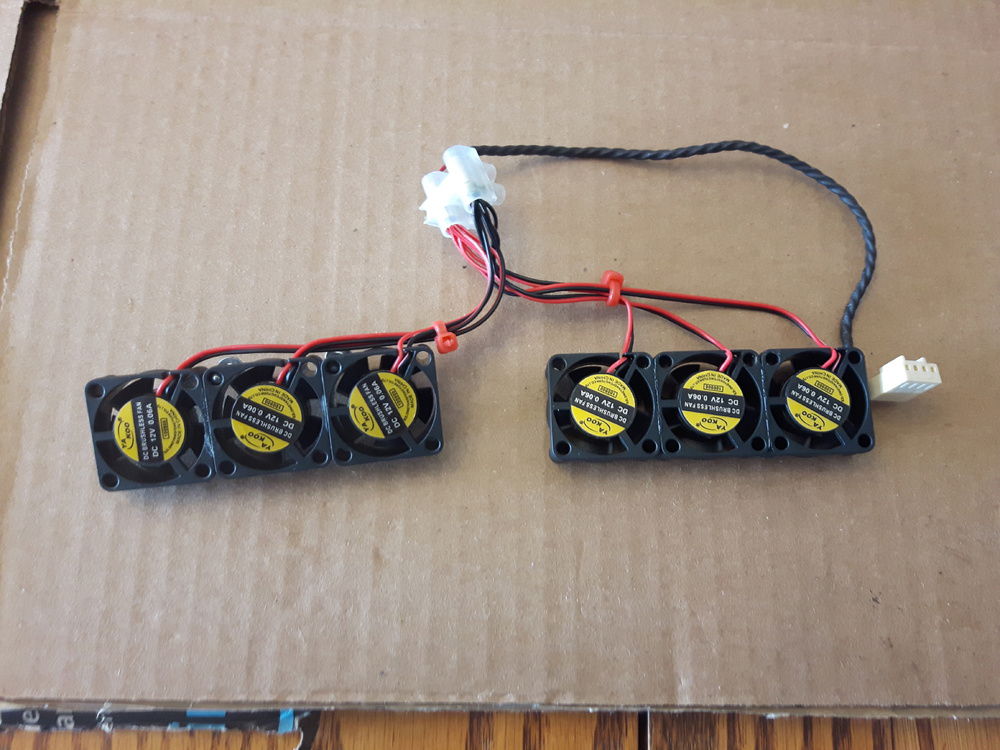

20mm fans super-glued together into banks of 3. i put them on the motherboard to measure out the wires before cutting them. The connector is from an old fan.

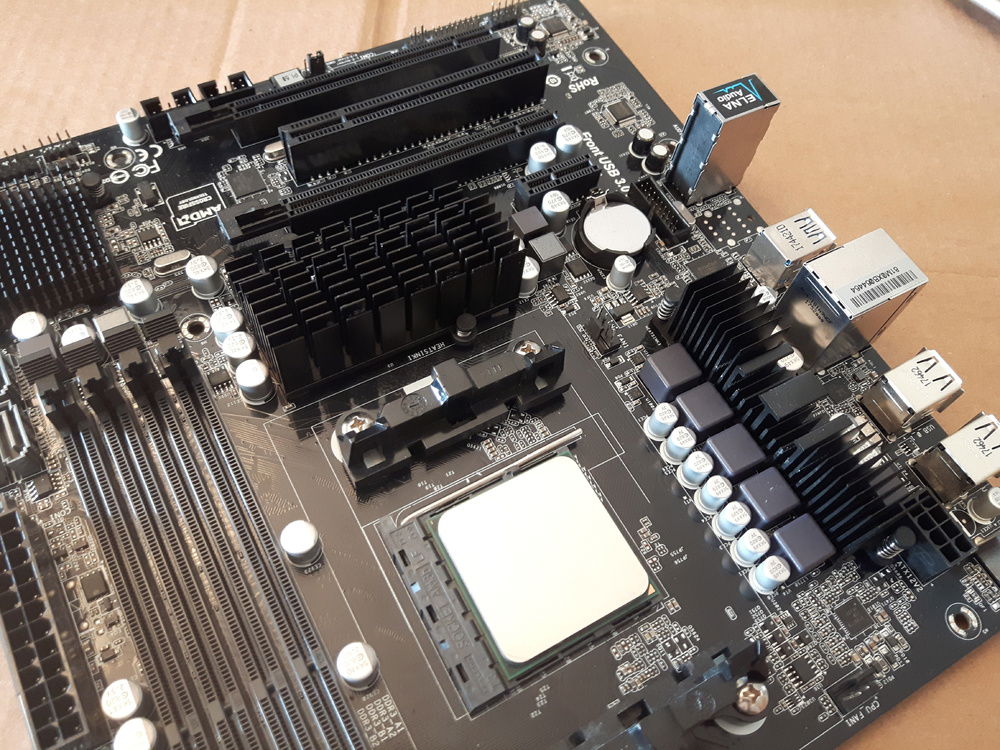

Motherboard heat sinks without fans. You can see some scuffs from screwing the fans to them to measure the wires.

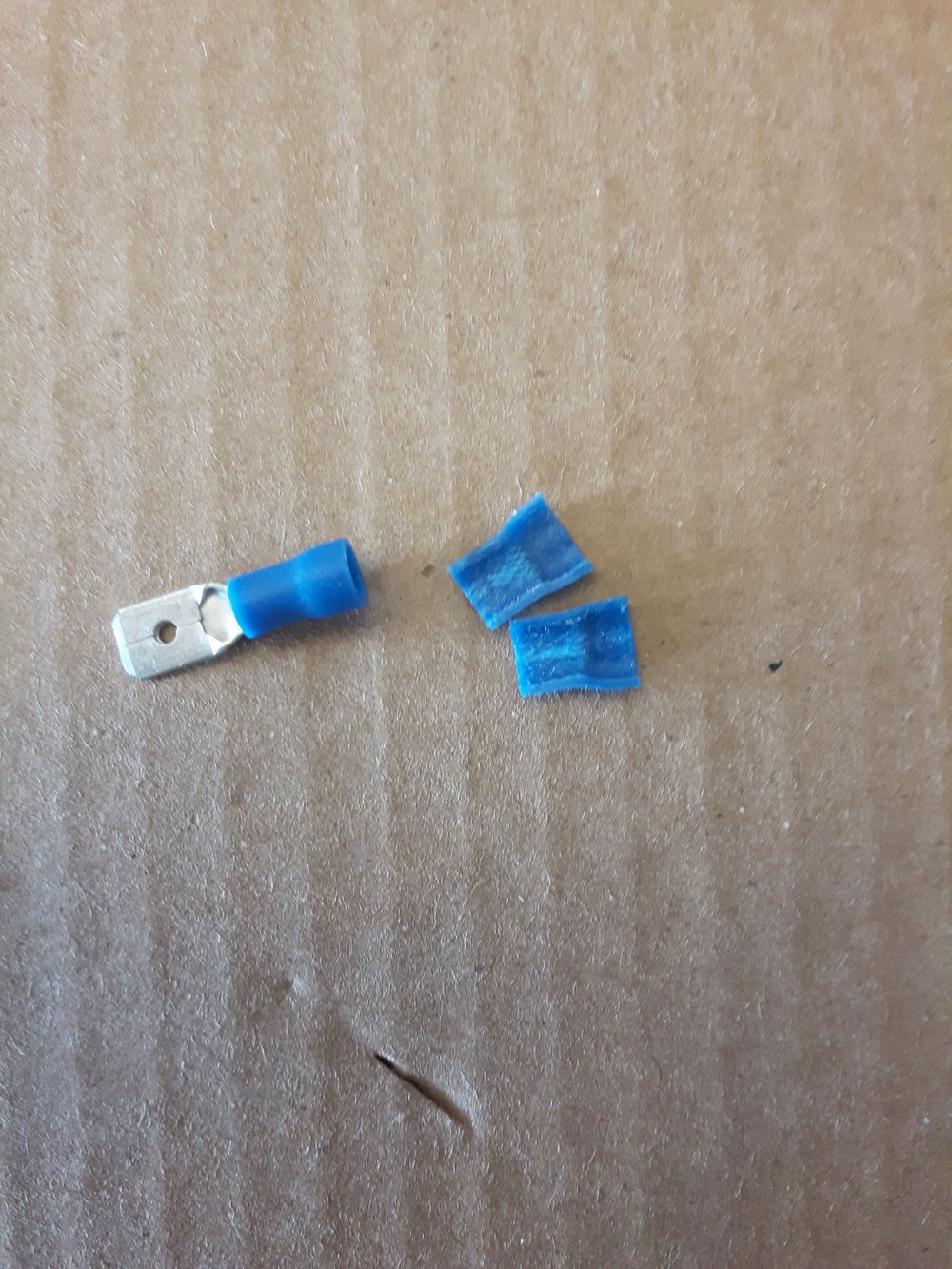

The screws that would fit through the 20mm fans were too small to grip the northbridge heat sink fins, so i cut up the plastic from an electrical connector to give something for the screws to grip.

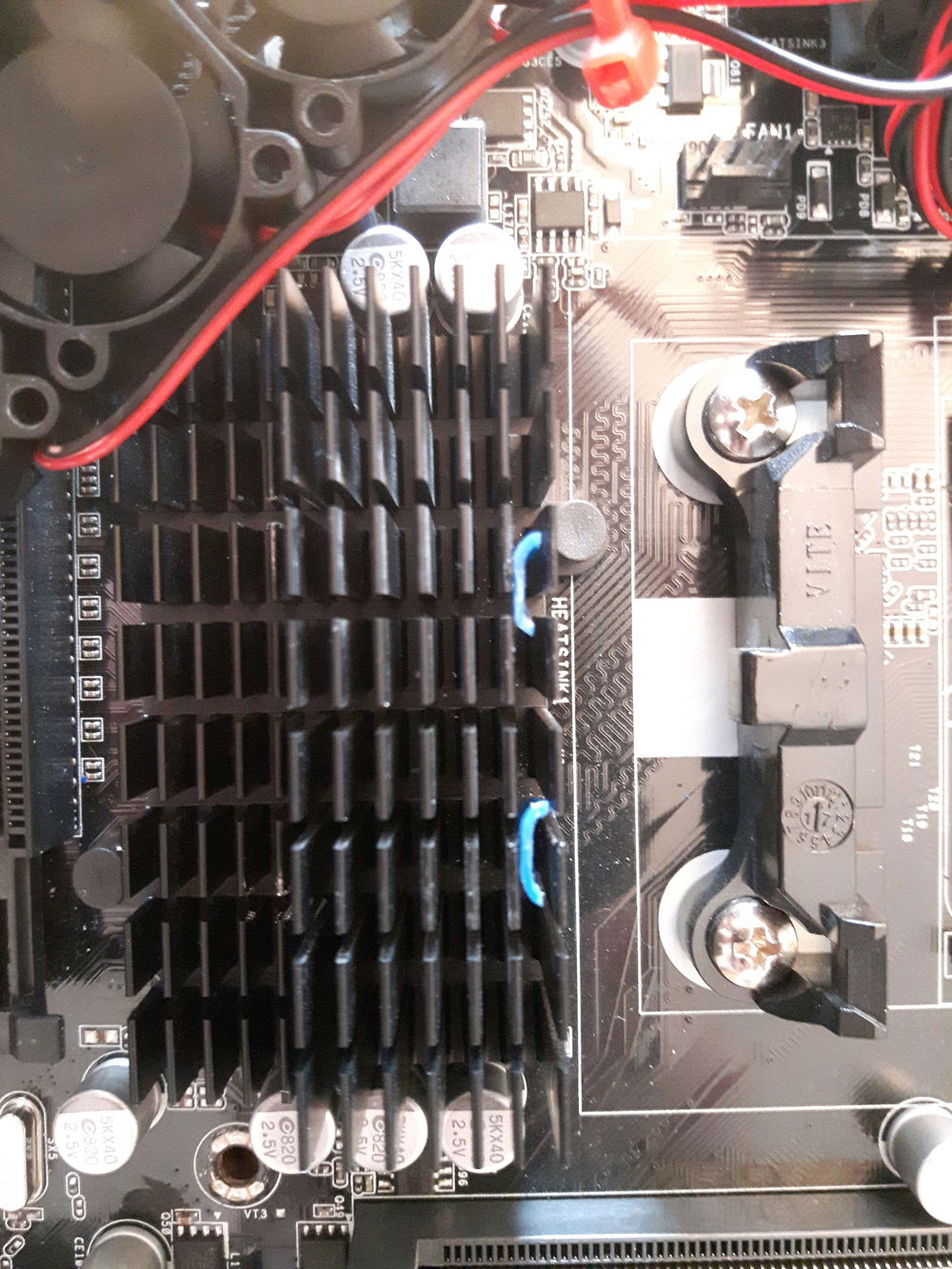

Superglued them to the heat sink. This took tweezers and patience, i dropped them in several times before getting them to stick.

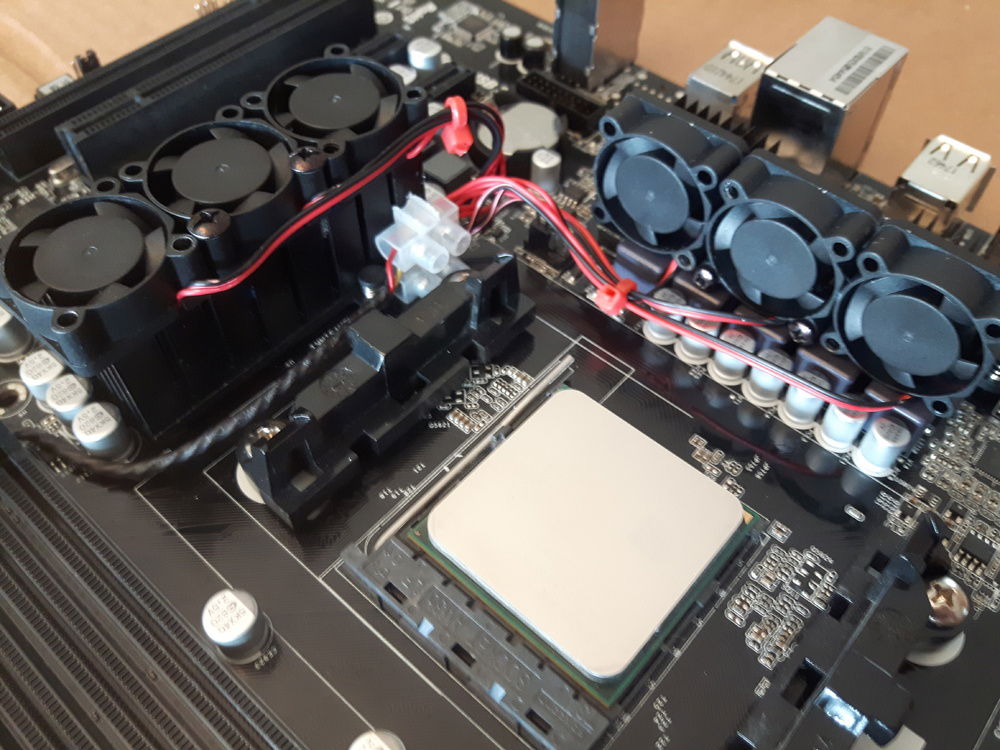

Fans attached to the motherboard, before i revised their positioning the next day.

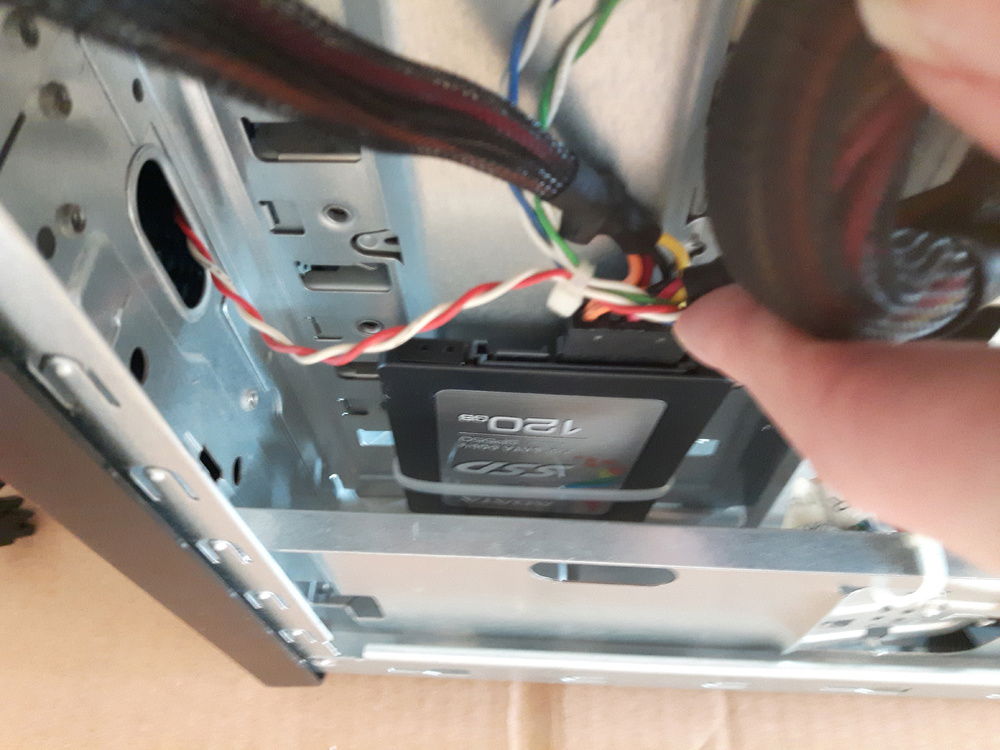

New, secure spot for my SSD boot drive.

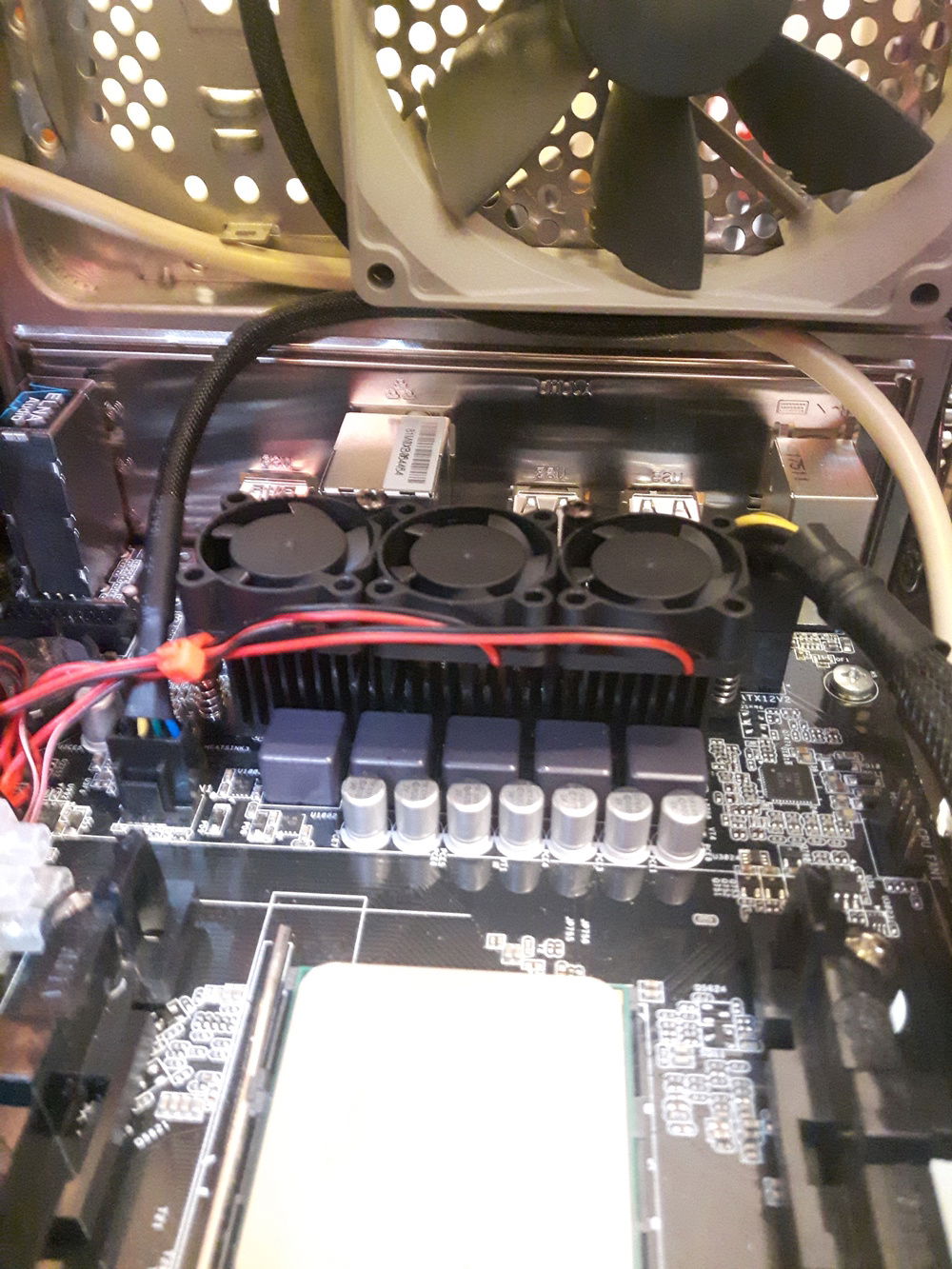

The next day i moved the VRM fans to point down to cool the chokes and capacitors as well as the heatsink.

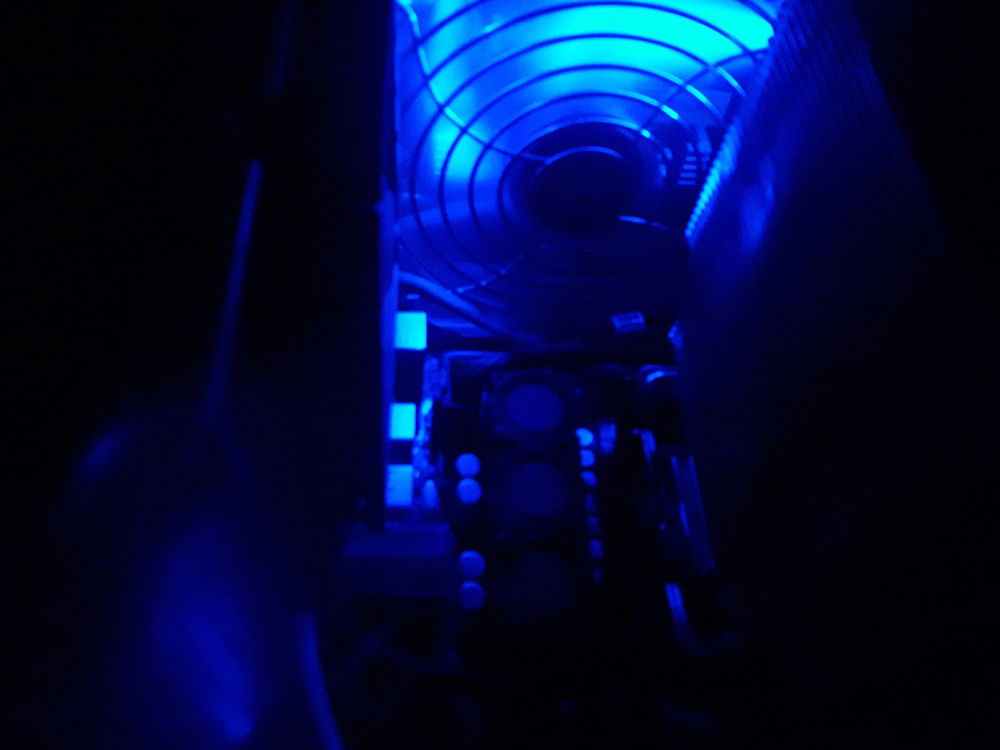

Lighting from the modified PSU fan.

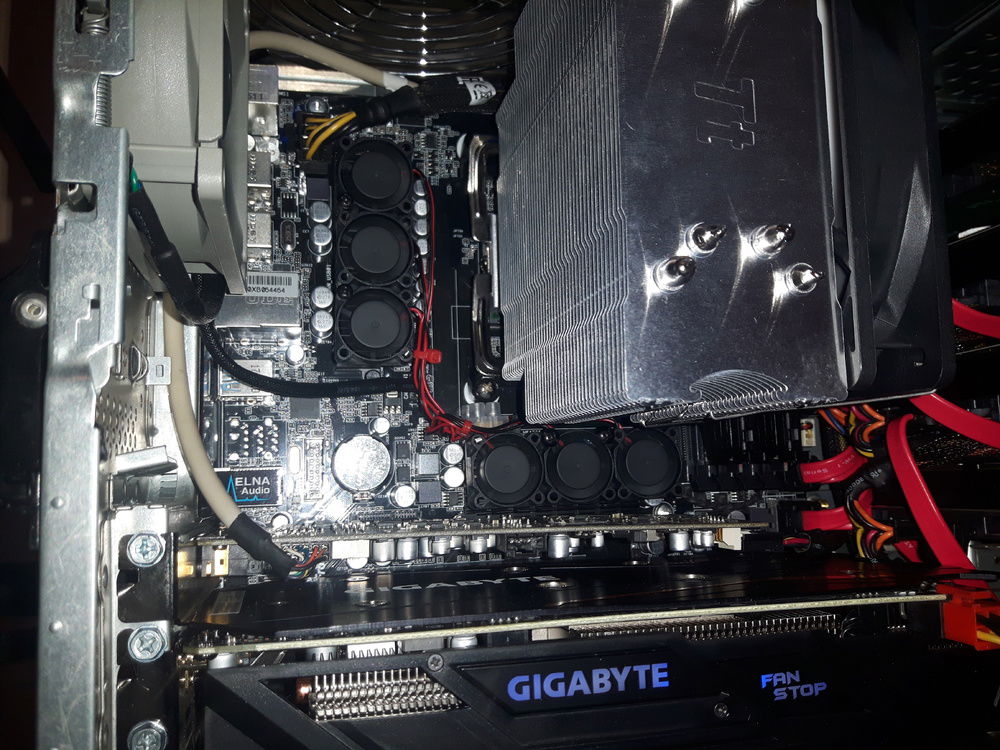

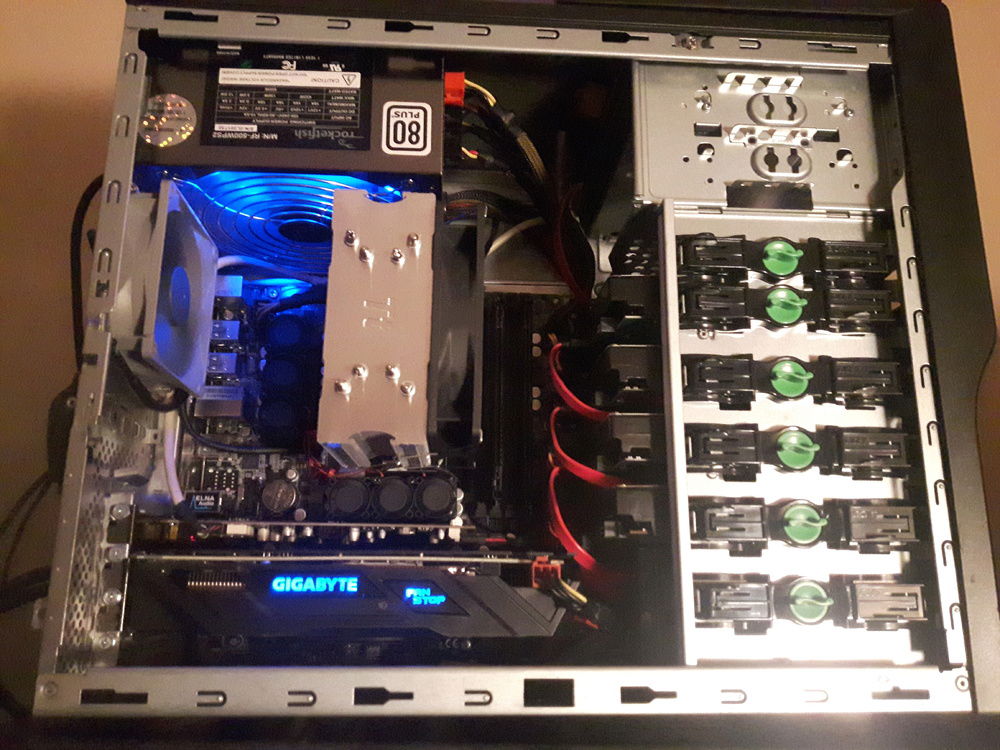

Final assembly up and running.

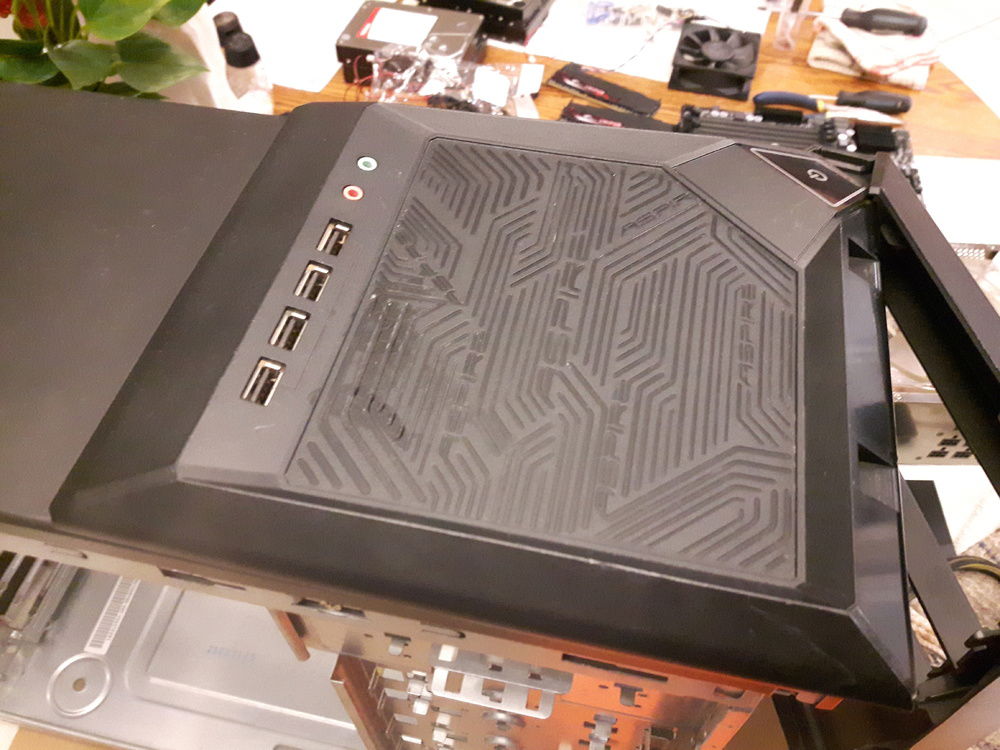

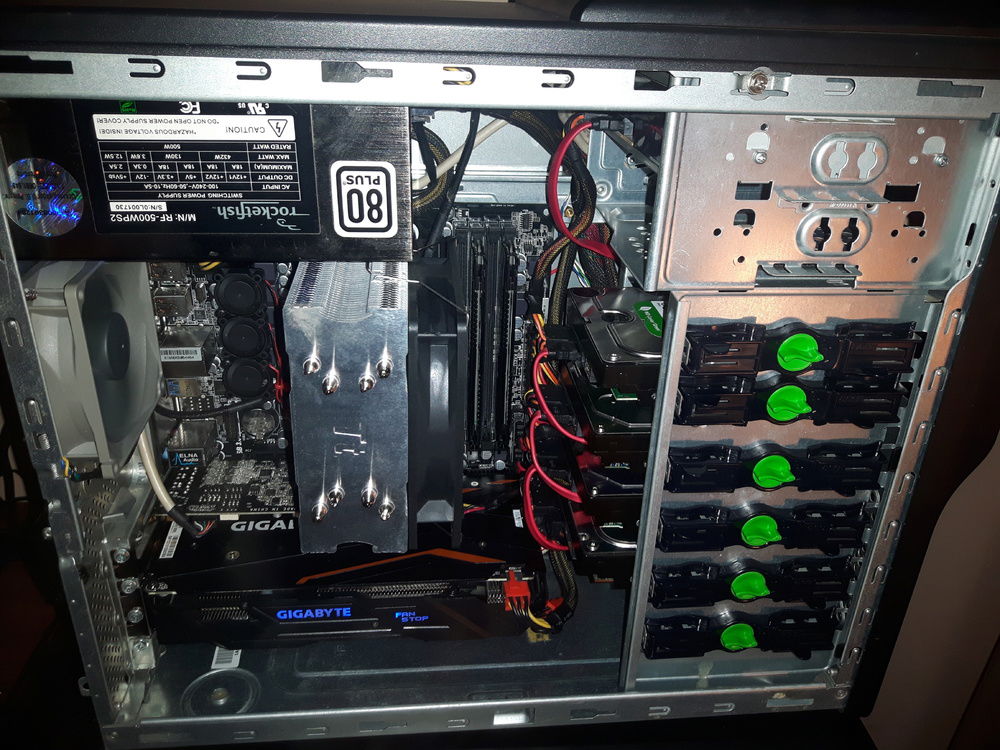

It's so clean everything looks brand new!
