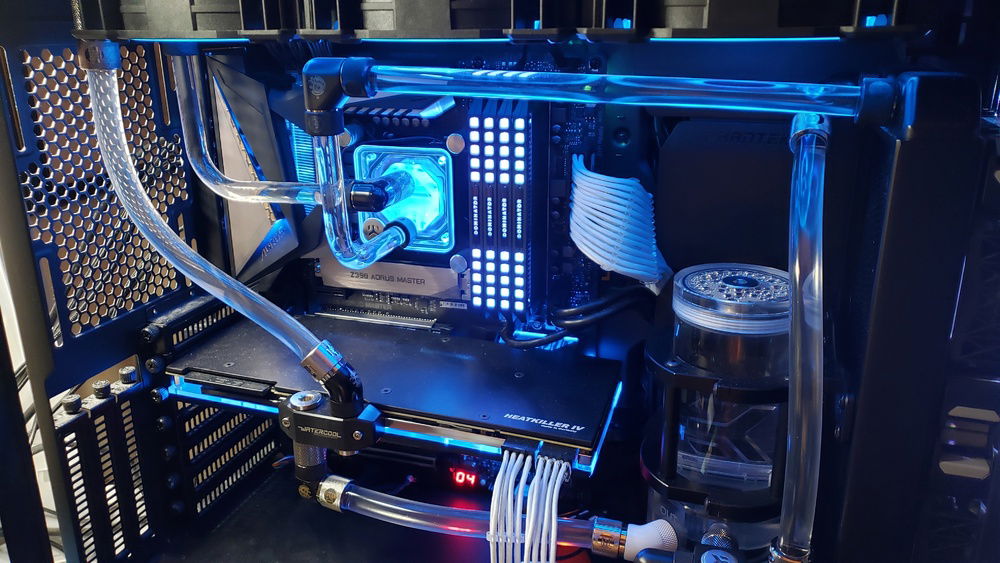

Latest Revision after fill. New (old) CPU block, expanded cooling loop with GPU and new RAM.

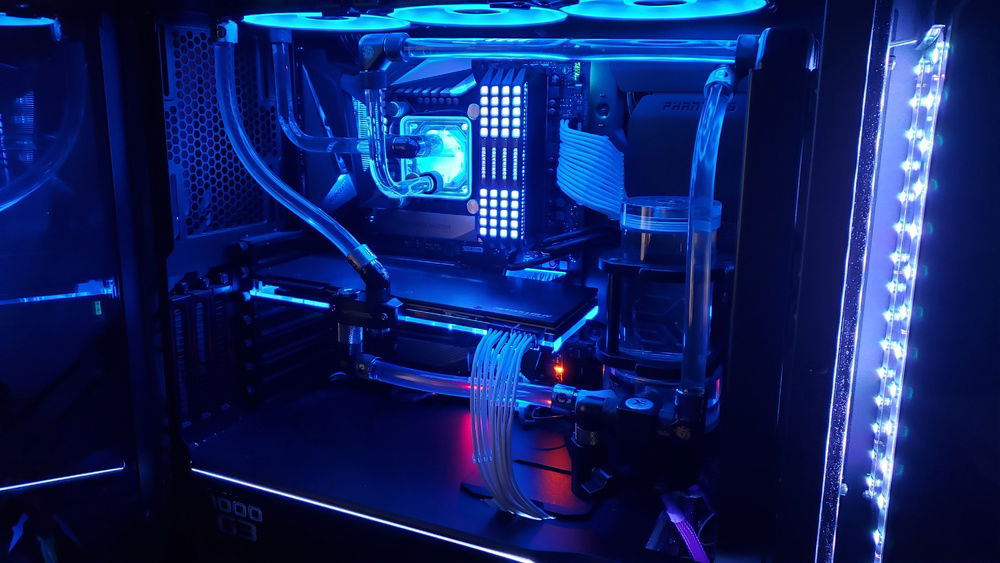

Ambient lite build photo.

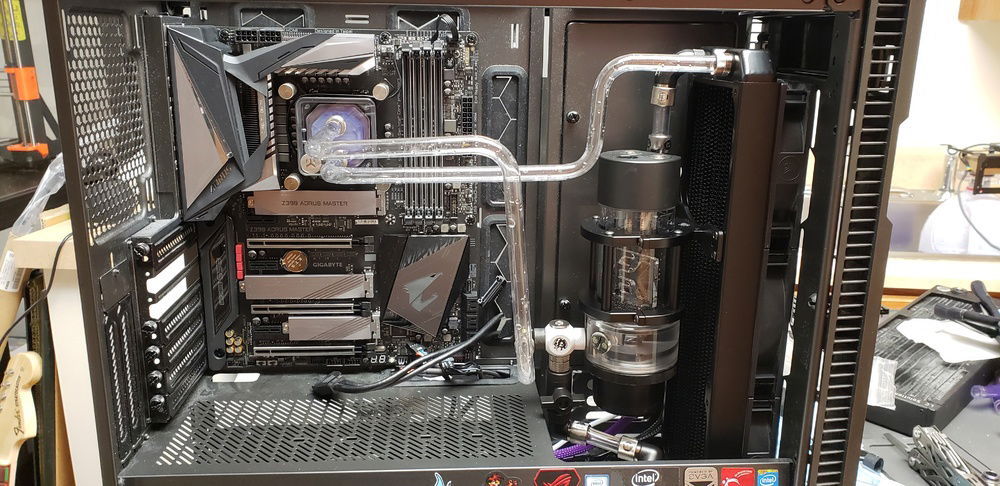

Prefill photo

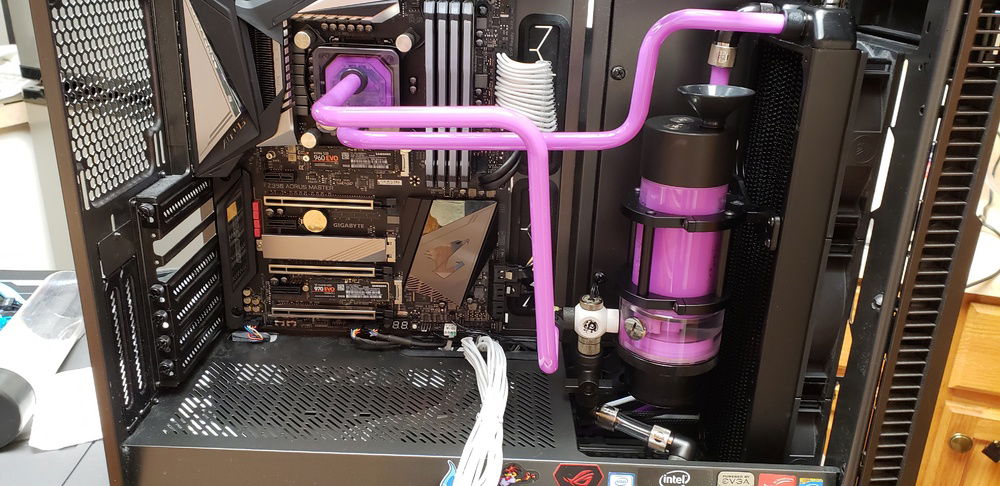

Post fill (note this is before I switch fluid and CPU block)

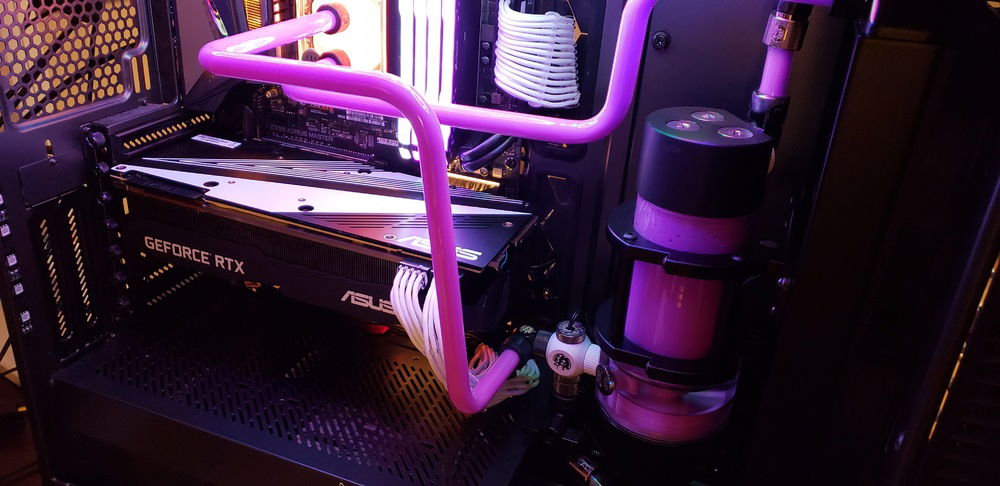

Complete and ready for power

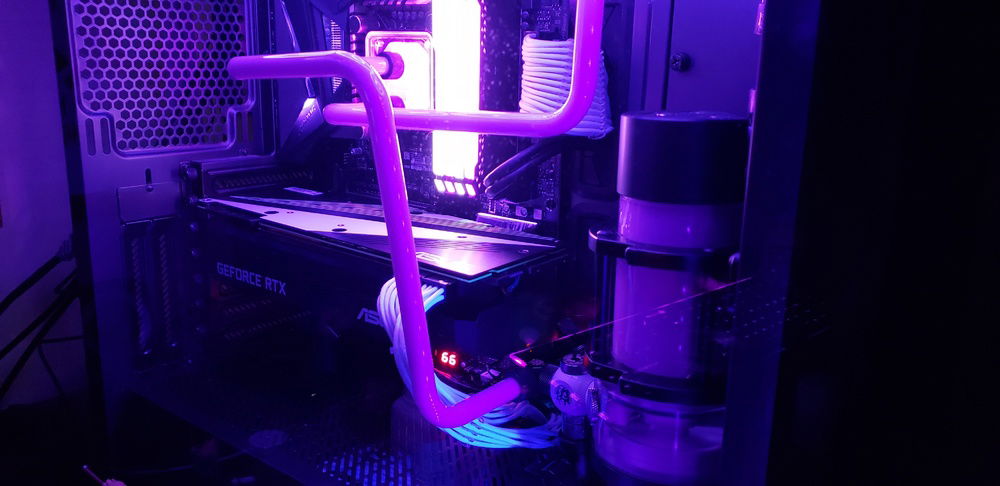

Complete and powered.
Failed Idea's... But it Still Works
This build has been evolving constantly since I picked up the Fractual Define R6 in Gunmetal. In it's current form it is rocking a Core i9-9900K in a Gigabyte Aorus Master and an ASUS RTX2080ti Dual. Sure it is not the best of the best RTX2080ti but it works just fine, while being loud at times...
Now for cooling the system the original plan was to run a customer liquid loop with both the CPU and GPU using a front and top mounted Alphacool 360mm slim radiators. Sadly I ran into 2 problems during the build... The first problem was that the EKWB RTX2080ti FE block I picked up did not want to mount to the GPU as it seemed to be contacting something and prevented it from mounting correctly. The second issue is that the top mounted radiator with fans would prevent the use on the RAM I planned on using. So I scrapped the GPU water block and top radiator and focused on the CPU cooling. A future update to the build may solve this issue.
For CPU cooling I started with an EKWB EVO Supremacy before eventually using the newer EKWB Velocity, an Alphacool 360mm slim radiator with EK Vardar fans, an EK D5 pump/reservoir, a mix of EK and Bitspower fittings, and lastly a mix of 12mm rigid tubing and some soft tubing. In this build I wanted to try my hand at continuous tube runs without fittings to make bends and generally it worked out fine. Beyond that I know the fittings lack coherent colors, but I was under a time crunch so I worked with what I had there. Since the build was completed I have picked up the necessary fittings but I am waiting until I sort out the GPU water block so I can do everything at once. As for the coolant I started with Primochill Opaque UV Purple before changing to Primochill True UV Purple to minimize the likelihood of clogging the microfins in the CPU block.
Since completing the build I have messed a little with overclocking the 9900K and I can run stable 5GHz all core using Intel's XTU program. I next plan to work within the UEFI bios to see if I can push it higher. Also the Corsair RAM is running at 3600MHz 18-19-19-39.
Color(s): Purple Silver White
RGB Lighting? Yes
Theme: none
Cooling: Custom Liquid Cooling
Size: ATX
Type: General Build
Build Updates
Updated Water Loop
Since I initially posted photos of my build there have been some iterative updates. The first update saw me change the case, add the GPU to the water loop, a second 360mm radiator and minor storage increase for the system. For case I updated to a Phanteks Evolv X Gray case, the GPU block I am using a Watercool Heatkiller IV Nickel/Plexi block and the second radiator is another 360mm Alphacool Nexxxos ST30. As for the loop config it is Pump/Res -> GPU -> Rad -> CPU -> Rad -> Pump/Res which is somewhat overkill probably but I figure I had the space and why not. I had also increased over system storage by about 2TB as well. Although I have no photos from this first system update it is effectively the same as the latest updated with the only differences being that the fluid is Primochill Clear/UV blue, the CPU block was changed (more on that in a moment), and the RAM went from Corsair Vengeance Pro RGB 4x8GB 3600CL18 to Corsair Dominator Platinum RGB 4x16GB 3200CL16.
As for the CPU block I had an EK Velocity Nickel/Plexi RGB block in there but when I flushed my loop after 6 months the nickel plating had started to strip from the microfins as well as the surface contacting the O-ring which I found out during leak check. So because of this I went back to the older EK Supremacy EVO block I have so now with a plan to change to something not EK in the future as I was not happy with my experience. For those that may comment the fluid was just Distilled water with biocides and inhibitors and everything in the loop is either copper or nickel plated copper.
There was also some light wear on the GPU block as well but that was minimal compared to the CPU and I am now watching the fluids pH and other properties regularly with a plan to flush and check everything in a few months as the last flush was end of Dec 2019.
