EH "HYDRO MADNESS"

Worklog video :

https://www.youtube.com/watch?v=yVine6Z0HYM

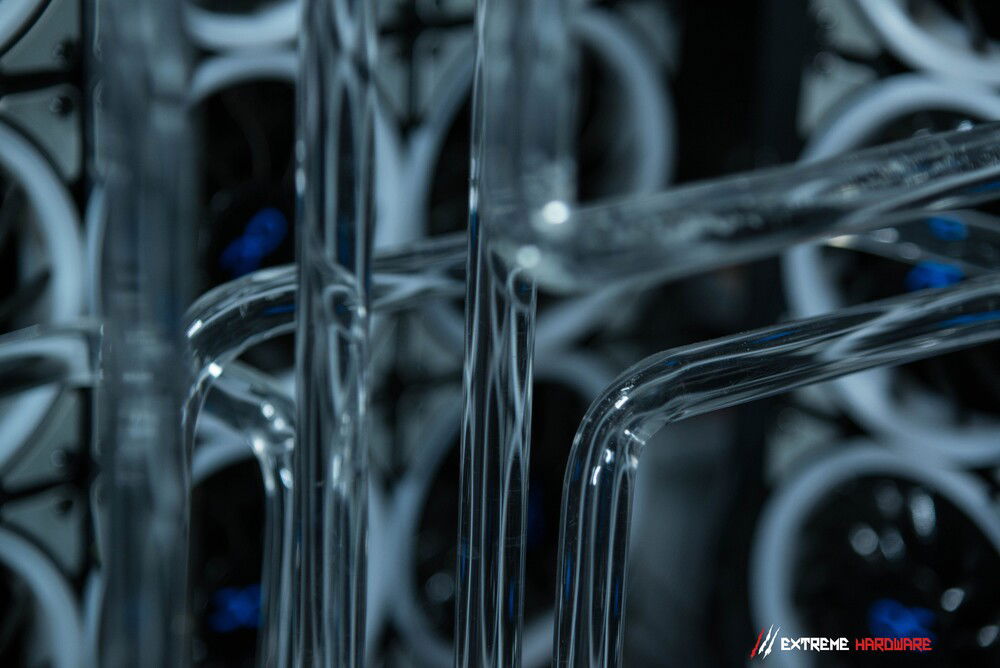

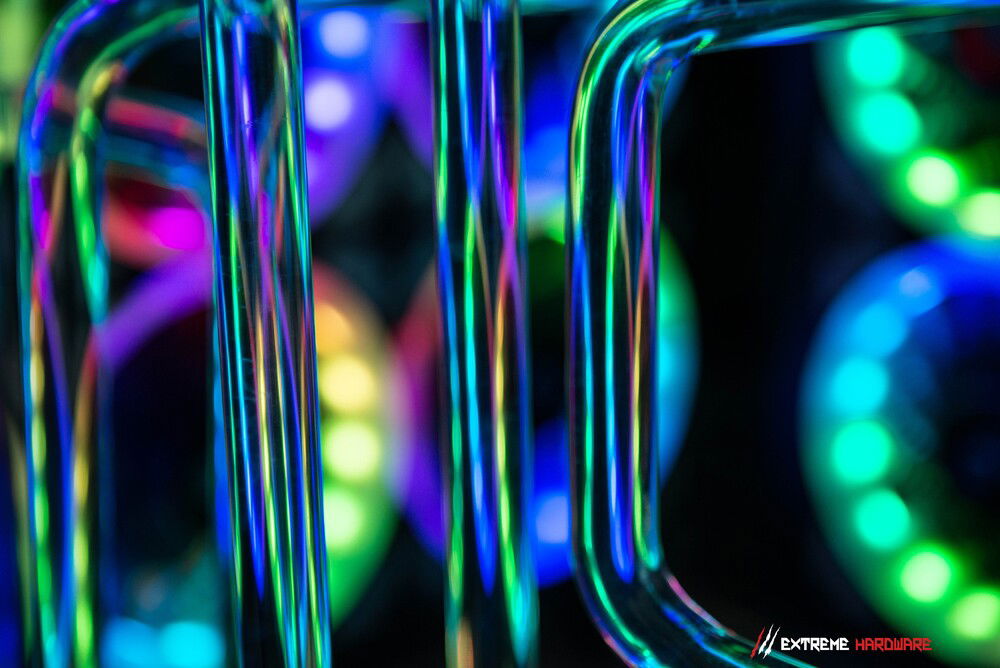

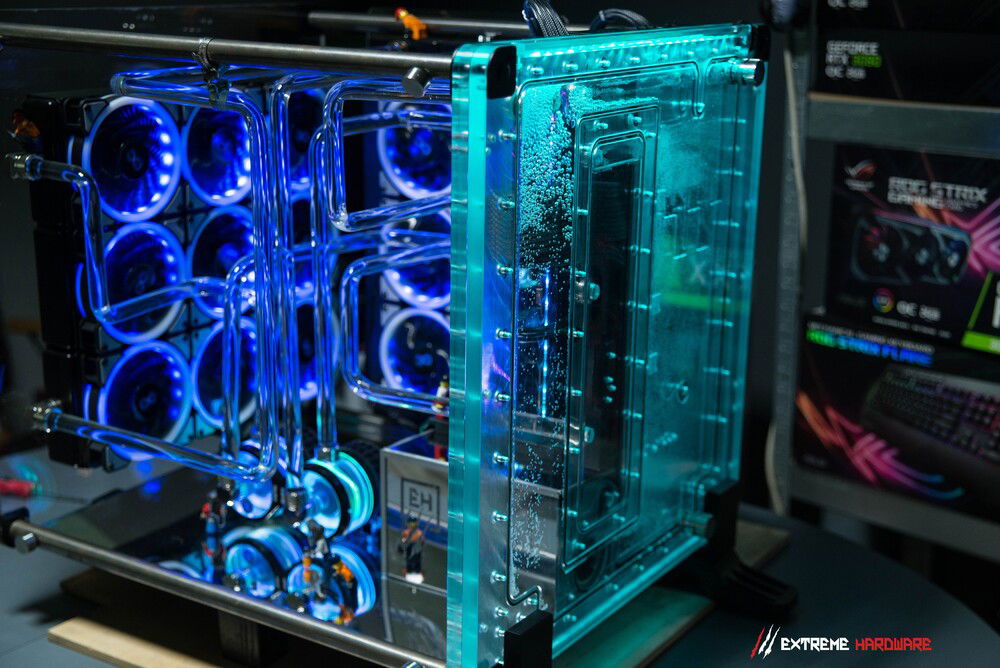

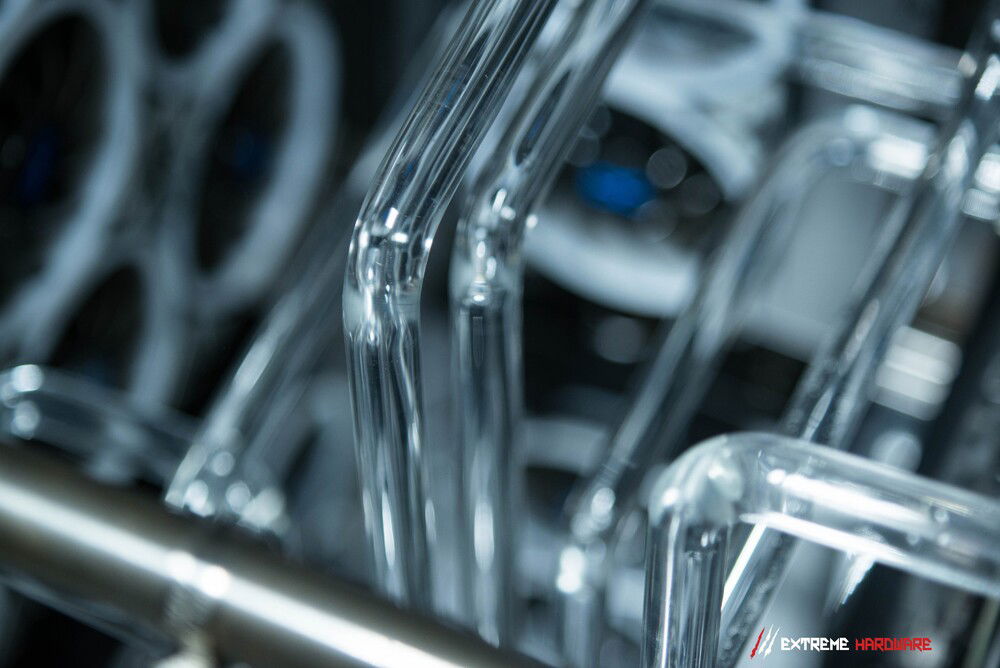

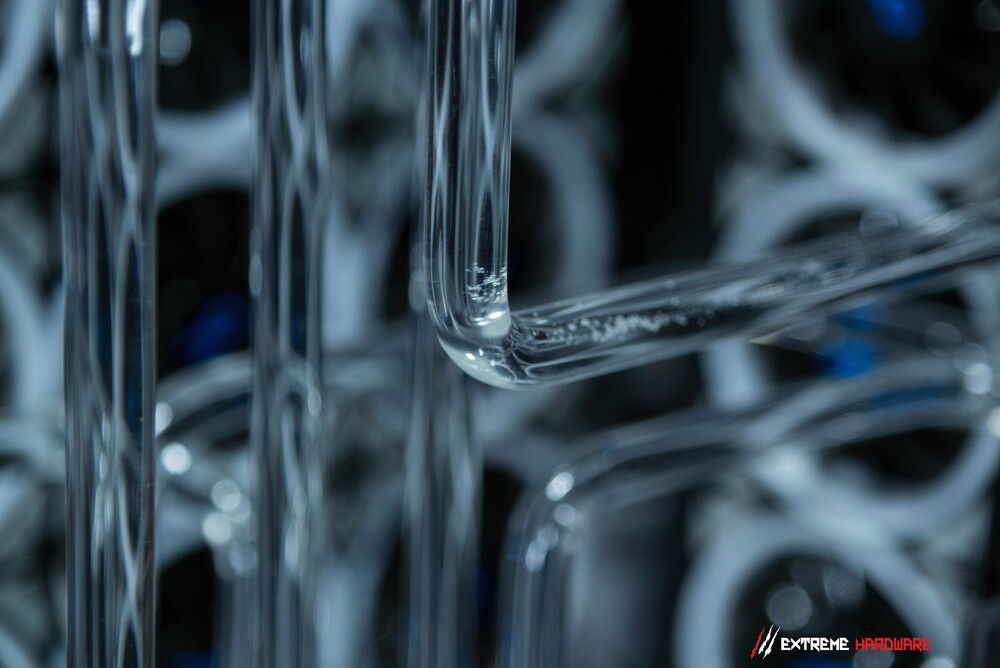

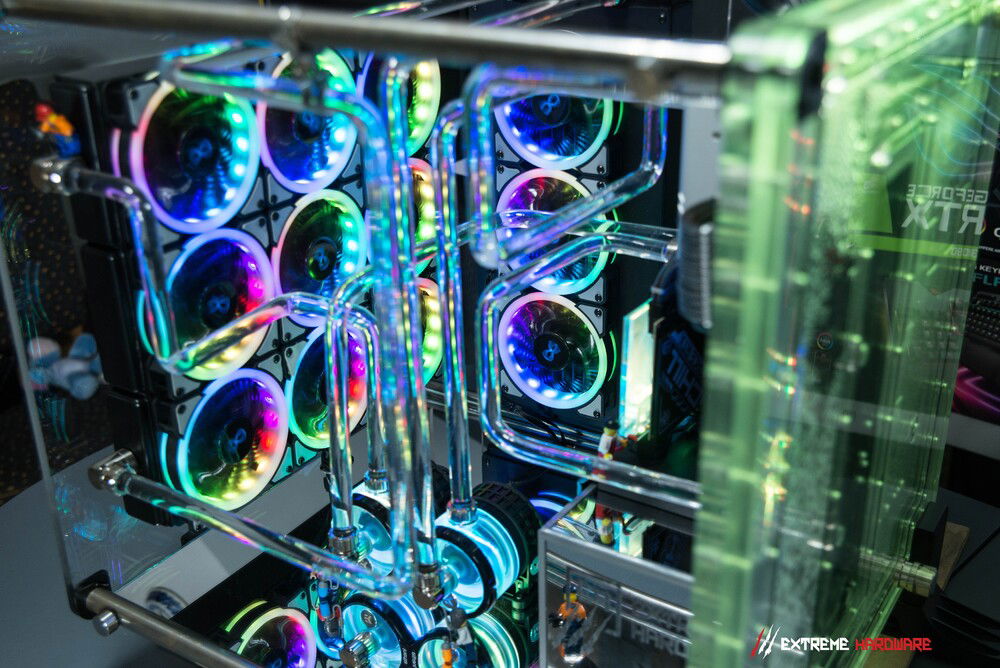

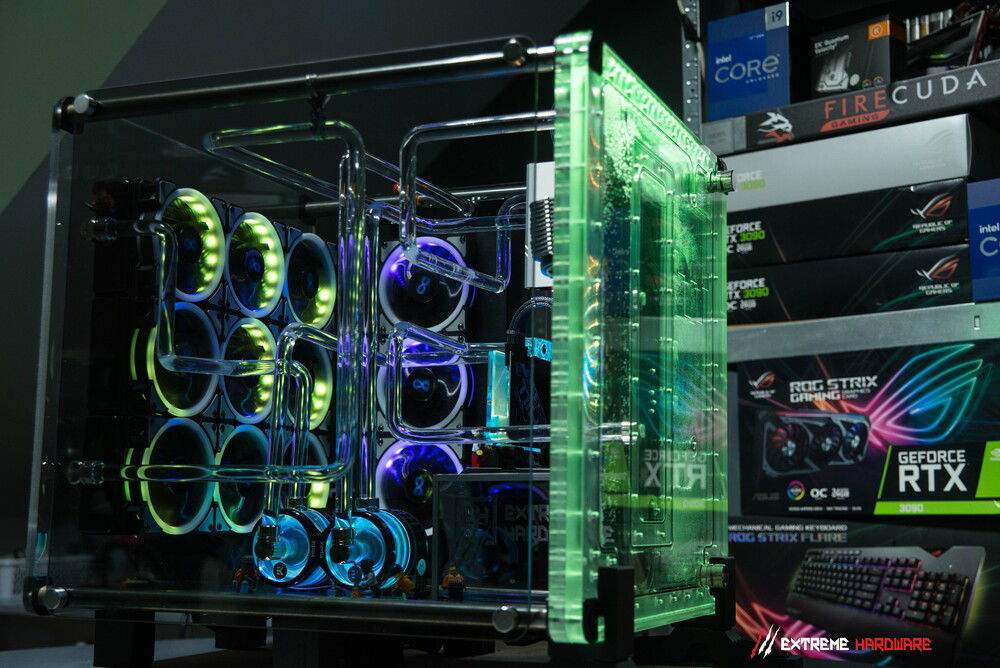

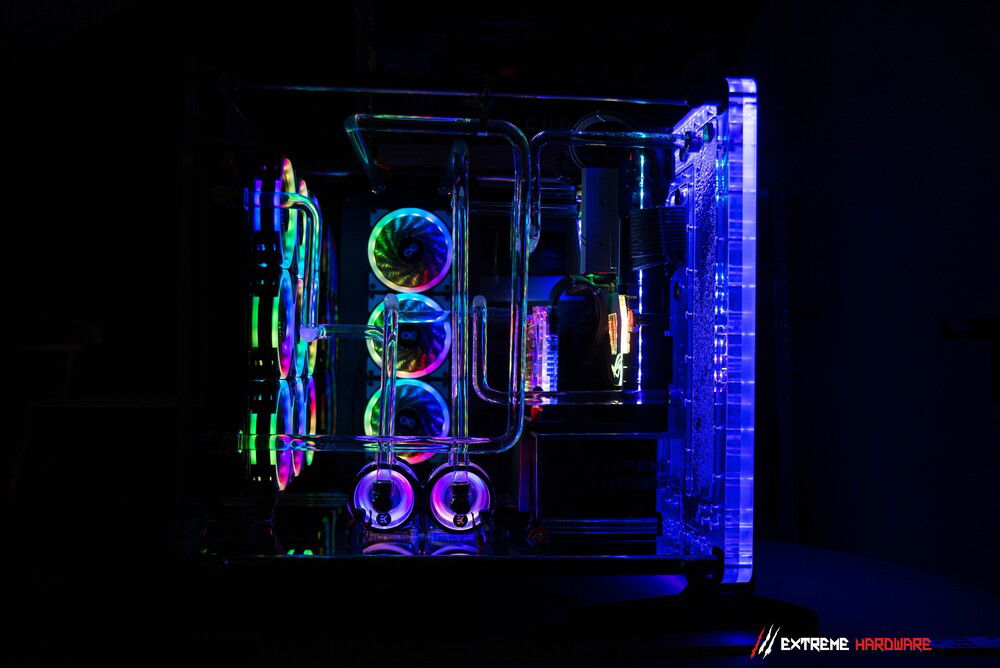

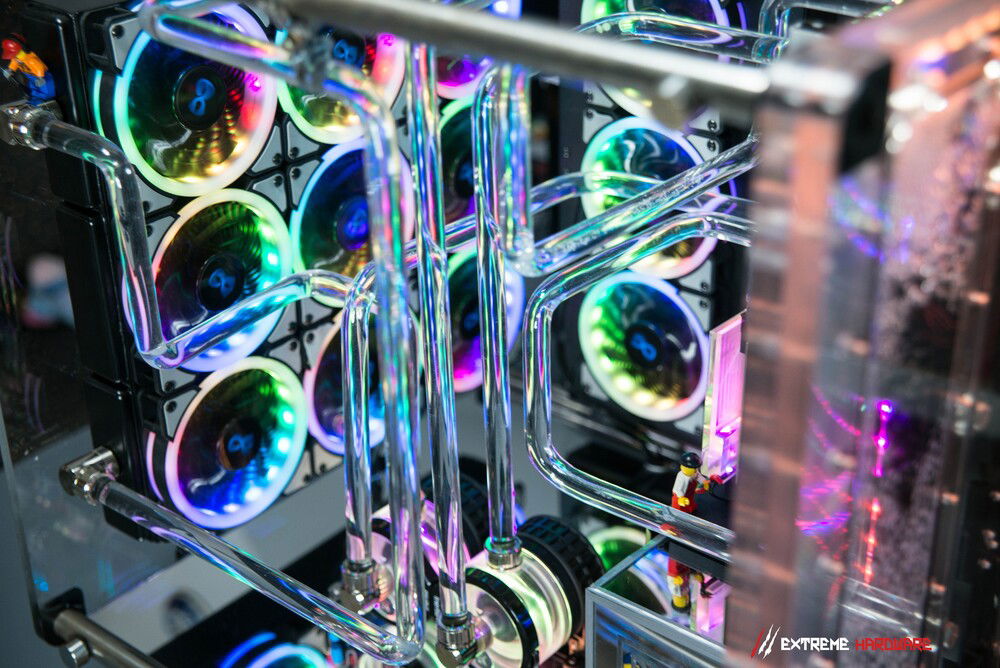

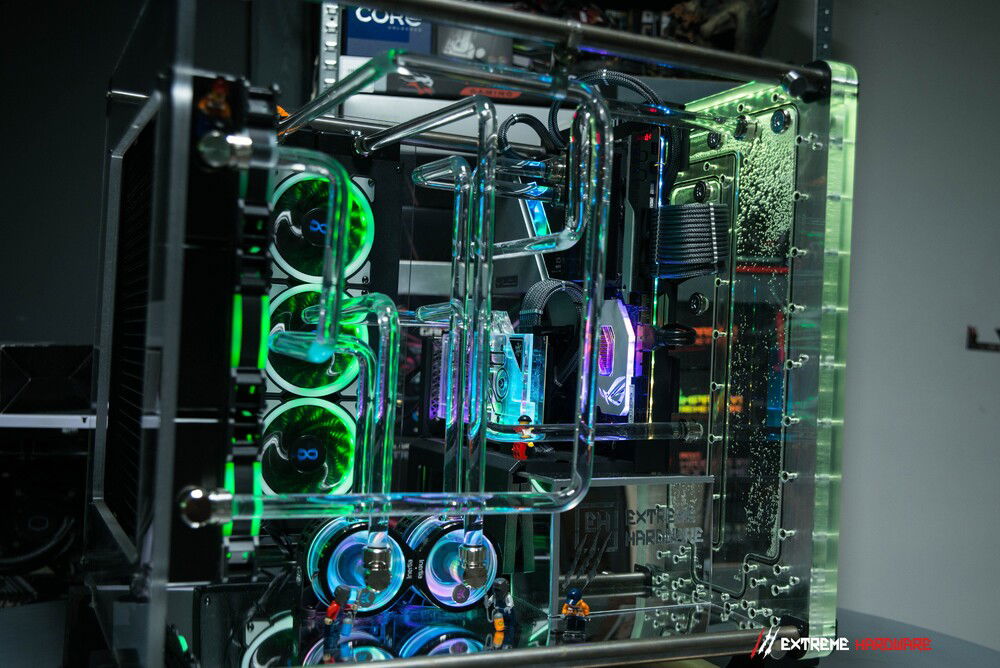

EH "HYDRO MADNESS" is a unique machine which we started working on in 2021. In principle, it was supposed to be a massive open structure with the character of the "plumber's nightmare". Extremely complicated LC system, the length of the pipes exceeded a total of several meters, and the longest of them all reached 150 cm in length.
During the construction, we tested various concepts and introduced many changes, finally we gave up a few connections that reduced the flow, and had only an aesthetic role. The flow meter has also been removed for a more efficient system routing.

For several months now, the machine has proudly decorated the room in which it is located and serves as one of the fundamental components for an advanced racing simulator. The project was made for an automotive enthusiast and at the same time a master of the steering wheel, who successfully wins car races on the tracks used for this purpose in the real world. In the virtual one, he gradually trains his reflexes and experiments using an extensive simracing system, cabin, actuators, etc.

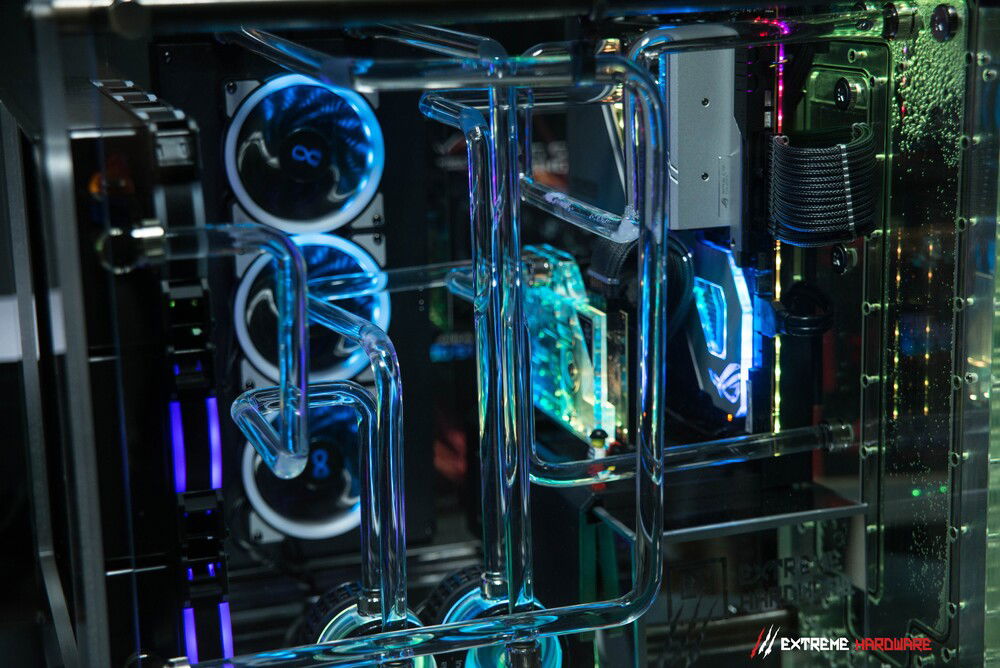

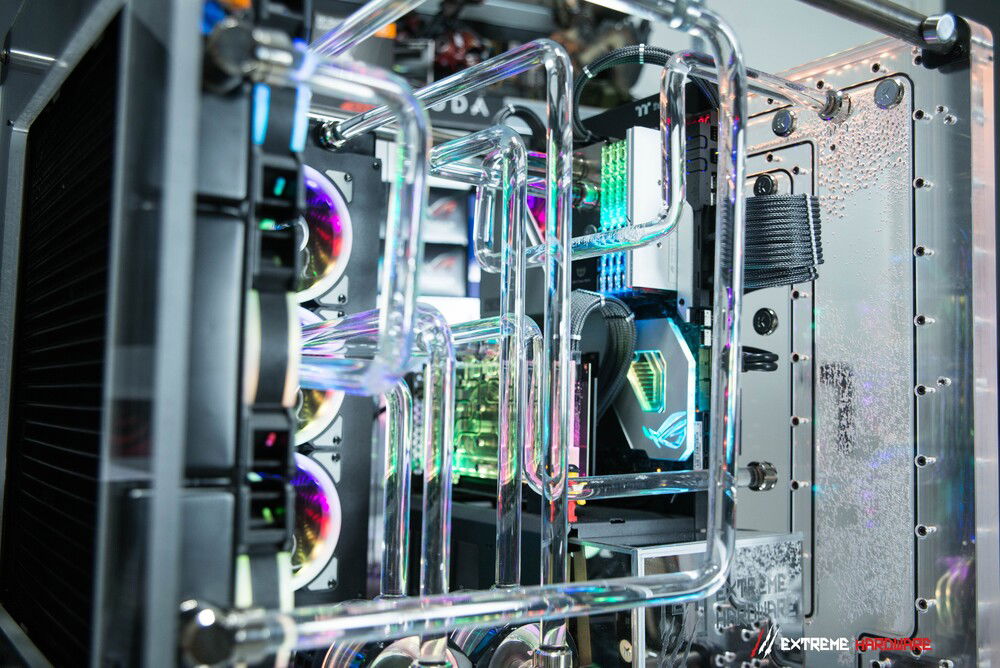

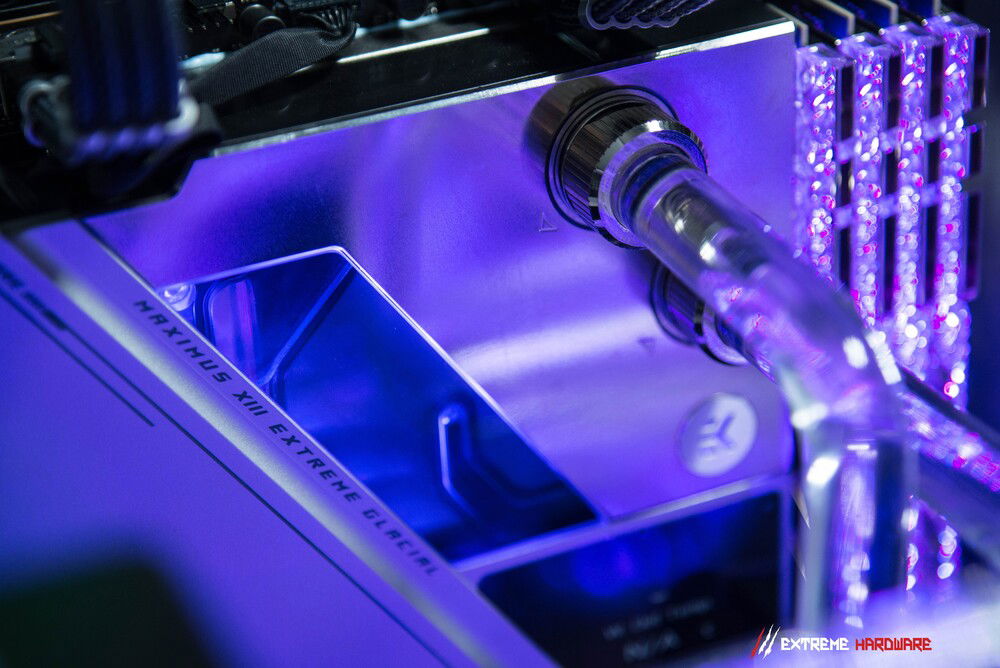

One of the main assumptions of the EH "HYDRO MADNESS" project was to use a unique motherboard from the ROG stable, the Z590 Maximus XIII Extreme Glacial model, i.e. a modified Maximus XIII Extreme equipped with an ultra-block that allows for extremely effective cooling of both the CPU, VRM, chipset and the entire pcb motherboard.

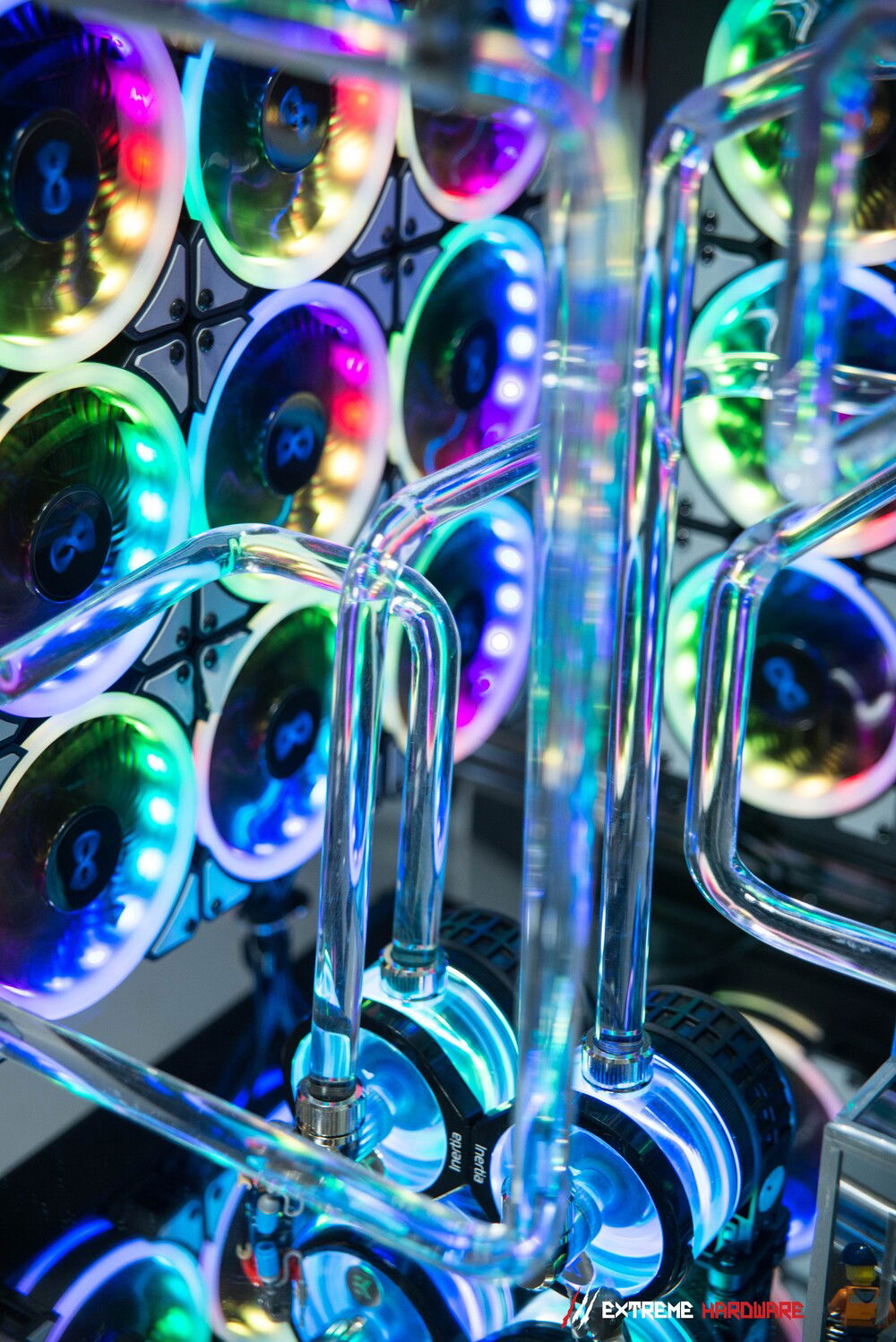

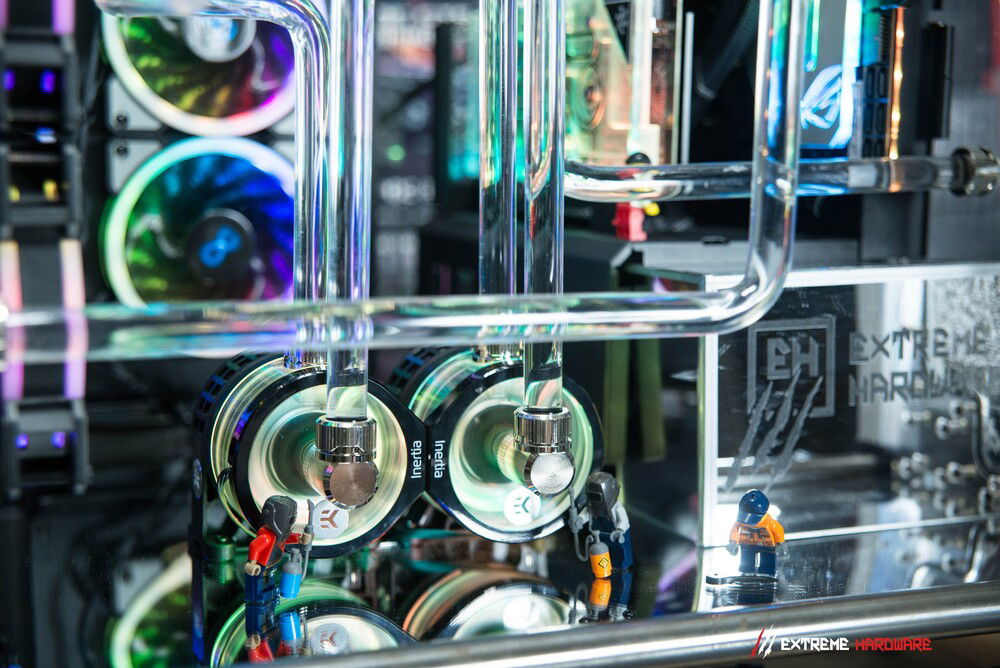

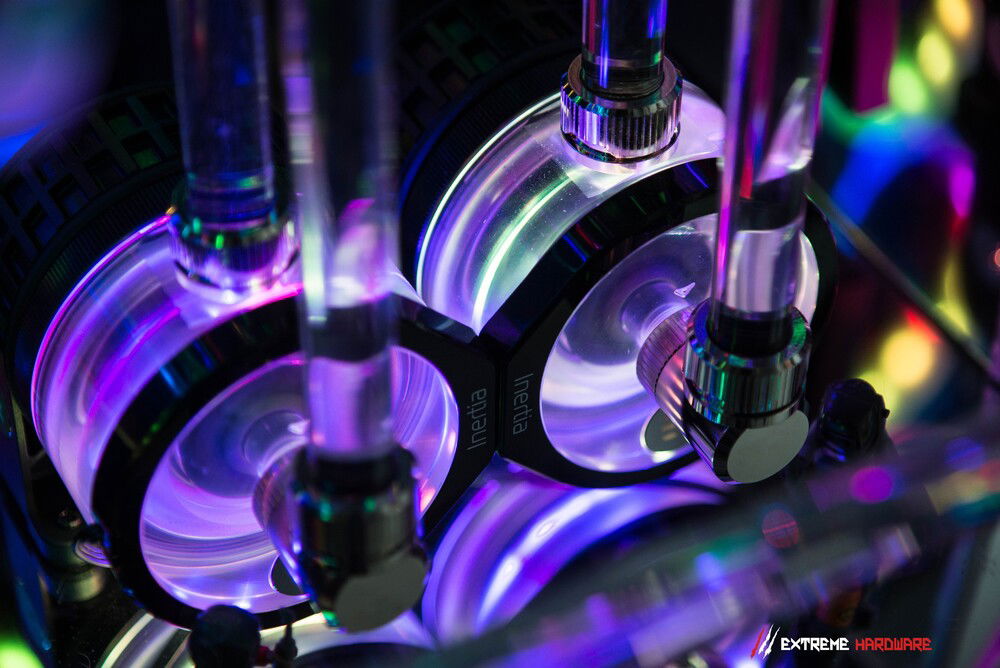

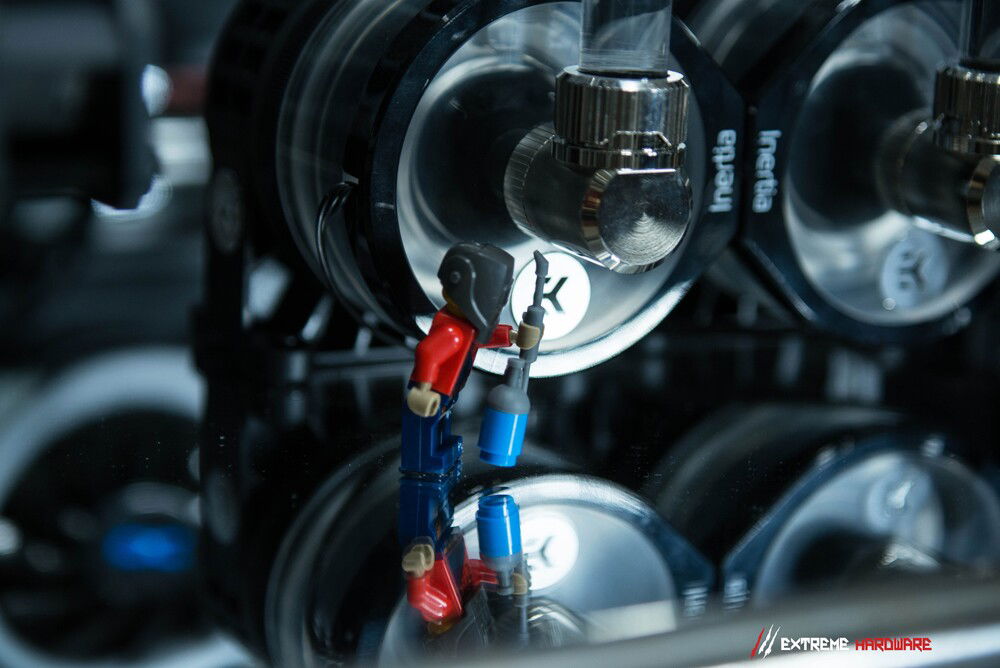

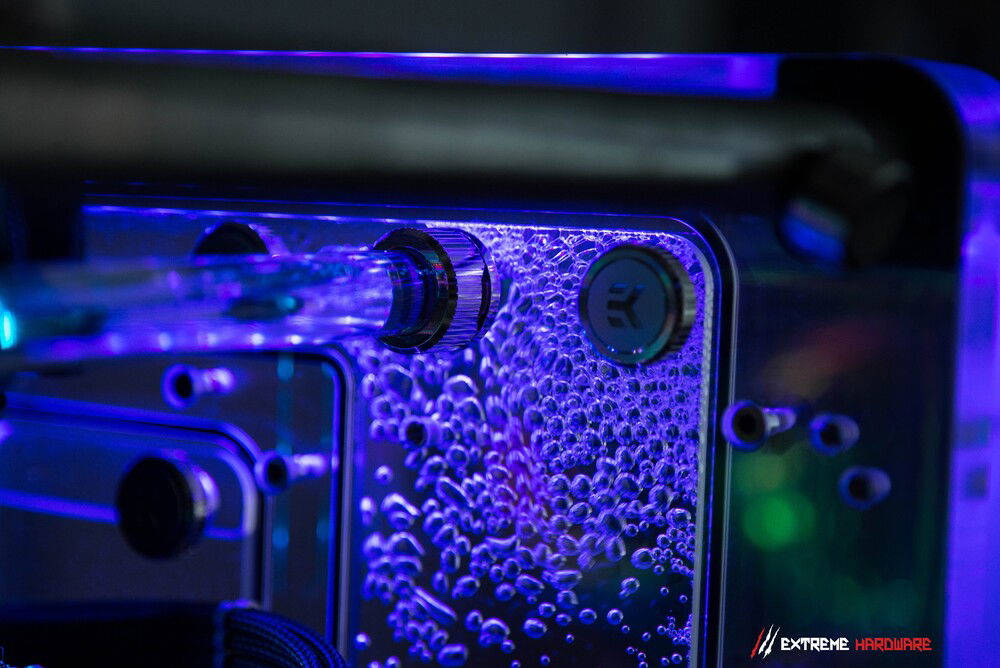

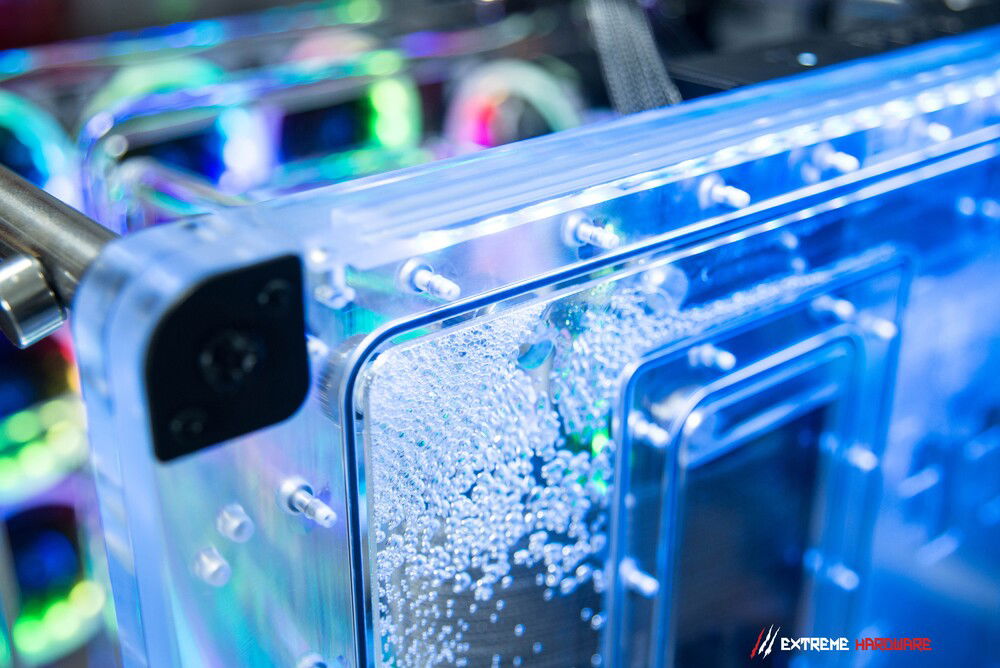

In the project, we used as many as three D5 pumps working synchronously, because the massive distroplate devastatingly limited the flow in the system. Properly located pumps allowed to a great extent to compensate for flow drops and to drive the liquid stream efficiently so that the config would work as quietly, efficiently and as cool as possible.

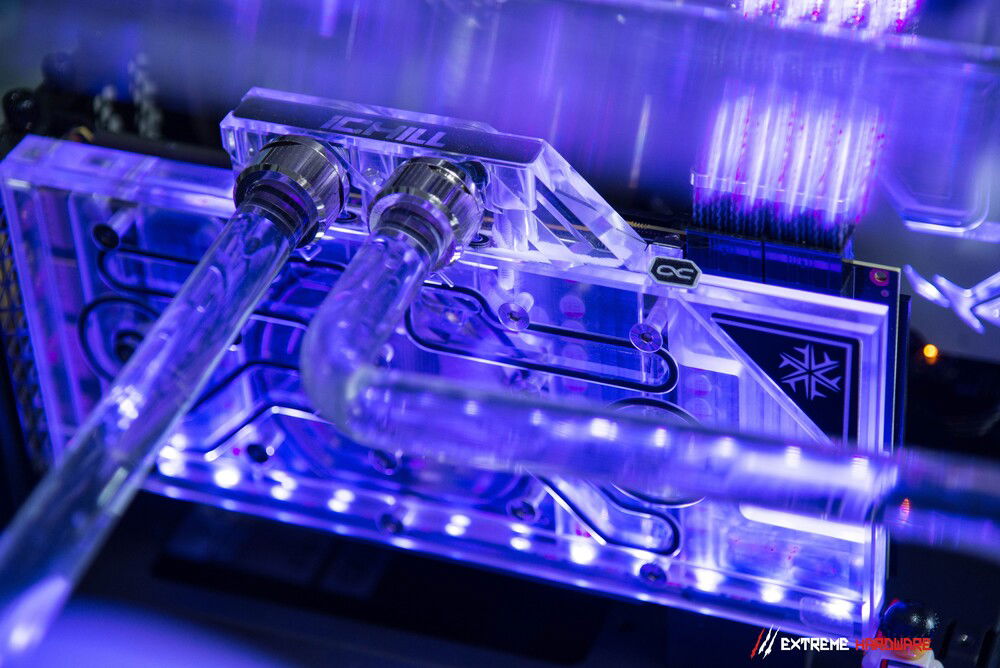

The RTX 3090 FROSTBITE was also an element that was to be included in this project because this model was extremely liked by the enthusiast for whom the machine was created. The card, although with a low PT for a GA102-300 PT (375W) chip, positively surprises and allows for comfortable use of as many as three 65-inch 4K panels.

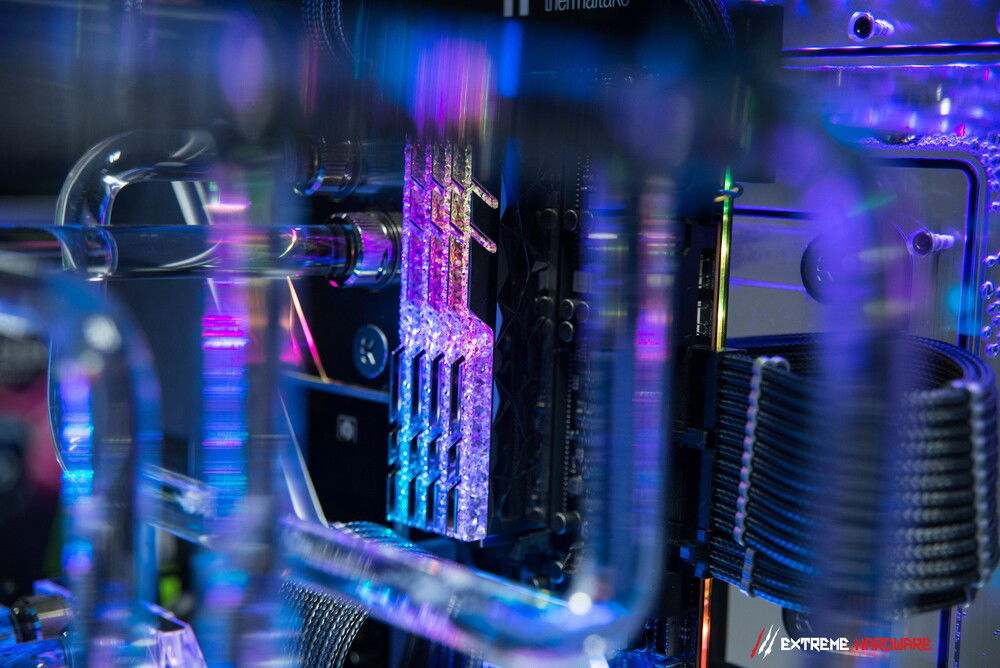

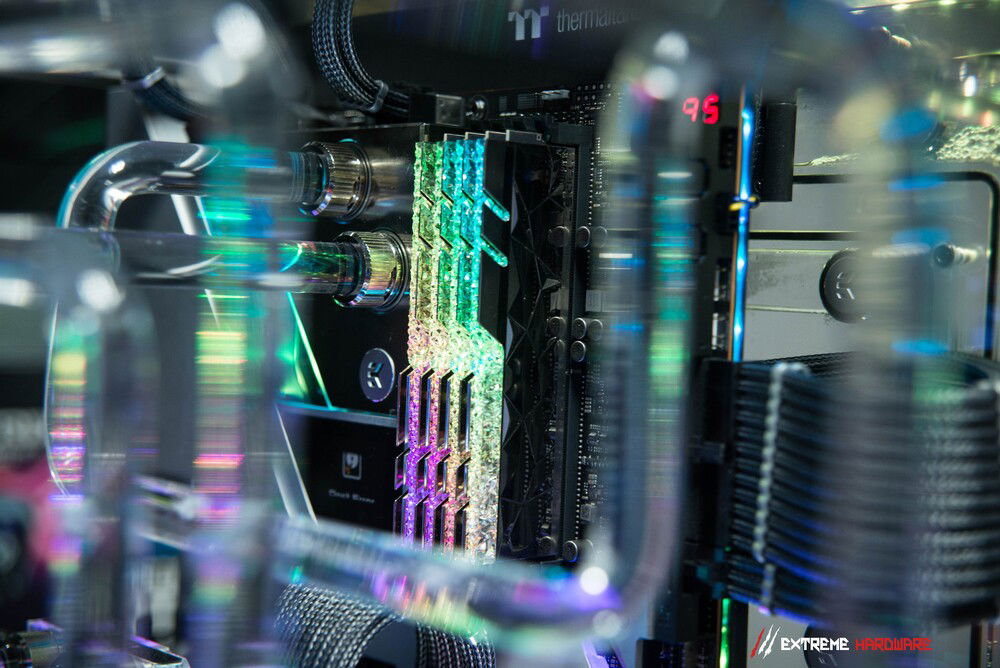

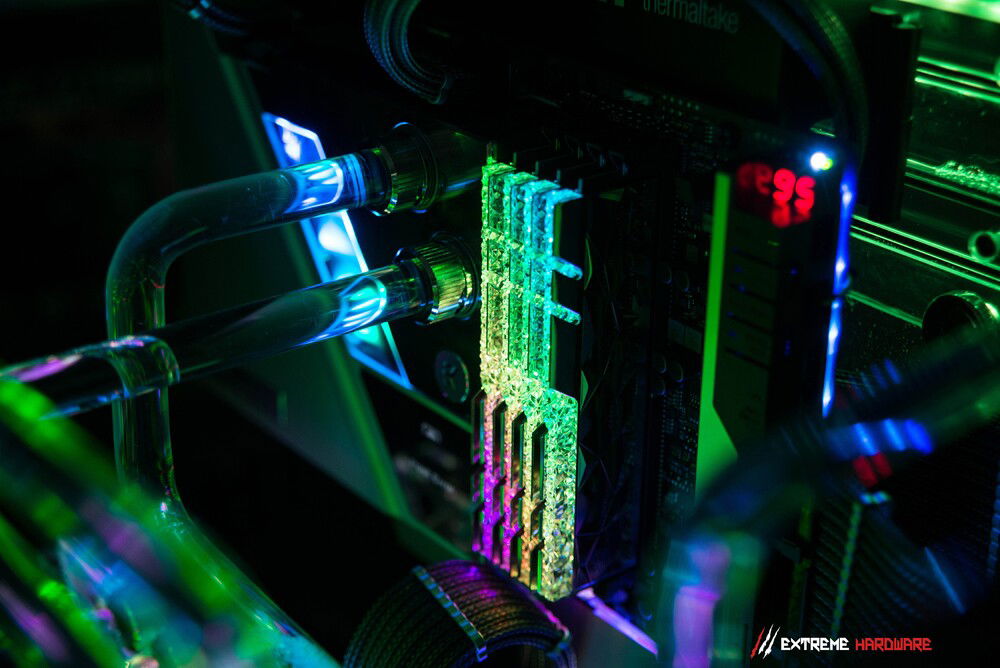

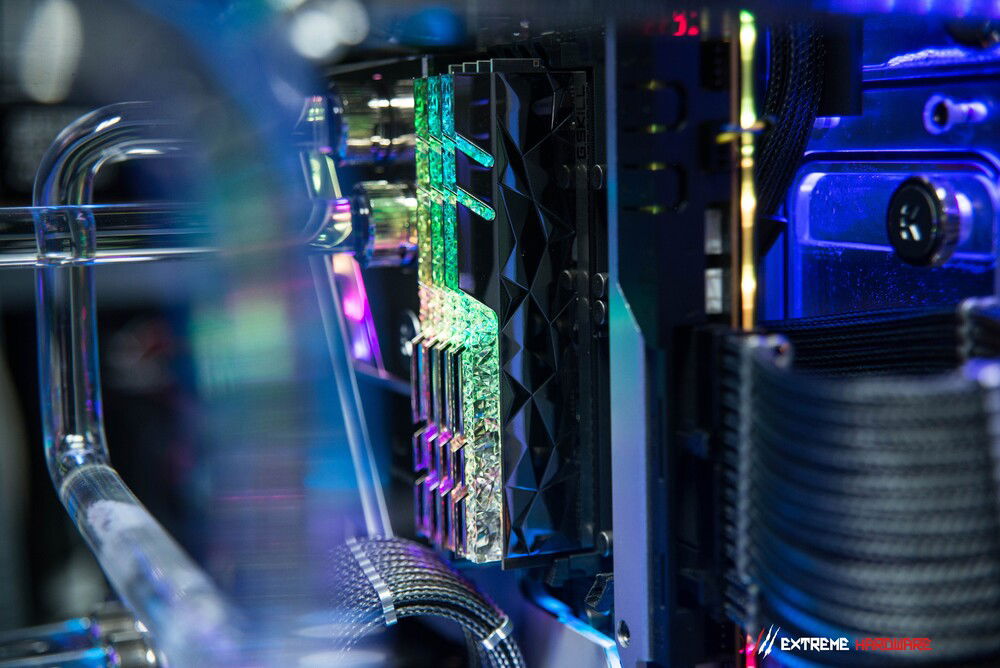

The meticulously tuned i9-11900K, combined with high-speed memories, which have naturally also been properly tuned, ensure very high performance, including 1% low, responsiveness and perform well in any task they are faced with.
The stable operation of the configuration is ensured by a proven design from the Corsair stable, i.e. the HX 1200 model.

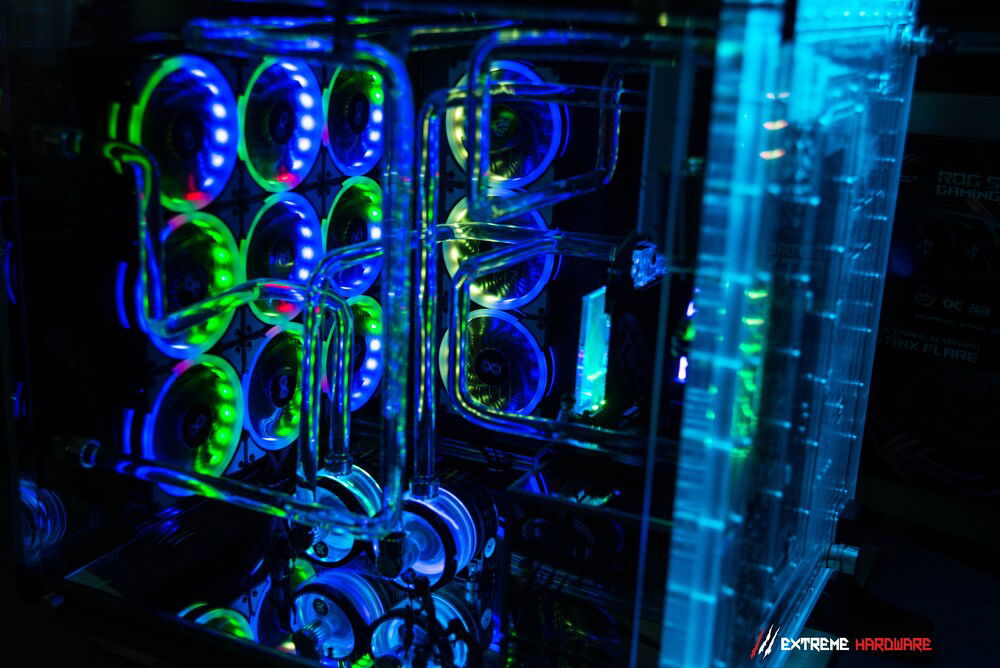

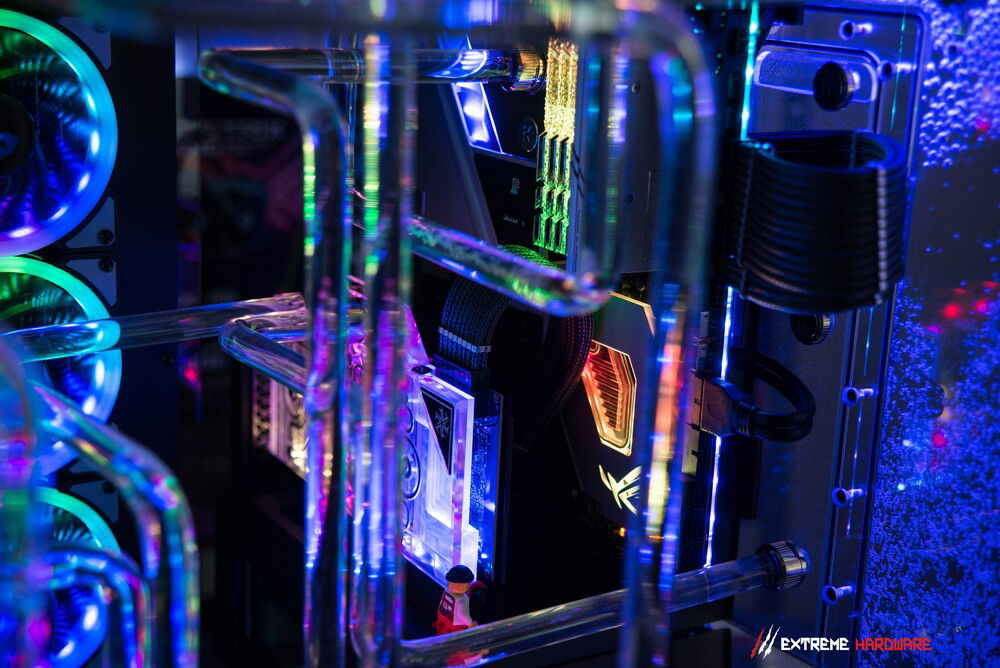

The uniqueness of the design is emphasized by the versatile mirrors used in combination with lighting and a colorless liquid moving through the system, enhancing the visual experience and exposing light reflections.

It is very possible that there will also be another version of "HYDRO MADNESS", even more powerful and advanced, based on the next Glacial album under Meteor Lake, as long as such an album appears naturally, which is very likely, however. The design will be characterized by an even more powerful cooling system, dimensions and will be improved in every possible way.

EH "HYDRO MADNESS" spec :

i9-11900K 5.2 GHz + 4.6 uncore (SP 85 + delid)
Z590 MAXIMUS XIII EXTREME GLACIAL
4x8 G.Skill Trident Z Royale Elite Silver bin 4000 CL15.16.16 @
3733 Mhz CL15.15.15.30 T2 Gear 1 tRFC 300 + 2nd/3rd
Inno3D RTX 3090 FROSBITE + 80/+600
2x Samsung 980 PRO 1 TB
Corsair HX 1200

Custom LC :

Thermaltake DistroCase 350P, highly modiffed
Alphacool NexXxoS UT45 Full Copper 1080mm Nova
Alphacool NexXxoS XT45 Full Copper 400mm
Custom frames for both radiators
12x Alphacool Eiszyklon Aurora LUX
2x EK D5 Inertia Plexi
1x EK D5 G3
Fittings, plugs etc. EK Torque
5L DP Ultra
Color(s): Aluminum Black Blue Green Red White
RGB Lighting? Yes
Theme: Technology
Cooling: Custom Liquid Cooling
Size: E-ATX
Type: General Build

Hardware

CPU
$ 382.99
Intel - Core i9-11900K
Socket: LGA 1200
Cores: 8
Integrated Graphics: Yes
Motherboard
$ 1,085.00
ASUS - ROG Maximus XIII Extreme Glacial (WiFi 6E)
Chipset: Z590
CPU Socket: LGA 1200
Size: ATX
Memory
$ 700.00
G.Skill - Trident Z Royal Elite (4000MHz) (2x)
Type: DDR4
Capacity: 32 GB
Graphics
$ 1,699.00
INNO3D - GeForce iChill Frostbite
Chip Manufacturer: NVIDIA
Chip: RTX 3090
Interface: PCIe x16
Storage
$ 239.98
Samsung - 980 Pro (2x)
Form Factor: M.2
Interface: M.2 (M)
Capacity: 1 TB
PSU
$ 294.99
Corsair - HX1200 Platinum
Wattage: 1200
Form Factor: ATX
Efficiency: 80+ Platinum
Case
$ 880.00
Thermaltake - Distrocase 350P
Type: Mid-Tower
Side Panel: Tempered Glass
RGB: Yes
Case Fan
$ 168.00
Cooling
$ 146.70
Cooling
$ 74.30
Cooling
$ 90.00
Cooling
$ 360.00
Cooling
$ 42.50
EKWB - EK-Quantum Torque Drain Valve - Nickel (2x)
Type: Water Cooling
Cooling
$ 1,295.76
EKWB - EK-Quantum Torque HDC 16 (Nickel) (24x)
Type: Fittings
Estimated total value of this build:
$ 7,445.72
