Dark Reflections (Upside-Down Rig)

The Upside-down Rig

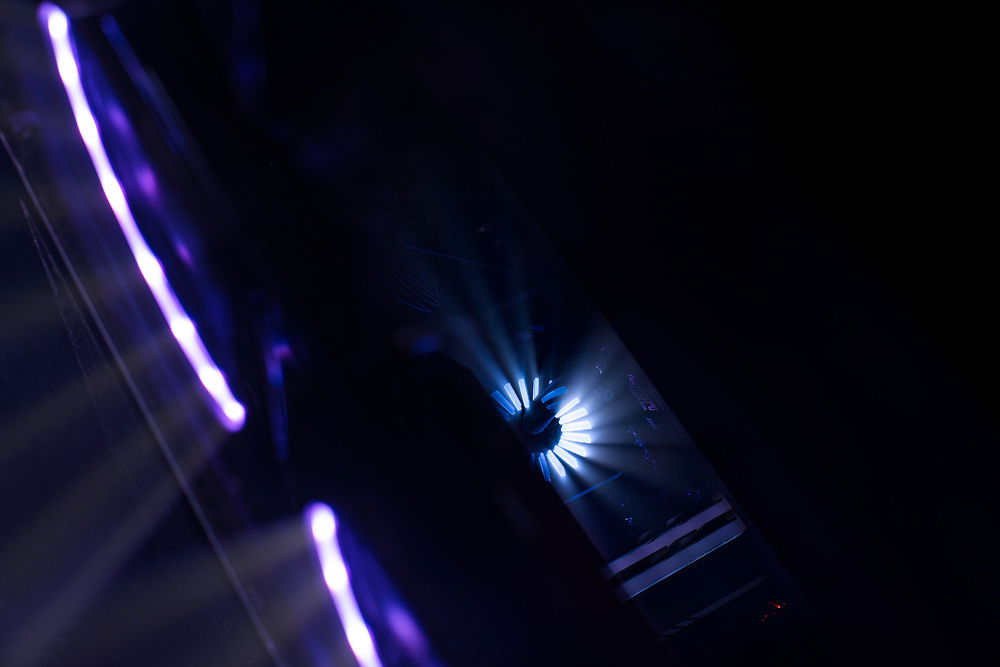

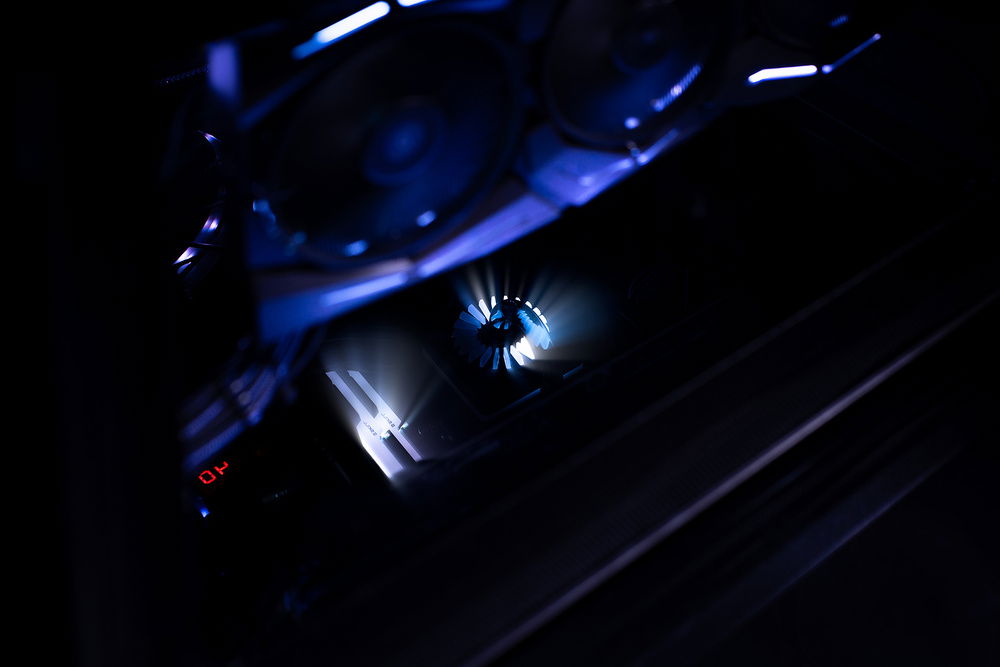

The upside-down/inverted case where the motherboard is hanging from the case’s ceiling. There's nothing on the case's floor but dark black glass which reflects all the components above.

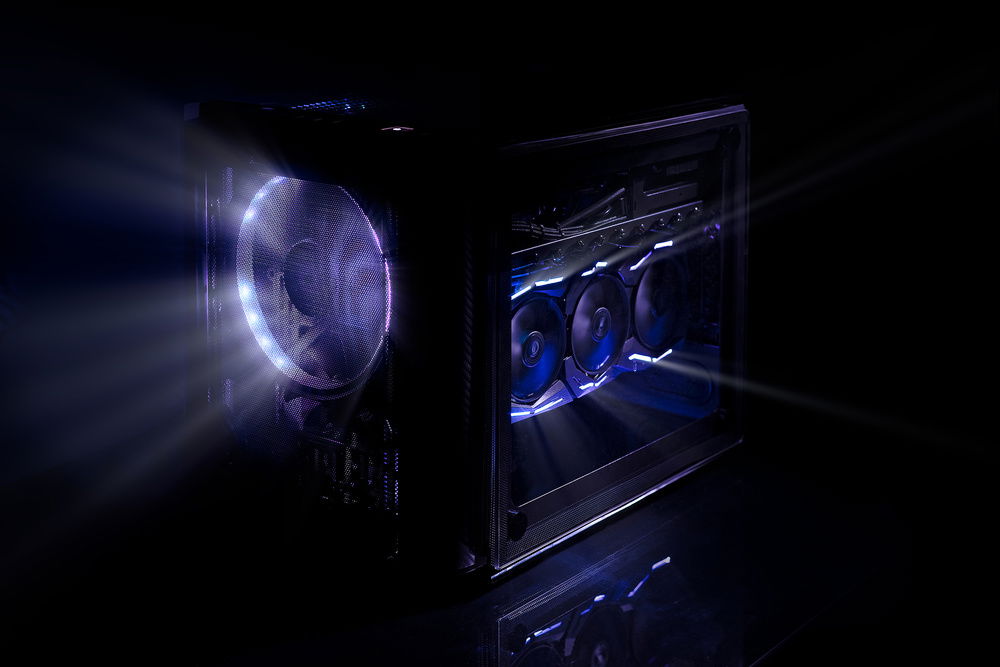

I was inspired by reflections in RTX technology and thought it'd be cool to build a rig that reflected light. It was quite a challenge to fit all the listed components in while maintaining clean aesthetics. The cables, radiator and power supply are all in the top chamber. All the components hang from the motherboard upside-down fixed securely by reinforcement to the case.

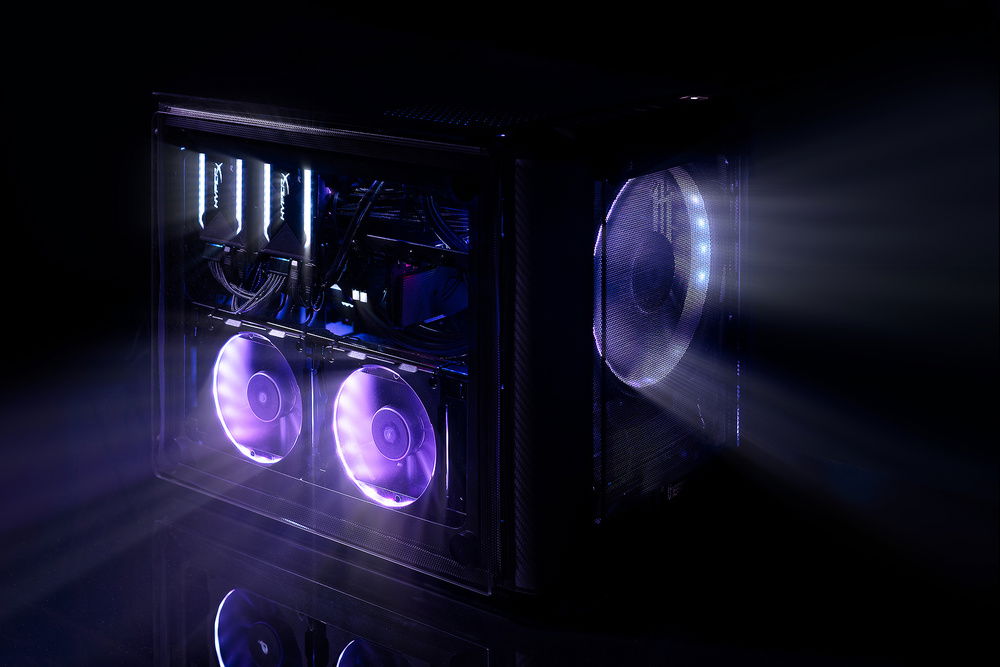

There is plenty of airflow with four intake fans and one exhaust plus the 2x120mm GamerStorm radiator/fans combo. I currently have the 9900K overclocked to 5.2GHZ with sustained max temps at max 90deg with ambient of 26deg Celsius.

There's also tons of storage with seven drives! Plus still another x4 PCIe slot to use.

Overall very happy with the outcome, hope you like it too.


Color(s): Black Blue Gray
RGB Lighting? Yes
Cooling: AIO Cooling
Theme: Color
Size: Micro-ATX

Contests

This build participated in 2 contests.

Rank Contest Date
#129 The builds.gg Stock Cooling Showdown - AIO Cooling Division ended
#991 The builds.gg 10K Challenge ended

Hardware

Category Brand / Part Info
CPU Intel - Core i9-9900K
Cores: 8
Socket: 1151
Motherboard ASUS - ROG MAXIMUS XI GENE
Chipset: Z390
Size: Micro-ATX
Memory Support: DDR4
Memory G.Skill - Trident Z Royal
Type: DDR4
Storage Corsair - Force MP510
Type: SSD
Capacity: 960GB
Form Factor: PCIe x4
Storage Intel - Optane 800P
Type: SSD
Capacity: 58 GB
Form Factor: M.2
Storage Intel - Optane 800P
Type: SSD
Capacity: 58 GB
Form Factor: M.2
Storage Intel - Optane 900P
Type: SSD
Capacity: 280 GB
Form Factor: PCIe x4
Storage Kingston - HyperX Fury RGB
Type: SSD
Capacity: 480 GB
Form Factor: 2.5"
Storage Kingston - HyperX Fury RGB
Type: SSD
Capacity: 480 GB
Form Factor: 2.5"
Storage Seagate - BarraCuda Pro
Type: HDD
Capacity: 6TB
Form Factor: 3.5"
Graphics ASUS - ROG Strix
Chip Manufacturer: NVIDIA
Chip: RTX 2080
PSU Corsair - RM750x
Form Factor: ATX
Efficiency: 80+ Gold
Wattage: 750W
Case Thermaltake - Level 20 VT
Type: Mini-Tower
Motherboard Support: MicroATX
Side Panel: Tempered Glass
Case Fans Noctua - NF-A14 PWM chromax.black.swap
Size: 140
Case Fans Noctua - NF-A14 PWM chromax.black.swap
Size: 140
Case Fans Noctua - NF-F12 PWM chromax.black.swap
Size: 120
Case Fans Noctua - NF-F12 PWM chromax.black.swap
Size: 120
Case Fans Thermaltake - Riing Plus 20 RGB Case Fan TT Premium Edition
Size: 200
Cooling DeepCool - Captain 240PRO Addressable RGB
Type: AIO
Size: Radiator size is 11.4"X 4.7"X 1.1" (290X120X27mm)
Compatibilty: AMD TR4/AM4/AM3+/AM3/AM2+/AM2/FM2+/FM2/FM1 and Intel LGA20XX/LGA1366/LGA115X
CableMod CableMod - Sleeved Cables
Type/Sleeve: ModMesh
Color: Carbon
Mode: Custom
Accessories Phanteks - Halos Digital RGB Fan Frames
Accessories Phanteks - Halos Digital RGB Fan Frames
