Dark Dragon

Dark Dragon Build

CASE- Lian Li 011Dynamic
MOBO- ASROCK Fatality X99X/3.1
CPU- I7-5820k(OC to 4.0GHZ)
GPU- RTX 3070 FTW3
RAM- 64GB CORSAIR Vengeance LPX DDR4 3000MHZ C15
STORAGE- WD BLACK 500GB NVME
PSU- Thermaltake Toughpower 1200W 80+ Gold Semi Modular
CPU COOLER- MSI MAG CORELIQUID 360R - AIO w/3 120mm 1900RPM fans(intake)
FANS- 6xCooler Master MasterFan MF120R ARGB 120mm(3 intake 3 exhaust)
EXTRAS- Razer Chroma ARGB controller, Red and Black Cable Extensions, 7"in LCD status panel.

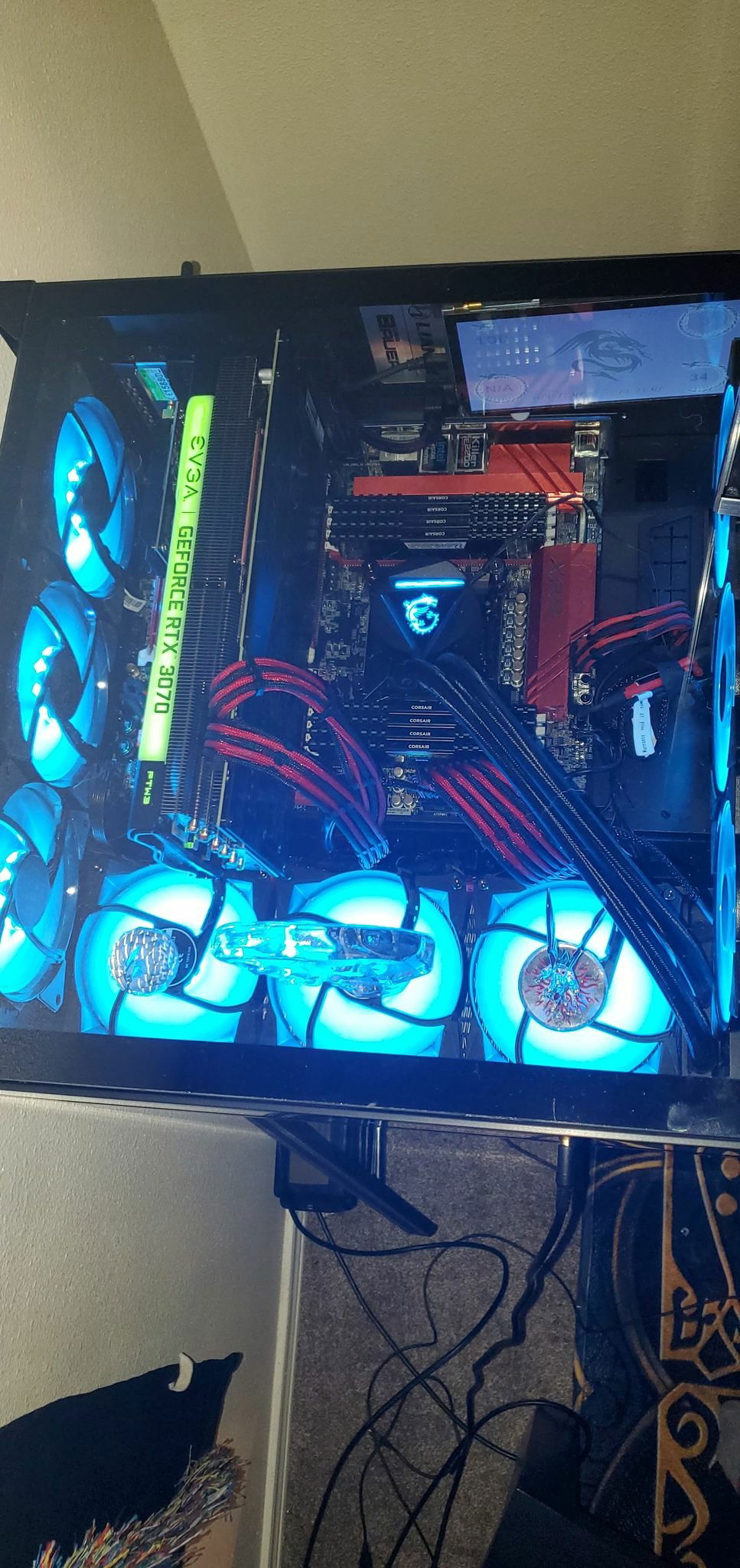

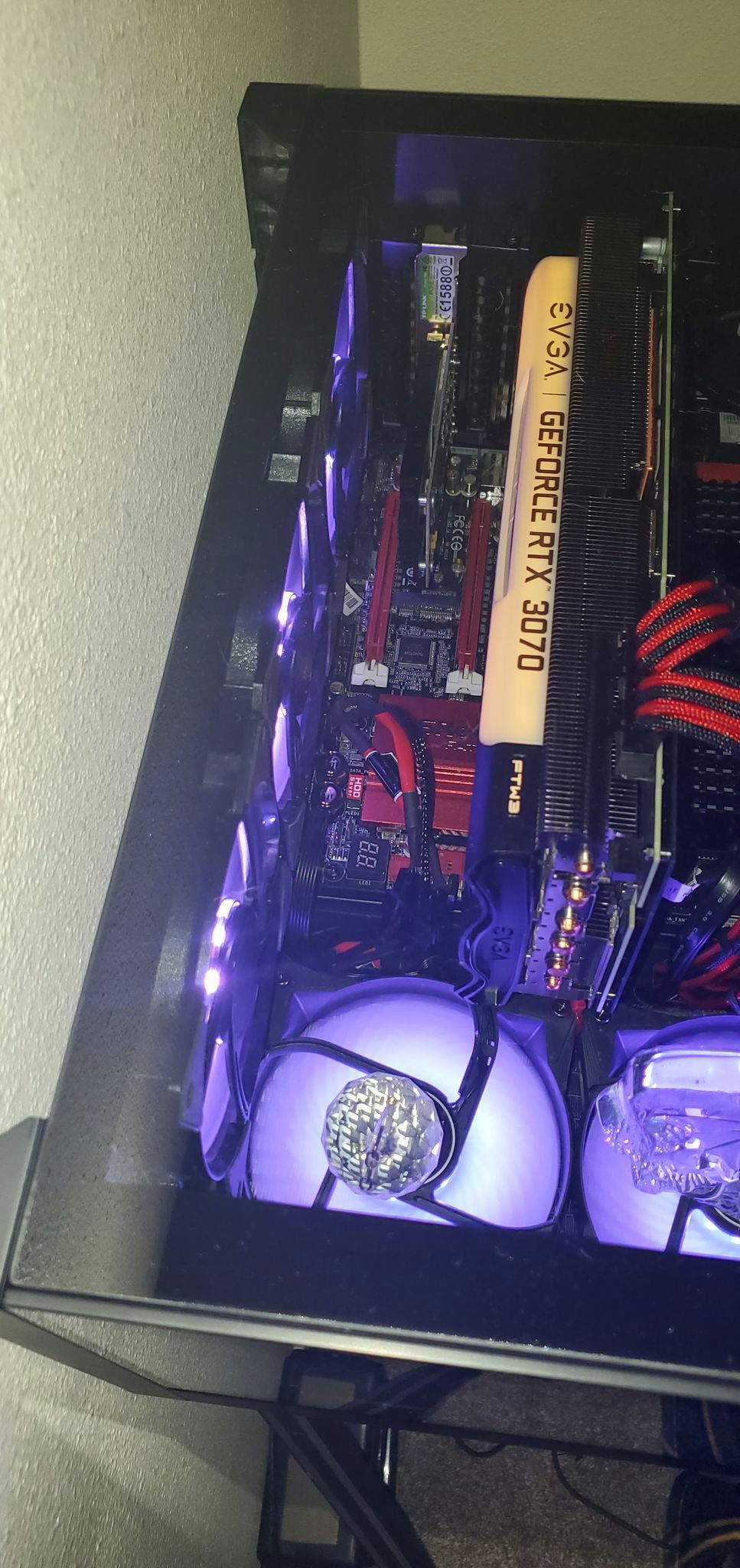

Details- so i wanted to do something a bit more unique then all the other Lian Li 011D builds i saw. i put 4 rubber feet on the metal panel side of the case and layed it horizontally. i chose the AIO specifically because it had the pump build into the radiator. and due to how the case is made the radiator is lower then the head block so this was ideal for my horizontal build of the case. otherwise i would have had to get a big enough radiator to compensate for the high of the head block. i managed to get my hands ona RTX 3070 FTW3 when my reservation came up from EVGA so i was super happy about that. i have the left(was bottom) of the case as the intake blowing on the GPU directly. which the GPU is triple slotted and triple fan. the 3 fans on the radiator are intake sucking cooler air from the bottom which is why i needed the rubber feet. which is keeping the radiator nice and chilly. and i have the right side(was top) of the case as exhaust. i have the fans segmented into 3 seperate ARGB splitters so i can change the color of three fans as a time. the head blocks ARG is tied into the 3 fans on it. i am using a Razer Chroma ARGB controller. i do have a 2tb 3.5" drive and a 256gb SSD in the system but i will be changing those out at a later date and they arent visible in the build so i didnt feel the need to mention them. the motherboard and CPU are a bit dated now(5-6 years now) but they are still chugging along like a champ. my CPU is OC to 4.0ghz right now.(can OC to 4.4 but dont need to) the GPU is OC by 1300mhz on memory and 140 on GPU. she stays a cool 54C pretty steadily. so she is blowing out cool air even.
Color(s): Black Red
RGB Lighting? Yes
Theme: Fantasy
Cooling: AIO Cooling
Size: ATX
Type: General Build

Hardware

CPU
Intel - Core i7 5820K
Socket: LGA 2011-3
Cores: 6
Motherboard
$ 598.86
ASRock - Fatal1ty X99M Killer 3.1
Chipset: X99
CPU Socket: LGA 2011-3
Size: Micro-ATX
Memory
$ 114.99
Corsair - Vengeance LPX (3000MHz) (Black)
Type: DDR4
Capacity: 64 GB
Graphics
EVGA - GeForce XC3
Chip Manufacturer: NVIDIA
Chip: RTX 3070
Interface: PCIe x16
Storage
$ 123.00
Western Digital - WD Black (WDS500G2X0C)
Form Factor: M.2
Interface: M.2 (M)
Capacity: 500 GB
PSU
Thermaltake - PS-TPD-1200MPCGUS-1
Wattage: 1200
Form Factor: ATX
Efficiency: 80+ Gold
Case
Lian Li - 011 Dynamic
Type: Mid-Tower
Side Panel: Tempered Glass
Case Fan
$ 29.99
Cooling
$ 72.89
MSI - MAG CoreLiquid 360R
Type: AIO
Size (WxHxD): 360 mm (3 x 120 mm)
