Best Build

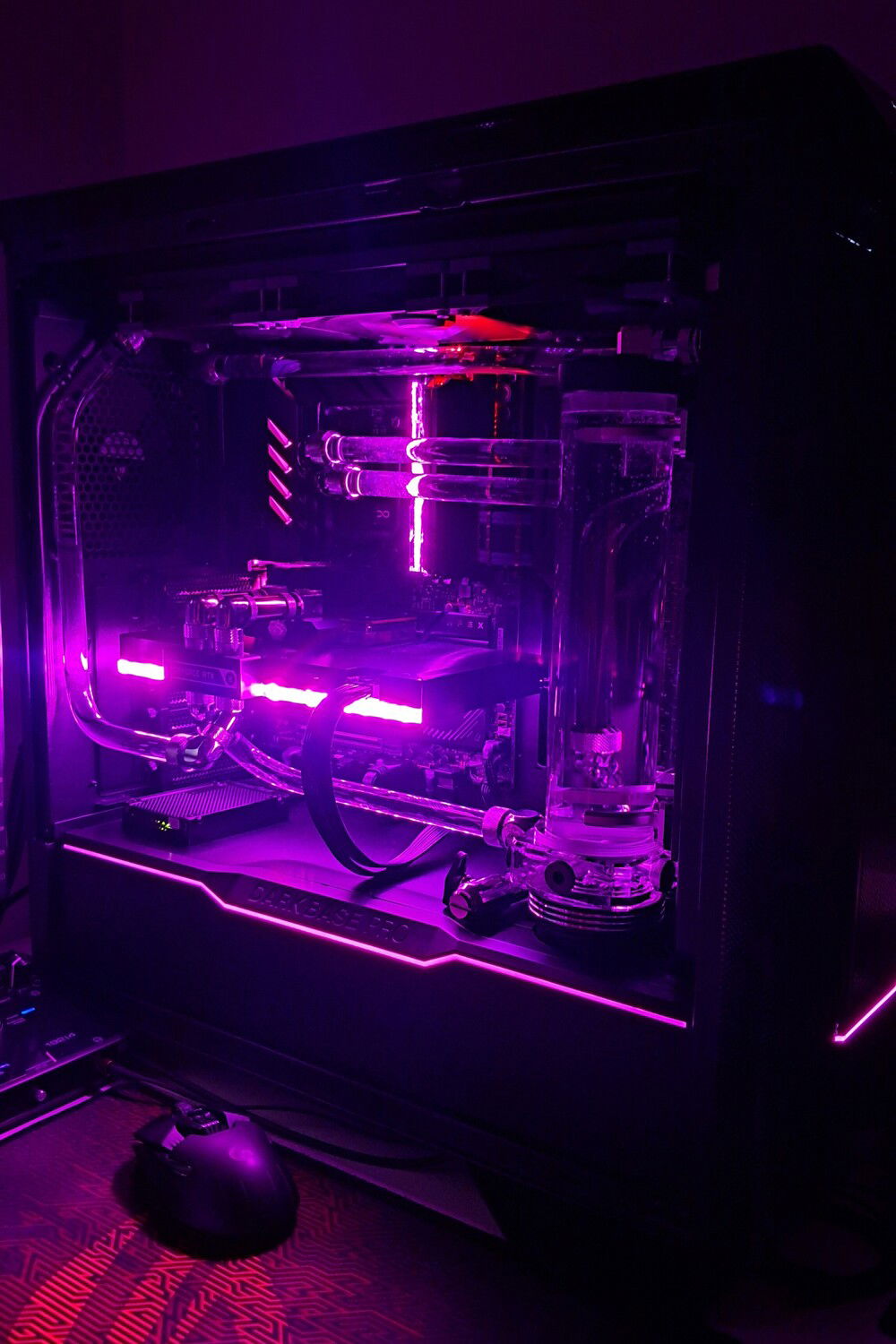

AkarV4

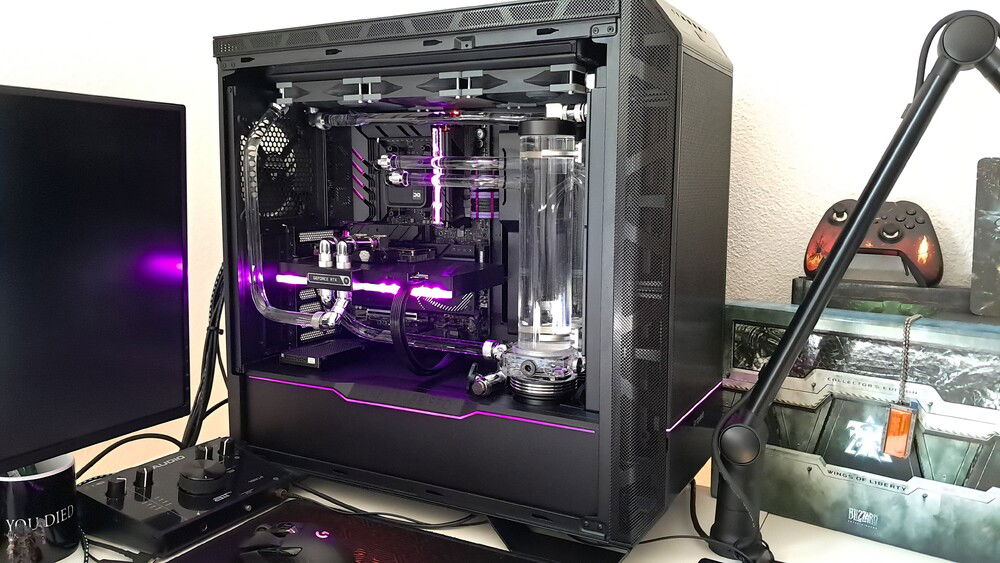

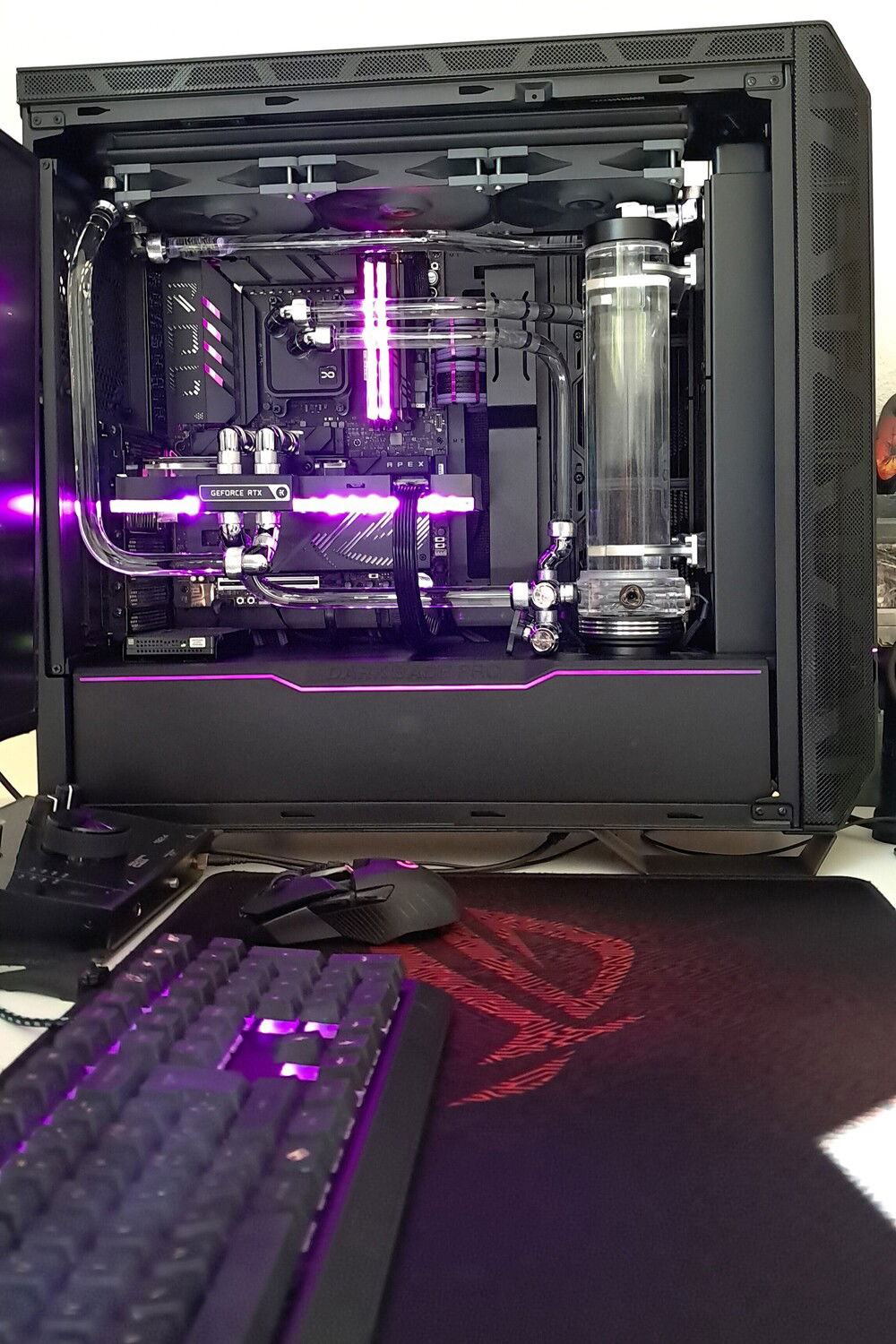

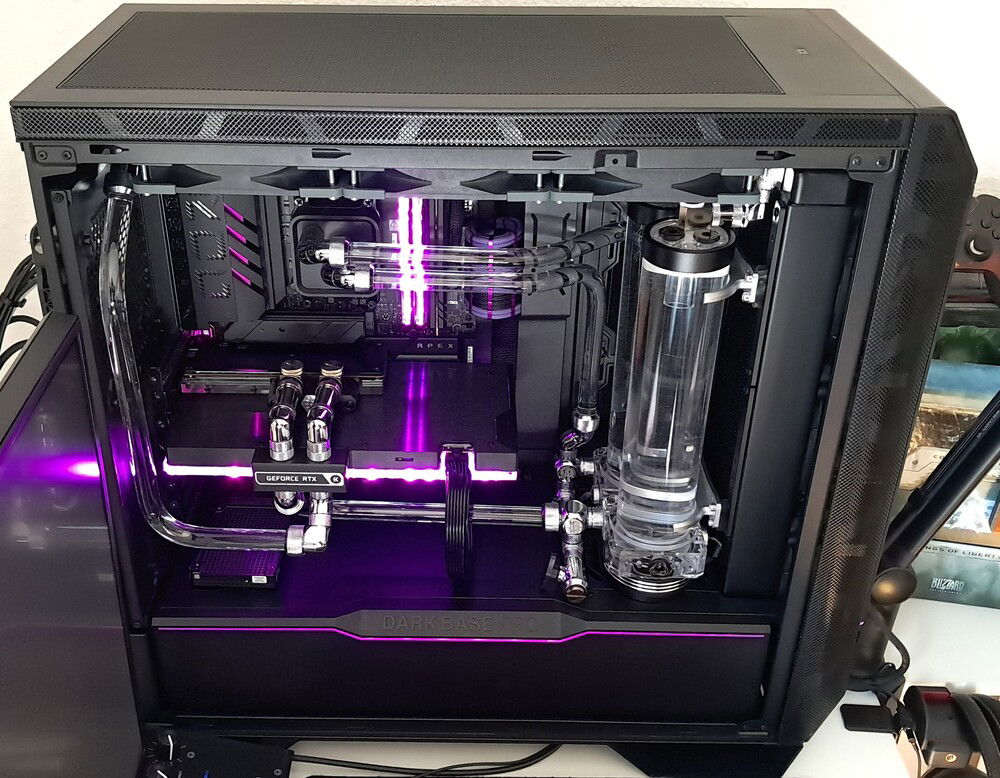

-- PC --
CPU: AMD Ryzen 9 9950x3D
CM: Asus ROG Crosshair X870E Apex
Cooling: custom watercooling
GPU: Asus ROG Astral LC GeForce RTX 5090 OC Edition
RAM: GSkill Trident Z5 Royal Neo (2x32 GB, 6000 MHz, 26-36-36-96)
PSU: LC-Power LC1200P V2.52, 80+ Platine, 1200W

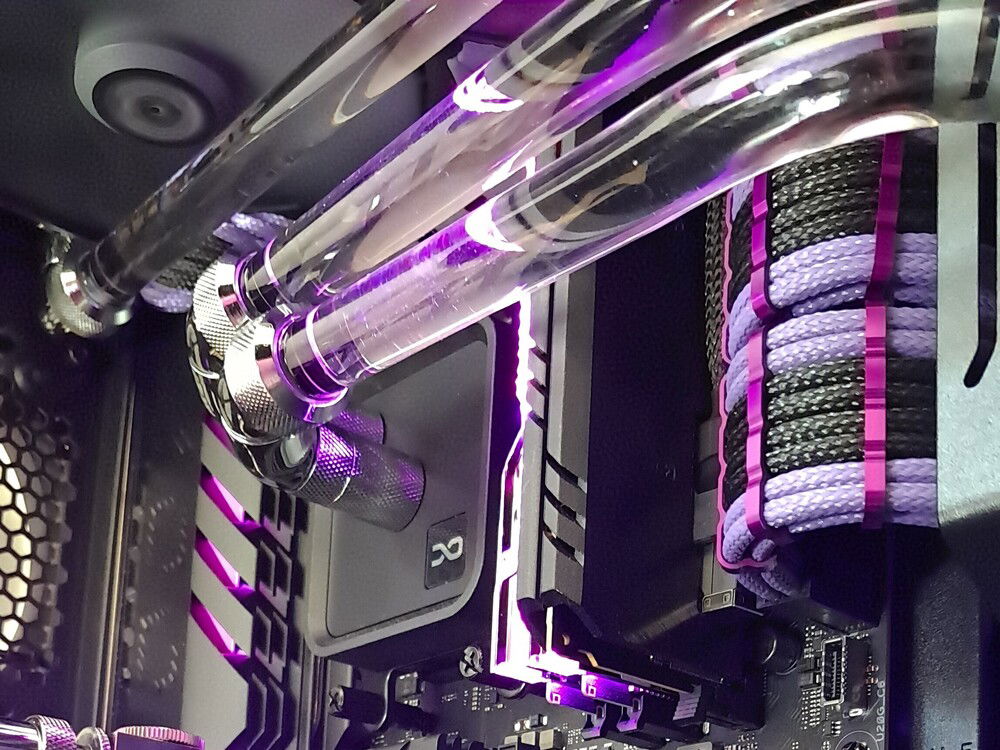

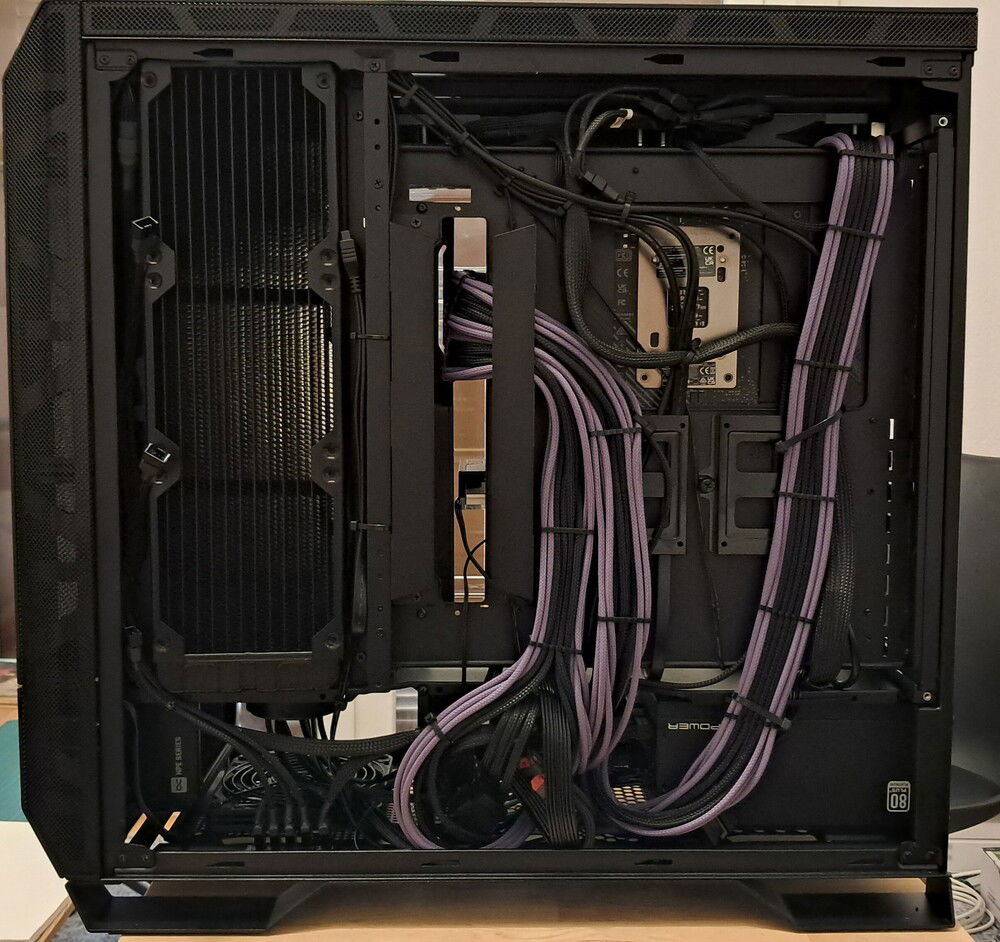

Cables: custom full MDPC-X (Vivid-Violet & Blackest-Black) + Clockwerk Industries Contour Combs 3D Violet

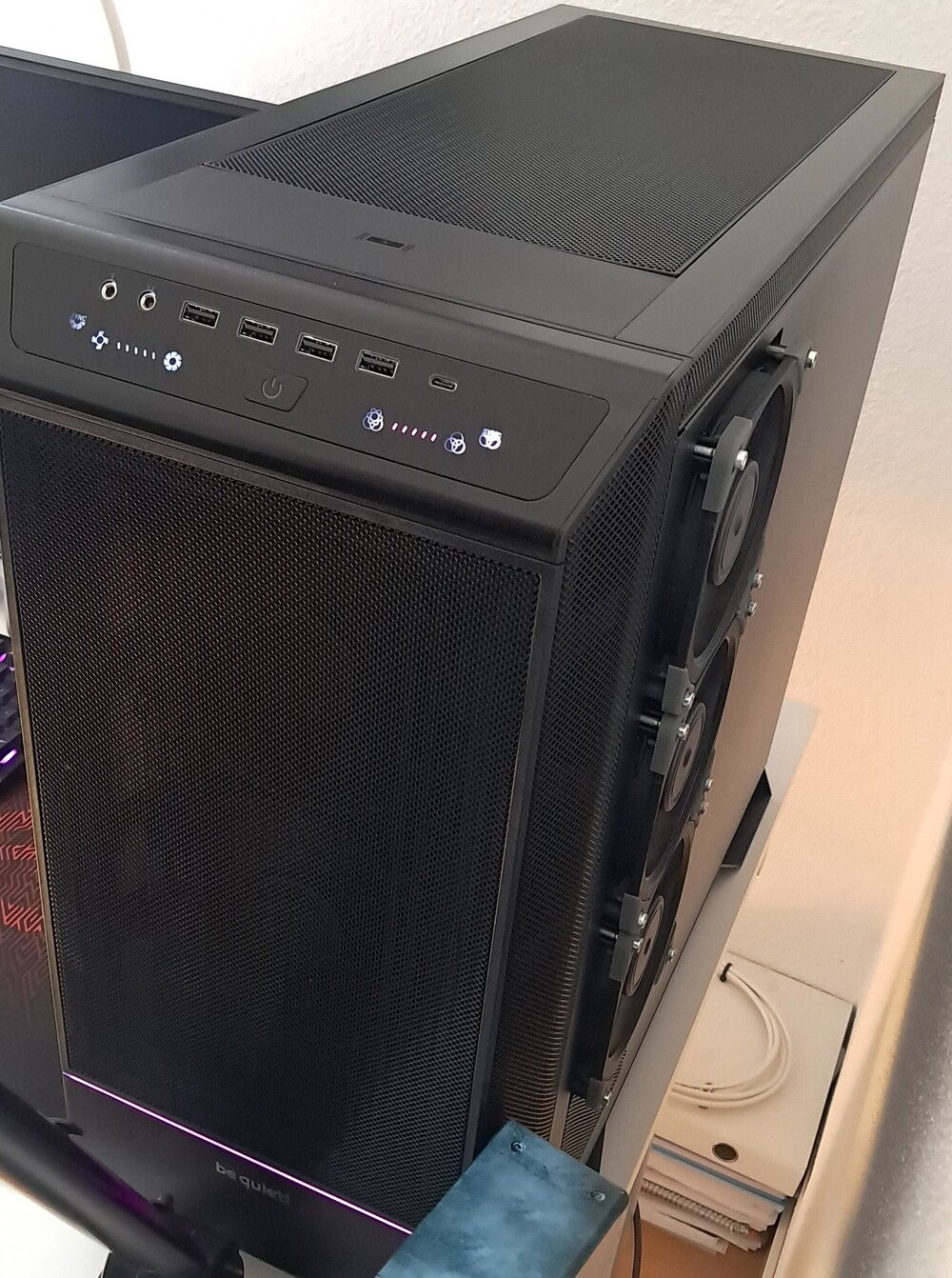

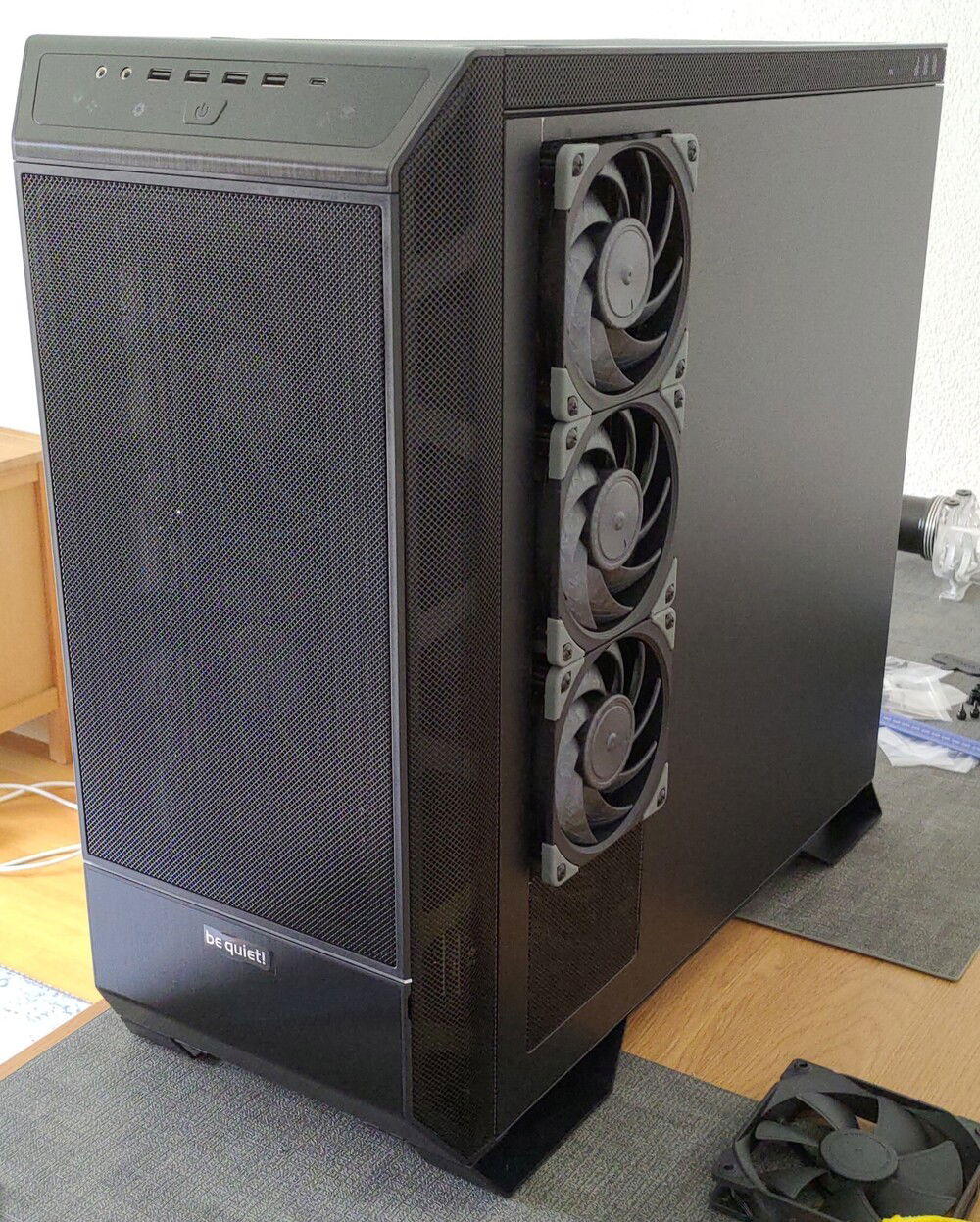

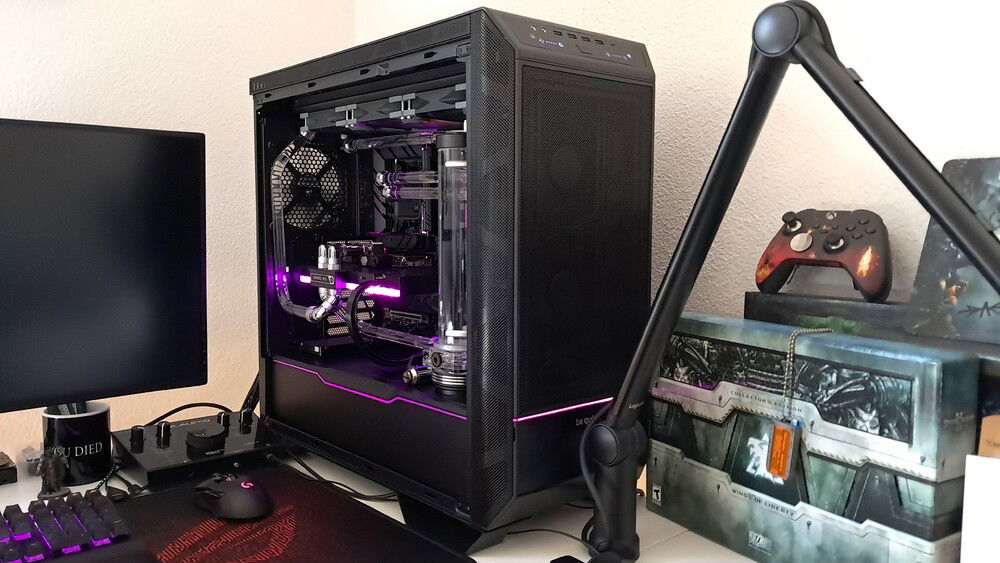

Case: be quiet! Dark Base Pro 901 (with a lots of mods with a Dremel to fit everything)
SSD:

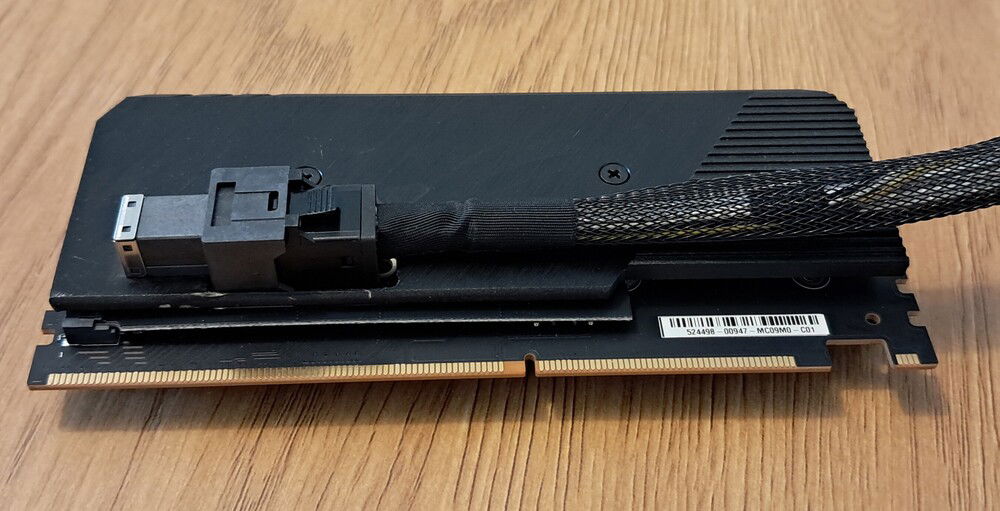

- Intel Optane 900P (NVMe, 3D XPoint, PCIe AIC, 480 GB)
- Intel 660p (NVMe, QLC, M.2, 2 TB)
- WD Ultrastar DC SN650 (NVMe, TLC, U.3, 7.68 TB)
HDD:
- Toshiba MQ01ABB200 (USB, 2 TB)

-- Audio --
Headset: Sennheiser Momentum 2
Mic: Audio-Technica AT2040
Arm: LogiLink AA0127 + AT8458a shock mount
DAC|AMP: M-Audio Air 192|4

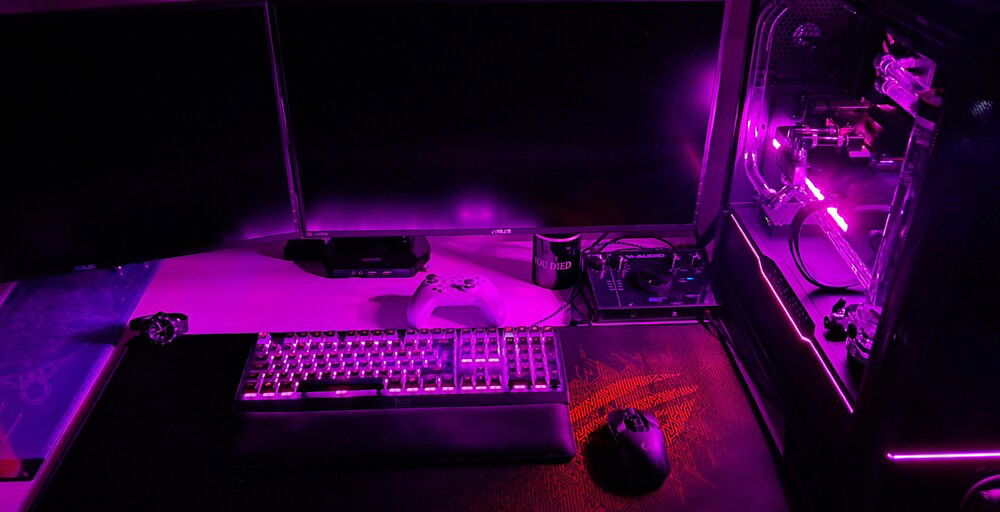

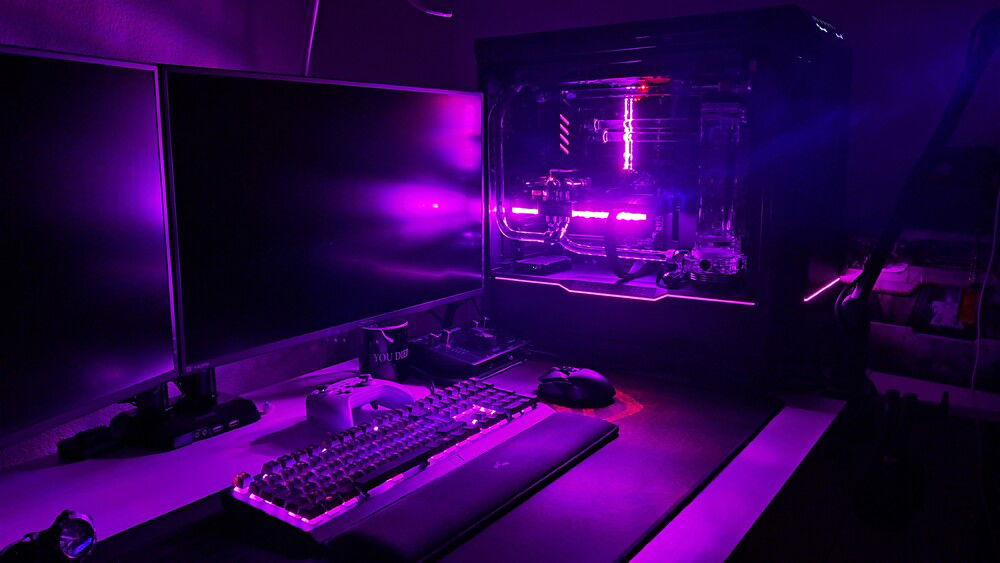

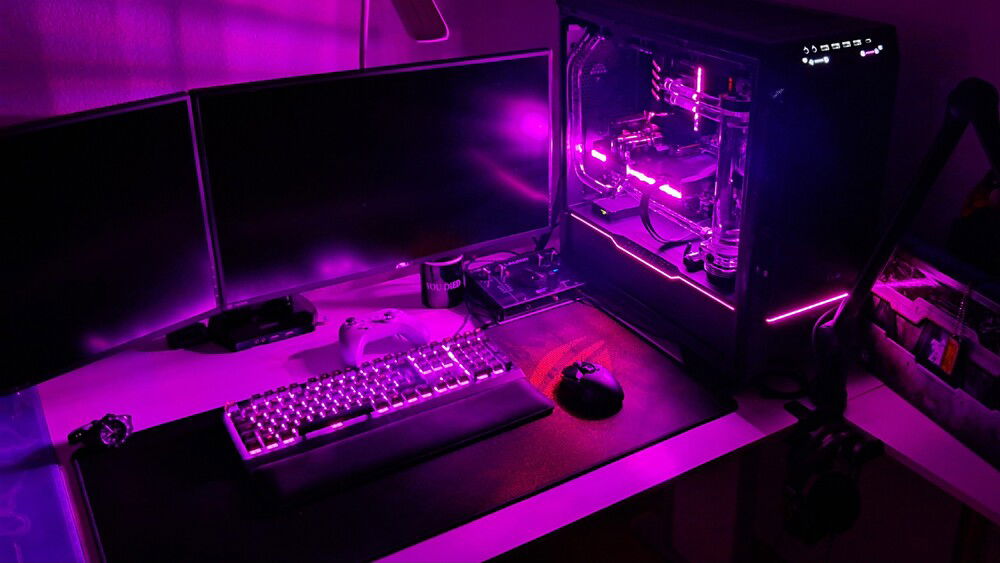

-- Peripherals --
Keyboard: Wooting Two HE + Traitors INF Keycap Set PBT ISO-CH
Mouse: Logitech G900 Chaos Spectrum
Controller: GuliKit KK3 MAX
Mousepad: ASUS ROG Sheath
Chair: HermanMiller Embody
Webcam: Logitech C920 HD Pro
Monitor arm: Duronic DMUSB5X2
Monitors: Asus TUF VG27AQ (27", 1440p, 165Hz, IPS, Gsync, ULMB) x2

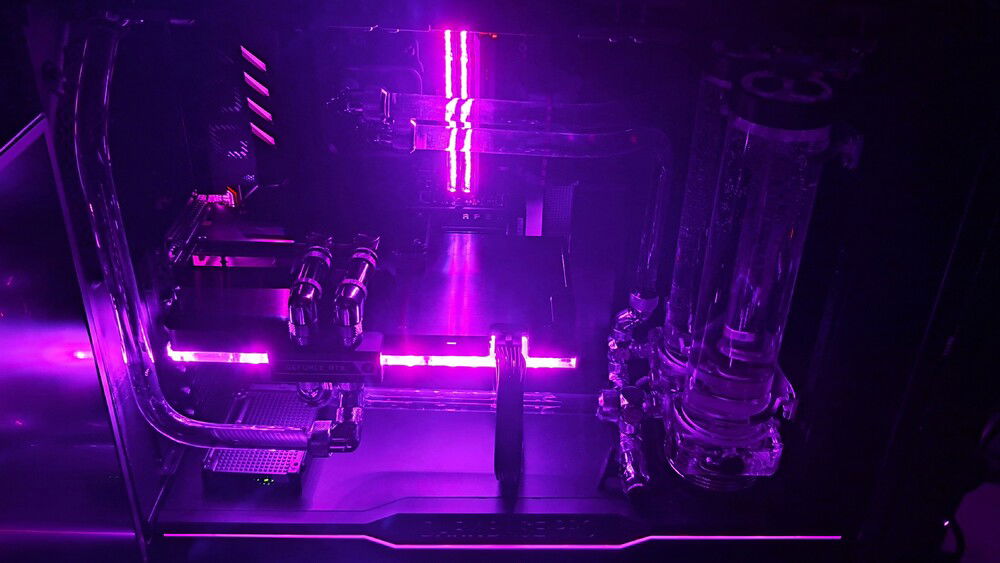

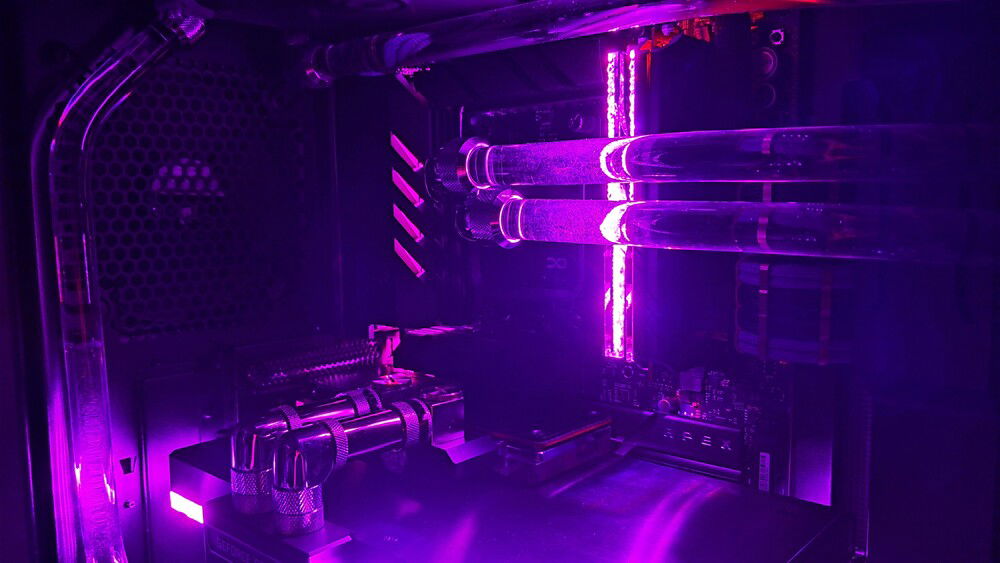

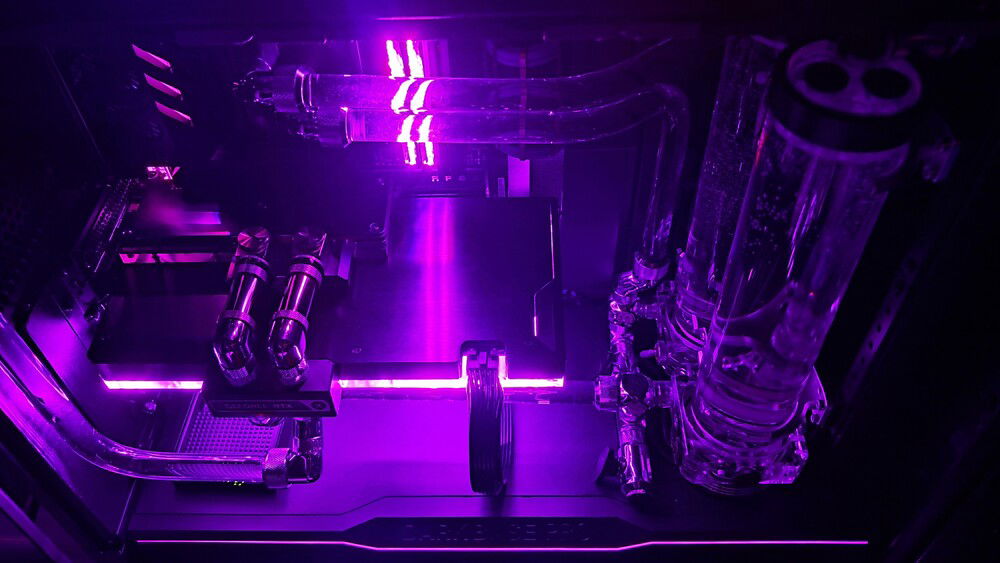

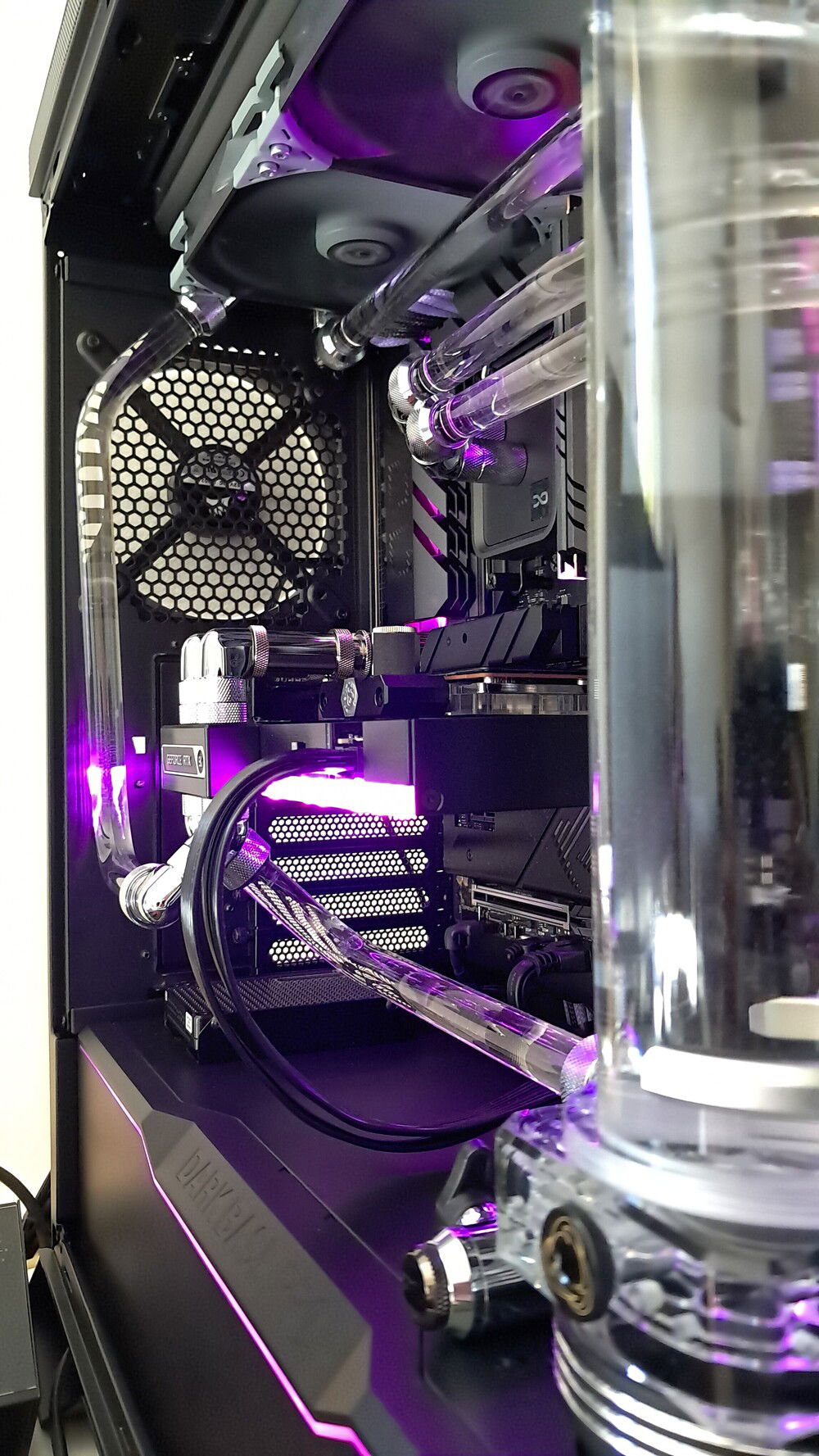

-- Watercooling --

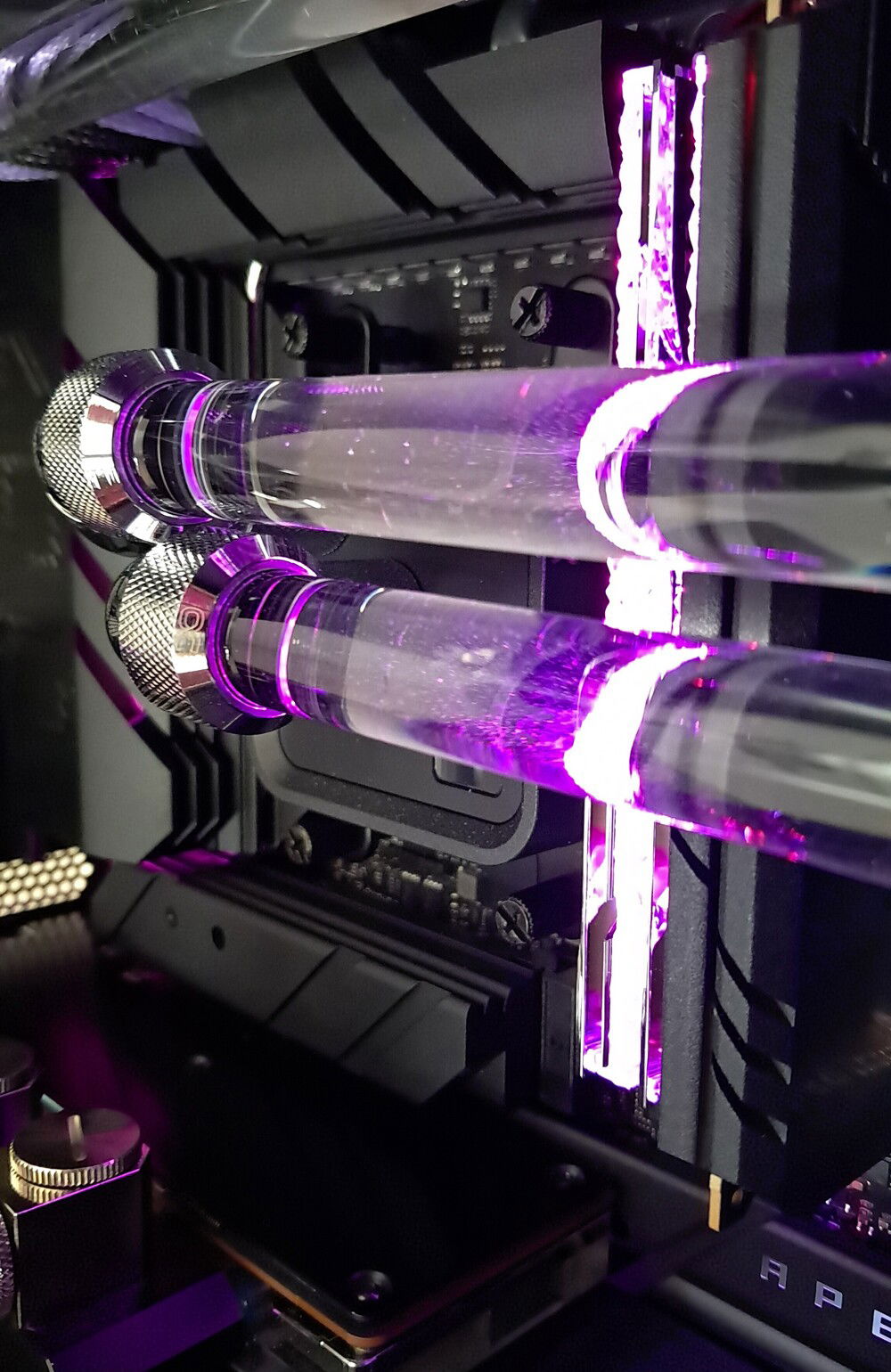

CPU Bloc: Alphacool Core 1 LT

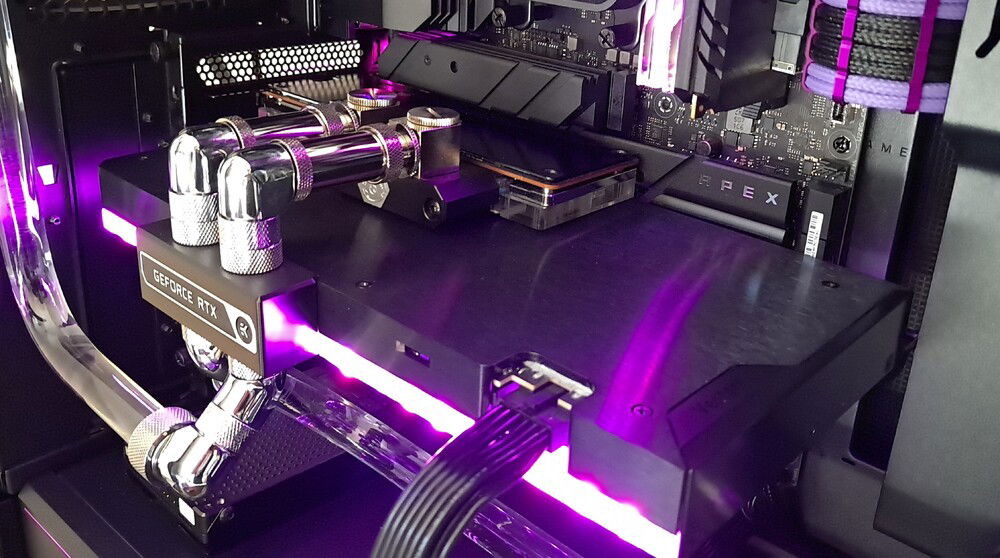

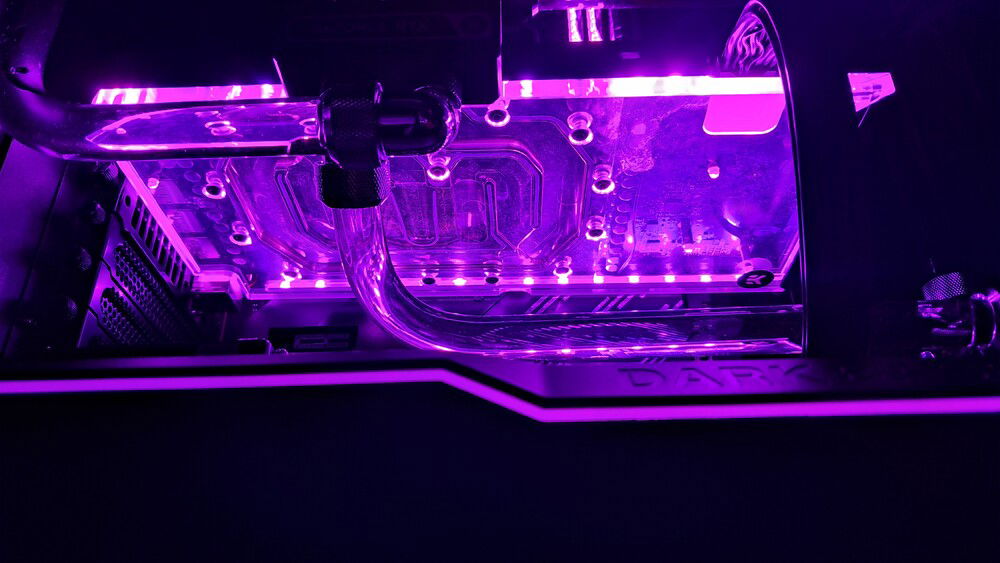

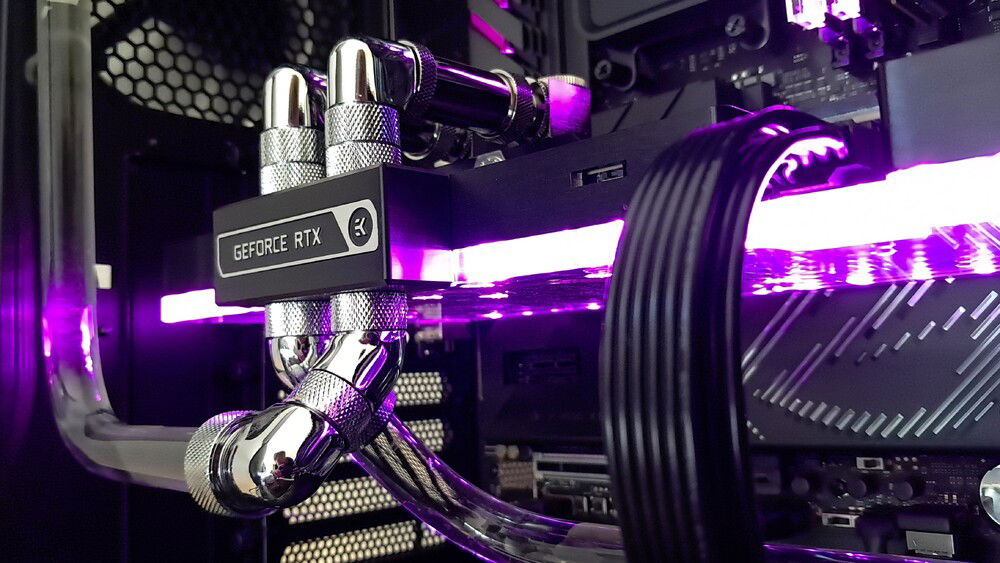

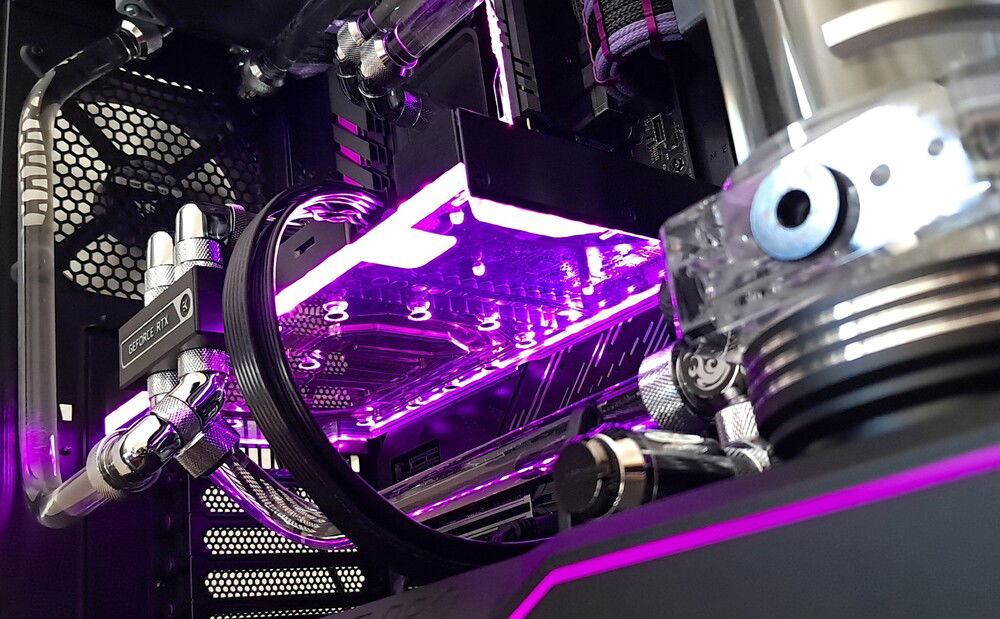

GPU Bloc: EK-Quantum Vector³ Astral RTX 5090 - Plexi
Intel 900p Bloc: Bitspower BP-SSDITL900P
Liquide: EK-CryoFuel Premix

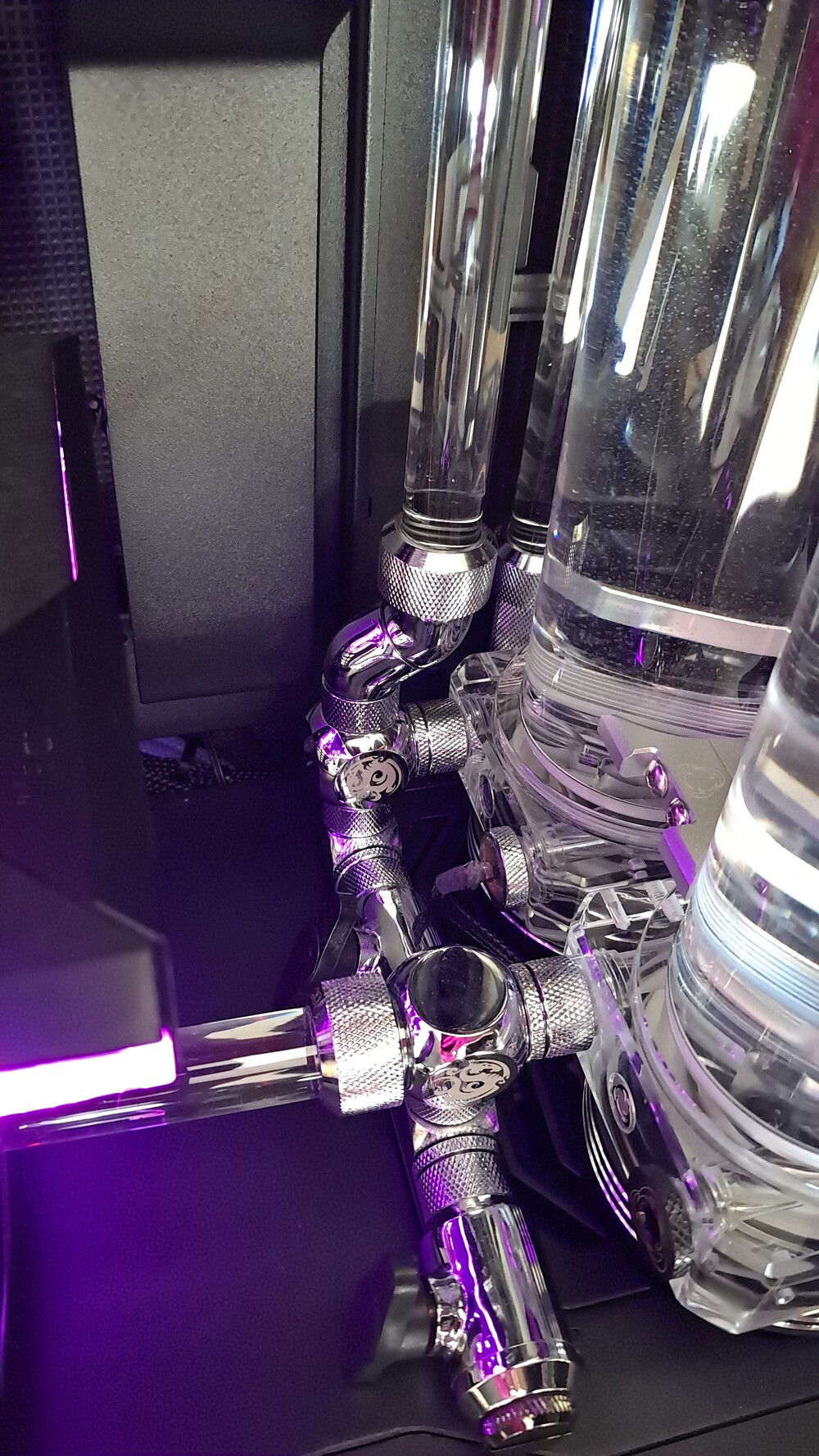

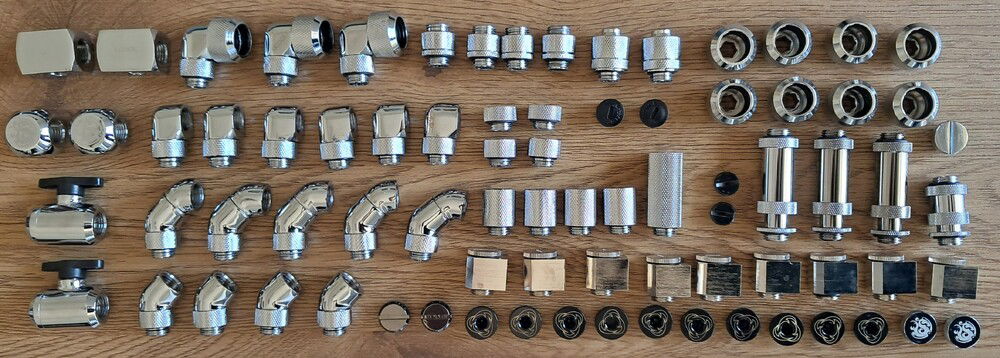

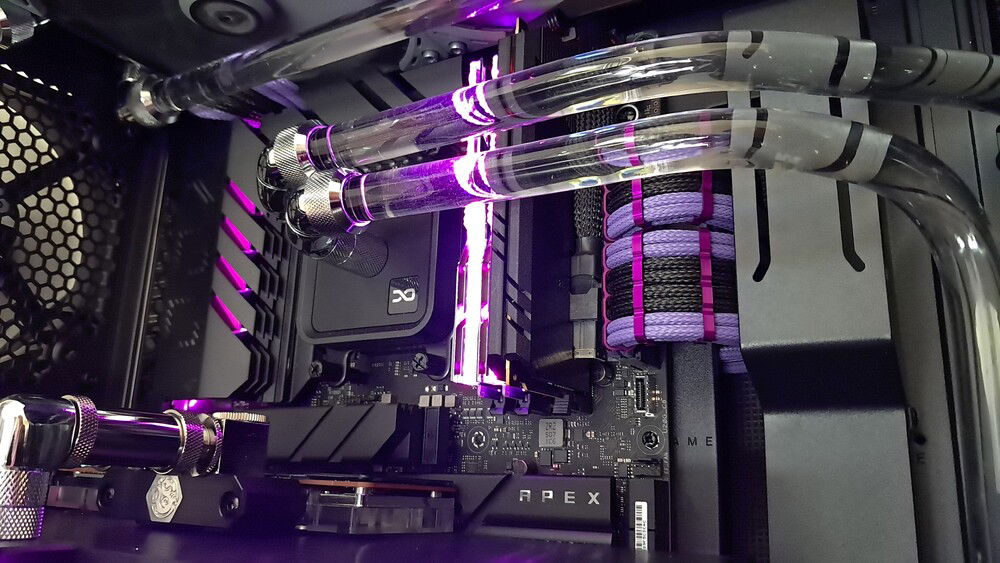

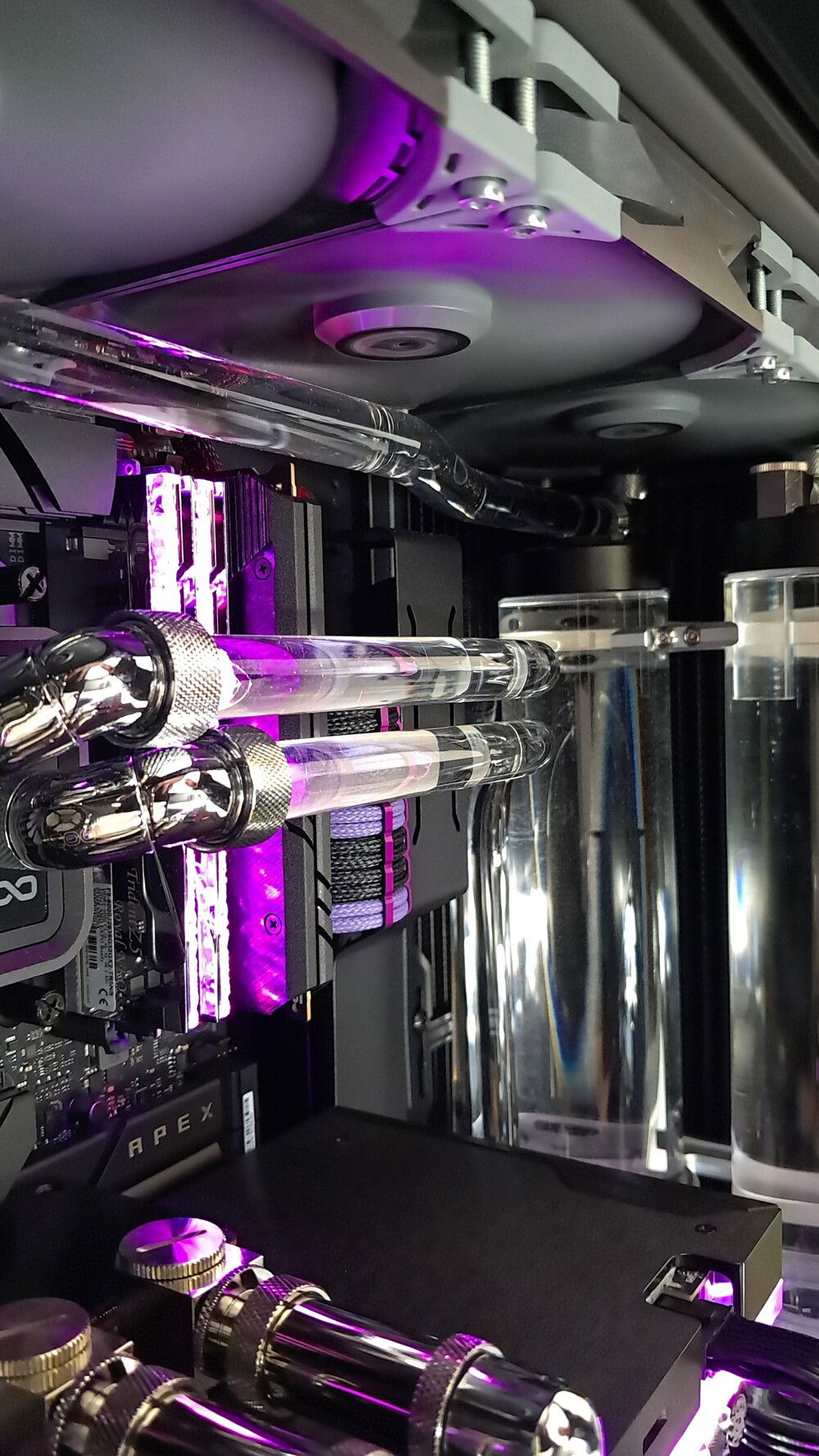

Fittings: "Alphacool Eiszapfen" family + koolance NZL-LXG2 + Bitspower Aquapipe II + 16mm acrylic tubing
Rads:
- Alphacool NexXxoS HPE-45 (420 x 140 x 45) (front)
- Hardware Labs Black Ice Nemesis GTS 420 (420 x 140 x 30) (top)
- Corsair Hydro X Series XR5 (360 x 120 x 30) (back)
Fans:
- be quiet! Silent Wings 4 140mm PWM (front)
- Scythe Kaze Flex 140 PWM (top)
- Noctua NF-A12X25 PWM chromax (back)

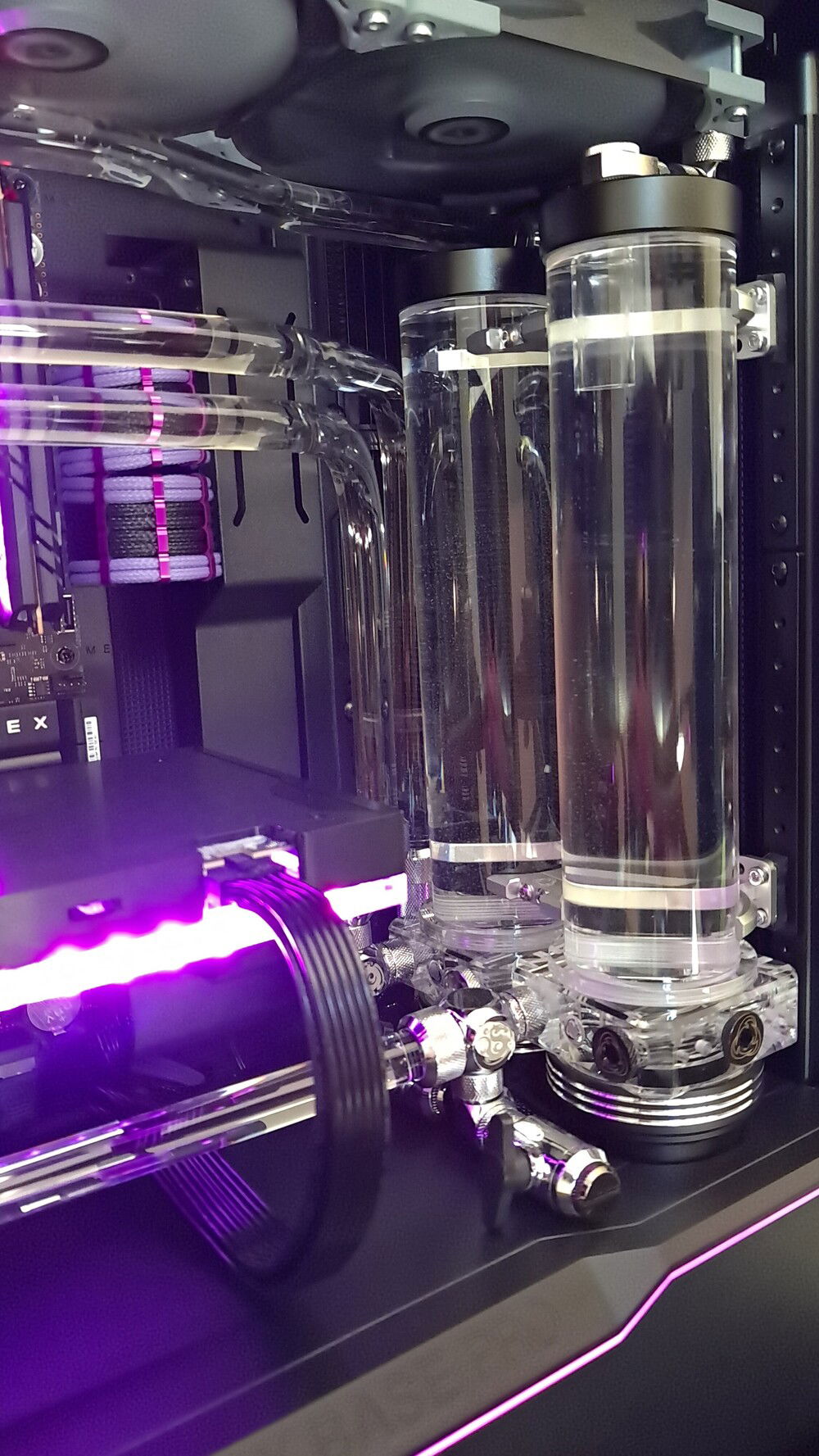

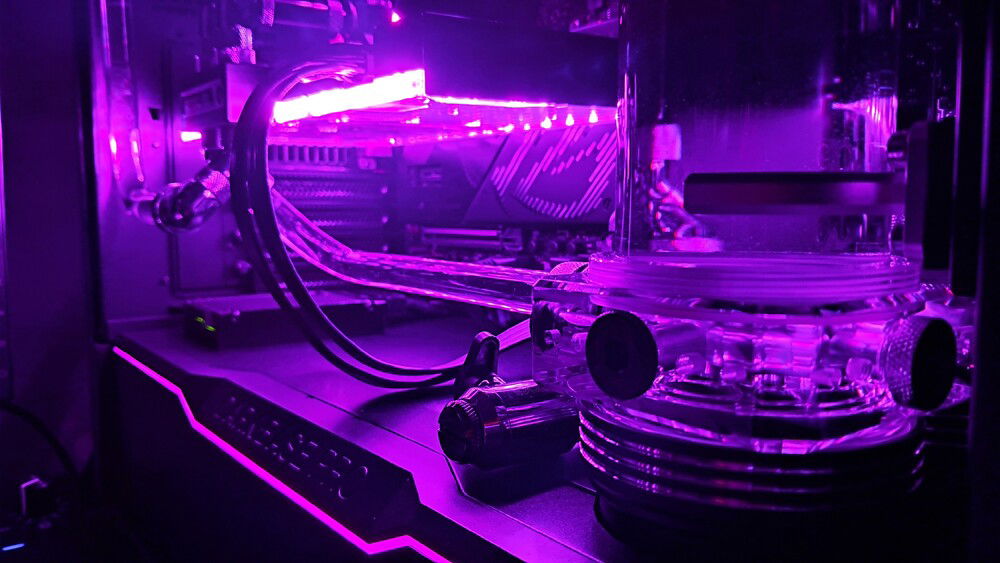

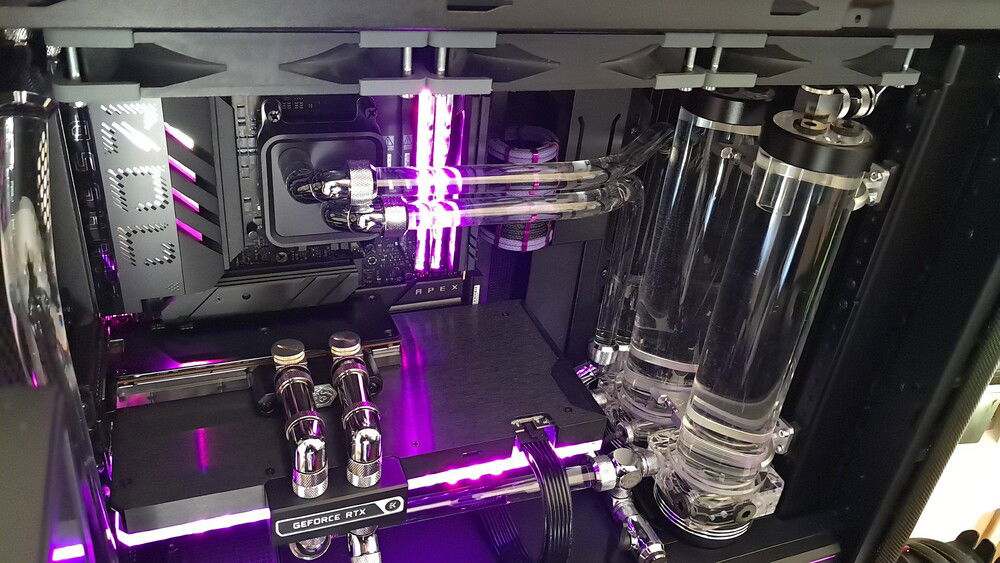

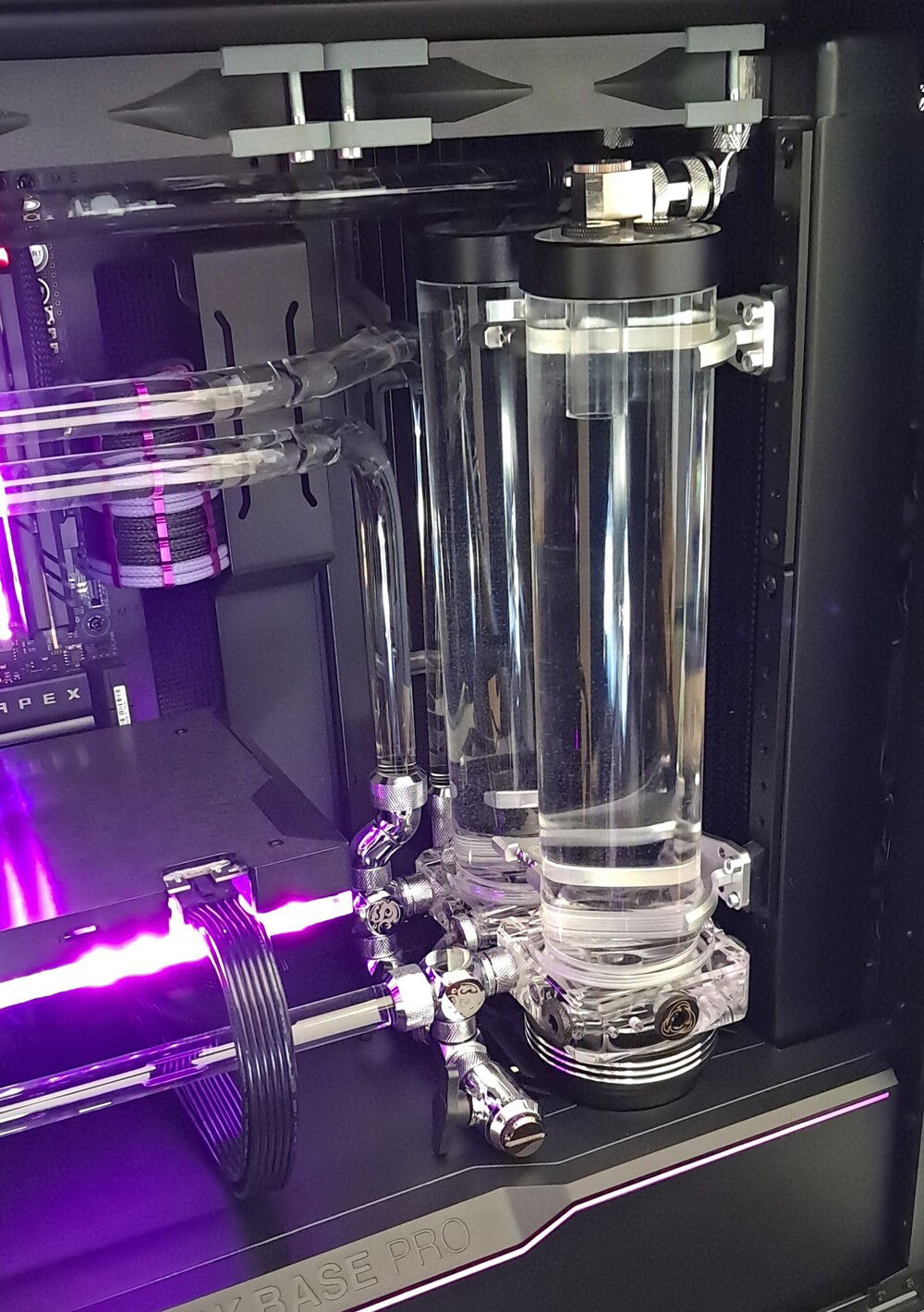

Pump/res combos: Singularity Computers
- Protium D5 Pump Top Polished Acrylic + D5 Pump Cover Black-Silver Rings + Protium L 250mm Black Polished
- Ethereal Dual 2.0 Silver

Things I still need to do :
- replace all 140mm fans with the Noctua NF-A14x25 G2. I'm waiting on the chromax version that should be available in late 2025
- replace the Alphacool Core 1 LT by the Alphacool Apex monoblock that should come out one day but I don't know the exact date yet
- build some aluminium cable combs for the GPU 12v-2x6 cable and sleeve that cable
- add one RGB strip in between the front rad and the back rad. This will illuminate the reservoirs from an indirect angle and give a nice diffuse glow

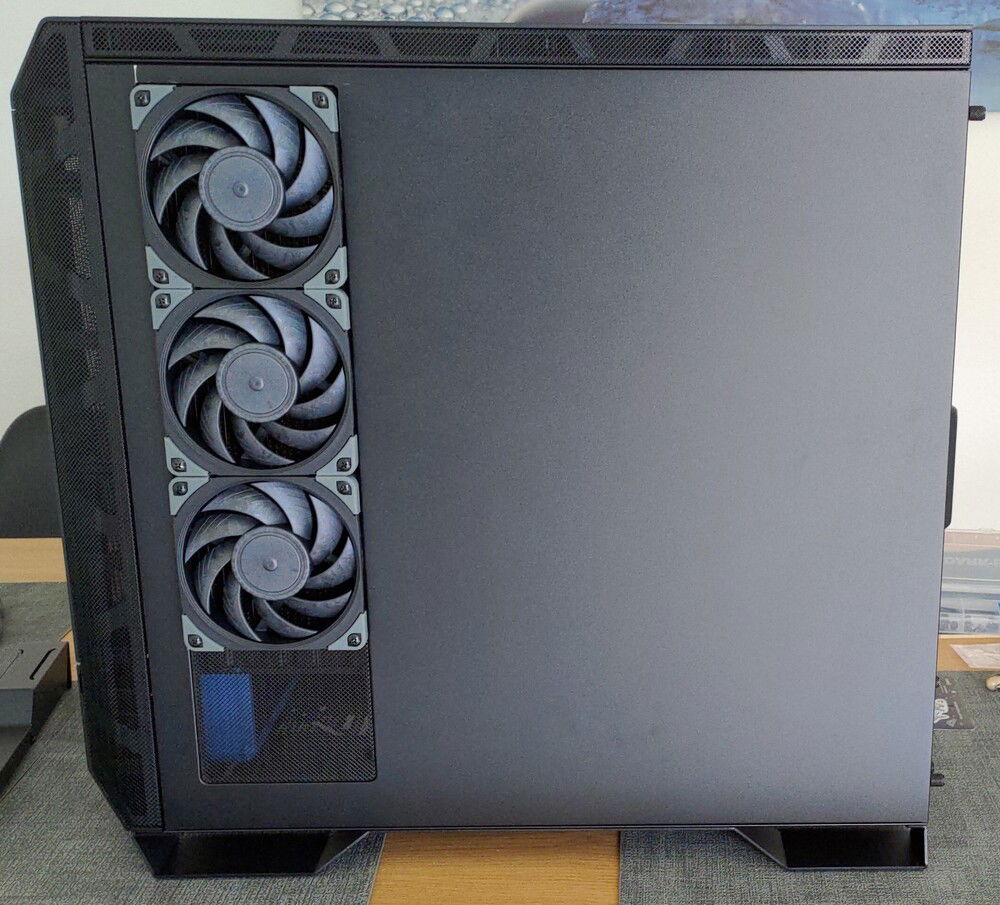

- widden the hole on the rear pannel to replace the current 360x30mm radiator by a 360x54mm from my previous build. Because my CPU temps are a bit higher than I would have liked

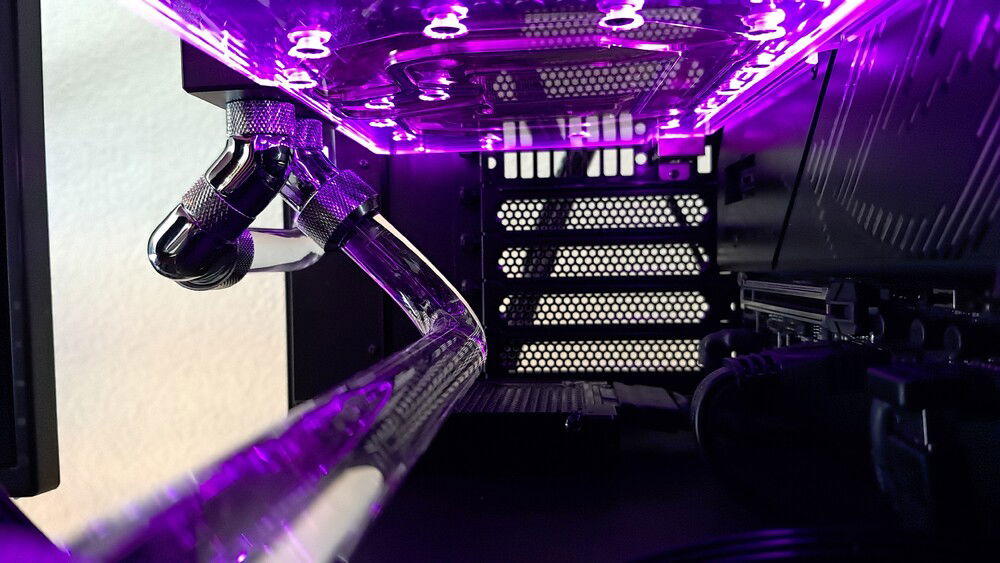

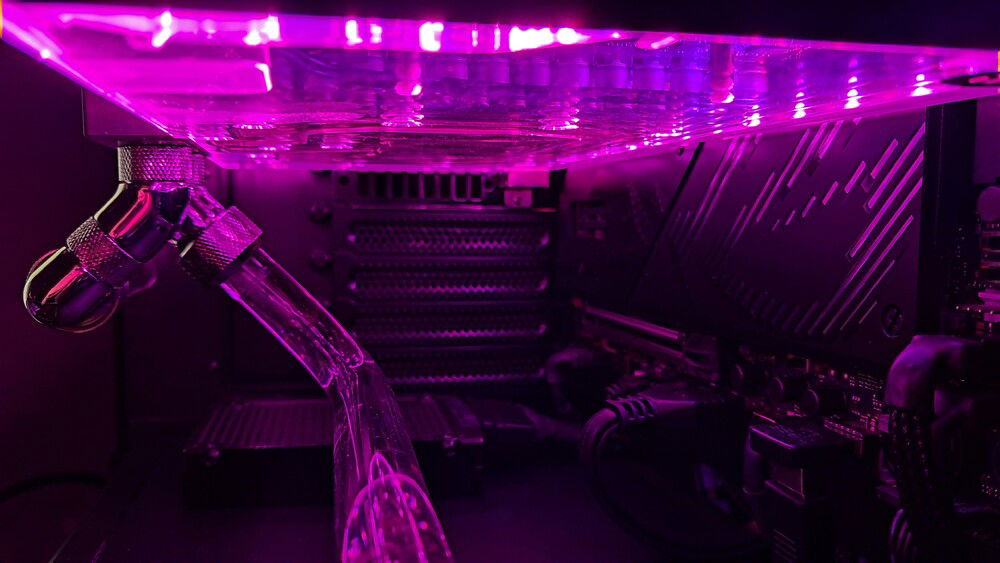

- redo the tube going out from the GPU block and in the top rad because it's not perfectly parallel to the glass panel of the case
- re-drill the holes of the bracket for the SSD U.3 on the power supply cover because it's not perfectly parallel to the glass panel of the case
Color(s): Purple
RGB Lighting? Yes
Theme: none
Cooling: Custom Liquid Cooling
Size: ATX
Type: General Build

Hardware

CPU
$ 663.99
AMD - Ryzen 9 9950X3D
Socket: AM5
Cores: 16
Motherboard
$ 650.00
ASUS - ROG Crosshair X870E Apex
Chipset: X870E
CPU Socket: AM5
Size: ATX
Memory
$ 669.99
G.Skill - Trident Z5 Royal Neo (6000MHz)
Type: DDR5
Capacity: 64 GB
Graphics
$ 3,969.00
ASUS - ROG Astral LC OC
Chip Manufacturer: NVIDIA
Chip: RTX 5090
Interface: PCIe x16
Storage
$ 210.00
Intel - 660p
Form Factor: M.2
Interface: PCIe x4
Capacity: 2 TB
Storage
$ 749.00
Intel - Optane 900P Series
Form Factor: PCIe x4
Interface: PCIe x4
Capacity: 480 GB
Storage
$ 660.00
Western Digital - WD Ultrastar DC SN650
Form Factor: 2.5 Inch
Interface: U.2
Capacity: 8 TB
PSU
$ 170.00
LC-Power - LC1200P V3.0
Wattage: 1200
Form Factor: ATX
Efficiency: 80+ Platinum
Case
$ 477.20
be quiet! - Dark Base Pro 901
Type: Super-Tower
Side Panel: Tempered Glass
RGB: Yes
Case Fan
$ 113.85
Monitor
$ 400.00
ASUS - TUF Gaming (VG27AQ) (2x)
Size: 27 Inch
Panel: IPS
Refresh Rate: 165 Hz
Keyboard
$ 160.00
Wooting - two
Interface: Wired
Type: Full Size
Mouse
$ 86.95
Logitech - G900
Interface: Wired/Wireless
Chair
$ 1,300.00
Herman Miller - X Logitech G Embody Gaming
Material: Fabric
Color: Black
Estimated total value of this build:
$ 8,422.03
