AcidBurn

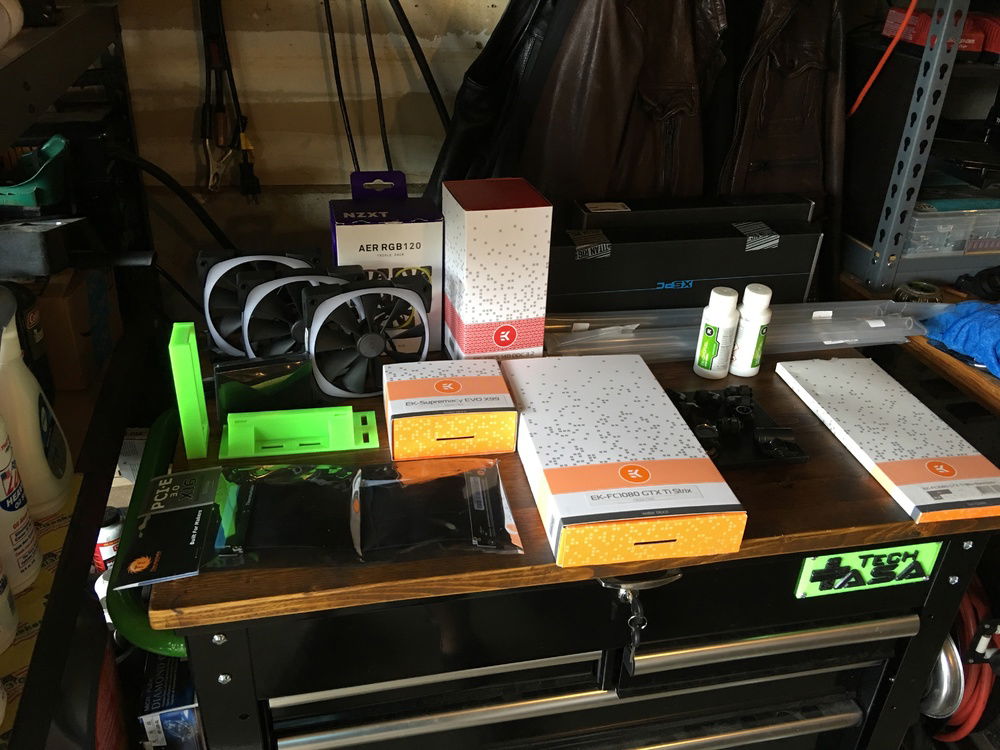

Parts List

-------------------------------

Asus X99 Deluxe /u3.1

Intel I7 5820k

16gb Corsair LPX 3000

Asus Strix 1080ti OC

Samsung 250gb NvME SSD

4 x Samsung SSDs Raid 0

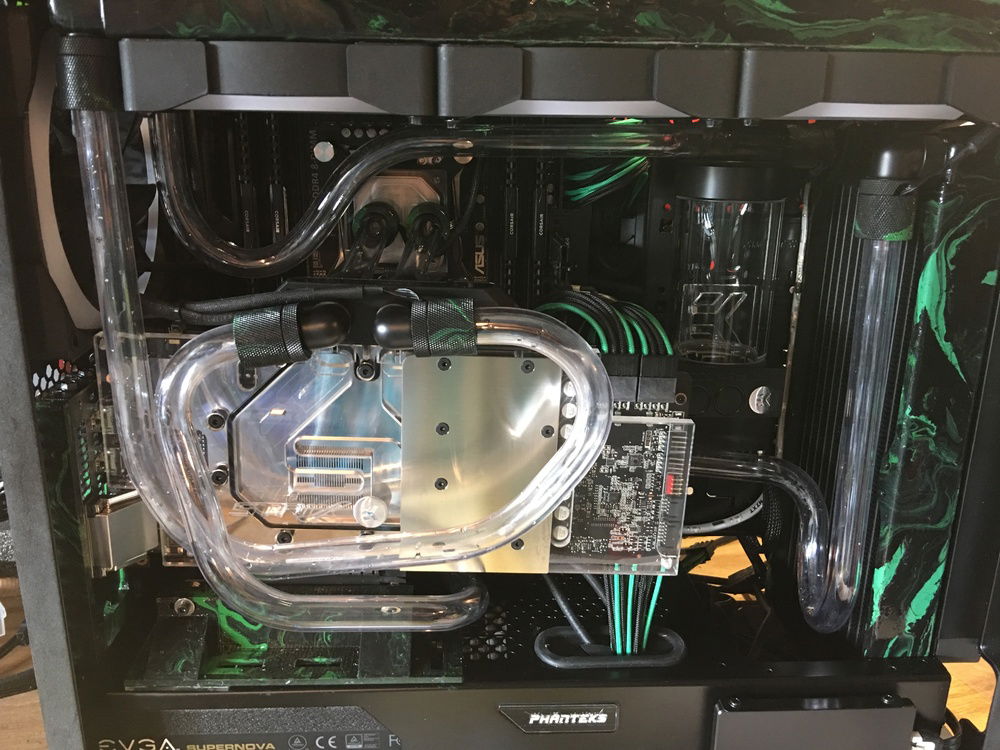

EK x99 CPU Waterblock

EK Strix 1080ti Waterblock and Backplate

12 x Thermaltake Pacific RGB Fittings

XSPC 360mm Radiator

XSPC 280mm Radiator

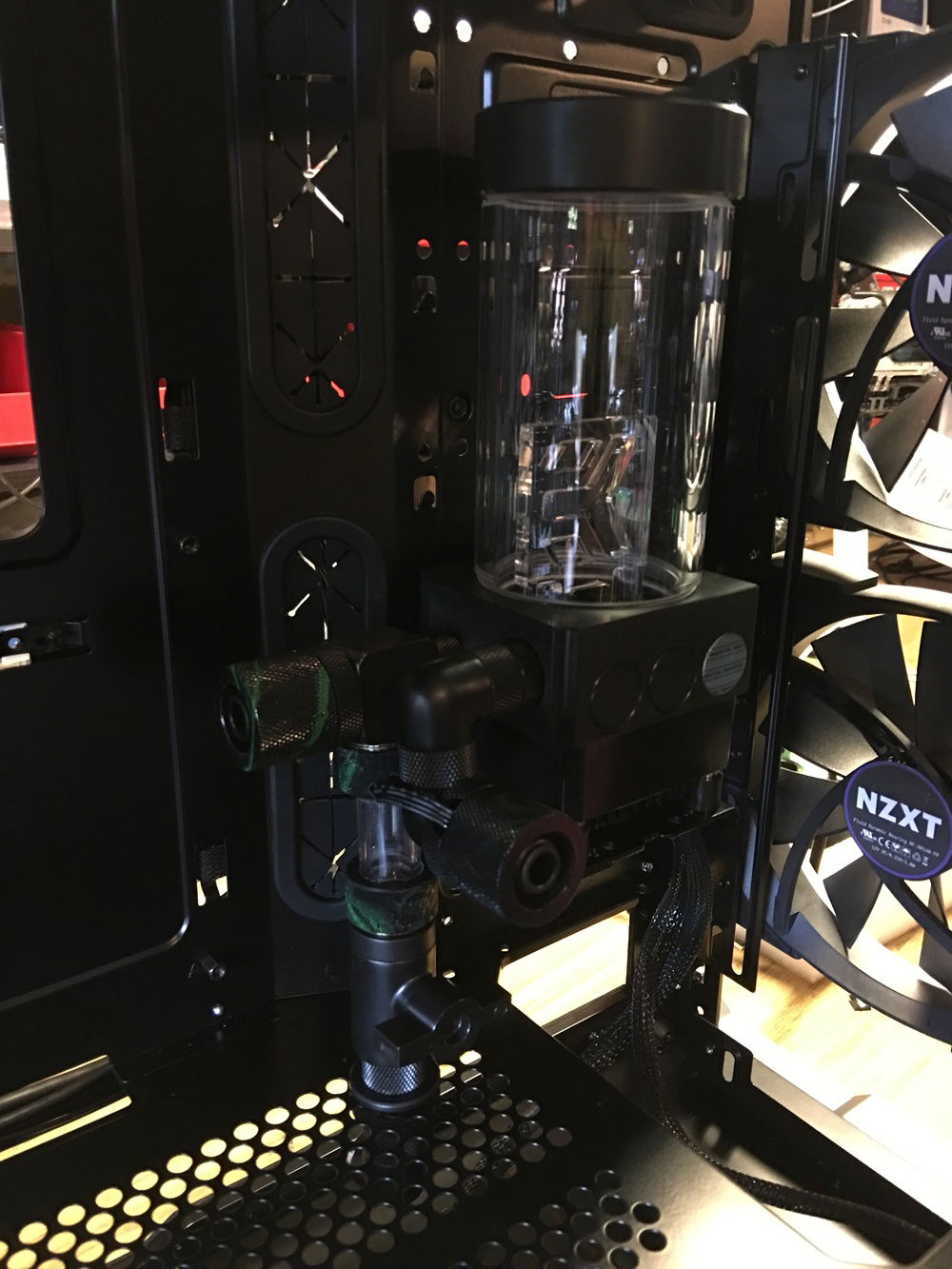

EK 140mm DDC Pump Res

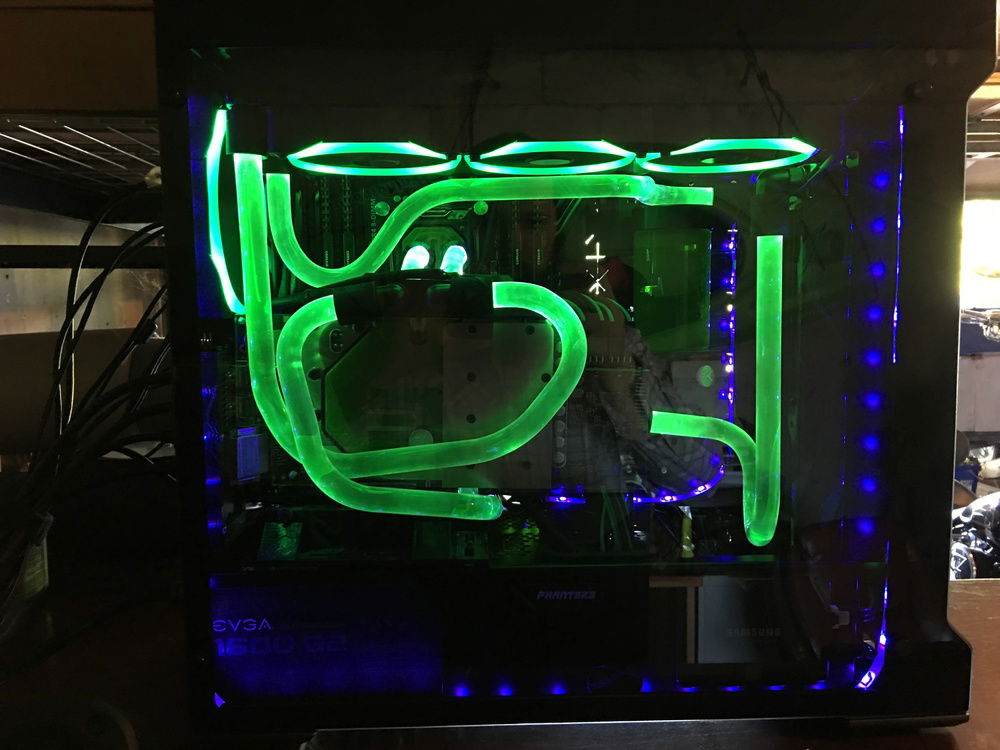

PrimoChill Vue Ocular Flow Coolant

NZXT Hue+ LEDs & AER Fans

EVGA 1600 G2 Powersupply

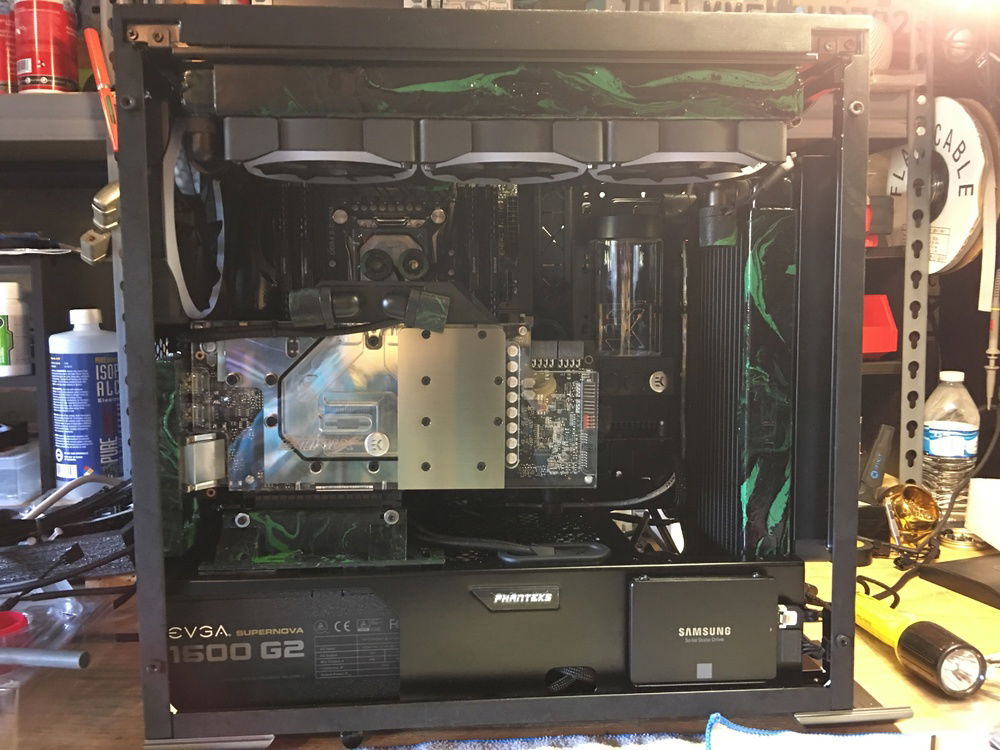

Phanteks Enthoo Evolv ATX

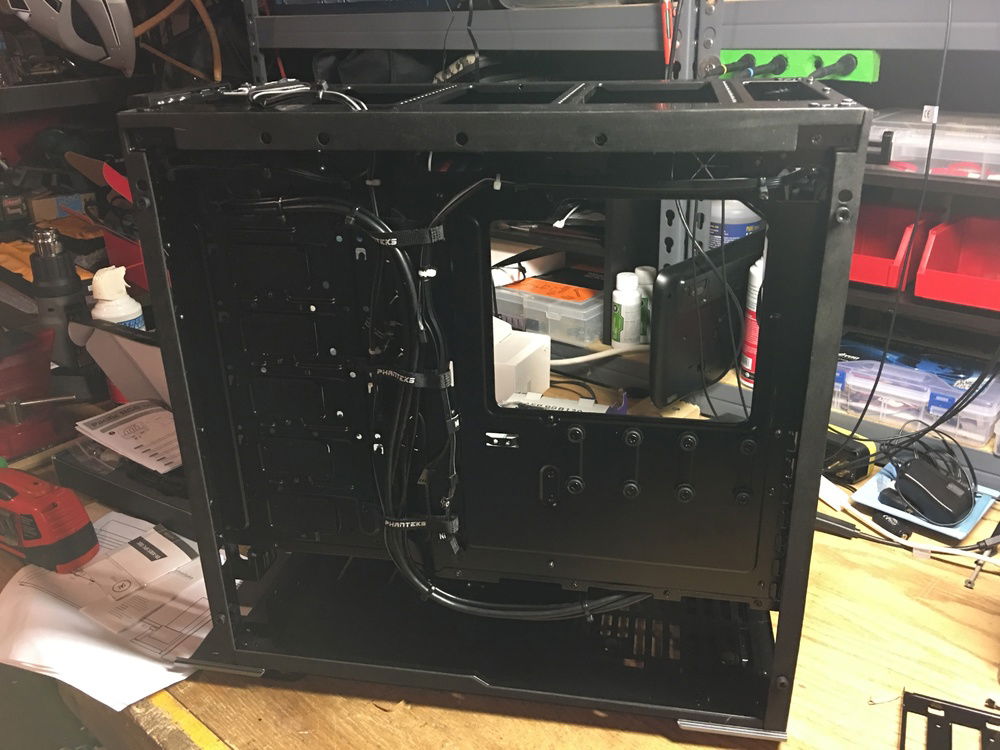

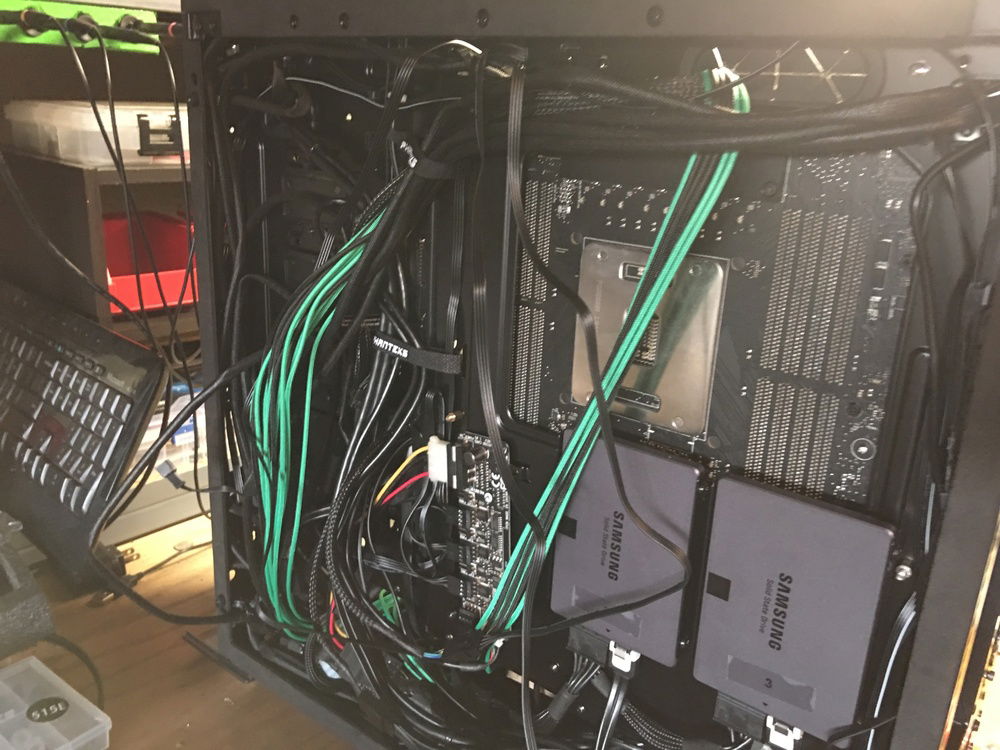

Cablemod Custom ParaChord cables

Misc fittings from EK

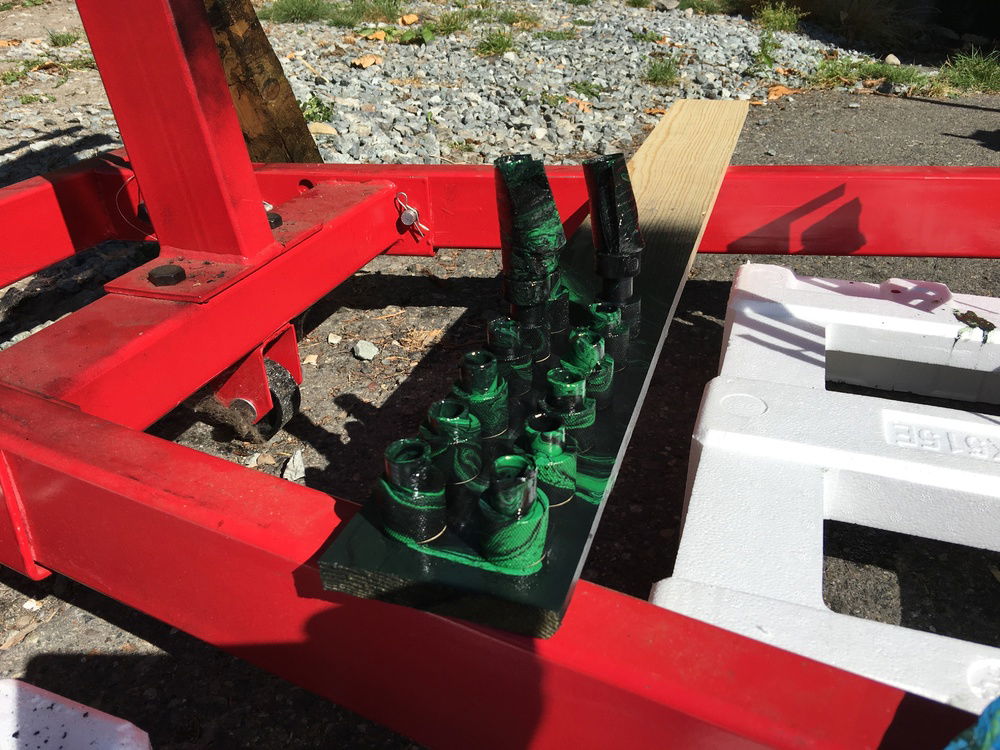

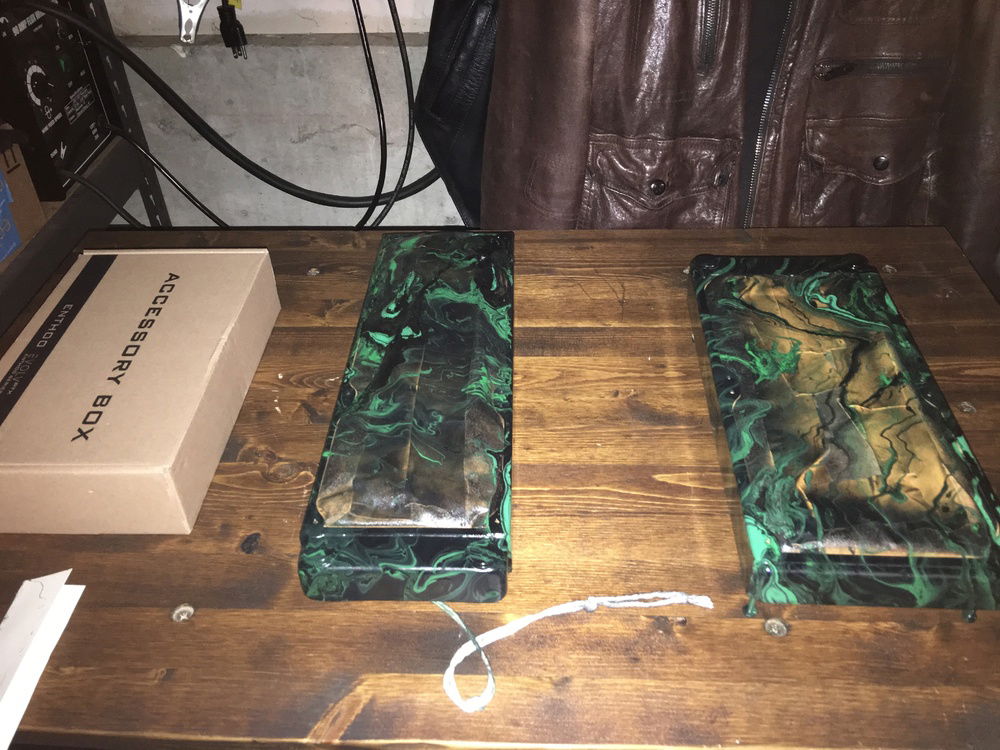

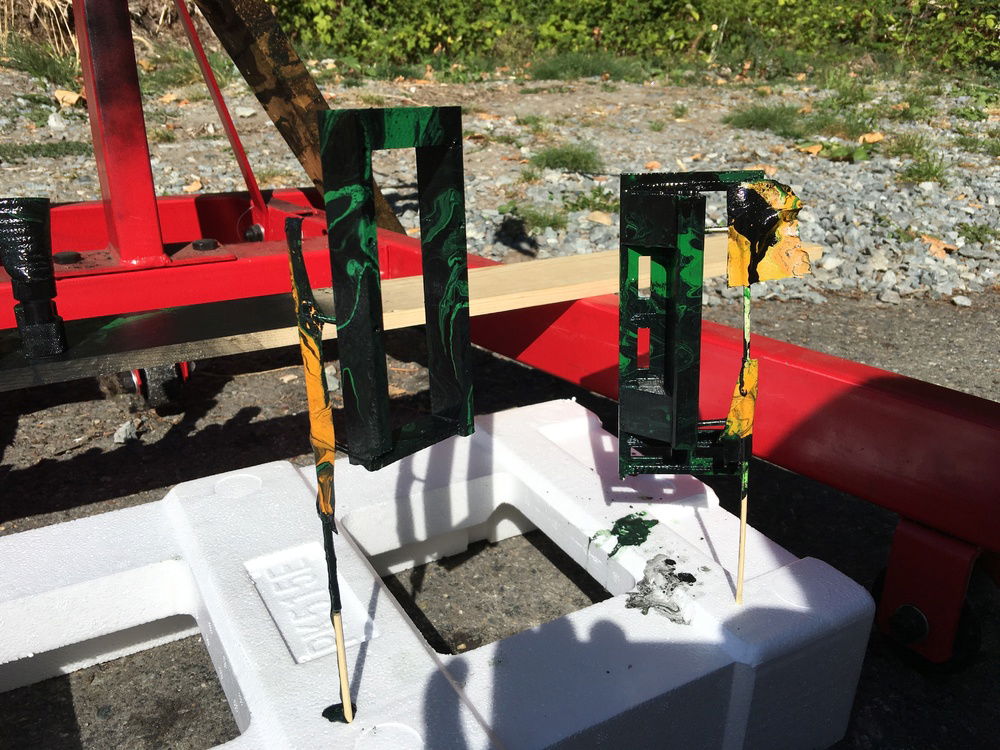

Paint:

Humbrol - Enamel Green/Black

Borax

Aquarium Heater

Bucket of water



Top Exhaust - Fix Poor Airflow (video below)

4 x PQ12-100-R Linear Servo

1 x Arduino Uno

1 x Relay

1 x Light Sensor

2 x DT11 Sensor

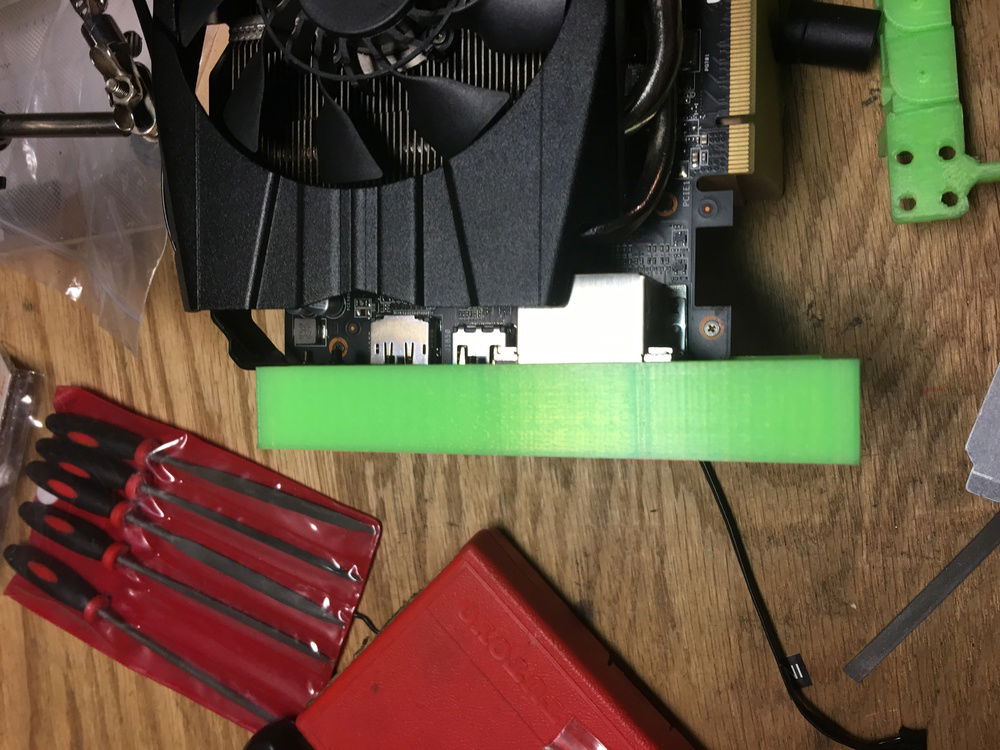

4 x 3D printed custom mounts

1 x 6v 3A DC Power Adapter

Arduino is powered via 5v over USB connected to PC for serial interface

Sensors and servos are powered via DC6v 3a wall adapter




I have designed, built, fabricated and installed a stand alone system that does not require any CPU power to monitor the temperature of the system and open the top of the case depending on workload. Under normal use the top stays closed, gaming opens to 60% and video editing or heavy gaming under OC, 100% open. The video is just showing a startup test moving the actuators in a sequence. full,closed, mid, closed, then on to the routine. I use a light sensor to monitor an LED on the motherboard to power on the sensors and servos when the PC is started. A Relay kills the power to all the sensors and servos when the motherboard turns off. A pair of DT11 Sensors monitor the Internal and External Temperature and Humidity. The Temperature readings control the position of the exhaust vents. The humidity readings will eventually kill power to the PC if the values stray too far from one another (WIP: Humidity Readings are an attempt at leak detection will take power button low/high depending on power on or off the pc)
Color(s): Black Green Purple
RGB Lighting? Yes
Theme: none
Cooling: Custom Liquid Cooling
Size: E-ATX
Type: General Build

Hardware

CPU
Intel - Core i7 5820K
Socket: LGA 2011-3
Cores: 6
Motherboard
ASUS - X99 Deluxe
Chipset: X99
CPU Socket: LGA 2011
Size: ATX
Memory
$ 19.99
Corsair - Vengeance LPX (3000MHz) (Black)
Type: DDR4
Capacity: 8 GB
Graphics
$ 199.99
ASUS - GeForce Rox Strix Advanced (A8G)
Chip Manufacturer: NVIDIA
Chip: GTX 1080 Ti
Storage
$ 173.00
Samsung - 840 Pro
Form Factor: 2.5 Inch
Interface: SATA 6 Gb/s
Capacity: 256 GB
Storage
$ 173.00
Samsung - 840 Pro
Form Factor: 2.5 Inch
Interface: SATA 6 Gb/s
Capacity: 256 GB
Storage
$ 291.00
Samsung - 860 PRO
Form Factor: 2.5 Inch
Interface: SATA 6 Gb/s
Capacity: 1 TB
Storage
$ 347.75
Samsung - 950 Pro
Form Factor: M.2
Interface: M.2 (M)
Capacity: 512 GB
Storage
$ 134.99
Samsung - 960 PRO
Form Factor: M.2
Interface: M.2 (M)
Capacity: 512 GB
PSU
$ 649.99
EVGA - SuperNOVA G2 G+
Wattage: 1600
Form Factor: ATX
Efficiency: 80+ Gold
Case
Phanteks - Enthoo Evolv (Silver)
Type: Micro-ATX
Side Panel: Tempered Glass
Case Fan
$ 46.97
NZXT - AER RGB
Size: 140 mm
Cooling
$ 168.14
Cooling
EKWB - EK-Supremacy EVO - Acetal+Nickel
Type: CPU Waterblock
Cooling
EKWB - EK-XRES 140 Revo D5 PWM
Type: Pump/Reservoir Combo
Cooling
$ 109.95
XSPC - EX Crossflow V3
Type: Custom Loop
Size (WxHxD): 360 mm (3 x 120 mm)
Cooling
$ 89.95
XSPC - EX Series
Type: Custom Loop
Size (WxHxD): 280 mm (2 x 140 mm)
CableMod
CableMod - Sleeved Cables
Mode: Custom
Sleeve: ModFlex
Color: Black
Accessories
Accessories
$ 34.95
Accessories
$ 159.94
Monitor
$ 727.98
Alienware - AW3418DW
Size: 34 Inch
Panel: IPS
Refresh Rate: 120 Hz
Monitor
$ 236.00
ASUS - PB287Q
Size: 28 Inch
Panel: TN
Refresh Rate: 60 Hz
Keyboard
$ 159.00
Logitech - G910
Interface: Wired
Key Switch Type: Romer-G
Type: Full Size
Mouse
$ 91.55
Logitech - G900
Interface: Wired/Wireless
Mouse
$ 99.00
Razer - Lancehead Tournament Edition
Interface: Wired
