Ultra Small form factor
Carbon Fiber frame

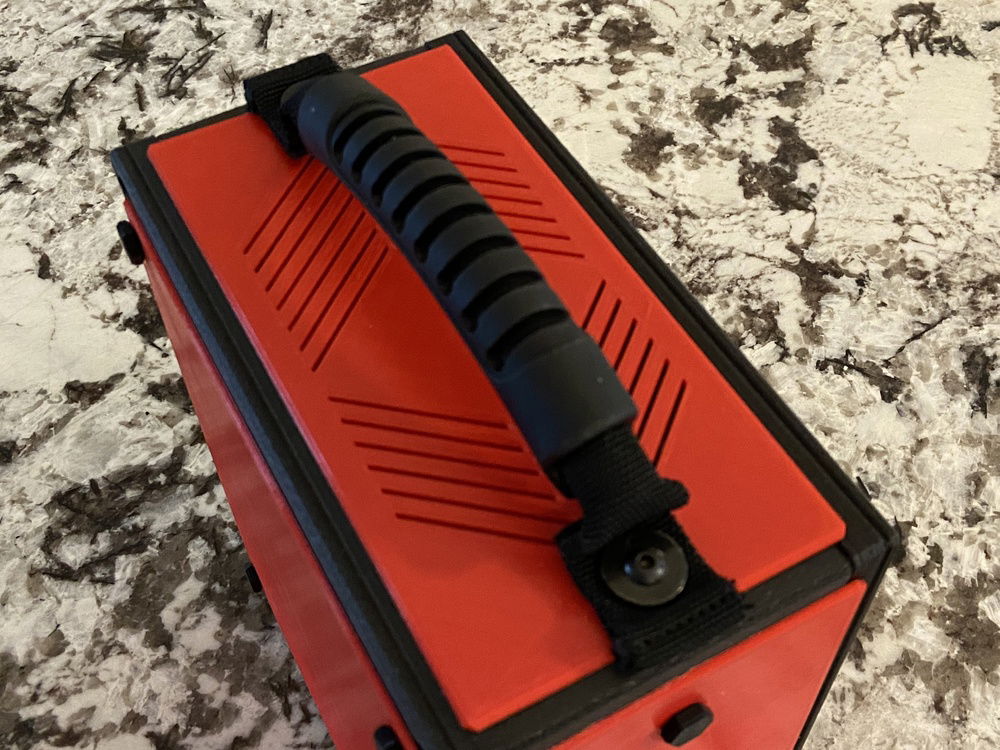

Vented to panel for hot air to escape
CPU tunnel view

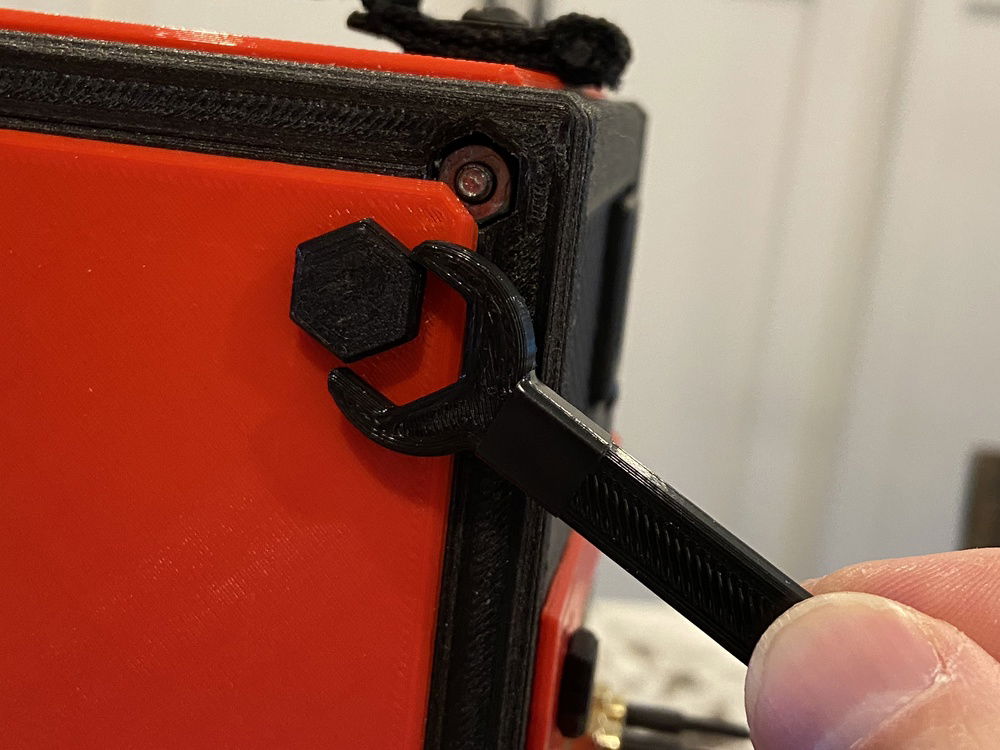

Panel screws are also 3D printed, as is the wrench

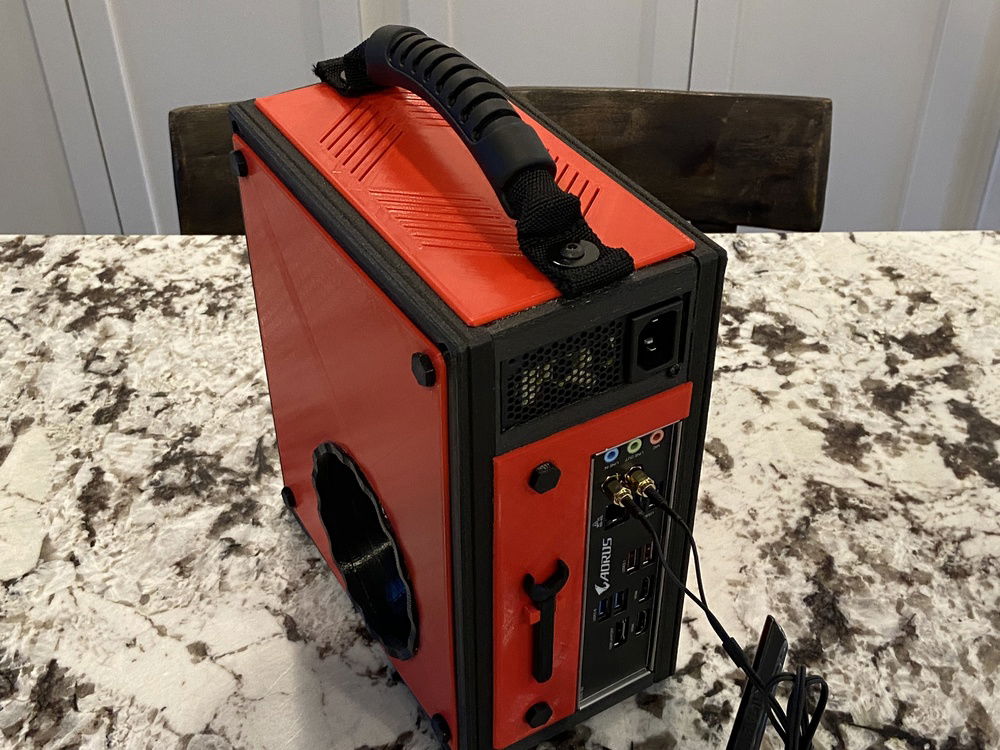

Wrench bracket around back

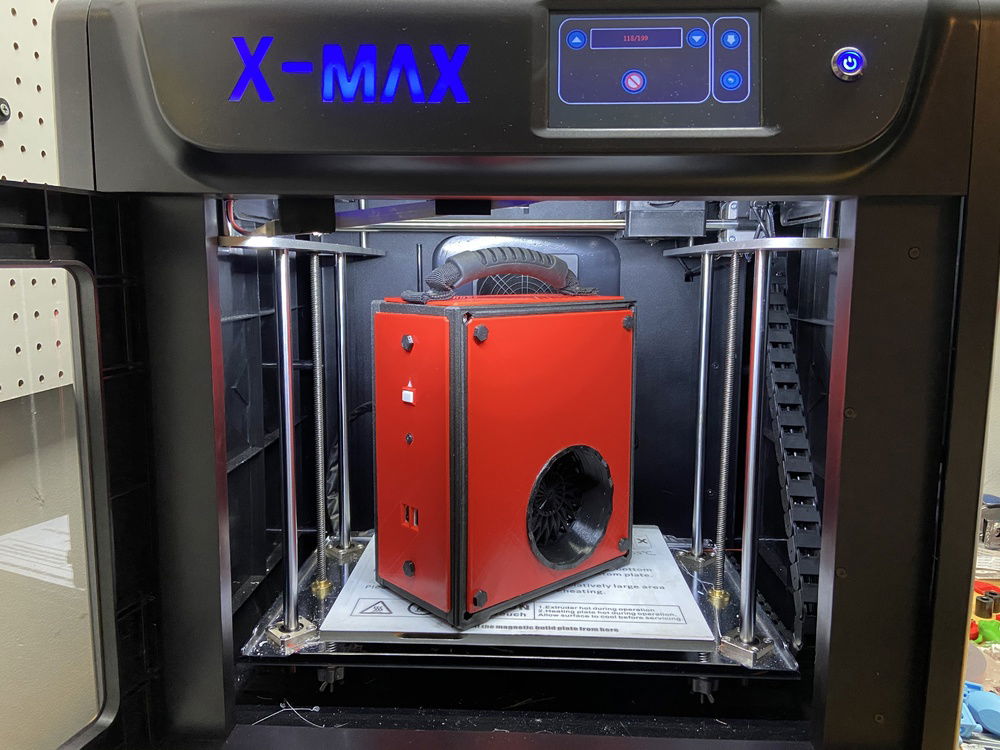

Printed on Qidi X-MAX
3D printed CARBON FIBER m-itx build
I have wanted to design an extreme sff case and then 3D print it strong enough to function correctly. After getting good enough with Fusion 360 as well as upgrading to a new 3D printer that was capable of printing high-end filaments, I have finally completed the project.
The design allows a tunnel for the cpu to intake cool air from outside the case. It’s fairly airtight. The psu and vents at the top exhaust the hot air. It works well.
Case:
Frame printed in MatterHackers NylonX.
Panels and case screws printed in PLA.
Purchased hardware:
4 - 4 x 1/8” bolts/ nuts
2- M -3/4” bolts/ nuts
1- kayak handle
The design allows a tunnel for the cpu to intake cool air from outside the case. It’s fairly airtight. The psu and vents at the top exhaust the hot air. It works well.
Case:
Frame printed in MatterHackers NylonX.
Panels and case screws printed in PLA.
Purchased hardware:
4 - 4 x 1/8” bolts/ nuts
2- M -3/4” bolts/ nuts
1- kayak handle
Color(s): Red
RGB Lighting? No
Theme: Retro
Cooling: Air Cooling
Size: Mini-ITX
Type: General Build
Contests
This build participated in 1 contest.
| Rank | Contest | Date |
|---|---|---|
| #41 | Build of the Month - December 2020 | ended |
Hardware
CPU
$ 119.55
Motherboard
$ 248.00
Memory
$ 39.10
Graphics
