Yong Project

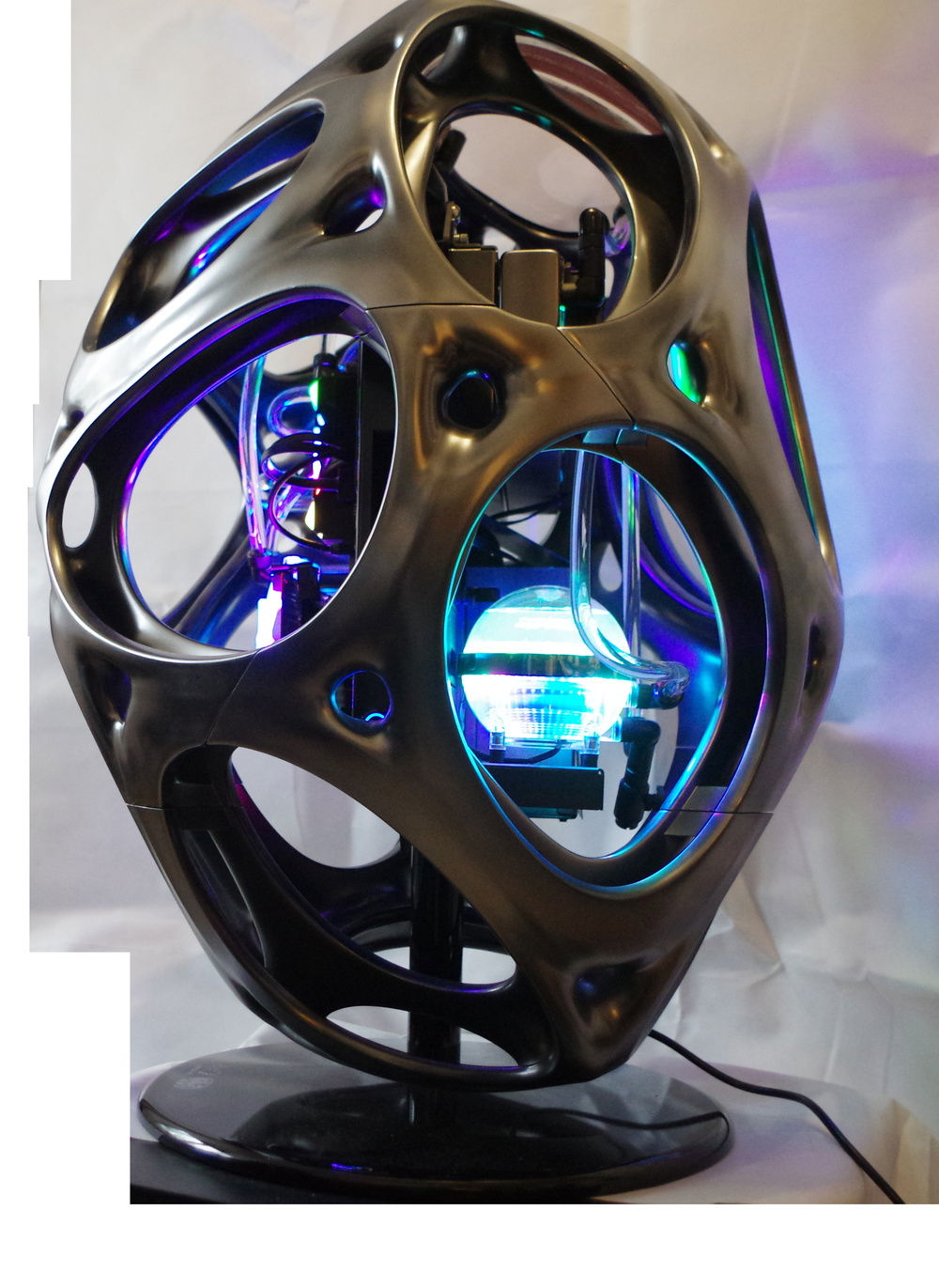

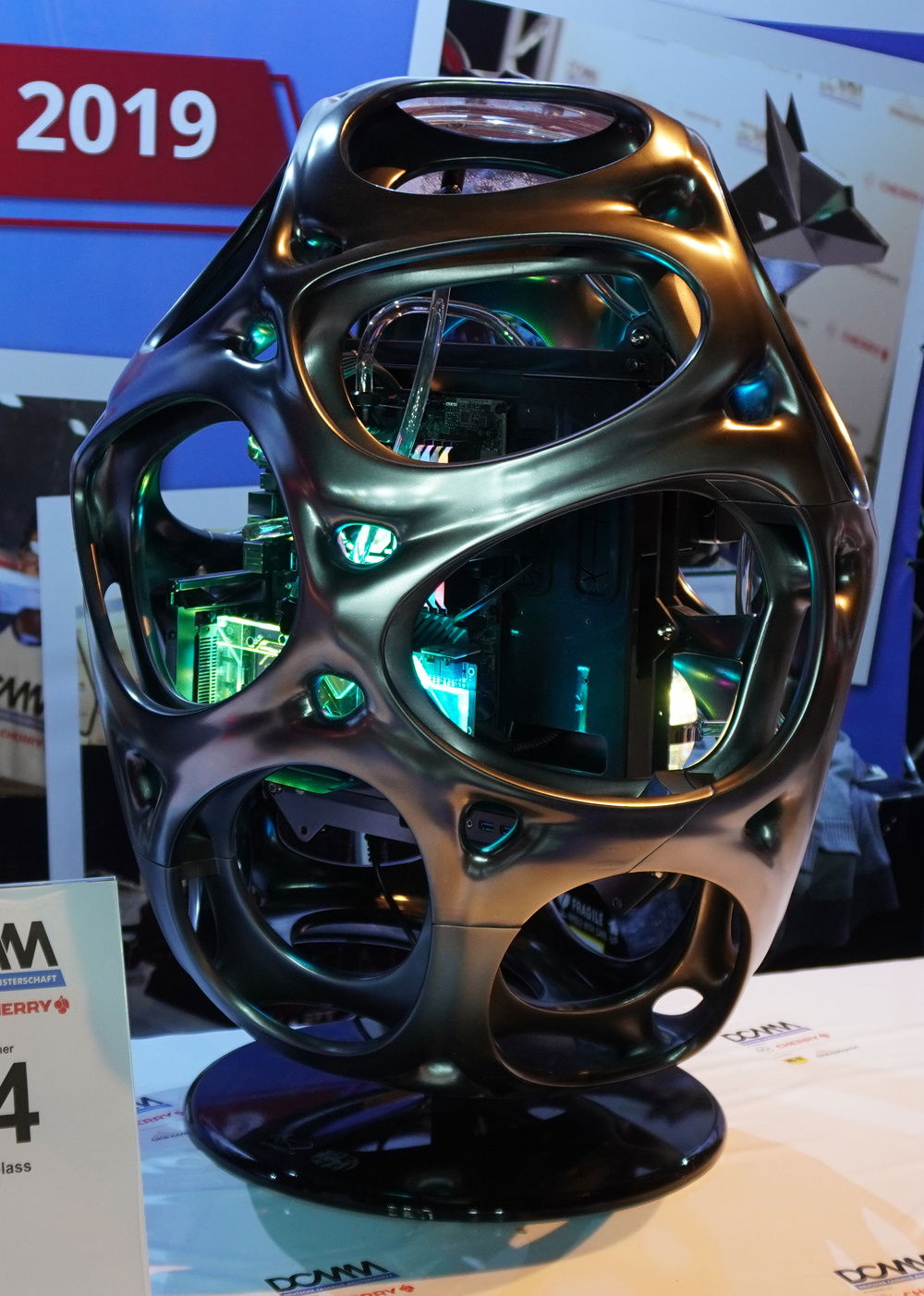

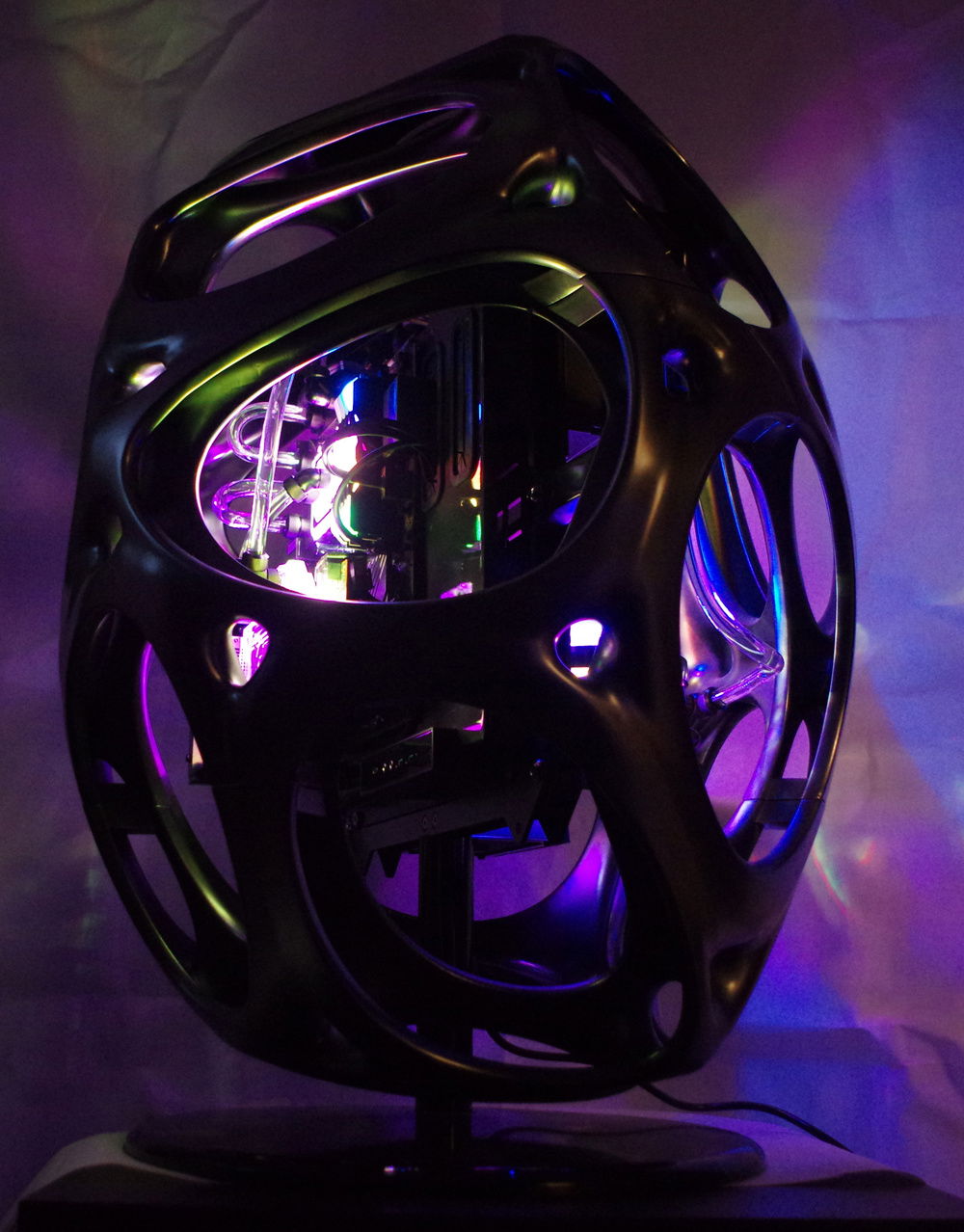

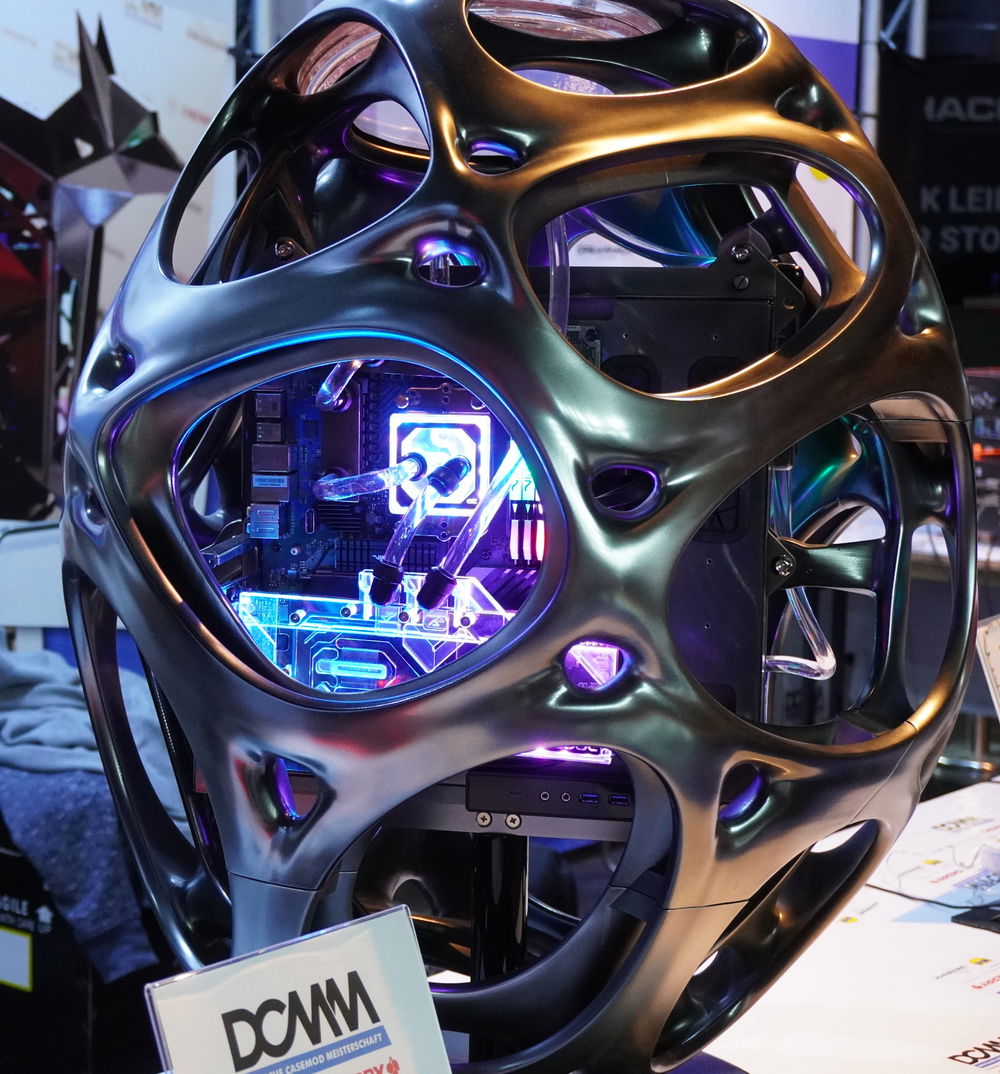

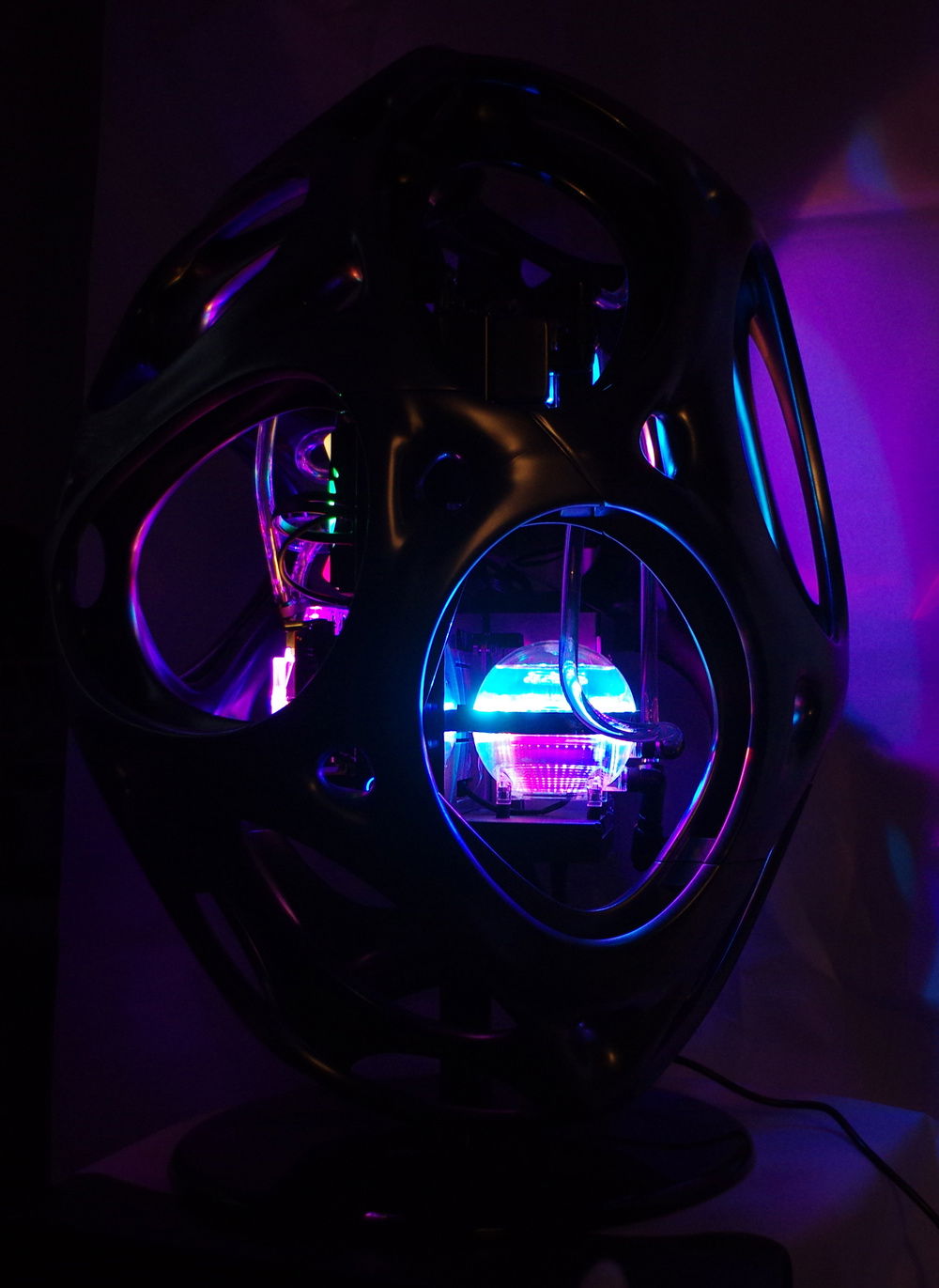

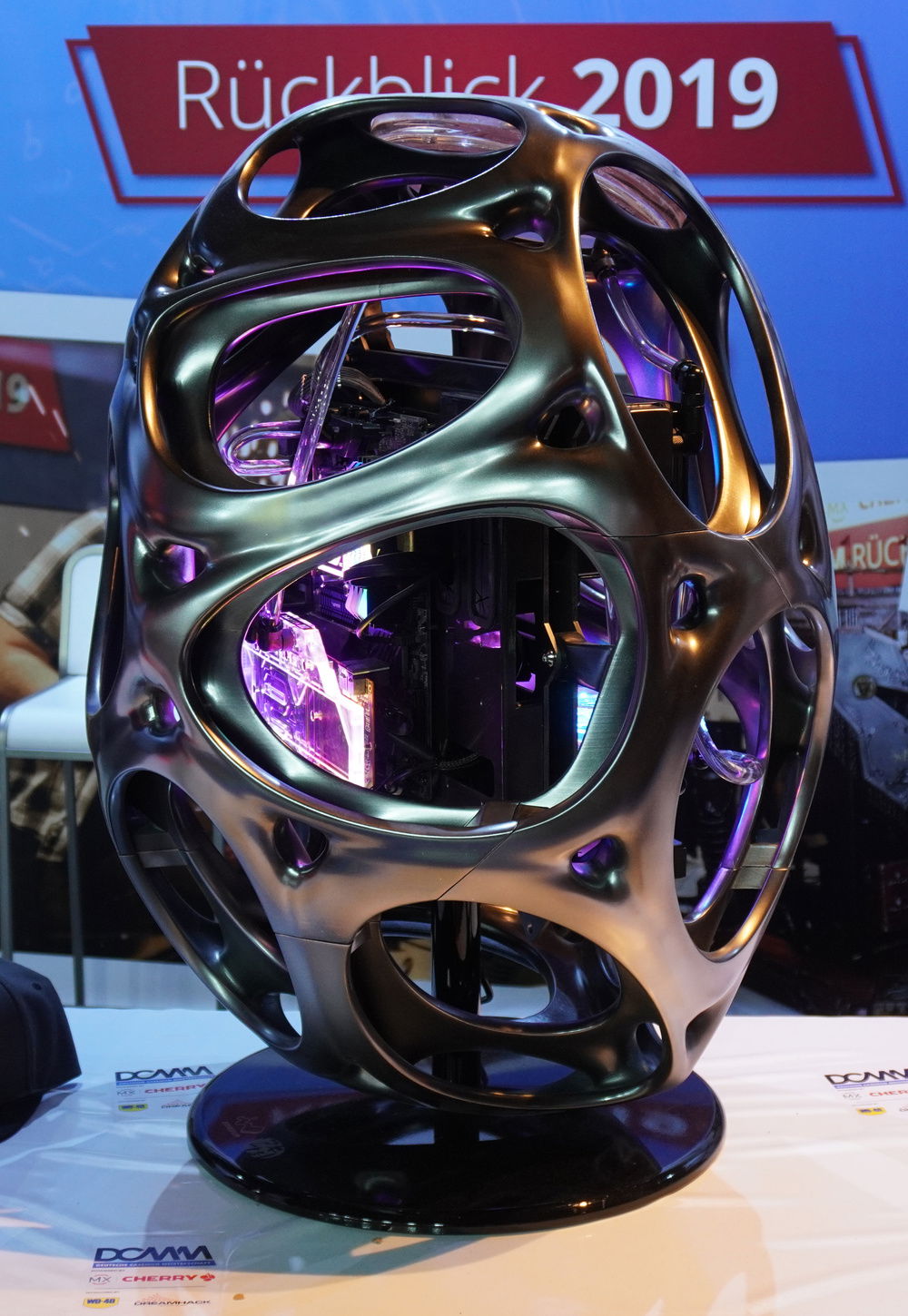

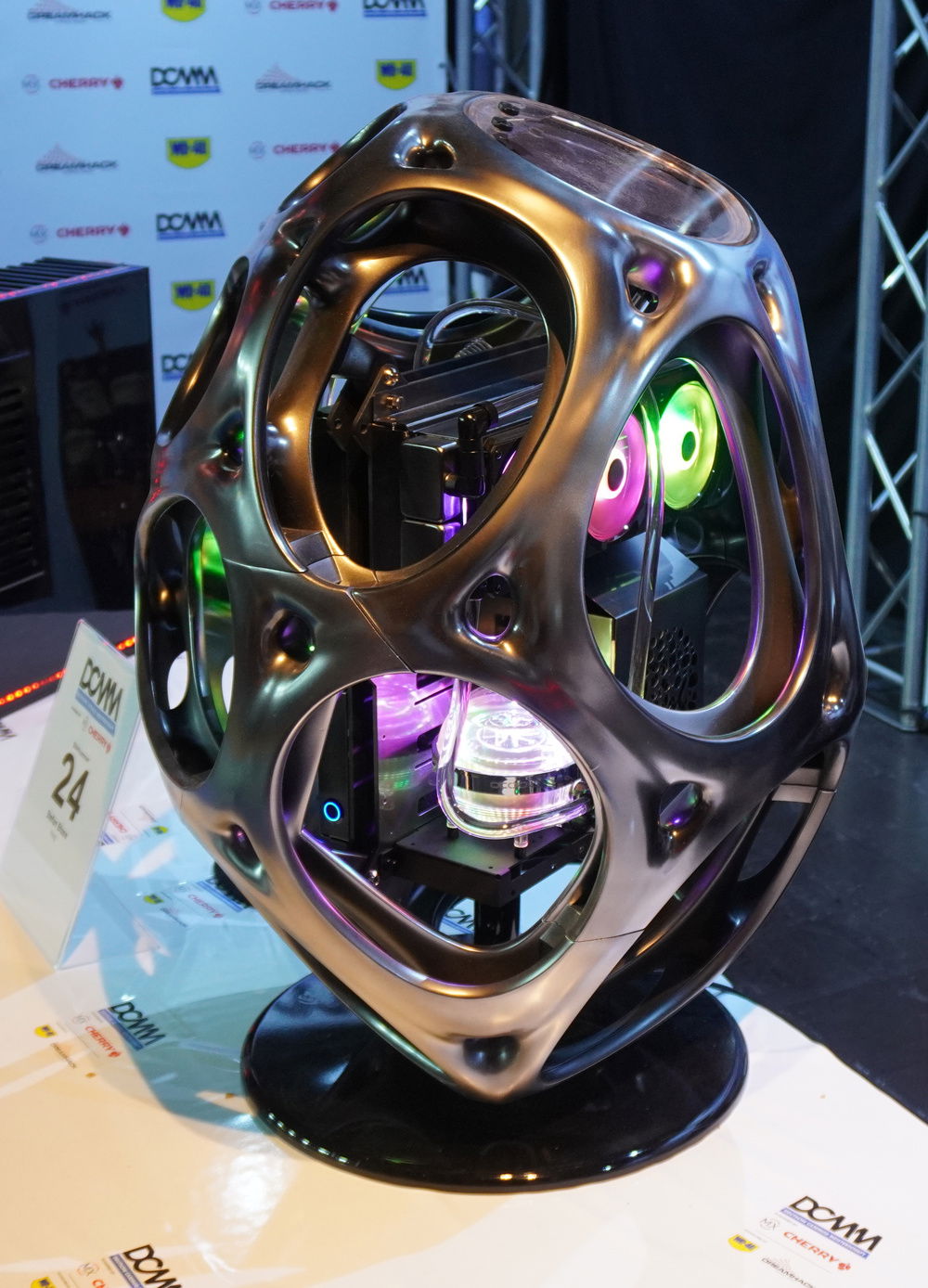

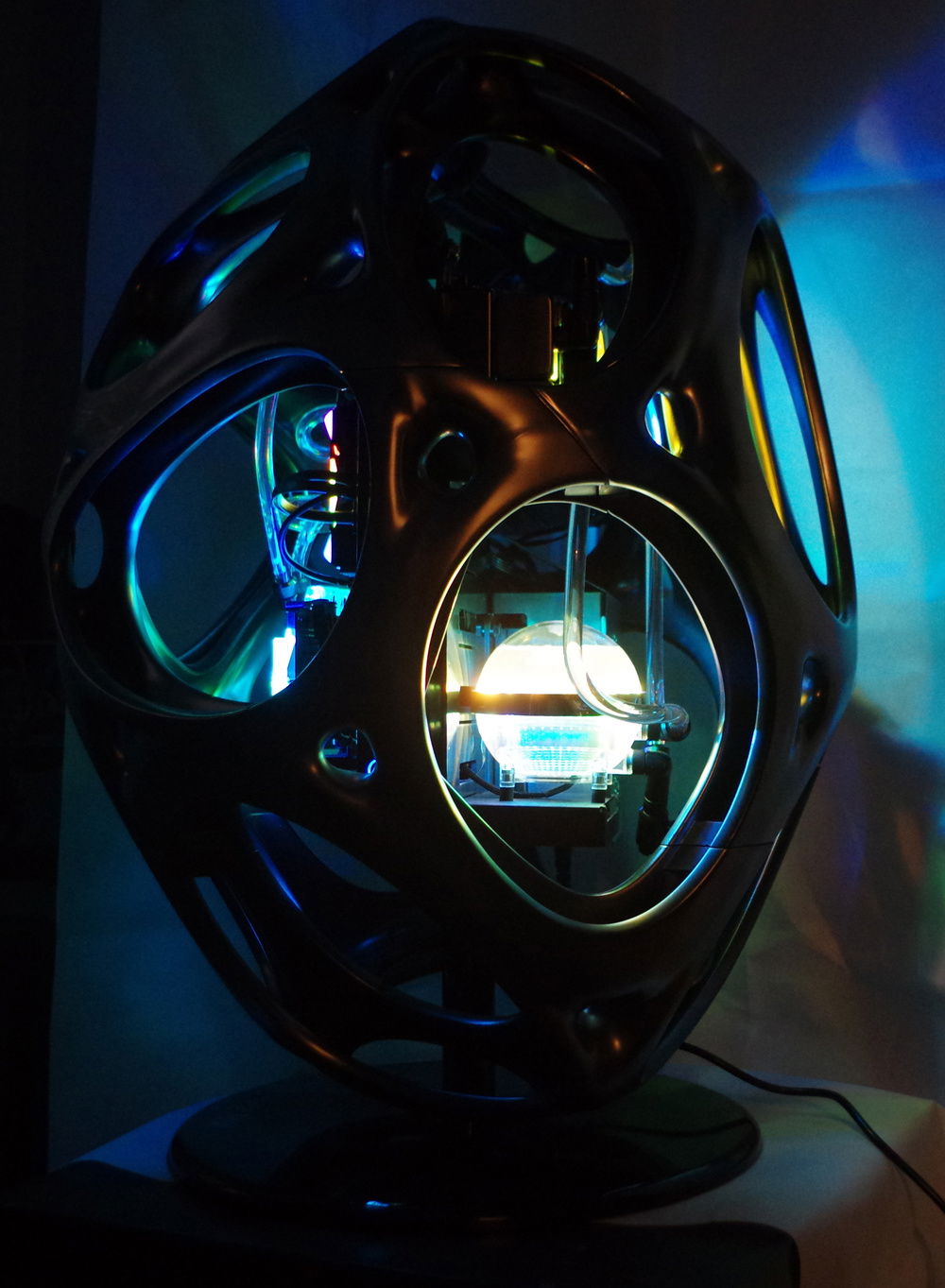

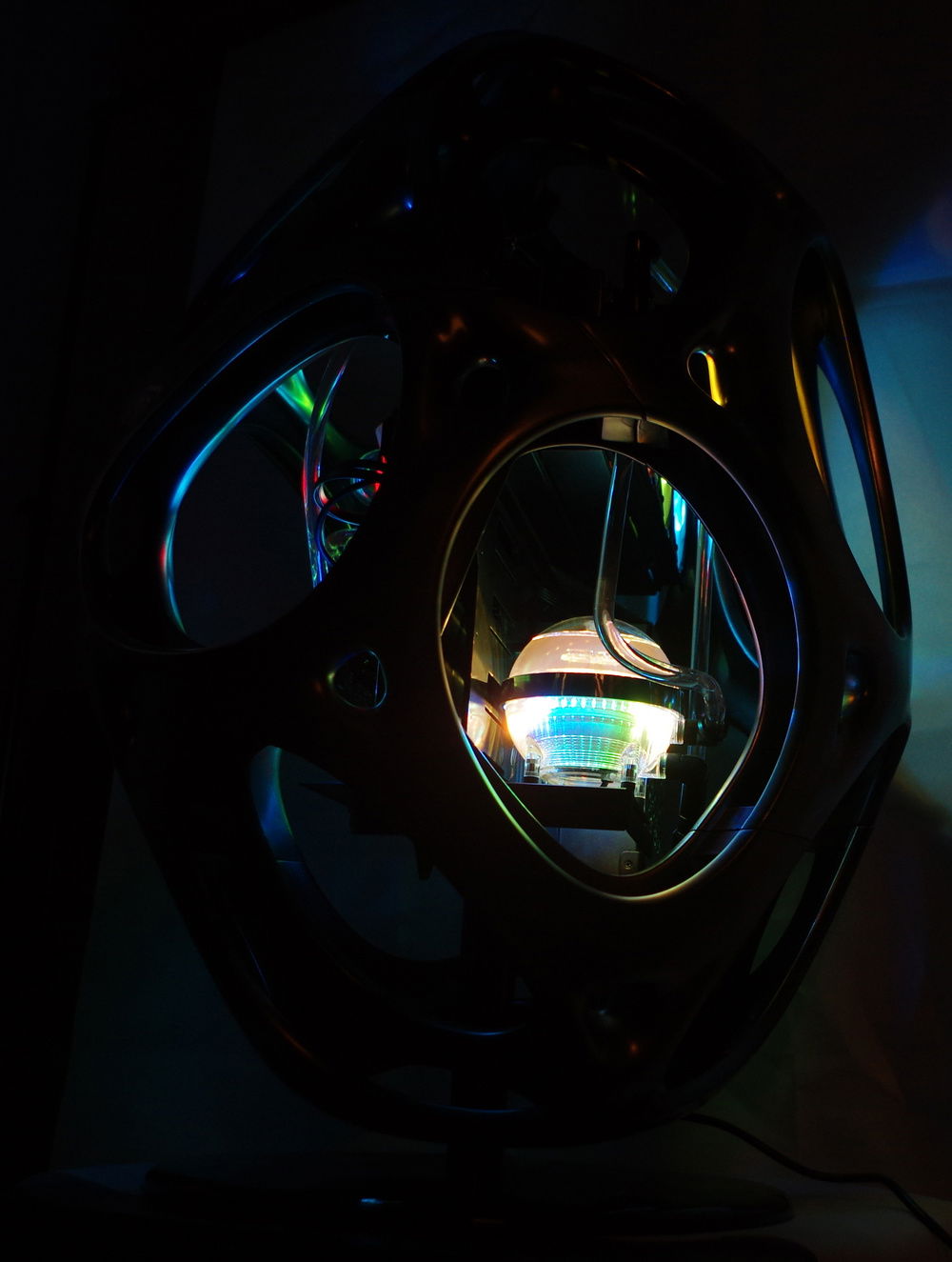

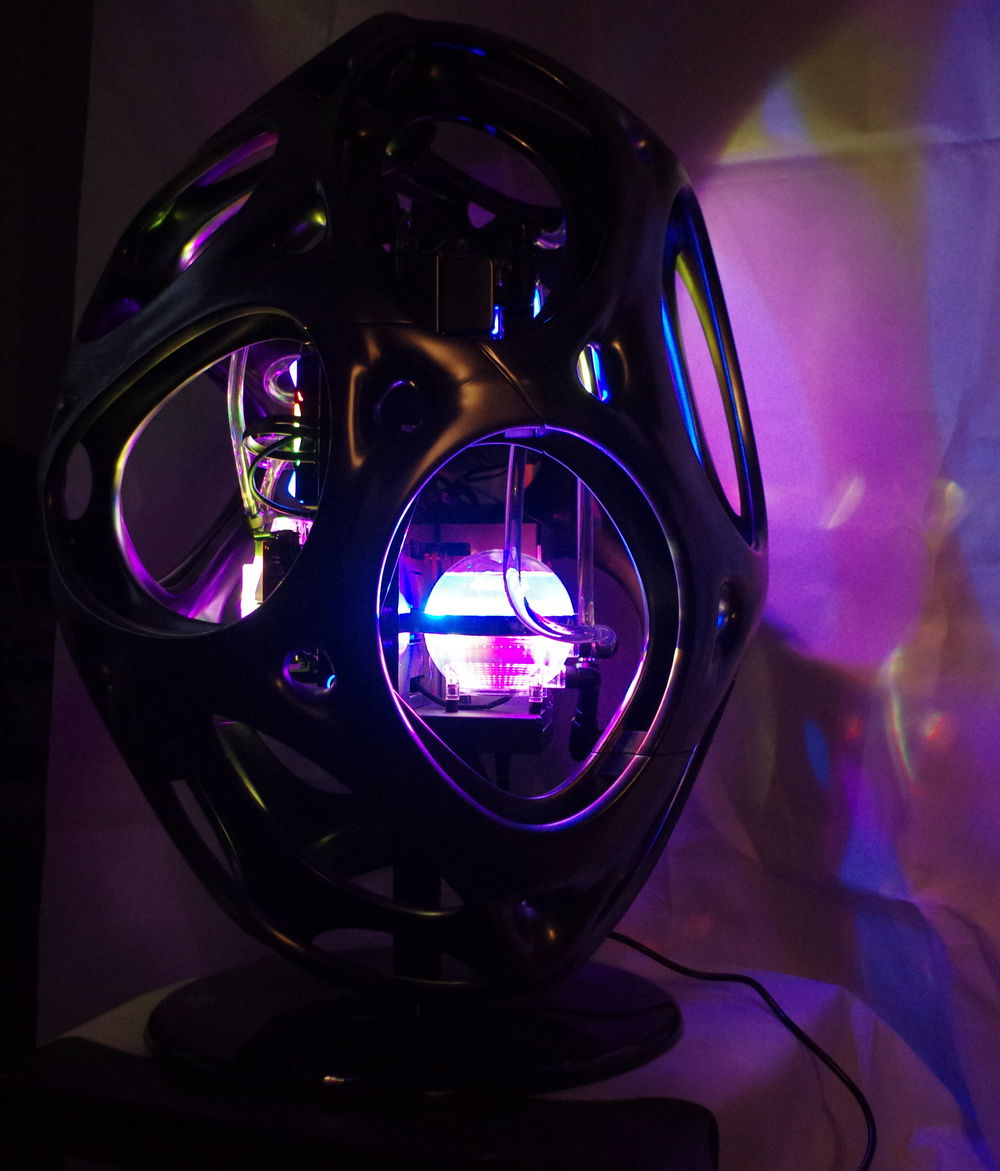

This is our In Win Yong Project.

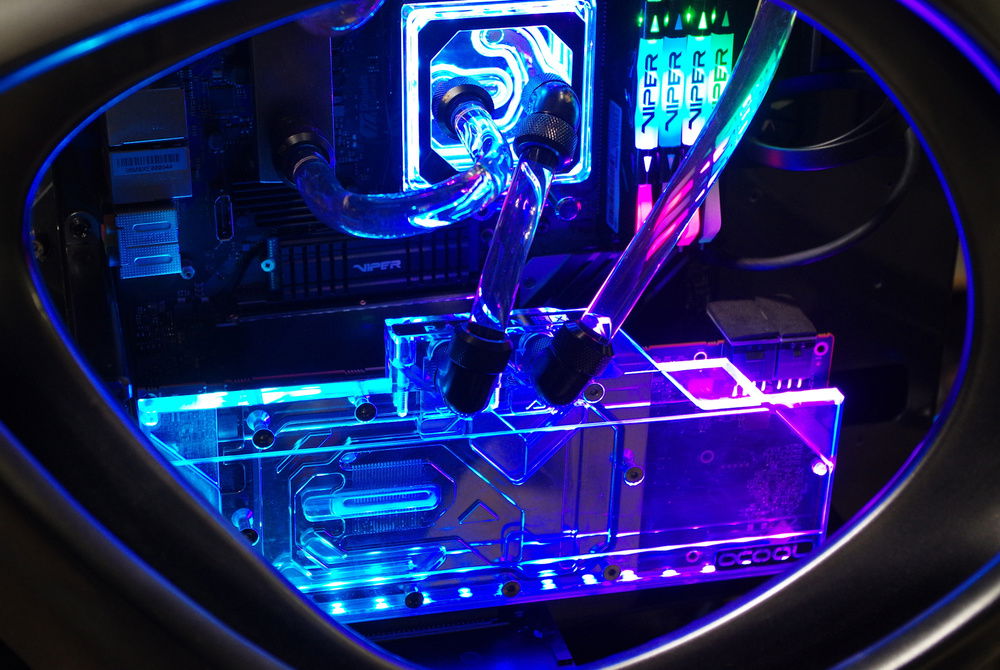

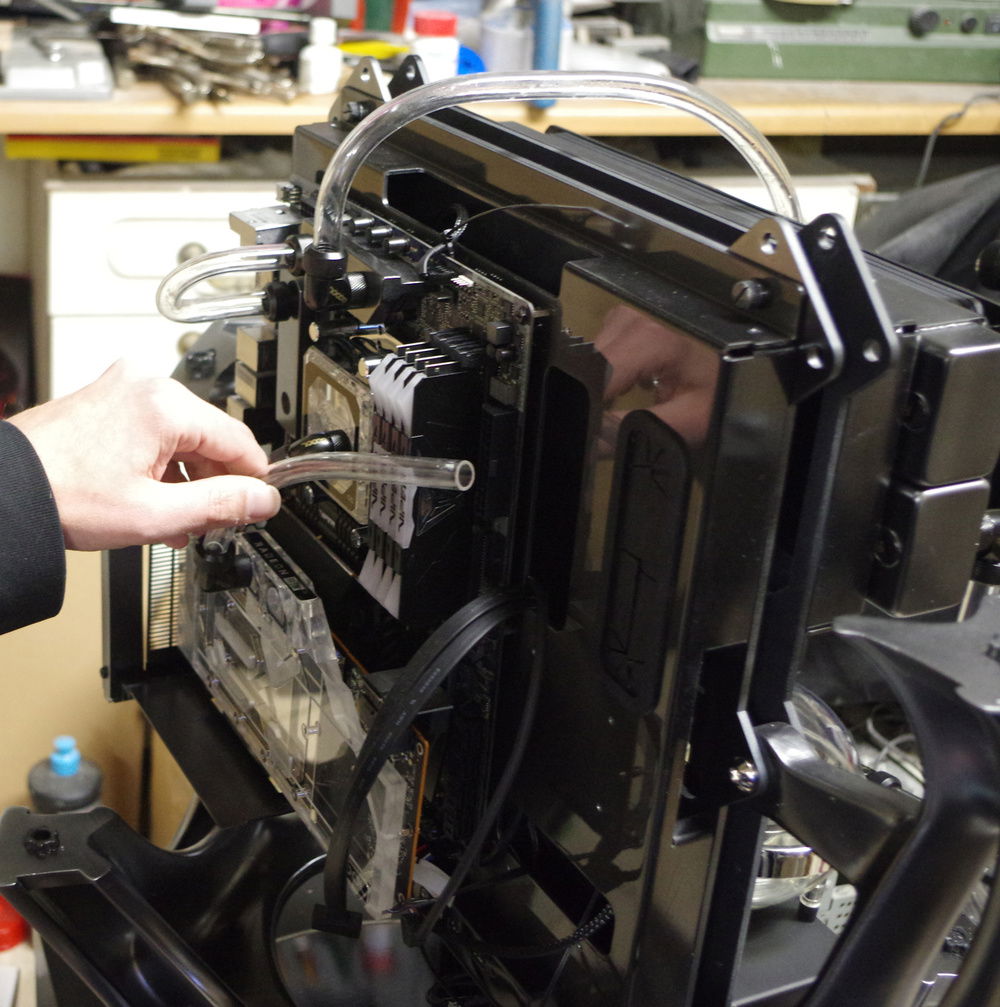

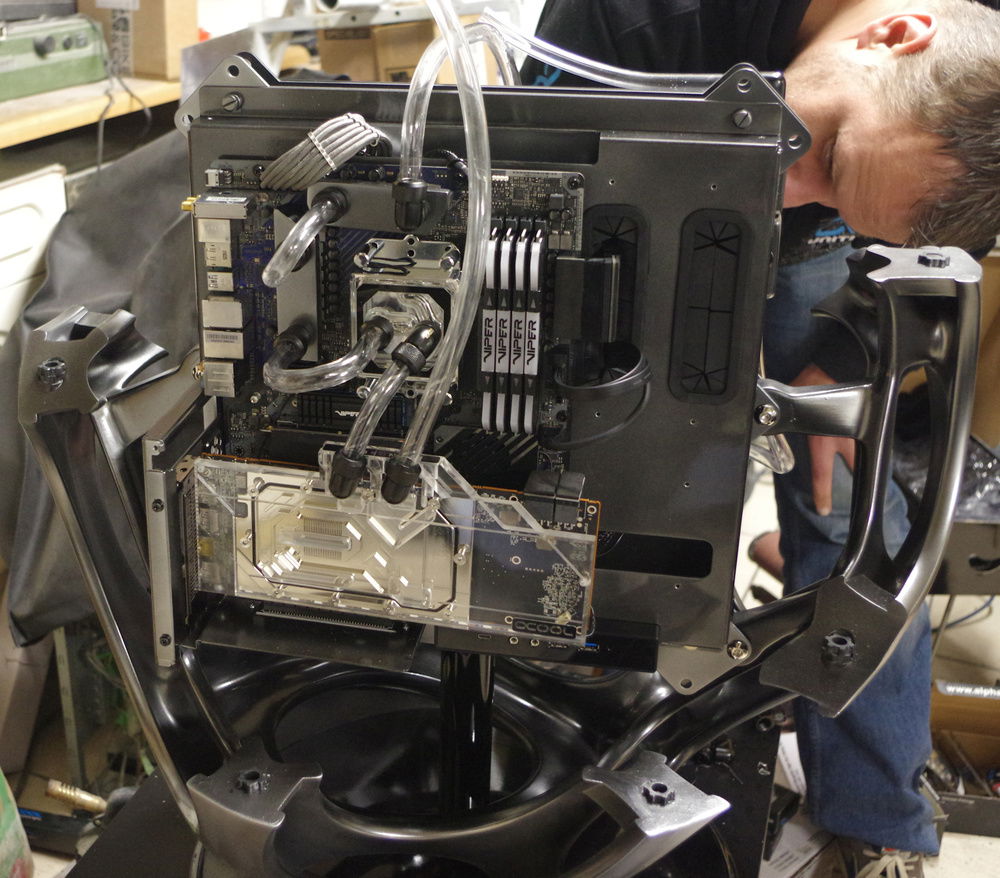

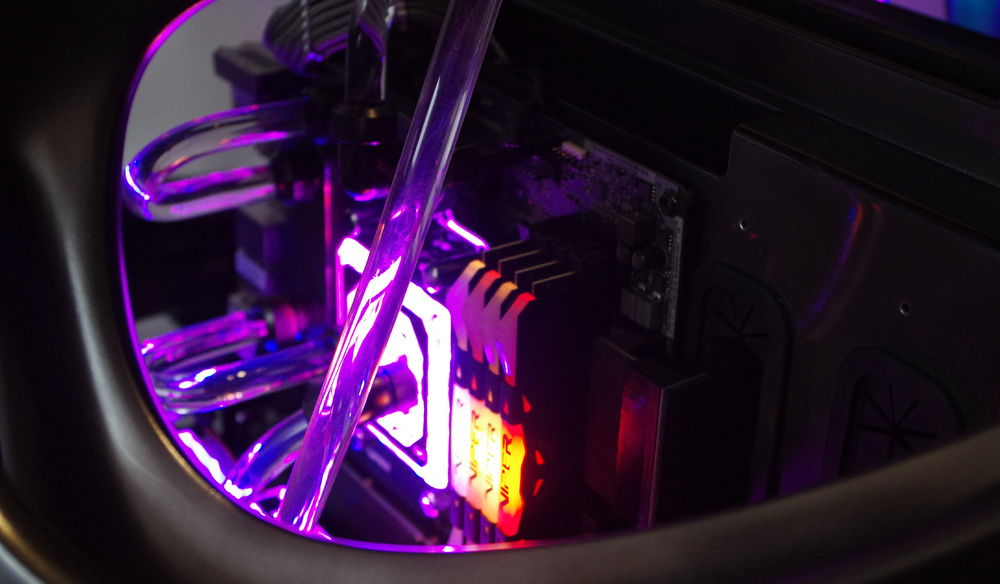

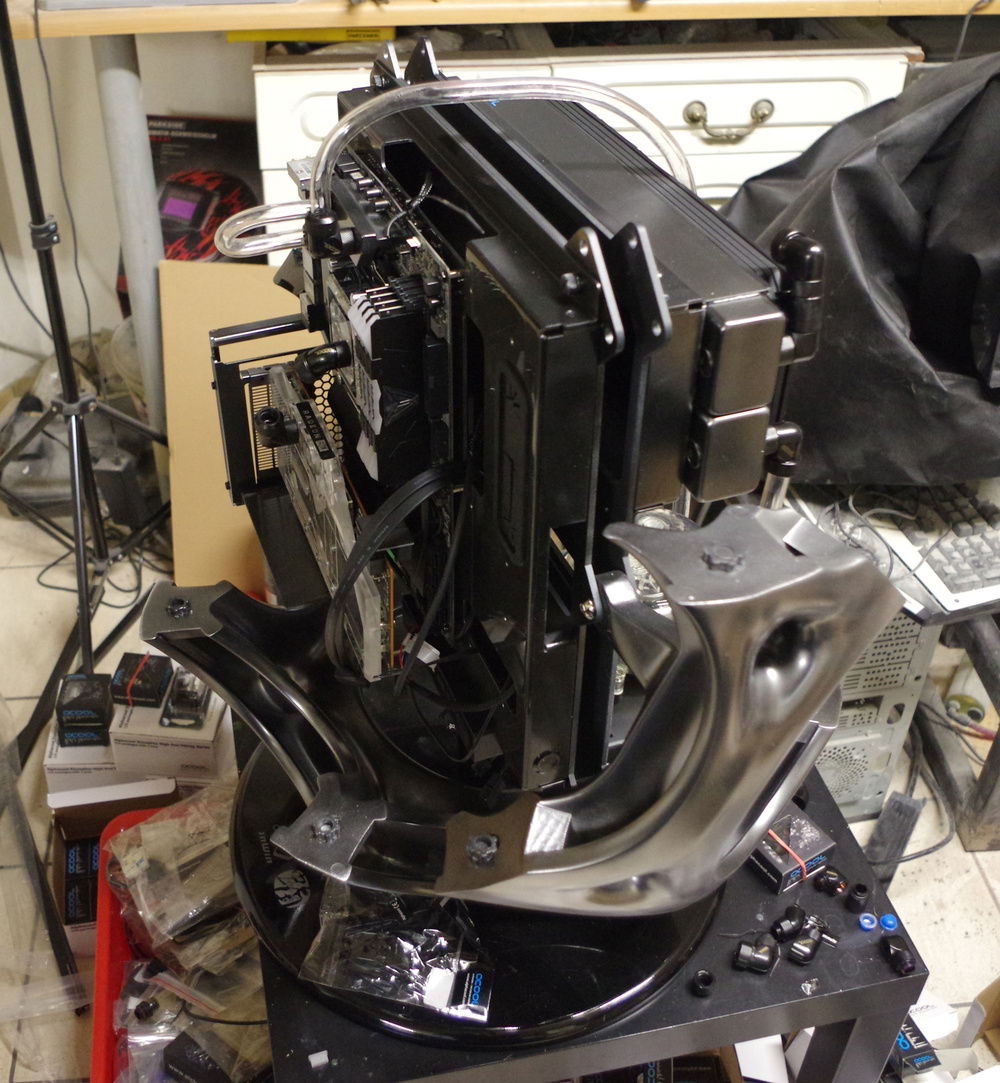

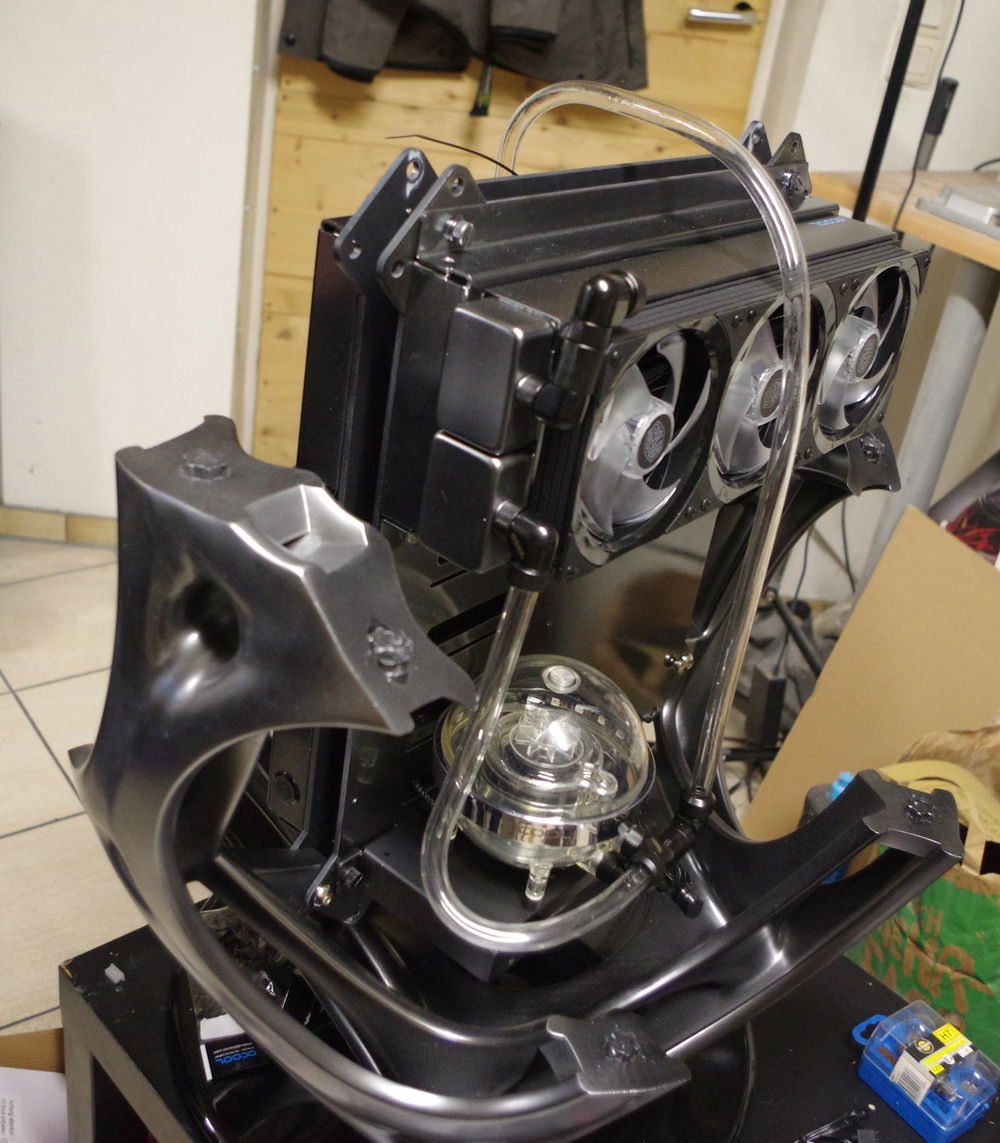

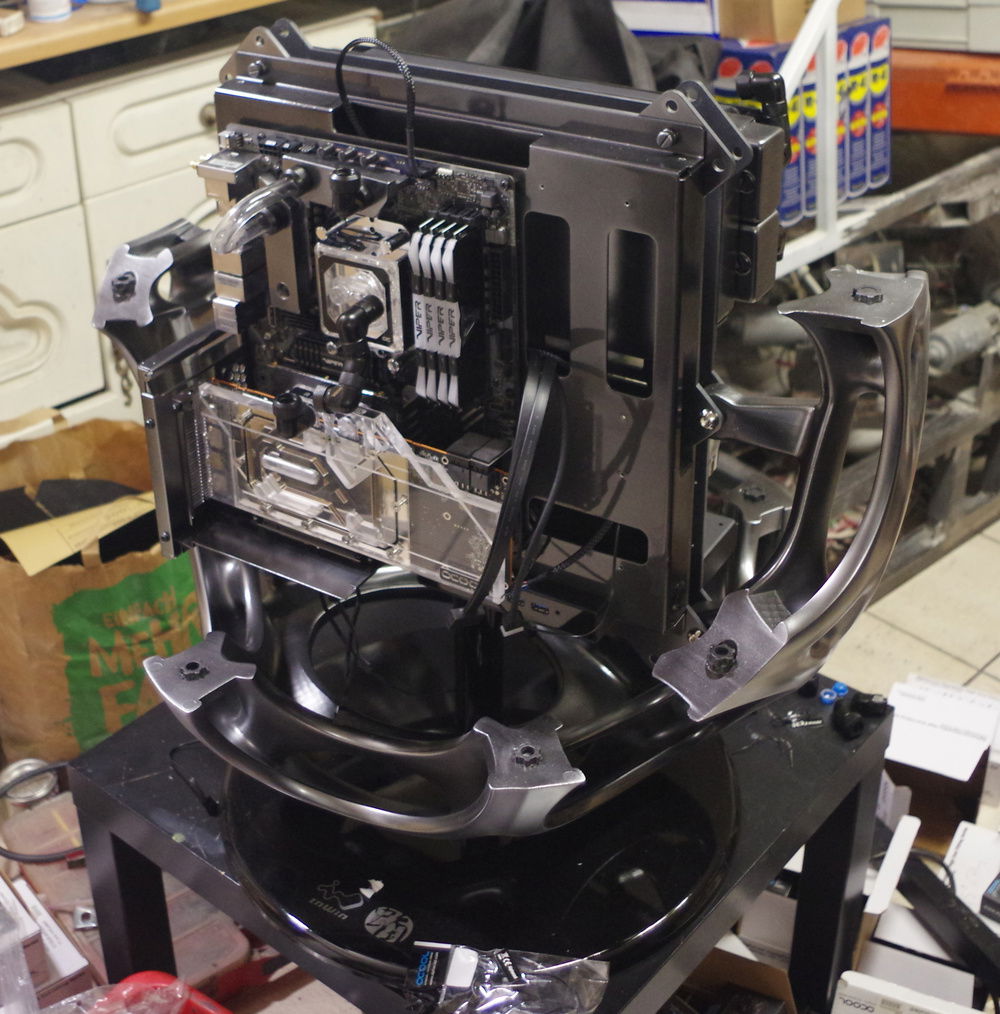

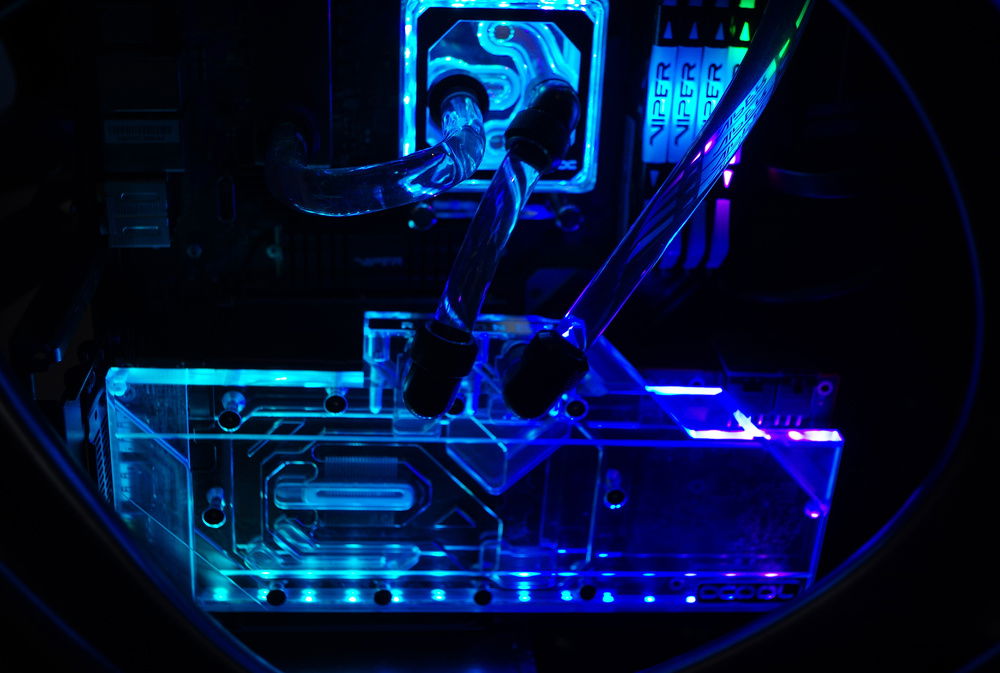

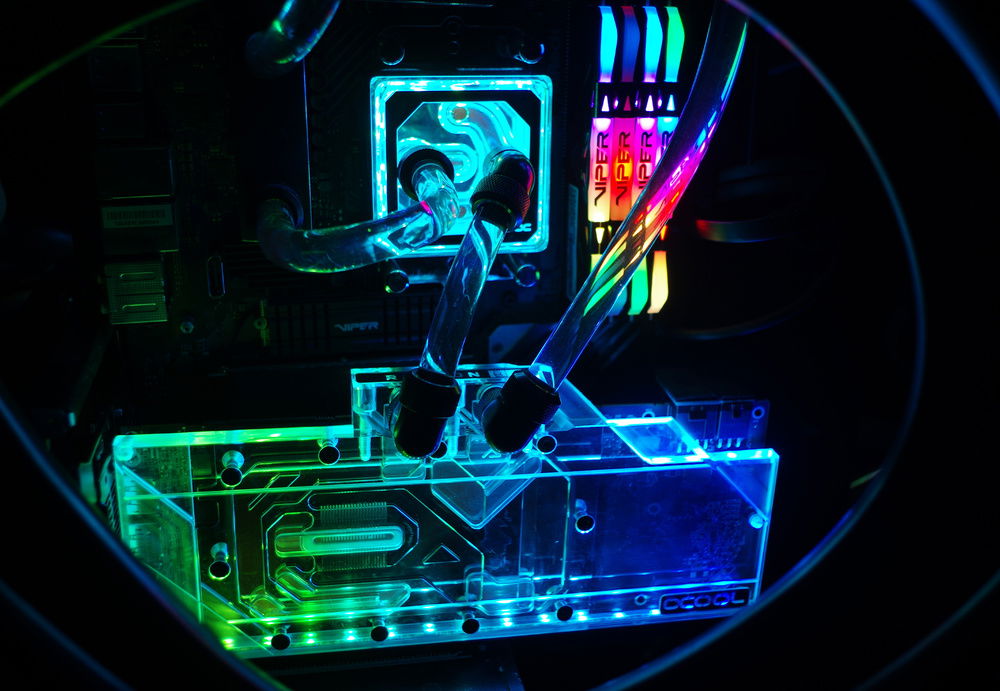

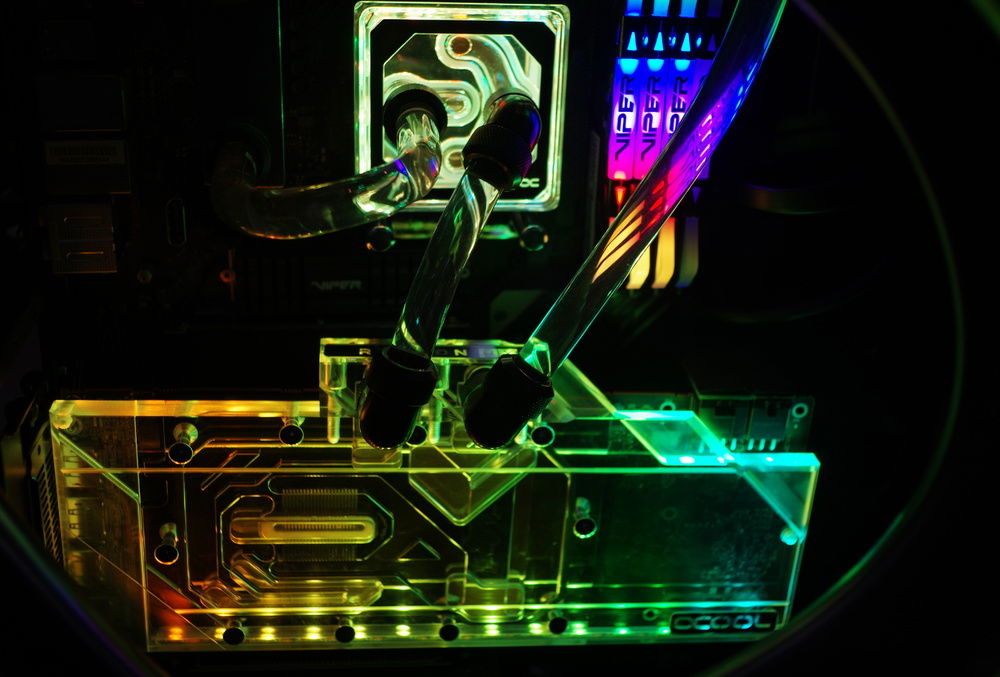

With such an unique Case we wanted to build an aesthetic and clean build. So we try to make this build as clean as possible while integrating a full custom Loop in it.

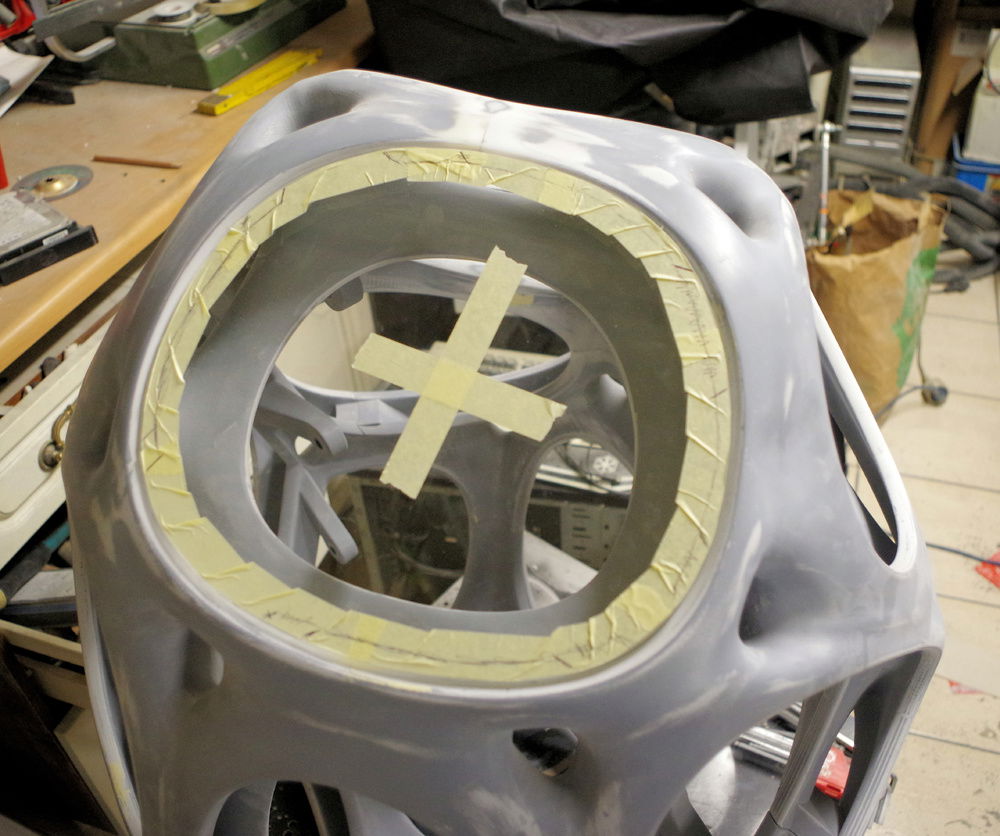

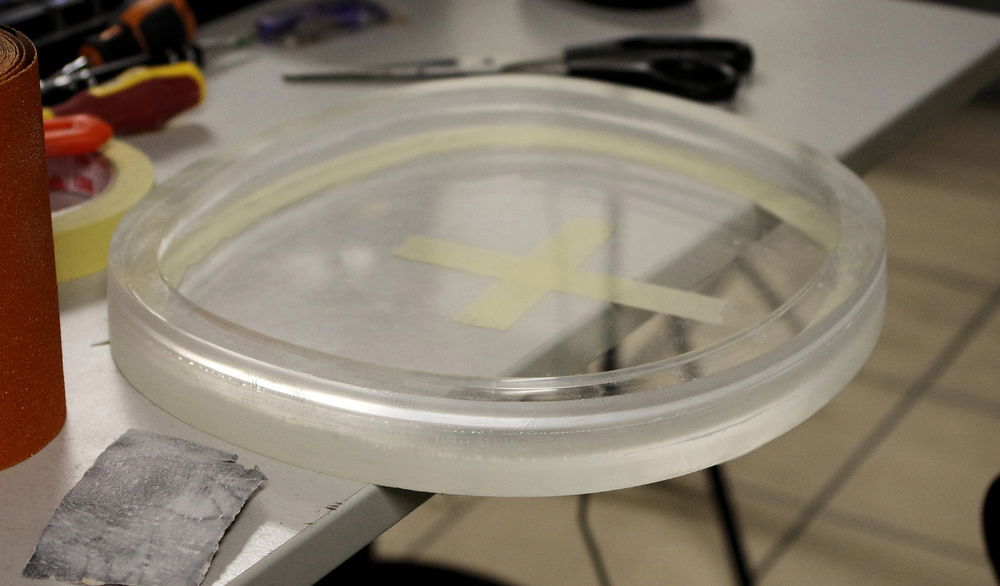

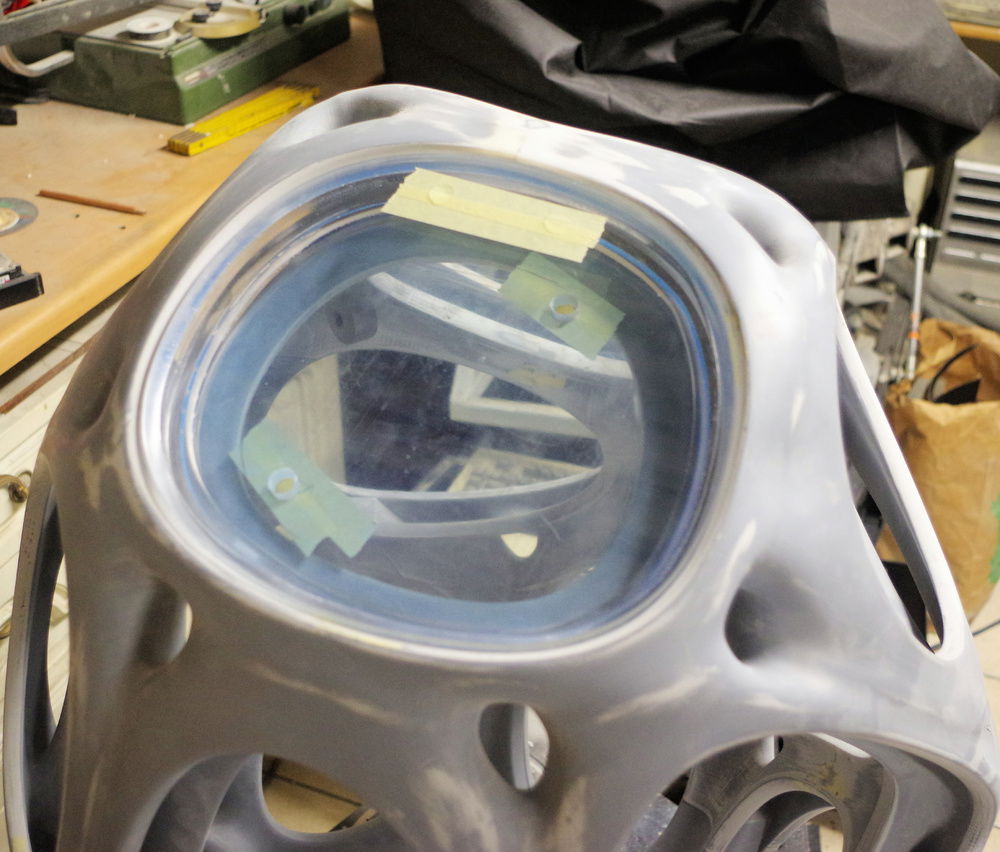

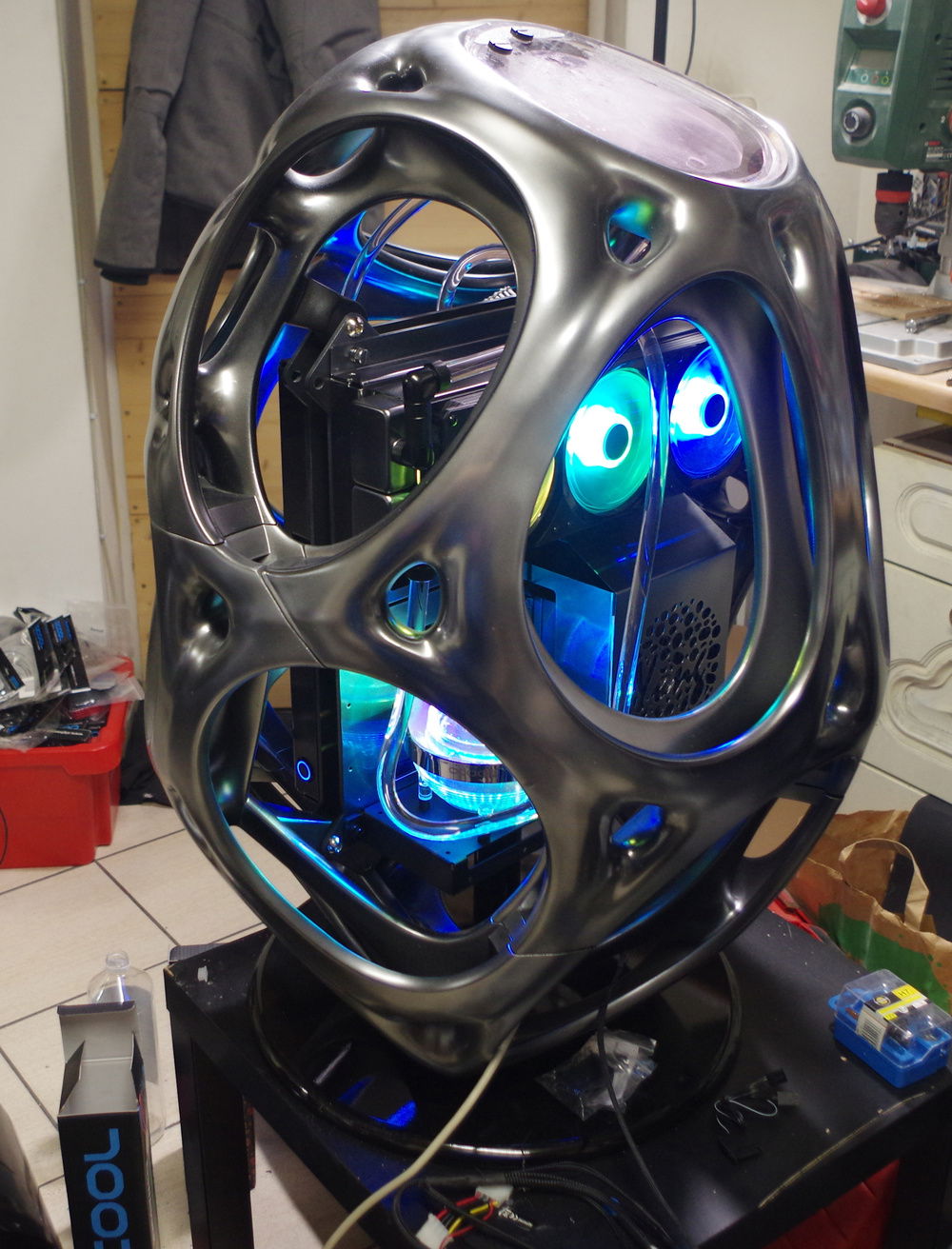

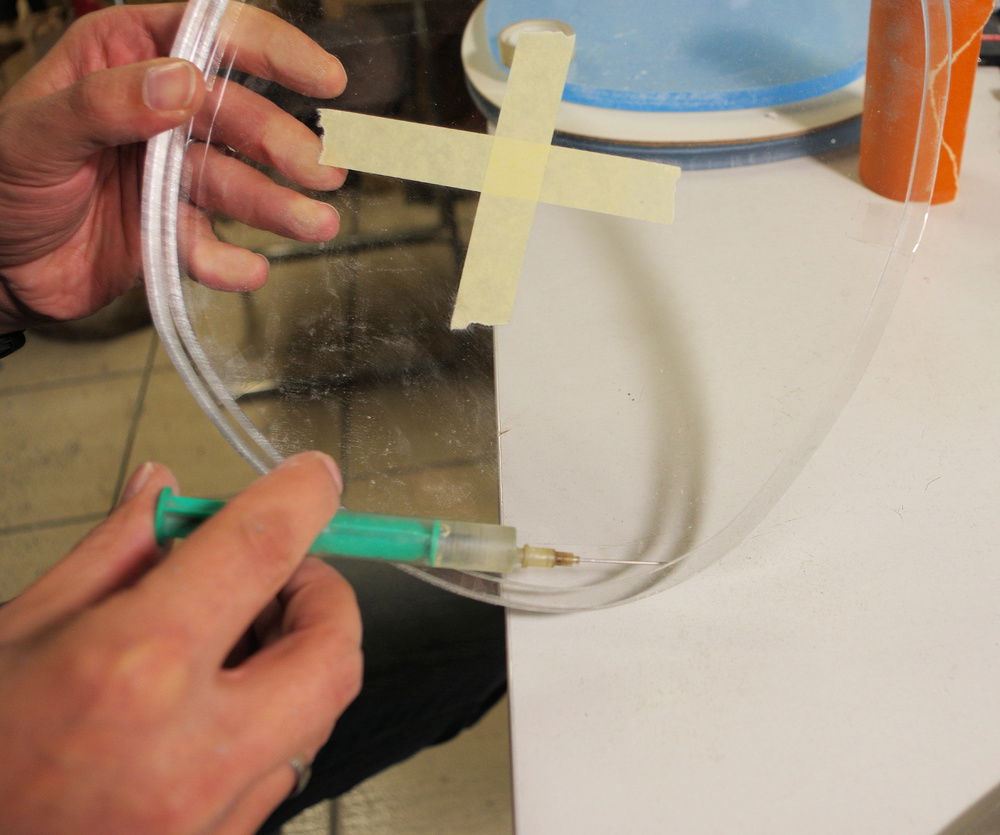

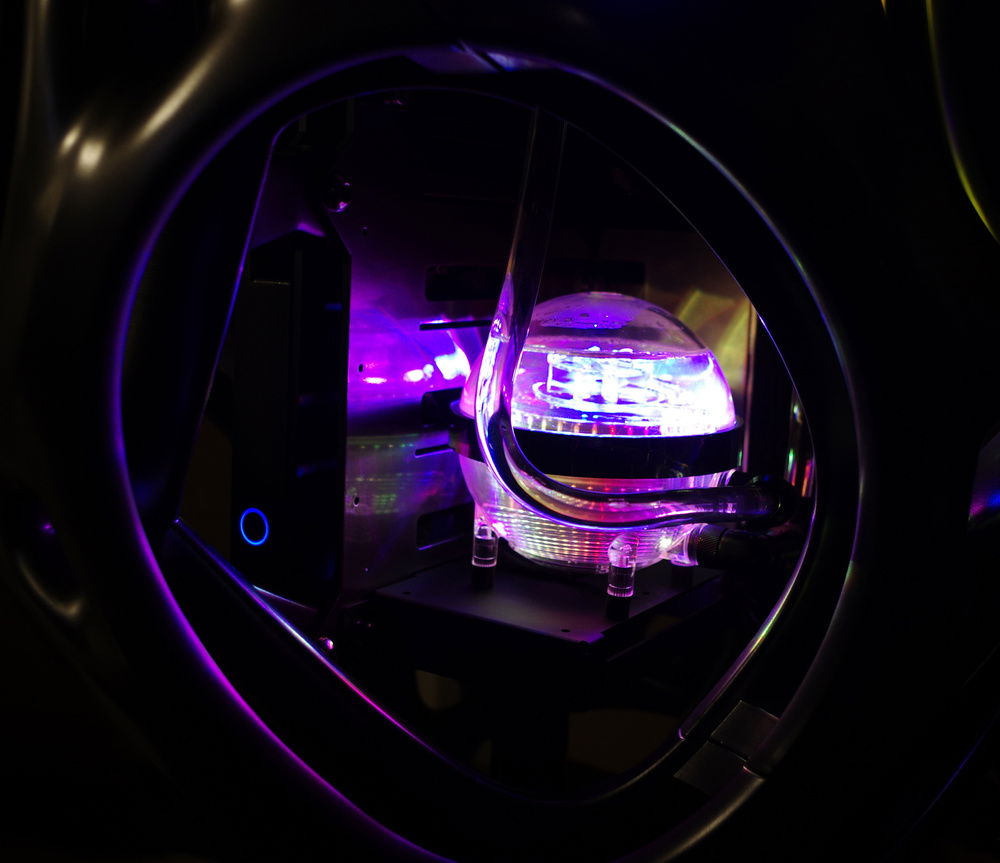

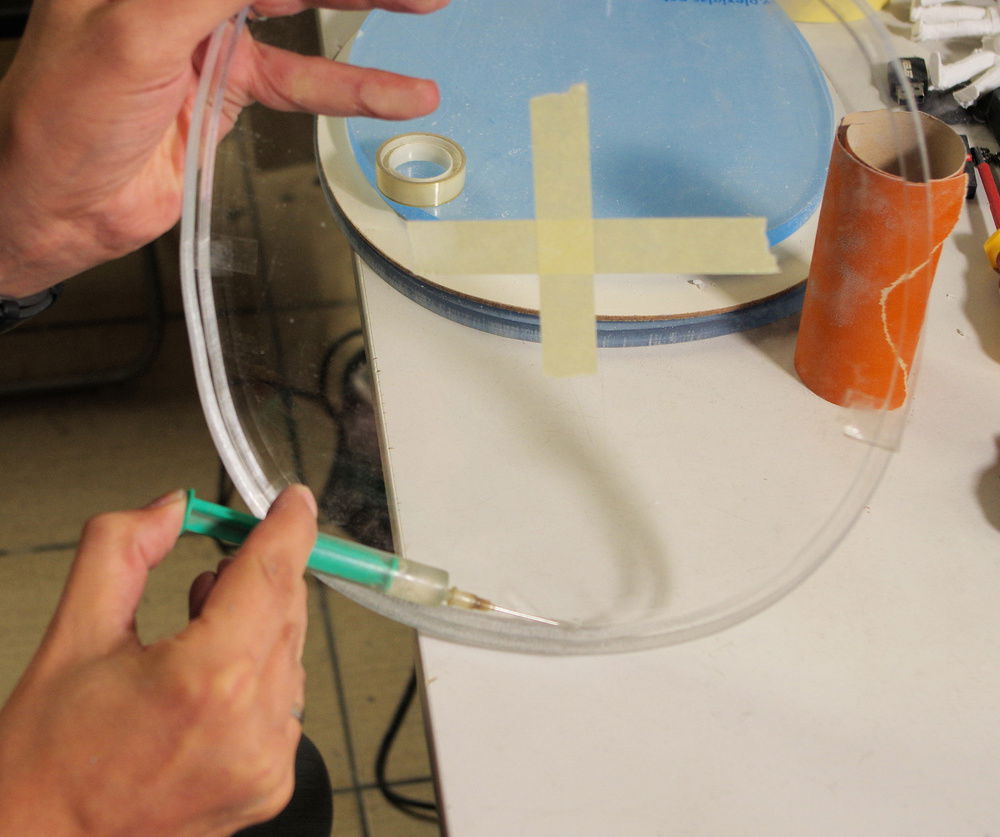

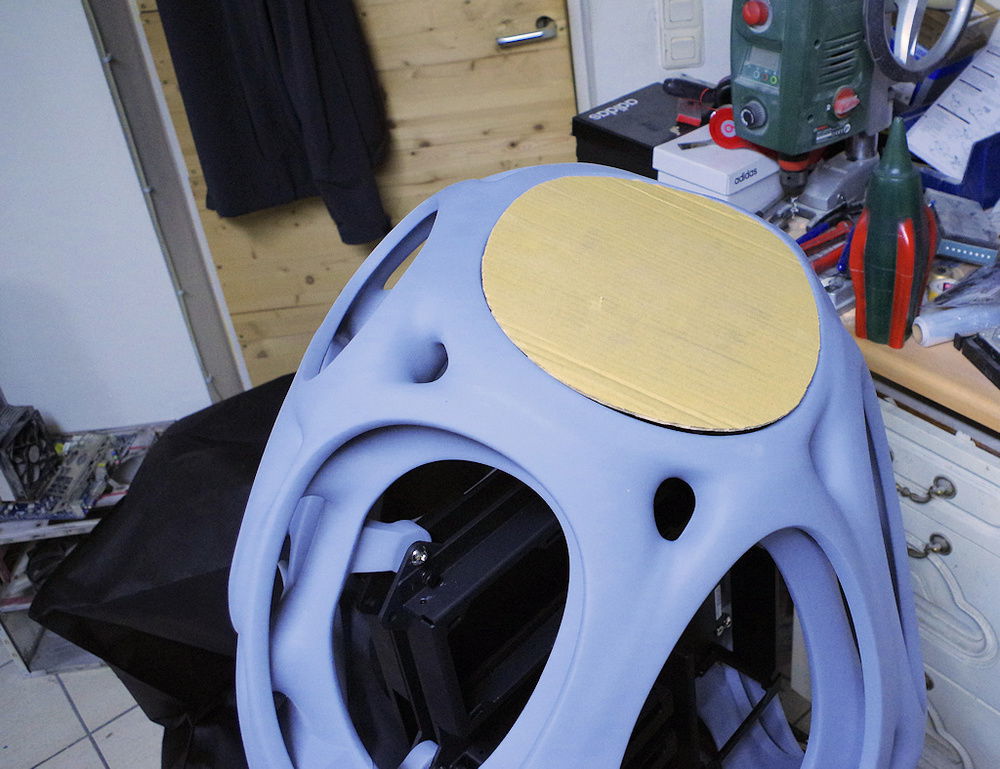

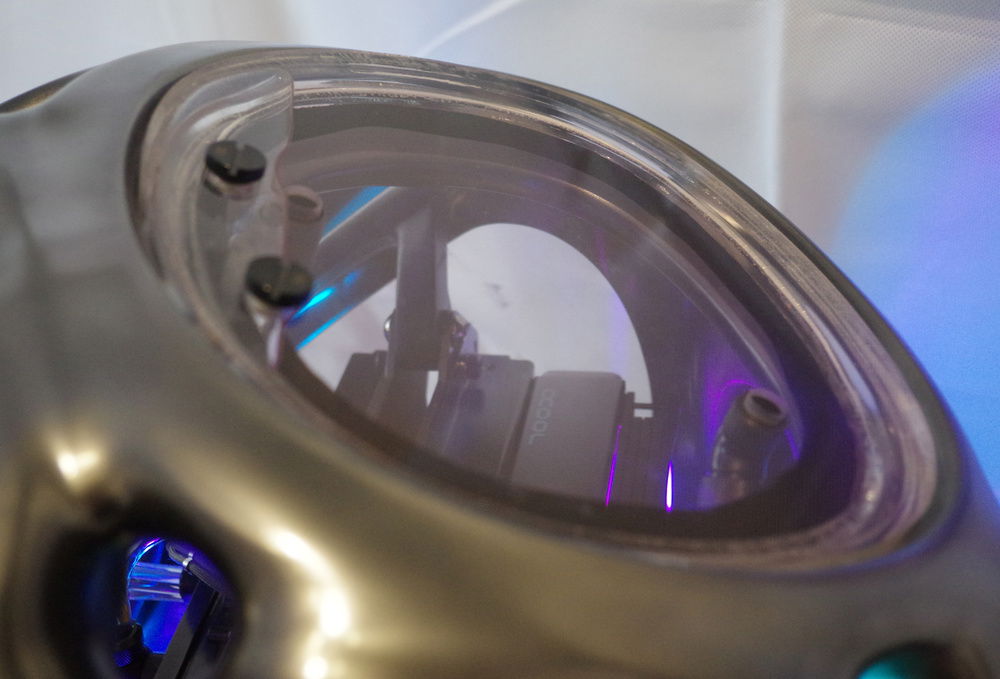

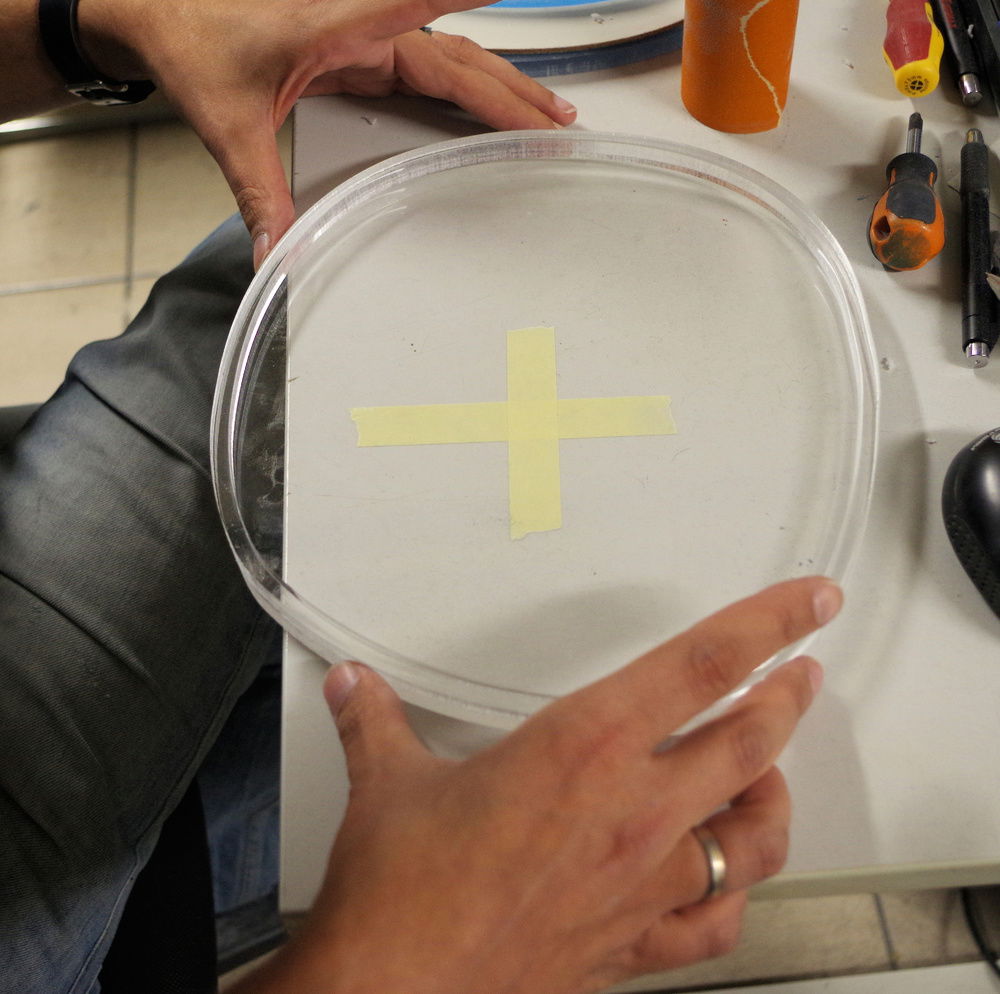

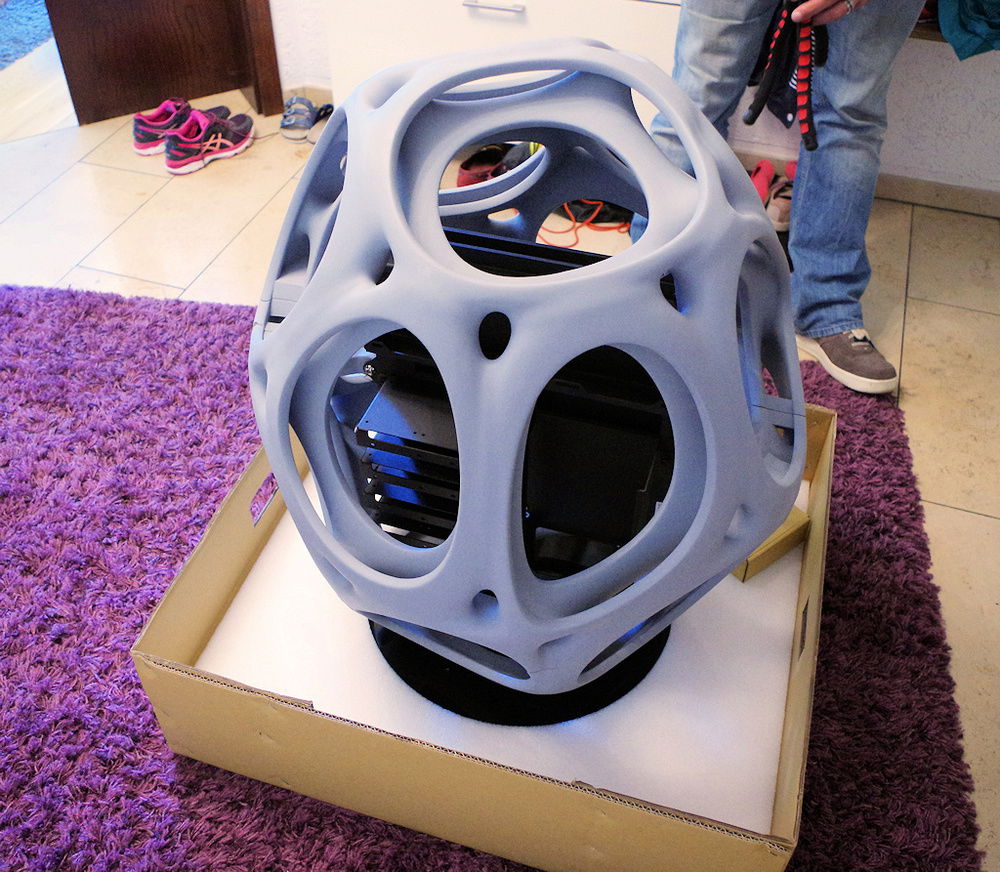

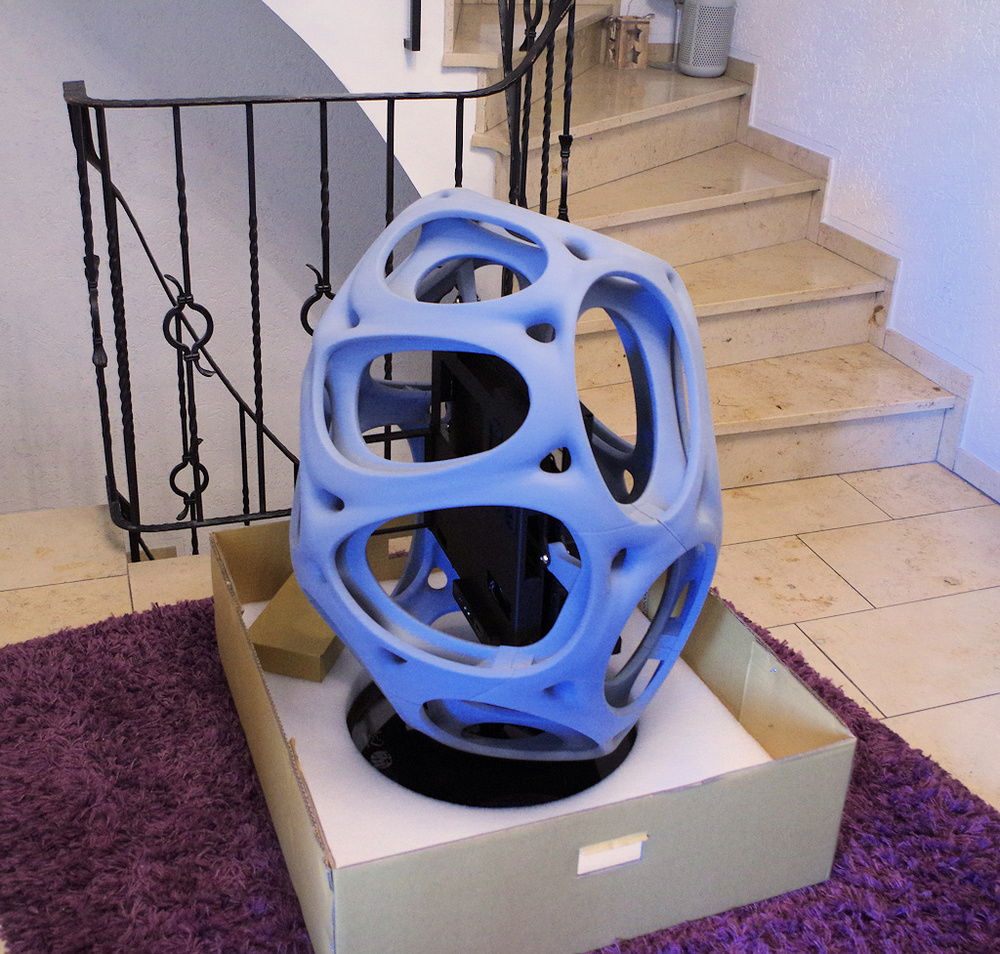

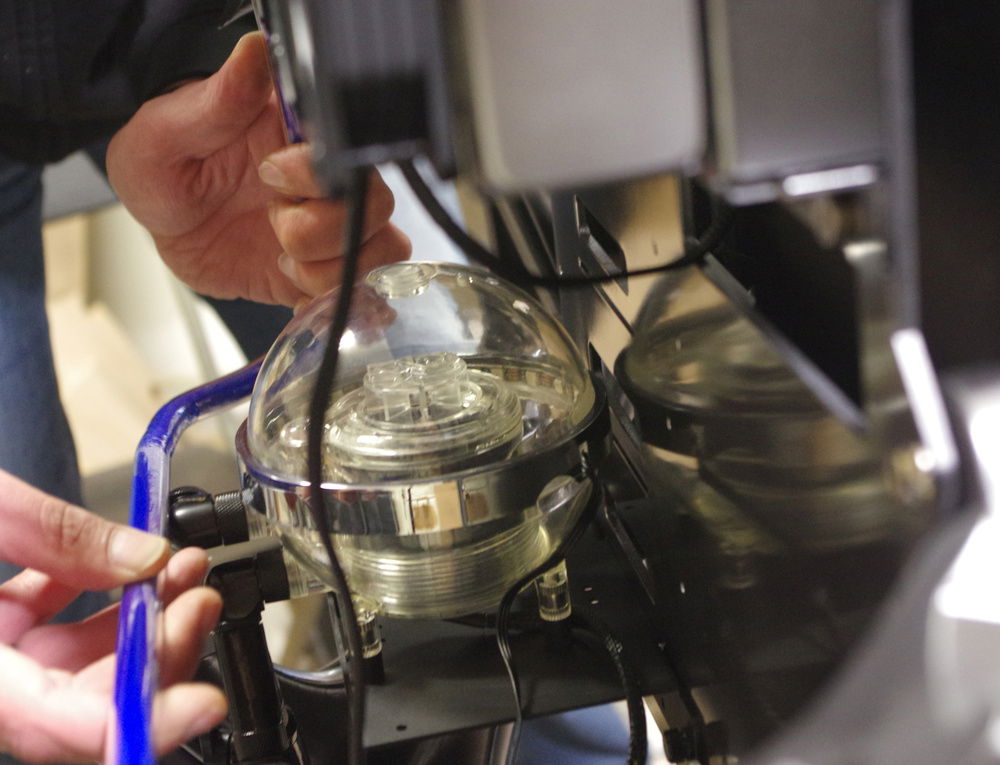

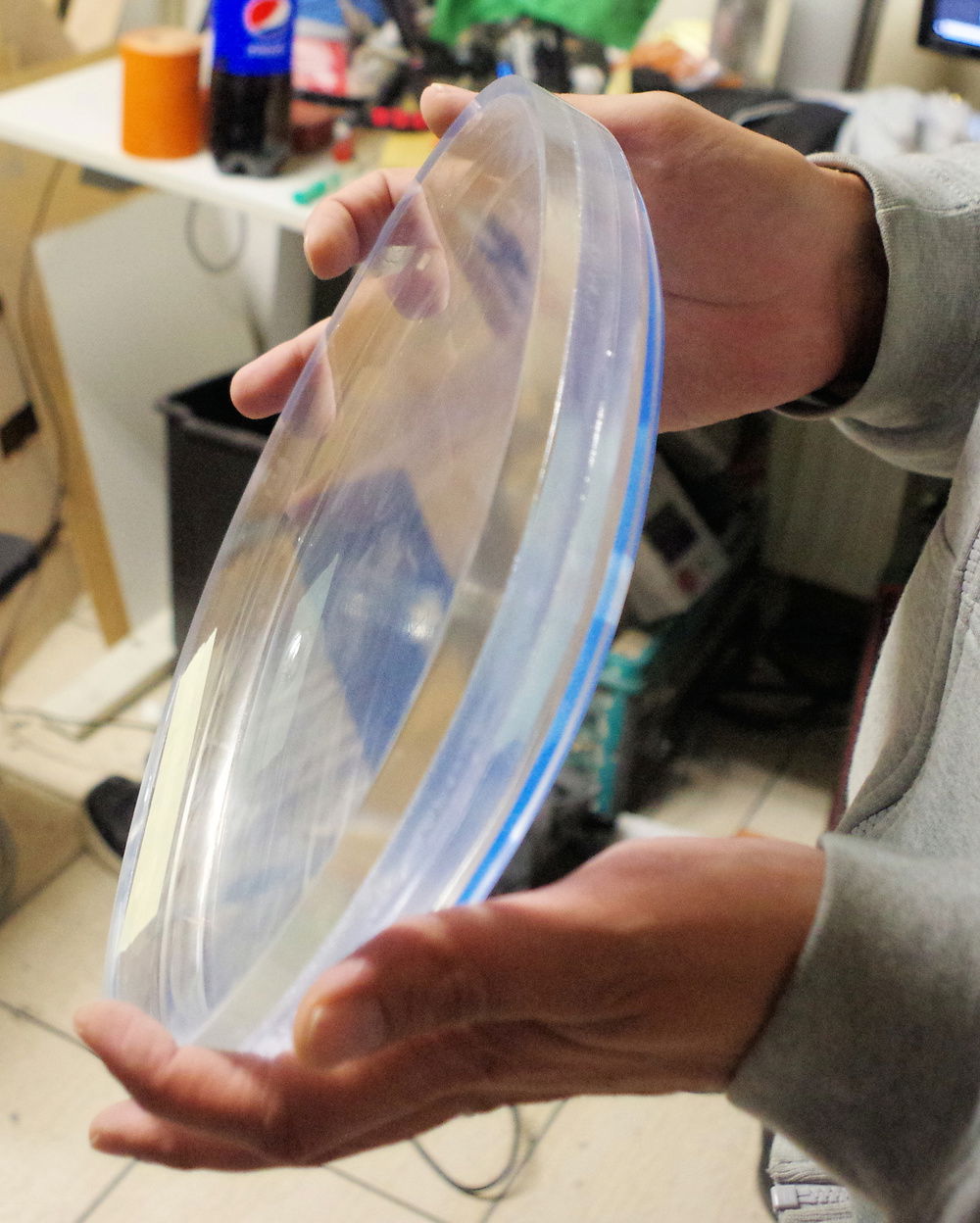

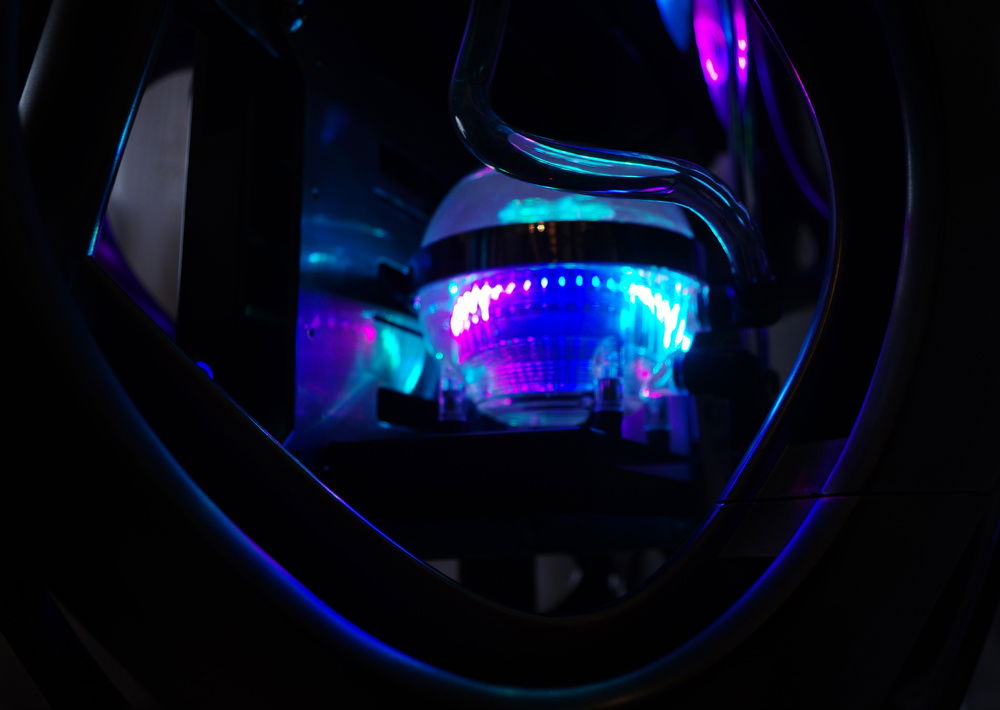

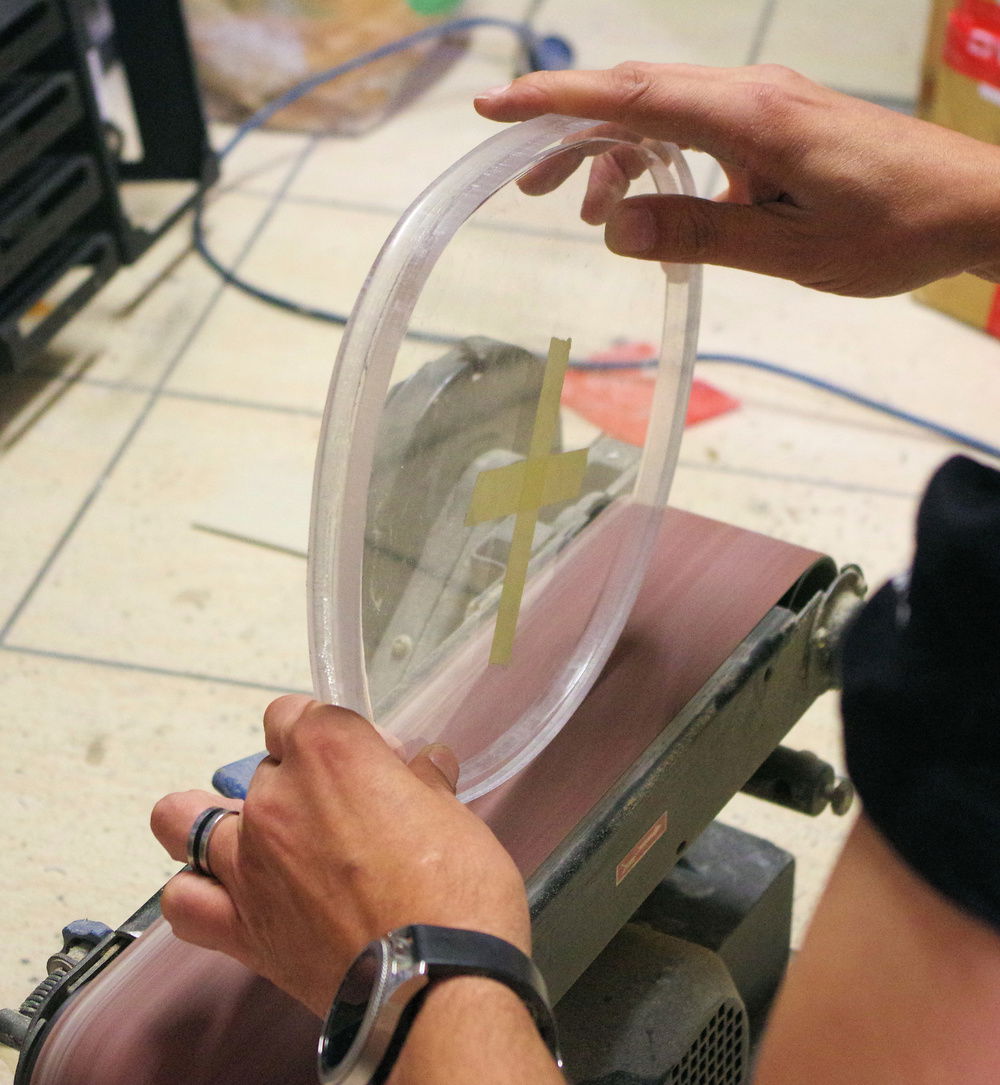

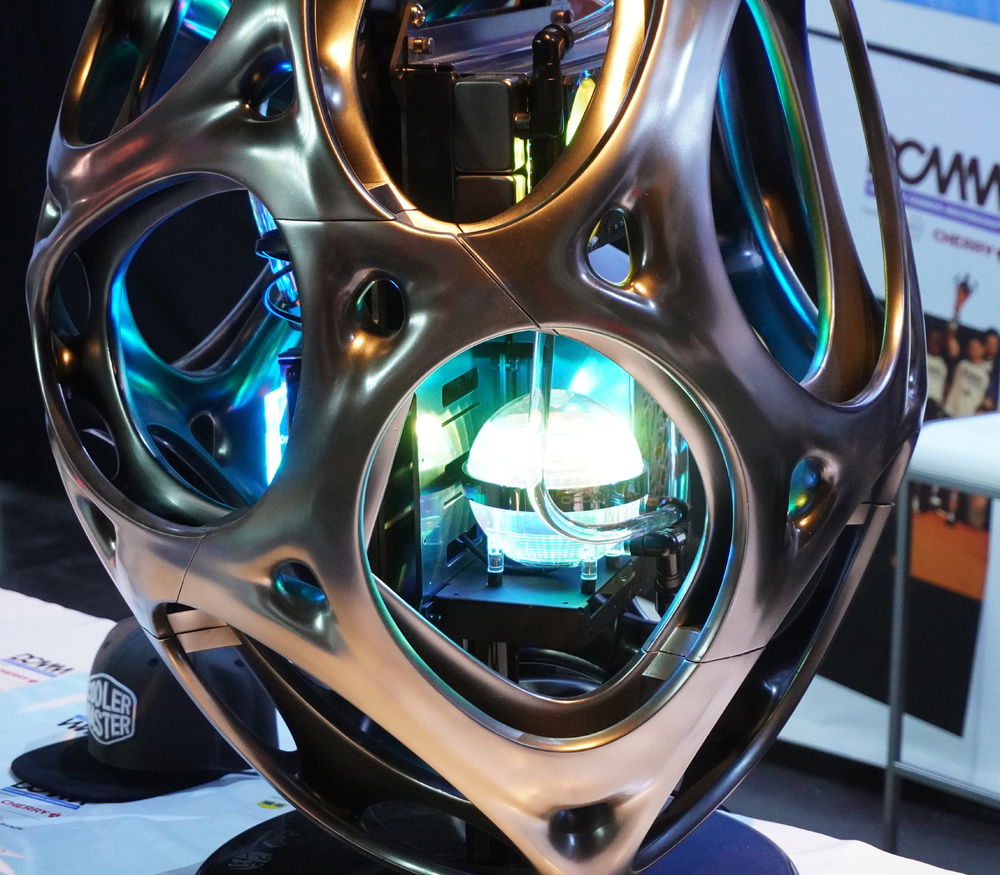

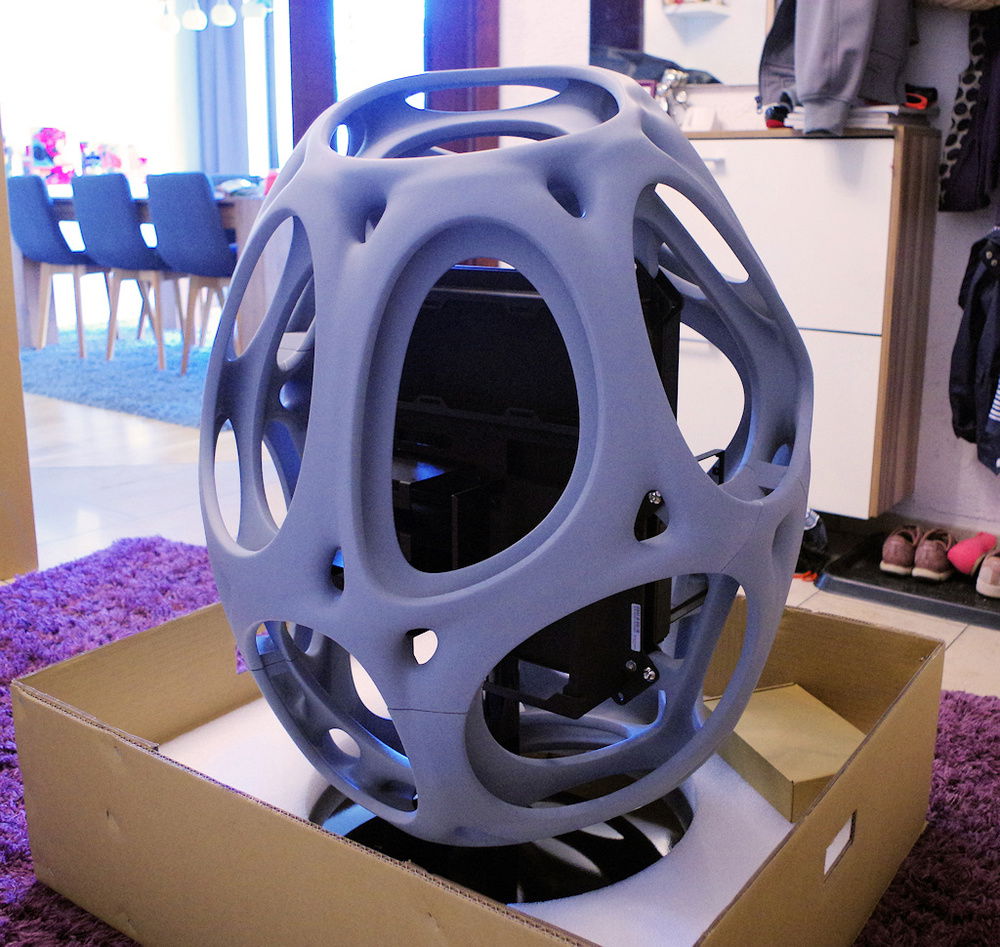

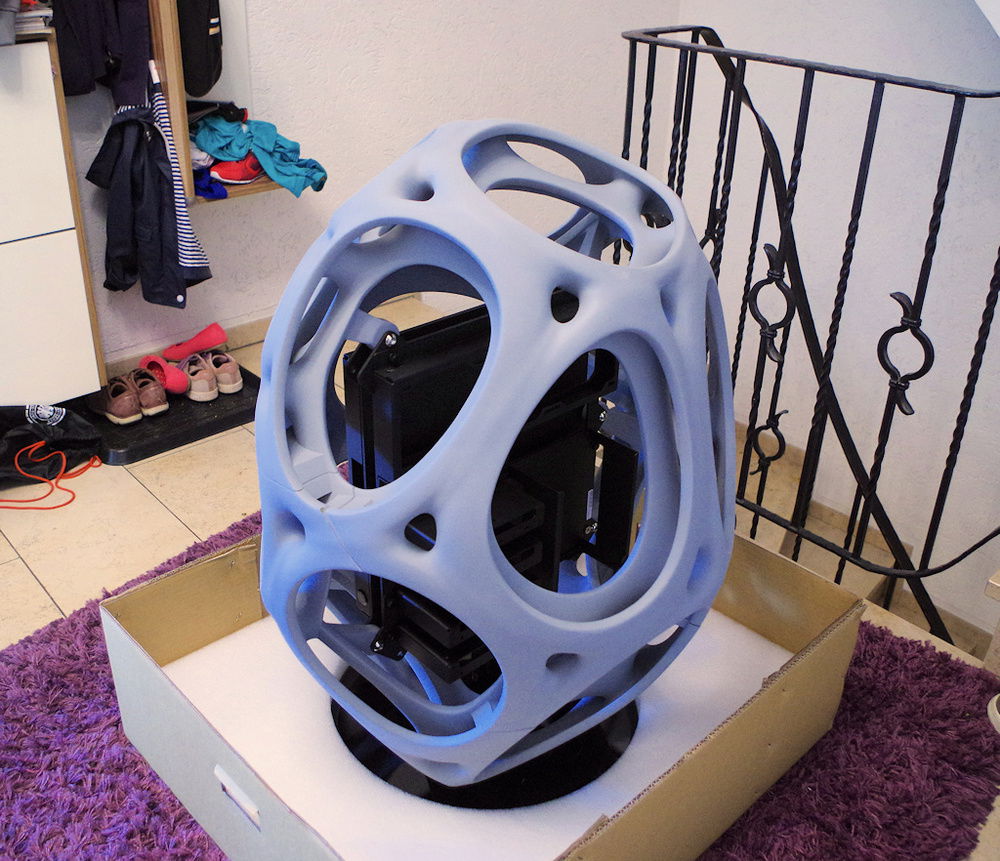

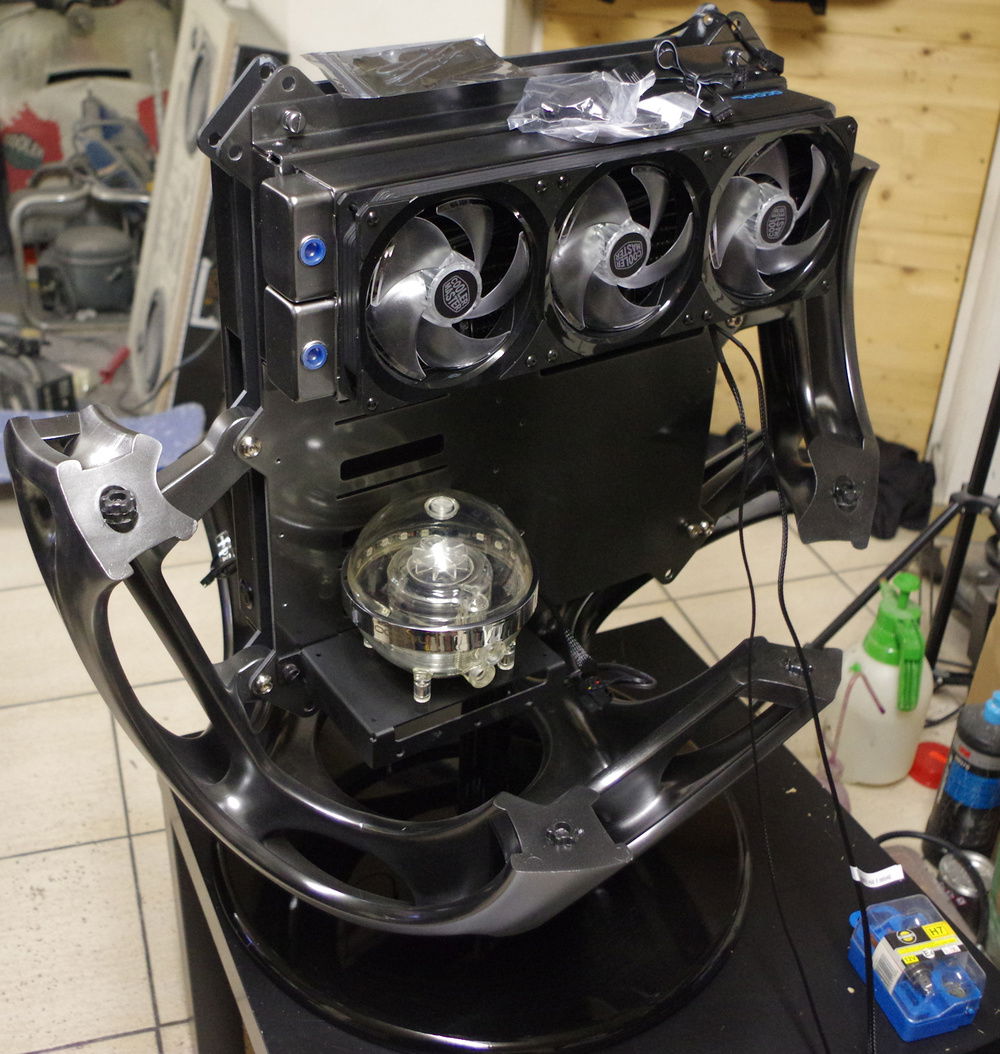

The outer Shell has no edges, only natural flow. So we integrated the custom reservoir into the shape of the outer shell so that we don´t have to use a "normal" reservoir which would only disturb the overall look of that Beauty!

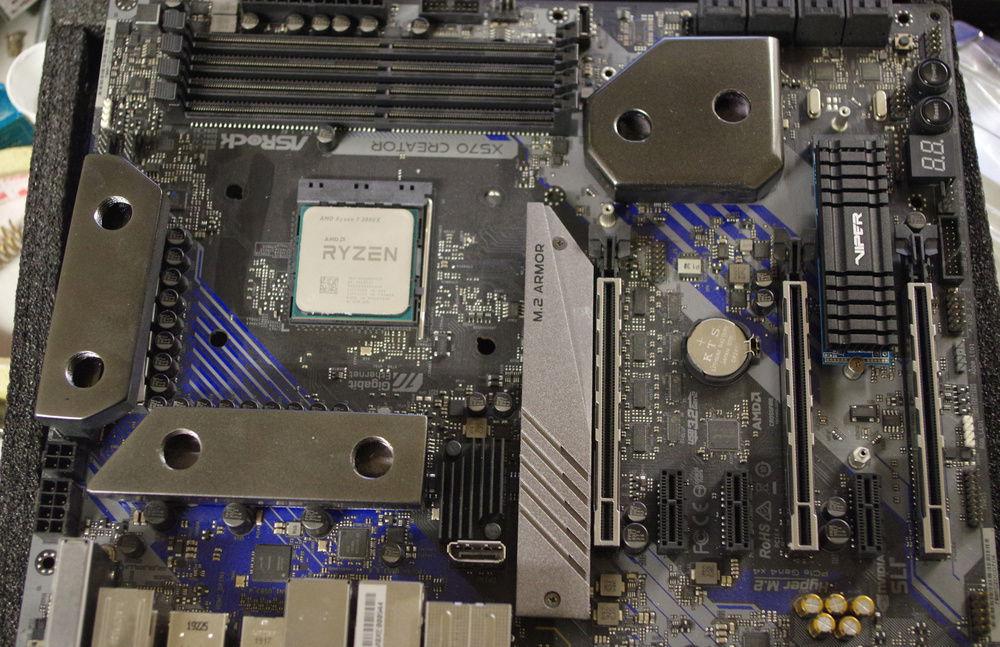

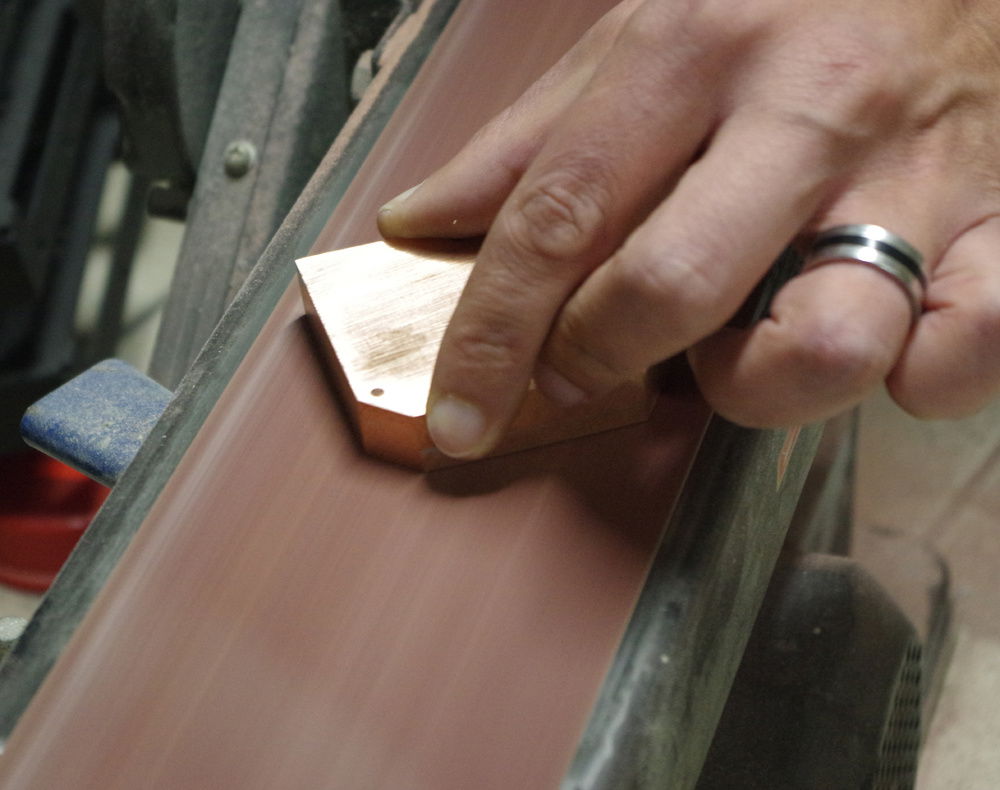

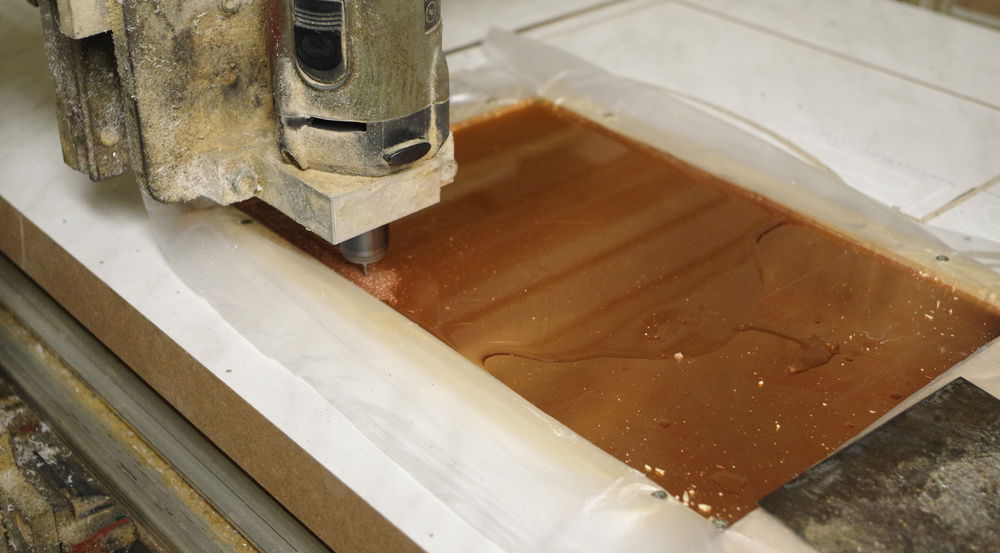

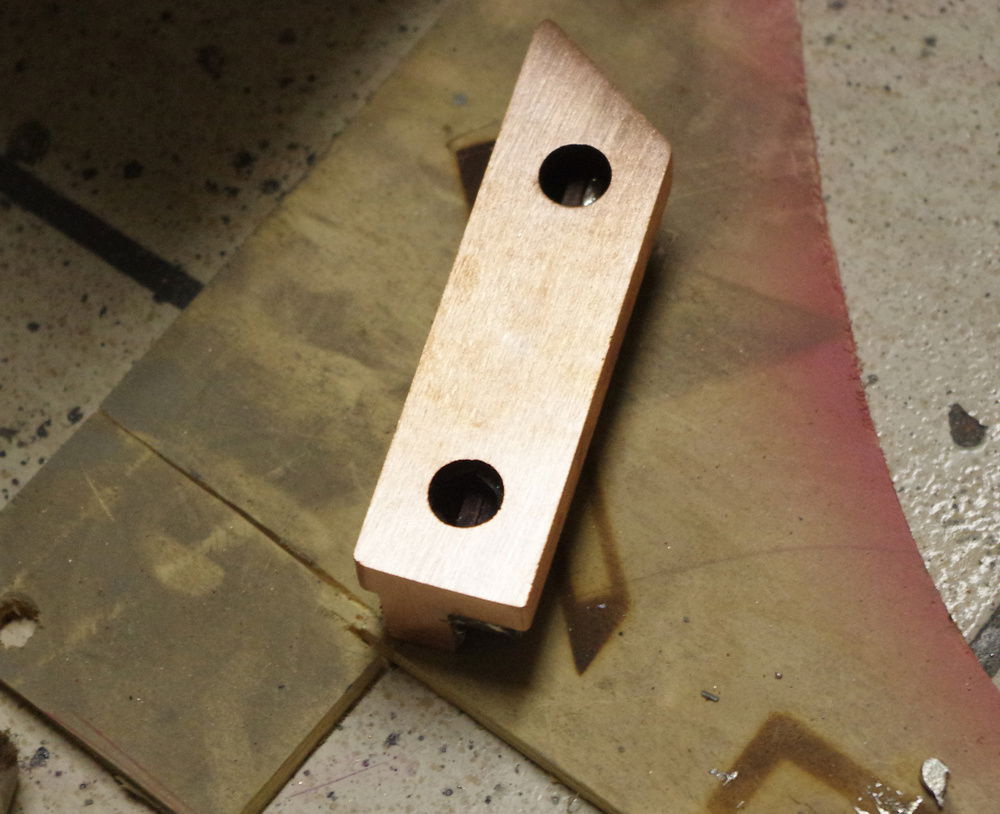

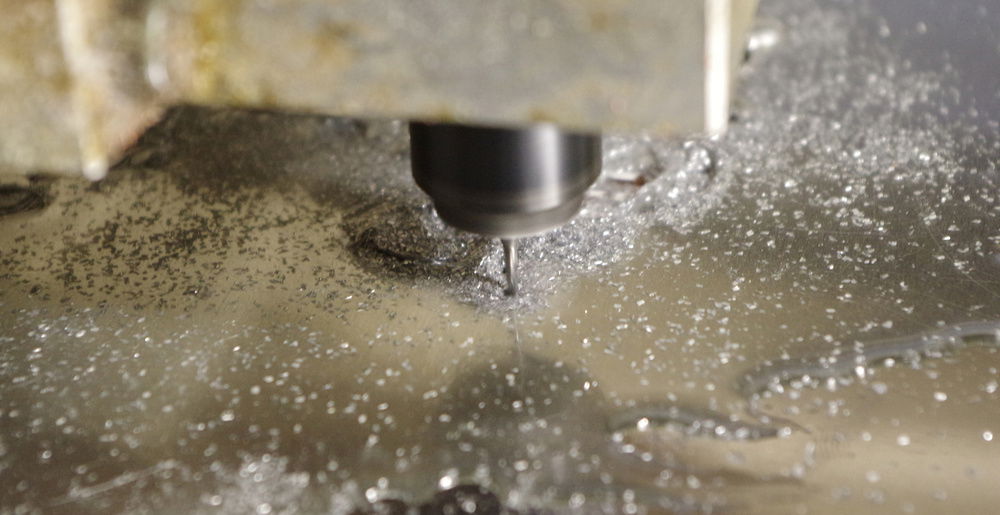

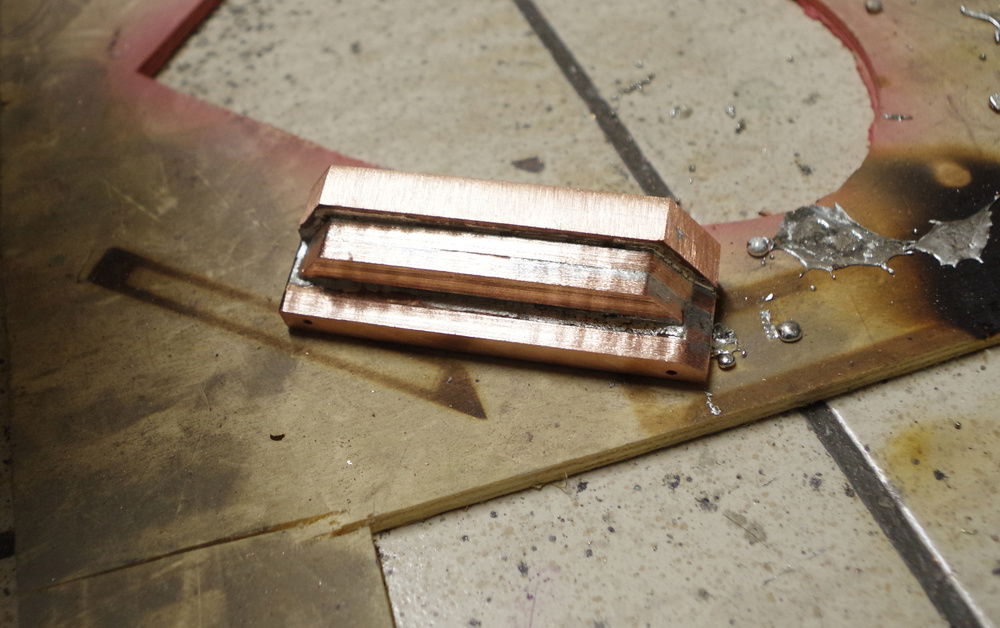

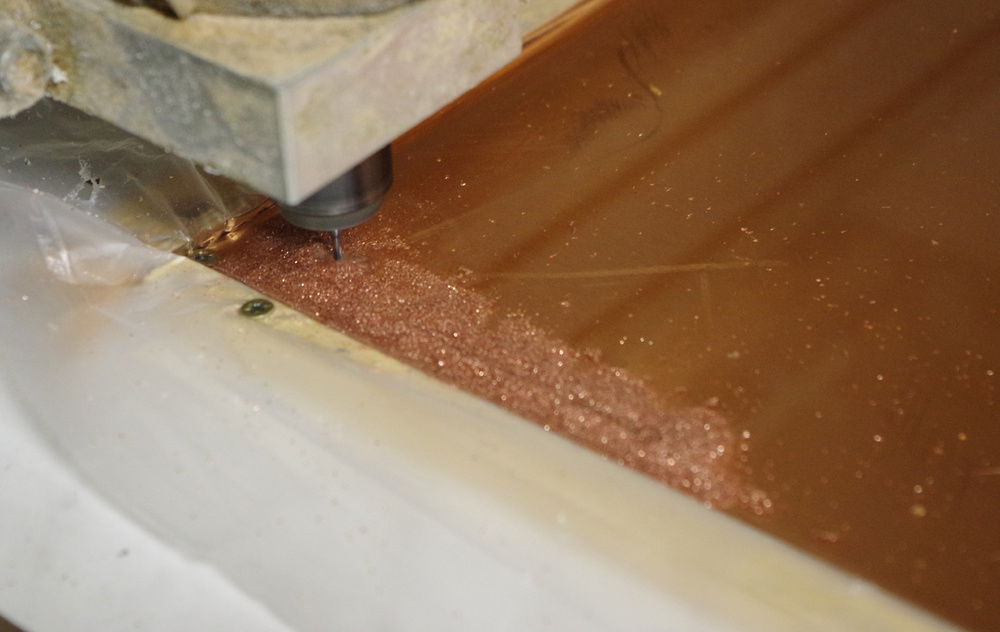

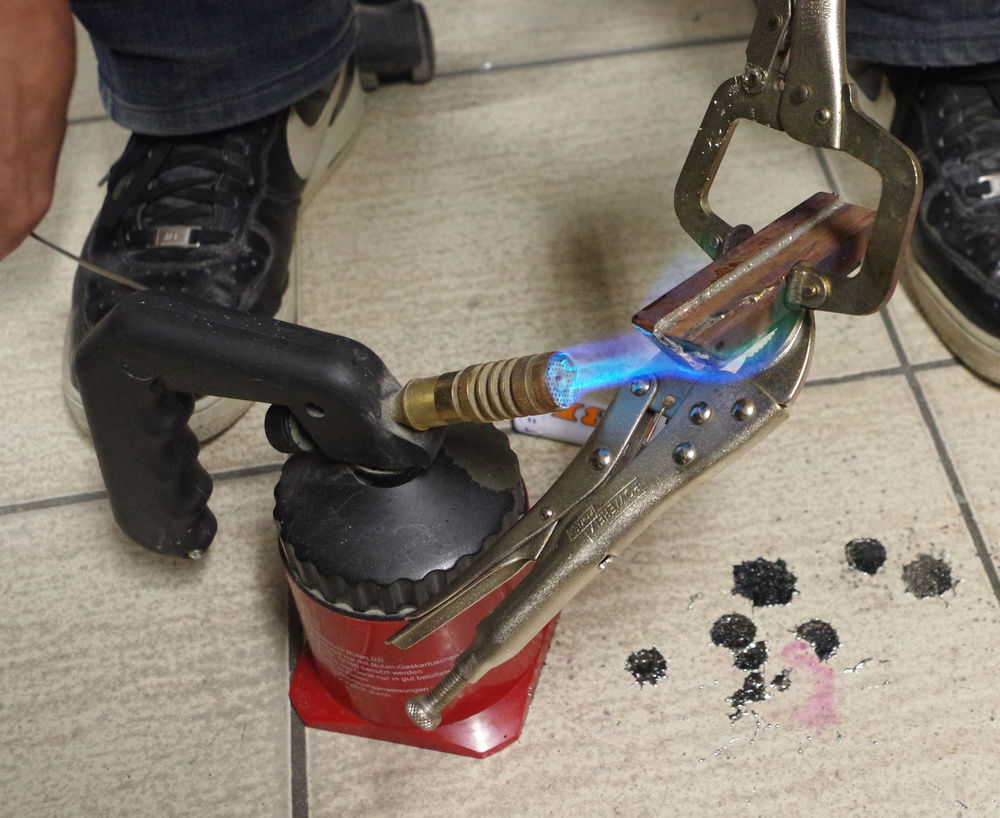

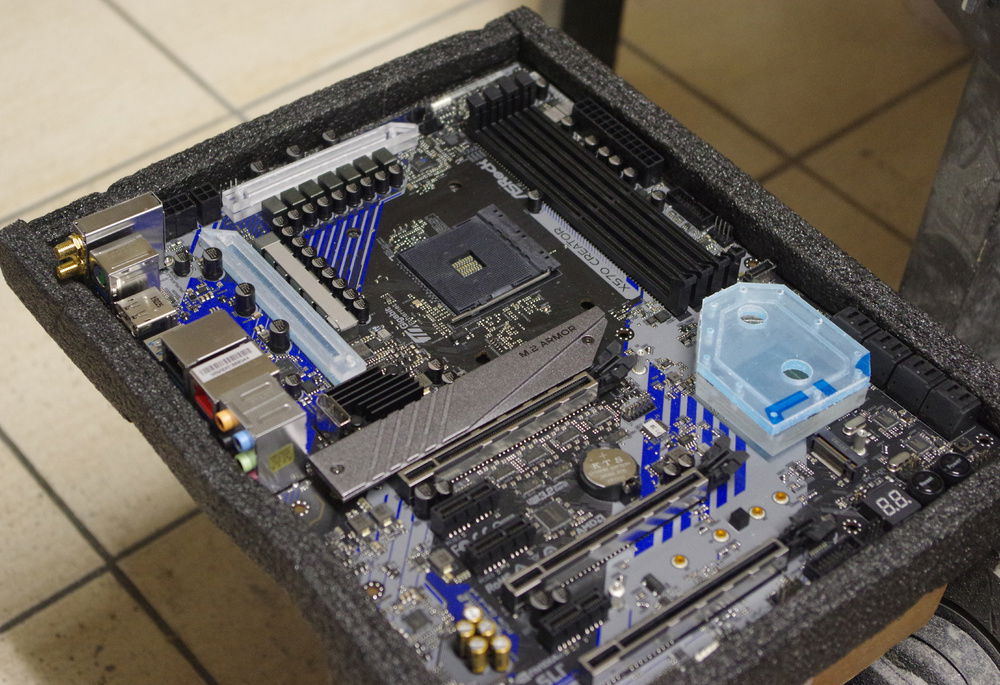

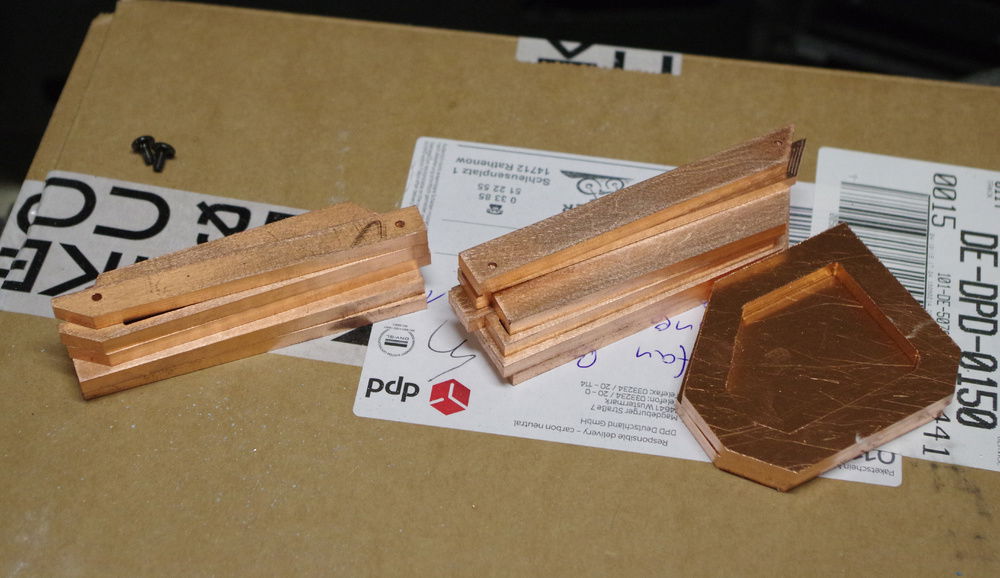

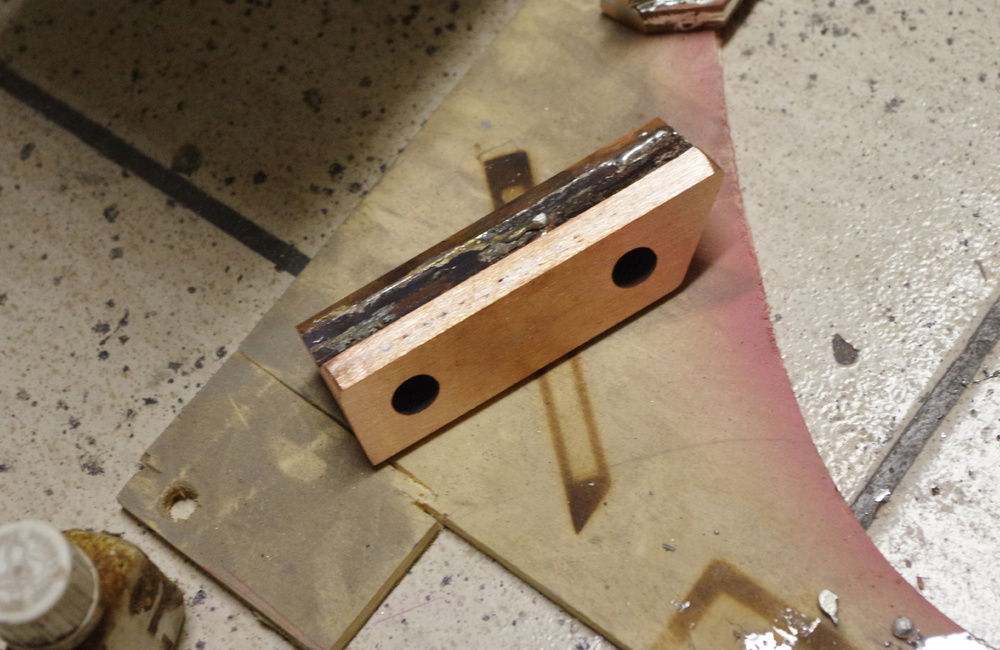

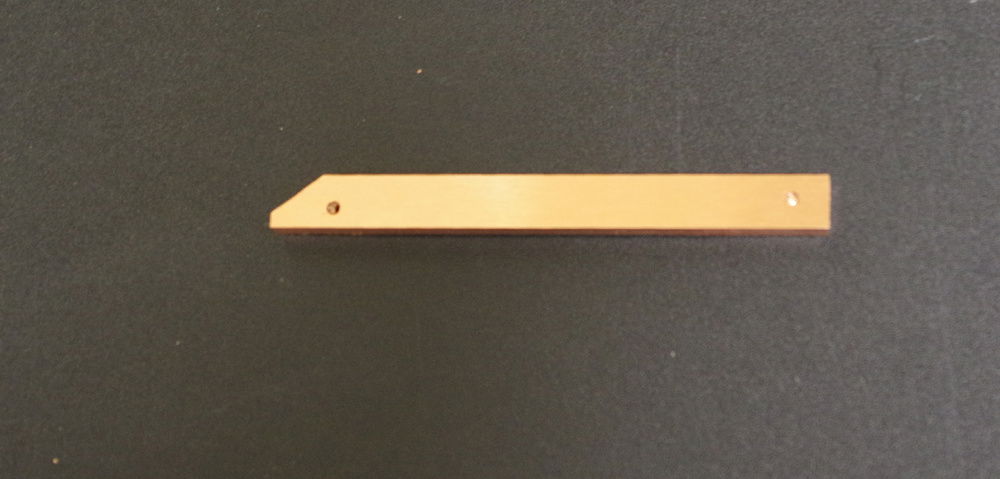

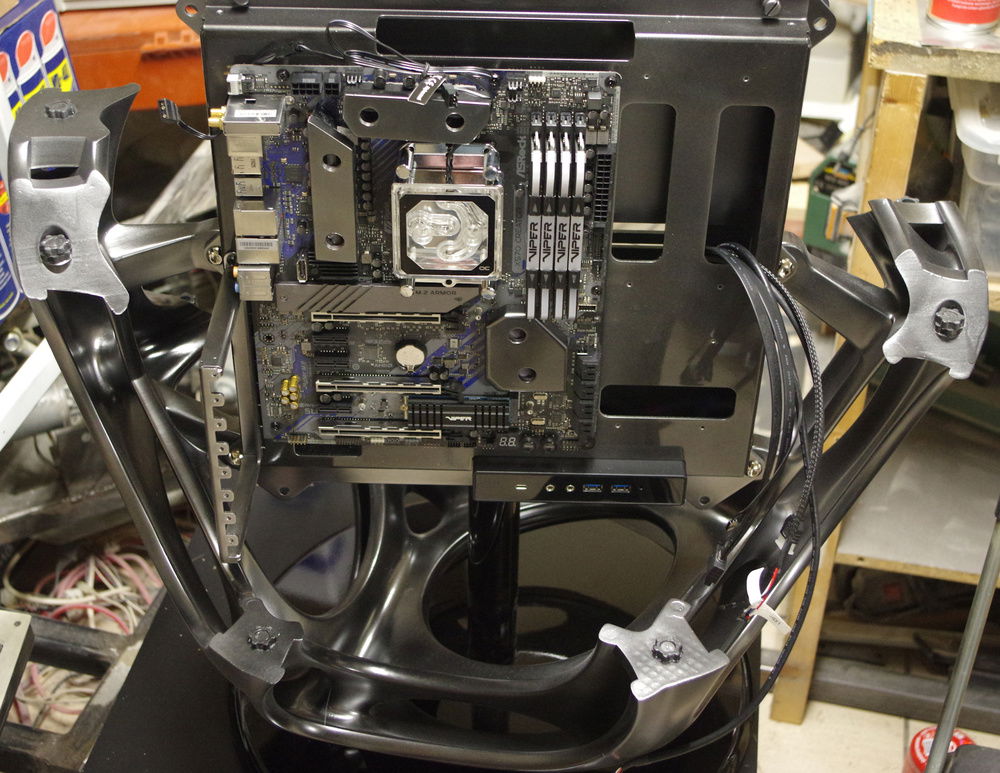

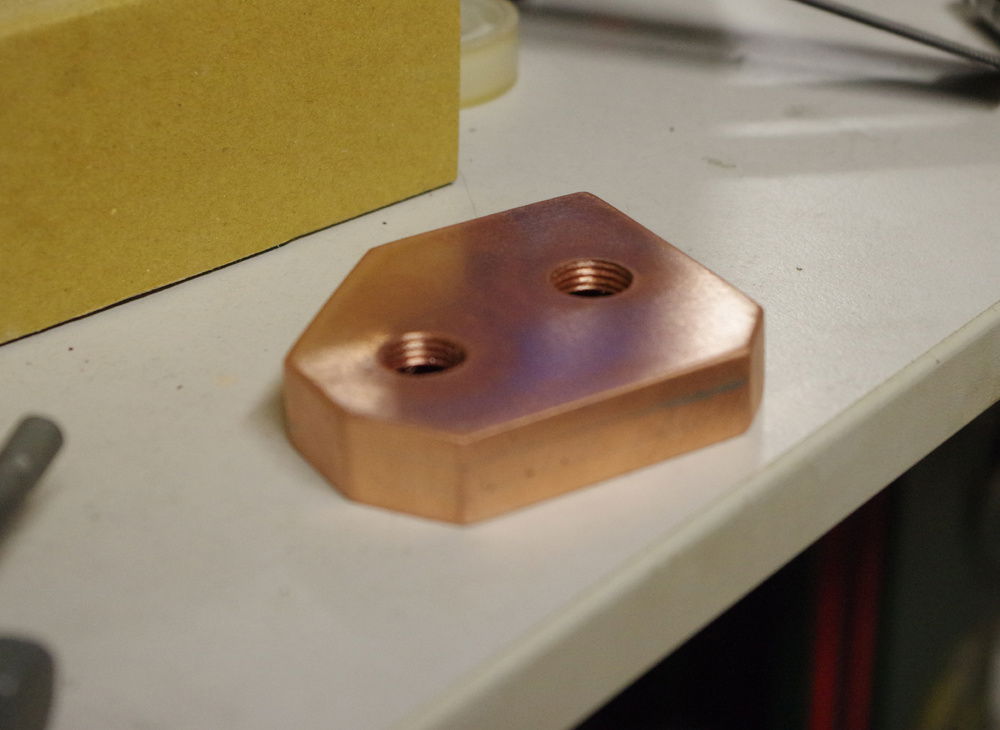

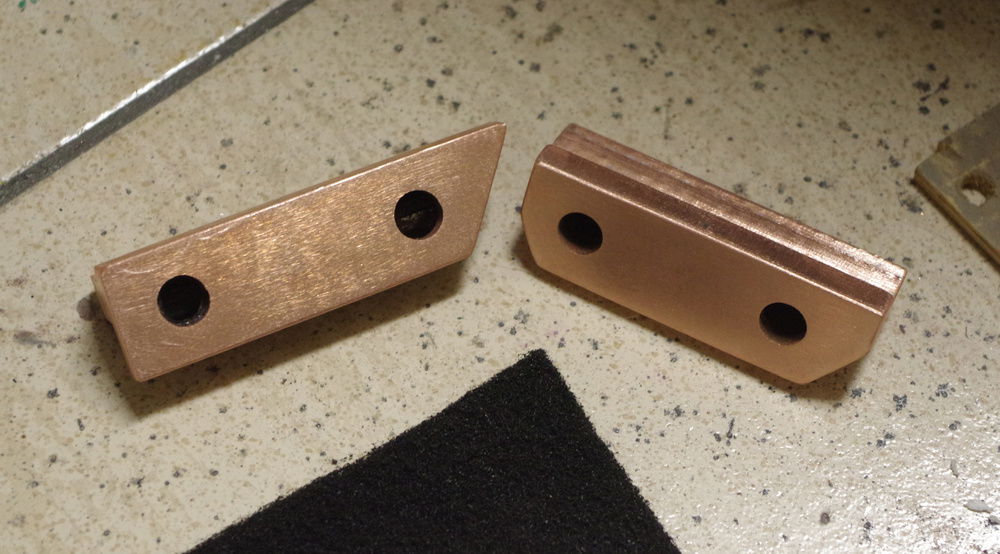

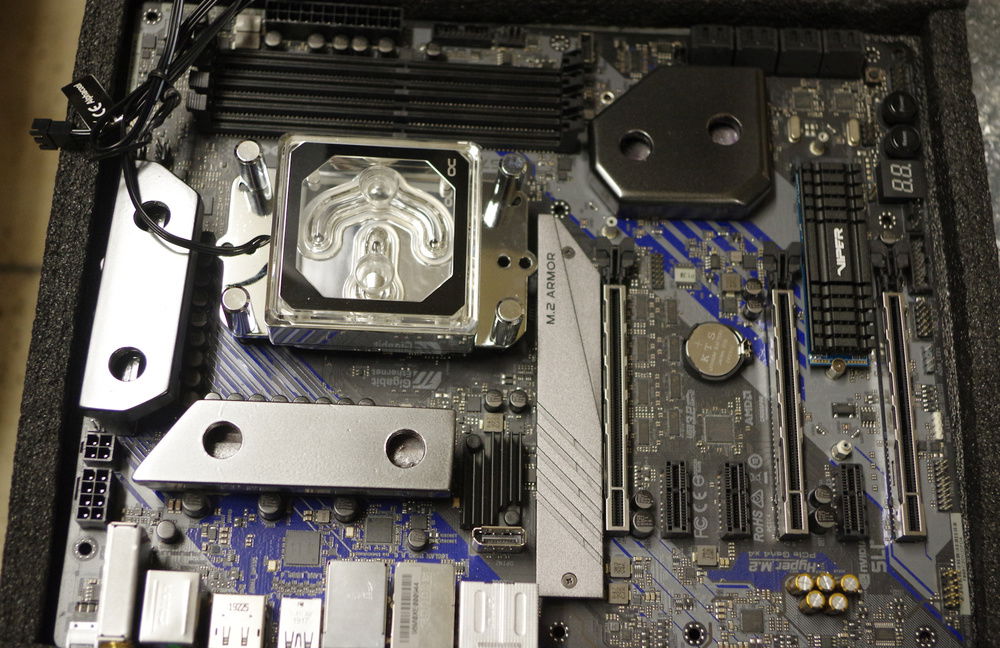

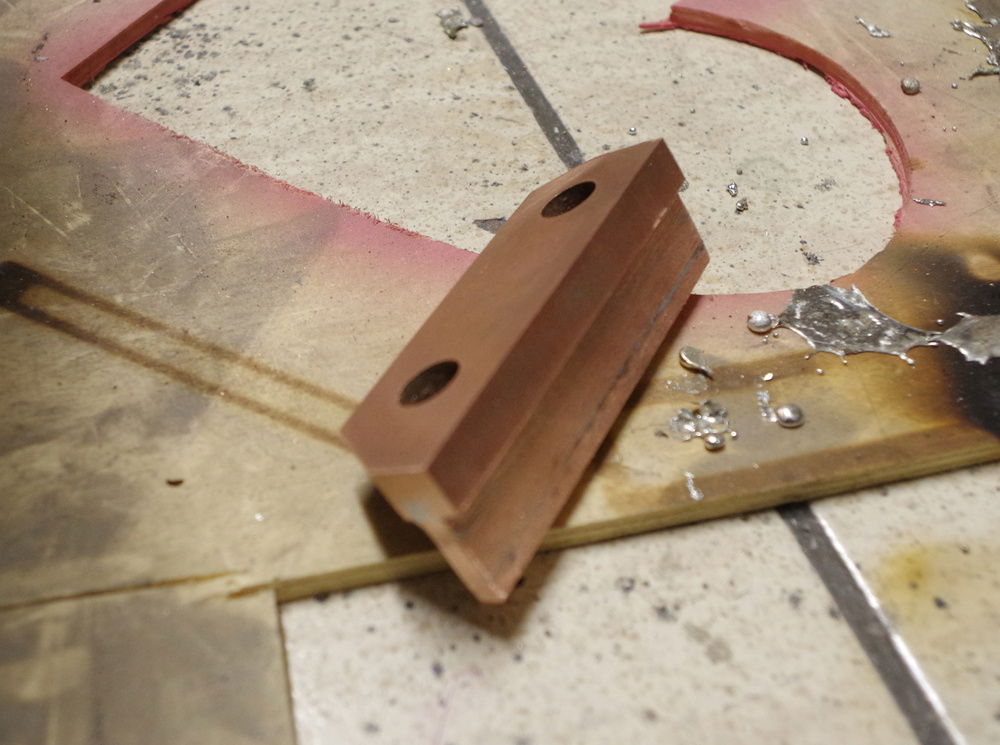

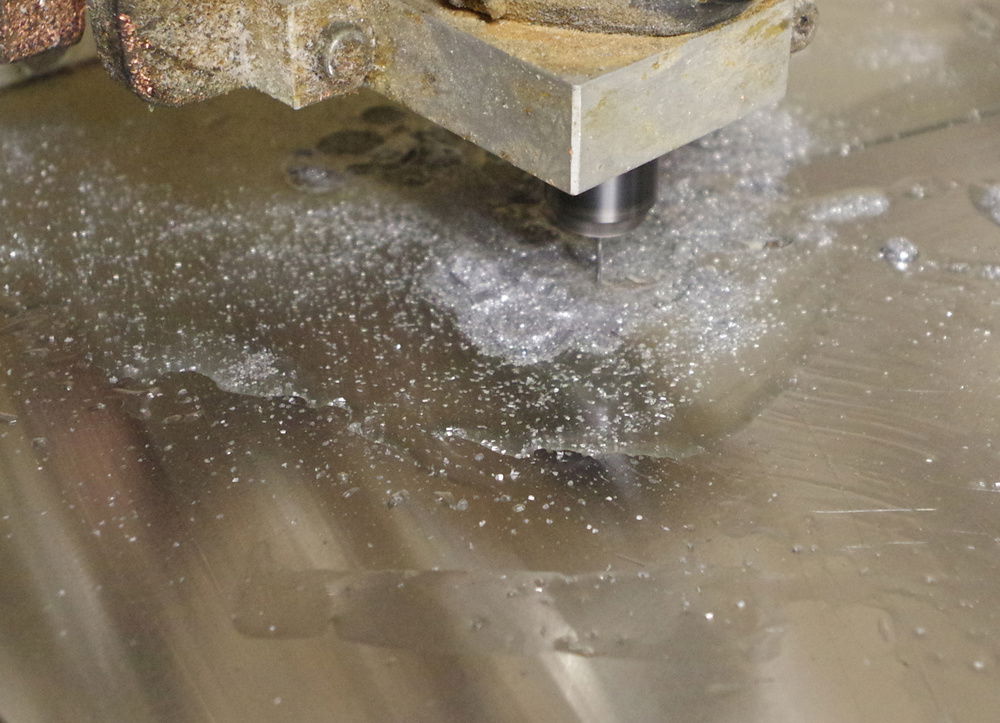

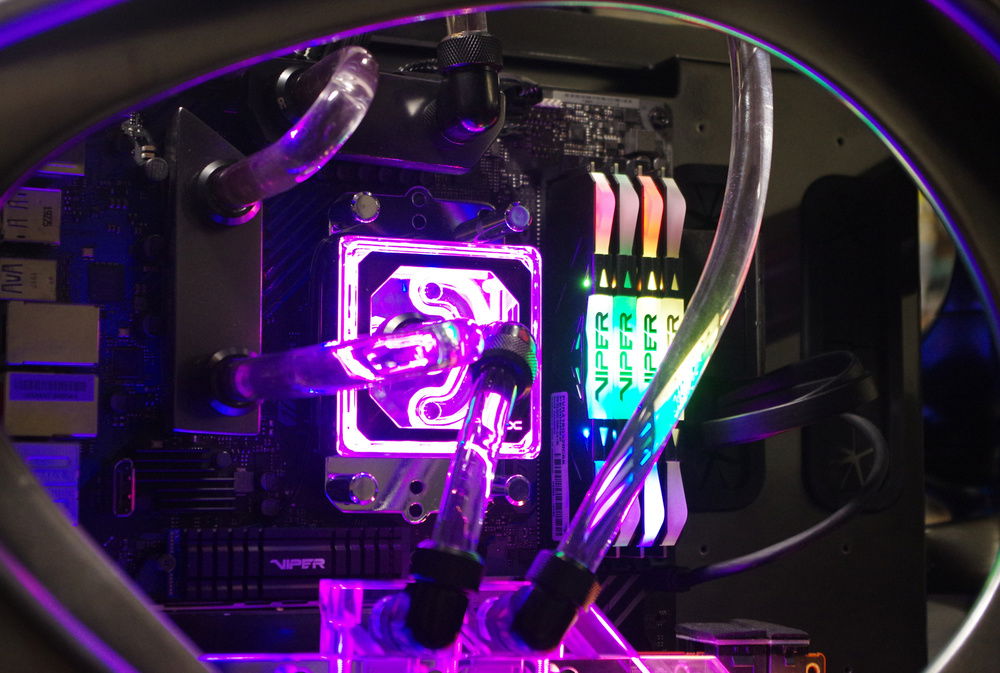

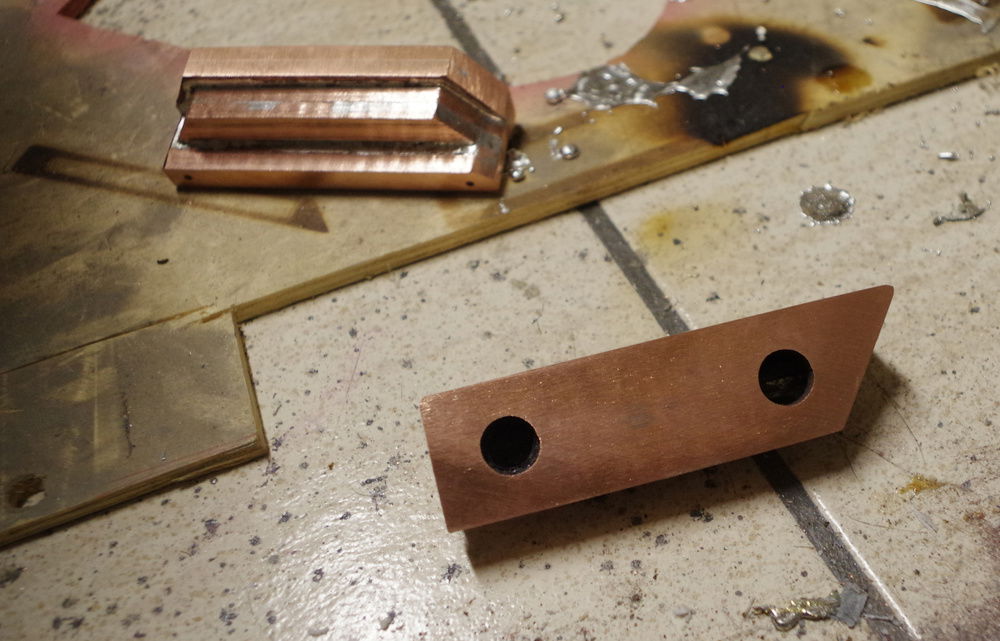

Beside that we also wanted to cool the Mainboard Chipset so we milled custom Cooling Blocks for it. They are build from several Layers of 5 mm copper which we soldered together after the milling process. Afterwards all blocks were sanded and painted in a color which matches the outside of the Case.

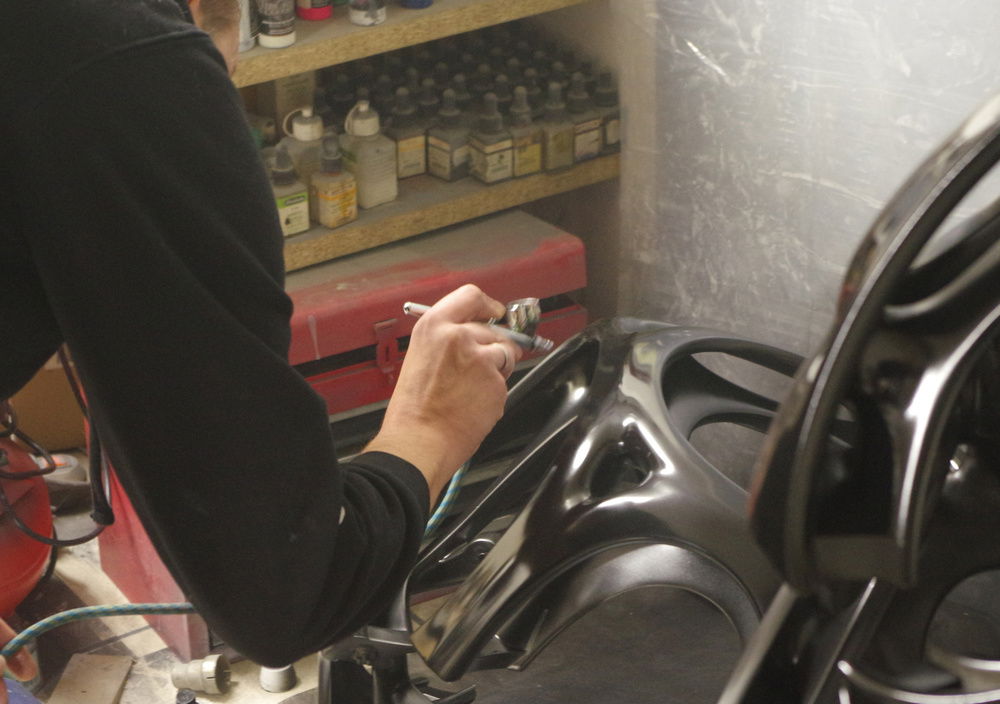

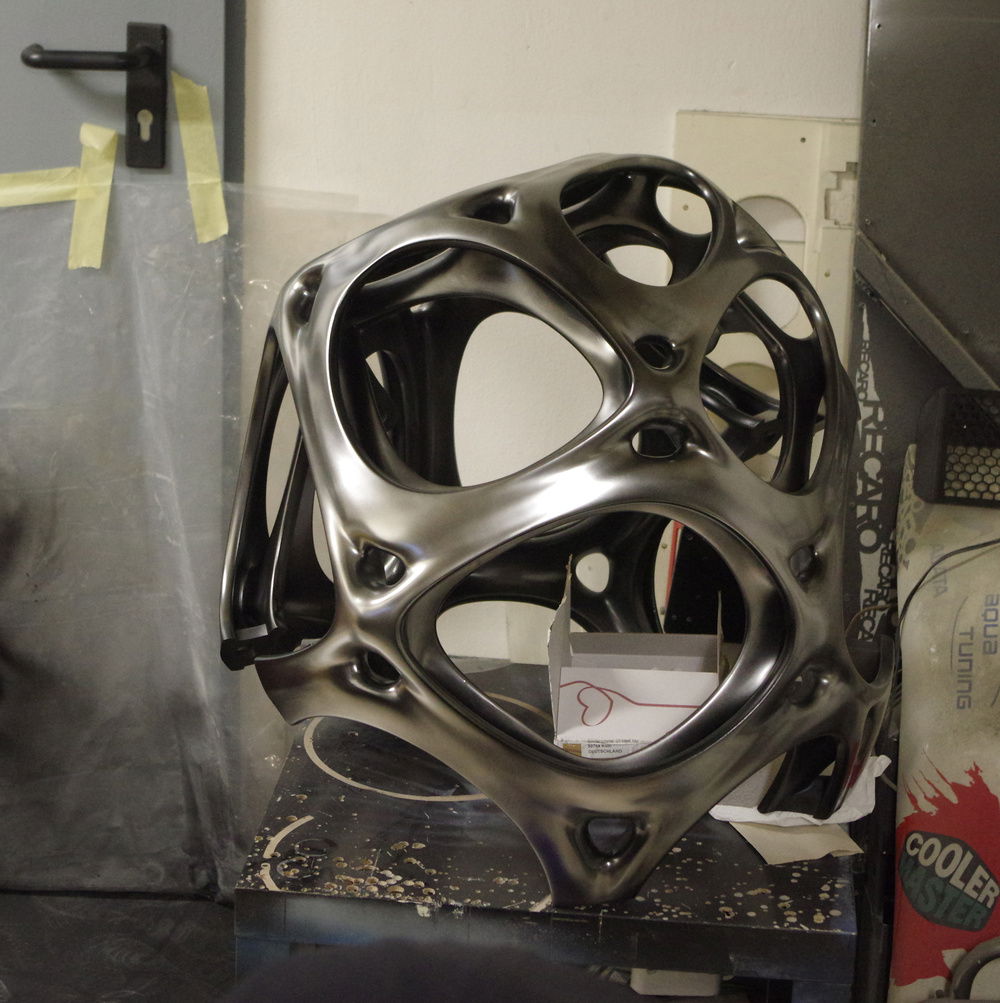

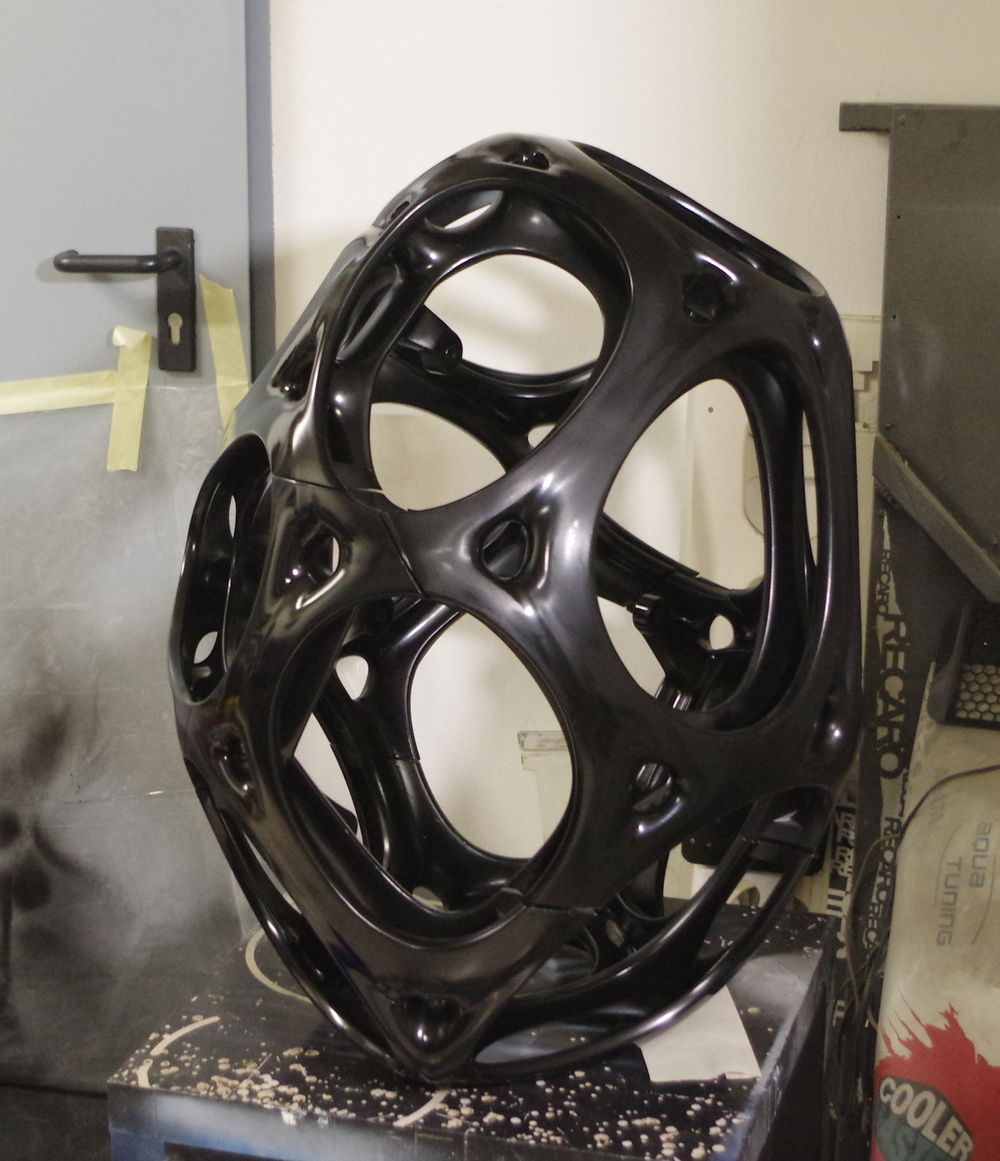

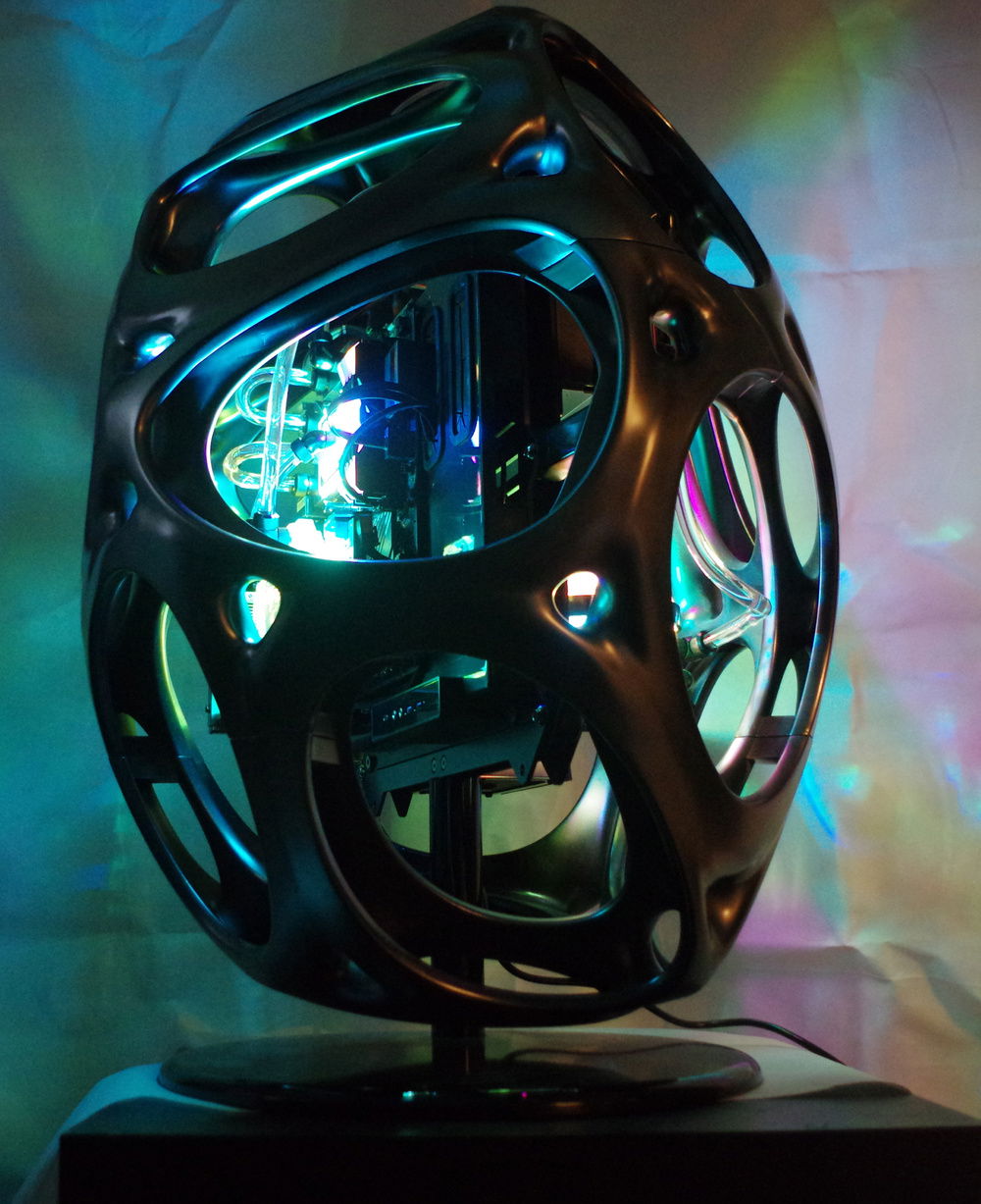

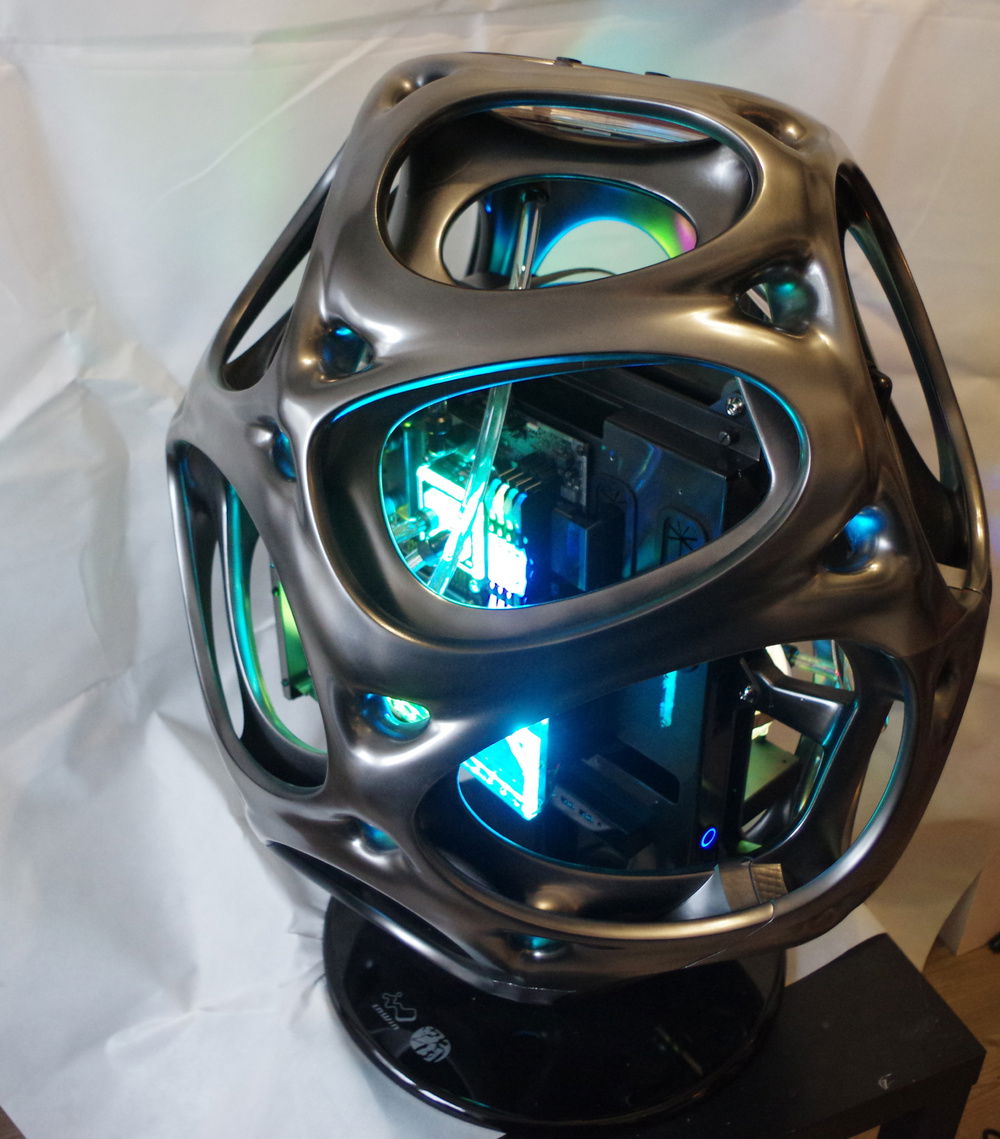

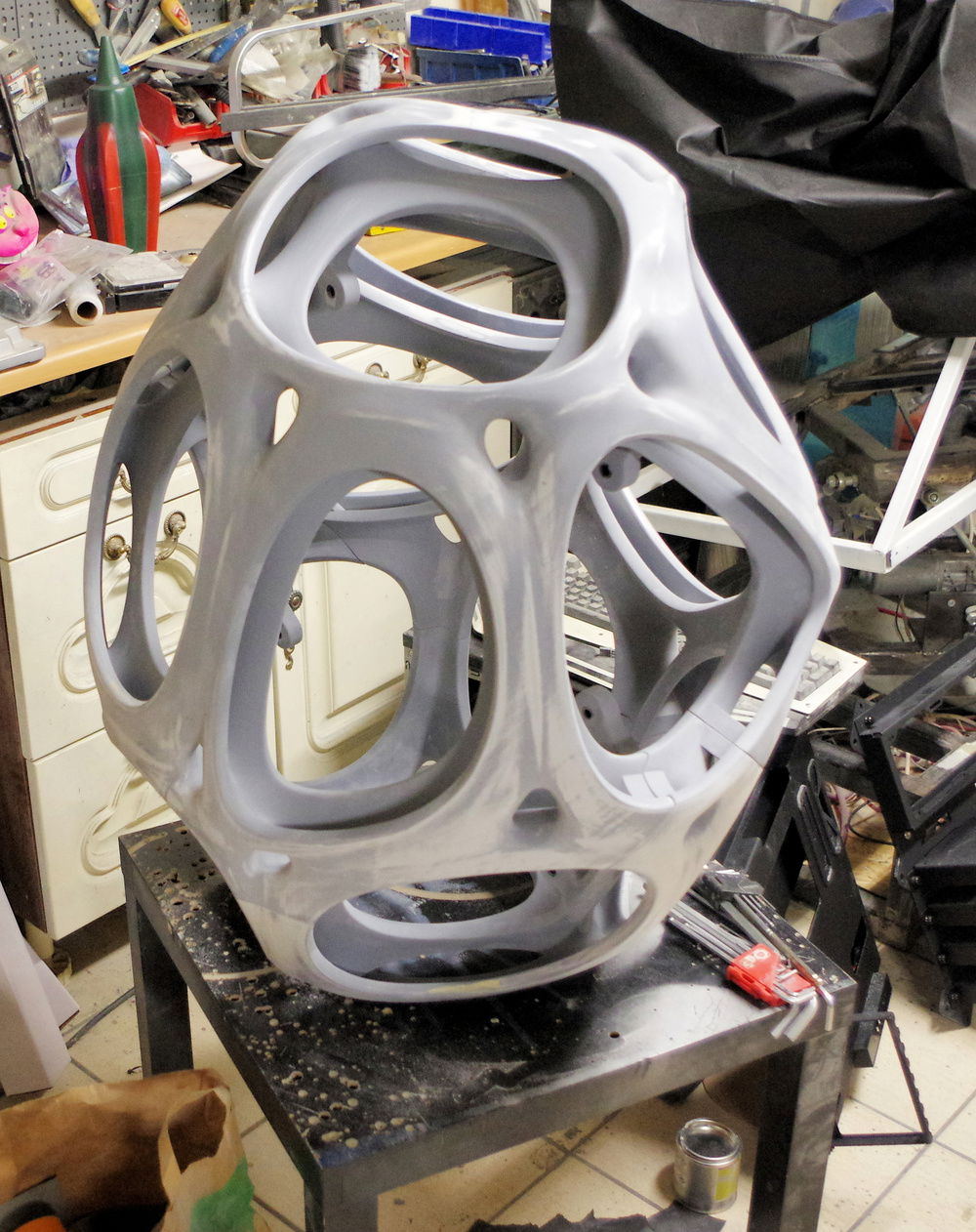

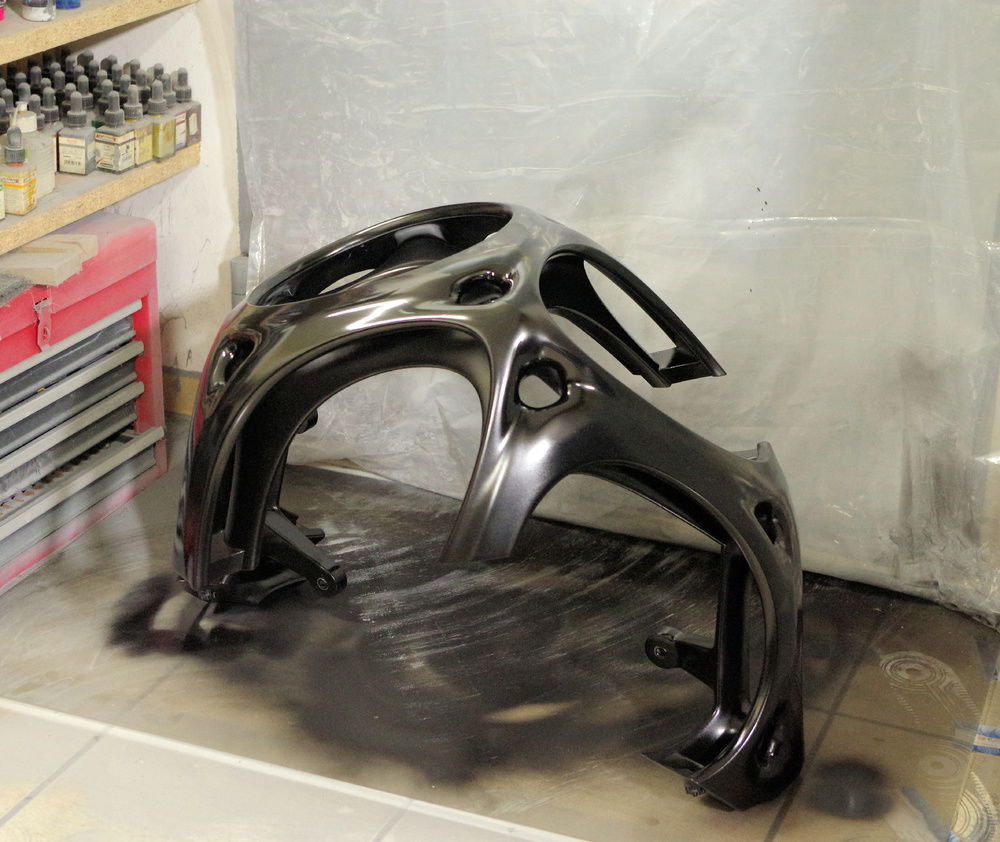

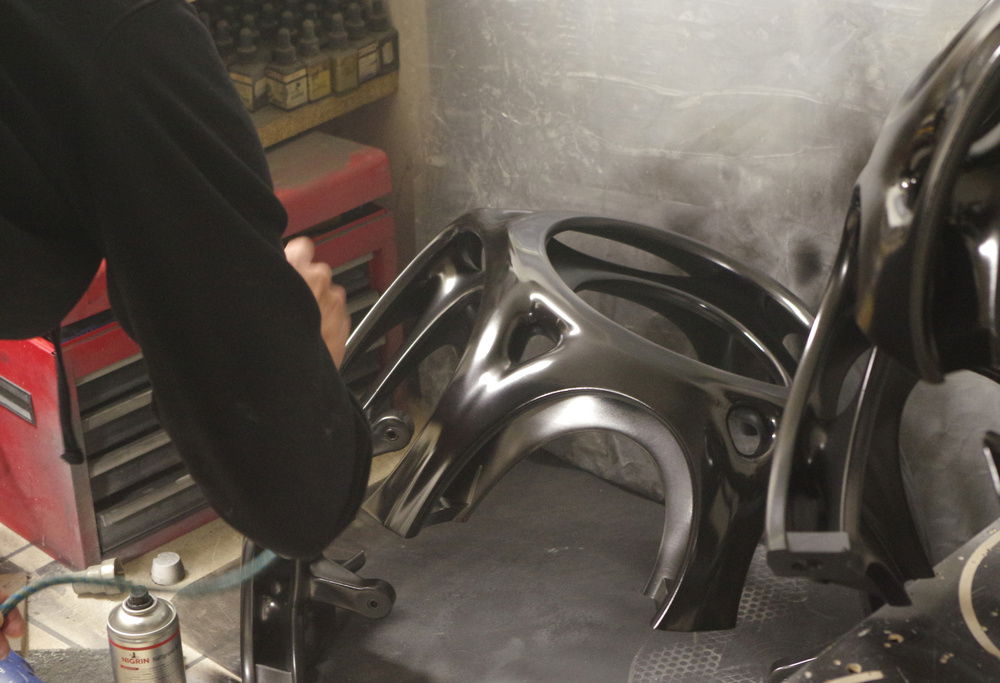

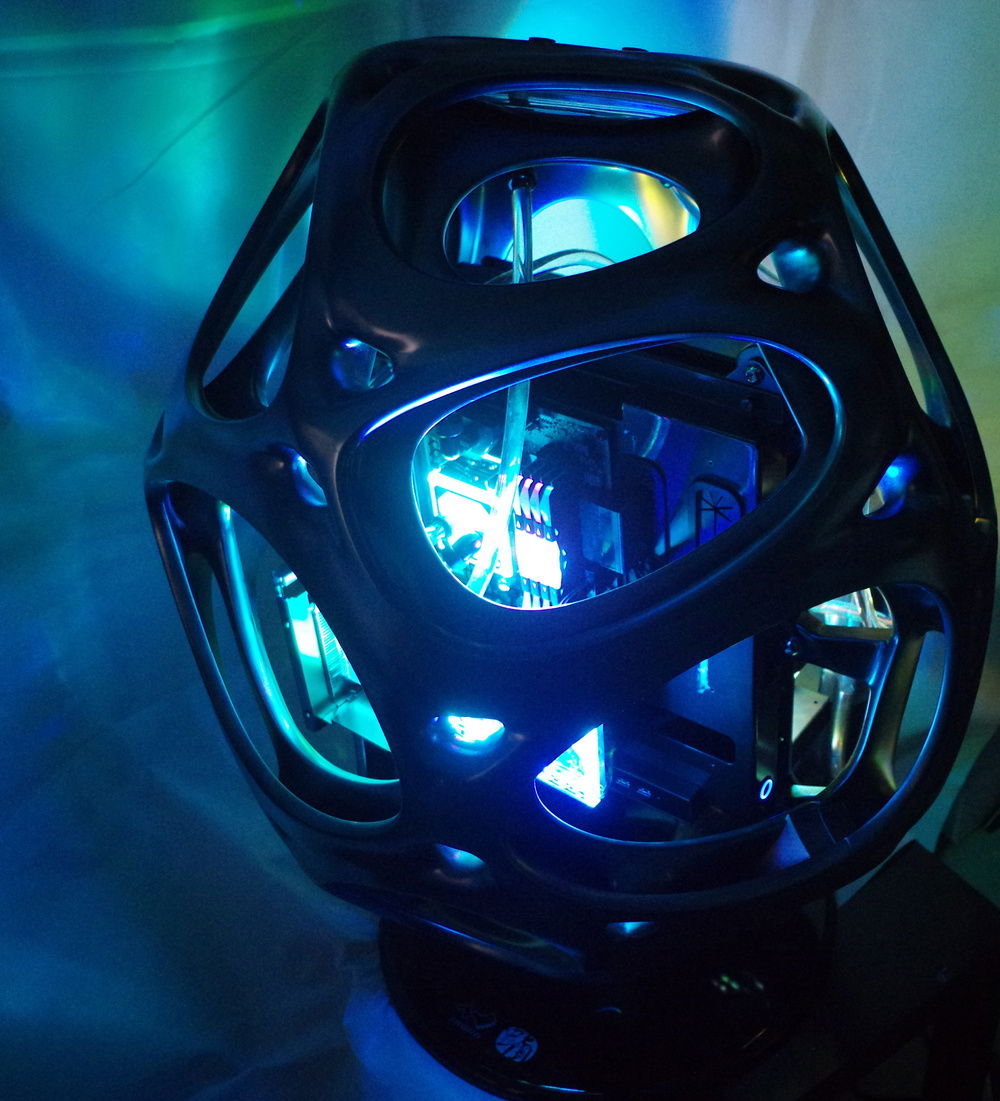

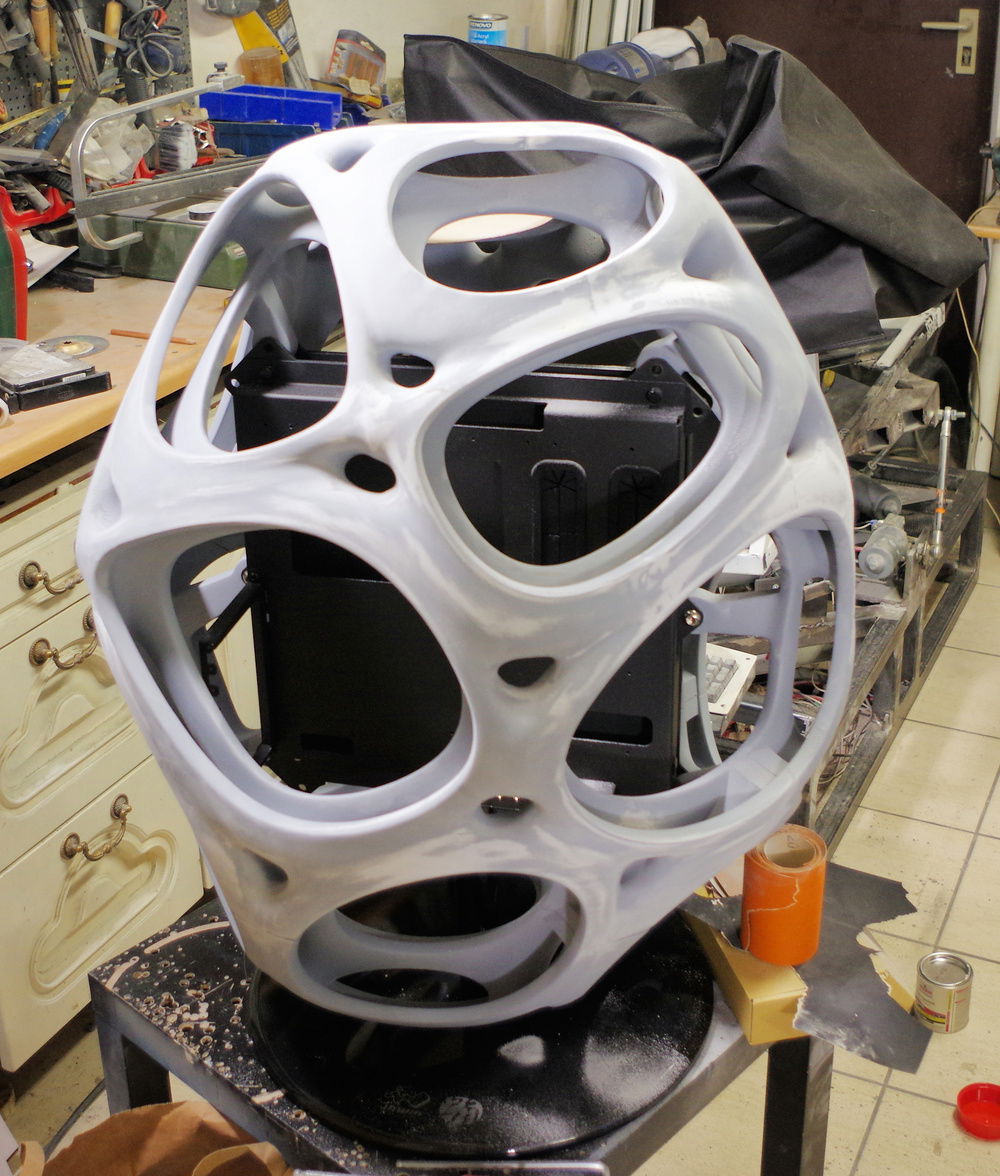

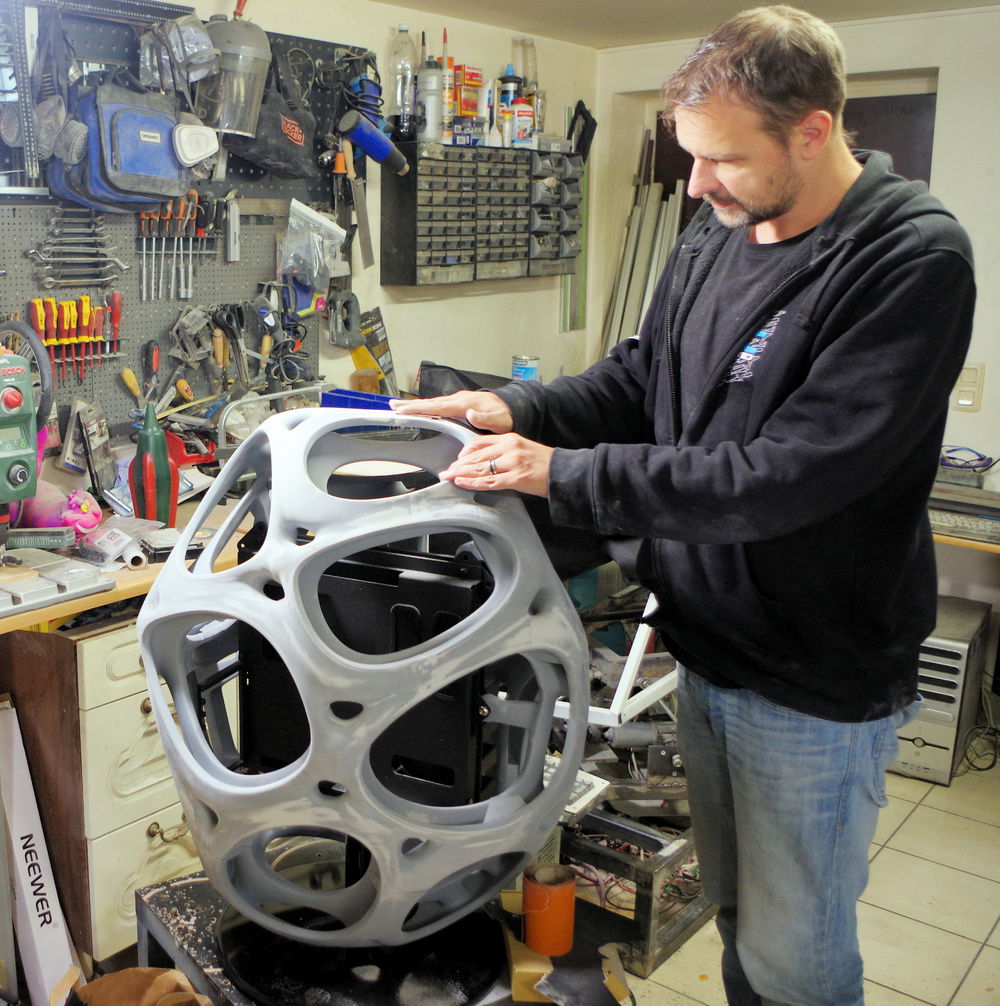

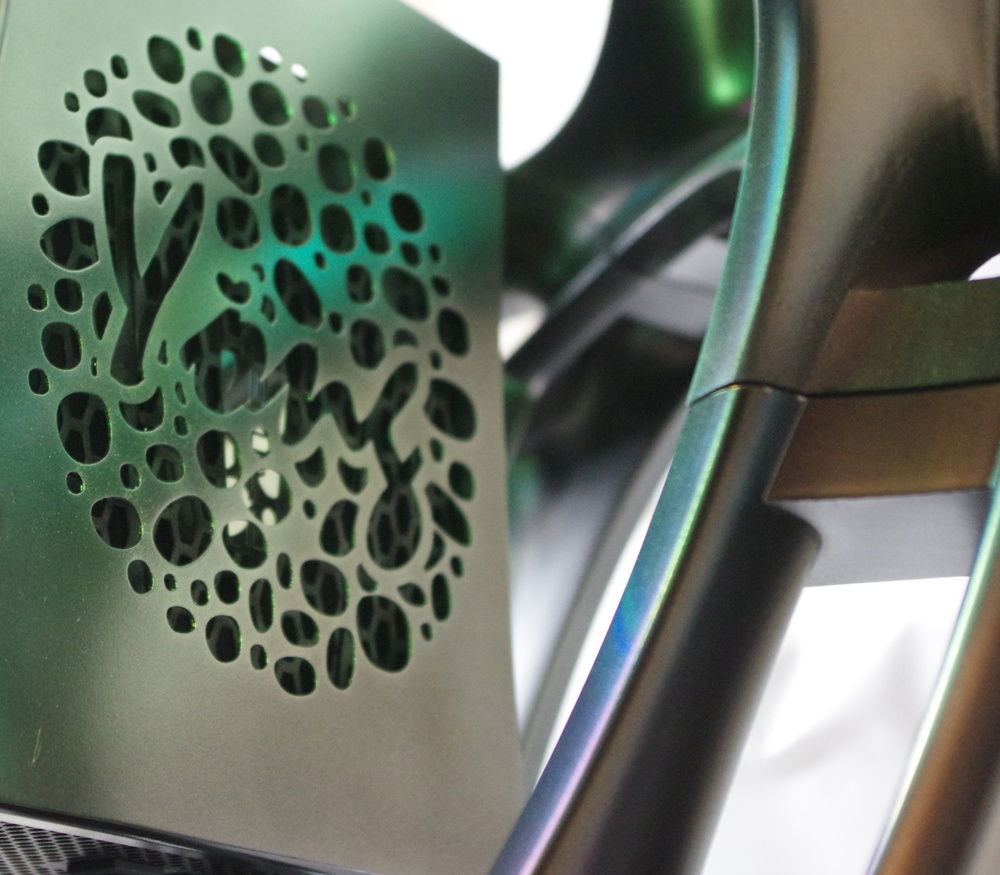

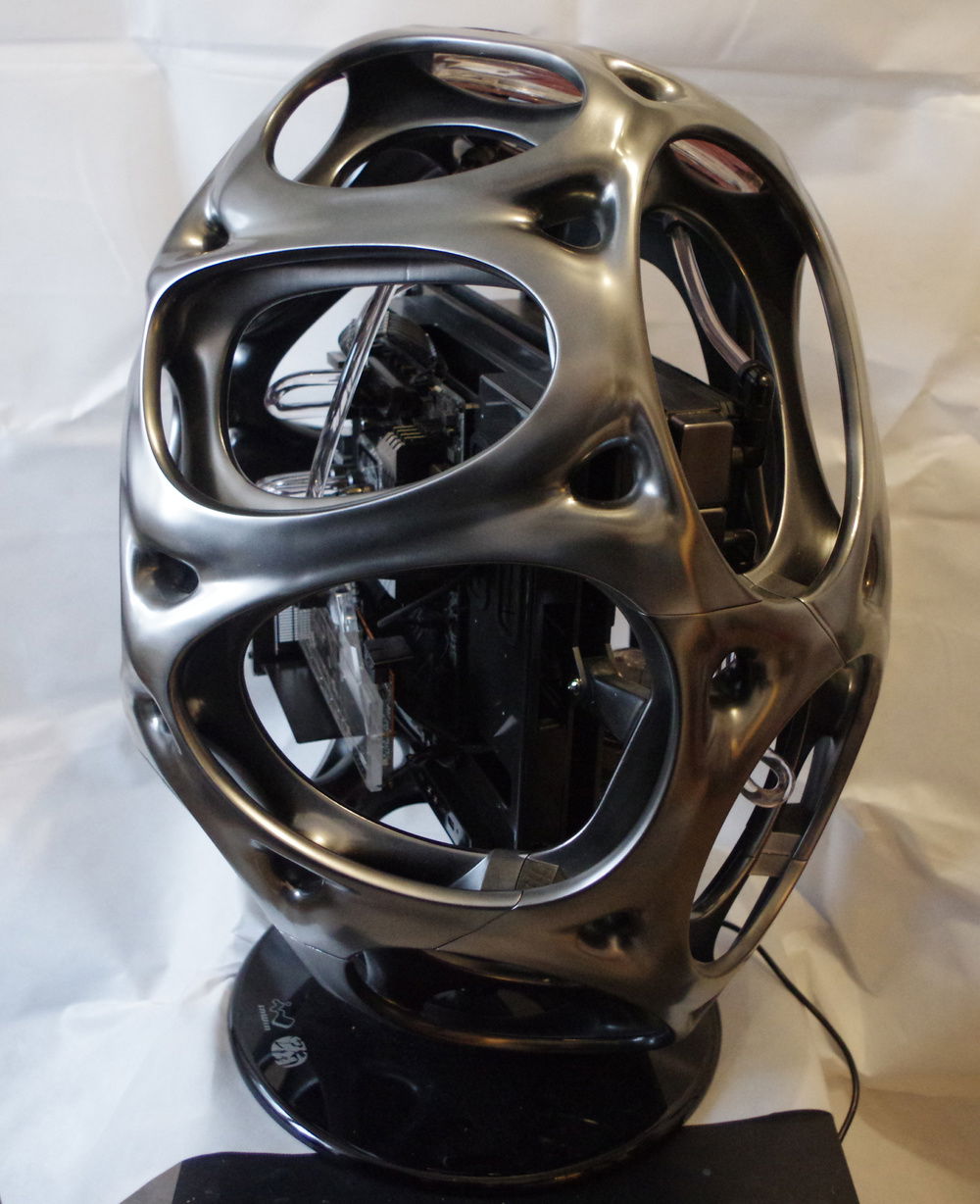

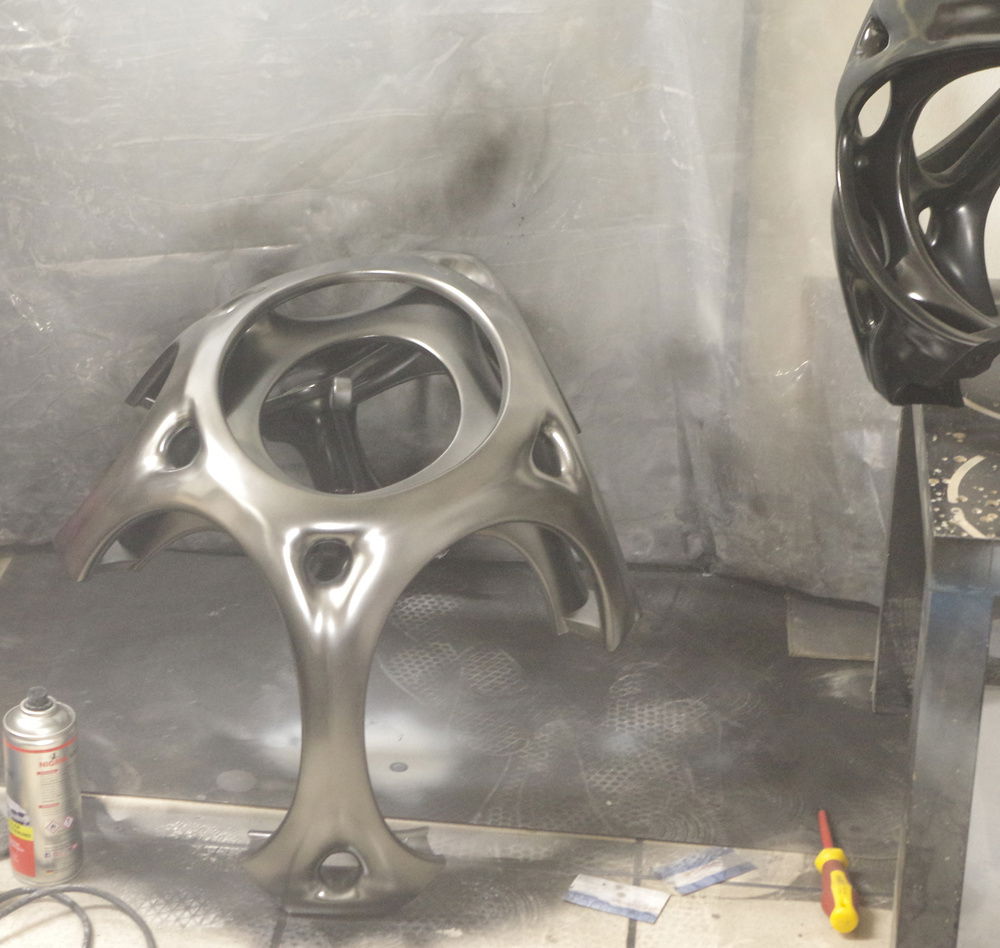

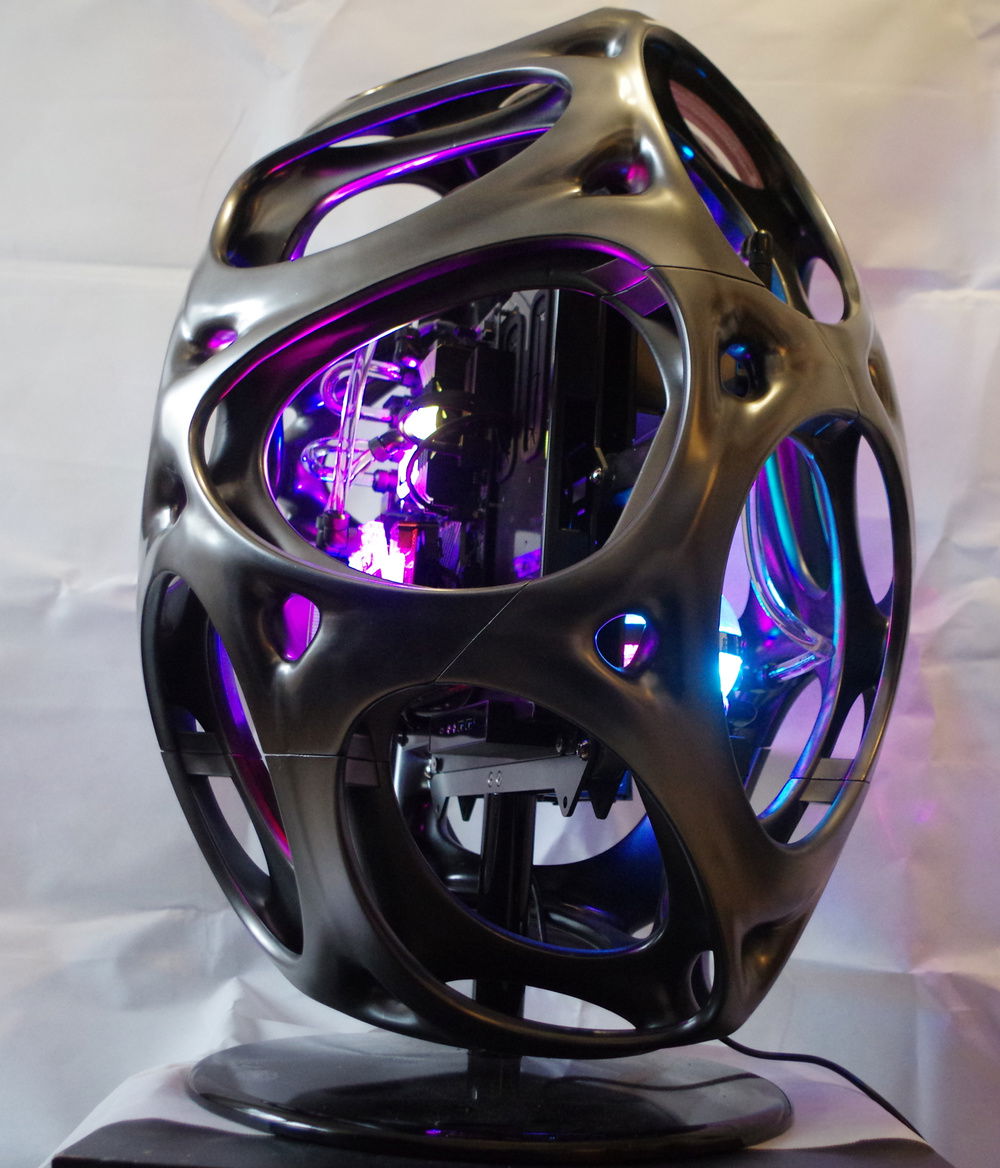

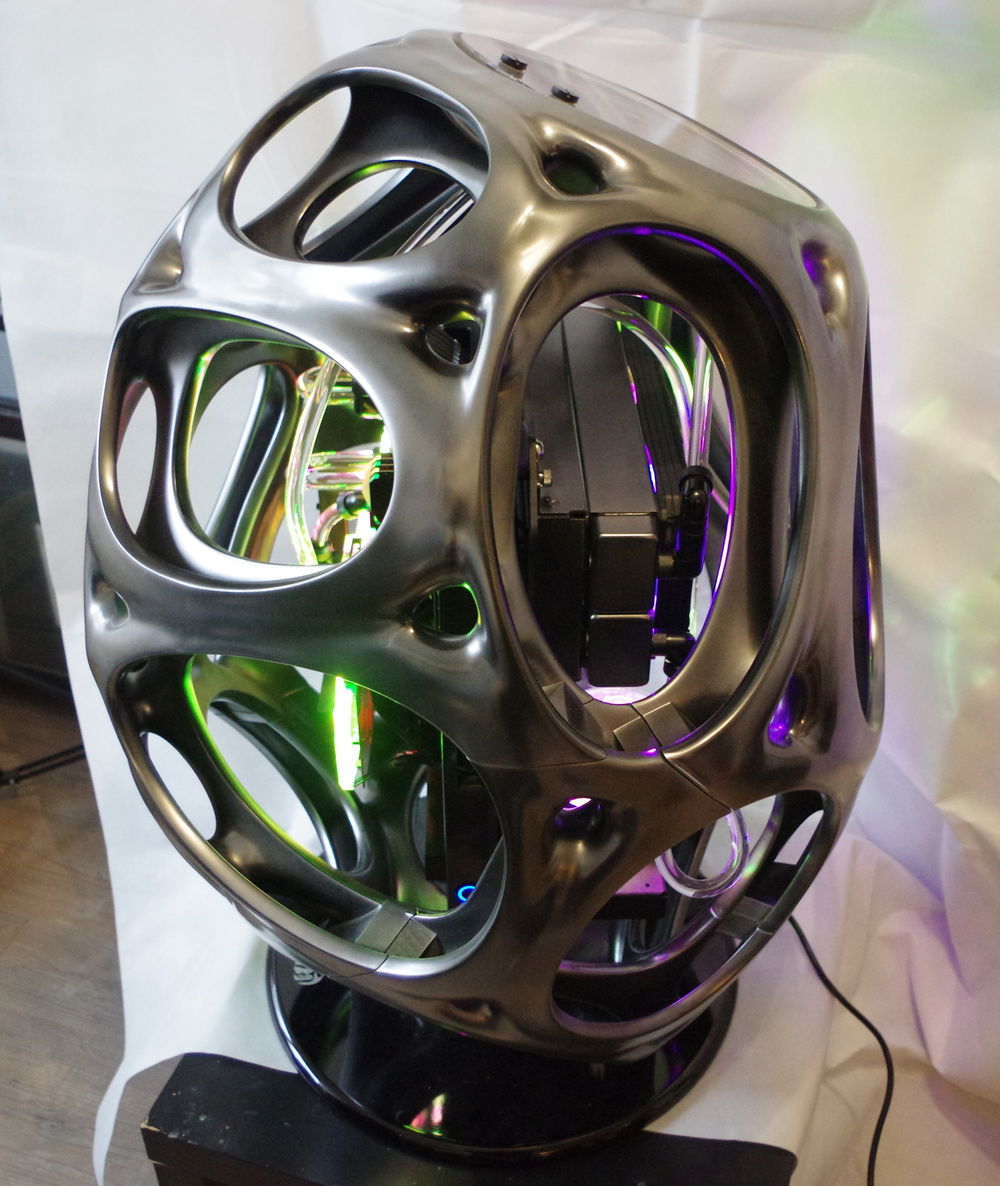

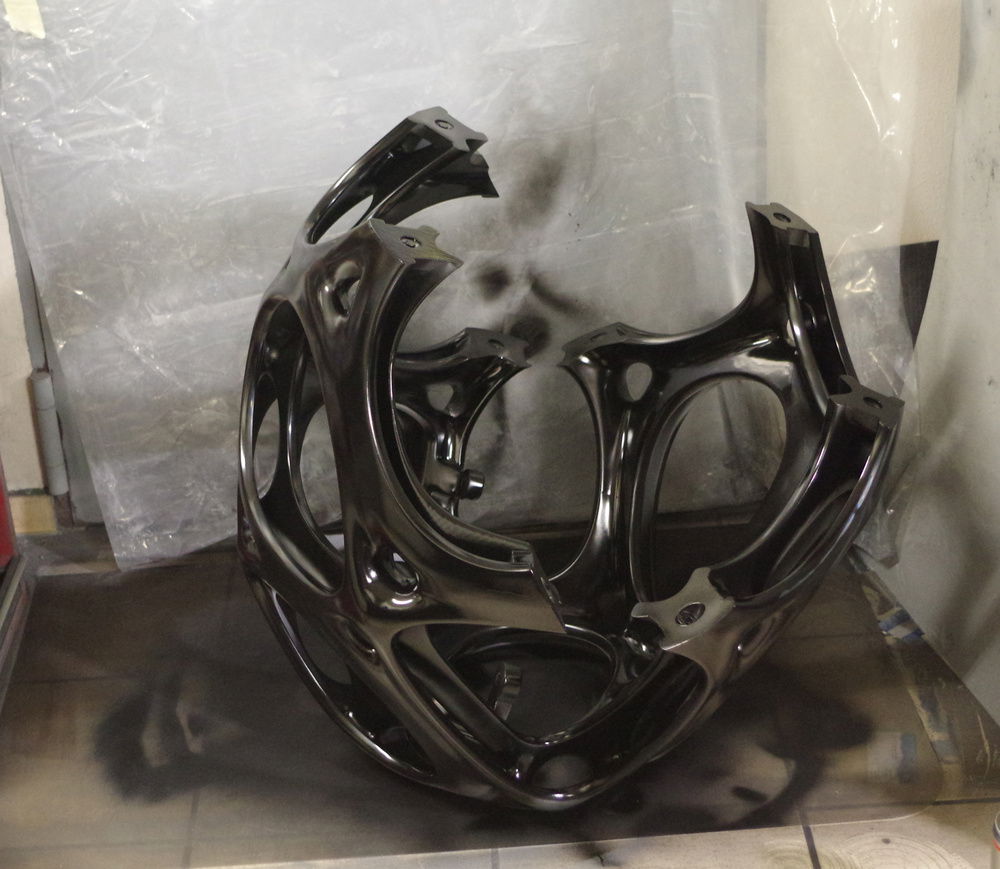

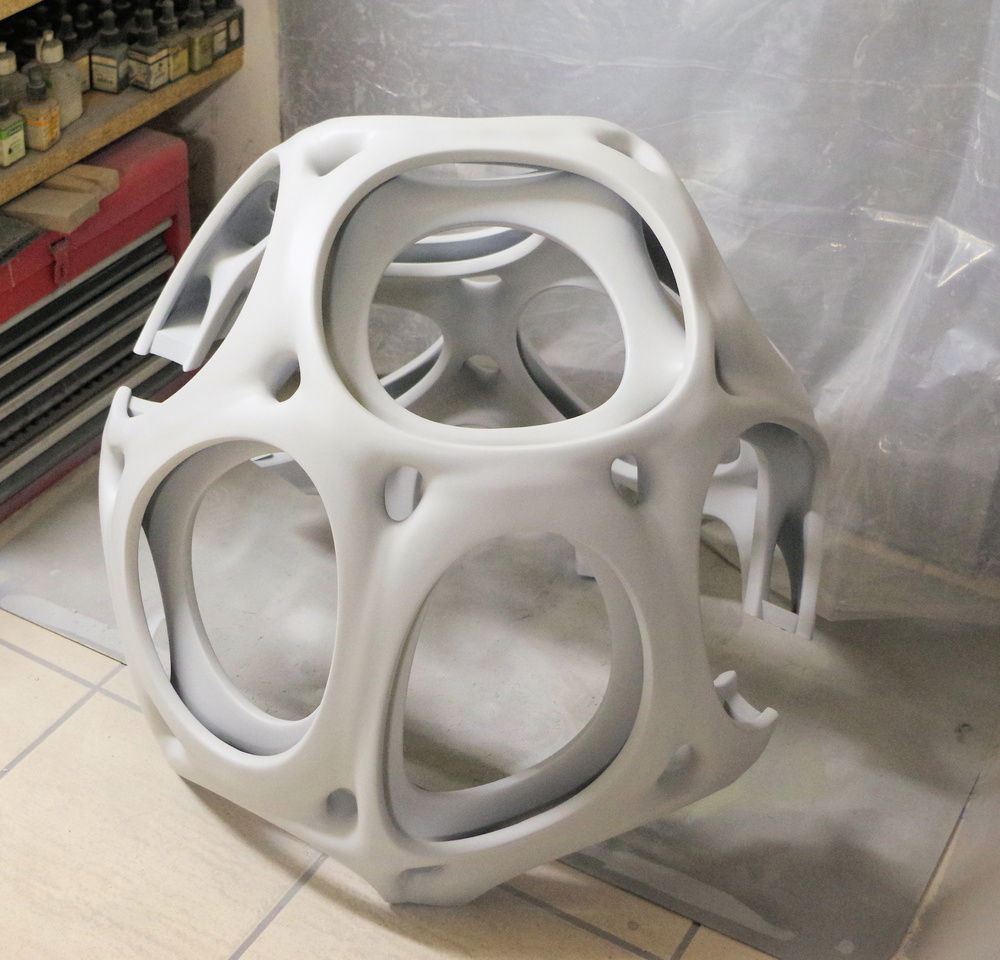

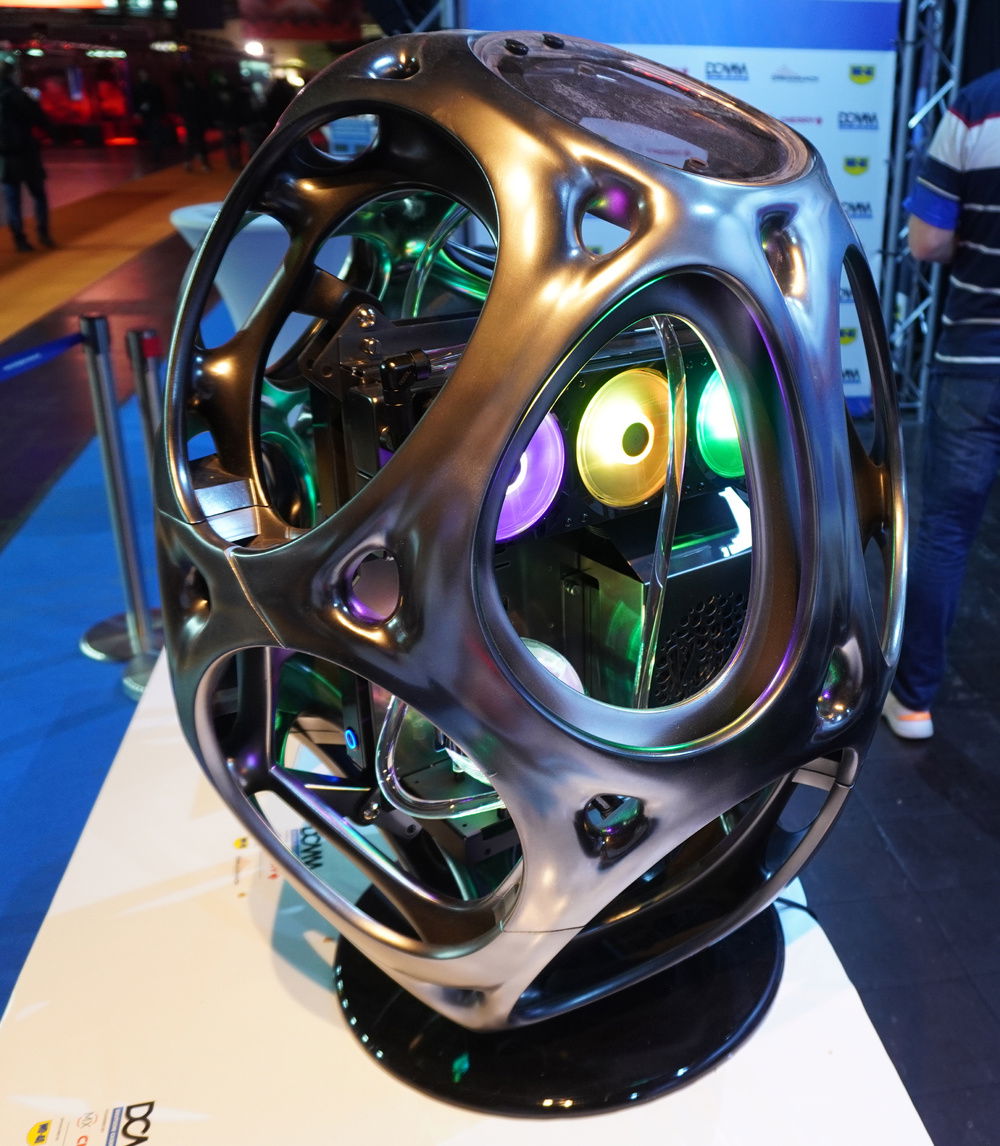

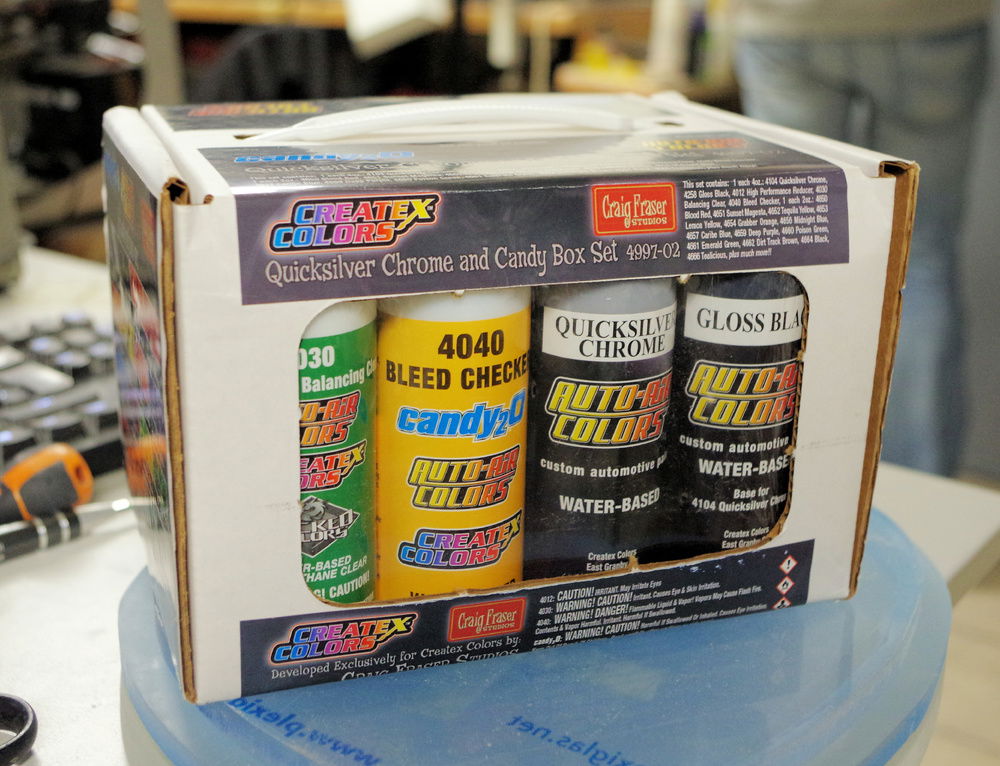

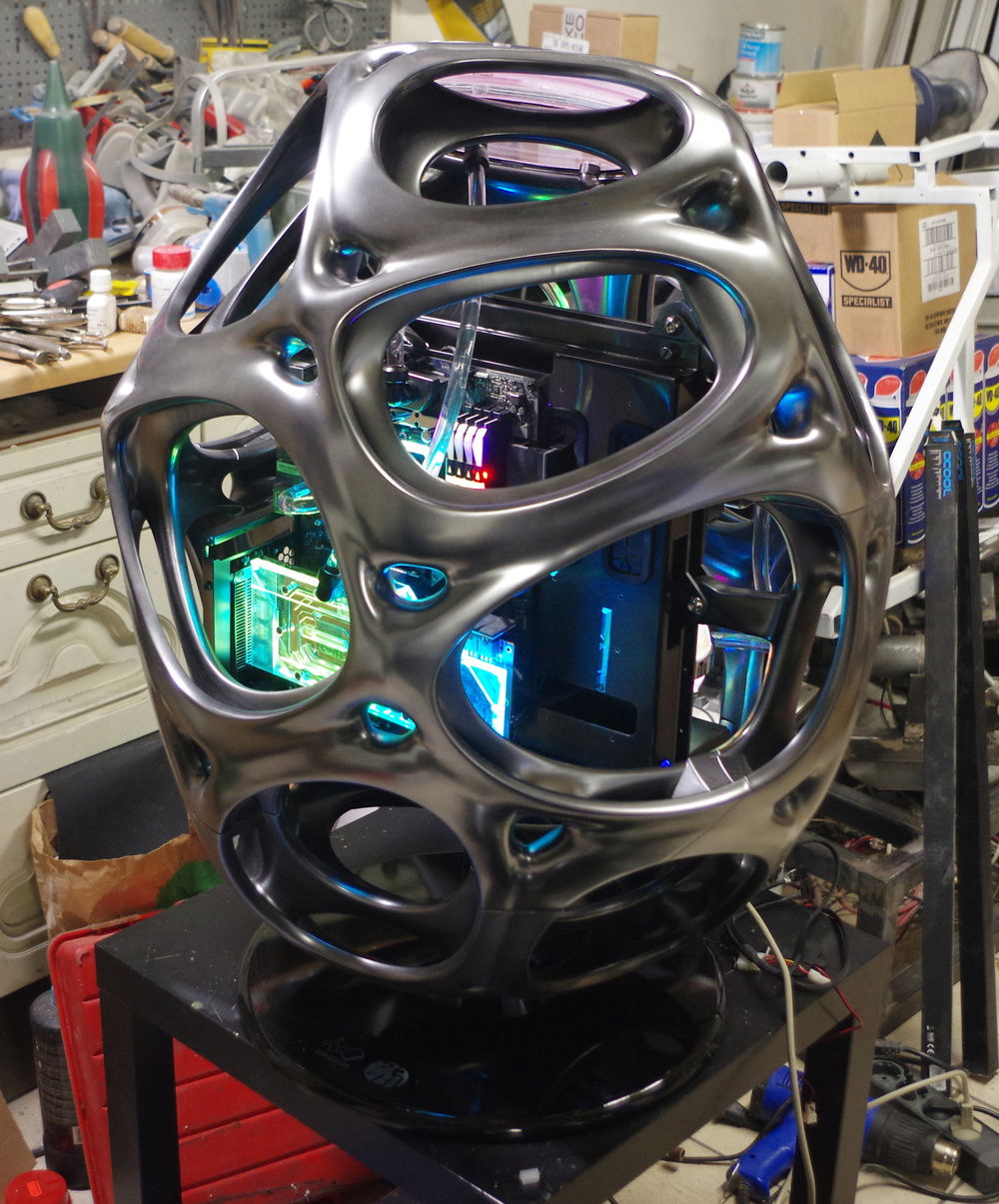

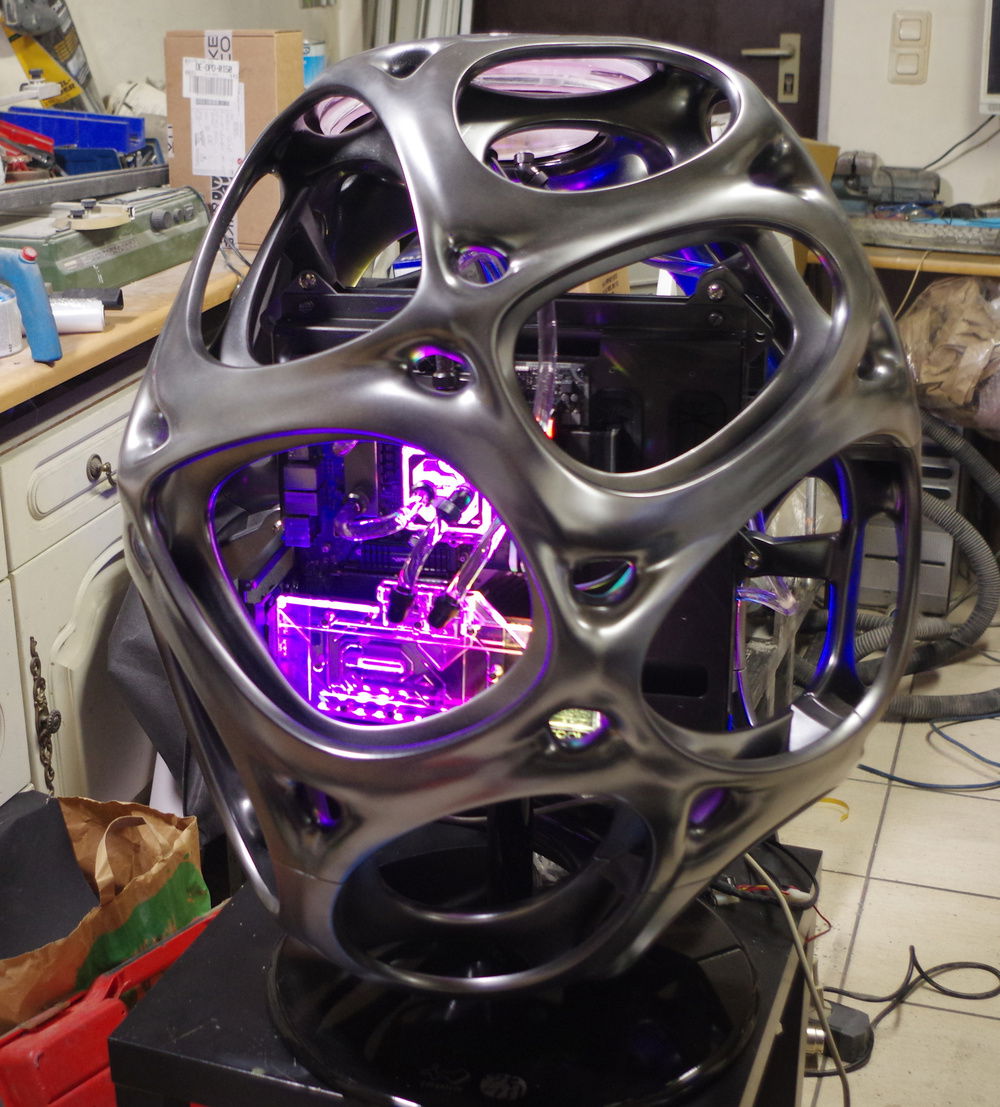

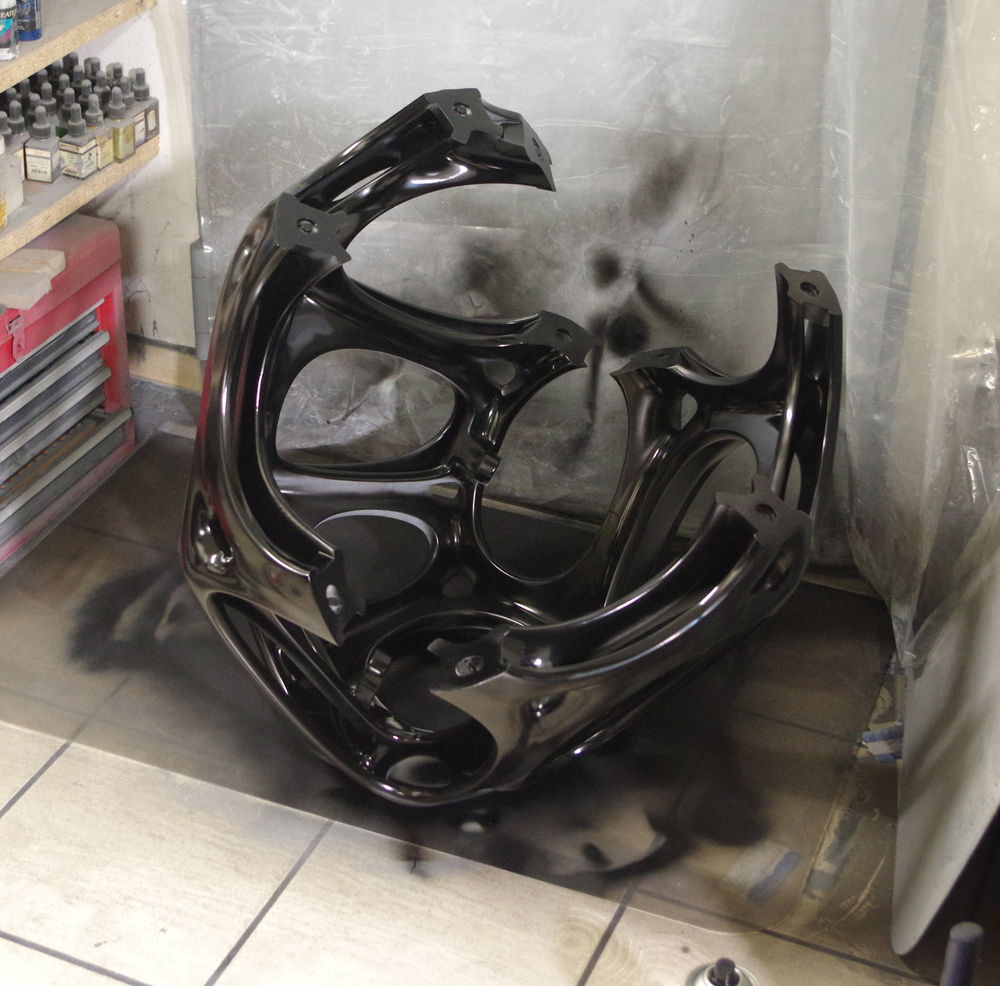

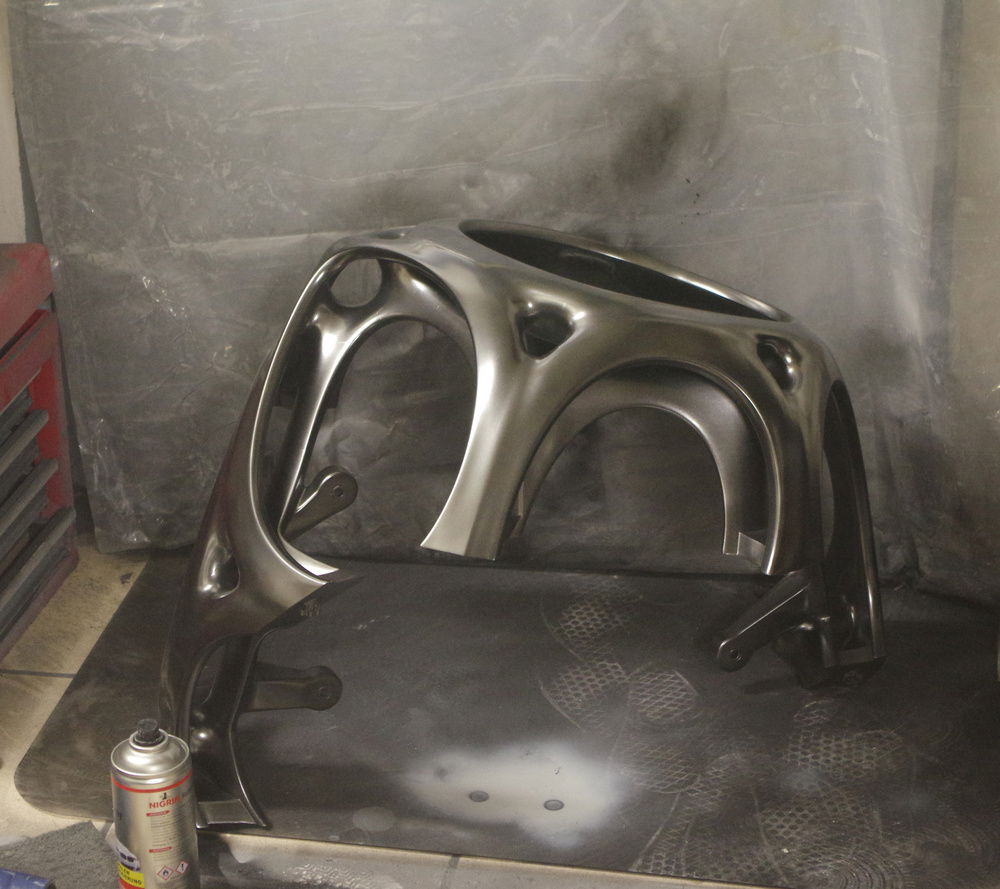

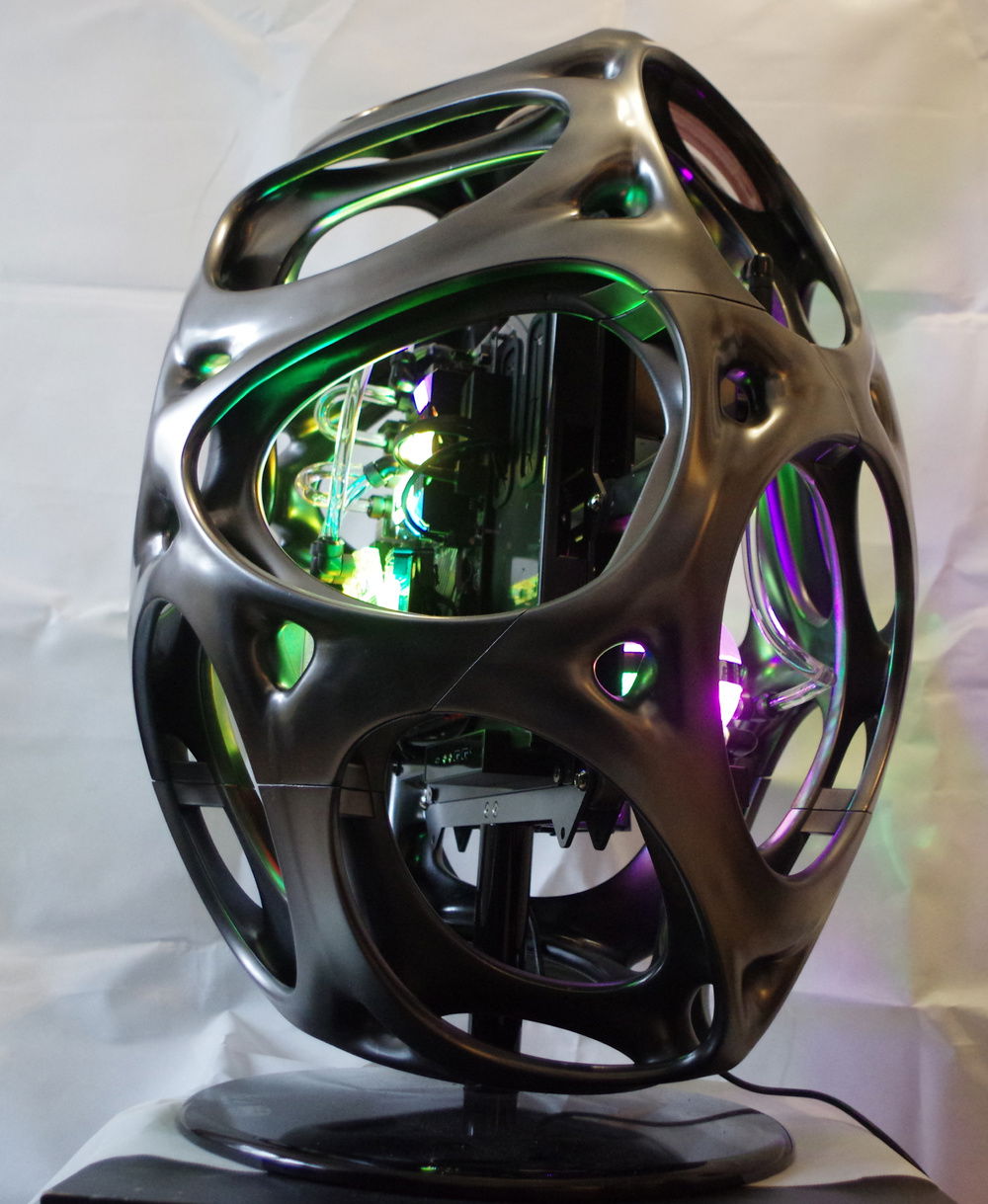

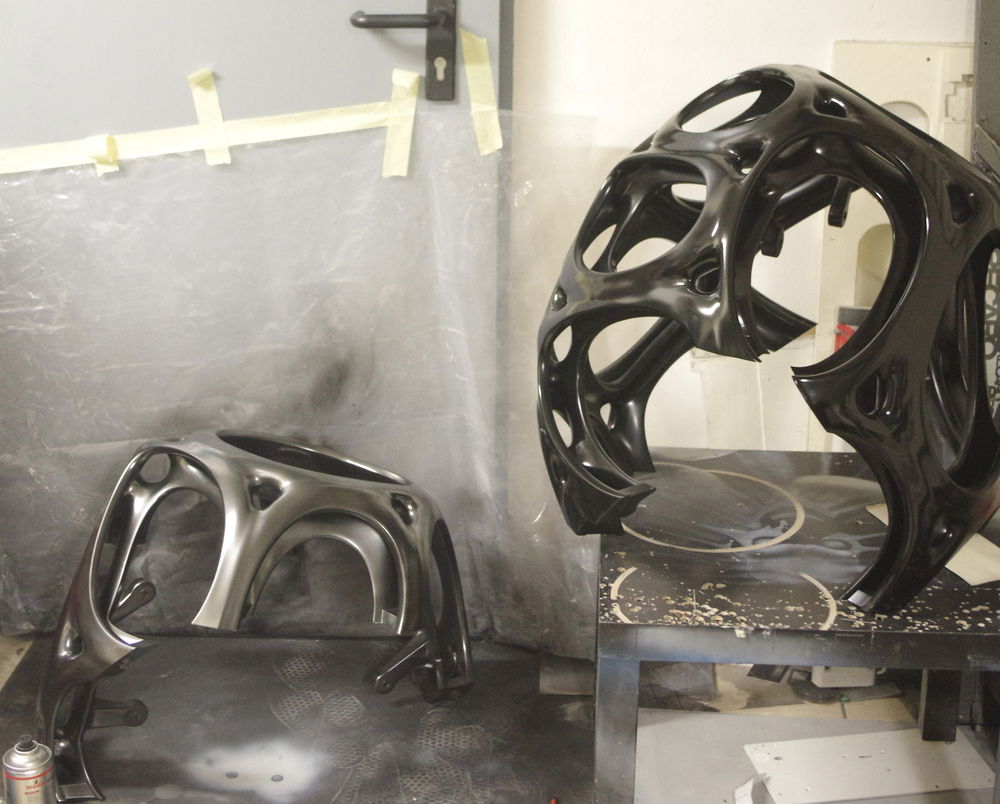

The Outer shell was painted with a custom mixed Dark Chrome laquer which changes it´s color from Silver to nearly black depending on the Point of View and the Enviroment Lights.
Color(s): Silver
RGB Lighting? No

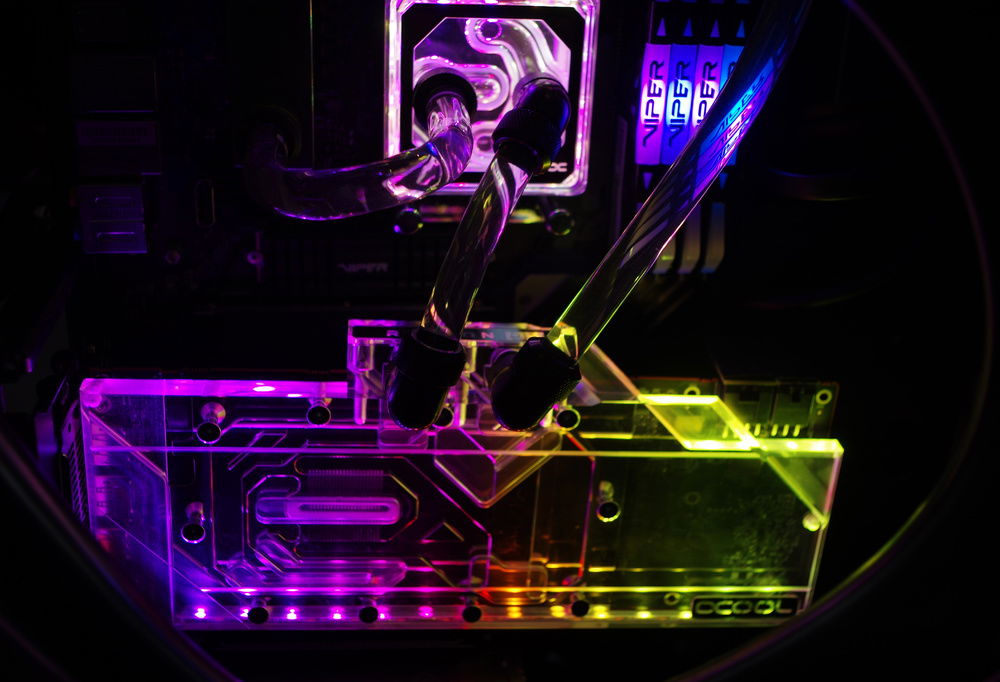

Cooling: Custom Liquid Cooling
Theme: none
Size: E-ATX
Type: General Build

Contests

This build participated in 3 contests.

Hardware

CPU
$ 337.99
AMD - Ryzen 7 (3800X)
Socket: AM4
Cores: 8
Motherboard

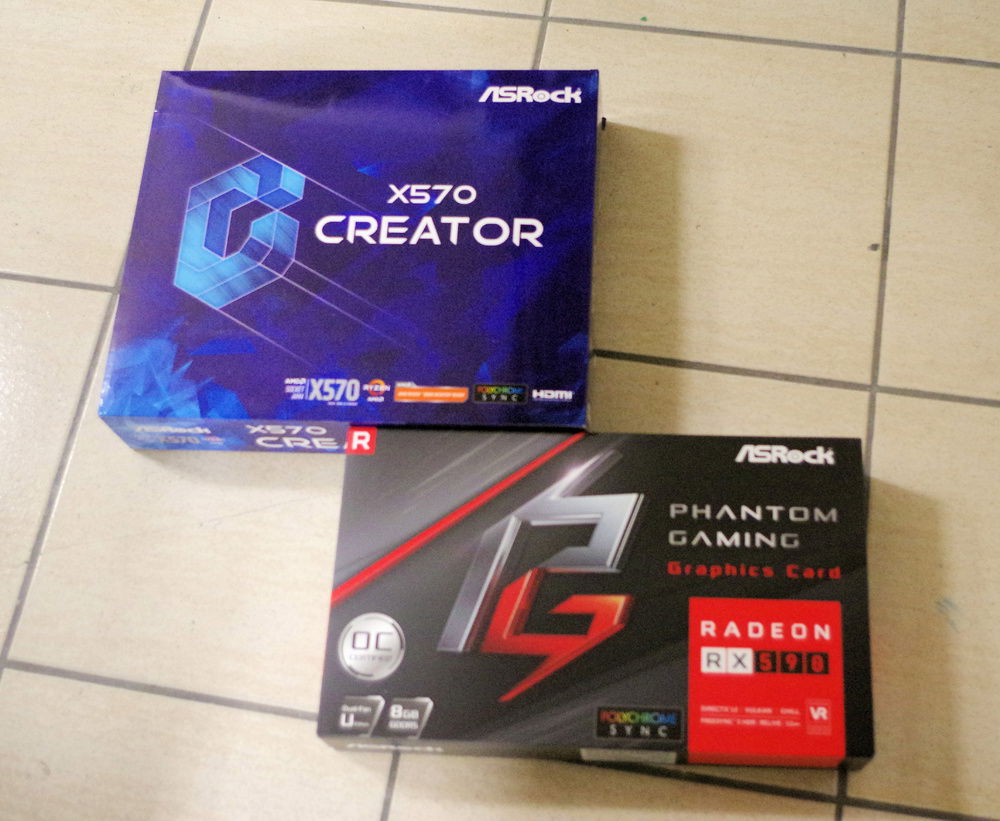

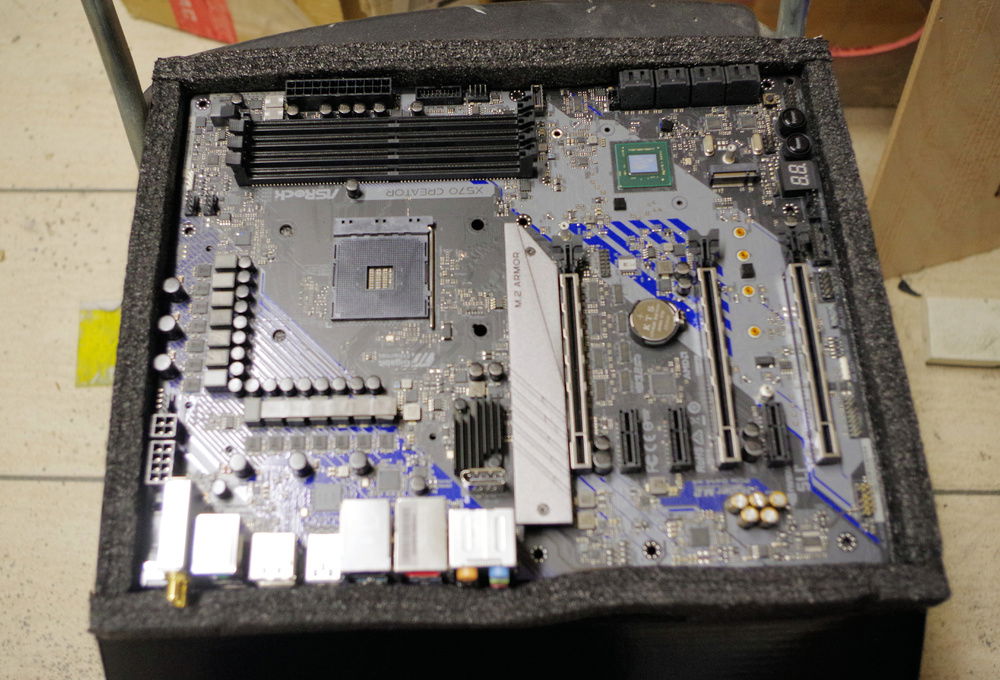

ASRock - X570 Creator
Chipset: X570
CPU Socket: AM4
Size: ATX
Memory
Patriot - Viper 4
Type: DDR4
Capacity: 32 GB
Graphics
$ 285.99
ASRock - Phantom Gaming X
Chip Manufacturer: AMD
Chip: RX 590
Storage
$ 144.99

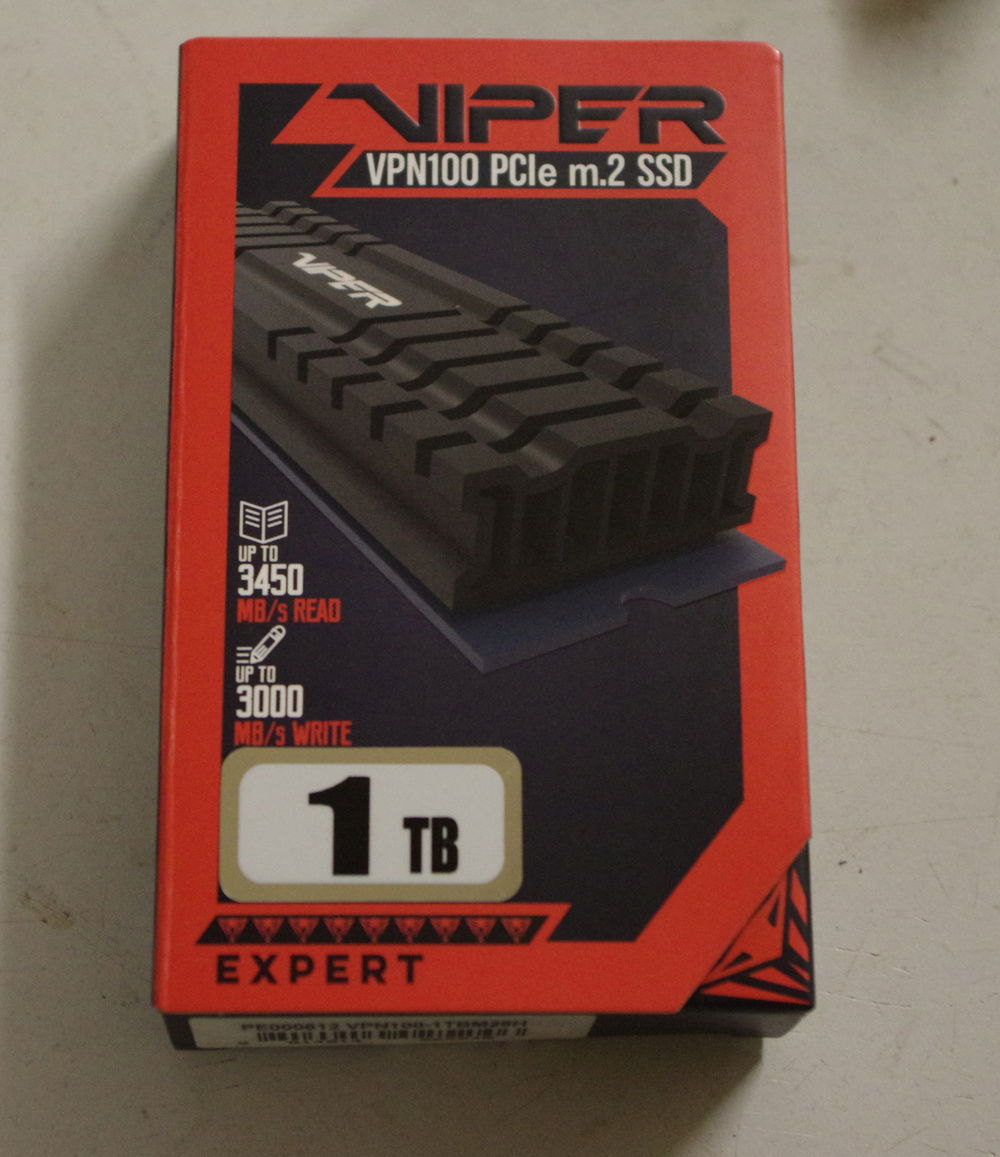

Patriot - Viper VPN100
Form Factor: M.2
Interface: M.2 (M)
Capacity: 1 TB
PSU
$ 232.46
Seasonic - Prime
Wattage: 850
Form Factor: ATX
Efficiency: 80+ Titanium
Case
IN-WIN - Yong
Type: Full-Tower
Side Panel: Open
Cooling
$ 89.99

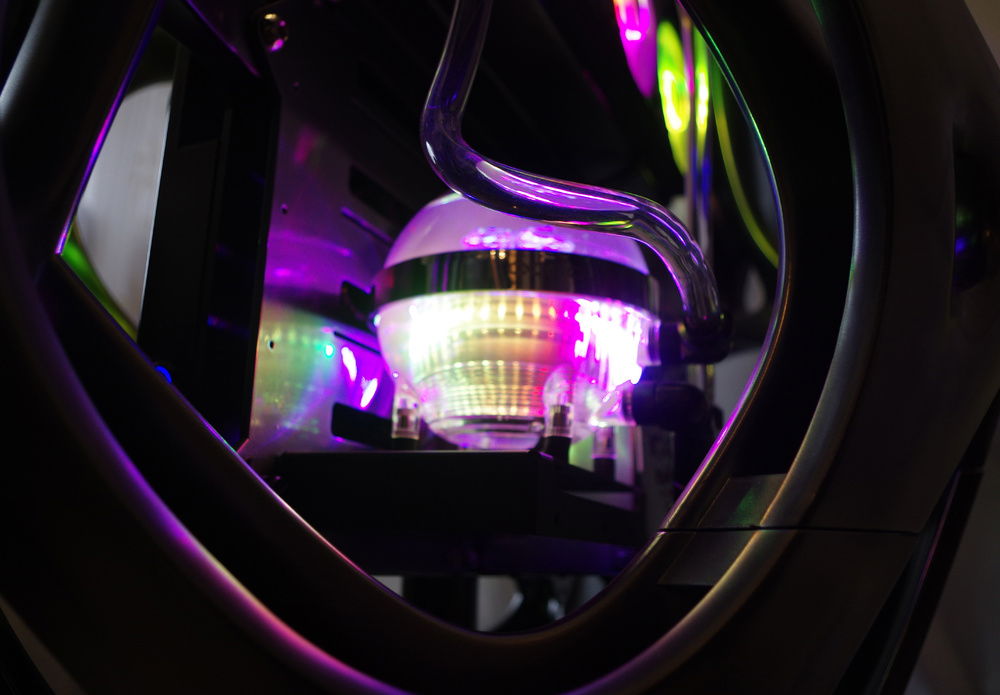

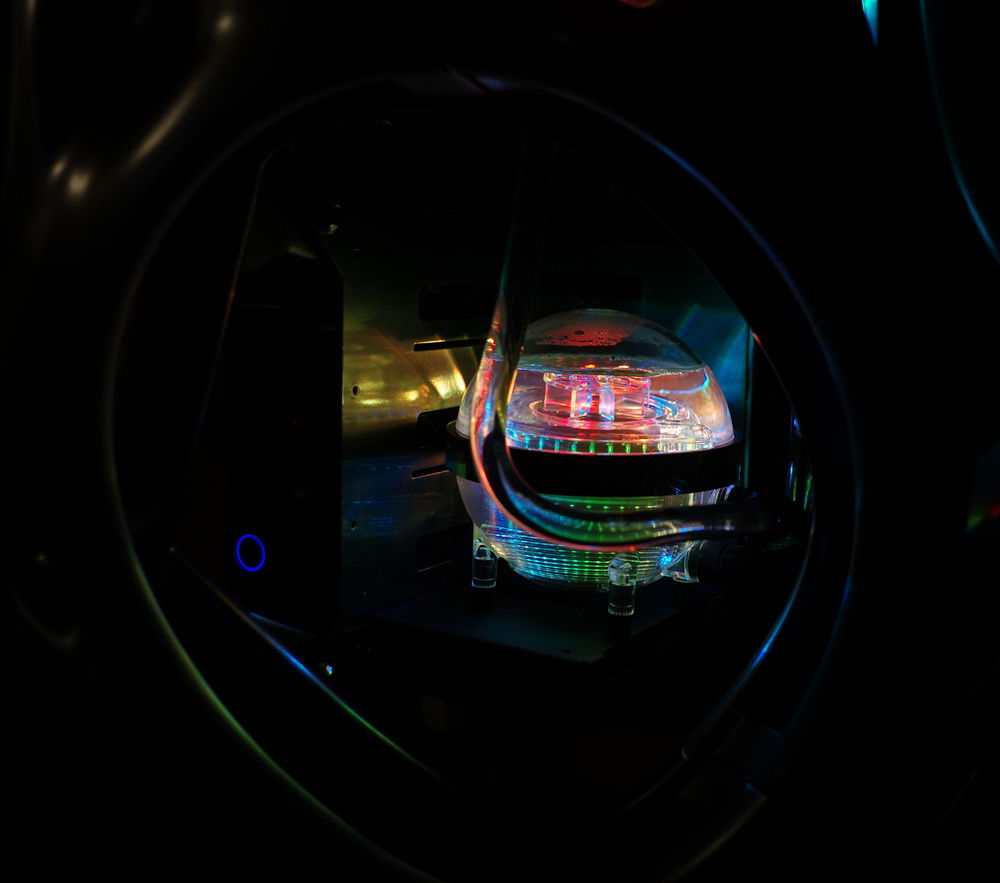

Alphacool - Eisball (RGB)
Type: Reservoir
Cooling
$ 179.00

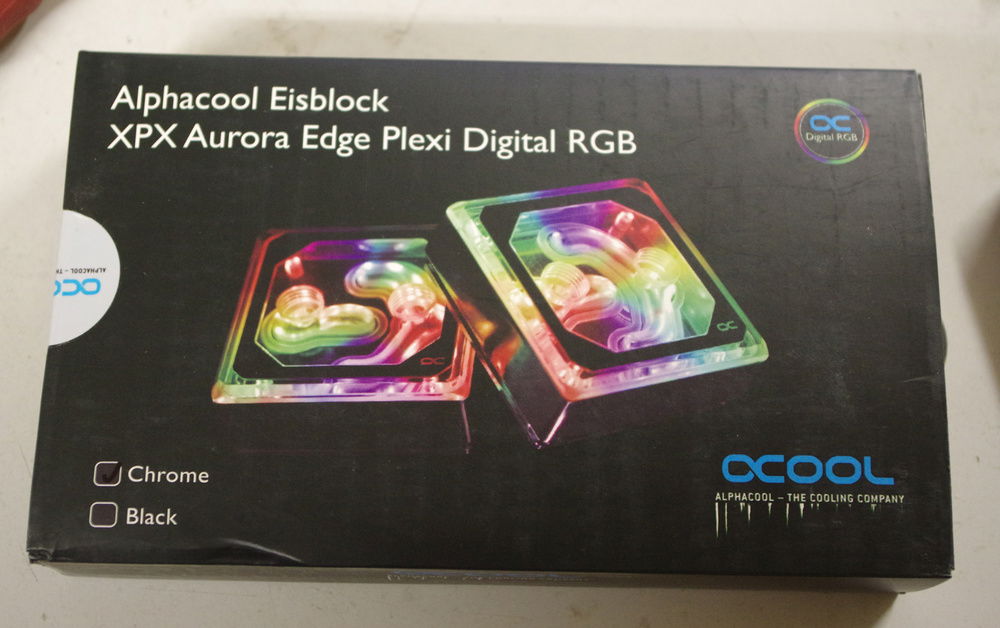

Alphacool - Eisblock XPX Aurora Edge
Type: Waterblock
Cooling
Alphacool - Fittings
Type: Custom Loop
Cooling

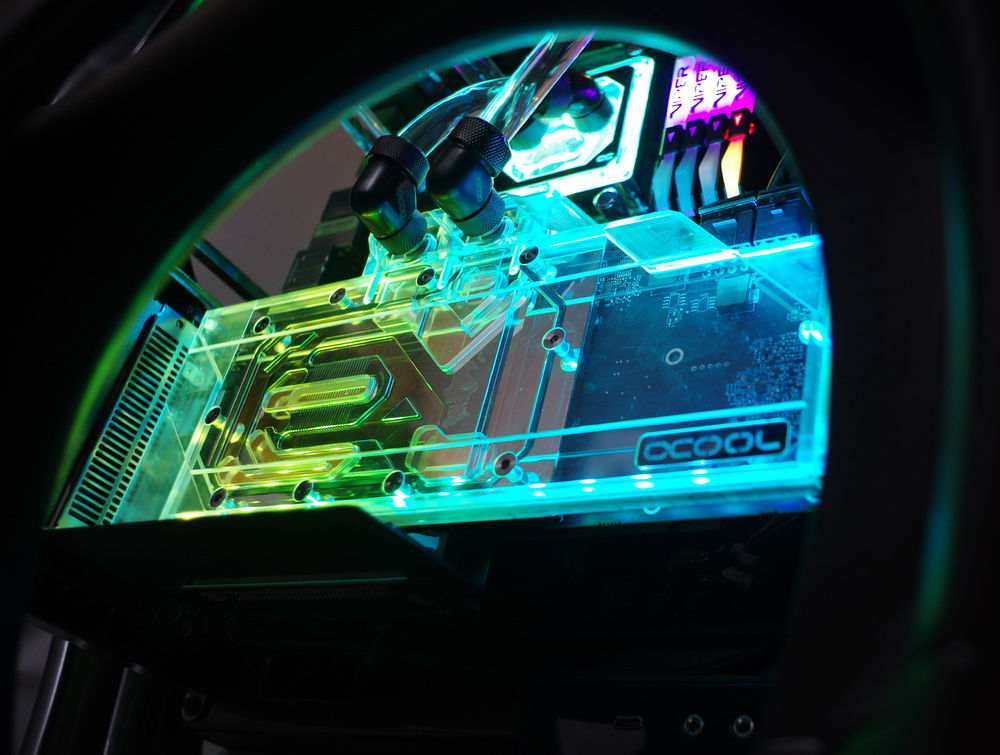

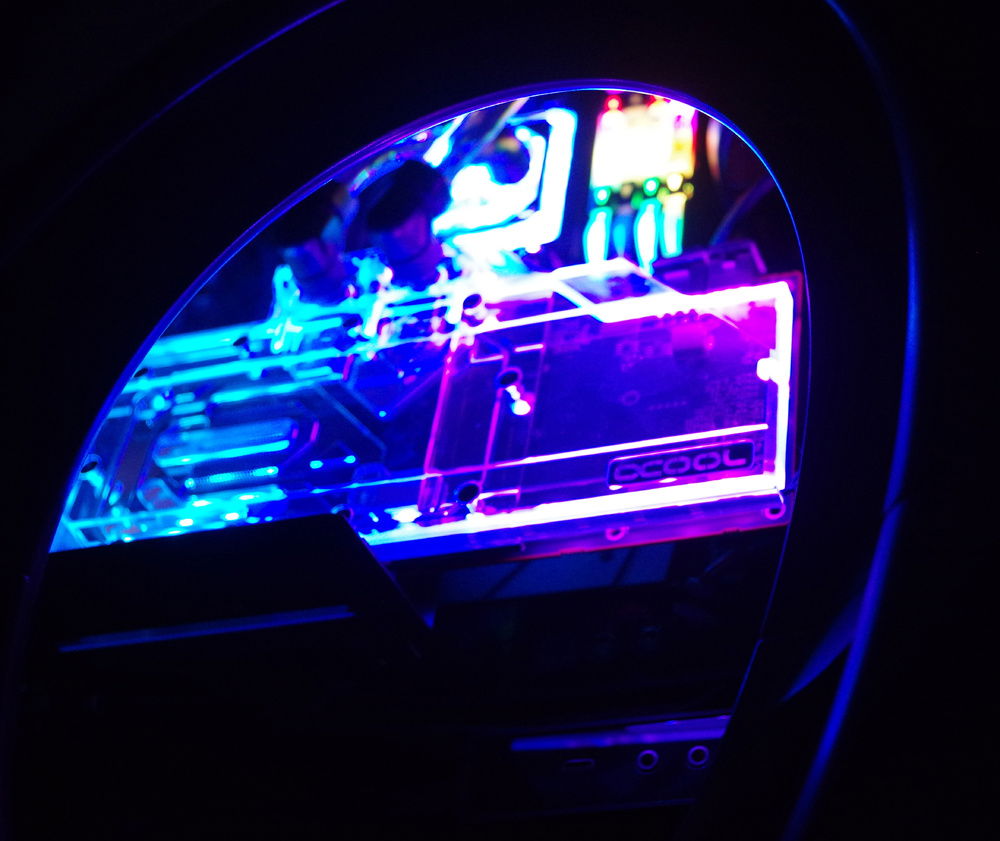

Alphacool - GPU Blocks
Type: Custom Loop
Cooling
Alphacool - Radiators
Type: Custom Loop
Cooling
Alphacool - Tubing
Type: Custom Loop
Unable to dertermine total build value (missing part value)
