Mah Boi - Compact Q500L build with Custom Filters Design

Hi everyone, this is Matteo, product specialist from Cooler Master!

Not many of you know that the MasterBox Q500L was the first project I led back in 2018.
And it all started becuase I modified my own Q300L in order to accomodate ATX build and brought it with me to LAN parties and Focus Groups around Europe.
I really really love this project, and although is not perfect, I believe it can satisfy many users in need of a small, mid-range gaming system.

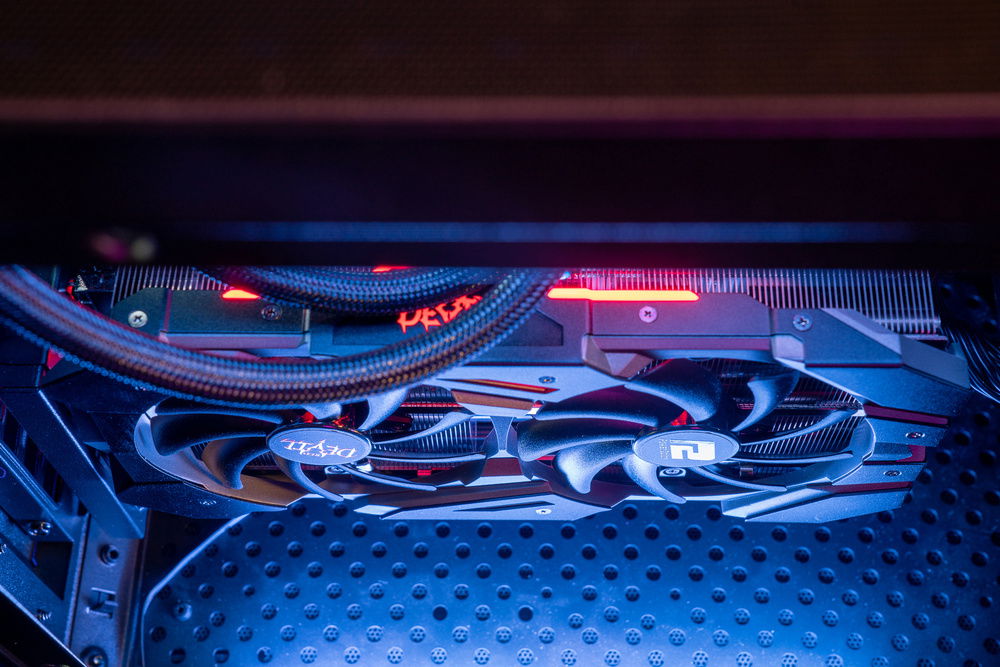

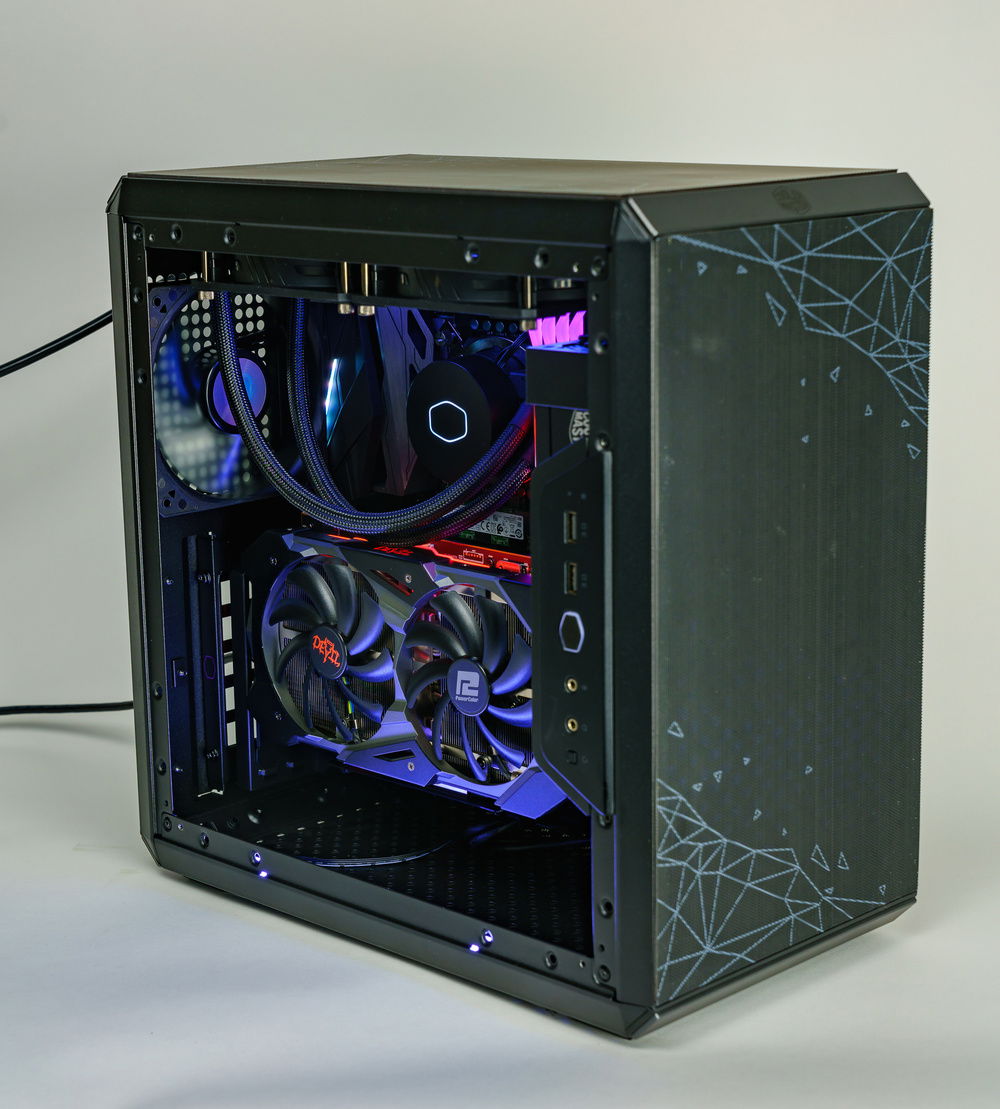

As you can see the GPU is vertically mounted, which is something you normally cannot do in the Q500L, but I'm using a brand new vertical GPU holder here, which soon you'll see on the market :P

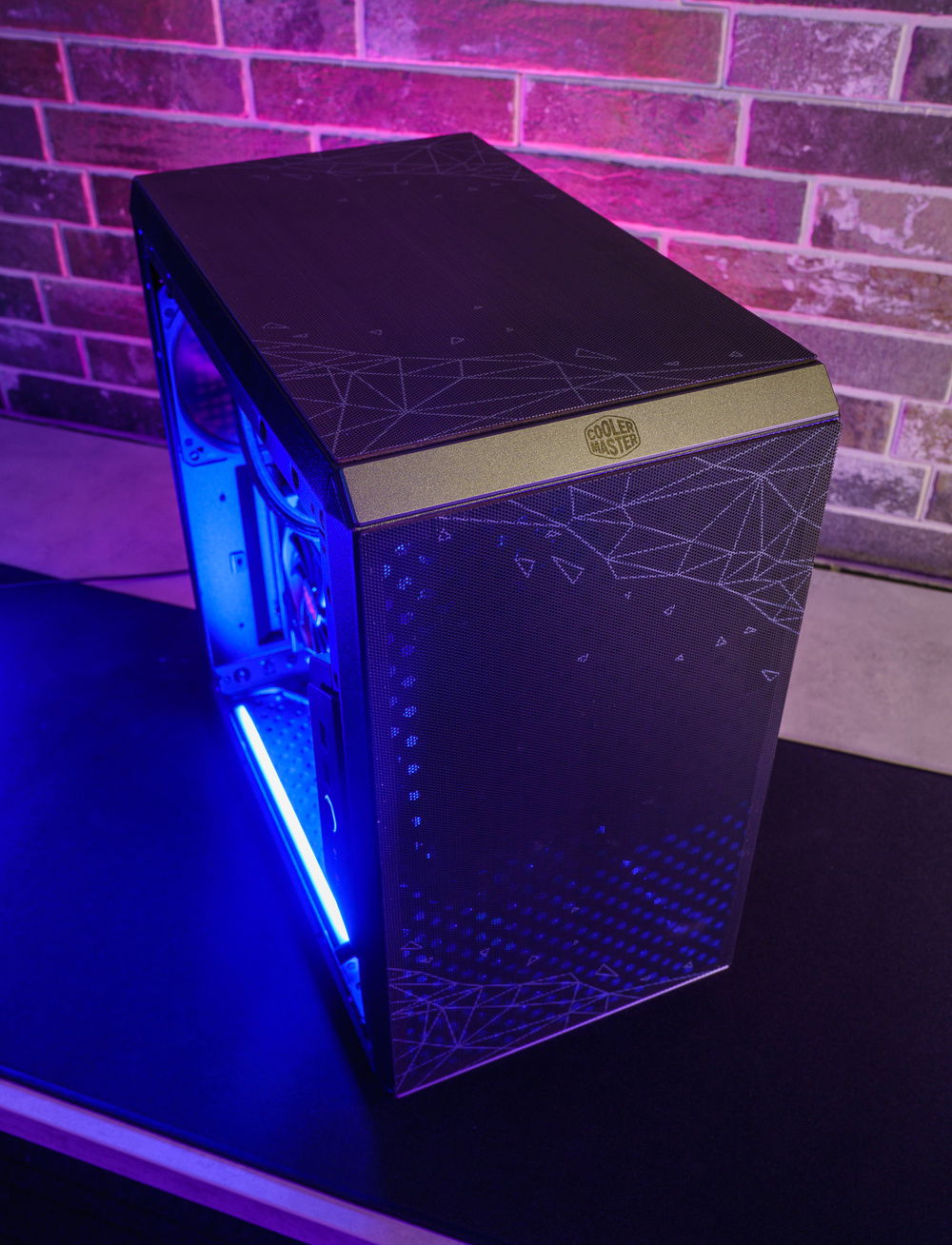

Oh yes, and the filters are custom, I just took some stock ones, removed the previous print and silkprinted a new design on it. Super easy.

Hope you guys enjoy, feel free to ask me here in the comments any question you have in regards of the system, the hardware or the chassis itself, I'll get back to you as soon as possible!
Color(s): Black Red
RGB Lighting? Yes
Theme: Brand
Cooling: AIO Cooling
Size: ATX
Type: General Build

Hardware

CPU
$ 147.72
Intel - Core i7-7700K
Socket: LGA 1151
Cores: 4
Integrated Graphics: Yes
Motherboard
$ 168.80
ASUS - ROG Maximus IX Hero
Chipset: Z270
CPU Socket: LGA 1151
Size: ATX
Memory
$ 402.64
Patriot - Viper 4 Blackout (4000MHz) (Black) (2x)
Type: DDR4
Capacity: 16 GB
Graphics
$ 398.86
POWERCOLOR - Radeon Red Devil
Chip Manufacturer: AMD
Chip: RX 5600 XT
Interface: PCIe x16
Storage
$ 189.00
Intel - 600p
Form Factor: M.2
Interface: M.2 (M)
Capacity: 1 TB
PSU
$ 1,004.67
Cooler Master - V750 (V1)
Wattage: 750
Form Factor: ATX
Efficiency: 80+ Gold
Case
$ 101.26
Cooler Master - Masterbox Q500L
Type: Micro-ATX
Side Panel: Acrylic
Case Fan
Cooling
$ 118.99
