WC custom on corsair carbide 270r

WC custom on corsair carbide 270R
Tower composed of :
- corsair carbide 270R (with front panel custom)
- aorus z390 ultra
- intel i5-9600kf delid
- aorus gtx 1080 ti xtreme 11G
- 2x8Gb corsair vengeance lpx 3200Mhz
- adata Sx8200 nvme 1To

The custom watercooling is made of :
- wb cpu barrow CPU-XPR-MK-V3 Black rgb,
- wb gpu bykski N-GV1080TIXT-X,
- EK-XRES 140 Revo D5 PWM
- Barrow dabel-30a 360 and 240 (30mm thickness)
- 1 liquide temperature indicator barrow FBFT02-V4
- tubes petg transparent barrow 14-10 (10 was ordered, two remains ^_^)
- 7 straight Black fittings barrow TFYKN-T14
- 5 rotative 90° Black fittings barrow TWT90KND-K14
- 2 male/male barrow TB2D-MINI01
- 1 male/femelle barrow TNYZ-G7.5
- 1 3 ways barrow TLFT3T-A01
- 1 rotative 4 ways TX4T-A01
- 1 barrow TQFS-V1
- 1L EK Cryofuel clear + ek cryofuel concentrate blood red
+
- 1 cablemod Formulamod red (24pins, 2x8 pins for cpu, 2x 8 pins for GPU)
- 6 enermax squa Rgb 120mm

What remains to be done :

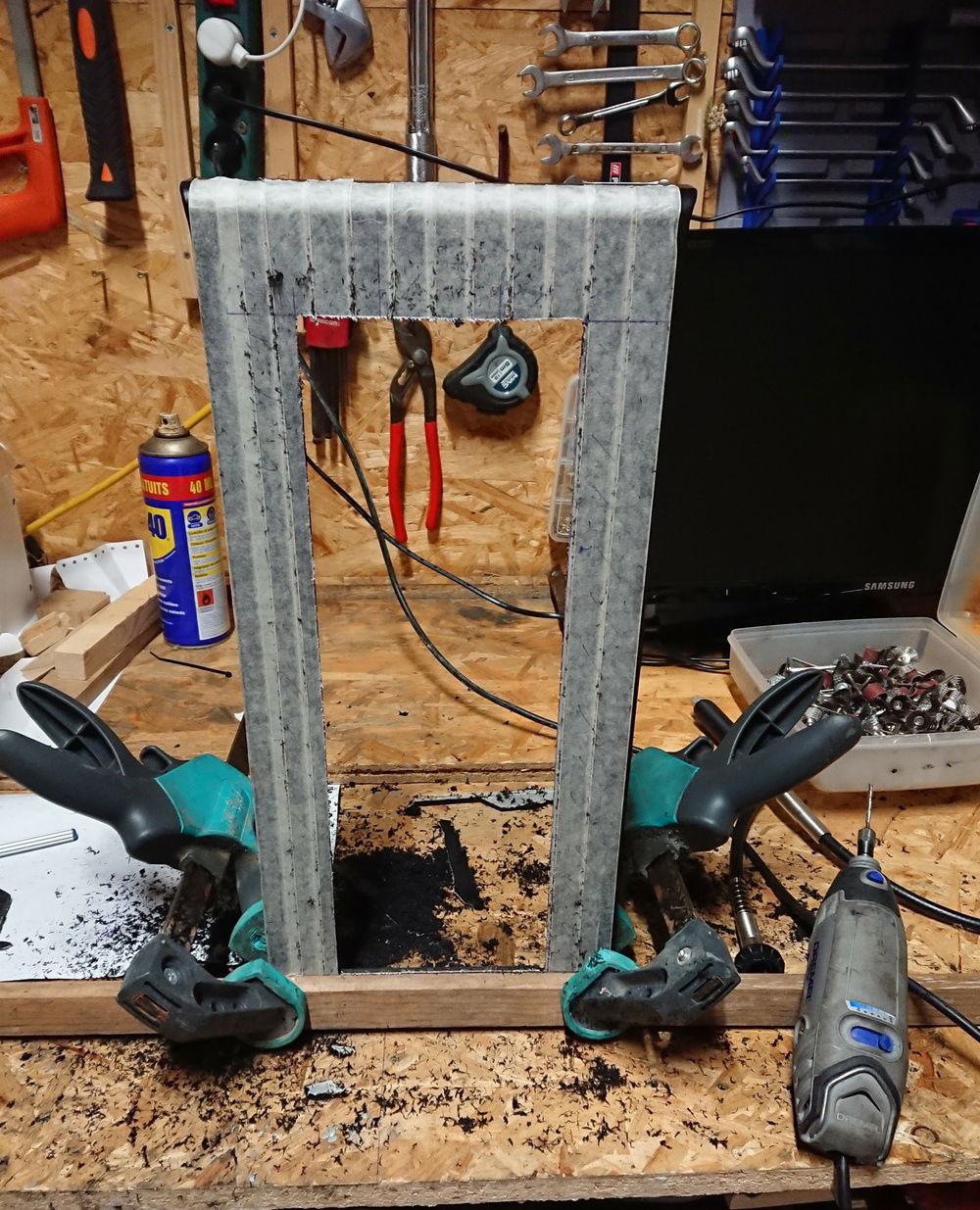

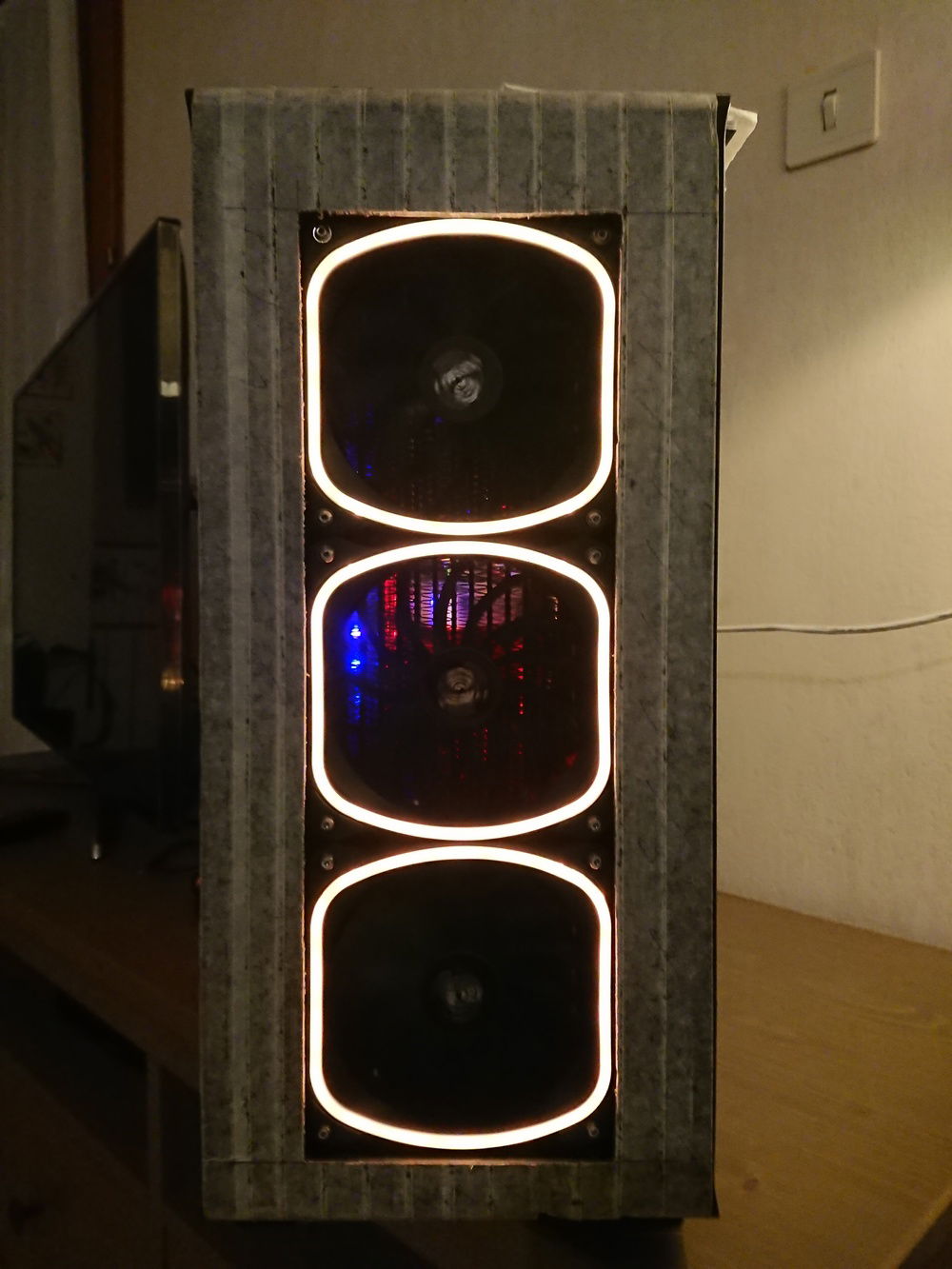

- cutting the front panel to increase air intake

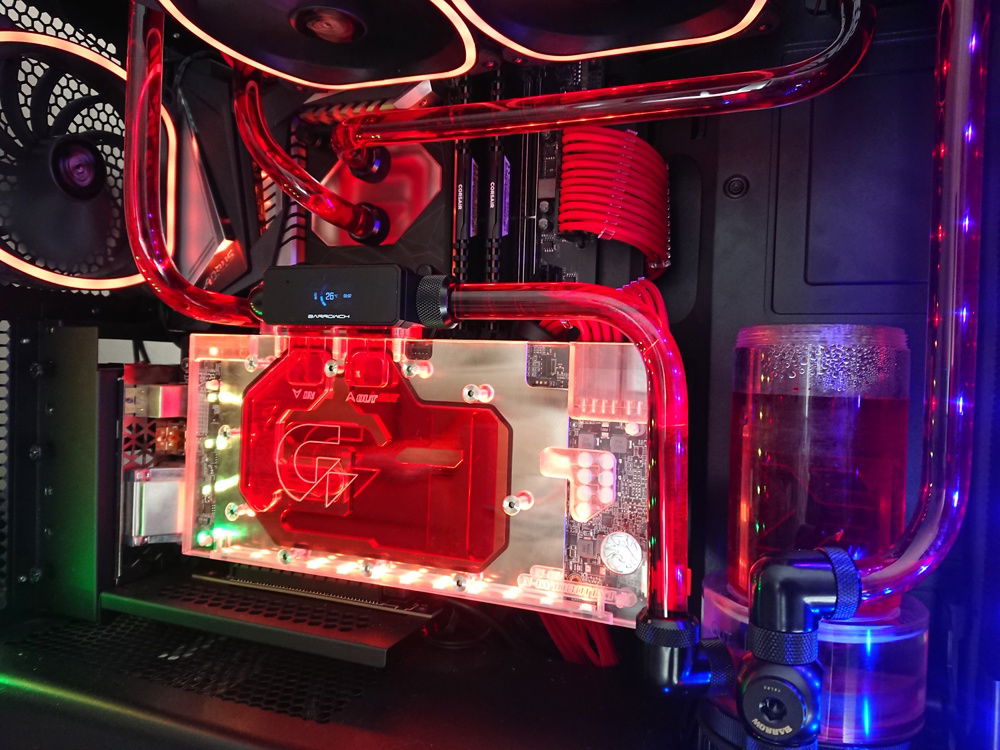

- addition of blood red colorant in the fluid
- buy a rgb Y splitter (min 1 to 2) in order to enlight the rear fan

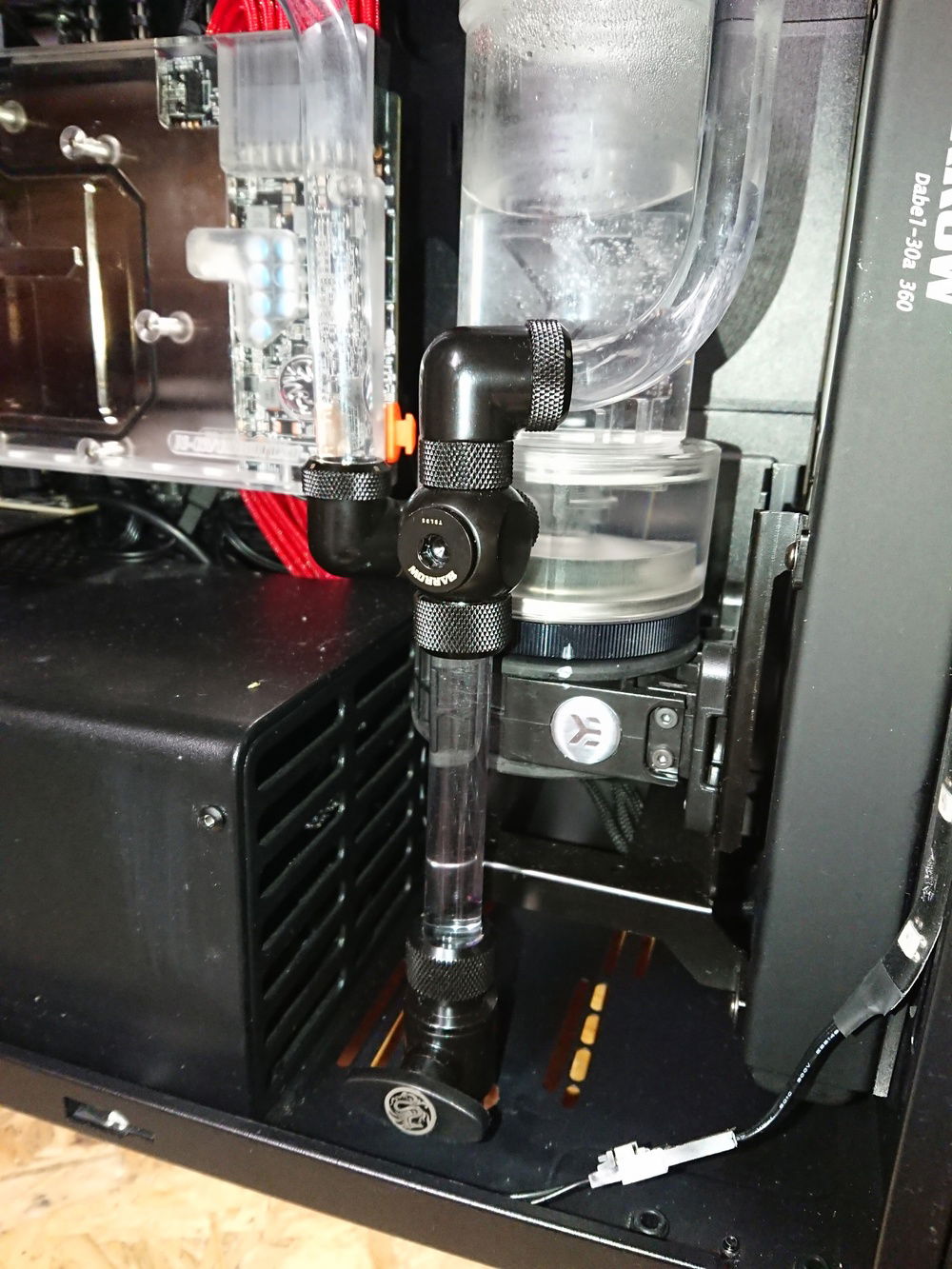

- rework on the drain valve (maybe would be better to have it directly on the reservoir)
Color(s): Black Red
RGB Lighting? Yes
Theme: none
Cooling: Custom Liquid Cooling
Size: ATX
Type: General Build

Hardware

CPU
$ 180.12
Intel - i5-9600KF
Socket: LGA 1151
Cores: 6
Motherboard
$ 349.99
Gigabyte - Aorus Ultra
Chipset: Z390
CPU Socket: LGA 1151
Size: ATX
Memory
Corsair - Vengeance LPX (3200MHz) (Black) (2x)
Type: DDR4
Capacity: 8 GB
Graphics
$ 1,298.86
Gigabyte - AORUS Xtreme
Chip Manufacturer: NVIDIA
Chip: GTX 1080 Ti
Storage
$ 115.48
ADATA - XPG SX8200 Pro
Form Factor: M.2
Interface: M.2 (M)
Capacity: 1 TB
PSU
Seasonic - Prime Ultra
Wattage: 650
Form Factor: ATX
Efficiency: 80+ Gold
Case
$ 195.00
Corsair - Carbide 270R
Type: Mid-Tower
Side Panel: Window
Case Fan
Enermax - SquA RGB (6x)
Size: 120 mm
Accessories
$ 64.99
